1 Introduction

Facial aesthetics has garnered significant attention in the field of cosmetic procedures, and botulinum toxin (BoNT) injections have emerged as versatile tools in this domain [1-3]. Traditionally recognized for their role in reducing facial wrinkles, BoNT injections are now also utilized to refine nasal regions [4].

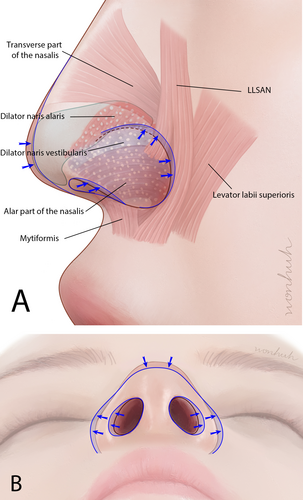

The injection of BoNTs into the nasal area has typically been limited to the treatment of nasal wrinkles [5]. However, recent practices have expanded to administering BoNT injections in the ala region [6]. Several muscles, including the myrtiformis, dilator naris anterior (DNA), dilator naris vestibularis (DNV), ala part of the nasalis, transverse part of the nasalis, and levator labii superioris alaque nasi (LLSAN), exist in this region. Contraction of these muscles induces movement in the ala area (Figure 1). By selectively inhibiting these actions, BoNT modulates involuntary muscle activity responsible for ala flaring and other dynamic movements. Moreover, the nasal ala region encompasses the lateral aspect of the nose, contributing significantly to the overall facial appearance and nasal contour.

However, administering BoNT injections for nasal ala muscle treatment can lead to complications, such as asymmetrical ala shape and paralysis of nearby muscles, including the orbicularis oris muscle. These complications often arise because of insufficient awareness of the anatomical factors associated with the procedure [8]. To avoid undesired effects, injections are administered precisely and directly into each delicate muscle based on sound anatomical knowledge.

In this study, we utilized ultrasonography to examine the anatomical structure and dynamic movements of the nasal ala, aiming to identify the most suitable landmarks for guiding BoNT administration. We also explored the intricacies of applying BoNT in the nasal ala region.

2 Materials and Methods

This cross-sectional study included 32 Korean participants (15 females and 17 males) with a mean age of 37.4 years (range: 18–62 years). Individuals who had not undergone nasal interventions, nasal surgery, or BoNT injections into the nasal region were evaluated using ultrasonography. Written informed consent was obtained from all participants, and this study adhered to the principles of the Declaration of Helsinki. The research protocol received approval from the Institutional Review Board (IRB) of Yonsei University Dental Hospital (IRB No. 2-2023-0050; approval date: October 19, 2023).

The examination focused on assessing the superficial and deep muscular layers within the nasal ala region during resting and dynamic facial expressions. Ultrasonography was used to visualize the muscles associated with the ala, including the transverse part of the nasalis, ala part of the nasalis, DNV, DNA, LLSAN, and levator labii superioris (LLS).

Ultrasonographic images of these muscles were captured using a real-time two-dimensional B-mode ultrasonography device equipped with a high-frequency (18 MHz) linear transducer (Sonimage HS1; KONICA MINOLTA, Tokyo, Japan). Ultrasonographic imaging and depth measurements were performed by positioning the probe horizontally along an imaginary line connecting the pronasal area and the alar groove. The probe was also aligned horizontally along the lower border of the nose at the pronasal level and placed horizontally between the pronasal and subnasal areas to capture ultrasonographic images from these three regions.

To ensure the reliability of the ultrasonographic measurements, intra-observer reliability was assessed by having the same observer repeat the measurements on 10 randomly selected participants after a 2-week interval. Intraclass correlation coefficients (ICCs) were calculated, yielding a value of 0.95, indicating excellent consistency.

The normality of the data distribution was assessed using the Shapiro–Wilk test. Differences in the depth from the skin to the muscle between male and female groups were analyzed using the Mann–Whitney U-test. A significance level of p < 0.05 was adopted for all analyses. Statistical analyses were conducted using SPSS software (version 23.0 for Windows, SPSS Inc., Chicago, IL, USA).

3 Results

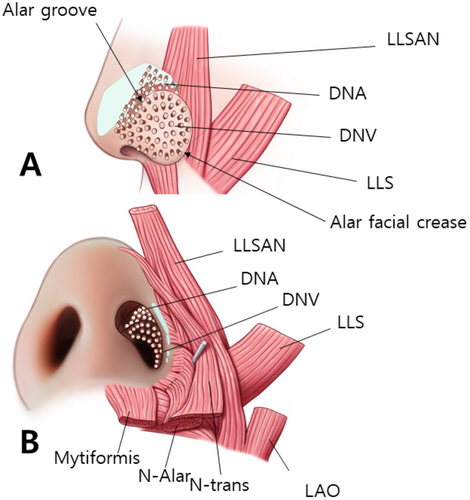

The ala portion of the nasalis muscle blends with the DNV extending from the alar facial crease to the lower and lateral sections of the alar lobule. The muscular fibers of the ala portion of the nasalis insert toward the external skin, contributing to the downward pull and narrowing of the ala muscle. Notably, although the ala part of the nasalis does not completely envelope the entire ala section, it exhibits greater thickness in the lateral section of the lobule, where it converges with the LLSAN and LLS muscles (Figure 2A).

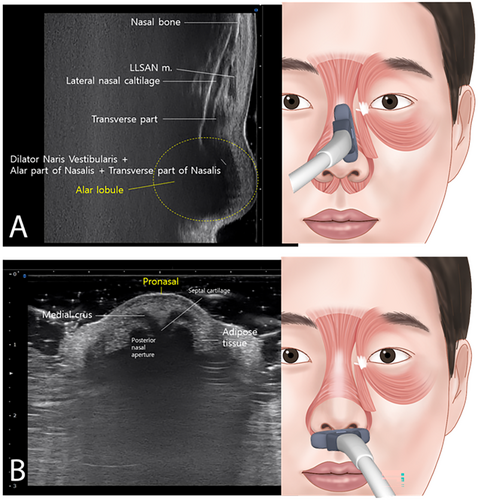

The DNA is situated above the alar groove and DNV is located below the alar groove. The myrtiformis, consisting of the depressor septi nasi and depressor alae nasi muscles, was observed at the base of the nasal opening (Figure 2B). When the probe was positioned along the lateral border of the nose to observe the transverse part of the nasalis (Figure 3A), the DNV, along with the ala and transverse parts of the nasalis were found to merge at the lateral segment of the alar lobule. Hypoechoic imaging revealed the presence of the lateral nasal cartilage and associated muscles. Additionally, placing the probe horizontally between the pronasal and subnasal areas revealed the medial crus and septal cartilage as hypoechoic images (Figure 3B).

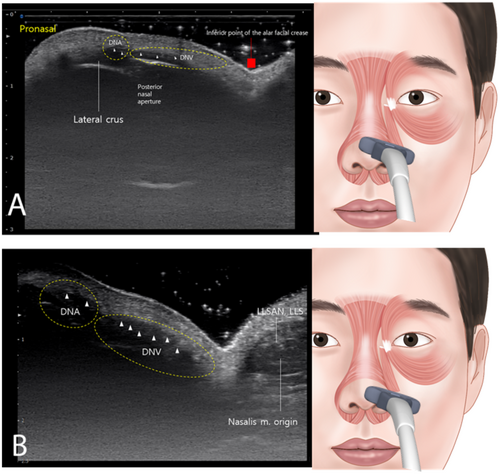

Positioning the probe horizontally along an imaginary line connecting the pronasal area and the alar groove revealed the DNA and DNV originating from the posterior nasal aperture and traversing vertically to the dermal layer, with the alar groove acting as a demarcation between the two (Figure 4A). At the pronasal area level, when a probe was placed horizontally along the lower border of the nose, it showed that the alar and transverse parts of the nasalis muscle originate from the maxilla and intermingle with the LLSAN and LLS (Figure 4B). Moreover, when flaring the nose outward, simultaneous distinct movements of the nasal musculature were observed, as shown in Video S1.

The depth from the skin to the muscle was measured as 1.94 ± 0.17 mm horizontally along an imaginary line connecting the pronasal area and the alar groove, 2.85 ± 0.04 mm at the pronasal area level with the probe placed horizontally along the lower border of the nose, and 4.55 ± 0.06 mm horizontally between the pronasal and subnasal areas. Ultrasonographic images were consistent across all 32 participants, with no observable discrepancies. Additionally, no significant differences were found between male and female groups (p > 0.05).

4 Discussion

In this cross-sectional study, we found that ultrasonography effectively identifies suitable landmarks for BoNT administration in the nasal ala region, leading to refined nasal contours and minimized nostril flaring. These findings suggest that precise anatomical knowledge significantly enhances the efficacy and safety of BoNT injections, reducing the risk of complications such as asymmetrical ala shape and muscle paralysis.

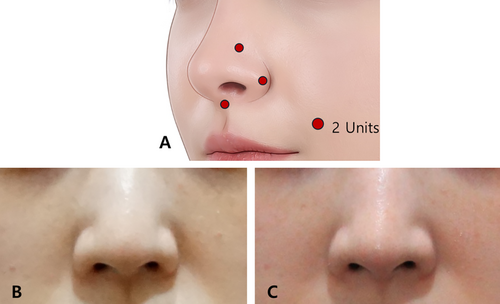

Strategic targeting of muscles such as the transverse part of the nasalis, DNA, and LLSAN can reduce sharp alar movements, prevent nasal tip depression, and minimize alar widening. Table 1 provides a detailed overview of these muscles, outlining their roles and the expected effects when targeted. Based on the authors' guidelines, key injection points include the alar groove, the lateral inferior part of the alar lobule, and the nasal spine. This approach primarily targets muscles such as the transverse part of the nasalis, DNV, and the nasal insertion of the LLSAN, contributing to more defined nasal contours by minimizing alar widening and nasal tip depression. Additionally, an injection at the nasal spine can paralyze the myrtiformis, further refining the nasal shape (Figure 5). Recognizing nasal anatomy is also critical when integrating BoNT with surgeries like rhinoplasty, ensuring a harmonious transition between the nasal base and upper lip [6].

Hur et al. [7] highlighted the structure and positioning of the DNV muscle, which lies between the vestibular and external ala skin. This muscle, along with the DNA and alar nasalis, contributes to nasal flaring and vestibular movements. Together, these muscles play a critical role in shaping the nasal ala and are consistent with the ultrasonographic findings of this study.

Moreover, in this study, ultrasonography was used to measure the thickness of the injection sites, enabling the proposal of effective injection depths. The distance from the skin to the muscle was 1.94 ± 0.17 mm at the alar groove, 2.84 ± 0.04 mm at the lower border of the nose, and 4.55 ± 0.06 mm at the nasal spine. Based on these findings, and considering both maximum and minimum values, an injection depth of about 1.9 mm at the alar groove, about 2.8 mm at the lower border of the nose, and about 4.5 mm at the nasal spine is suggested to accurately target the muscles in the nasal ala region.

Yi et al. [9] emphasized the importance of precise BoNT injection sites and external anatomical landmarks, proposing a framework for improving outcomes and minimizing complications such as nasal deviations or filler migration. Injecting BoNT into the alar part of the nasalis and LLSAN has been shown to prevent nostril flaring and lateral widening while maintaining nasal tip stability. Patients with widened nasal openings particularly benefit from targeting the ala facial crease, with injection adjustments made for individual anatomical variations. This tailored approach highlights the potential of BoNT in both aesthetic and functional refinements of the nasal region.

The primary limitation of this study is its small sample size (32 participants), which limits the generalizability of the findings. Additionally, while our intra-observer reliability assessment indicated excellent consistency (ICC = 0.95), the study was conducted using a single imaging modality. Future research with larger cohorts and diverse imaging modalities is needed to validate and expand upon these results. A thorough understanding of nasal anatomy through ultrasonography is essential for achieving successful BoNT injections in the nasal ala region, ensuring optimal outcomes.
