The Salmonella effector AvrA mediates bacterial intracellular survival during infection in vivo

Introduction

Salmonella typhimurium is a food-borne Gram-negative pathogen that is a major public health challenge both in the USA and in the developing world. Infection is generally confined to the intestinal mucosa and is usually self-limited, although systemic dissemination may occur in immunocompromised persons. Characteristically, intestinal Salmonellosis shows marked acute neutrophilic inflammation without development of acute epithelial destruction typically associated with other enteric pathogens such as Shigella infection (Sansonetti and Di Santo, 2007), or macrophage cell death that occurs in Yersinia infection (Ruckdeschel et al., 1997). The pathogenesis of Salmonella infection has been extensively studied in mammalian model systems. After ingestion and gastric passage, Salmonella reaches the small intestine lumen where it translocates epithelia overlaying mucosal lymphoid aggregates, or Peyer's patches or invades across the absorptive epithelium of the villus units (Monack et al., 2000). Alternatively, Salmonella may be taken up directly by lamina propria dendritic cells that interdigitate between epithelial cells and sample the luminal content (Tam et al., 2008). In either case, the bacteria establish itself within dendritic cells or macrophages in the Peyer's patches or lamina propria, and Salmonella then rapidly disseminate to phagocytic cells of the hepatic and splenic reticuloendothelial system, ultimately taking up residence in macrophages and macrophage-like cells. These events stimulate inflammatory signalling, including activation of the NF-κB and MAPK pathways, resulting in secretion of inflammatory mediators, accumulation of neutrophils and development of systemic inflammatory syndrome (Tam et al., 2008).

In order to invade and survive with host cells, Salmonella possesses a range of effector proteins that are translocated into the host cells via a type III secretion apparatus (Staskawicz et al., 2001). These effector proteins are generally assumed to influence host cellular functions to facilitate Salmonella invasion and intracellular carriage. Given the central role innate immune pathways play in the control of enteric pathogens, it is not surprising that diverse bacterial pathogens have evolved mechanisms to surmount their effects. Inhibition of MAPKs (and NF-κB) has been described in Yersinia, Shigella andenteropathogenic Escherichia coli infections (Duesbery et al., 1998; Orth et al., 1999; Li et al., 2007). It is generally accepted that bacterial pathogens evolved these capacities to prevent or reduce the upregulation of the inflammatory response, thus blocking the recruitment of phagocytic leucocytes. Acute infections may also involve apoptotic killing of epithelial cells and macrophages – events likely permissive for bacterial proliferation and dissemination – while chronic intracellular pathogens may suppress apoptosis as a mechanism to maintain a stable niche.

A relevant example of a secreted factor with immunosuppressive function is AvrA, a 33 kDa Salmonella protein that is translocated into intestinal epithelial cells during the initial stages of invasion (Hardt and Galan, 1997). AvrA is a member of a family of acetyltransfereases expressed in several enteric pathogens, which includes YopJ/P in Yersinia pseudotuberculosis (Orth et al., 1999) and VopA in Vibro parahemalyticus (Mukherjee et al., 2007). We have shown that when AvrA is overexpressed in transfected cells and in a Drosophila transgenic model, activation of the MAPK JNK and consequent transcriptional activation of a range of inflammatory effector genes is blocked (Collier-Hyams et al., 2002; Jones et al., 2008). Du and Galan demonstrated remarkably similar suppressive effects of AvrA on JNK signalling in a yeast model (Du and Galan, 2009). Interestingly, in both flies and human cells, innate immune signalling blockade occurred without induction of apoptotic cell death characteristically seen during inhibition of host inflammatory signalling pathways. Consistently, infection of mice with mutant Salmonella lacking AvrA (avrA^-) resulted in increased injury in the gut (Jones et al., 2008). In this report, we extended these in vivo findings in a well-established murine model of enteric and systemic Salmonellosis. We show that Salmonella SL3201(avrA^-) induced higher levels of inflammatory mediator expression, leucocyte recruitment, cellular inflammation and apoptosis in epithelia and monocytic cells of the mucosa and systemic lymphoid tissue. We demonstrate that Salmonella SL3201(avrA^-) was able to proliferate more efficiently in mesenteric lymph node (MLN) and spleen. Despite the increased proliferation by mutant Salmonella, we demonstrate these avrA^- organisms do not maintain the typical intracellular niche characteristic of w.t. Salmonella. Consistently, we show that AvrA is a potent inhibitor of macrophage apoptosis, and can suppress cell death induced by extraneous signals. These data suggest that the AvrA effector can control mucosal and systemic innate immune and apoptotic responses during natural infection, thus elucidating a mechanism of how an intracellular pathogen can deflect both inflammatory and apoptotic defences.

Results

Natural infection with mutant Salmonella SL3201(avrA^-) induces a more severe inflammatory response

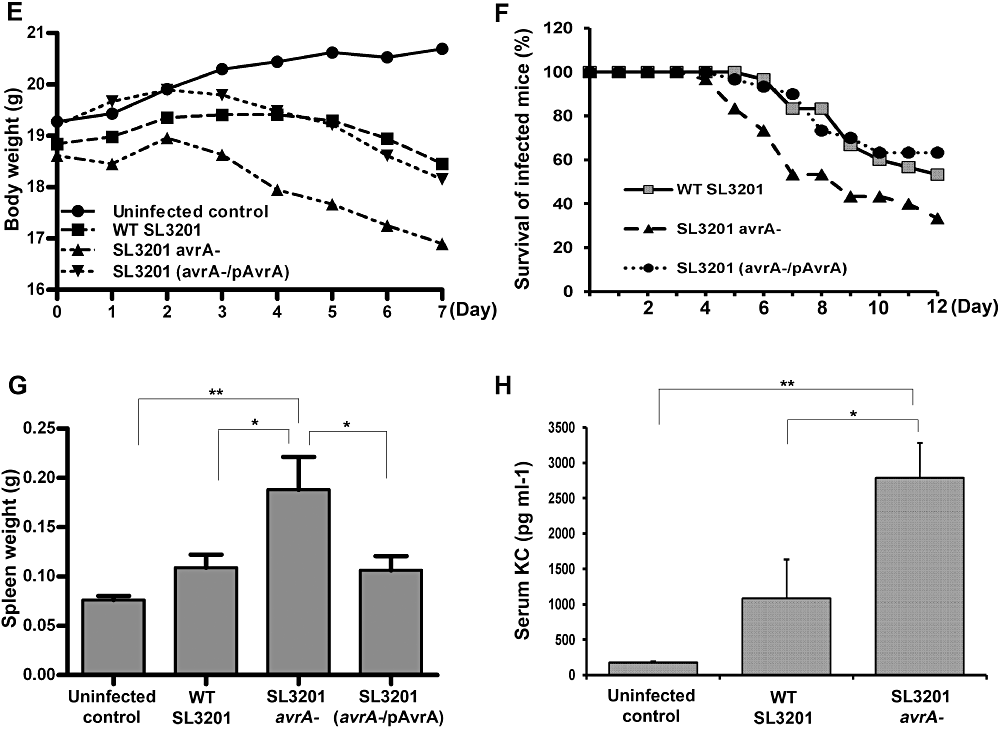

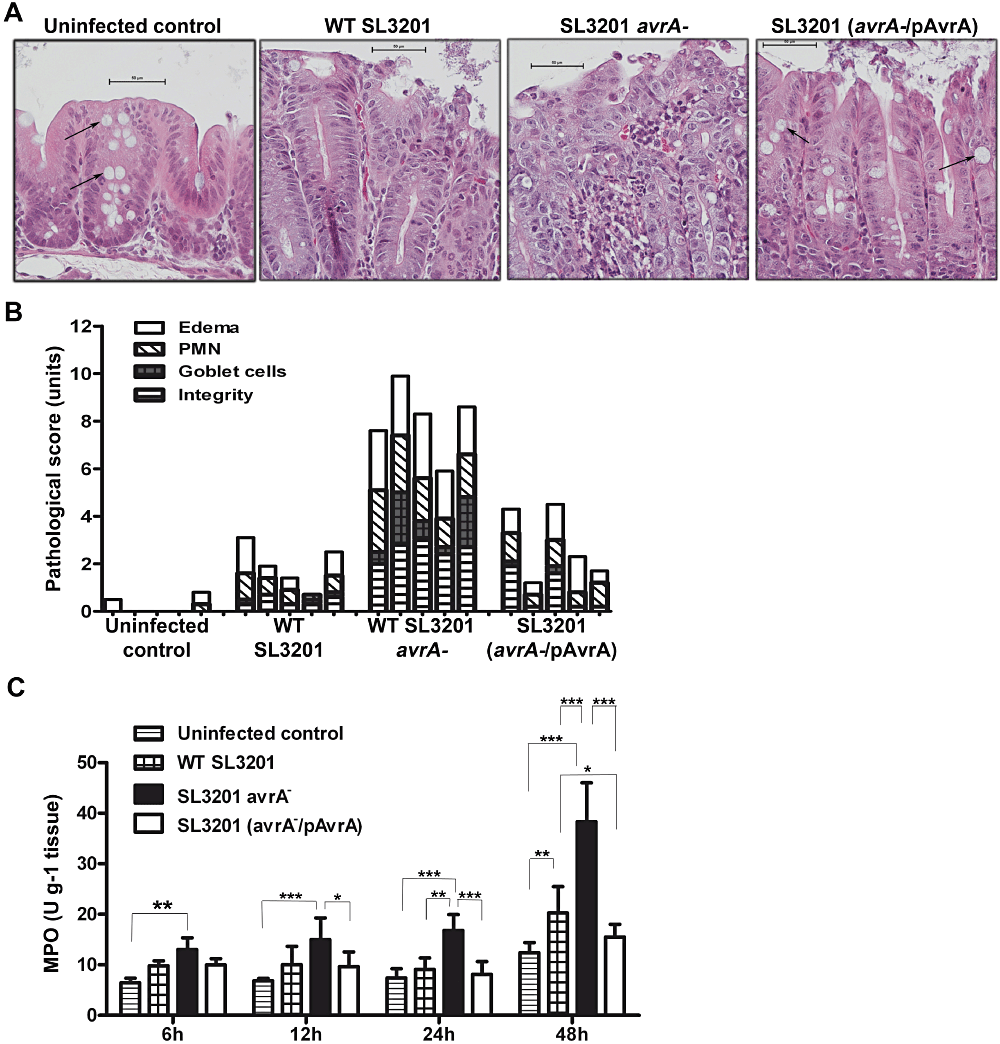

To study the role of AvrA in natural intestinal infection in vivo, we employed the well documented streptomycin pre-treatment mouse model of enteric Salmonellosis (Barthel et al., 2003; Vijay-Kumar et al., 2006). Mice were infected with S. typhimurium parent strain SL3201, hereafter referred to as wild-type w.t. SL3201, or two previously characterized isogenic SL3201 mutants, including a non-polar insertional mutation in the chromosomal avrA gene SL3201(avrA^-), and the SL3201(avrA^-) strain complemented with a plasmid harbouring wild-type AvrA SL3201(avrA^-/pAvrA) (Collier-Hyams et al., 2002). Four groups of female BALB/cj mice were pre-treated with streptomycin for 24 h before infection with 10⁸ cfu per mouse Salmonella by oral gavage, and sacrificed at intervals post infection (p.i.). To compare the inflammatory response, we evaluated caecal histopathology, which was graded with a semi quantitative scale (Vijay-Kumar et al., 2006). The earliest morphological changes were seen at 6 h p.i., manifested by loss of goblet cells, polymorphonuclear cell infiltration into the lamina propria, and epithelial damage (Fig. 1A). Histopathological changes peaked at 24 h p.i. Most notably, infection with SL3201(avrA^-) resulted in a marked increase in the pro-inflammatory response at 24 h p.i., relative to the parent or complemented strain (Fig. 1A and B). Grossly, infection with SL3201(avrA^-) resulted in inflammatory exudate and massive oedema in three out of five mice at 6 h p.i. These effects were not seen following infection with w.t. SL3201 strain or complemented SL3201(avrA^-/pAvrA) (data not shown). Consistently, caecal myeloperoxidase (MPO) activity was significantly elevated following infection with SL3201(avrA^-) at 6, 12, 24 and 48 h p.i., compared with the control strains (Fig. 1C). These data corresponded closely with disease index scores presented in Fig. 1B. Importantly, in each assay, the increased inflammation induced by SL3201(avrA^-) was not detected following infection by the complemented SL3201(avrA^-/pAvrA) strain, together showing that AvrA functions in vivo to suppress intestinal inflammation up to 48 h following S. typhimurium infection (Fig. S1).

Salmonella-secreted protein AvrA dampens apoptosis in multiple murine cell lines following infection

We next investigated the effects of AvrA on apoptosis in mucosal cell types following Salmonella infection. We previously reported that infection of mice with SL3201(avrA^-) induced significantly increased numbers of apoptotic epithelial cells at 6 h p.i. compared with w.t. SL3201 or SL3201(avrA^-/pAvrA) (Jones et al., 2008). Here, we expand on these observations and show that SL3201(avrA^-) also induces elevated levels of apoptotic cells in the caecal mucosa at 24 h following infection (Fig. S2A and B). We assessed the level of apoptosis in mucosal tissue or in the spleen at the indicated time points because they are consistent with the progression of Salmonella invasion and dissemination following infection. Importantly, in the course of these experiments we also observed a similar pattern of increased SL3201(avrA^-)-induced apoptosis in caecal lymphoid tissues located in subepithelial compartments (Fig. 2A and B). Immunostaining of these tissues revealed that the apoptotic cells also stained positive with the macrophage marker F4/80 (Fig. S2C). To confirm these findings in vitro, we infected murine bone marrow-derived macrophages or non-transformed primary epithelial cell monolayers (rat IEC-6 cells) with the Salmonella strains. Consistent with the in vivo observations, SL3201(avrA^-) induced apoptosis in significantly increased numbers of bone marrow-derived macrophages (Fig. 2C) or primary epithelial cells (Fig. 2D) compared with the w.t. or complemented strains. Thus, in vitro and in vivo, SL3201(avrA^-) induced markedly increased cell death, suggesting a physiological role for AvrA in suppressing cell death pathways in both cell types involved in Salmonella infection.

Salmonella SL3201(avrA^-) exhibited increased mucosal and systemic dissemination in vivo

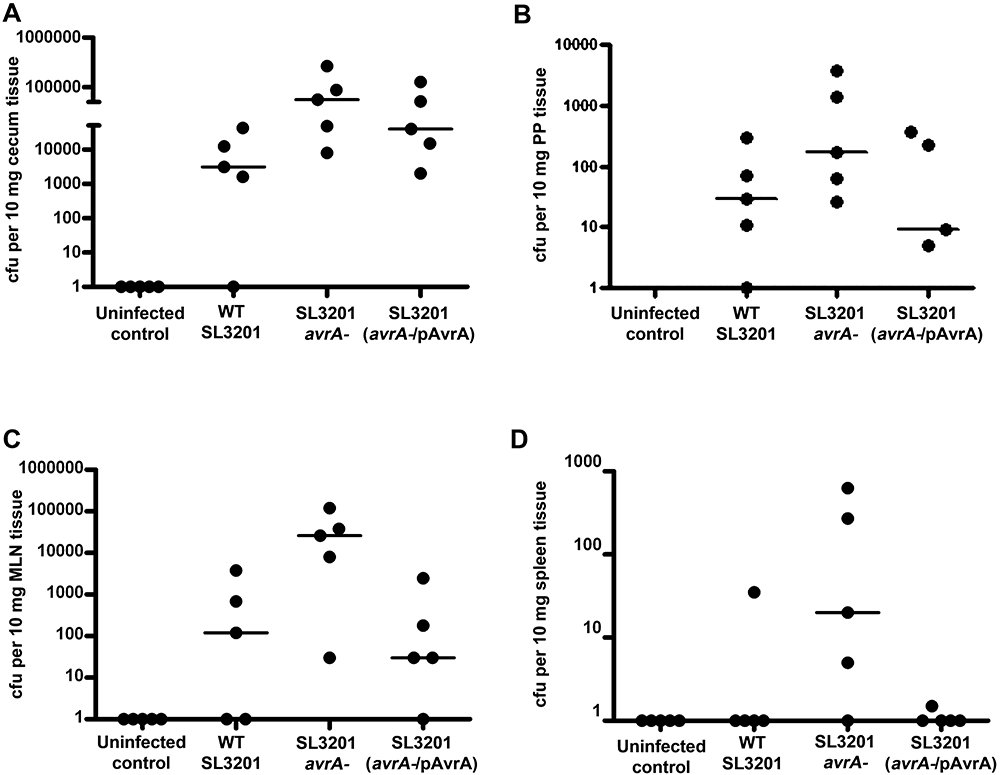

Induced apoptosis in infected epithelial cells and macrophages is seen in certain Shigella and Yesinia infections and is associated with rapid dissemination, while suppression of apoptosis is commonly seen in long-term intracellular parasites (Weinrauch and Zychlinsky, 1999). To determine the effect of apoptosis in model Salmonella infection we investigated local and systemic dissemination up to 48 h p.i. Using the infection model described in Fig. 1, bacterial colonization was enumerated in different organs and tissues at regular intervals. Significantly higher numbers of Salmonella SL3201(avrA^-) colonized caecal wall tissue, including Peyer's patches and MLN compared with complemented Salmonella strains (Fig. 3A–C). No Salmonella were found inPBS treated mice. At 24 h p.i., Salmonella were disseminated to the spleen of infected groups, again with SL3201(avrA^-) exhibiting higher levels of colonization (Fig. 3D). By 7 days, increased weight loss became apparent in the mice infected with SL3201(avrA^-) (Fig. 3E), and by 12 days increased mortality was apparent (Fig. 3F). All mice were sacrificed at that time point because of clinical decline. Necropsy at the 7 day time point was remarkable for gross hepatosplenomegy (Fig. 3G) and increased systemic cytokine concentrations (Fig. 3H). Together, these data show that loss if Salmonella AvrA function results in increased infection of gut lymphoid tissues, and increased systemic dissemination during pathogenesis.

SL3201(avrA^-) does not establish an intracellular niche within macrophages

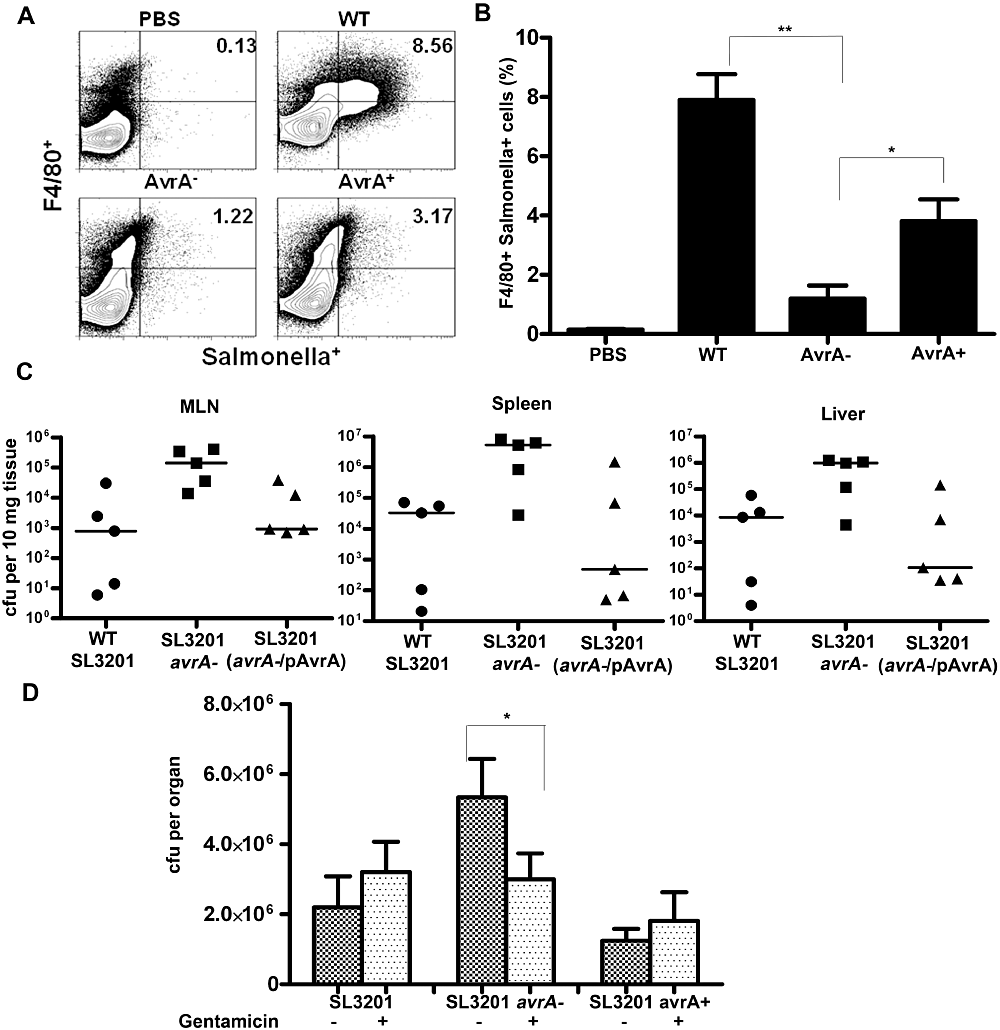

Data presented in Fig. 3 indicated AvrA-dependent differences in the bacterial burden in systemic lymphoid tissues. To investigate this further, we used a three or four colour flow cytometric method to study intracellular Salmonella in macrophages. Whole spleens from mice infected with w.t. SL3201, SL3201(avrA^-) or with SL3201(avrA^-/pAvrA) for 6 days were dissociated, stained with the macrophage surface marker (F4/80), fixed, permeabilized, and stained for intracellular Salmonella using an anti-Salmonella antibody (KPL, Gaithersburg, MD). Using this technique, we observed significantly reduced numbers of macrophages-like cells harbouring intracellular SL3201(avrA^-), compared with w.t. SL3201 or SL3201(avrA^-/pAvrA) (Fig. 4A and B). We detected considerably less numbers of SL3201(avrA^-/pAvrA) within splenic macrophages compared with the wild-type SL3201. We suspect that extended infection in the absence of antibiotic pressure might have resulted in the eviction of the complement pAvrA plasmid. Nevertheless, the number of SL3201(avrA^-/pAvrA) detected within the spleen was still significantly more than the numbers of SL3201(avrA^-) detected. These observations correlated with increased total bacterial load detected within the spleen at 6 days p.i., with SL3201(avrA^-) infection resulting in several order of magnitude higher spleen bacterial load compared with w.t. or complemented controls (Fig. 4C). To confirm that w.t. SL3201 or SL3201(avrA^-/pAvrA) establish an intracellular niche, we undertook in vivo gentamicin protection assay (Glomski et al., 2003). Gentamicin only targets extracellular bacteria, thus intracellular bacteria will be protected against its microbicidal activity. Consistent with observations from flow cytometry analysis described in Fig. 4A and B, w.t. SL3201 or complemented SL3201(avrA^-/pAvrA) strains were protected from gentamicin treatment, whereas a significant decrease in the population of SL3201(avrA^-) within the spleen was detected (Fig. 4D). We also detected a significant decrease in the number of SL3201(avrA^-) present in mucosal tissues including the Peyer's patch, MLN and caecum following gentamicin treatment (Fig. S3). Together, these data show that a significant number of SL3201(avrA^-) do not occupy an intracellular niche following infection.

AvrA directly suppresses induced apoptosis

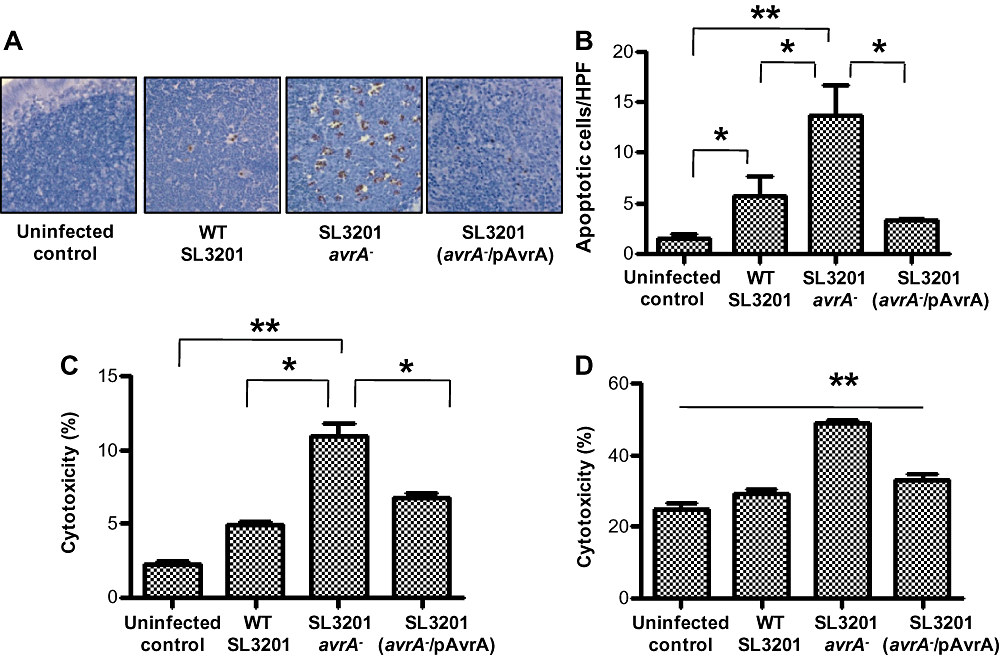

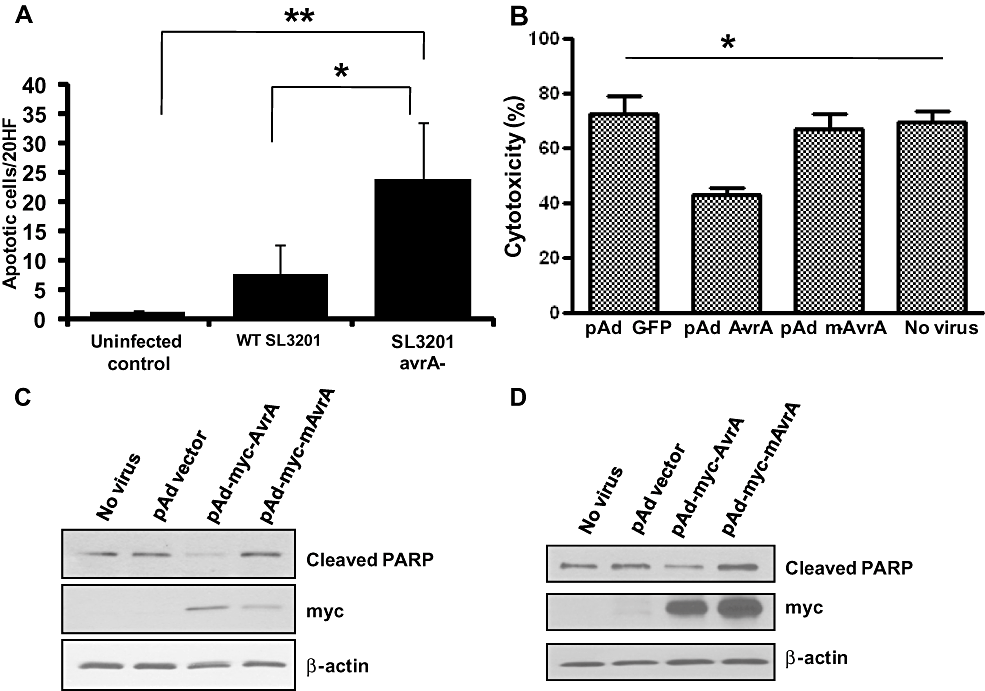

Based on our observation in caecal lymphoid aggregates (Fig. 2A), we hypothesized that the decreased number of SL3201(avrA^-) occupying an intracellular niche was as a resulted of increased macrophage apoptosis. To investigate this possibility, we performed immunohistochemical staining on spleens of infected mice at 7 days p.i. and quantified apoptotic cells. We detected significantly elevated numbers of active caspase-3-positive macrophage-like cells in the spleens of mice infected with SL3201(avrA^-), but not within spleens of mice infected with w.t. SL3201 (Fig. 5A). These data prompted us to assess the extent to which AvrA protein in isolation could directly protect cells from apoptosis. We constructed adenoviral vectors expressing vector alone, wild-type AvrA, or a mutant and catalytically inactive version of AvrA (mAvrA). The adenoviral vectors were packaged, and transduced into primary polarized epithelial cells, or into bone marrow-derived macrophages (BMDM); both cell lines which are otherwise not easily transfected by plasmid DNA (Fig. S4). AvrA has been shown to be a potent inhibitor of JNK MAPK in yeast, Drosophila and mammalian cell systems (Collier-Hyams et al., 2002; Jones et al., 2008; Du and Galan, 2009). We first confirmed that this activity was present in AvrA expressed from adenoviral particles. AD293 cells were transduced with the adenoviral particles harbouring vector control, AvrA or mAvrA, and stimulated with rhTNFα for 15 min. Immunoblot analysis showed that Ad-AvrA completely inhibited TNFα induced JNK phosphorylation, but vector alone and mutant AvrA did not (Fig. S5). We then transduced AvrA expressing adenoviruses into primary epithelial IEC-6 cells and treated cells with 0.5 µg ml⁻¹ Actinomycin D and 100 ng ml⁻¹ TNFα for 24 h to induce apoptosis. We had previously used this cell line and treatment to evaluate the anti-apoptotic effect of TLR ligands (Vijay-Kumar et al., 2006; Jones et al., 2011). The culture supernatants of the transduced cells were collected to assay the level of the lactate dehydrogenase (LDH), a soluble cytosolic enzyme released into the culture medium following loss of membrane integrity resulting from either apoptosis or necrosis. The LDH assays showed that Actinomycin D together with TNFα induced apoptosis in IEC-6 cells, and that AvrA but not mAvrA inhibited induced apoptosis in cultured epithelial cells (Fig. 5B). Additionally, immunoblot analysis of equivalent amounts of cellular protein lysates using antibodies against cleaved PARP confirmed that AvrA suppressed apoptosis in primary epithelial cells (Fig. 5C), and in murine bone marrow-derived macrophages (Fig. 5D). Taken together, these data indicated that the AvrA protein, in isolation, cannot only suppress the stress signalling JNK pathway, but can actively block cellular apoptosis stimulated by exogenous agonists.

Discussion

In this report, we demonstrate that Salmonella mutants lacking AvrA provoke an aggravated disease. Salmonella is an intracellular pathogen that transiently invades epithelial cells and then takes up residence within a vacuole in monocytic cells (Monack et al., 2004). While infected cells can progress to apoptosis and do activate typical pro-inflammatory responses, our data reveal the AvrA protein dampens both of these host reactions – presumably to establish a stable intracellular niche (and likely avoid adaptive immunity). Loss of AvrA caused increased apoptosis in both epithelial and macrophage cellular hosts during Salmonella infection and was simultaneously associated with loss of intracellular carriage and increased microbial parenchymal burden in systemic lymphoid tissues in the later stages of systemic infection, eventuating in increased mortality.

In past reports, we showed that AvrA acts as an acetyltransferase modifying critical serine and threonine residues of target MKK4 and 7 and thereby blocking both phosphorylation and activation of these proteins and downstream JNK signalling (Jones et al., 2008). This specificity of AvrA action on MKK4 has also been shown in a yeast system (Du and Galan, 2009). Homologues of AvrA have been described in other enteric pathogens including Y. pseudotuberculosis protein YopJ/P (Orth et al., 1999), V. parahemalyticus protein VopA (Trosky et al., 2004; 2007) and Aeromonas salmonicida protein AopP (Fehr et al., 2006), as well as in plant pathogens (Ellis et al., 2007). These effectors have been described to possess inhibitory acetyltransferase activities towards various MAPKK family and IKKs, and because of the diversity of substrates they have different effects on infected cells, but are generally proapoptotic (Mittal et al., 2006; Mukherjee et al., 2006; Trosky et al., 2007; Jones and Neish, 2011). Specifically, YopJ has a broad range of inhibitory activities against ERK, p38, JNK and IKK pathways (Orth et al., 1999). VopA has been shown to inhibit ERK, p38 and JNK, but not IKK (Trosky et al., 2004), and AopP is apparently specific to the NF-κB pathway (Fehr et al., 2006). YopJ and AopP are both associated with rapid apoptosis of infected cells (Orth et al., 1999; Jones et al., 2008). Furthermore, in plants, members of this protein family were originally designated ‘Avr’ proteins that mediate ‘avirulence’ functions in plants, pathologically manifested by local apoptosis of the infected plant cells. However, the absence of the avirulence gene resulted in systemic bacterial dissemination, and plant death (Staskawicz et al., 2001). Such a role was originally hypothesized for AvrA (hence the nominal designation) (Hardt and Galan, 1997). However, we continue our striking finding that AvrA, unique among this family of acetyltransferase effectors, can potently suppress apoptosis. AvrA virally transduced into cells showed blockade of exogenous inducers of apoptosis. These data also indicate that AvrA can meditate its biochemical functions in isolation, without translocated bacterial cofactors or chaperones, although recent studies show that AvrA may require phosphorylation before it is enzymatically active (Du and Galan, 2009). In the context of pro-inflammatory enteropathogenic Salmonellosis, our results suggest AvrA represses apoptosis during multiple stages of the infectious process, presumably as a mechanisms of maintaining its intracellular niche. Salmonella induces a brisk but self-limited acute inflammatory response in the epithelia, both in natural human and in model murine infections, without the overt epithelial destruction more characteristic of dysenteric clinical syndromes caused by Shigella or enterohaemorrhagic E. coli infection (Sansonetti and Di Santo, 2007). Our murine experiments with Salmonella avrA^- mutant resulted in increased cellular inflammation and a massive increase in epithelial apoptosis, reminiscent of Shigellosis. The increased macrophage apoptosis caused by the Salmonella (avrA^-) mutant allowed increased dissemination into extracellular tissue, associated with increased systemic disease. Furthermore, increased epithelial cell apoptosis induced by infection with SL3201(avrA^-) resulted in increased total numbers of invading and disseminating bacteria, as reflected in the increase numbers of SL3201(avrA^-) detected in mucosal or lymphoid tissues following infection with this strain. The elevated numbers of translocated SL3201(avrA^-) plausibly migrate unassociated with immune cells along efferent drainage vessels to the MLN and then disseminate to the spleen. These observations are reminiscent of systemic bacterial infections mediated by Yesinia pestis, where YopJ/P selectively kills the infected macrophages, allowing rapid extracellular proliferation and dissemination. Thus, AvrA activity may account for the self-limited inflammation seen in Salmonellosis. The AvrA protein allows the invading bacterium to dampen innate immune signalling, while also preventing the apoptotic elimination of its host cell niche. These data suggest AvrA, by suppressing apoptosis, does indeed act as a true avirulence factor, in that its absence results in enhanced disease at the whole organism level.

Experimental procedures
