On-site secretory vesicle delivery drives filamentous growth in the fungal pathogen Candida albicans

2.1 SVs in C. albicans filamentous cells are differentially distributed in distinct regions

The Rab GTPase Sec4 localises to the C. albicans Spk together with the myosin light chain Mlc1, (Crampin et al., 2005; Jones & Sudbery, 2010; Li et al., 2007) and is also observed on SVs throughout the filamentous cell (Ghugtyal et al., 2015). Sec4 is important for growth, as a dominant negative mutant inhibits growth and results in the accumulation of SVs (Mao, Kalb, & Wong, 1999). Its distribution is altered in the Arf GTPase arl1 mutant, which exhibits slower hyphal filament extension rate (Labbaoui et al., 2017; Wakade, Labbaoui, Stalder, Arkowitz, & Bassilana, 2017) suggesting the importance of SV traffic through the Spk. C. albicans cells lacking the exocyst subunit Sec3 can form germ tubes but are unable to maintain tip growth, accumulating SVs at the tip which swells over time, consistent with reduced SV fusion at the apical PM (Li et al., 2007). Together, these results indicate the importance of SV traffic and fusion at the Spk and apical PM. SVs originate from Golgi cisternae, which have been previously shown to redistribute towards the tip of the filamentous cell (Rida et al., 2006). However, closer examination of the Golgi marker FAPP1 (four-phosphate-adaptor protein 1) revealed that in cells with a ~10 μm long filament, around half of the cisternae are found in mother cell and half in the hyphal filament (Figure 1a,b; Movie S1). This observation raises the question as to whether SVs are delivered to the hyphal tip via long-range transport along cytoskeletal tracks, as observed in other filamentous fungi or via a novel mechanism.

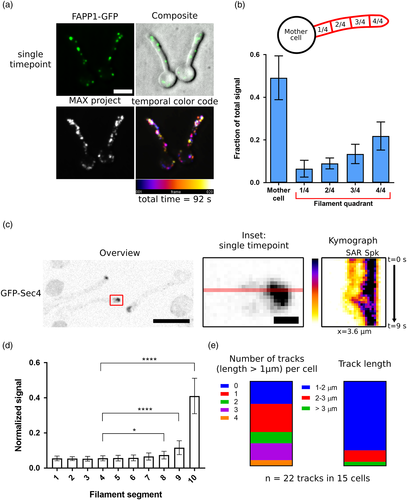

We therefore set out to examine the pattern of SV dynamics in C. albicans filamentous cells of a similar length (Figure 1c,d; Movie S2). Our results demonstrate that GFP-Sec4 is distributed in three distinct regions along the hyphal filament: in agreement with previous studies (Ghugtyal et al., 2015; Jones & Sudbery, 2010), Sec4 is predominantly localised to the Spk (Segment 10, 0.41 ± 0.10 total signal) and is also present on vesicles along the entire length of the hyphal filament (Segments 1–7, 0.40 ± 0.15 total signal). Surprisingly, analysis also revealed a region located just behind the hyphal apex, where Sec4-GFP intensity was intermediate between that of the Spk and that found along the hyphal filament length (Segments 8–9, 0.19 ± 0.03 total signal). GFP-Sec4 in this distinct region was highly dynamic, showing multiple localisation patterns over the course of a time lapse (see Figure 1c kymograph and Movie S2). Sub-apical regions (SARs) possessing specific functions have been reported in other highly polarised cells, for example, a relay area in A. nidulans where SVs transition from MT to actin mediated transport (Pantazopoulou et al., 2014; Peñalva, Zhang, Xiang, & Pantazopoulou, 2017), and an area devoid of organelles termed the “clear zone” in tobacco and lily pollen tubes, where a transition from apical transport along the cortex of the filamentous cell to distal transport along the core of the filament takes place (Cheung et al., 2008). Tracking of individual vesicles moving at least 1 μm along the hyphal length (Figure 1e) showed that on average 1.5 ± 1.3 vesicle per time course move directionally towards the apex (n = 22), or ~10 vesicles per min. These vesicles move along short tracks, with more than 80% of tracks being 1–2 μm in length, and only one track being longer than 3 μm. Thus, directional movement of SV along the hyphal length appears to be limited to tracks not longer than ~10–20% of the total length of C. albicans hyphal filament.

The differential distribution of SVs is similar to that found in other polarised cells requiring the concentration of cargo and membrane at the growing hyphal tip, such as neurons and pollen tubes (Chebli et al., 2013; González & Couve, 2014), and in particular, other filamentous fungi that concentrate SVs in a Spk (Grove & Bracker, 1970; Riquelme, 2013; Riquelme & Sánchez-León, 2014). However, as we did not observe substantial directed movement, and as even directionally moving vesicles were limited to short tracks no longer than several microns, it appears that C. albicans SV dynamics do not conform to that of the above polarised cells, where SVs reach the hyphal apex by travelling for many microns tethered to molecular motors moving along cytoskeletal tracks.

2.2 Serial section transmission electron microscopy (ssTEM) reveals the cellular organisation of the hyphal filament tip

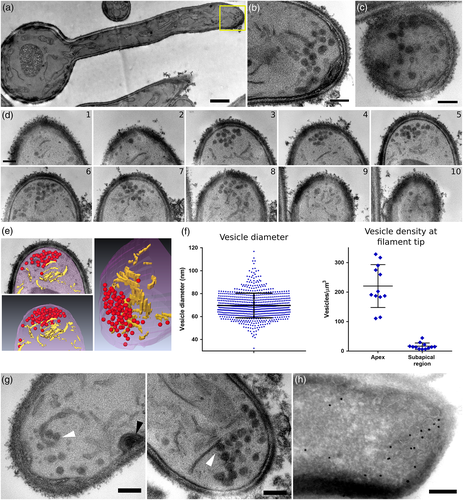

Following our identification of a distinct region of SV dynamics in the SAR, we further investigated this environment using ssTEM, providing the first high-resolution 3D view of C. albicans filamentous cell organisation (Figure 2a). ssTEM series acquired from both parallel (Figure 2b) and orthogonal (Figure 2c) angles compared with the long axis of the filamentous cell revealed the presence of vesicles with a spherical appearance at the hyphal apex. Vesicles could be seen in multiple sequential sections (Figure 2d,e), suggesting they likely comprise the C. albicans Spk. Quantitative analysis (Figure 2f) revealed vesicles are 69.7 ± 10.8 nm in diameter (n = 10 cells, 720 vesicles), in close agreement with the 65 nm diameter vesicles induced by α-factor mating pheromone observed in Saccharomyces cerevisiae (Baba, Baba, Ohsumi, Kanaya, & Osumi, 1989). Within the Spk, vesicles are tightly packed, with more than 50% of vesicles in each Spk having a nearest neighbour distance (measured from one vesicle circumference to another) of less than 30 nm. The Spk also contains vesicles in proximity to the PM, with more than 25% of vesicles in each Spk found less than one vesicle diameter (i.e., 70 nm) away from the PM (Figure S1). We confirmed (Figure 2h) that the vesicles observed at the filamentous cell tip were indeed associated with the Spk, using immuno-gold labelling of cells expressing Mlc1-GFP, a Spk marker (Bartnicki-Garcia et al., 1995). Analysis of the number of vesicles found in different regions of the tip revealed that the apex (including the Spk) contains 57.8 ± 19.0 vesicles, whereas the SAR contains 15.5 ± 8.6 (n = 12 cells, 879 vesicles). Vesicle density calculations based on estimation of the volume of each region (Figure 2f) revealed a density of 220.4 ± 69.7 vesicles/μm³ in the apex and 16.6 ± 10.5 vesicles/μm³ in the SAR, a ratio of ~13 to 1. Vesicles outside of these regions were only sporadically observed. Surprisingly, vesicles in the Spk and the SARs were often in contact or proximity with elongated membranes structures, sometimes in a configuration evoking vesicle budding events (Figure 2g).

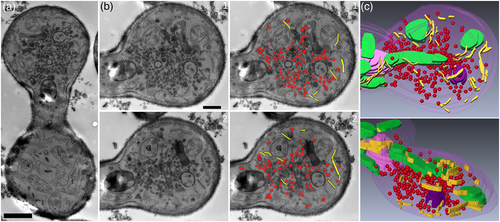

Comparative examination of a sec3 deletion mutant, which has an increased number of vesicles at bud tips and a dramatic increase in Sec4 at the apex of germ tubes (Li et al., 2007), showed that there was a disorganisation of the Spk and that the swollen tips of sec3 germ tubes contain vesicles concentrated in the middle of the tip and away from the PM (Figure 3).

2.3 Estimation of the minimum rate of SV fusion with the PM

Next, we calculated the theoretical minimum rate of vesicle fusion with the apical PM required to sustain filamentous growth, based on cell geometry (Dataset S1). This rate was calculated to be 1.12 vesicles/s or 67 vesicles/min. Assuming an average vesicle number at the Spk of 60, the minimal Spk turnover time would be ~53 s, similar to previously published FRAP data (Jones & Sudbery, 2010). As the Spk appears to maintain its size throughout filamentous growth, we can assume that the minimal rate of vesicle influx into the Spk is identical to the calculated minimal rate of vesicle fusion. Thus, if the mechanism of vesicle delivery to the apex was based only on long-range vesicle trafficking, we would expect to observe 60–70 vesicles/min moving along the hyphal filament length towards the apex, whereas we only observed ~10 vesicles/min (Figure 1e), suggesting short-range vesicle delivery significantly contributes to filamentous growth.

2.4 The secretory pathway in C. albicans filamentous cells is organised in distinct structural domains

Our dynamic studies (Figure 1), together with modelling (Dataset S1), suggest that short-range SV delivery may have an important role in C. albicans filamentous growth. Furthermore, the presence of SVs found in close association with elongated membranes at the hyphal tip (Figure 2g) may be indicative of SV budding events. We hypothesised that these elongated membranes could be part of the ER or the Golgi, as these compartments were previously observed in C. albicans filamentous cells using fluorescent microscopy (Ghugtyal et al., 2015; Rida et al., 2006). Examination of the 3D membrane organisation in C. albicans hyphal filaments using ssTEM (Figure 4) in both short (Figure 4a,b) and longer filaments (Figure 4c–e) identified three distinct structural domains. First, emerging from the nuclear envelope into the nascent hyphal filament are sheet-like parallel membranes, spanning the majority of the length of the filamentous cell. Behind the hyphal apex, in a region roughly corresponding to the SAR, membrane parallelity is lost and shorter sheet-like membranes without an apparent orientation are observed. Such membrane organisation is similar to Golgi organisation in S. cerevisiae, where short membrane compartments apparently lacking orientation are found behind the emerging bud (Preuss, Mulholland, Franzusoff, Segev, & Botstein, 1992), and also resembles Golgi in other filamentous fungi (Pantazopoulou, 2016). It should be noted that there appears to be a continuous transition between these two membrane domains. Finally, at the apex, a Spk comprised of SVs is observed (see Figure 2). These three domains were observed in all filamentous cells examined and appear to be a hallmark of C. albicans hyphal endomembrane organisation.

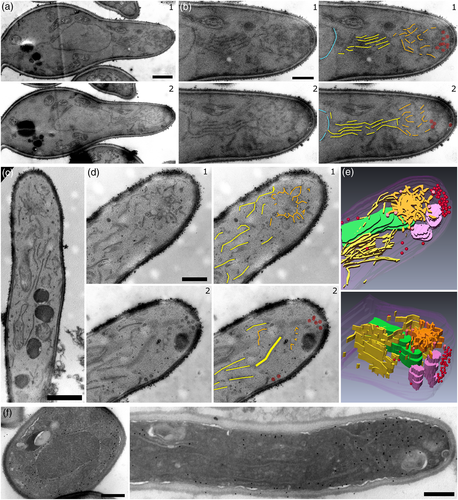

To identify the compartments associated with these structural domains we performed immuno-gold labelling of cells expressing different markers. Sac1-GFP, which localises predominantly to the ER in S. cerevisiae (Faulhammer et al., 2005; Foti, Audhya, & Emr, 2001), was associated with parallel membranes spanning the filamentous cell length, as well as nonparallel membranes in the SAR (Figure 4f). As this lipid phosphatase has also been shown to cycle between the ER and Golgi (Faulhammer et al., 2005), the fenestrated Sac1 labelled structures near the apex could represent Golgi cisternae. Unfortunately, immuno-gold labelling of Golgi markers did not produce clear results, likely due to the nonstacked and dispersed organisation of this compartment in C. albicans (Rida et al., 2006). Upon disruption of actin cables, the Spk is no longer visible (Crampin et al., 2005) and, interestingly, treatment of cells with cytochalasin A (Akashi, Kanbe, & Tanaka, 1994) also disrupted the integrity of the three organisational domains, suggesting a role for actin cables in their maintenance (Figure S2).

2.5 Focused ion beam/scanning electron microscopy tomography (FIB/SEM) reveals distinct features in each structural domain

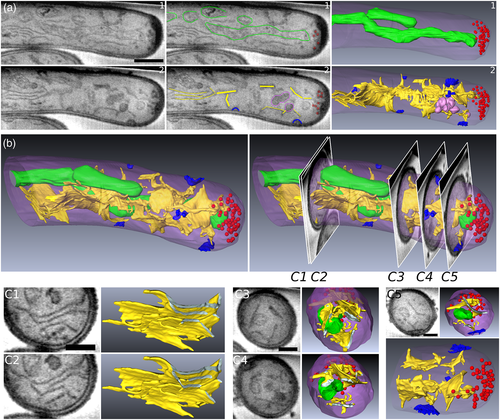

Using FIB/SEM, an emerging technique capable of producing large volume 3D ultrastructural datasets with high resolution in all axes (Heymann et al., 2006; Weiner et al., 2011; Weiner et al., 2016), we obtained a detailed 3D view of the hyphal filament organisation, including internal membranes, mitochondria, lipid droplets, sites of endocytosis, and SVs (Figure 5a; Movies S3 and S4). This analysis revealed several new features (Figure 5b). Along the hyphal filament length, we observed that the parallel sheet-like membranes revealed by ssTEM are in fact a continuous structure composed of curving membrane sheets connected through multiple helicoidal membrane motifs (sheets connected by twisted membrane surfaces with helical edges of left- or right-handedness) sometimes referred to as “parking garage” structures, typical of ER organisation (Terasaki et al., 2013; Figure 5C1–2; Movie S5). The presence of this motif provides further evidence that the ER spans the majority of the hyphal filament length. In the SAR, we continued to observe the presence of membrane sheets, though these were found individually, were in a range of orientations (i.e., not in a parallel organisation) and were connected to many tubular extensions (Figure 5C3–4; Movie S6). Some of these extensions appeared to be in direct contact with sites of endocytosis, as well as extending into the apex where SVs were observed (in accordance with Figure 2; Figure 5C5; Movie S6). SVs were also occasionally observed within the SAR, though their lower density there, and the comparatively lower XY resolution of FIB/SEM compared with ssTEM, made it difficult to unambiguously identify them. Overall, membranes along the hyphal filament length and the SAR were overwhelmingly found in sheet and tubular organisation and were generally part of a continuous and widespread membrane network extending from the base of the hyphal filament all the way up to the apex, where they were often in proximity to SVs within the Spk (Figure 2g). As SVs are seldom observed outside the apex and the SAR (and have limited directional movement), it stands to reason that membrane and cargo are delivered to the hyphal tip through the extended ER and Golgi network, followed by SV budding, thus requiring only short-range on-site SV trafficking towards the apical PM. Our calculation of the theoretical minimum rate of vesicle fusion with the apical PM required to sustain filamentous growth further supports the importance of short-range SV delivery.

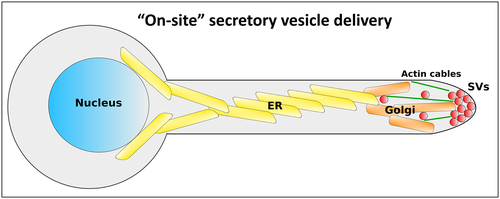

Our work provides the first indication for an on-site SV delivery mechanism in C. albicans. We propose a model (Figure 6), in which the distance between the mother cell and the apex is traversed by the entire secretory apparatus moving up along the hyphal filament length, in the form of a network of interconnected ER and Golgi membranes organised in sheets and tubules. From this network, SVs bud either directly into the Spk, or in the SAR from which they are transported the short distance to the Spk, most likely along a network of actin cables that extended into the SAR (Sudbery, 2011). From the Spk, SVs are targeted to the exocyst complex and ultimately fuse with the PM (Jones & Sudbery, 2010). In this model, endocytic membranes entering through actin patches are incorporated into Golgi membranes at the SAR, and then later bud as SVs into the Spk, completing their recycling (Ghugtyal et al., 2015). Indeed, endocytic recycling by way of the trans-Golgi network has recently been shown to be crucial for hyphal tip growth (Hernández-González et al., 2018).

Another implication of the proposed on-site SV delivery model is that the two main modes of C. albicans growth, budding and polarised growth, share common organisation principals, that is, orientation of the ER and Golgi towards the site of growth, on-site SV budding and short-range actin mediated trafficking of SV towards the PM, followed by fusion mediated by the exocyst. In budding growth, all the above steps are thought to occur in a highly constrained region at the site of the emerging bud (Ghugtyal et al., 2015; Mulholland et al., 1994; Preuss et al., 1991, 1992). In filamentous growth, the ER and Golgi extend far away towards the hyphal tip, but SV budding and delivery, also take place in a constrained region. The presence of a Spk during filamentous growth may simply reflect the higher flux of cargo and membrane required in this growth mode, compared with the small and transient SV accumulation during budding. The adoption of an on-site delivery mechanism by C. albicans could also be linked to the smaller size and slower extension rate of its hyphae compared with other filamentous fungi (Geitmann & Emons, 2000). The fact that C. albicans polarised growth is MT-independent (Rida et al., 2006) further emphasises the fundamental difference in its mechanism of SV delivery compared with other filamentous fungi relying on long-range SV deliver via MT tracks.

Our ultrastructural study of the C. albicans filamentous cell apex reveals a striking organisation of the Spk. The best described Spk thus far is found in N. crassa, where two populations of SV have been reported, a macro-vesicular population found in a ring like structure, thought to be conveyors of the β-1,3-glucan synthase complex, and a core made of micro-vesicles, containing chitin synthases (Richthammer et al., 2012; Riquelme et al., 2007; Sánchez-León et al., 2011; Verdín, Bartnicki-Garcia, & Riquelme, 2009). The observed MT converging or traversing the N. crassa Spk are thought to serve as tracks for SV delivery (Mouriño-Pérez, Roberson, & Bartnicki-García, 2006), together with actin cables also localised to the Spk (Berepiki, Lichius, Shoji, Tilsner, & Read, 2010). A similar Spk organisation with heterogenous SV populations has also been reported in A. nidulans and in other filamentous fungi, such as the plant pathogen Pythium ultimum and Ascodesmis nigricans (Grove & Bracker, 1970; Grove, Bracker, & Morre, 1970; Harris et al., 2005; Hohmann-Marriott et al., 2006). Overall, such studies, as well as mathematical modelling and computer simulations, have led to the proposal that the Spk acts as a vesicle supply centre, whose purpose is to organise or direct SV traffic (Bartnicki-García, 2002; Bartnicki-Garcia, Hergert, & Gierz, 1989; Harris et al., 2005). In contrast, the C. albicans Spk is composed of a single population of 70 nm diameter vesicles, in close agreement with the SV diameter observed in S. cerevisiae (Baba et al., 1989), and close to the reported 70–90 nm diameter of the macrovesicles in the A. nidulans Spk (Harris et al., 2005). Thus, the C. albicans Spk structure is simpler than that in filamentous fungi such as N. crassa and A. nidulans, which may reflect its different biological function. In light of our proposed on-site vesicle delivery model, and the MT-independent SV trafficking in C. albicans (Rida et al., 2006), we find it highly unlikely that the C. albicans Spk serves as a MT-to-actin switching station. Instead, we propose it acts as a focal point for incoming SV traffic produced via budding in the SAR and apex region, and for outgoing traffic directed towards the PM. As Mlc1 and Bni1 are both found at the C. albicans Spk (Crampin et al., 2005; Martin, Walther, & Wendland, 2005; Rida et al., 2006), it is possible both inwards and outwards SV trafficking occur by movement along actin cables, though the precise function of the Spk in regulating these processes is still an open question. The proximity of SVs comprising the Spk with the apical PM (Figures 2 and S1) implies that outgoing SV trafficking occurs over a very short distance (less than 70 nm). We cannot, however, rule out the possibility that “early” SVs that might be pleomorphic, escape identification by electron microscopy. As a result, motor driven transport along actin cables may not be critical for this process, in contrast to previous models (Jones & Sudbery, 2010). Overall our results indicate that a fundamental distinction exists between the Spk of C. albicans and filamentous fungi, likely reflecting differences in their function during filamentous growth.

Our proposed “on-site” SV delivery during C. albicans filamentous growth represents a strong shift from previous models in filamentous fungi and resembles a recently discovered long-range delivery mechanism in neurons of the visual system of Drosophila (Shilo & Schejter, 2011). We speculate that this mechanism facilitates the local delivery to the hyphal tip of proteases, phospholipases, lipases, esterases, and peptide toxins, which together play important roles in the degradation of host tissue as well as cleavage of host immune defence proteins (da Silva Dantas et al., 2016; Schaller, Borelli, Korting, & Hube, 2005). As the endocytic collar is adjacent to the hypahl apex, local degradation and subsequent endocytosis may also facilitate nutrient acquisition during infection.

3.1 Growth conditions

Cells were grown at 30°C in yeast extract-peptone-dextrose (YEPD) medium. Serum induction was carried out as described previously (Bassilana, Blyth, & Arkowitz, 2003), using overnight cultures grown in YEPD that were back diluted in YEPD and grown for ~5 hr prior to the addition of 50% serum for 60 min unless indicated otherwise.

3.2 Strains and plasmids

The prototrophic wild-type BWP17 strain (Wilson, Davis, & Mitchell, 1999) PY82 (ura3Δ::λ imm434/ura3Δ::λ imm434 his1::hisG/HIS1::his1::hisG arg4::hisG/URA3::ARG4::arg4::hisG) (Bassilana et al., 2003) was used for EM analyses unless otherwise indicated. For Golgi analyses, strain PY2406 (BWP17 with RP10::ARG4-pADH1-PH^{FAPP1[E50A,H54A]}-GFP) was used (Ghugtyal et al., 2015). For SV analyses, strain PY3511 (BWP17 with SEC4/SEC4::GFP-SEC4-URA3) was generated by transformation of pGFP-SEC4-utr (Li et al., 2007) into BWP17. For ER immuno-EM analyses, strain PY1857 (BWP17 with RP10::pADH1-GFP-SAC1) was generated by transformation of pExpARG-pADH1-GFP-SAC1 into BWP17.

3.3 Cytochalasin A treatment

For cytochalasin A treatment, cells were serum induced for 30 min followed by treatment with 10 μM cytochalasin A (Molecular Probes) for 15 min. Cell were then fixed and examined by ssTEM.

3.4 Light microscopy

Cells were imaged as described using a spinning-disc confocal microscopy (Ghugtyal et al., 2015) except that MetaMorph version 7.8.8.0 software (Molecular Devices) controlled the system and for GFP-Sec4 experiments a PLANAPO TIRF 100× TIRF × 1.45 NA objective was used. Z-stacks (0.4 μm each) were deconvolved with Huygens Professional software. For image analysis of Sec4 time courses, two-dimensional deconvolution was carried out with Huygens Professional software (version 18.04 Scientific-Volume Imaging) and SN of 10. Objects were identified for tracking using Volocity Software Version 6.3 (PerkinElmer) as previously described using the SD mode (Ghugtyal et al., 2015), where the selection is based on SDs above the mean intensity. Live imaging of GFP-Sec4 was performed in growing filaments of 15 different cells over 9 s, imaging a single focal plane with 300 ms exposure time. Quantitative analysis was used to determine the relative Sec4-GFP signal intensities along the hyphal filament (Figure 1d). Filaments of average length 10 μm were divided into 10 segments, with the total intensity measured in each segment over the time course of the imaging.

3.5 Serial section transmission electron microscopy

C. albicans cells were induced for filamentous growth, after which samples were fixed and stained using potassium permanganate, previously shown to provide excellent membrane contrast in yeast (Wright, 2000). Samples were prepared according to (Wright, 2000). Cell pellets were fixed in a 1.6% glutataraldehyde solution in 0.1 M sodium phosphate buffer (pH 7.4) at room temperature and stored overnight at 4°C. After three rinsing in DDW (15 min each), pellets were postfixed in a freshly prepared 2% potassium permanganate (KMnO₄) solution in DDW for 2 hr (Wright, 2000). KMnO₄ baths were changed every 30 min. Cells were subsequently rinsed in DDW (five times, 15 min each) and dehydrated in a series of acetone baths (90%, 100% three times, 15 min each) and progressively embedded in Epon 812 (Fluka) resin (acetone/resin 1:1, 100% resin two times, 2 hr for each bath). Resin blocs were finally left to harden at 60°C in an oven for 2 days. Ultrathin serial sections (100 nm) were obtained with a Reichert Ultracut S ultra-microtome equipped with a Drukker International diamond knife and collected on copper slot grids with a formvar support film. TEM observations were performed with a JEOL JEM-1400 transmission electron microscope, equipped with a Morada camera, at a 100 kV acceleration voltage. Overall, 18 hyphal filaments were imaged by ssTEM, 12 wild-type cells serum induced for 60 min, two wild-type cells serum induced for 30 min, two wild-type cells treated with cytochalasin A, and two sec3 mutant cells serum induced for 120 min. Up to 15 serial sections (100 nm thickness) of each individual hyphal apex were imaged.

3.6 Focused ion beam/scanning electron microscopy tomography

Samples for FIB/SEM tomography were prepared the same way as for ssTEM. Data were acquired using a Helios-600 Dual Beam of FEI, Thermo Fisher, USA, as described earlier in (Weiner et al., 2011) at the Weizmann Institute of Science, Rehovot, Israel. The large frontal trench was milled with an Ion beam of 30 kV, 20 nA, and the serial slicing was performed with a 30 kV, 460pA beam. To reduce the charging artefacts SEM images low energy secondary electrons were filtered by applying a negative voltage of −22 V on the suction tube electrode. XY pixel size was 6.4 or 7 nm and slice thickness 10 nm. Data were collected in two independent runs, providing views of six hyphal filaments. For segmentation and analysis around 150 sections traversing a single filamentous cell width were used. Two filamentous cells were segmented in their entirety.

3.7 Immuno-gold labelling

Immuno-gold staining was done according to (Griffith, Mari, De Mazière, & Reggiori, 2008). Cells were mixed with an equal volume of double-strength fixative [4% paraformaldehyde (PFA) 0.4% glutaraldehyde (GA) in 0.1 M PHEM buffer (20 mM PIPES, 50 mM HEPES, pH 6.9, 20 mM EGTA, 4 mM MgCl₂)] and incubated for 20 min at room temperature on a roller. Then, the fixative was replaced by fresh one at the concentration of 2% PFA, 0.2% GA in PHEM for additional 3 hr and were processed for ultra-cryomicrotomy according to a slightly modified Tokuyasu method for yeast. In brief, after rinsing in PHEM buffer and incubation in 1% periodic acid in PHEM buffer for 1 hr, three times washed cell suspension was spun down in 12% gelatin in PHEM. After immersion in 2.3 M sucrose overnight at 4°C, the samples were rapidly frozen in liquid nitrogen. Ultrathin (70 nm thick) cryo-sections were prepared with an ultra-cryomicrotome (Leica EMFCS, Austria) and mounted on formvar-coated nickel grids (Electron Microscopy Sciences, Fort Washington, PA, USA). Immuno-staining was processed with an automated immuno-gold labelling system Leica EM IGL as following: the grids were incubated successively in PBS containing 50 mM NH4Cl (two times, 5 min), PBS containing 1% BSA (two times, 5 min.), PBS containing the relevant primary antibody in 1% BSA for 1 hr, PBS containing 0.1% BSA (three times, 5 min), PBS containing 1% BSA and 15 nm colloidal gold conjugated protein A (CMC, University Medical Center, Utrecht, The Netherlands), PBS containing 0.1% BSA for 5 min, PBS for 5 min twice. Lastly, the samples were fixed for 10 min with 1% glutaraldehyde, rinsed in distilled water and were contrasted with a mixture of methylcellulose and 0.3% uranyl acetate on ice. After having been dried in air, sections were examined under a JEOL 1400 transmission electron microscope.

3.8 Image analysis and data quantification

Data were analysed and quantified using Fiji (https://fiji.sc/) for light microscopy and ssTEM diameter measurement. Amira (Thermo Fisher Scientific—FEI) was used for ssTEM and FIB/SEM tomography data alignment, manual segmentation and analysis. The difference between Sec4 intensities along the filament length was evaluated using unpaired t test between Segments 4 and 8, 4 and 9, and 4 and 10. P < 0.05 was considered as significant: *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001. ssTEM quantification: for vesicle diameter measurement, each vesicle was manually segmented using Fiji. For the number of vesicles measurement, the apex was defined as the region extending between 0 and 500 nm from the tip, and the SAR was defined as the area extending between 500 and 1,500 nm from the tip. For density calculation the apex was modelled as a half-sphere with radius 500 nm, and the SAR as a cylinder with length 1,000 nm and a diameter measured from the middle section of each cell. For nearest neighbour distance calculations, the distance from each vesicle circumference to the circumference of its nearest neighbour was measured (n = 6 cells, 503 vesicle pairs). Negative values represent perceived vesicle overlap due to the TEM image being a projection of a 100 nm thick section that may contain two vesicles aligned in the Z-axis. For distance to the PM calculation, the PM was outlined using Fiji, and the distance between each vesicle and the nearest PM segment was measured (n = 6 cells, 489 vesicles). FIB/SEM tomography data were aligned using Amira and bandpass filtered using Fiji. Data were manually segmented using Amira. Virtual slices oriented along the long axis of the hyphal filament are presented in Figure 5a. All quantitative data in the manuscript are presented as mean, with error bars presented as SD.
