Induction of immunogenic cell death in murine colon cancer cells by ferrocene-containing redox phospholipid polymers

2.1 Materials

MPC, VFc, methacryloxyethyl rho, and AIBN were purchased from NOF, FUJIFILM Wako Pure Chemical, Polyscience, and Kanto Chemical, respectively. All organic reagents and solvents used in this study were commercially available reagents of extrapure grade and used without further purification.

2.2 Synthesis of pMFc

pMFc and rho-pMFc were synthesized using conventional free radical polymerization, as previously reported^{21, 23} with a slight modification. For the synthesis of pMFc, MPC (3.54 g), VFc (1.70 g), and AIBN (164 mg) were dissolved in 20 ml ethanol:THF (80:20, v/v). After argon purging, polymerization was performed in a test tube at 65°C for 48 h. The test tube was cooled to ~25°C to stop polymerization. The polymer solution was precipitated using a mixed solvent composed of diethyl ether:chloroform (90:10, v/v).

For the synthesis of rho-pMFc, MPC (3.54 g), VFc (1.70 g), rho (130 mg), and AIBN (164 mg) were dissolved in 20 ml ethanol:THF (80:20, v/v). After argon purging, polymerization was performed in a test tube at 65°C for 48 h. The test tube was cooled to ~25°C to stop polymerization. The polymer solution was then precipitated using diethyl ether. The polymer precipitate was filtered and dissolved in a mixed solvent composed of methanol:water (1:1, v/v) and 1.0 M NaCl. The polymer solution was added to diethyl ether again, and the diethyl ether was subsequently removed by decantation. The remaining polymer solution was re-precipitated using DMF. The precipitate was washed with DMF repeatedly until the supernatant became colorless.

Both the precipitated polymers were collected and dissolved in distilled water. The polymer solutions were dialyzed with a Spectra/Por 7 Membrane (MWCO 1000 Spectrum Laboratories Inc.) for 4 days. The polymers were then freeze dried and the resulting powders were obtained as pMFc and rho-pMFc. Molecular weights were measured by gel permeation chromatography using poly(ethylene glycol) as a standard. The composition was determined using UV–vis spectroscopy (Table S1).

2.3 Cell culture

CT26 cells were purchased from the American Type Culture Collection (ATCC). CT26 cells were seeded into 100-mm dishes with 1.0 × 10⁶ cells/dish in 10 ml of RPMI 1640 (FUJIFILM Wako Pure Chemical) supplemented with 1% penicillin–streptomycin (FUJIFILM Wako Pure Chemical) and 10% FBS (Funakoshi), and cultured at 37°C in 5% CO₂.

2.4 Internalization of pMFc into CT26 cells

CT26 cells were seeded in 2.0 ml RPMI 1640 at 2.0 × 10⁵ cells/dish in glass-bottomed dishes (Iwaki Glass) and incubated for 1 day. A stock solution of rho-pMFc in DPBS (Thermo Fisher Scientific) was added to the cell cultures to obtain a final concentration of 1.0 mg/ml. The cells were incubated for 1 h at 37°C in 5% CO_2, and the cell culture was washed twice with 2 ml of HBSS (Thermo Fisher Scientific) and replaced with 2 ml of fresh RPMI 1640 medium. Cells were imaged using an All-in-One Fluorescence Microscope BZ-X810 (Keyence). The fluorescence of the rho units in the polymer was measured using a tetramethylrhodamine (TRITC) filter (Keyence).

2.5 Electrochemical oxidation of pMFc

pMFc was dissolved in DPBS at a concentration of 10 mg/ml. The pMFc solution was oxidized (at +0.60 V versus SHE) with a potentiostat (VMP3, BioLogic) for several hours with stirring until the anodic current reached a plateau to obtain an ox-pMFc solution.

2.6 Changes in the redox state of pMFc in CT26 cell culture

CT26 cells were seeded into 10 ml of RPMI 1640 medium in a 100-mm dish at 1.0 × 10⁶ cells/dish and cultured for 24 h. The ox-pMFc solution in DPBS was added to obtain a final concentration of 1.0 mg/ml. The absorbance of the supernatant at 625 nm was measured using UV–vis spectroscopy and the ratio of ox-pMFc was calculated.

2.7 Evaluation of oxidative stress

Oxidative stress was assessed using a CellROX Green Flow Cytometry Assay Kit (Thermo Fisher Scientific). CT26 cells were seeded in 6-well plates at 7.5 × 10⁴ cells/well in 2 ml of RPMI 1640 medium and preincubated for 24 h. A stock solution of either red-pMFc or ox-pMFc in DPBS was added to the cell culture to obtain a final concentration of 1.0 mg/ml. After 1 h of incubation, CT26 cells were collected using trypsin and suspended in RPMI 1640 medium at 1.0 × 10⁵ cells/ml for each sample. Next, 2 μl of CellROX solution was added to 1 ml of cell suspension and this was incubated at 37°C in the dark for 30 min. The fluorescence of each cell type was analyzed using flow cytometry (Accuri C6 Plus, BD).

2.8 Evaluation of the viability of CT26 cells treated with pMFc

Cell viability was assessed using the Cell Counting Kit-8 (Dojindo). CT26 cells were seeded in 96-well plates at 2.5 × 10³ cells/well in 100 μl of RPMI 1640 medium and incubated for 24 h. Thereafter, 10 μl of the stock solution of pMFc at various concentrations was added to each well. After 24 h of incubation, the cells were washed twice with 100 μl HBSS and replaced with 100 μl fresh RPMI 1640 medium. Finally, 10 μl of Cell Counting Kit-8 solution was added to each well and the cells were incubated for 2 h. Absorbance at 450 nm was measured using a microplate reader (iMark Microplate Absorbance Reader, Bio-Rad Laboratories). Cell-free medium was used as a blank.

2.9 Apoptosis assay

The apoptosis assay was performed using the FITC Annexin V Apoptosis Detection Kit with PI (BioLegend). CT26 cells were seeded in six-well plates at 7.5 × 10⁴ cells/well in 2 ml of RPMI 1640 medium and incubated for 24 h. A stock solution of either red-pMFc or ox-pMFc in DPBS was added to the cell culture to obtain a final concentration of 1.0 mg/ml. After 24 h of incubation, supernatants were collected. Cells were collected using trypsin. The collected supernatants and cell suspensions were mixed and centrifuged at 500 g for 5 min. The cells were washed twice with HBSS and suspended in Annexin V Binding Buffer to obtain a cell concentration of 1.0 × 10⁶ cells/ml. The cell suspensions (100 μl) were mixed with 5 μl of annexin V and 10 μl of PI. The samples were vortexed and stained at 25°C in the dark for 15 min. Annexin V Binding Buffer (400 μl) was then added and flow cytometry analysis was conducted using a flow cytometer (Accuri C6 Plus).

2.10 Analysis of CRT on the cell surface of CT26 cells

CT26 cells were seeded in 60-mm dishes at 3.0 × 10⁵ cells/dish in 4 ml of RPMI 1640 medium and incubated for 24 h. A stock solution of either red-pMFc or ox-pMFc in DPBS was added to the cell culture to obtain a final concentration of 1.0 mg/ml. After 24 h of incubation, the supernatants were collected. Cells were collected using trypsin. The collected supernatants and cell suspensions were mixed, and the number of cells was adjusted to 2.5 × 10⁵ to 5.0 × 10⁵ cells for each sample. The cell suspensions were centrifuged at 500 g for 5 min. The cells were washed twice with 2 ml of 5% BSA–PBS and suspended in 100 μl of Cell Staining Buffer (BioLegend). The suspensions were mixed with 1 μl of the primary antibody (1G6A7) (Novus Biologicals) and incubated at room temperature in the dark for 30 min. The cell suspensions were centrifuged at 500 g for 5 min. After washing them twice with 2 ml of Cell Staining Buffer, 100 μl of Cell Staining Buffer were was added. The cell suspensions were mixed with 2.5 μl of phycoerythrin (PE) anti-mouse IgG2a secondary antibody (BioLegend) and incubated at room temperature in the dark for 30 min. The cell suspensions were centrifuged at 500 g for 5 min, washed twice with 2 ml of Cell Staining Buffer, and suspended in 300 μl of Cell Staining Buffer. Each sample was analyzed using a flow cytometer (Accuri C6 Plus).

2.11 Measurement of ATP concentration in the supernatant of CT26 cell culture

CT26 cells were seeded in six-well plates at 1.0 × 10⁶ cells/dish in 1 ml RPMI 1640 medium and incubated for 24 h. The stock solution of either red-pMFc or ox-pMFc in DPBS was administered to the cell culture at a final concentration of 1.0 mg/ml. After a 24 h incubation, the supernatants were collected and centrifuged at 9,200 g for 5 min at 4°C. Thereafter, 100 μl of the supernatant was mixed with 100 μl CellTiter Glo (Promega) and incubated at room temperature for 10 min. The luminescence of each sample was measured using a luminometer (Lumat LB 9507; Berthold Technologies) and the ATP concentration in the supernatant of CT26 cell culture was determined.

2.12 Measurement of HMGB1 concentration in the supernatant of CT26 cell culture

Measurement of HMGB1 concentration was performed using the HMGB1 ELISA Kit Exp (Sino-Test, Japan). CT26 cells were seeded into six-well plates at 1.0 × 10⁶ cells/dish in 1 ml RPMI 1640 medium and incubated for 24 h. A stock solution of either red-pMFc or ox-pMFc in DPBS was added to the cell culture to obtain a final concentration of 1.0 mg/ml. After a 24 h incubation, the supernatants were collected and centrifuged at 9,200 g for 5 min at 4°C. Thereafter, 10 μl of the supernatant was diluted with 400 μl of sample diluent. Each solution (100 μl) was transferred to an antibody-coated plate and incubated at 37°C for 2 h. Subsequently, after washing five times with 400 μl of wash solution, 100 μl of peroxidase (POD)-conjugate solution was added to each well and incubated at room temperature for 1 h. Furthermore, after washing five times with wash solution, 100 μl of color reagent was added to each well and incubated at room temperature in the dark for 20 min. Finally, 100 μl of stop solution was added, and the absorbance at 450 nm was measured using a microplate reader (iMark Microplate Absorbance Reader).

2.13 Evaluation of the effect of antitumor vaccination

All animal experiments were approved by the Ethics Committee for Animal Experiments at the School of Engineering, Nagoya University (G210593).

BALB/c mice (SLC, Japan) and BALB/c nu/nu mice (SLC, Japan) were used in this study. CT26 cells were seeded in 100-mm dishes at 3.0 × 10⁶ cells/dish in 10 ml of RPMI 1640 medium and incubated for 24 h. The stock solution of either red-pMFc or ox-pMFc in DPBS was administered to the cell culture at a final concentration of 1.0 mg/ml. After 24 h of incubation, the cells were collected using trypsin. In total, 3.0 × 10⁶ CT26 cells, either untreated or treated with ox-pMFc, were inoculated subcutaneously into the left flank of mice. Thereafter, 5.0 × 10⁵ untreated CT26 cells were inoculated into the right flank 7 days after the injection of ox-pMFc-treated CT26 cells. The incidence of tumors was monitored every 2–3 days for 30 days.

2.14 In vivo antitumor therapy by intratumoral injection of pMFc

BALB/c mice were injected with 3.0 × 10⁵ CT26 cells in the left flank. When the tumors reached 30–100 mm³ in size, the mice were either untreated (control) or treated with 10 mg/ml of pMFc in 100 μl DPBS per day on Days 0–4. Tumor sizes were monitored every 3 days, and tumor volumes were calculated as (short diameter)² × (long diameter)/2. Mice were euthanized when the tumor volume exceeded 2000 mm³.

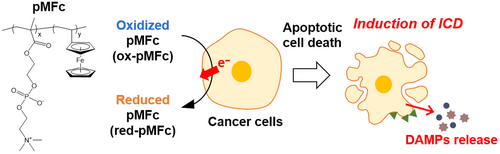

3.1 Extraction of intracellular electrons and induction of oxidative stress by pMFc

First, the penetration of pMFc into the cell membranes of murine colorectal carcinoma CT26 cells was examined. Rho-pMFc²³ was added to the CT26 cell culture, which was incubated for 1 h, followed by observation using fluorescence microscopy. The fluorescence derived from rhodamine B was observed within CT26 cells cultivated with rho-pMFc (Figure S1), indicating that pMFc penetrated the cell membrane of CT26 cells and was translocated into the cells.

Next, the ability of oxidized forms of pMFc (ox-pMFc) to receive electrons from CT26 cells was investigated. The CT26 cells were cultured in a medium containing ox-pMFc, and the time-course changes in the percentage of ox-pMFc in the medium were measured. The ox-pMFc has a maximum absorption wavelength of 625 nm, while the reduced forms of pMFc (red-pMFc) do not have absorbance at this wavelength. Therefore, the ox-pMFc percentage can be estimated by measuring the absorbance of the medium at 625 nm.^{21, 23, 25} The results showed that ox-pMFc decreased with time, both in the presence and absence of cells (Figure 2A). Furthermore, ox-pMFc levels decreased faster in the medium with CT26 cells than in the medium without cells. The decrease in the percentage of ox-pMFc in the medium without cells was probably due to the oxidation of the redox-active species in the medium by pMFc. These results indicated electron transfer from CT26 cells to ox-pMFc.

From a thermodynamic perspective, ox-pMFc can receive electrons from various intracellular redox species in living cells. For example, ox-pMFc can oxidize intracellular redox species, such as GSH and NAD(P)H,²⁵ leading to the induction of oxidative stress.²³ It was assumed that ox-pMFc also induces oxidative stress in CT26 cells. The intracellular ROS levels in CT26 cells were evaluated using CellROX™ Green Reagent, which can detect hydroxyl radical and superoxide anion radical.^{26, 27} The intracellular ROS level increased in CT26 cells treated with ox-pMFc, whereas CT26 cells treated with red-pMFc showed the same ROS level as the control cells (Figure 2B). These results revealed electron extraction via ox-pMFc induced oxidative stress in CT26 cells.

3.2 Effect of pMFc on the viability of CT26 cells

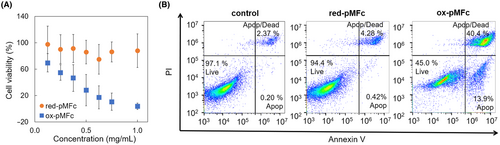

Ox-pMFc and red-pMFc were added to the culture medium of CT26 cells at various concentrations to evaluate the effect of the redox state of pMFc on CT26 cells. Cell viability was measured after 24 h of cultivation with pMFc (Figure 3A). No substantial decrease in viability was observed in CT26 cells cultured with red-pMFc, which cannot receive electrons. In contrast, the viability of the cells cultured with ox-pMFc decreased in a dose-dependent manner. These results indicated that CT26 cell viability was suppressed by electron extraction by ox-pMFc. Furthermore, the induction of apoptosis in CT26 cells was investigated. An apoptosis assay was performed on CT26 cells cultured with pMFc by co-staining with annexin V and PI. Whereas most of the cells cultured without pMFc or with red-pMFc were viable, only those cultured with ox-pMFc showed an increase in the percentage of early and late apoptotic cells (Figure 3B). These results indicated that ox-pMFc induced apoptosis in CT26 cells.

3.3 Analysis of DAMPs

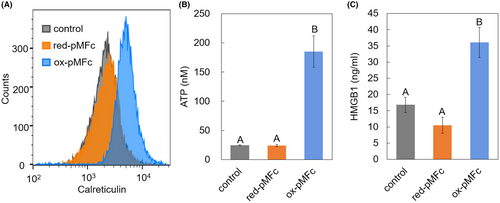

Considering that oxidative stress is involved in ICD induction, it was hypothesized that ox-pMFc could induce ICD in CT26 cells. When cancer cells undergo ICD, they present or release a group of molecules called DAMPs such as CRT, ATP, and HMGB1. DAMPs attract immature dendritic cells and promote their maturation, followed by the activation of T cell-mediated antitumor immune reactions. In this study, the expression levels of CRT on the surface of the CT26 cell membrane and the concentrations of released ATP and HMGB1 in the cell culture medium were measured. Based on flow cytometry with the CRT antibody, the expression level of CRT increased only when the cells were cultivated with ox-pMFc (Figure 4A). Moreover, the released levels of ATP (Figure 4B) and HMGB1 (Figure 4C) increased in the cell culture medium cultivated with ox-pMFc. These results indicated that ox-pMFc induced ICD-associated release of DAMPs in CT26 cells.

3.4 In vivo vaccine-like effect of pMFc-treated CT26 cells

Although CRT exposure on the cell surface and the release of ATP and HMGB1 in the culture medium are reliable hallmarks of ICD, in vivo vaccination experiments are needed to confirm that ox-pMFc is a genuine ICD inducer.³ CT26 cells cultured with ox-pMFc for 24 h were injected subcutaneously into the left flank of immunocompetent BALB/c mice and immunodeficient BALB/c nu/nu mice. The injected CT26 cells did not form tumors probably because ox-pMFc-treated cells underwent apoptosis 24 h after the in vitro treatment (Figure 3B). One week later, nontreated CT26 cells were injected into the right flank of the mice, and subsequent tumor formation was monitored for 30 days. Control groups of immunocompetent BALB/c mice and immunodeficient BALB/c nu/nu mice, not injected with ox-pMFc-treated cells, were also injected with nontreated CT26 cells; the subsequent tumor formation was monitored for 30 days. In the control group of BALB/c mice, tumors were observed in mice (n = 6) on Day 7, and all six mice had tumors by Day 11 (Figure 5). In contrast, in the BALB/c mice group previously injected with ox-pMFc-treated CT26 cells, no tumor formation was observed by the subsequently injected nontreated CT26 cells in any of the mice until Day 26. Furthermore, the immunodeficient BALB/c-nu/nu mice, injected with ox-pMFc-treated CT26 cells, showed a similar profile of rechallenged tumorigenesis as the control groups of both BALB/c and BALB/c-nu/nu mice. These results indicated that ox-pMFc induced ICD in CT26 cells, therefore activating antitumor immunity and inhibiting tumorigenesis in BALB/c mice.

To date, few reports have shown that ferrocene and its derivatives induce ICD.^{28, 29} Recently, Wang et al.²⁹ reported ferroptosis-induced cancer immunity caused by a ferrocene-appended iridium (III) diphosphine complex, Ir1. Ferroptosis is a novel type of nonapoptotic cell death caused by an increased level of ROS and resulting lipid peroxidation.³⁰ They showed that Ir1 localized in lysosomes, which offer an acidic environment, and caused a Fenton-like reaction by ferrocene, leading to ROS production and cell death. In contrast, amphiphilic MPC polymers can shuttle between the intracellular and extracellular milieu across the cell membrane via a simple diffusion process,^{18, 20} suggesting that pMFc was not localized in lysosomes. Moreover, red-pMFc did not affect the ROS level (Figure 2B) and cell viability (Figure 3A). Therefore, we deemed the contribution of the Fenton-like reaction to be trivial for pMFc. Our results showed that ox-pMFc induced apoptotic cell death via oxidative stress and the resultant ICD. We surmise that the mechanism of ICD induced by ox-pMFc is different from that of Ir1 and further investigation is required to elucidate the mechanism. From a mechanistic viewpoint, it is also important to elucidate the differences in the cell membrane permeability between red-pMFc and ox-pMFc. However, it is difficult to quantify cellular uptake using fluorescence labeling because ferrocene units can quench fluorescent molecules.³¹ Methods for quantitative evaluation of cellular uptake of pMFc remain to be developed.

3.5 In vivo therapeutic effect of pMFc

The effect of pMFc on established tumors was evaluated. CT26 cells were injected subcutaneously into BALB/c mice to prepare model mice with tumors. Tumor size was measured every 3 days and, when the tumor size reached 30–100 mm³, either red-pMFc or ox-pMFc was directly injected into tumors. A control group of mice with tumors was untreated; their tumor size was also measured every 3 days. In the group of mice injected with ox-pMFc, the tumor sizes were suppressed to <500 mm³ in two out of five mice at Day 21, and one of them showed complete regression (Figures 6 and S2A). In the untreated control group and the group of mice injected with red-pMFc, all mice had tumors >500 mm³ on Day 21. To further analyze the antitumor effect of ox-pMFc, we calculated the tumor growth rate during pMFc administration (Figure S3). The group treated with ox-pMFc showed a lower tumor growth rate, although not statistically significant. These results suggest that ox-pMFc can directly inhibit tumor growth. No obvious changes were observed in the body weights of either the ox-pMFc-or red-pMFc-injected groups (Figure S2B). These results imply that ox-pMFc is effective for in vivo tumor treatment. In the present study, the antitumor effects of ox-pMFc administration were somewhat limited, and the therapeutic protocol (including dosage, concentration and frequency of administration) should be optimized before clinical trials. The limitation of antitumor effects can be attributed to the uneven distribution of pMFc in tumors. Improving diffusivity and retention of pMFc within tumors by modifying the polymer structure would improve the in vivo antitumor effect. Moreover, modulation of the redox properties of the redox-active monomer may also improve the anticancer potency. Because the redox phospholipid polymers studied here were random copolymers that can be synthesized by conventional free radical polymerization, redox phospholipid polymers equipped with functional units can readily be developed by the judicious selection of appropriate monomers. Therefore, the therapeutic efficiency is expected to be improved by a more sophisticated polymer design, such as introducing tumor retention units and optimizing redox-active units. Considering recent advances in cancer immunotherapy, combining immune checkpoint inhibitors, such as anti-CTLA4 and anti-PD-1 antibodies,³² would be another promising strategy to augment the therapeutic outcome of redox phospholipid polymers.
