Neural architecture of choice behaviour in a concurrent interval schedule

Subjects and surgery

All subjects were kept and treated according to the German guidelines for care and use of animals in neuroscience and were approved by the committee of the State of Nordrhein Westfalen, Germany. Eleven pigeons (Columba livia) were used in this experiment. During training, all animals were kept on a food deprivation schedule at approximately 90% of their free-feeding body weight.

Pigeons were prepared for injections of TTX by chronically implanting four guide cannulae (gauge 22) into the NCL (11 mm length) and two cannulae into the CPu or NAc (15 mm length). Cannulae were implanted under anaesthesia with ketamine (approx. 4 mg/100 g i.m.; Ketavet; Pharmacia & Upjohn, Germany) and xylazine (0.8 mg/100 g i.m.; Rompun; Bayer, Germany). Guide cannulae for the NCL were positioned within the borders of the NCL as defined by Kröner & Güntürkün (1999) and were fixed to the skull with dental acrylic. For the NCL, two cannulae per hemisphere were vertically inserted to reach the following coordinates: A4.5–6.5; L5.0 and 7.5 and D1.0 [all dorsal–ventral coordinates relative to brain surface and according to the pigeon brain atlas by Karten & Hodos (1967)].

According to Reiner et al. (1984) and Durstewitz et al. (1999), the avian homologue of the somatomotor parts of the CPu stretches from the caudolateral lobus parolfactorius (LPO) into the medial palaeostriatum augmentatum. One cannula per hemisphere was inserted to reach the CPu at the following coordinates: A10.5; L3.0 and D5.5. Substantial evidence indicates that the avian homologue of the NAc is located in the rostro-ventro-medial part of the LPO (Wild, 1987; Durstewitz et al., 1999; Mezey & Csillag, 2002), although it is important to mention that at least one study suggests a functional similarity between more caudal areas of the avian LPO and the core of the rodent NAc (Izawa et al., 2003; Cardinal et al., 2001). One cannula per hemisphere was inserted to reach the rostro-ventro-medial part of the LPO at the following coordinates: A11.5; L1.5 and D5.5. To minimize confusion of avian and mammalian nomenclature, we will refer to the LPO/medial palaeostriatum augmentatum as the CPu and to the rostro-ventro-medial LPO as the NAc throughout this article unless specified otherwise. However, as the NCL is similar, but presumably not homologous to the mammalian PFC, we will use the avian terminology when referring to this structure.

The lower tips of all guide cannulae were positioned 1 mm above the actual dorsal–ventral target coordinates, as injection cannulae were 1 mm longer than the guide cannulae. During TTX injections, injection cannulae (gauge 28) of 12 mm (NCL) or 16 mm length (CPu and NAc) were inserted into the implanted guide cannulae. After surgery, animals were allowed to recover for at least 7 days with access to food ad libitum and were then put back on the deprivation schedule.

Apparatus

Pigeons were trained and tested in a cubic aluminium box (35 × 35 × 35 cm) that was equipped with two round pecking keys, two feeders and one houselight. All items were symmetrically arranged at the front wall of the box. Pecking keys had a diameter of 2.5 cm and were positioned 21 cm above the floor 20 cm apart from each other. Feeders were located 13 cm below each pecking key. The white houselight was in the centre of the front wall, 28 cm above the floor. The houselight and green illuminated pecking keys were switched on during the entire training and testing sessions. The houselight, feeder and keys were controlled by a 16-channel I/O card via a computer.

Pretraining

The pigeons first received an autoshaping procedure to acquire the association between responding to a pecking key and subsequent food reward. They were then trained with a 25-s fixed interval schedule on only one of the two keys (see Procedure section for details about fixed interval schedules). After three to four training sessions, the key was turned off, the second key was switched on and pigeons were trained on an 83-s fixed interval schedule. After three to four sessions, pigeons were again trained in the 25-s fixed interval schedule on the first key for one session. Subsequently, both keys were concurrently activated and pigeons were trained in the CFI schedule.

Procedure

In the CFI schedule of this experiment, one key was associated with the fixed short time interval of 25 s (SI key) and the other long interval key (LI key) was associated with an 83-s interval. The assignment of short interval and long interval to the left and right key was balanced. Six animals were trained with the SI key as the left key and the LI key as the right key (SI–LI) and five animals were trained in the LI–SI condition.

Both intervals were initialized at the beginning of a session. Pecks on a key had no effect during the lapse of the interval. Only the first peck after the end of the interval was rewarded by access to food for 3 s. After the 3-s access to food, the interval of the rewarded key was reinitialized. Reward delivery, lapse and reinitialization of the interval on one key did not affect the interval runtime on the other key.

Each training and testing session lasted 60 min. Pigeons were trained until they received 85% of the maximally available rewards on each key within at least three consecutive sessions. Typically, about eight to 10 training sessions per animal were required to reach a stable criterion. After the criterion was reached, pigeons were subjected to surgery and, after recovery, tested to check for potential surgery-induced behavioural changes.

Testing and injections

All 11 pigeons were subjected to two NCL treatment blocks comprising bilateral NCL injections. In addition, five of these animals (three SI–LI and two LI–SI animals) received one bilateral NAc treatment each and one unilateral right and one unilateral left NAc treatment. Five of the remaining animals (three SI–LI and two LI–SI animals) received one bilateral CPu treatment and one unilateral right and one unilateral left CPu treatment. The remaining animal from the LI–SI group had to be removed from CPu–NAc analysis because of misplaced and/or damaged cannulae. The sequence of bilateral NCL and bilateral and unilateral CPu–NAc injections was randomised.

Each treatment block comprised four testing sessions: one session in a baseline condition (no treatment), one TTX condition (TTX injection), one vehicle condition (saline injection) and one post-TTX condition (no injection). The post-TTX condition served to determine whether TTX or saline injections had any long-term deteriorating effects on the animal's behaviour.

In TTX or saline sessions, pigeons received infusions of 1 µL TTX (Fugu sp.; Calbiochem, Germany; 10 ng/1 µL NaCl) or 1 µL saline (0.9% w/v) per cannula (total volume: NCL injections, 4 µL; bilateral CPu–NAc injections, 2 µL and unilateral CPu–NAc injections, 1 µL). For TTX or saline infusions, the injection cannulae were inserted into the guide cannulae. We used a microinfusion pump equipped with two 1-µL Hamilton syringes to deliver the volume at a flow rate of 0.2 µL/min. After each injection, the injection cannulae remained in place for another 5 min to allow for diffusion of the injected volume. To infuse through all four NCL cannulae, we performed this procedure twice. Testing sessions always began exactly 60 min after termination of injection. After TTX sessions, the pigeons were not trained or tested again for at least 48 h to fully reverse TTX effects. Time between the baseline, saline and post-TTX sessions was usually 1 day. A great wealth of previous experience shows that TTX is a suitable method to study neural inactivation without major undesired effects (Ambrogi Lorenzini et al., 1997). The TTX dilution, injection volumes and optimal injection-testing period were adopted from Ambrogi Lorenzini et al. (1997) and Zhuravin & Bures (1991) and tested for appropriateness in previous, unpublished experiments in our laboratory. These preliminary experiments confirmed that the TTX volume employed in the present study equalled the minimum dose required to produce measurable effects. Tetrodotoxin blocks Na⁺ channels of the cell membrane and is widely used to temporarily and reversibly inactivate discrete brain regions (see Ambrogi Lorenzini et al., 1997). It has a slow diffusion gradient and a high metabolic degradation. Tetrodotoxin in the given volume and dosage only produces considerable effects when injected not more than 1 mm distant from the target site (Zhuravin & Bures, 1991). Accordingly, the molecule concentration of the TTX dilution used in the present study decays to approximately 10% of the original concentration at 1 mm distance from the injection site and to 0% at 2 mm distance. It takes maximum effect 30–120 min following injection with later onset at greater distance from injection area (Zhuravin & Bures, 1991). Therefore, TTX effects are probably restricted to a radius of approx. 1 mm around the injection site. Hence, the main action of TTX in the present study was almost certainly confined to the target areas NCL, CPu and NAc.

Histology

To reconstruct the locations of the guide cannulae, the pigeons were deeply anaesthetized with Equithesin (4.5 mL/kg body mass i.m.) and transcardially perfused with 0.9% saline (40 °C) and a 4% (w/v) paraformaldehyde solution (4 °C). The brains were removed, postfixed and cut into 40-µm frontal sections on a freezing microtome. Every third slice was kept and stained with cresyl violet. The lowest point of the lesion left by the cannulae was considered the injection site.

Measurements

Reward-related modulation of pecking activity on the SI key

We investigated whether expectancy of rewards on the SI key affected pecking activity on the SI and LI keys. As a measure of reward-related increase or decrease in pecking activity, we fitted linear curves into the prereward SI PRTH for pecks on both keys (see inlays of Fig. 2C and D). Only data before reward delivery were considered, all data during or following reward delivery were removed from the analysis. A positive linear gradient indicates an increase in pecking activity over time towards the reward on the SI key and a negative gradient indicates a decrease in pecking activity. As the PRTH for rewards on the LI key did not exhibit any continuous increase/decrease (Fig. 2E), no lines were fitted into the LI PRTH.

Data analysis

We determined the effects of NCL blockade on any of these parameters with a two-factorial anova for repeated measures with the main factors treatment block (measurement 1 vs. measurement 2) and treatment (baseline vs. TTX injection vs. saline injection vs. post-treatment). The effects of bilateral CPu or NAc inactivation were analysed using a one-factorial anova for repeated measures. Left and right unilateral CPu–NAc injections were analysed using a two-factorial anova for repeated measures (treatment and hemisphere as main factors). Significance was assumed when P < 0.05. Whenever appropriate, we tested the directed hypothesis that parameters after TTX injection were smaller compared with control conditions using posthoc one-sided paired comparisons. Moreover, in some cases one-sample t-tests were used to test for differences from zero and two-tailed correlation tests were performed to test for significant correlations between the variables.

Histology

All except two injection sites were located within the target structures. For NCL injections, 42 of 44 sites were located between A 4.25 and 6.5 and two sites were located anterior to A 6.5 (Fig. 1A). For CPu injections, all sites were located within a range of ± 0.5 mm from A 10.5 (Fig. 1B) and for NAc injections, all sites were located within a range of ± 0.25 mm from A 11.5 (Fig. 1C).

Baseline behaviour and neostriatum caudolaterale inactivation

Temporal modulation of pecking frequency

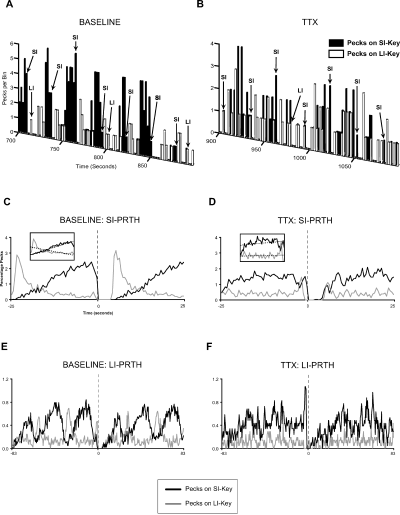

Baseline behaviour A cut-out of a typical time histogram for one animal in the baseline condition is captured in Fig. 2A. Visual inspection suggests that this pigeon distributed its pecks on both keys according to a stereotypic pecking pattern. It spent more time pecking on the SI key than on the LI key. Upon reward delivery on the SI key, the animal switched to the LI key and remained there for some time, irrespective of reward earning on the LI key. After a while, the pigeon switched back to the SI key and continued to exclusively peck on the SI key until receiving the next reward. These observations suggest that the time interval on the SI key, but presumably not on the LI key, determined the pecking pattern, that switches from the SI to the LI key were reward driven, whereas switches from the LI to the SI key were not, and that pecks on the LI key were closely coupled to events on the SI key.

Exemplar baseline PRTHs from one bird for rewards on the SI key (Fig. 2C) and LI key (Fig. 2E) support these speculations. The SI PRTH shows a roughly linear increase of pecking activity on the SI key with increasing temporal proximity to the timepoint of reward delivery at 0 s. Accordingly, pecking activity on the LI key decreased towards the reward on the SI key. This reward-related modulation of pecking activity indicates that pecking activity on both keys was closely linked to the lapse of the short interval. Immediately after reward delivery, pecking frequency on the LI key dramatically increased, presumably because pigeons had switched away from the rewarded SI key to the unrewarded LI key. In the LI PRTH (Fig. 2E), there was no continuous increase or decrease of activity on either key towards the timepoint of LI reward delivery. Pecks occurred rather in periodical activity bursts of approximately 25 s duration. Moreover, pecks on the LI key were negatively correlated with pecks on the SI key. Thus, unlike the SI PRTH (Fig. 2C), the activity bursts in the LI PRTH were not phase locked to the lapse of the interval but spurts on the LI pecks appeared to be phase shifted to the pecking frequency on the SI key.

Tetrodotoxin injections into the neostriatum caudolaterale The time histogram illustrates that the typical bursts of responses on the SI key disappeared after TTX injections into the bilateral NCL and key switches occurred throughout the entire session, not only after SI rewards (Fig. 2B). Accordingly, the SI PRTH (Fig. 2D) shows that the typical increase of SI activity towards the SI reward was substantially less pronounced and the decrease of LI activity was nonexistent or even reversed. In order to statistically compare the reward-related modulation of pecking activity on the SI and LI keys in TTX and control conditions, we contrasted the linear gradients of the curves that were fitted to the prereward SI PRTH of all animals (see fitted lines in the insets of Fig. 2C and D).

One-sample t-tests revealed that the individual mean baseline linear coefficients were significantly different from zero for pecks on the SI key (t₁₀ = 13.94, P < 0.001) and the LI key (t₁₀ = −2.94, P < 0.05). Tetrodotoxin dramatically interfered with the reward-related increase/decrease of pecking activity (Fig. 3A) on the SI key (F_3,30 = 46.55, P < 0.001) and the LI key (F_3,30 = 23.33, P < 0.001). The increase of pecking activity on the SI key towards reward on the same key was significantly reduced (posthoc tests for TTX vs. each of the other three conditions: all F_1,10 > 47.30, all P < 0.001). Likewise, the decrease of pecks on the LI key towards the reward on the SI key was significantly different after TTX injections (posthoc tests: all F_1,10 > 18.20, all P < 0.001). In fact, the sign of the normally negative gradient of LI pecks towards SI reward was reversed after TTX injections. No treatment block or interaction effects were found (all F < 2.70, all P > 0.13).

The LI PRTH of the same bird (Fig. 2F) illustrates that the typical negative correlation between activity bursts on the LI and SI keys in baseline conditions was greatly reduced after NCL inactivation. To quantify the effects of NCL blockade on the negative correlation, we compared the linear correlation coefficients between pecks on the SI and LI keys of the prereward PRTH.

One-sample t-tests revealed that the individual mean baseline correlations significantly differed from zero (t₁₀ = −3.84, P < 0.01). After TTX injections, pecks on the LI key were decoupled from pecks on the SI key (Fig. 3B). The correlation coefficient dropped from r = −0.27 (baseline) to r = −0.01 after TTX injections. anova and posthoc tests revealed that TTX injections significantly reduced the negative correlation compared with all control conditions (F_3,30 = 7.47, P < 0.005, posthoc tests, all F_1,10 > 5.70, all P < 0.05). No treatment block (order) or interaction effects were found (all F < 1.10, all P > 0.37).

Switching pattern

Baseline pattern Switch PRTHs for switches away from the rewarded key were computed to test whether the probability of the occurrence of a key switch was significantly higher immediately after reward delivery. For the baseline condition, averaged mean switch PRTHs were calculated for switches from the SI to the LI key before/after rewards on the SI key (Fig. 4A) and for switches from the LI to the SI key before/after rewards on the LI key (Fig. 4E). The majority of SI to LI switches occurred immediately after reward delivery (Fig. 4A). The bins at the beginning of an interval crossed the upper threshold of the confidence interval, indicating that the probability of the occurrence of an SI to LI switch was higher immediately after a reward on the SI key than at any other timepoint during an experimental session. Hence, pigeons did indeed systematically switch away from the rewarded key after receiving a reward on the SI key. No such reward-related switch pattern was found after rewards on the LI key (Fig. 4E). The switch PRTH occasionally crossed the confidence interval threshold but not immediately after reward delivery. Switches rather appeared to occur in bursts of approx. 25-s spurts. These bursts presumably corresponded to reward-related switches after rewards on the SI key rather than to rewards on the LI key.

Tetrodotoxin injections into the neostriatum caudolaterale Neostriatum caudolaterale blockade affected the reward-related SI to LI switch pattern (Fig. 4B). After TTX injections, the probability of SI to LI switches was not significantly higher after a reward on the SI key than at any other timepoint during a testing session, suggesting that NCL inactivation reduced the probability that a switch occurred after SI reward delivery. In contrast, the switching patterns in the saline and post-TTX conditions (Fig. 4C and D) were similar to the pattern observed during the baseline condition. The anova confirmed that NCL inactivation reduced the relative number of postreward switches. After TTX injections, the relative number of switches within the first bin after reward offset was significantly reduced compared with all control conditions (F_3,30 = 9.33, P < 0.001, posthoc test, all F_1,10 > 11.50, all P < 0.05). Again, we did not find any significant treatment block effects in any of the tests or any interaction effects between treatment blocks and treatment (all F < 1.3, all P > 0.30).

Blockade of the caudate/putamen

After bilateral and unilateral TTX injections into the CPu, animals appeared paralysed and unresponsive when handled or moved. Moreover, although all pigeons were continuously food deprived, they did not feed when being fed. They did not exhibit any sign of distress or any other typical response to human contact. Accordingly, three of five animals entirely ceased to peck after bilateral TTX injections and the remaining two animals also showed a dramatically reduced pecking rate. An anova also showed that the treatment had a significant effect on the total pecking rate (F_3,12 = 25.09, P < 0.001) (Fig. 5A) which was significantly lower after TTX injections compared with all control conditions (posthoc tests: all F_1,4 > 21.80, all P < 0.01). Accordingly, the total pecking rate was also decreased after unilateral injections into either hemisphere (F_3,12 = 10.21, P < 0.005; posthoc tests: all F_1,4 > 9.90, all P < 0.05). There was no effect of the injection side in the left or right hemisphere and no interaction effect (all F < 0.45, all P > 0.71). Due to the large reduction in activity after CPu injections, we constrained our examination merely on the analysis of the pecking rate.

Blockade of the nucleus accumbens

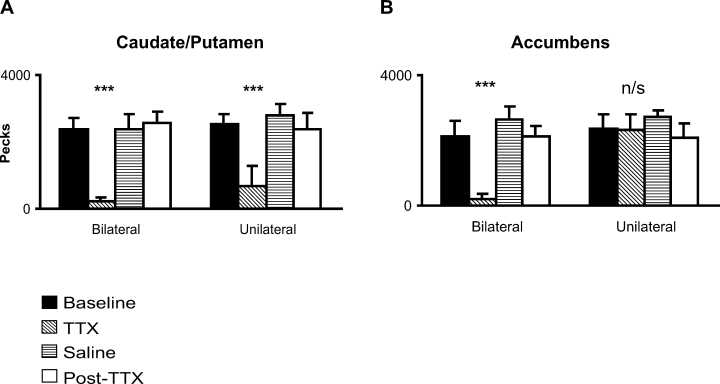

After bilateral TTX injections into the NAc, four of five animals entirely ceased to peck and the remaining animal also had a greatly reduced pecking rate (Fig. 5B). Accordingly, the anova revealed a treatment effect (F_3,12 = 13.34, P < 0.001) and posthoc tests confirmed that the pecking rate after bilateral TTX injections was significantly reduced compared with all control conditions (all F_1,4) > 10.60, all P < 0.05).

After unilateral injections, the anova did not reveal any significant treatment effect or significant treatment vs. hemisphere interactions (all F_3,12) < 2.70, all P > 0.09). However, there was a significant main effect for hemisphere (F_1,4 = 11.59, P < 0.05). Two-sided posthoc tests showed that the overall pecking rate across all treatment conditions was significantly lower in the left hemisphere treatment block compared with the right hemisphere treatment block (F_1,4 = 11.59, P < 0.05).

Despite the reduction in pecking rate, pigeons appeared normal when approached in their home cage and showed the typical signs of distress when removed from their home cage. Most interestingly, they would feed when provided with food. Thus, in contrast to the effects after CPu inactivation, here the consummatory response was still preserved but pigeons refused to work for food.

Normal choice behaviour

We intended to contrast choice behaviour after TTX injections with normal choice behaviour. It was, therefore, necessary to first identify the response distribution under baseline conditions. On average, pigeons placed progressively more pecks on the SI key with increasing temporal proximity to reward delivery on the SI key. Accordingly, the closer a reward on the SI key, the fewer pecks were placed on the LI key. Birds anticipate reward delivery (Diekamp et al., 2002a,b), hence it is likely that this temporal response profile was determined by expectancy of SI rewards. The ability for reward-related temporal adjustment of pecking frequency requires an internal timer and an algorithm that links time estimation with reward expectancy, resulting in time-related reward anticipation.

A decision is manifest when a pigeon switches from one key to another. Our subjects reliably switched away from the rewarded key immediately following a reward on the SI key, again pointing to the putative choice-determining role of reward anticipation: an SI reward predicts that there is no immediate further reward to be expected on the SI key. As key switches were reward triggered, the behavioural change corresponded to low reward expectancy, presumably in order to engage in more reward-promising activities.

For the long interval, no climbing/descending pecking activity was found but activity oscillated with a frequency of approx. 1/25 Hz and in negative correlation to bursts on the SI key. This suggests that pecks on the LI key were not driven by expectancy of LI rewards but were rather determined by events on the SI key. Accordingly, the probability of switches from LI to SI key was not higher after reward delivery.

In summary, the response distribution on both keys seems to be exclusively determined by anticipation of events on the SI key. Choice behaviour can be characterized by (i) climbing/descending pecking activity related to the timepoint of reward delivery on the SI key; (ii) switches from the SI to the LI key following rewards on the SI key and (iii) negative coupling of pecks on the LI key with pecks on the SI key.

Temporary inactivation of the neostriatum caudolaterale interferes with normal choice behaviour

In the present study, bilateral injections of TTX into the NCL, but not sham injections, disrupted the bird's typical choice pattern. First, NCL inactivation levelled out the reward-related temporal modulation of pecking activity. The characteristic climbing activity on the SI key towards the end of the short interval was significantly reduced after NCL blockade. The normally descending activity on the LI key towards the SI reward was, in fact, even somewhat ascending after NCL inactivation, indicating that the pigeons slightly increased rather than decreased their pecking activity on the LI key with increasing proximity to the SI reward. Taken together, choice behaviour seemed to be not related or inappropriately related to the estimated timepoint of reward delivery, suggesting that pigeons either lacked reward anticipation, incorrectly estimated the time interval or were unable to utilize time information for behavioural planning. Second, the probability of switches from one key to another after rewarded pecks on the SI key was not significantly different from the switch probability at any other moment during a session. As outlined above, SI rewards represented contextual cues predicting the nonoccurrence of immediate further SI rewards. The fact that, after NCL inactivation, switches occurred with equal probability throughout the entire interval and were not confined to the time after SI reward delivery suggests that pigeons were unable to utilize the contextual cues for reward prediction or failed to integrate cued low reward expectancy into behavioural organization. Third, the negative correlation between pecking bursts on LI and SI keys converged towards zero, suggesting that pecks on the LI key were decoupled from pecks on the SI key.

Tetrodotoxin injections decreased the total pecking rate but did not abolish pecking per se. Our results show that the TTX effects on the animal's choice pattern were the result of NCL blockade and cannot be attributed to the TTX-induced reduction in pecking rate, although the rate reduction was related to the decrease in reward earning.

Interestingly, the subjects' basic ability for making choices was not completely abolished after NCL inactivations as they still placed more responses on the SI key than on the LI key, indicating a preserved preference for the SI key. This observation suggests that the NCL does not seem to be necessary for the general ability for preference-based response selection. Dietrich et al. (1997, 1998) have shown that lesions of the rat frontal cortex flatten the response distribution in single Fixed Interval schedules. They propose a role of the rodent PFC in providing a basis for the timing mechanism and time estimation in general. However, in addition to the impact on the temporal response profile, NCL inactivations in the present study also influenced the contextually cued key-switching pattern. Hence, due to the blockade effects on both time- and context-related response profiles, the current results cannot merely be explained by lack of ability for time estimation. A more likely cause for the altered choice pattern seems to be a generally impaired ability to integrate temporal and contextual reward expectation into behavioural organization.

In summary, TTX injections into the NCL affected the pigeons' choice behaviour. Neostriatum caudolaterale inactivation interfered with reward anticipation-related key affinity and temporal modulation of pecking frequency, probably due to an inability to integrate time- and context-dependent reward expectation into the response selection process. This putative function of the NCL is in agreement with studies on humans and primates showing that neurons in the NCL (Kalt et al., 1999; Diekamp et al., 2002b) and PFC (Goldman-Rakic, 1995; Tremblay & Schultz, 2000a,b) exhibit anticipatory responses to upcoming rewards and integrate reward anticipation into working memory for response planning and execution (Rainer et al., 1999; Fuster, 2000; Miller & Cohen, 2001).

Caudate/putamen is essential for response execution and nucleus accumbens is necessary for representing behavioural goals during the course of the interval

Tetrodotoxin injections into the NAc and CPu had substantially different effects from injections into the NCL, suggesting that the effects on choice behaviour after NCL inactivation cannot be attributed to the presence of TTX in brain tissue per se but are more probably the consequence of loss of particular functions subserved by the affected neural subregion.

More importantly, injections into the CPu and NAc also shed light on their putative contribution to choice behaviour and allowed us to speculate about their role in the reward-related response distribution. The temporary inactivation of the pigeon's CPu resulted in a total stop of behaviour. Pigeons did not react to any kind of stimulus, including food and human contact. It seems evident, therefore, that an intact CPu is necessary to execute any kind of motor behaviour. The avian striatum receives a direct projection from the NCL (Kröner & Güntürkün, 1999). Hence, it is possible that the CPu is involved in the motor execution of the choice pattern that is generated and then fed forward by NCL networks.

In contrast, blocking the NAc did not affect normal behaviour. Pigeons responded inconspicuously to various kinds of stimuli, including human contact. Most importantly, the animals did feed when being fed. Nevertheless, most animals refused to peck during an experimental session regardless of their food deprivation. Thus, pigeons refused to work for reward despite showing preserved consummatory responses.

These results are largely consistent with the literature on mammalian NAc lesions. Salamone et al. (1997, 2001) reported that 6-hydroxy-dopamine lesions in the NAc of rodents resulted in a reduced ability to overcome work-related response costs but did not directly influence the primary rewarding property of food. Moreover, dopamine depletion in the NAc did not affect performance in a variable interval schedule but did affect performance when combined with a fixed ratio requirement (Correa et al., 2002).

High response costs impose a delay between the behavioural requirement and the reward, hence the reduced ability to overcome work-related response costs might be the result of reduced tolerance to delayed reward delivery. Accordingly, lesions of the core of the NAc increase impulsive behaviour in rats (Cardinal et al., 2001) and chicks (Izawa et al., 2003) in an adjusting delay procedure, suggesting that the NAc may be necessary to maintain the subjective value of a reinforcer across a delay. As neural activity in the NAc is related to reward expectancy during a delay, Cardinal et al. (2001) and Schultz et al. (2000) proposed that the core of the NAc might play a role in the representation of behavioural goals across a delay. In the present study, the key-specific intervals represented relatively long delays between response onset and reward delivery. It is, therefore, possible that the NAc inactivation substantially decreased the pigeons' ability to uphold the reward value during the interval, resulting in the observed halt of behaviour. The subjects' choice pattern under baseline conditions was determined by reward anticipation on the SI key. If the NAc is important in generating reward expectation during a delay, it may have significantly contributed to the setting or shifting of behavioural goals in the course of the SI interval, such as focusing on the SI key or switching to the LI key. Accordingly, the NAc is part of the brain's dopamine system (Bardo, 1998) and dopaminergic influence on cortical activity has recently been related to goal setting, goal maintenance or goal changes, attentional focus and resistance against interference (Durstewitz & Seamans, 2002).

In contrast to our results, the cited lesion studies showed that lesions of the NAc did not completely abolish operant behaviour in the adjusting delay procedure (Cardinal et al., 2001; Izawa et al., 2003). However, those studies employed much shorter delays compared with the interval lengths in the present study. It is, therefore, likely that our intervals were too long to allow maintenance of the reward value across the interval during NAc inactivation. Moreover, all of the cited studies applied permanent lesions which might permit compensatory plastic processes. They may, therefore, have slightly different effects compared with the relatively short-lived and sudden neural inactivations caused by TTX.

Neural network guiding choice behaviour

These results provide evidence that dopamine may play an important role in generating the reward-related choice pattern. Mesocortical dopamine projections carry a temporal difference error between predicted and actual reward and process information about the ‘goodness’, probability and temporal occurrence of the reward (Schultz et al., 1997; Schultz, 1997, 2002; Waelti et al., 2001; Fiorillo et al., 2003). The origin of this time and context information about reward occurrence is unknown but climbing activity of neurons in the sensory thalamus is one potential candidate to explain the timepoint estimation (Komura et al., 2001; see also Durstewitz, 2003).

In the avian brain, dopaminergic mesencephalic nuclei, such as ventral tegmental area and substantia nigra pars compacta, project to somato-motor and viscero-limbic striatum, including the NAc, via reciprocal, parallel and distinct pathways (Reiner et al., 1984; Metzger et al., 1996; Mezey & Csillag, 2002). The NAc is reciprocally connected to the thalamic anterior dorsomedial nucleus (Wild, 1987; Székely et al., 1994; Csillag, personal communication) which further projects to the intermediate and medial part of the hyperstriatum ventrale and the mediorostral neostriatum (Metzger et al. 1996). The intermediate and medial part of the hyperstriatum ventrale and the mediorostral neostriatum complex is one of the major afferent sources to the NCL (Kröner & Güntürkün, 1999). Hence, the NAc is able to influence NCL activity via a striato-thalamo-pallial connection. In addition, the ventral tegmental area sends direct dopaminergic projections onto the NCL (Durstewitz et al., 1999; Kröner & Güntürkün, 1999). The NCL is a multimodal association structure that is rich in D1 receptors and is reciprocally connected to the secondary sensory areas of all modalities in addition to the striatal and midbrain structures mentioned (Kröner & Güntürkün, 1999). It projects to the limbic and somato-motor parts of basal ganglia, to archistriatum and to amygdala (Durstewitz et al., 1999; Kröner & Güntürkün, 1999). Hence, the avian brain contains three major mesencephalic dopamine systems onto pallial structures and basal ganglia that are presumably homologous to the corresponding mammalian dopamine systems (Durstewitz et al., 1999): the nigro-striatal, meso-striato-thalamo-pallial and meso-pallial loop.

Based on our data and results from the functional and anatomical literature, we propose a network loop guiding choice behaviour in the CFI schedule. The direct or indirect dopamine projections onto the NCL, comprising the meso-pallial and meso-striato-thalamo-pallial pathways, carry information about reward expectancy, including the ‘goodness’, probability and timepoint of reward delivery. They dynamically tune the NCL to set, maintain or shift behavioural goals in correspondence to reward anticipation. The NCL integrates information about reward expectation to dynamically adapt goal sets to changing reward probabilities and enhances affinity to reward-related stimuli and actions when reward expectancy is high, i.e. resulting in an increasing attentional focus on the SI key with increasing proximity to reward delivery. In turn, reverse tuning of NCL neurons might account for the initiation of behavioural changes when reward expectancy is low, such as key switches immediately after reward delivery. Furthermore, NCL networks convert this information into categorical motor commands and feed forward the resulting action commands to motor structures, such as the CPu of the basal ganglia, for execution.
