2.1 Affinity and specificity of anti-EphA2 Abs

To create Abs to manipulate EphA2 clustering, we carried out selections to target each of the three major interface domains of the EphA2 ECD (LBD, CRD, and FN2) using established methods with highly functional synthetic Fab-phage libraries (Adams et al., 2014; Enderle et al., 2021; Himanen et al., 2010), resulting in dozens of unique Fabs targeting each domain. To assess specificity comprehensively, we converted selected Fabs to the full-length IgG format, purified IgG proteins, and screened numerous IgGs for binding to the complete panel of Eph receptor ECDs at high concentration (100 nM) and at steady state using biolayer interferometry (BLI). Ultimately, we focused on three distinct Abs (Figure 2a) that bound to the EphA2 ECD with high affinity but not to any of the other Eph family members (Figures 2b and S2A), and were capable of modulating EphA2 pTyr signaling. We assessed the binding of the three IgGs to purified domains of the EphA2 ECD and showed that one bound to the LBD (L1), another bound to the CRD (C1), and the third bound to FN2 (F1) (Figures 2c and S2B,C). Finally, to determine monovalent binding kinetics, we purified each Fab protein and assayed binding to the EphA2 ECD by surface plasmon resonance (SPR) (Figures 2a and S2A). Each of the Fabs bound to the EphA2 ECD with high affinity (K_D <1 nM), and together, they comprised a toolkit for manipulating EphA2 signaling.

2.2 Cellular activity of anti-EphA2 Abs

Next, we characterized the Abs in cell-based assays to identify bivalent IgG agonists and monovalent Fab antagonists. In addition to homodimerization, EphA2 can heterodimerize with other Eph receptors with potentially distinct ligand specificities and cellular responses (Janes et al., 2011). To avoid complications associated with signaling involving heterodimers and/or auto-activation arising from overexpression, we sought to characterize our Abs with cells that displayed uniform but endogenous EphA2. To identify a suitable cell line, we profiled a panel of pancreatic tumor cell lines with a set of 14 Abs we had developed, each selective for one of the 14 Eph family members (Figure S2D–F). We found that BxPC3 cells almost exclusively displayed EphA2, whereas all other cell lines displayed a range of Eph family members (Figure S2E). We then confirmed that each of our anti-EphA2 Abs, in either the Fab or IgG format, bound robustly to BxPC3 cells (Figure 2d).

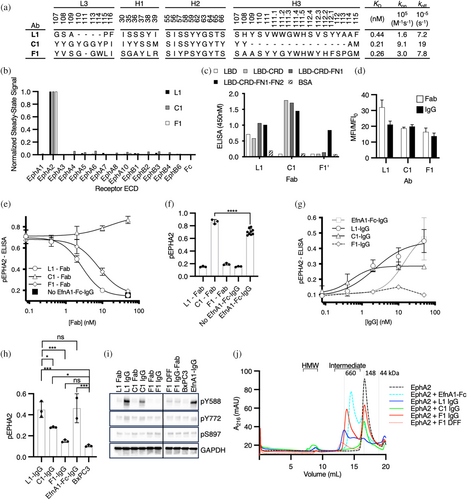

Next we used a semi-quantitative enzyme-linked immunosorbent assay (ELISA) to assess and quantify the ability of monovalent anti-EphA2 Fabs to antagonize EfnA1-mediated activation of EphA2 in BxPC3 cells. We measured EphA2 pTyr⁵⁸⁸ levels in the presence of the multivalent agonist EfnA1-Fc clustered with anti-Fc IgG (EfnA1-Fc-IgG) and a concentration range of each Fab (Figure 2e,f). We found that Fabs L1 and F1 were potent and complete antagonists of EphA2 phosphorylation (EC₅₀ = 2.8 and 7.8 nM, respectively), whereas Fab C1 did not act as an antagonist, but rather, appeared to modestly enhance EphA2 phosphorylation. Likewise, we quantified the agonist activity of bivalent EphA2 IgGs. BxPC3 cells were treated with a concentration range of bivalent anti-EphA2 IgG or the positive control EfnA1-Fc-IgG, and EphA2 phosphorylation was measured using the pTyr⁵⁸⁸ ELISA (Figure 2g,h). IgG L1 resulted in potent (EC₅₀ = 2.2 nM) phosphorylation of EphA2 and IgG C1 induced potent (EC₅₀ = 0.5 nM) but partial phosphorylation of EphA2, whereas IgG F1 only weakly stimulated phosphorylation of EphA2 and the signal decayed upon saturation, as commonly observed for bivalent agonists due to interference. Notably, IgG C1 signal amplitude was approximately half that of IgG L1 at saturation but neither stimulus was significantly different from EfnA1-Fc clustered with secondary IgG. For comparison, we evaluated the inhibitory properties of IgG F1 to determine if it would act similarly to an inverse agonist. Indeed, the combined stimulation of IgG F1 and EfnA1-Fc-IgG resulted in a partial inactivation of signaling (Figure S2G). We therefore characterized three distinct EphA2-IgG complexes with diverse functional outcomes. To ensure that the ranking of EphA2 agonists was reproducible in cells expressing a mixture of Eph isoforms (Figure S2E), we repeated the maximal stimulations of pTyr⁵⁸⁸ on both BxPC3 (EphA2⁺) and MDA MB231 (EphA2⁺ and EphB2⁺) and quantified the activation by phospho-specific western (Figures 2i, S2H,I). The trends in maximal stimulation were conserved across both cell lines. To further evaluate the signaling response to IgG stimuli at alternative sites of modification, we assessed the pEphA2 response at pTyr⁷⁷² and pSer⁸⁹⁷ (Figures 2i and S2H,I). Activation through L1 and C1 IgG engagement mimicked stimulation by EfnA1-Fc, suggesting that they trigger a similar intracellular signal. Activation through F1 engagement appeared to selectively stimulate pTyr⁵⁸⁸, albeit weakly.

To better understand the impact of agonist engagement on EphA2 clustering, we used size exclusion chromatography to observe the agonized IgG-EphA2 complexes in solution. Agonist IgG was saturated with EphA2 ECD, allowing the complexes to multimerize before the distinct protomer states were separated by size over the column (Figure 2g). Analysis of the EphA2 IgGs and EfnA1-Fc seeded complexes revealed multiple protomer states. For complexes induced by EfnA1-Fc and IgG L1, prominent intermediate clusters of less than or equal to 660 kDa were observed, as well as a smaller proportion of high molecular weight (HMW) species consistent with induced EphA2 multimers. In contrast, IgG C1 gave rise to a prominent HMW species peak and relatively few intermediate products compared to IgG L1 and EfnA1-Fc. Finally, IgG F1 induced almost exclusively intermediate sized complexes larger than those seeded by EfnA1-Fc, but smaller than the ones induced by IgG L1. Furthermore, IgG F1 produced very few HMW products compared to other agonist complexes. Taken together, these data suggest that the HMW species might be responsible for phosphorylation of EphA2. Given that IgG F1 failed to produce a strong agonist signal or a prominent HMW peak, we asked if increased valency might potentiate agonistic properties through FN2 engagement. As anticipated, tetravalent modalities of F1 in a diabody-Fc-Fab format (DFF) produced a robust EphA2 phosphorylation signal in BxPC3 cells, albeit suboptimal compared to EfnA1-Fc-IgG, L1 IgG, or C1 IgG (Figure S2H,J,K). We characterized the chromatography profile of DFF F1 in complex with EphA2 ECD to evaluate the proportional distribution of induced EphA2 clusters. We observed a decrease in intermediate molecular weight products and a detectable increase in HMW products compared to IgG F1, suggesting that enhanced multimers of EphA2 were induced by DFF F1 engagement, resulting in enhanced phosphorylation. Together, these observations point to a relationship between the HMW clusters of EphA2 induced by agonist ligands, the valency of the agonists, and the maximal activation observed on cells.

2.3 Structural analysis of Fabs in complex with EphA2 domains

To shed light on the molecular basis for the diverse cellular activities of the various Abs, we solved the structure of each Fab in complex with its cognate EphA2 domain. To facilitate crystallization, we took advantage of optimized Fab frameworks that enhance the quantity and quality of Fab-antigen crystals (Bruce et al., 2023, 2024). Briefly, we incorporated substitutions into the elbow region of the Fab heavy chain to reduce conformational flexibility (Bailey et al., 2018), in addition to making substitutions in the light chain constant domain that reduce the surface entropy and induce the formation of β-sheet stacking interactions between packing Fab molecules in the crystal lattice (Bruce et al., 2023; Lieu et al., 2020). As these regions are distal to the Fab paratope, they do not affect antigen recognition in solution but improve the yield of Fab-antigen crystals from conventional screens (Bruce et al., 2023, 2024).

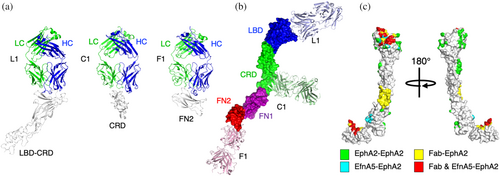

Using optimized Fab frameworks, we solved the structures of Fabs L1, C1, and F1 in complex with the LBD-CRD (Figure 3a, left), CRD (Figure 3a, middle), or FN2 (Figure 3a, right) ECD domains of EphA2 at 2.6, 1.9, or 4.2 Å resolution, respectively. Superposition of the structures onto the structure of the apo full-length EphA2 ECD clearly showed how each Fab binds to a distinct region of the receptor, with Fab L1 binding to the N-terminal LBD, Fab C1 binding to the central CRD, and Fab F1 binding to the C-terminal FN2 region proximal to the single-pass TM region (Figure 3b).

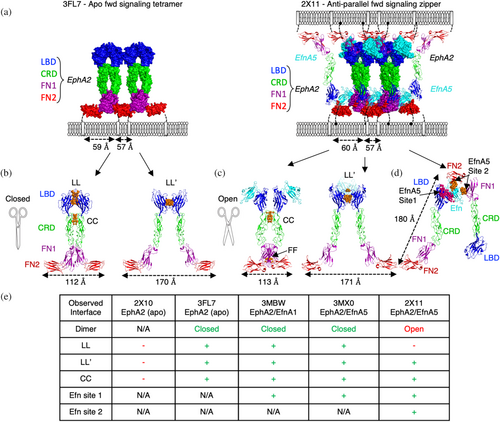

We also analyzed the superpositions to compare the EphA2 epitopes targeted by the Fabs to the intermolecular interfaces formed by EphA2 in signaling complexes (Figure 3c). The Fab L1 epitope does not overlap with either the LL or LL′ interfaces, leaving EphA2 self-association unimpeded. Instead, the Fab L1 epitope overlaps significantly with Efn Site 1, consistent with the antagonist activity of the Fab due to steric competition. The Fab C1 epitope resides in the EGF subdomain of the CRD and does not overlap with the CC interface, which resides in the sushi subdomain of the CRD (Himanen et al., 2010; Seiradake et al., 2010), consistent with a lack of antagonist activity for Fab C1 (Figures 2e and 3c). The Fab F1 epitope overlaps significantly with Efn-binding Site 2, suggesting that the antagonist activity of Fab F1 is, in part, due to interference with zippering of anti-parallel EphA2-Efn signaling assemblies (Figure 3c).

2.4 Structural basis for the high affinities of the anti-EphA2 Fabs C1 and F1

While recognition of LBD by Abs has been characterized in previous studies (Himanen et al., 2009, 2010; Seiradake et al., 2010, 2013; Singh et al., 2018; Xu et al., 2013), engagement modes of Abs targeting the CRD and FN2 have yet to be elucidated. To determine the structural basis for high affinity, we examined the details of the molecular interactions of the C1 and F1 Fabs with EphA2.

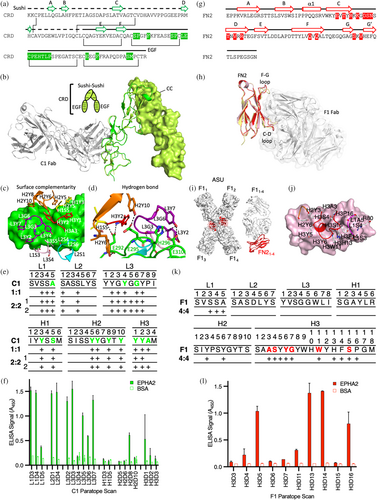

The sushi and EGF subdomains that form the CRD are stabilized by two or four disulphides, respectively, but lack α-helical and extensive β-sheet secondary structure (Figure 4a). The epitope engaged by Fab C1 is located entirely within the EGF subdomain, which is partially conserved across human Eph receptors but diverse enough to create selectivity for the Fab (Figure S3A,B). Overlay of Fab C1 onto the dimer of EphA2 mediated by the CC interface revealed an engagement mode roughly perpendicular to the EphA2 CRD fold and distal from the CC interface formed by the sushi domains (Figure 4b). Fab C1 used a “lock-and-key” form of engagement where little to no conformational change in the EGF domain was necessary for binding. Analysis of the paratope revealed a minimalist synthetic surface composed of just four types of residues: Tyr, Ser, Ala, and Gly (Figure 4c). Notably, the Fab C1 paratope was predominantly formed by tyrosine residues, allowing for exquisite surface complementarity to the EGF domain with all six complementarity determining regions (CDRs) of the Fab contributing contacts. Engagement of the C1 paratope centers CDRs L3 and H3 on the EGF domain, allowing hydrogen bond contacts to form at the core of the paratope to four critical charged amino acids on the surface of the EGF fold (Figure 4d). This core set of polar contacts surrounded by van der Waals contacts of planar residues forms a highly favorable protein–protein interface. Unexpectedly, much of the buried surface area arose from undiversified CDRs (L1 and L2) in our Fab phage library. To assess the energetic contributions of the observed contact residues, we scanned the positional contacts with Asp, a residue not encoded in our library (Persson et al., 2013) and that minimized aggregation of the mutated paratopes (Dudgeon et al., 2009). Single point ELISA of the CDR variants mapped the residues most sensitive to Asp substitution, which we used as a proxy for positional contributions to energetics of binding (Figure 4e,f) (Pal et al., 2003). From this analysis we concluded that residues from diversified CDRs (L3, H1, H2, and H3) contributed the majority of the binding energetics. Only one contact from the undiversified CDRs (L1A5) contributed to the energetics of binding of EphA2 in our screen.

Examination of the Fab F1 interaction revealed an epitope on FN2 predominantly formed by the C-D and F-G strands and loops of the fibronectin type III fold (Figure 4g). The epitope is also partially conserved across human Eph receptors, but again, is diverse enough to create selectivity for the F1 paratope (Figure S3C–E). Superposition of the FN2 domains in the apo form (PDB entry 2X10), bound to EfnA5 (PDB entry 2X11), or bound to Fab F1 revealed subtle conformational adaptations of the C-D and F-G loops (Figure 4h). Though limited by the low resolution of the structure, a simple omit map at the core of the interface suggested that our model was well matched to the density (Figure S3F) and alignment of all four complexes revealed nearly identical engagement angles for each complex (r.m.s.d < 0.9 Å) (Figure 4i). In each complex, the observed interface was dominated by residues from CDR-H3 with minor contacts from CDR-H2 and CDR-L1 (Figure 4j). To further validate our findings, we performed an Asp scan (as described above) of the dominant CDR-H3 of the F1 paratope, which revealed a six-residue hotspot signature that contributed to the energetics of binding, consistent with the structural analysis (Figure 4k,l). Sequence analysis of the natural paralog sequence variation revealed that F1 engaged a highly diverse pocket of Eph isoforms using the energetic hotspot residues (Figure S3D). Together, these data help to explain the exclusive specificity of F1 for EphA2.

2.5 Structural basis for the high affinity and specificity of anti-EphA2 Fab L1

The LBD domain sequences across the Eph family are highly conserved, making it challenging to engineer Abs with absolute specificity for individual family members (Figure S4A). To evaluate specificity, we compared the binding of IgG L1 to that of the agonist IgG 1C1, a benchmark clinical EphA2 Ab (Peng et al., 2011), to the full complement of human Eph ECDs (Figure S4B,C). We observed exclusive and tight binding of IgG L1 to the EphA2 ECD (K_D = 0.27 nM), while IgG 1C1 bound tightly to EphA2 (K_D = 0.46 nM) but also showed weak affinity for EphA4 (K_D = 120 nM) and EphA8 (K_D = 970 nM) (Figure 5a). Both L1 and 1C1 targeted the same binding pocket of EphA2 recognized by EfnA5 and largely overlap in their molecular interactions, but only L1 proved to be absolutely selective for EphA2 (Figure 5a–c).

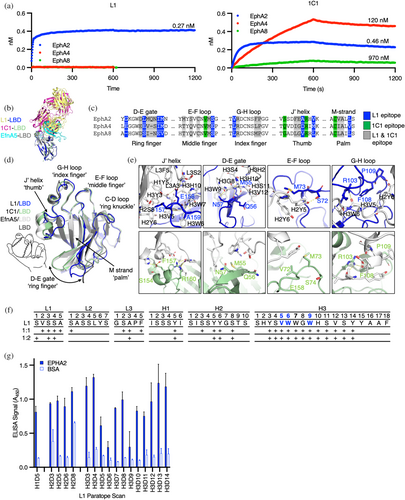

We then examined the interactions between paratopes and epitopes to determine the molecular basis for the exquisite specificity of Fab L1 for EphA2 and the more promiscuous specificity of Fab 1C1. Mapping of epitopes on EphA2 revealed that L1 and 1C1 bind similar regions of the LBD (Figure 5c). The recognition surface of EphA2 LBD resembles a left-handed “fastball grip” where contacts are made by the J′ helical region (thumb), G-H loop (index finger), E-F loop (middle finger), C-D loop (ring knuckle), and D-E gate (ring finger) (Figure 5d). Overlays of the L1-LBD complex and 1C1-LBD complex onto apo and Efn-bound forms of EphA2 revealed that two regions exhibit considerable conformational diversity. The region of highest conformational diversity was the D-E ring finger, which swings from open (apo) to closed (Efn-bound) forms across the structures, displacing the loop by as much as 15 Å to “grip” ligands in the binding pocket. In the L1-LBD complex, the D-E ring finger is swung open, allowing close interactions between Fab L1 and the M-strand “palm” of the binding pocket. In contrast, in the 1C1-LBD complex, the D-E gate is swung by 10 Å to a more closed position. The other notable site of conformational diversity is the J′ helical thumb. Engagement of Fab 1C1 induces a small shift of the J′ helix to engage the heavy chain variable region (V_H) of 1C1 (Figure 5d,e). In contrast, L1 engagement completely unravels the helix to form an extended loop that juts into a binding cavity created by the light chain variable region (V_L) to specifically coordinate LBD residues E¹⁵⁸ and A¹⁵⁹ with hydrogen bonds while burying F¹⁵⁷ in a hydrophobic pocket formed by the V_L (Figure 5d,e). Critically, the F¹⁵⁷-E¹⁵⁸-A¹⁵⁹ contact triad of the thumb is exclusive to EphA2 and is distinct from the corresponding triads in EphA4, EphA8, and all other Eph isoforms (Figures 5c and S4A). Though overlapping in epitope, comparison of L1 and 1C1 contacts thus revealed that each Fab binds a distinct conformation of the LBD (Figure 5b–d). Notably, Fab L1 makes more main chain hydrogen bonds, indicative of high surface complementarity between the epitope and paratope (Figure 5e). The molecular determinants enabled by a distinct conformation of the LBD therefore drive the high affinity and specificity of Fab L1 for EphA2.

Structural characterization of Fab L1 resulted in two crystal forms (Table S1). Across these two structures, we observed many shared heavy chain contacts responsible for LBD recognition, while the light chain contacts were less consistent across the two models (Figure 5f). To determine which residues contribute significantly to the binding energetics, we scanned the heavy chain contacts of the Fab L1 paratope and found that all but 3 amino acids could be substituted with minimal changes in ELISA signal (Figure 5f,g). We therefore found a very small energetic “hot spot” for Fab L1 recognition, despite having a long CDR-H3 buried in the LBD pocket.

2.6 IgG L1: A complete agonist of EphA2 signaling

Given that IgG L1, IgG 1C1, and EfnA5-Fc share the same epitope, we anticipated that each molecule agonized EphA2 by inducing similar signal-competent clusters. We therefore analyzed the lattices of each agonist complex to determine if there were structural arrangements shared by each. The crystal structure of Fab L1 bound to LBD-CRD revealed the location of the epitope on the EphA2 LBD (Figure 6a, i), but lacked Eph-Eph interfaces associated with clustering and signaling. Utilizing an alternative Fab framework optimized for crystallization (Bruce et al., 2023, 2024), we were able to capture an additional crystal lattice packing arrangement that revealed the anticipated higher order protomer complex of Fab L1 and LBD-CRD (Figure 6a, ii), albeit at a lower resolution of 4.6 Å. Molecular replacement of the lattice revealed a structure with one Fab L1 bound to two LBD-CRD molecules with a solvent content of 65%. In this structure, a single Fab engaged an LL/CC dimer of EphA2 in the asymmetric unit (ASU) as observed in all closed forward-signaling-competent structures (Figures 1a,c and S1B). Comparison of symmetrically related molecules in the L1 and 1C1 Fab complexes (PDB entry 3SKJ) identified the same EphA2 LBD chain-link self-association pattern as observed in the closed tetrameric EphA2 complexes (PDB entries 3FL7, 3MXO, 3MBW) (Figure 6a, iii–vii). These data demonstrate that both agonist IgGs and recombinant Efn-Fc molecules engaging the Efn-binding pocket of LBD can trigger EphA2 signaling by stabilizing similar tetrameric EphA2 arrangements (Figures 1e and S1B).

We then asked if EphA2 was able to form clusters through its LL and LL′ interfaces in the presence of Fab L1. Evaluation of the symmetrically related molecules revealed an LL′ interface critical to forming this lattice of symmetrically related complexes, resulting in a 2:4 Fab-EphA2 biological unit (Figure 6b). Using the structure of a full human IgG1 (PDB entry 1HZH) as a benchmark for IgG reach (88 Å), we determined that the observed span of 59 Å between L1 Fabs was compatible with IgG co-engagement (Figure 6c). We then further modeled the anticipated 4:4 complex at Ab saturation by overlaying our 1:1 protomer model (Figure 6a,i) onto the apo tetramer (PDB entry 3FL7) (Figure 6c). This model demonstrated that two L1 IgGs could potentially bind the four receptors in the closed tetramer without steric clashes. Therefore, we concluded that L1 IgGs induce the same cross-linked tetravalent cluster as is achieved by Efns, by stably bridging a dimer (LL′) of dimers (LL/CC) with either one or potentially two L1 IgG co-engagements.

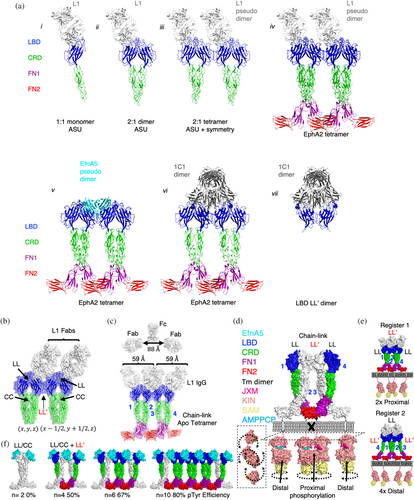

To more fully understand the functional consequences of EphA2 clustering stoichiometry, we created a theoretical model of the full-length EphA2 by approximating the positions of the four protomers of the SAM domains of the ICDs (PDB entry 7KJA) relative to the FN2 domains. While signal-competent dimers of RTKs recruit their kinases with a TM proximity of <40 Å (Figure S5A), static models of EphA2 tetramers recruit their kinases with a TM proximity of 57–60 Å (Figure 1a); a marked deviation from other signal-competent RTK dimers, despite the kinase domains being equivalent in size (Figure S5B,C). It has also been shown that TM dimerization is critical for the production of pTyr⁷⁷² modifications of EphA2 (Alves et al., 2018) as observed for two of our agonist IgGs and Efn-Fc (Figure 2i and S2H,I). In silico evaluation of the closed tetramer revealed that the static FN2 positions in the crystal structures were too distal from each other to allow TM dimerization or kinase recruitment. We therefore conclude that static models of EphA2 tetramers do not completely represent the active state of the ECD conducive to phosphorylation of the ICD. We then considered a dynamic model of EphA2 where TM and kinase positioning was not fixed but could pivot on the FN1-FN2 hinge to create the proximity for TM dimerization (Figure 6d) (Alves et al., 2018). With this consideration, kinases linked to EphA2 ECD protomers 1 and 4 could approach each other resulting in productive engagement of TM dimers and recruited kinases, similar to other RTKs. Protomers 2 and 3, however, remained distal even if dynamic, suggesting that tetravalent EphA2 clusters could preferentially trans-phosphorylate the internal reciprocal and proximal recruited kinases at their juxtamembrane, whereas distal kinases would remain unphosphorylated. Unlike Efns that contribute cross-linking contacts to tetrameric assembly, tetramers bridged by IgGs could potentially give rise to two registers of EphA2 tetramers. In register 1, LL′ cross-linking of LL/CC dimers promotes proximal recruitment of kinases, whereas in register 2, the LL/CC cross-linking of LL′ dimers places all four kinases distal from each other (Figure 6e). We therefore associated register 1 tetramer formation to the minimal signaling-competent cluster, as register 2 tetramers required another condensation of preformed dimers (i.e., a hexamer) to create the first proximal and reciprocal kinase recruitment.

Importantly, the tandem LL and LL′ interfaces observed in forward signaling complexes enable EphA2 protomers to further polymerize as was observed in the 1:2 L1-EphA2 lattice (Figure 6b). In silico models of polymerized Efn-EphA2 tetramer clusters were built by modularly adding EfnA5-EphA2 dimers in a chain-link array (Figure 6f). We noted that the proportion of proximal and reciprocal kinase recruitment improved as EphA2 clusters polymerized to greater than four protomers, suggesting that larger clusters of EphA2 can more efficiently signal through pTyr⁵⁸⁸ relative to smaller clusters of equal protomers, consistent with the observed correlations between Efn-mediated cluster size and signal strength (Schaupp et al., 2014; Zapata-Mercado et al., 2022). Thus, our modified dynamic tetramer model better represented the observed principles of cellular EphA2 triggering that could not be accounted for by dimer triggering models.

2.7 Fab F1: A complete antagonist of EfnA1-mediated signaling clusters

To better understand the mechanisms of Efn-mediated signaling clusters, we evaluated the modes of action of the two complete antagonists, Fabs L1 and F1. Like most EphA2 antagonists, Fab L1 bound to the LBD and significantly overlapped with the high-affinity Efn-binding Site 1, demonstrating a simple Efn-competitive mechanism of inhibition (Figures 3c and 5b). However, the mode of action for Fab F1 was less obvious. Thus, we asked if the inhibitory activity of Fab F1 was driven by occlusion of EphA2-EphA2 dimer interfaces required for kinase recruitment. To evaluate this, we superposed Fab F1 onto LL/CC or LL′ dimeric structures of EfnA5-EphA2 (Figure 7a). We observed no steric clashes with either dimer, suggesting that neither dimer is occluded when bound to F1. This analysis appeared to support our proposition that dimers of EphA2 were not in themselves the structural arrangement responsible for EphA2 Tyr phosphorylation. We then asked if Fab F1 could sterically block tetrameric clusters of EphA2 by overlaying the structure onto models of EphA2 tetramers in register 1 or 2 (Figure 7b). Both registers of the EphA2 tetramer gave rise to steric clashes between FN1 and Fab F1 engaged to protomers responsible for proximal and reciprocal kinase recruitment (protomers 1 and 4 in register 1), while engagement to distal kinases created no steric clashes. These overlays revealed a potential mechanism of non-competitive inhibition and further supported our hypothesis that tetramerization of EphA2 is necessary for triggering of EphA2 signaling.

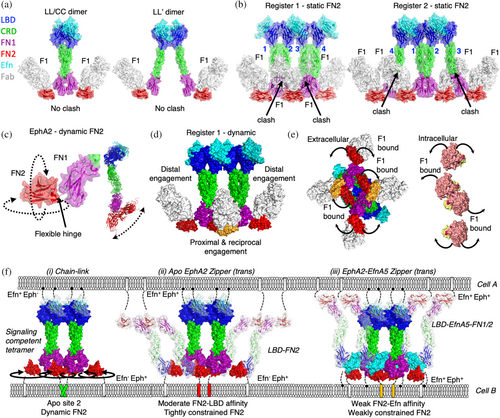

The FN2 domain represents a particularly malleable region of Eph receptors owing to the flexible hinge region connecting FN1 to FN2, which adopts many diverse conformations across structures of EphA2 and EphA4 (Figure 7c). We therefore considered Fab F1 binding in the context of chain-link clusters with dynamic FN2 positioning in silico (Figure 7d,e). Engagement of Fab F1 to distal protomers 2 and 3 of register 1 tetramers would have no impact on distal kinase positioning, whereas Fab F1 engagement of proximal protomers 1 and 4 could constrain the conformations allowed by the FN1-FN2 hinge, forcing this region of the receptor to pivot away from the plane of the receptor cluster (Figure 7d,e). This in turn would displace only the core, proximal, and reciprocal kinases from each other and would thus interfere with trans-phosphorylation of pTyr⁵⁸⁸ (Figure 7e). Our mechanistic model for F1 Fab inhibition therefore inferred that dynamic FN2 positioning was an essential feature of the EphA2 active state induced by Efn-mediated tetramers (Figure 7f).

We then considered other protein–protein interactions mediated by FN2 and their potential roles in modulating FN2 dynamics and signaling. Contact surfaces within crystal structures of apo EphA2 and EphA4 have been used as evidence for head-to-tail protomer assemblies that create auto-inhibitory auxiliary zones in EphA2 clusters with enhancing non-canonical signaling (Shi et al., 2023). In this structural model, apo EphA2 engages a region of FN2 that overlaps with the F1 epitope through its LBD to form a head-to-tail arrangement (Figure S6A). Similar to the F1 Fab, head-to-tail engagement in cis or trans could limit FN2 dynamics to form an auto-inhibited state (Figure 7f). However, occlusion of the head-to-tail engagement by the F1 Fab, F1 IgG, or F1 DFF did not appear to influence non-canonical signaling in BxPC3 or MDA MB231 (Figures 2i and S2H,I). Comparatively, contact surfaces within crystal structures have been used as evidence for trans-zippering of EfnA5/EphA2 complexes to form a distinct active state (Seiradake et al., 2010). This is achieved through weak EfnA5 engagement to Site 2 of FN2, a region that significantly overlaps with the F1 epitope and is responsible for auto-inhibition of the receptor (Figure S6A,B). In silico models of these zippered complexes revealed that dynamics of FN2 would also be dependent on the weak affinity for EfnA5 to Site 2, potentially resulting in an intermediate active state compared to fully active chain-linked clusters and auto-inhibited chain-linked clusters (Figure 7f). We therefore concluded that Fab F1 attenuates EphA2 signaling by engaging a natural auto-inhibitory region at Site 2, but avid engagement of this same site was capable of weak-partial or partial agonism depending on the avidity of the Ab modality.

2.8 IgG C1: A partial agonist of EphA2 signaling

Similar to Fab L1, our first structure of Fab C1 in complex with CRD (Figure 3a–c) failed to reveal any receptor interfaces that could explain the induced partial activation of EphA2 by IgG C1. Given the importance of the LBD in clustering EphA2, we solved the structure of Fab C1 bound to the LBD-CRD fragment to 3 Å resolution (Figure 8a), which revealed an ASU containing two C1 Fabs and two LBD-CRD. In this structure, the LBD-CRD was observed in two conformations (Figure S7A), resulting in two distinct but overlapping paratopes and epitopes for the two Fabs (Figure S7B,C). The first Fab (C1₁) interacts with both protomers of EphA2 (CRD₁ and CRD₂) through distinct contact surfaces. The second Fab (C1₂) interacts exclusively with the second EphA2 protomer (CRD₂) at the same epitope observed in the 1:1 complex (Figure 3a–c). Fab C1₁ distinctly uses its V_L framework region to associate with the sushi domain of CRD₂, thereby bridging the two EphA2 ECDs and their bound Fabs into a quaternary complex (Figure S7B,C). Importantly, this secondary engagement to the sushi domain occludes the CC interface surface of CRD₂ necessary for conventional chain-link and zipper cluster arrays.

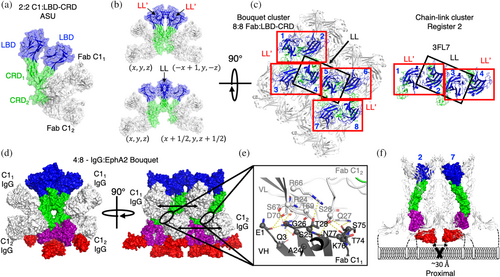

We then asked if these C1₁- and C1₂-bound EphA2 protomers still formed higher ordered clusters through the remaining accessible LL/CC and LL′ interfaces. Analysis of the symmetrically related molecules revealed a 4:4 Fab-EphA2 tetramer where both LBD-CRD₁ and LBD-CRD₂ form homodimers with symmetrically related LBD-CRD protomers through their LL′ interfaces to form a quaternary structure resembling a “bouquet” of four EphA2 ECDs held by four Fab C1 “hands” (Figure 8b, top). Likewise, we also observed an LL/CC mediated interaction connecting symmetrically related molecules of LBD-CRD₁ protomers that remained accessible in the bouquet cluster (Figure 8b, bottom). The bouquet clusters of EphA2 were therefore driven by the same interfaces observed in the chain-link clusters (Figures 1a–c and 6a,b) but adapted due to the occlusion of the CC in CRD₂.

We then compared the cluster arrangement of the 8:8 bouquet cluster to that of the tetramer chain-link cluster and noted that the C1 bouquet cluster shared the same register 2 tetramer (signaling incompetent) at its core (Figure 8c). But due to bouquet formation, this cluster further recruited an additional four EphA2 protomers (Figure 8c). We modeled the resultant signaling cluster of EphA2 ECDs by superposing full-length EphA2 ECD (PDB entry 2X11) onto the quaternary 8:8 C1 Fab-LBD-CRD arrangement that accounted for both the LL and LL'mediated interfaces in the crystal lattice (Figure 8d). These data revealed a partial agonist cluster of eight EphA2 protomers cross-linked by as many as four C1 IgGs (Figure 8e). Here, Fabs C1₁ and C1₂ arrayed approximately equidistant from each other at 73 or 74 Å apart, respectively, each consistent with the reach of IgG1, creating some ambiguity as to the most probable IgG linkage of the observed Fabs. Given the more extensive buried surface of C1₁ Fabs, we reasoned that avid engagement of these sites likely initiates partial agonist cluster formation, which is then further stabilized by the weaker engagement of avid IgG C1₂ to form a 4:8 IgG–EphA2 protomer arrangement at saturation. Each set of LL′ bouquet tetramers is then bridged by IgG C1 in a +/− 4 protomer IgG register assembling octamer-based EphA2 clusters. The octomer arrangement could be induced by as few as one and as many as four C1 IgG engagements. Interestingly, we observed a significant hydrogen-bond-rich interface between adjacent C1₁ and C1₂ through the frameworks of V_H and V_L, respectively, suggesting that C1₁ and C1₂ IgGs also self-associate upon binding EphA2 in a 4:8 IgG–EphA2 cluster (Figure 8e).

We then interrogated the anticipated proximity of the intracellular kinases by evaluating the distances and geometric placement of the FN2 domains within the modeled clusters. Similar to chain-link clusters, we identified a single pair of receptors recruiting proximal kinases through protomer 2 and protomer 7 in the octamer complex (Figure 8f). The proximal kinase EphA2 protomers did not make direct contact with each other through their ECDs. Instead, recruitment of eight protomers of EphA2 was required to create a ternary complex that recruited these two protomers in proximity. As the number of protomers necessary for a proximal-recruitment doubles compared to Efn or IgG L1, agonism by IgG C1 results in approximately half the maximal activation at saturation compared to cross-linked tetramer clusters (Figures 2g and 8f). Similar to cross-linked tetramers, the bouquet octamer cluster could potentially polymerize as well to create a similar functional dependence on cluster size (Figure S7D,E). We therefore concluded that proximal kinases are necessary and adequate for canonical EphA2 signaling initiation, but the active state of EphA2 could be created by any number of synthetically ordered cluster assemblies where the stochiometry of activated kinase is associated with cluster geometry and extent of EphA2 polymerization.

2.9 Discussion

Utilizing synthetic Abs targeting distinct epitopes of the EphA2 receptor, we developed a toolkit to antagonize and agonize receptor activation to different maxima and provided mechanistic insights into each of these processes using structural models. We deduced two distinct cluster configurations capable of agonizing the receptor. Each structurally characterized synthetic cluster relies on the same natural self-association interfaces — LL, LL′, and CC — as Efn-mediated clusters to recruit EphA2 protomers into signal-competent assemblies. Modeling of the minimal signaling-competent clusters revealed a proximity problem, whereby dimerized EphA2 is unable to recruit intracellular kinases in a manner similar to other RTK dimers. We propose that, unlike the triggering mechanism of other RTKs, EphA2 is not activated by Efn-mediated receptor dimerization but instead relies on Efn-mediated tetramerization to recruit a minimum of four protomers (register 1) into an active signaling complex. These seeded clusters can then further polymerize into more efficient higher ordered clusters. Our proposed EphA2 triggering model is distinct from dimer models in that EphA2 kinases are not equivalent in pTyr status within recruited clusters. Instead, pTyr modification of EphA2 occurs in the core of the EphA2 clusters where proximity of TMs and kinases can be achieved while kinases at the edges of clusters remain unmodified. We propose a structural EphA2 signaling mechanism tuned by cluster size. A key feature of this mechanism is the role of condensations to enhance pTyr efficiency, consistent with well-established functional observations (Chen et al., 2021; Zapata-Mercado et al., 2022). While our new model is supported by structure/function and cellular signaling evidence to date, we encourage additional validation of these principles in the context of cellular systems. Our synthetic Abs similarly demonstrate how EphA2 activity can be tuned by cluster type, where the quantity of activation observed in cells is dependent on the efficiency of the induced cluster to recruit the appropriate kinase geometry to initiate EphA2 signaling. Using this new model of activation, we can rationally engineer cluster-inducing drugs with differential performances (Figure S7E).

Receptor recruitment by IgGs targeting three distinct epitopes created three distinct clusters that provided three distinct maximal activations (Figure 2f), demonstrating a practical method of tuning EphA2 pTyr signaling in cells and potentially in vivo. These distinctions in the agonistic mechanism may have significant implications for therapeutic applications. Notably, persistence of EphA2 signaling clusters upon internalization in turn regulates metastasis potential in some tumor models (Ravasio et al., 2020). In the context of EphA2 ADCs, it is therefore critical to optimally deliver conjugated payloads while minimizing tumor metastasis and limiting non-canonical signaling. Our collection of agonists enables selective delivery of agents with distinct cluster profiles, distinct stoichiometry of recruited kinases, and distinct signaling potential for developing ADCs to evaluate in vivo.

Our monovalent Fab data provide evidence of two distinct inhibitory sites on EphA2, each of which overlaps with one of two binding sites for Efn. The LBD epitope has been well defined as an inhibitory epitope, being previously targeted by competitive peptide inhibitors and Abs (Goldgur et al., 2014; Gomez-Soler et al., 2019). Similar to our observations, monovalency was a necessity for complete inhibition. Interestingly, the previously described Fab 1C1 does not act as an inhibitor, but rather, as a lower-affinity agonist (Peng et al., 2011). This unique feature of Fab 1C1 is likely owing to V_L-V_L dimerization observed in the crystal lattice (Figure 6a) (PDB entry 3SKJ) (Peng et al., 2011). Interestingly, we observed enhancement of Efn activation in the presence of our Fab C1 (Figure 2e), which also appears to self-associate upon EphA2 engagement. Amplification of Efn signaling by an anti-EphA3 Ab (IIIA4) has also been reported (Vearing et al., 2005) and may be a common feature for reagents that self-associate to induce EphA2 dimers, which in turn enhances the recruitment of tetramers by Efn. These considerations highlight the importance of Ab modality self-association to Eph clustering and activation.

Similar to the antagonistic effect of Ab F1, FN2 has been identified as the binding site for the partial inhibitor IgG DS-8895a, which was safely applied in a clinical trial but has not progressed further than phase I (Hasegawa et al., 2016; Shitara et al., 2019). Our experiments suggest that a range of forward signaling responses can be induced by this epitope through engineered valency (Figure S2G–I). The weak agonist activity observed for IgG F1 (Figure 2g) likely implies that bivalent molecules targeting FN2 epitopes act as weak partial agonists (Figure S2G). It still remains unclear how partial agonism and full antagonism are achieved by engaging the same site (Figures 2i and S2H,I). We presume a third form of signaling cluster is achieved with DFF F1 (Figure S7E) but further investigation of this multi-faceted epitope of EphA2 is required.

Much like observations made with other RTKs (Merchant et al., 2013; Neijssen et al., 2021), we observed optimal inhibition using either monovalent Fab L1 at Efn Site 1 to competitively block ligand binding, or Fab F1 at Efn Site 2 to constrain the conformational freedom of FN2 and exclude proximal kinase engagement. Importantly, this is not a competitive action for closed forward signaling complexes, but rather, a non-competitive means by which clustering can be uncoupled from kinase recruitment. However, in the context of open anti-parallel signaling zippers where both Efn engagement sites are necessary, the response to Fab and IgG F1 is still undetermined. We anticipate that F1 Fabs will interfere with zipper formation in cellular synapses. Our study also suggests that Fab F1 does not exclude the LL/CC and LL interfaces from having antagonist activity, but instead, restricts the conformations of the receptor to exclude those that allow for TM dimerization and subsequent kinase recruitment. Non-competitive uncoupling of EphA2 signaling by Fab F1 represents a means for EphA2 forward signaling inhibition without simultaneous inhibition of Efn reverse signaling. A similar mechanism of action may occur when cis-engaging Efn partially inhibits Eph forward signaling (Carvalho et al., 2006) or when cis-engaging EphA2 (head-to-tail) terminates signaling clusters at the auxiliary zone (Shi et al., 2023). These principles suggest a simple monovalent design strategy for inhibitory IgGs with unique mechanisms for clinical evaluation. Thus, the synthetic Abs generated here will allow further exploration of the therapeutic potential of inhibitors targeting EphA2 in cancer and infectious disease.

3.1 Selection of anti-Eph Abs

Recombinant human EphA2 fragment proteins were obtained from the Structural Genomics Consortium (Himanen et al., 2010) or were acquired commercially (R&D Systems, 3035-A2-100). Proteins purified from SF9 conditioned media were isolated by Ni-NTA chromatography and size exclusion chromatography using a Superdex 200 16/60 column. Fragments were verified to be >95% pure by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE). Fabs were selected from Fab-phage library F using a domain exclusion method and standard methods, as described previously (Adams et al., 2014; Persson et al., 2013). Briefly, phage selections were performed using naïve library F on an EphA2 ECD domain-truncation series (Himanen et al., 2010) as well as EphA2 ECD (R&D). Round 1 selections on truncated EphA2 were performed in a stepwise manner, whereby the naïve library was added to the LBD construct first, then the non-binding phage were transferred to incrementally larger EphA2 fragments (Adams et al., 2014). The Eph profiler phage selections were performed using naïve library F on Eph ECDs (A1-A8, A10, B1-B4, and B6) (R&D) using Fc to preclear the library and ECD to positively select phage-Fabs over four rounds of phage selections. Individual clones were identified by Sanger sequencing of the Fab V_L and V_H sequences and subcloned into a Fab expression vector for periplasmic expression.

3.2 Antibody expression and purification

Fab proteins used in Ab characterization assays were produced in Escherichia coli BL21 and purified by Protein A chromatography, as described previously (Gallo et al., 2020). IgG proteins were produced in mammalian cells and purified as described previously (Enderle et al., 2021). Fabs used for crystallization of EphA2 were produced in mammalian cells as follows: genes encoding the heavy and light chains of Fabs L1, C1, and F1 were cloned into separate vectors optimized for mammalian expression. In addition, crystallization-enhancing substitutions (Bailey et al., 2018; Bruce et al., 2023; Lieu et al., 2020) were incorporated into the Fab framework as follows: Fab L1 (S1:Crystal-Kappa:Elbow, and S1:Crystal-Kappa, for the 4.60 and 2.60 Å structures, respectively); Fab C1 (S1:Crystal-Kappa:Elbow, and S1:Crystal-Kappa, for the 1.85 and 2.99 Å structures, respectively); and Fab F1 (Crystal-Kappa). After growing Expi293™ cells (ThermoFisher) to a density of 2.6 × 10⁶ cell/mL in Expi293 media (Gibco), co-transfection was carried out with the appropriate Fab heavy and light chain expression vector mixture using FectoPRO® DNA transfection kit (Polyplus transfection) according to the manufacturer's instructions. Cell growth and Fab expression proceeded for 5–6 days under the following conditions: 37°C, 8% CO₂, 80% humidity with shaking at 125 rpm. After expression, cells were pelleted by centrifugation and the supernatant was supplemented with phosphate-buffered saline (PBS). Fab proteins were captured on Protein A Agarose beads (Pierce) through incubation at 4°C, 125 rpm for 2 h and eluted with Pierce™ IgG Elution Buffer, followed by buffer exchange into 20 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES) pH 7.5, 100 mM NaCl using 10 kDa molecular weight concentrators (ThermoFisher Scientific #88528). Both denaturing and native polyacrylamide gel electrophoresis were used to confirm Fab and antigen purity and homogeneity. All proteins were clarified by centrifugation (13 krpm at 4°C for 30 min) prior to Fab:antigen complex preparation for crystallization screens.

3.3 Surface plasmon resonance

SPR measurements were performed at 25°C using a ProteOn XPR36 instrument (Bio-Rad). EphA2 was immobilized by amine coupling to glycol/carboxyl (GLC) sensor chip surfaces. Fabs were diluted to 100 nM, and three-fold dilutions were made with PBS buffer and injected for 1200 s at a flow rate of 50 μL/min. Dissociation in PBS buffer was monitored for up to 1200 s, and surfaces were regenerated by injection of 10 mM glycine, pH 1.5. For binding kinetics, sensorgrams were fitted to a 1:1 Langmuir model using ProteOn Manager Software (Bio-Rad). Values for k_a, k_d, and K_D were calculated by taking the average of values determined by locally fitting each binding curve of a data set with globally fitted Rmax to the Langmuir binding model.

3.4 Biolayer interferometry

IgG specificity kinetics of binding to the EphA2 ECD were determined by BLI with an Octet HTX instrument (ForteBio) at 1000 rpm and 25°C. IgGs were captured on anti-human biosensors from a 1 mg/mL solution in PBS, and unoccupied sites were quenched with 50 mg/mL Fc. Receptor ECDs were diluted with assay buffer (PBS, 1% bovine serum albumin (BSA), 0.05% Tween 20), and 300 nM of an irrelevant Fc-fused protein of similar size was used as a negative control. Following equilibration with assay buffer, loaded biosensors were dipped for 600 s into wells containing three-fold serial dilutions of each receptor ECD, starting at 300 nM, and subsequently were transferred back into assay buffer for 600 s. Binding response data were corrected by the subtraction of response from a reference and were fitted with a 1:1 binding model using ForteBio Octet Systems software 9.0.

3.5 Epitope binning

Epitope binning experiments were performed using an Octet HTX instrument (ForteBio) at 25°C with shaking at 1000 rpm. EphA2-Fc protein was immobilized on AR2G (18-5092, ForteBio) BLI sensors. Coated sensors were transferred into 100 nM IgG in assay buffer (PBS, 1% BSA, 0.05% Tween20) for 300 s to achieve saturation of binding sites. Sensors were then transferred into 100 nM competing Ab in assay buffer for 180 s. Response at 300 s after exposure to competing Ab was measured and normalized to the binding signal on unblocked antigen-coated sensors.

3.6 Flow cytometry

Cells were pelleted, washed twice in PBS, 1% BSA, and stained with 200 μM primary Fab or IgG for 1 h at 4°C. Cells were washed twice with PBS, 1% BSA, and stained with human F(ab′)2-Alexa 488 specific secondary Ab (Jackson Immunolaboratories) along with 7-Aminoactinomycin D for 30 min at 4°C. Cells were washed twice with PBS, 1% BSA, fixed with 4% paraformaldehyde, and analyzed on a BD FACScalibur or Beckman Coulter Cytoflex. Live singlets were gated, and the median fluorescence intensity of the population was quantified and divided by that of cells stained with secondary Ab alone.

3.7 EphA2 pTyr stimulation

BxPC-3 cells in 12-well plates were grown overnight to 70% confluency in 1% fetal bovine serum (FBS) before stimulation with artificially clustered EfnA1 (positive control) and/or tested Abs at 10 nM or 100 nM. The clustered ligand was freshly prepared by mixing EfnA1-Fc (R&D 6417A1, 100 mg/mL) with an Ab recognizing human IgG Fc (Jackson ImmunoResearch 109-005-098) in a 1:1.2 μg ratio for 30 min at 4°C. After incubation with EfnA1 and/or tested Abs at 37°C, 5% CO₂ for 15 min, cells were washed and lysed for analysis using the DuoSet Human Phospho-EphA2 ELISA (R&D Systems DYC4056-5). For western blots, cells were lysed on ice in radioimmunoprecipitation assay (RIPA) buffer (Cell Signaling #9806) and equal amounts of total protein were resolved by SDS-PAGE before transfer onto polyvinylidene fluoride (PVDF) membranes. Membranes were blocked in PBS, 5% BSA for 1 h at room temperature before probing for target proteins. Primary Abs used were rabbit phospho-EphA2, Tyr588 (Cell Signaling 12677, 1:1000), rabbit GAPDH (Cell Signaling 2118, 1:20,000), rabbit phospho-EphA2, Tyr772 (Cell Signaling, 8244S 1:1000) and rabbit phospho-EphA2, Ser897 D9A1 (Cell Signaling 6347S 1:1000). Anti-rabbit IgG, HRP-linked (Cell Signaling #7074) was used as a secondary Ab at 1:30,000.

3.8 Size exclusion chromatography

IgG L1, C1, and F1 were each complexed with human EphA2 (R&D, Cat No: 3035-A2) in a 1:2.5 molar excess (IgG: EphA2) on ice for 30 min in PBS buffer, pH 7.0. The tetravalent DFF F1 was complexed with human EphA2 (R&D, Cat No: 3035-A2) in a 1:5 molar excess (Tetravalent Ab: EphA2). The complexes were subjected to size exclusion chromatography using a Superose™ 6 Increase 10/300 GL column (Cytiva, 29091596) pre-equilibrated in PBS buffer, and elution was monitored at 216 nm on an AKTA Pure 25 FPLC system (Cytiva). A standard curve of molecular weight versus retention time was generated using a gel filtration standard (Bio-Rad, Cat No: 151-1901). Standards included bovine thyroglobulin (670 kDa), bovine γ-globulin (158 kDa), chicken ovalbumin (44 kDa), horse myoglobin (17 kDa) and Vitamin B12 (1.35 kDa).

3.9 Crystallographic screening

Previously determined EphA2 domain boundaries (Himanen et al., 2010; Seiradake et al., 2010) were used to define favorable N- and C-terminal boundaries for crystallization of EphA2 domains LBD, CRD, LBD-CRD, and FN1 (residues 23–206, 199–326, 23–326, and 438–528, respectively). All proteins were expressed in mammalian expi293F™ (ThermoFisher) cell culture with a thrombin cleavage site at their C-termini preceding a hexahistidine tag to facilitate downstream metal-affinity chromatography purification and enable affinity tag cleavage using standard methods. For EphA2 CRD and LBD-CRD protein production, cell culture was supplemented with 5 μM Kifunensine (MedChemExpress) to inhibit mannosidase I and facilitate deglycosylation after protein purification by endoH (New England Biolabs).

Protein purity and homogeneity were assessed by denaturing and native polyacrylamide gel electrophoresis. For Fab:antigen complex preparation, an optimal Fab-antigen complex molar ratio was evaluated by titrating antigen against Fab on a polyacrylamide native gel shift assay. For the Fab-F1:EphA2-FN2 and Fab-L1:EphA2-LBD-CRD complexes, the Fab:antigen molar ratios selected were 1:2 and 2:1, respectively. All other complexes were prepared at a 1:1.3 Fab:antigen molar ratio. The final concentration for all complexes prepared for crystallization screening was 7 mg/mL.

Crystallization was performed in sitting drops, either in 3-lens 96-well (SwissCI) plates using commercial 96-well screens, including JCSG+Eco and PACT Premier (Molecular Dimensions), and SaltRX, INDEX, GRAS1, and GRAS2 (Hampton Research) set up on the Mosquito (SPT-Labtech) robot using 0.2 μL protein/0.2 μL reservoir with a 40 μL reservoir; or crystal hits were refined further using Cryschem (Hampton Research) 24-well sitting drops containing 1 μL protein/1 μL reservoir with a reservoir volume of 500 μL. Crystals of the EphA2 FN2/Fab^CF1 complex were grown using a reservoir of 1.5M sodium formate, 100 mM Tris pH 8.0. Crystals grew very slowly; in fact, no crystallization occurred until after at least 1 month, after which large hexagonal plates were observed. Crystals of the EphA2 LBD-CRD/Fab^S1CC1 complex were observed in PACT Premier (Molecular Dimensions) condition E3, containing 20% polyethylene glycol (PEG) 3350 and 200 mM sodium iodide. Crystals of the EphA2 LBD-CRD/Fab^S1CL1 complex were grown in a reservoir containing 16% PEG 20 K, 100 mm HEPES pH 7.0, and 200 mM potassium thiocyanate. Crystals of the EphA2 LBD-CRD/Fab^S1CEL1 complex were also observed in many conditions but had poor morphology (fan-like). However, in the presence of magnesium and calcium salts, thicker single needle crystals were observed, with the best crystals grown in a reservoir containing 16% PEG 8000, 100 mM 2-(N-Cyclohexylamino)ethanesulfonic acid (CHES) pH 9.0, and 200 mM magnesium sulfate. Apo Fab^S1CL1 crystals were grown in 18% PEG 6 K, 1M lithium chloride, 100 mM sodium citrate pH 5.0, and cryoprotected in 16% PEG 6 K, 500 mM lithium chloride, 100 mM sodium citrate pH 5.0, and 25% ethylene glycol. Crystallization of the EphA2 CRD:Fab^S1CEC1 complex and the apo Fab^S1CC1 were described previously (Bruce et al., 2023). Following crystallization, crystals were all cryoprotected in a buffer identical to or very similar to the crystallization liquor plus 25% ethylene glycol, prior to flash-freezing in liquid nitrogen.

3.10 Data collection

All data were collected at the Argonne National Laboratories beamline 24-ID-E. Data were either processed at the beamline using AUTOPROC (Vonrhein et al., 2011), or separately processed by Mosflm (Battye et al., 2011) or DIALS/XIA2 within CCP4 (Winter et al., 2013). Data were merged and scaled using AIMLESS (Evans & Murshudov, 2013), either within the AUTOPROC pipeline or from CCP4 (Winn et al., 2011); data resolution was based on the resolution where the overall signal to noise (I/σ) was >2 following data merging using AIMLESS (with the exception of the very low resolution EphA2 FN2/Fab^CF1 and EphA2 LBDCRD/Fab^S1CEL1 structures, where resolution was cut at I/σ of 1.5 and 1.3, respectively). All structures were solved by PHASER (McCoy et al., 2007) in the Phenix crystallography suite, followed by iterative cycles of refinement using phenix.refine in the Phenix suite (Zwart et al., 2008) and manual refinement of the resulting model and electron density map using the molecular graphics package COOT (Emsley & Cowtan, 2004). Translation-libration-screw (TLS) parameterization (Urzhumtsev et al., 2013) with group B-factor refinement was also used. Ramachandran restraints were also used during refinement of all structures. Molecular replacement involved a number of different search models. For Fab search models for the EphA2 LBD-CRD/Fab^S1CC1and EphA2 LBD-CRD/Fab^S1CL1 datasets, Fab coordinates from PDB 8TRS were split into C_H1/C_L and V_H/V_L fragments; each model was separately searched during molecular replacement. For the Fab^S1CL1 and EphA2 LBD-CRD/Fab^S1CEL1 complex datasets, Fab coordinates from the refinement of the EphA2 LBD-CRD/Fab^S1CL1 structure were split into C_H1/CL and V_H/V_L fragments for molecular replacement. However, this strategy of splitting the Fab into two pieces was not successful with the lower resolution data of the EphA2-FN2/Fab^CF1 as it would require eight Fab search models for ~4 Å data. Instead, coordinates from a 3.5 Å structure of Fab^S1F1 (PDB entry 8T7F) (Bruce et al., 2023) (chains C and G, heavy and light chain together as a single search) was used. In terms of EphA2 search models, residues 25–325 of PDB 3FL7 initially represented the EphA2 LBD-CRD in the EphA2 LBD-CRD/Fab^S1CC1, EphA2 LBD-CRD/Fab^S1CL1, and EphA2 LBD-CRD/Fab^S1CEL1 data. However, during refinement of the EphA2 LBD-CRD/Fab^S1CL1 structure, we observed that one of the LBD-CRD molecules seemed to undergo an internal rotation relative to the LBD-CRD search model. Thus, for molecular replacement, the PDB 3FL7 search model was split into the LBD (residues 27–201) and CRD (residues 203–308) and searched separately. For the EphA2-FN2/Fab^C_F1 structure, the model of FN2 was based on a SWISS-MODELER (Biasini et al., 2014) model of residues 438–528 of EphA2.
