2.1 Design and generation of anti-PD-1 diphtheria immunotoxin (PD-1 DIT)

We previously demonstrated that the targeted depletion of PD-1⁺ cells using an immunotoxin effectively slowed down or even reversed the progression of specific autoimmune diseases (Zhao et al., 2019). However, the previous immunotoxin has limitations due to its low yield. To address this issue and enhance production efficiency, we designed a novel immunotoxin called PD-1 diphtheria immunotoxin (PD-1 DIT). PD-1 DIT incorporates two functional components from the NH₂-terminus to the COOH-terminus, namely a truncated diphtheria toxin and scFvs derived from an anti-mouse PD-1 antibody, (the RMP1-14 clone; Figure 1a) (Mirdita et al., 2022; Zhao et al., 2019). This design, which places the toxin at the NH₂ side of the scFvs and keeps the catalytic domain of the toxin (Cyan, Figure 1a) at the NH₂-terminus of PD-1 DIT, bears resemblance to the natural domain arrangement of diphtheria toxin (PDB: 1SGK). The importance of such design has been demonstrated by studies of other immunotoxin derived from diphtheria toxin (Auger et al., 2015). The design of the toxin component is intricate and will be explained in more details in the following paragraph. On the other hand, the scFv component consists of two identical scFvs arranged in a bivalent tandem configuration, a design that has been shown to enhance the binding affinity and potency of immunotoxins (Reiter et al., 1994; Thompson et al., 2001). Each scFv starts with the variable domain of the anti-PD-1 antibody light chain, followed by the variable domain of the anti-PD-1 antibody heavy chain. A peptide linker, (GGGGS)₃, is utilized to connect between the variable domains of scFvs as well as between two scFvs (Pink, Figure 1a). Another linker, GGGGS, is used as a spacer between the toxin and the scFv components (Purple, Figure 1a).

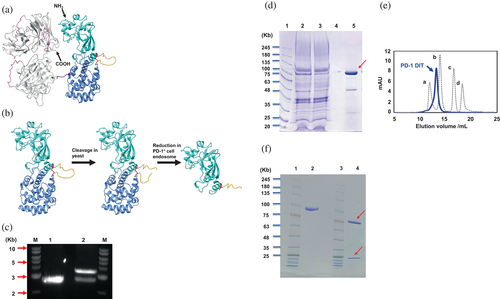

The truncated diphtheria toxin utilized in PD-1 DIT consists of the initial 1–390 residues of diphtheria toxin (Liu et al., 2000). Within this structure, residues 1–187 form the catalytic domain (Cyan); residues 200–390 form the translocation domain (Cornflower blue); and residues 188–199 (GNRVRRSVGSSL) form a loop between the two domains (Orange, Figure 1b, Left). After the initial translation and folding, the catalytic domain and translocation domains are joined by both the loop and an inter-domain disulfide bond (Red, Figure 1b, Left). Subsequently, the loop is cleaved within yeast cells, resulting in purified PD-1 DIT containing two domains linked solely by the disulfide bond (Figure 1b, Middle). The cleavage within the loop of PD-1 DIT is favored for its cytotoxicity because the process enables the release of the catalytic domain and conversion of the toxin component from a pro-enzyme to an enzyme (Figure 1b, Right) (Bennett et al., 1994; Collier, 2001; Williams et al., 1987). The cleavage also makes the catalytic domain ready to translocate into the cytosol to inhibit protein synthesis (Becker & Benhar, 2012; Shapira & Benhar, 2010; Varkouhi et al., 2011).

A Pichia pastoris strain GS115 was selected for the expression of PD-1 DIT. A coding gene of PD-1 DIT was inserted into the pPICZa B plasmid to utilize this yeast expression system (Figure S1). A coding gene for α secretory factor signal was fused to the 5′-end of the PD-1 DIT gene. The successful insertion of the PD-1 DIT gene was confirmed by the examination of the XhoI/XbaI double digestion products of the resulting plasmid through an agarose gel electrophoresis (Figure 1c). The authenticity of PD-1 DIT gene and its insertion site were further verified by DNA sequencing. The resulting protein, PD-1 DIT, was purified using Ni-NTA affinity chromatography (Figure 1d) and subsequently size exclusion chromatography (SEC) (Figure S2). The purity of the purification product was assessed by SEC (Figure 1e). On the SDS-PAGE, nonreduced, purified PD-1 DIT migrated as a band close to the protein marker of 100 kDa, consistent with the theoretical molecular weight of PD-1 DIT, 98 kDa (Lane 2, Figure 1f). On the other hand, reduced, purified PD-1 DIT migrate on SDS-PAGE as two distinct bands at approximately 25 kDa and 75 kDa, respectively (Lane 4, Figure 1f). The 25 kDa band corresponds to the catalytic domain while the 75 kDa band represents the rest of PD-1 DIT. The presence of these two bands confirmed the idea that the catalytic domain is linked with the rest of PD-1 DIT through a disulfide bond (Figure 1b, Right). The yield of PD-1 DIT is approximately 1–2 mg/L, which is 10 times higher than the yield of αPD-1-ABD-PE used in our previous study (Zhao et al., 2019).

2.2 Binding and internalization of PD-1 DIT

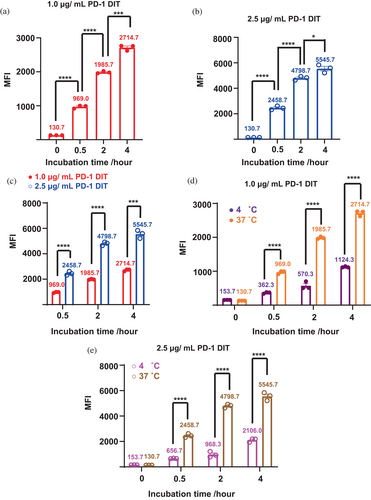

The binding and internalization of PD-1 DIT to PD-1⁺ cells were first examined by flow cytometry. Specifically, Alexa Fluor 647-labeled PD-1 DIT was incubated with EL4 cells, which are a PD-1⁺ cell line, at 37°C for varying durations up to 4 h. Mean fluorescence intensities (MFIs) of these EL4 cell samples were then determined. A significant increase in MFIs is observed from the 0-h incubation samples to the 4-h incubation samples. This trend is consistent across two different concentrations of PD-1 DIT concentrations, namely 1.0 and 2.5 μg/mL (Figure 2a,b). Furthermore, for a given incubation time, a higher concentration of PD-1 DIT resulted in higher MFIs (Figure 2c). These findings suggest that the binding and internalization are dependent on both concentration and time. Additionally, MFIs of EL4 cells that were incubated at 37°C and 4°C were measured and compared. Incubation at 4°C is known to impede cellular internalization. When 1.0 μg/mL PD-1 DIT was used for the study, cell samples incubated at 37°C exhibited MFIs over two times higher than those incubated at 4°C for all three incubation periods used (0.5 h: 969.0 ± 26.6 vs. 362.3 ± 14.1; 2 h: 1985.7 ± 19.3 vs. 570.3 ± 64.8; 4 h: 2714.7 ± 46.4 vs. 1124.3 ± 10.3; p < 0.0001 for all incubations, Figure 2d). The superiority of the 37°C incubation was also evident when 2.5 μg/mL PD-1 DIT was used (0.5 h: 2458.7 ± 86.1 vs. 656.7 ± 12.9; 2 h: 4798.7 ± 83.5 vs. 968.3 ± 127.4; 4 h: 5545.7 ± 181.3 vs. 2106.0 ± 85.5, p < 0.0001 for all incubations, Figure 2e). The superiority suggests that a fraction of PD-1 DIT is internalized by EL4 cells at 37°C. Additionally, the binding between PD-1 DIT and PD-1⁺ cells was evaluated in a quantitative manner using a cell-based direct binding assay (Hunter & Cochran, 2016; Moore & Cochran, 2012). This assay enables the determination of avidity between proteins and cells that express their binding partners on cell surfaces. Two types of PD-1⁺ cells, EL4 and 2D2, which have slightly but noticeably different PD-1 expression levels, were employed (Figure S3). EL4 cells demonstrated slightly higher avidity compared to 2D2 cells. The binding EC₅₀ for EL4 was determined to be 25.7 ± 0.7 nM, whereas the binding EC₅₀ for 2D2 was 27.3 ± 0.9 nM (Figure S4).

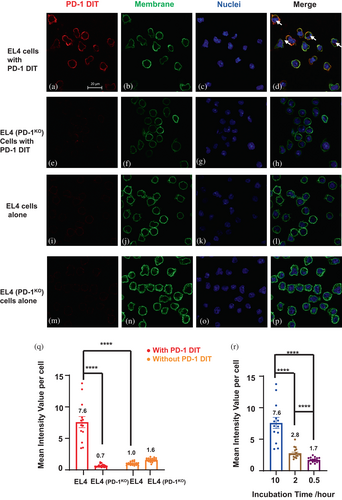

To further analyze the interactions between PD-1 DIT and PD-1⁺ cells, we employed confocal laser scanning microscopy (CLSM) to examine cells after incubating them with PD-1 DIT. Specifically, Alexa Fluor 647-labeled PD-1 DIT was incubated for 10 h with EL4 or EL4 (PD-1^KO) cells that lack PD-1 expression. PD-1 DIT was found to associate with EL4 cells based on the Alexa Fluor 647 emission signal (Figure 3a–d). A significant amount of PD-1 DIT was observed to associate with the cell membrane stained with WGA555 (Figure 3a,b). Further, some signals of Alexa Fluor 647 were also spotted inside the cell membrane (Figure 3d, pointed by arrows). In contrast, no detectable signal was observed in association with EL4 (PD-1^KO) cells (Figure 3e–h). Similarly, neither EL4 (Figure 3i–l) nor EL4 (PD-1^KO) (Figure 3m–p) cells exhibited any signals of Alexa Fluor 647 when they were not incubated with PD-1 DIT. These findings strongly suggest that the signals of Alexa Fluor 647 are a result of the Alexa Fluor 647-labeled PD-1 DIT selectively binding to and being internalized into PD-1⁺ cells. Furthermore, the binding and internalization of PD-1 DIT into EL4 cells are time dependent within the 10 h incubation period. The signals associated with EL4 cells became stronger as the incubation time increased from 0.5 h to 2 h, and finally to 10 h (Figure S5). In contrast, no detectable signals were observed at any of these time points when EL4 (PD-1^KO) cells were used for the study.

We further analyzed PD-1 DIT associated with cells in confocal images using a quantification method outlined in Figure S6. The mean intensity value per cell (MIVpC) of Alexa Fluor 647 associated with EL4 cells was found to be significantly higher than that with EL4 (PD-1^KO) cells after both cell lines were incubated with PD-1 DIT for 10 h (Figure 3q). Meanwhile, without the PD-1 DIT incubation, both cell lines exhibited low MIVpCs. MIVpCs of EL4 cells significantly increased when cells were incubated with PD-1 DIT for longer time (Figure 3r). Taken together, the results obtained from confocal microscopy provide conclusive evidence that PD-1 DIT exhibits selective binding and internalization into PD-1⁺ cells.

2.3 In vitro and in vivo cytotoxicity of PD-1 DIT

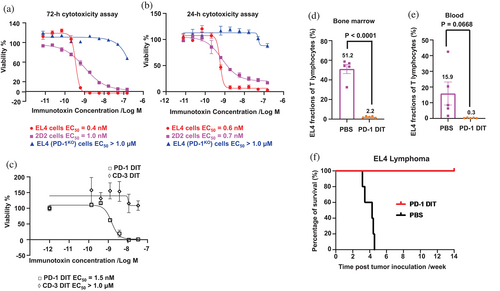

The cytotoxicity of PD-1 DIT was examined in vitro using three 3 cell types, EL4 cells, 2D2 cells, and EL4 (PD-1^KO) cells. The EC₅₀ values of PD-1 DIT are 0.4 nM, 1 nM, and over 1 μM for EL4, 2D2, and EL4 (PD-1^KO) cells, respectively, according to a 72-h cytotoxicity assay (Figure 4a). This indicates, EL4 and 2D2 cells are at least a thousand times more sensitive to PD-1 DIT than EL4 (PD-1^KO) cells. Results from a 24-h cytotoxicity assay further demonstrated that PD-1 DIT effectively depletes PD-1⁺ cells as soon as 24 h (Figure 4b). These findings establish that PD-1⁺ cells with varying levels of PD-1 expression are sensitive to the cytotoxicity of PD-1 DIT yet the cytotoxicity is PD-1⁺ cell-specific, conforming the validity of the immunotoxin's design. To validate the functionality of the anti-PD-1 scFvs in our immunotoxin, we compared the cytotoxicity of PD-1 DIT and another diphtheria-derived immunotoxin that is comprised of bivalent tandem anti-human CD3 scFvs (CD3 DIT), using EL4 cells as the test subject. The study revealed an EC₅₀ value of 1.4 nM for PD-1 DIT, while the EC₅₀ of the CD3 DIT was not achieved even at a concentration of 100 nM (Figure 4c). This result reinforces the targeting role of anti-PD-1 scFvs in PD-1 DIT.

The cytotoxicity of PD-1 DIT was subsequently examined in vivo using an EL4 cell transfer model. EL4, a type of T lymphoblast tumor cells (Zhao et al., 2019), were injected into mice, and these mice were then randomized into two groups: one receiving PBS treatment while the other receiving PD-1 DIT treatment. The dose of PD-1 DIT is determined according to its maximum tolerated dose (MTD), 0.75 mg/kg (unshown data and Figure S7). A total of five doses of either PBS or PD-1 DIT were administered, beginning 1 day after the cell transfer. On day 12 following the cell transfer, we analyzed T cells in bone marrow since EL4 cells have a tendency to accumulate in this tissue (Zhai et al., 2022). Our findings demonstrated that the PD-1 DIT treatment significantly reduced EL4 cell fraction (PD-1⁺ T cells) among T cells (CD3⁺) in the bone marrow as compared to the PBS treatment (2.2 ± 0.4% vs. 51.2 ± 4.8%, p < 0.0001, Figure 4d). In fact, the cell fraction was reduced by approximately 25 times. Moreover, the depletion effect of PD-1 DIT was observed among T cells in the blood as well (Figure 4e). The mean EL4 fraction among circulating T cells in the PD-1 DIT treatment group is 0.3 ± 0.1%, while it was 15.9 ± 7.3% in the PBS treatment group. The depleting effect of PD-1 DIT also had a positive impact on the overall survival of mice that received EL4 cell transfer. The median survival time for PBS treated group were only 30 days after tumor inoculation, whereas all mice treated with PD-1 DIT remained alive at the end of the study (>100 days) (Figure 4f). The survival of PD-1 DIT-treated mice was significantly prolonged compared to the PBS-treated mice (p < 0.01). These results further confirm the potent depleting activity of PD-1 DIT in vivo and suggest the potential investigational and therapeutic applications of the immunotoxin.

2.4 Role of PD-1⁺ lymphocytes in T1D revealed by using PD-1 DIT

NOD mice exhibit spontaneous development of T1D. Female mice have the infiltration of PD-1⁺ lymphocytes into their pancreatic islets by the age of 9 weeks (Liang et al., 2003). In fact, approximately 80% of CD4 and CD8 T effector lymphocytes present in the pancreatic islets of female NOD mice are PD-1⁺ when these mice at 10 weeks of age, according to our observation (Figure S8). We thus examined whether the treatment of PD-1 DIT ablates these PD-1⁺ lymphocytes. Our results demonstrated that PD-1 DIT treatment led to a reduction in PD-1⁺ CD4 T lymphocytes. The mean of PD-1⁺ CD4 T lymphocytes per islet in the PD-1 DIT-treated mice was 68.6 ± 27.7, while in PBS treated mice, it was 155.3 ± 46.0 (Figure 5a). A similar trend was observed for PD-1⁺ CD8 T lymphocytes (PD-1 DIT: 9.3 ± 6.2 vs. PBS: 13.6 ± 5.5). Additionally, when evaluating CD4 and CD8 T effector lymphocytes, PD-1⁺ effector lymphocytes were also reduced by PD-1 DIT treatment (CD4 T effector lymphocytes: 61.1 ± 24.8 vs. 138.4 ± 41.5; CD8 T effector lymphocytes: 7.6 ± 5.2 vs. 9.9 ± 4.3, Figure 5b). In addition, there was a noticeable reduction of PD-1⁺ CD44⁺CD62L⁺ CD4 and CD8 lymphocytes following PD-1 DIT treatment (Figure 5c). PD-1⁺ cells account for 30%–50% of CD44⁺CD62L⁺ CD4 and CD8 T lymphocytes, which are much smaller than their fractions within in effector lymphocytes (Figure S8). Meanwhile, T effector cells are dominant subpopulation among all PD-1⁺ T cells (Figure S9).

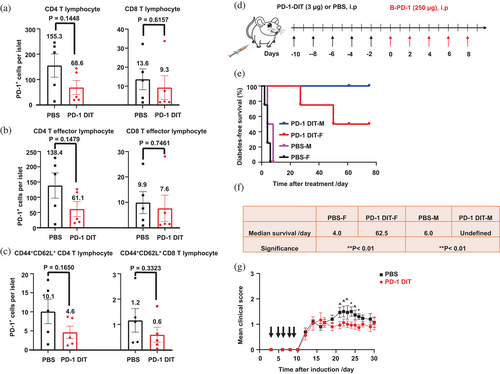

We then used PD-1 DIT to investigate the impact of PD-1⁺ cells on the progression of T1D. We selected a T1D model characterized by an accelerated progression of hyperglycemia driven by PD-1 immune checkpoint blockade (Zhao et al., 2019). In this study, both male and female mice were pretreated with five doses of PD-1 DIT or PBS (Figure 5d). Subsequently, all mice received treatment of a blocking anti-PD-1 antibody to initiate PD-1 immune checkpoint blockade. The administration of the blocking antibody swiftly induced hyperglycemia in mice pretreated with PBS, indicating the reactivation of autoreactive diabetogenic PD-1⁺ cells by the blockade treatment. In contrast, pretreatment with PD-1 DIT significantly delayed the onset of hyperglycemia. Remarkably, male mice pretreated with PD-1 DIT remained normoglycemic throughout the entire study (Figure 5e). These findings suggest that PD-1 DIT reduces the population of diabetogenic PD-1⁺ cells, thereby rendering the PD-1 blockade treatment ineffective due to the loss of its cellular target. Notably, the effect of PD-1 DIT was more pronounced in male mice than in female mice, which differs from the observations reported in other studies. This difference may be attributed to the higher degree of insulitis and lymphocyte infiltration experienced by female mice of this age (Fife et al., 2006; Young et al., 2009). Collectively, these results indicate the fundamental role PD-1⁺ cells in the onset and progression of T1D.

2.5 Roles of PD-1⁺ lymphocytes in RR-EAE revealed by using PD-1 DIT

We employed PD-1 DIT and its ability to deplete PD-1⁺ lymphocytes to investigate the roles of PD-1⁺ lymphocytes in another autoimmune disease model, RR-EAE. This model closely resembles relapsing–remitting multiple sclerosis (RR-MS), which accounts for 85% of MS case (Hammer et al., 2013; National Multiple Sclerosis Society, 2013). RR-EAE was induced in SJL/J mice, and PD-1 DIT treatment was initiated 3 days after EAE induction (Black arrows indicate the treatment of PD-1 DIT, Figure 5g). PD-1 DIT treatment effectively suppressed the development of EAE during the relapsing phase (Day 21–26 after induction). The average clinical score of mice in the PD-1 DIT-treated group was notably lower throughout the study, highlighting the therapeutic effect of PD-1 DIT in ameliorating RR-EAE disease. These findings strongly indicate that PD-1⁺ cells contribute to the occurrence of relapses in RR-EAE.

2.6 Hepatoxicity assessment of PD-1 DIT

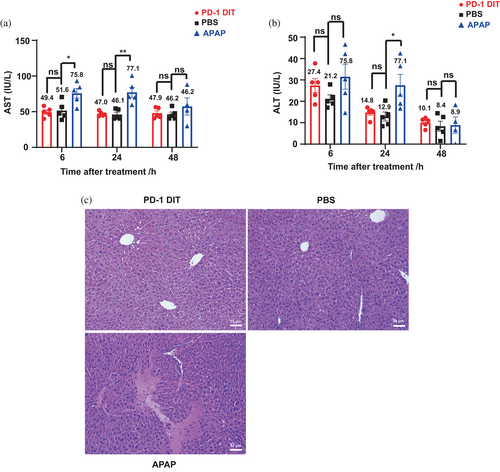

Hepatotoxicity has been observed in clinical trials for diphtheria toxin-derived immunotoxins (Mei et al., 2019). However, it is unclear whether the hypertoxicity is universal among this type of immunotoxins or the toxicity varies depending on antigens targeted by the immunotoxins. Therefore, it is worthwhile investigating whether PD-1 DIT, which targets PD-1⁺ cells, leads to significant hypertoxicity. We assessed hepatoxicity by measuring serum levels of alanine aminotransferase (ALT) and aspartate aminotransferase (AST) (Salaspuro, 1987) as higher than normal levels of ALT and AST indicate hepatoxicity. Mice were randomized into three groups receiving PBS, PD-1 DIT (0.375 mg/kg body weight), and acetaminophen (APAP, 450 mg/kg body weight), respectively. APAP was chosen as a positive control due to its well established hepatotoxicity (Heldring et al., 2022). The results revealed that mice treated with PD-1 DIT did not exhibit elevated ALT and AST levels compared to mice treated with PBS (Figure 6a,b). This conclusion held true for serum samples collected at 6 h, 24 h, and 48 h after dosing. In contrast, when compared to mice treated with PBS, those treated with APAP had elevated ALT levels at 24 h after dosing (27.5 ± 5.1 vs. 12.9 ± 2.1, p < 0.05) and elevated AST levels at 6 and 24 h after dosing (on average 75.8 ± 6.8 vs. 51.6 ± 5.6, p < 0.05: 77.2 vs. 46.1, p < 0.01). These results suggest that PD-1 DIT does not induce acute hepatotoxicity at its half MTD. This conclusion is further supported by histological analysis of livers collected from the three groups of mice. There were no discernible morphological differences between the livers of mice treated with PBS and those treated with PD-1 DIT (Figure 6c). Conversely, livers from mice treated with APAP frequently exhibited obvious shrinkage of nuclei, coagulation necrosis near portal triads, and thrombosis in portal veins. Overall, it can be inferred from these results that PD-1 DIT does not cause acute hepatotoxicity.

5.1 Mice, cell lines and antibodies

Male and female NOD mice, female SJL/J mice and female C57BL/6 mice were purchased from the Jackson Laboratories for the study. All animal experiments were conducted in accordance with the approved protocol by the Institutional Animal Care and Use Committee (IACUC) at the University of Utah. EL4 (ATCC® TIB-39™) cells were purchased from ATCC and maintained in Dulbecco's Modified Eagle's Medium (DMEM) with 10% horse serum. EL4 (PD-1^KO) cells were generated as previously described (Zhao et al., 2019) and maintained in the same medium as EL4 cells. 2D2 cells were a kind gift from Dr. Zemin Zhou and maintained in DMEM with 10% fetal bovine serum (FBS). Antibodies include: FITC anti-mouse CD3 (clone: 17A2), PE anti-mouse TCR Vβ12 (clone: MR11–1), BV510 anti-mouse CD4 (clone: RM4–5), APC/Cyanine7 anti-mouse CD8 (clone: 53–6.7), APC anti-mouse PD-1 (homemade), PerCP/Cyanine5.5 anti-mouse CD19 (clone: 6D5), PE anti-mouse CD62L (clone: W18021D), PE/cyanine7 anti-mouse/human CD44 (clone: IM7).

5.2 Generation of expression vectors for PD-1 DIT

Genes that encode PD-1 DIT were synthesized by Genewiz and were subsequently inserted into the pPICZα B vectors at the XhoI and XbaI restriction sites. The structure of the PD-1 DIT configuration consists of NH₂-truncated diphtheria toxin-GGGGS-V_H-(GGGGS)₃-V_L-(GGGGS)₃-V_H-(GGGGS)₃-V_L-COOH, where V_H represents the variable regions of the anti-mouse PD-1 heavy chain and V_L represented the anti-mouse PD-1 light chain, respectively. The linker used to connect the light chain and heavy chain in αnti-mouse PD-1 scFvs was (GGGGS)₃. Additionally, a GGGGS linker was employed to connect the truncated diphtheria domain with the anti-PD-1 scFvs domain. To facilitate the purification, a 6× Histidine tag (his tag) was added at the C-terminus of PD-1 DIT. The GGGGS linker was inserted between the anti-PD-1 scFvs and the 6× his tag. The sequences of the genes were verified by DNA Sanger sequencing (Genewiz).

5.3 DNA gel electrophoresis

2 μg PD-1 DIT DNA was double digested by 1 μL of XhoI and 1 μL of XbaI enzyme along with 5 μL of rCutSmart buffer in a 50 μL reaction. The digestion reaction was carried out at 37°C for 4 h. Following digestion, 10 μL of loading dye (6×) was added to each sample, and they were subsequently loaded into the wells of 1% DNA agarose gel. Electrophoresis was performed at 120 V for 60 min to separate the DNA fragments. The DNA agarose gel images were captured using the FluorChem FC2 imaging system.

5.4 Strains and growth conditions

Pichia pastoris Yeast Strain GS115 was purchased from Fisher Scientific. The strains were cultured at 30°C in various growth media, namely YPD medium (consisting of 1% yeast extract, 2% peptone and 2% dextrose), YPG medium (comprising 1% yeast extract, 2% peptone and 1% glycerol), or BMMYC medium (containing 1% yeast extract, 2% peptone, 1% acid casein peptone, 0.67% Yeast Nitrogen Base without amino acids, 4*10⁻⁵% biotins, 0.5% methanol and 1 mM PMSF).

5.5 Transformation, expression, and purification

The pPICZα B vectors harboring coding sequences of PD-1 DIT were transformed into the GS115 cells using a chemical method. Initially, a 50 mL culture of GS115 was cultured at 30°C with shaking to an optical density (OD₆₀₀) of 0.8–1.0. The cells were then harvested, washed with 25 mL of sterile water and centrifuged at 1500 g for 10 min at room temperature. The water was discarded, and the cells were resuspended in 1 mL of 100 mM LiCl. Subsequently, the cell suspension was transferred to a microcentrifuge tube and centrifuged at maximum speed for 15 s to remove the LiCl. The cells were then resuspended in 400 μL of 100 mM LiCl. For each transformation, a 50 μL aliquot of the cell suspension was transferred to a microcentrifuge tube.

To prepare for the transformation, single-stranded DNA (Herring Sperm DNA) was boiled for 5 min and chilled on ice for later use. pPICZa B vectors encoding PD-1 DIT sequences were linearized by the SacI restriction enzyme. The 50 μL aliquoted LiCl-cell solution was centrifuged and the LiCl was removed. The following reagents were added sequentially to the tube: 240 μL 50% PEG; 36 μL 1 M LiCl; 25 μL 2 mg/mL single-stranded DNA; linearized DNA products (5–10 μg) in 50 μL sterile water. The tube was vortexed to ensure homogenization of the cell pellet mixture, followed by incubation.

A heat shock was conducted in the water bath at 42°C for 20 min. Then the tubes were centrifuged at 6000–8000 rpm and the solution was aspirated. The cell pellet was resuspended in 0.5 mL of YPD medium and incubated at 30°C with shaking at 250 rpm. After 4 h, the cell culture was inoculated on YPD plates containing zeocin. Following incubation for 2–3 days at 30°C, colonies were selected and streaked onto a new plate for further purification.

For protein expression, a single colony was selected from the plate and inoculated into 50 mL of YPD medium. The cell culture was then incubated at 30°C with shaking at 250 rpm. Subsequently, 50 mL of the seed culture was transferred to shake flasks containing 1 L YPD medium and culture at 30°C with shaking at 250 rpm for 24 h. After incubation, the cells were centrifuged at 1500 rpm for 15 min at 24°C. The resulting cell pellet was then resuspended in 1 L of YPG medium and cultured at 30°C with shaking at 250 rpm for 24 h. Following this, the cells were centrifuged again at 1500 rpm for 15 min at 24°C. The pellet obtained was resuspended in 500 mL of BMMYC medium and induced at 24°C with shaking at 225 rpm for 48 h. To maintain the concentration of methanol, 2.5 mL (0.5%) methanol was added twice a day during the induction period.

For protein purification, the cell culture was centrifuged by 4000 rpm in a precooled centrifuge at 4°C for 30 min. The resulting supernatant was transferred into a beaker equipped with a stirring bar. The percentage of ammonium sulfate (58%) for protein precipitation was calculated using information from the encorbio website. Gradually, ammonium sulfate was added to the supernatant to precipitate the protein. Simultaneously, 10 M sodium hydroxide solution was gradually added to maintain the pH around 7.4. The solutions were incubated overnight. After incubation, the supernatant was transferred to 50 mL tubes and spun at 7000 g, 4°C for 20 min. The resulting pellet was resuspended in 1 mL PBS for each tube. The mixture was then transferred into dialysis tubing, with 1 mM PMSF (final concentration) being added. The protein mixture was dialyzed for 2 days. For purification, Ni-NTA agarose (Genesee scientific) was used. The protein bound to the agarose was eluted using a 300 mM imidazole solution. The elution was subsequently washed and concentrated using Centrifugal filter units (Sigma–Aldrich, 30 K). The yield and purity of the purified protein was examined using both nonreducing and reducing SDS-PAGE.

5.6 Size exclusion chromatography

The purity of PD-1 DIT was confirmed using size exclusion chromatography (SEC) on an AKTAFPLC system with a Superdex™ 200 10/300 GL column. The eluent was PBS at pH 7.4 and the flow rate was set to 0.4 mL/min. To determine the molecular weight of the protein, a Gel Filtration Markers Kit for Protein Molecular Weights (12–200 kD, MWGF200-1KT) was purchased from Sigma–Aldrich.

5.7 Cellular binding and internalization studies by flow cytometry

PD-1 DIT was labeled with Alexa Fluor 647 NHS Ester (A20006, Thermo Fisher Scientific) as the first step. Subsequently, 1 × 10⁵ EL4 cells were incubated with either 1 μg/mL or 2.5 μg/mL Alexa Fluor 647-labeled PD-1 DIT for 0.5 h, 2 h and 4 h at either 4°C or 37°C. Following the incubation, the EL4 cells were stained with DAPI and analyzed using the BD FACS Canto II flow cytometry system (BD Biosciences, San Jose, CA). The mean fluorescence intensity (MFI) of the cells was analyzed and reported.

5.8 Cell-based direct binding assay

In this experiment, 2*10⁵ EL4 or 2D2 cells in 100 μL were incubated with various concentrations of Alexa Fluor 647-labeled PD-1 DIT for 0.5 h at 4°C. Following the incubation, the cells were washed with FACS buffer (PBS with 0.1% fetal bovine serum) and centrifuged at 300 g for 5 min. After two washes, cells were stained with DAPI and analyzed using flow cytometry to determine the fraction of PD-1⁺ EL4 or 2D2 cells. The fraction of PD-1⁺ cells were plotted against the concentration of free PD-1 DIT, and K_d values were determined by fitting the curve using a sigmoidal dose–response (variable slope) in GraphPad Prsim 9. The equation used for fitting the curve was $$$ \mathrm{fraction}=\frac{\left[L\right]}{K_d+\left[L\right]} $$$ (Hunter & Cochran, 2016), where [L] represents the concentration of the free PD-1 DIT. The binding avidity is defined as the EC50 of the curve. The 95% confidence intervals were calculated using the GraphPad software.

5.9 Cellular binding and internalization studies by confocal laser scanning microscopy (CLSM)

In this experiment, 100 μL of a cell suspension containing 5 × 10⁶ cells/mL of either EL4 or EL4 (PD-1^KO) cells were incubated with 100 μL 1 μg/mL Alexa Fluor 647 labeled PD-1 DIT for 0.5 h, 2 h, and 10 h in DMEM. To prevent nonspecific binding, 1% FBS was added to the medium. The process of cell adhesion process was followed as before (Tsang et al., 2017). To stain the cell membrane after cell attachment on coverslips, 5 μg/mL of WGA555 (Thermofisher) was used. The cells were incubated with WGA555 for 10 min at 37°C, then washed with PBS for 5 min twice, and fixed with 4% paraformaldehyde (PFA) for 15 min at room temperature. After fixation, the cells were washed with PBS three times. The nuclei were stained with DAPI for 10 min at room temperature, followed by another round of washing. One drop of mounting medium (Fluoromount-G) was placed at the center of the microscope slides. Using Sharp-tipped tweezers, the coverslip with cell facing down was carefully placed onto the mounting medium. After drying for 15 min, nail oil was applied to seal the sides of the coverslips. All the cells were imaged using a Zeiss 700 confocal microscope with a 63× oil lens, using the same settings for each channel. The mean intensity value of Alexa Fluor 647 labeled PD-1 DIT signal on each cell was quantified using the ZEN 3.6 edition software.

To quantify the mean intensity value, the fluorescence signal from each cell was meticulously enclosed with a circle (shown in Figure S6), and the software calculated the resulting signal intensities. All the intensity values from each cell were collected and were analyzed by GraphPad Prism 9.

5.10 In vitro cytotoxicity study

EL4, EL4 (PD-1^KO) or 2D2 cell lines were seeded at a density of 4000 cells per well in a 96-well plate. The cells were then incubated with PD-1 DIT at various dilutions for either 24 or 72 h. Following the incubation period, cell proliferation was assessed using the CellTiter assay (Promega), and the absorbance at 490 nm was measured for each sample. The experimental setup also included a negative control group treated with 1% Triton X-100 and a positive control group treated with PBS. The cell viability data was processed and analyzed using GraphPad Prism 9. The data was fitted to a Sigmoidal dose–response (variable slope) curve to determine the EC₅₀ value, which represents the concentration of PD-1 DIT that inhibits 50% of cell proliferation.

5.11 In vivo PD-1⁺ cells depletion study

On Day 0, C57BL/6 mice were intravenously injected with 3 × 10⁶ of EL4 cells. The mice were randomly divided into two treatment groups: one group received intravenous injections (i.v.) of 0.15 mg/kg PD-1 DIT, while the other group received PBS as a control. Each group consisted of five treated mice. The injections were administered every 2 days, 5 doses in total. On Day 12, the mice were euthanized, and cells were collected from bone marrow and blood. The collected cells were then stained with BV510 anti-mouse CD4, APC/Cy7 anti-mouse CD8, APC anti-mouse PD-1, FITC anti-mouse CD3 and PE anti-mouse TCR Vβ12 antibodies. Flow cytometry analysis was performed using the BD FACS CANTO II flow cytometer (BD Biosciences, San Jose, CA). The fraction of PD-1⁺ cells among T cells was quantified to assess the depletion of PD-1⁺ cells in response to the treatment.

For survival study, on Day 0, 2*10⁴ EL4 cells were intravenously injection into 10 female C57BL/6 mice. The mice were then randomly divided into two groups. From Day 1, the two groups received a total of five doses treatment every 2 days, through i.v. injection. One group received 0.15 mg/kg of PD-1 DIT for each dose, while the other group received PBS as a control. Throughout the study, the survival days of the mice were monitored and recorded.

Ten female NOD mice, 10-week-old, were randomly divided into two groups. From Day 0 to Day 3, one group received daily treatment with 0.15 mg/kg PD-1 DIT, while the other group received daily PBS treatment as a control. On Day 5, mice were euthanized, and islets were collected. The collected islets were stained with FITC anti-mouse CD3, BV510 anti-mouse CD4, APC/Cy7 anti-mouse CD8, PerCP/Cy5.5 anti-mouse CD19, PE anti-mouse CD62L, PE/Cy7 anti-mouse CD44, APC anti-mouse PD-1 antibodies and Alexa Fluor 405-DAPI. Flow cytometry analysis was performed using the BD FACS CANTO II flow cytometer (BD Biosciences, San Jose, CA). The number of PD-1⁺ cells per islet was quantified to assess the depletion of PD-1⁺ cells.

5.12 T1D study

Sixteen NOD mice, consisting of 8 females and 8 males, were randomly divided into 4 groups based on their gender. One group from each gender were pretreated with 0.15 mg/kg PD-1 DIT while the other group from each gender were pretreated with PBS as a control. The mice received a total of 5 intraperitoneal (i.p.) doses, administered every 2 days. Starting from day 0, the mice were also given 250 μg of blocking anti-mouse PD-1 antibodies i.p., for a total of 5 doses administered every 2 days. Throughout the experiment, blood glucose levels of the mice were monitored using a Contour Next EZ Blood Glucose Meter (Amazon). The onset of T1D was confirmed for a mouse when its blood glucose concentration exceeded 250 mg/dL for two continuous measurements. To assess the impact of the treatments on diabetes onset, diabetes-free survival was analyzed using GraphPad Prism 9.

5.13 RR-EAE study

Thirty female SJL/J mice were randomly divided into two groups. On day 0, they were immunized with a peptide of proteolipid-protein (139–151) homogenized by 0.2 mL complete Freund's adjuvant (CFA) from Sigma. The mice received 4 subcutaneous injections of peptides on theirs, with a total of 50 μg per mouse. On day 3, the two groups of mice were treated i.p. with either 0.15 mg/kg PD-1 DIT or PBS. The treatment was administered for a total of 5 doses, with each dose given every other day. Throughout the experiment, the mice's body weight and the presence of paralysis symptoms were monitored every other day. Clinical scores were assigned to each mouse based on the severity of the paralysis observed.

5.14 Hepatotoxicity assessment

On day 0, 15 female C57BL/6 mice at 10 weeks of age were weighed and randomly assigned into 3 groups. The groups were administered 450 mg/kg acetaminophen, 0.375 mg/kg PD-1 DIT, or PBS through i.p., respectively. After 6 h, 24 h, and 48 h, blood samples were collected from the cheek of each mouse. At the end of the study, which was at 48 h, mice were euthanized. Liver samples were collected for immunohistochemistry analysis, and liver paraffin sections were stained with H&E. Serum ALT/AST activity was measured using a colorimetric method specifically designed for ALT/AST analysis (BIOLABO).

5.15 Statistical analysis

Unpaired two-sided t-test were used to compare data other than survival data. The survival curves are calculated from different treatment groups using the Kaplan–Meier estimation approach and their difference was compared using a log-rank test. The level of test significance was defined as p-value <0.05. The survival analyses were conducted using GraphPad Prism 9.
