2.1 Protein optimization in mammalian cells

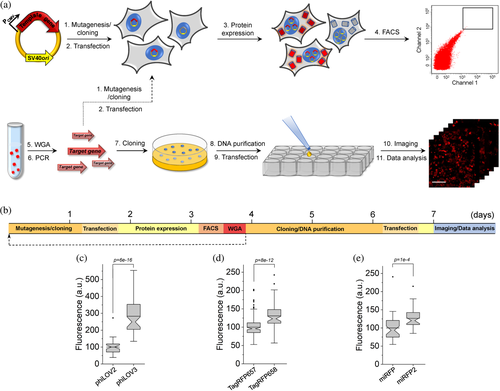

The rapid protein optimization via directed molecular evolution is based on a simple and scalable method for expression of large gene libraries in mammalian cells in combination with high-throughput live cell screening techniques, for example, fluorescence-activated cell sorting (FACS). The workflow includes six major hands-on steps: (a) preparation of gene library; (b) transfection of mammalian cells with gene library in bulk; (c) screening and collection of individual cells; (d) cloning of the target genes from selected cells into expression vector; (e) transfection of the cloned plasmids into mammalian cells; and (f) imaging and selection of individual clones (Figure 1a). One iteration of directed molecular evolution can be carried out in about 8 days (Figure 1b). In the case of the bulk selection, when pools of selected genes are subjected to the next round of evolution, mutagenesis and screening can be performed with a period of ~3.5 days (Figure 1b). To validate the proposed approach, we decided to enhance intracellular brightness of the biochemically and spectrally distinct FPs. We chose a set of FPs that originated from the four evolutionary different classes of chromoproteins and those that are diverse in their later synthetic evolution conditions. Namely, we chose a green FP phiLOV2.1 engineered from the flavin-binding light, oxygen, or voltage (LOV) sensing domain,³¹ a naturally occurring green FP UnaG cloned from freshwater eel Anguilla japonica,⁴ an engineered far-red fluorescent GFP-like FP TagRFP657,³² and an NIR FP miRFP derived from PAS-GAF domains of the RpBphP1 bacteriophytochrome.³³ By selecting already optimized FPs as templates, our goal was to demonstrate the great potential of the proposed approach to further enhance desired characteristics in mammalian cells. First, human-codon optimized genes of the selected proteins were subjected to error-prone PCR and cloned into the mammalian expression vector containing an SV40 origin of replication. The SV40 origin of replication significantly increases the expression levels of transgene under transient transfection conditions due to episomal replication of the plasmid within a host cell that expresses the SV40 large T-antigen,³⁴ which is crucial under one plasmid per cell transfection conditions. The generated random libraries, containing around 10⁶–10⁷ independent clones, were transfected into HEK293FT cells using the modified calcium phosphate method, which was optimized for single gene copy per cell delivery.³⁵ After plasmid replication and protein expression for 48 hr, we used FACS to collect ~100 cells with the highest fluorescence intensity for each library. Next, the target genes, recovered from the pools of collected cells, were either subjected to the next round of directed evolution or directly cloned into the mammalian expression vector (Figure 1a). In the latter case, several hundreds of randomly picked clones were individually transfected into HEK cells to compare their brightness to the corresponding parental proteins. Overall, one iteration of directed evolution was carried out within ~3.5 days and additional ~4 days were required to clone, express, assess, and sequence individual mutants (Figure 1b). We carried out two rounds of directed evolution for each template followed by screening of individually picked clones expressed in HEK cells under fluorescence microscope (see Supplementary Table 1 for the screening conditions and parameters). Assessment of the clones selected from the UnaG library did not identify variants with improved intracellular brightness, although sequencing of the brightest selected variants revealed amino acid substitutions in the structurally important regions (Supplementary Figures 1 and 2). Therefore, we did not perform further characterization of the UnaG mutants. For phiLOV2.1 and TagRFP657, we identified multiple variants that outperformed corresponding parental proteins in terms of intracellular brightness and in case of miRFP, we identified only one mutant with improved brightness (Supplementary Figure 1). We selected the brightest variant from each library for further evaluation. However, during imaging we found out that the brightest TagRFP657 variant had very limited photostability, we decided to choose the second brightest variant, which was confirmed to have higher than the parental protein photostability (Supplementary Figure 1). To confirm that the observed improvements were statistically significant, we repeated the measurements for each selected variant on several biological replicates in HEK cells. Indeed, all variants showed biologically and statistically significant improvements in intracellular brightness. The phiLOV2.1 variant showed 2.8-fold higher brightness over parental protein, the TagRFP657 and miRFP variants showed 30 and 27% over parental proteins, respectively (Figure 1c–e). Sequence analysis of the selected variants revealed two amino acid mutations in phiLOV2.1, six in TagRFP657, and nine in miRFP (Supplementary Figures 3–5). Correspondingly, we named the identified variants as phiLOV3, TagRFP658, and miRFP2, and used them for further detailed characterization. As a result, we were able to complete two iterations of directed molecular evolution in mammalian cells within 8 days enhancing intracellular brightness of the selected FPs (Figure 1).

2.2 Spectral and biochemical characterization of the optimized FPs

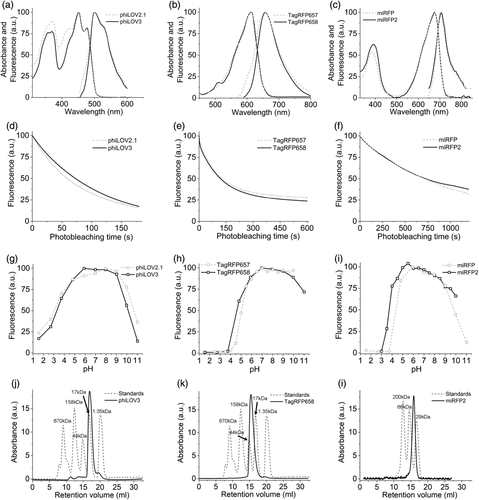

The introduced mutations did not alter the spectral properties of the developed proteins when compared to the corresponding parental proteins, showing only insignificant shifts in the maxima of the major bands (Figure 2a–c, Tables 1 and 2). Measured in solution using proteins purified from Escherichia coli, the molecular brightness of phiLOV3 and TagRFP658 was about 29 and 21% higher than that of their precursors, respectively, while molecular brightness of miRFP2 was 3.7-fold lower than that of miRFP (Tables 1 and 2). Improvement of the TagRFP568 intracellular brightness corresponded to increase in molecular brightness over its precursor. However, relative intracellular brightness of phiLOV3 and miRFP2 in HEK cells was several fold higher than their molecular brightness when compared to phiLOV2.1 and miRFP, respectively (Tables 1 and 2). The TagRFP658 and miRFP2 proteins exhibited similar intracellular photostability compared to the corresponding parental proteins, while phiLOV3 showed about 23% improvement in photostability halftime over its precursor (Figure 2d–f). The pH-stability of fluorescence for phiLOV3, TagRFP658, and miRFP2 was characterized by pK_a values of 3.3, 4.6, and 3.7, respectively, which were similar to that of the corresponding parental proteins (Figure 2g–i, Tables 1 and 2). Size-exclusion chromatography demonstrated that the developed proteins preserved monomeric state even at a high concentration in solution (Figure 2j–l, see Supplementary Figure 6 for calibration plots). We also measured two-photon cross section for TagRFP658 to explore its utility for two-photon microscopy. TagRFP658 exhibited a major peak at 1230 nm in two-photon spectrum coinciding with one-photon peak (at double wavelength) rather well and exhibited a strong feature in the region corresponding to the S₀ → S_n transitions with strong absorption only at wavelength below 830 nm (Supplementary Figure 7).

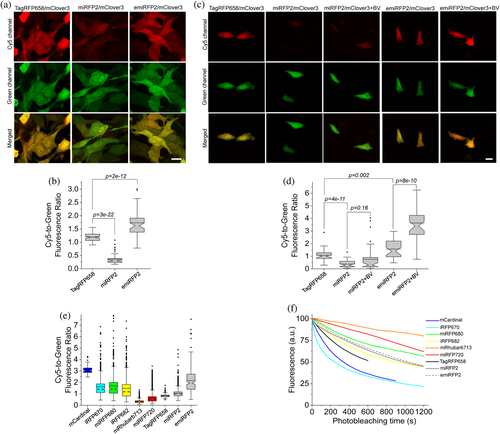

To investigate the significant difference in relative brightness of miRFP and miRFP2 in vitro and in cell culture, we evaluated BV binding efficiency in HEK cells by measuring intracellular brightness under different concentrations of exogenously administrated BV. We used miRFP703 as an additional reference since it shares the highest amino acid identity (~93%) with miRFP2 and was reported to have higher-than-miRFP2 molecular brightness^{20, 36} (Table 2). Addition of BV at 62.5 μM resulted in 3.2- and 3.7-fold increases in intracellular brightness of miRFP and miRFP703 while miRFP2 showed only a 1.8-fold increase (Supplementary Figure 8). The data suggested that miRFP2 has higher BV binding affinity and as a result a larger fraction of miRFP2 exists in the BV-bound state in HEK cells, which potentially can account for its higher intracellular brightness over miRFP and miRFP703. Overall, characterization in vitro and in cell culture showed that enhancement of intracellular brightness was not due to changes in spectral properties or oligomeric state of the proteins but rather due to improving either molecular brightness in case of TagRFP658 or cofactor binding affinity in case of miRFP2.

Next, we compared intracellular brightness of TagRFP658 and miRFP2 in NIH3T3 mouse embryonic fibroblasts and PAC2 zebrafish embryonic fibroblasts under identical imaging conditions. While finalizing this study, it was reported that swapping the N-terminus of the RpBphP1-derived miRFPs with that of the RpBphP2 protein can significantly improve intracellular brightness in mammalian cells without affecting molecular brightness.²⁰ Following the described strategy, we generated an enhanced version of miRFP2, or emiRFP2 for short, and used it for side-by-side comparison with TagRFP658 and miRFP2. To perform expression-level independent quantification of intracellular brightness, the NIR FPs were co-expressed with mClover3 under the EF1α:2xCMV:EF1α bidirectional promoter (Figure 3a,c). Under transient expression in NIH3T3 cells, emiRFP2 exhibited 1.4- and 4.8-fold higher fluorescence than TagRFP658 and miRFP2, respectively, when quantified using Cy5-to-green fluorescence ratio (Figure 3b; here and below we reported fluorescence intensities without normalization to excitation and emission efficiencies for spectrally distinct FPs, unless otherwise indicated, to provide direct comparison of intracellular brightness in real experimental settings rather than intrinsic properties of the FPs). Similar results were obtained in PAC2 fibroblasts with emiRFP2 being 1.5- and 4.1-fold brighter than TagRFP658 and miRFP2, respectively (Figure 3d). Administration of exogenous BV at 25 μM in PAC2 cells further increased fluorescence of miRFP2 and emiRFP2 by 2- and 2.3-fold, respectively (Figure 3d). Consistently with the previously reported results,²⁰ swapping the N-terminus of miRFP2 significantly improved its intracellular brightness. The emiRFP2 protein also outperformed TagRFP658 in terms of intracellular brightness in Cy5 channel.

It is important to validate if the FPs optimized in mammalian cells outperform their counterparts evolved in a bacterial system. Therefore, we decided to compare intracellular brightness and photostability of TagRFP658, miRFP2, and emiRFP2 to spectrally similar GFP-like and BphP-based NIR-FPs in HEK cells using a standard Cy5 filter set with a wide band-pass emission filter (730/140 nm), which allows efficient collection of NIR fluorescence. Based on the literature search, we selected a set of monomeric and dimeric NIR FPs including mCardinal,¹¹ iRFP670,³⁷ miRFP680,²⁰ iRFP682,³⁷ mRhubarb713,³⁸ and miRFP720,³⁹ which were reported to have high performance in cultured mammalian cells. To account for the expression level during transient transfection of HEK cells, the NIR FPs were co-expressed with EGFP using the self-cleavage P2A peptide.⁴⁰ The intracellular brightness of emiRFP2 was higher than all other assessment BphP-based NIR FPs, but about 1.4-fold lower than mCardinal (Figure 3e, see Table 2 for the quantification of all proteins). It should be noted that the expression level of the FPs as assessed by fluorescence intensity of GFP was comparable for all expressed constructs. Intracellular photostability of TagRFP658, miRFP2, and emiRFP2 measured under continuous wide-field illumination was ~2, 3, and 3-fold higher than that of mCardinal, respectively, however, lower than that for miRFP680, mRhubard, and miRFP720 (Figure 3f and Table 2). Based on the assessed characteristics, emiRFP2 and miRFP680 exhibited the best combination of brightness and photostability among the tested NIR FPs. However, as for the majority of in vivo applications, intracellular brightness is usually the most crucial property, we decided to use mCardinal as a major reference for further characterization of the developed NIR FPs in neurons. Moreover, mCardinal outperformed other recently published NIR FPs, such as mMaroon,⁴¹ and miRFP670nano,¹⁹ when compared side-by-side in HEK cells (Supplementary Figure 9).

2.3 Characterization of TagRFP658 and (e)miRFP2 in neurons

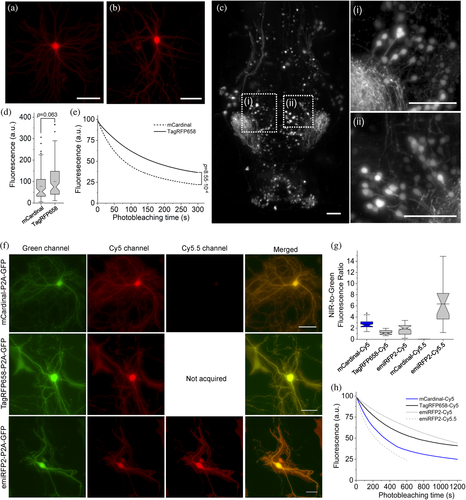

We evaluated the utilization of TagRFP658, miRFP2 and emiRFP2 as NIR fluorescent probes for neuronal labeling under one photon microscopy using standard Cy5 and Cy5.5 filter sets. As a reference, we chose to use mCardinal due to its superior intracellular brightness compared to all other tested NIR-FPs (Table 2). First, we expressed TagRFP658 in primary hippocampal mouse neurons and in a subset of neurons in live zebrafish larvae. In both preparations, the fluorescence of TagRFP658 was evenly distributed within the cytosol, individual dendrites, and nucleus of live neurons without any aggregation or nonspecific localization (Figure 4a–c). In cultured neurons, TagRFP658 was about 28% brighter and twice more photostable than mCardinal (photobleaching half-time for TagRFP658 and mCardinal was 164 and 80 s, respectively; Figure 4d,e). Using whole-cell patch clamp recordings, we showed that TagRFP658 expression did not alter membrane resistance, membrane capacitance, or the resting potential of cultured mouse neurons (Supplementary Figure 10).

Next, we assessed performance of emiRFP2 in cultured neurons side-by-side with mCardinal and TagRFP658. Since emiRFP2 outperformed miRFP2 in earlier experiments it was not used for quantitative imaging in neurons, although miRFP2 can be efficiently expressed and imaged in cultured neurons both under transient transfection and rAAV transduction (Supplementary Figure 11). The fluorescence of the NIR FPs co-expressed with EGFP via P2A peptide was evenly distributed within the cytosol, individual dendrites, and nucleus of live cultured neurons without any aggregation or nonspecific localization (Figure 4f). Quantification of fluorescence intensity revealed that emiRFP2 were about 3.5-times brighter in Cy5.5 channel than in Cy5 channel, while the mCardinal fluorescence in Cy5.5 channel was almost undetectable (Figure 4g). When quantified by Cy5-to-green fluorescence ratio, mCardinal was 2.2- and 1.5-fold brighter than TagRFP658 and emiRFP2, respectively. However, when raw mean fluorescence values in Cy5 channel were compared, TagRFP658 was about 20% brighter than mCardinal, similarly to the results shown in Figure 4c (note comparable fluorescence intensity for the representative images of mCardinal and TagRFP658 in Cy5 channel, but significantly dimmer GFP fluorescence in case of mCardinal-P2A-GFP construct; Supplementary Figure 12). Intracellular photostability of emiRFP2 was four-fold lower under Cy5.5 illumination compared to Cy5 excitation (photobleaching half-times were 230 and 990 s under Cy5.5 and Cy5 illumination, respectively; Figure 4h). At the same time, emiRFP2 exhibited superior intracellular photostability compared to mCardinal and TagRFP658 in the Cy5 channel, which were characterized by photobleaching halftime of 340 and 700 s, respectively, closely matching corresponding values obtained in HEK cells (Figure 4h and Table 2). Similar correlations of intracellular brightness and photostability in Cy5 and Cy5.5 channels were also observed in live HEK cells (Supplementary Figure 12). These results demonstrated that Cy5.5 channel provided high efficiency of the emiRFP2 fluorescence imaging; however, the gain in brightness came at the cost of reduced photostability.

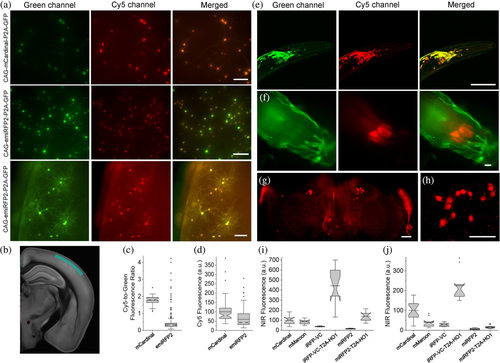

High performance of miRFP2 and emiRFP2 in cultured neurons encouraged us to express them in vivo in model organisms such as mice, C. elegans, and Drosophila melanogaster. First, we co-expressed mCardinal and emiRFP2 with GFP in cortical neurons in mice via in utero electroporation and performed imaging of the expressed proteins in acute brain slices at around P28. The emiRFP2 protein expressed in vivo showed even distribution in cell bodies and processes without aggregation (Figure 5a,b). Quantitative imaging showed that mCardinal had 4.8-fold higher Cy5-to-green fluorescence ratio than emiRFP2; however, mean fluorescence intensity of mCardinal was only 1.7-fold higher than that of emiRFP2 (Figure 5c,d; note significantly lower green fluorescence intensity in the representative image for CAG-mCardinal-P2A-GFP construct compared to CAG-emiRFP2-P2A-GFP in Figure 5a). In addition, values for Cy5-to-green fluorescence ratio in the case of emiRFP2 exhibited significant variability ranging from 0.07 to 4.2 versus only 1.1 to 2.5 for mCardinal. Next, we expressed the codon-optimized genes of miRFP2 using pan-neuronal expression systems in transgenic C. elegans and in Drosophila fruit flies. In case of C. elegans, we did not observe any specific NIR signal, while NIR fluorescence in larvae and adult fruit flies was clearly detectable although its intensity was several times lower than in cultured neurons under the same imaging conditions (Supplementary Figure 13). Reduced fluorescence of miRFP2 can be due to the insufficient concentration of the BV cofactor in worms and flies. Previously, it was shown that co-expression of heme oxygenase-1 (HO1) in worms and flies can enable fluorescence of the BphP-based FPs⁴² and biosensors.⁴³ To optimize conditions for miRFP2 expression, we constructed two bicistronic vectors using IRES2 and a viral 2A cleavage sequence to co-express miRFP2 and HO1 and transfected them into HEK cells. Quantification of NIR fluorescence in HEK cells revealed that HO1 co-expression via IRES2 and P2A improves miRFP2 brightness by 40 and 83%, respectively (Supplementary Figure 14). Therefore, we decided to use the viral P2A cleavage sequence to co-express codon-optimized genes of miRFP2 and HO1 in neurons in worms and flies. Indeed, co-expression of HO1 enabled bright NIR fluorescence of miRFP2 in C. elegans and in larvae and adult fruit flies allowing visualization of individual neurons (Figure 5e–h). To validate miRFP2 performance in fruit flies we decided to compare its fluorescence to that of other GFP-like and BphP-derived NIR FPs under identical expression conditions. We establish transgenic lines with pan-neuronal expression of Drosophila codon optimized genes of mCardinal, mMaroon, iRFP-VC (aka iRFP713/V256C), and iRFP-VC-P2A-HO1 and quantified their Cy5 fluorescence in live intact third instar larva and adult fruit flies (Figure 5i,j). Co-expression of HO1 significantly enhanced brightness of miRFP2 and iRFP-VC both in adult flies and in larvae, although increase of miRFP2 brightness in adult flies was less pronounced than that in larva, 2.6-fold versus 9-fold. In the case of iRFP-VC, fluorescence enhancement in larva and adult flies was comparable, about 12- and 8-fold, respectively. While miRFP2-T2A-HO1 outperformed mCardinal and mMaroon in terms of brightness in third instar larva, it was noticeably dimmer in adult fruit flies (Figure 5i,j). At the same time, co-expression of iRFP-VC with HO1 resulted in the brightest fluorescence among the tested proteins both in larva and adult flies. Thus, we demonstrated that miRFP2 is a suitable NIR FP for imaging neurons in culture and in vivo in small model organisms, like worms and flies, and outperformed other high performing NIR FPs under certain conditions, for example, in fruit fly larva. Our data also showed that co-expression of HO1 in worms and flies are essential for achieving sufficient brightness of BphP-based NIR FPs in C. elegans and Drosophila flies.

2.4 Multicolor imaging in cell culture and in vivo

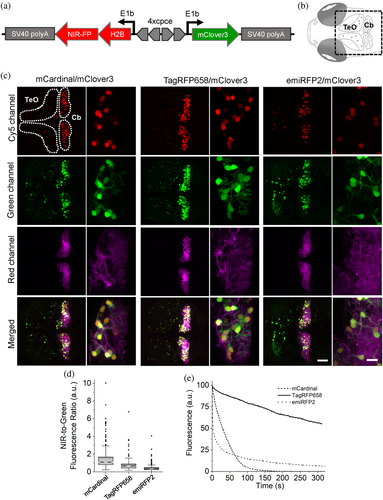

We tested the feasibility of TagRFP658 and miRFP2 in multicolor neuronal imaging in combination with green and red FPs expressed in larval zebrafish cerebellar Purkinje cells (PCs). First, we generated a set of the bidirectional expression constructs (Figure 6a) using zebrafish codon-optimized genes of NIR FPs allowing to co-express a nuclear-localized H2B histone fused to either mCardinal, TagRFP658, miRFP2, or emiRFP2 with cytoplasmic green FP mClover3 and transfected them into NIH3T3 cells stably expressing trans-Golgi network protein 46 (TGN46) fused to red FP mScarlet. Imaging using standard filter configurations under confocal microscope allowed for crosstalk-free triple color imaging for each combination of the selected FPs (Supplementary Figure 15). Next, we expressed the selected FPs in specific neuronal subpopulations of zebrafish larvae, especially targeting cerebellar PCs using the same constructs but carrying a PC-specific bidirectional promoter⁴⁴ instead of the ubiquitous CMV-EF1 promoter. As the enhanced variant of miRFP2, emiRFP2, exhibited higher intracellular brightness both in NIH3T3 cells and zebrafish PAC2 fibroblast than that of the original miRFP2 (Figure 3b,d), it was selected for expression in zebrafish larva. Using a standard confocal microscope, we easily visualized NIR fluorescence in PC nucleus using Cy5 channel together with mClover3 distributed throughout entire PC's cytoplasm using green channel, while imaging in red channel provided clear visualization of the PCs axonal and/or dendritic structures with membrane tagged mScarlet fluorescence whose expressions are predominantly detected in PCs together with slight expression in tectal neurons (Figure 6b,c). Thus, NIR fluorescence of the tested NIR FPs were easily distinguishable from mScarlet fluorescence and thus can be used to label multiple neuronal compartments in conjunction with additional blue, or green FPs. We further quantified the brightness and photostability of mCardinal, TagRFP658, and emiRFP2 fluorescence by expressing corresponding constructs in PCs of less pigmented brass embryos (Supplementary Figure 16). To account for expression level of the FPs, we calculated NIR-to-green fluorescence ratio for single PCs in zebrafish embryos. Fluorescence quantification revealed that mCardinal fluorescence was about twice higher than that of TagRFP658, whereas emiRFP2 exhibited 3.6-fold lower brightness than mCardinal (Figure 6d). Photobleaching experiments performed under identical excitation power for all selected FPs demonstrated 10-times higher photostability of TagRFP658 over mCardinal. However, emiRFP2 fluorescence exhibited rapid decay with half-time about 3 s making emiRFP2 about 10-fold less photostable than mCardinal at least in this zebrafish model (Figure 6e). Despite the lower intracellular brightness of TagRFP658 than mCardinal, it can be a more practical fluorescent tag for live imaging due to significantly higher photostability.

Earlier we demonstrated that (e)miRFP2 imaging in Cy5.5 channel is several times more efficient than in Cy5 channel, while mCardinal fluorescence is not detectable in Cy5.5 channel (Figure 4f,g and Supplementary Figure 12). Therefore, we decided to explore a possibility for dual-color NIR imaging of subcellular structures using combination blue-shifted and red-shifted NIR FPs, for example, mCardinal and emiRFP2. First, we verified that the developed NIR FPs can be properly localized in fusions with structured proteins in mammalian cells. Indeed, fusions of TagRFP658 and (e)miRFP2 with α-tubulin, β-actin, and keratin demonstrated proper localization in cultured mammalian cells (Figure 7a–f). Next, we co-expressed Mito-mCardinal and H2B-emiRFP2 fusions in HeLa cells and acquired images in Cy5 and Cy5.5 channels. To further improve spectral separation, we swapped the wide band-pass emission filter in our standard Cy5 channel with a narrower emission filter 679/41 nm. This optical setup enabled crosstalk-free imaging of mCardinal and emiRFP2 (Figure 7g). The blue-shifted and red-shifted NIR FPs can further increase spectral multiplexing of fluorescence imaging in combination with other common FPs.

4.1 Molecular cloning and mutagenesis

The mammalian codon-optimized genes of phiLOV2.1 and UnaG were synthesized de novo by GenScript based on the amino acid sequences reported in the original publications.^{4, 31} The TagRFP657 and miRFP genes were acquired from Addgene (TagRFP657 plasmid#31959; miRFP plasmid#108409). Synthetic DNA oligonucleotides used for cloning were purchased from Integrated DNA Technologies. PrimeStar Max master mix (Clontech) was used for high-fidelity PCR amplifications. Restriction endonucleases were purchased from New England BioLabs and used according to the manufacturer's protocols. Ligations were performed using T4 DNA ligase (Fermentas) or InFusion HD kits (Clontech). Small-scale isolation of plasmid DNA was performed with Mini-Prep kits (Qiagen); large-scale DNA plasmid purification was done with GenElute HP Endotoxin-Free Plasmid Maxiprep Kits (Sigma-Aldrich). Random libraries of mutants were prepared using Mutazyme II DNA polymerase (Agilent) under high mutation rate conditions (9–16 mutations per kilobase pair) and subcloned into the pN1 vector (Clontech). Obtained gene libraries in expression vectors were electroporated into NEB10-β E. coli host cells (New England BioLabs). Serial dilutions (10⁻⁴ and 10⁻⁵) of the electroporated cells were plated on LB/agar medium supplemented with 100 mg ml⁻¹ kanamycin to estimate electroporation and cloning efficiency. For each library, 20 randomly selected clones were sequenced to confirm ligation efficiency, that is, fraction of the clones containing target genes, and mutation rate. The remainder of the cells was grown overnight in LB medium supplemented with 100 mg ml⁻¹ of kanamycin for subsequent plasmid DNA isolation. Library transfection into HEK293FT cells (Invitrogen) was performed as described previously. Briefly, HEK293FT cells were maintained between 10 and 70% confluence at 37°C with 5% CO2 in DMEM medium (Cellgro) supplemented with 10% heat-inactivated FBS (Corning), 1% penicillin/streptomycin (Cellgro), and 1% sodium pyruvate (BioWhittaker). Transfection of HEK293FT cells with gene libraries was performed using a commercially available calcium phosphate (CaPhos) transfection kit (LifeTechnologies) according to the modified protocol using the pUC19 plasmid as “dummy” DNA in weight ratio library DNA: pUC19 1:100. To sort the gene library-transfected HEK293FT cells using flow cytometry, cells were harvested from a culture dish ~48 hr after gene library transfection by applying trypsin for 5–10 min (Cellgro) and then washed twice by centrifuging the cell suspension for 5 min at 500 rpm and resuspending cells in PBS (Cellgro). The washed cells were then resuspended in PBS supplemented with 4% FBS (Corning) and 10 mM EDTA at a density of 1–2·10⁶ cells/ml and filtered through a 30-μm filter (Falcon) to prevent clogging on the FACS machine. The filtered cells were sorted by FACSAria (BD Biosciences) running BD FACS Diva 8.0 software and equipped with standard 488- and 640-nm solid-state lasers. Debris, dead cells, and cell aggregates were gated out using forward and side scatter before desired fluorescence signals were detected. For each library, several hundred cells exhibiting highest fluorescent intensity in the corresponding channel were collected and subjected to whole genome amplification (WGA) using a commercially available WGA kit (New England BioLabs) followed by PCR amplification. Amplicons with a size corresponding to that of the target gene were purified by agarose gel electrophoresis and cloned into the pN1 vector. Obtained colonies were individually picked to confirm the correct insert using PCR with a pair of primers that anneal to CMV promoter and the target genes. Colonies with correct insert were cultured in LB with 100 mg ml⁻¹ of kanamycin for plasmid purification. Purified plasmids were individually transfected into HEK293FT cells using TransIT-X2 reagent (Mirus). In 24 hr post transfection, HEK cells were imaged using a wide-field Nikon Eclipse Ti equipped with 10× NA 0.45 and 20× NA 0.75 objective lenses, a SPECTRA-X light engine (Lumencor) with 475/28 nm, and 631/28 nm exciters (Semrock), a 5.5 Zyla camera (Andor), and automated stage (Ludl), controlled by NIS-Elements AR software Nikon to assess fluorescence and photostability.

The genes of miRFP720 and miRFP670nano were de novo synthesized by GenScript using sequences reported in the original publications.^{19, 39} The genes of mCardinal, mMaroon, and miRFP703 were acquired from Addgene as plasmids #54590, #54554, and #79988, respectively. To construct α-tubulin and β-actin fusions, the phiLOV3, TagRFP658, and miRFP2 genes were PCR amplified and swapped with mClover2 in pmClover2-tubulin-C-18 plasmid (Addgene #56376) and with TagRFP675 in pTagRFP675-actin-C1 (Addgene #44277) using InFusion cloning (Clontech). To construct Keratin fusions, emiRFP2 were PCR amplified and swapped with miRFP670nano in pKeratin-miRFP670nano plasmid (Addgene #127437) using Fusion cloning (Takara). To express TagRFP658 and mCardinal in neurons under CaMKII promoter the corresponding genes were PCR amplified and swapped with the Arch-GFP gene in FCK-Arch-GFP (Addgene #22217) using InFusion cloning. The pAAV-CAG-miRFP720-P2A-GFP and pAAV-CAG-miRFP2-P2A plasmids were constructed by cloning miRFP720-P2A and miRFP2-P2A into pAAV-CAG-GFP (Addgene #37825) in frame with GFP.

For expression in zebrafish larvae, the genes of mCardinal, TagRFP678, miRFP, and miRFP2 were codon-optimized using the online resource at http://www.bioinformatics.org/, synthesized de novo by GenScript. The zebrafish codon optimized emiRFP2 gene was cloned by substituting the nucleotides encoding RpBphP1-based N-terminus of zebrafish codon optimized miRFP2 (aa 2–19) with those encoding 13 amino acid preceding the chromophore-binding Cys in RpBphP2 as previously reported.²⁰

For co-expression of TagRFP658, miRFP2, and emiRFP2 with mClover3 in NIH3T3 mouse embryonic fibroblasts (DSMZ) and PAC2 zebrafish embryonic fibroblasts, the zebrafish codon-optimized genes of the corresponding NIR FPs and mClover3 were cloned into an expression vector carrying the bidirectional promoter (p-EF1a:2xCMV:EF1a) consisting of two CpG free mCMV enhancers (Invivogen) each followed by CpG free hEF1alpha promoter (Invivogen) and SV40 polyA sequences. The generated expression cassettes were flanked by Tol2 transposon arms. The p-EF1α:2xCMV:EF1α bidirectional vector allows for expression of two reporter genes with comparable expression levels. For pan-neuronal expression in zebrafish, the zebrafish codon optimized gene of TagRFP658 was cloned into pTol2-UAS-zArchon1-KGC-GFP-ER2 plasmid (Addgene #108427) described before³³ by swapping zArchon1-KGC-GFP-ER2 using SpeI and AscI sites.

For transient expression in cerebellar Purkinje neurons in zebrafish, EF1a:2xCMV:EF1a promoter in the above mentioned bidirectional vector carrying mClover3 and H2B-NIR FP, either of mCardinal, TagRFP658, or emiRFP2 was replaced by Purkinje neuron-specific bidirectional promoter (E1b:4xcpce:E1b) enabling co-expression of the corresponding NIR FPs with mClover3 predominantly in zebrafish cerebellar PCs while also inducing slight expression in tectal neurons of larval zebrafish.⁴⁴

For generation of transgenic flies, the mCardinal, mMarron, iRFP-VC, iRFP-VC-T2A-HO1, miRFP2, and miRFP2-T2A-HO1 genes were codon-optimized for expression in D. melanogaster using the online resource at http://www.bioinformatics.org/, synthesized de novo and cloned into the 20XUAS-IVS-Jaws-mVenus_tr plasmid (Addgene #111553) by swapping the Jaws-mVenus gene.

For expression in C. elegans, the genes of miRFP2, miRP2-T2A-HO1, and jGCaMP7s were codon-optimized using SnapGene codon-optimization tool, synthesized de novo by GenScript and cloned into an expression vector under the tag-168 promoter the drives pan-neuronal expression.

4.2 Protein purification and in vitro characterization

For protein purification, the phiLOV2.1, phiLOV3, TagRFP657, and TagRFP658 genes were cloned into pBAD-HisD vector and transformed into TOP10 cells. To express the protein, bacterial cells were grown in RM medium supplemented with ampicillin and 0.002% arabinose for 15–18 hr at 37°C followed by 24 hr at 18°C. Proteins were purified using TALON Metal Affinity Resin (Clontech) and dialyzed overnight against PBS buffer, pH 7.4. To express miRFP720 and miRFP2 the genes were cloned in pBAD-HisB plasmid and transformed into BW25113 bacterial cells, containing pWA23h plasmid encoding HO1 under rhamnose promoter. The colonies were grown in LB medium supplemented with ampicillin, kanamycin, 0.002% arabinose, and 0.02% rhamnose for 20 hr at 37°C. For protein purification, Ni-NTA agarose (Qiagen) was used. Protein was eluted with PBS containing 100 mM EDTA, followed by dialysis overnight against PBS buffer, pH 7.4.

Spectral properties of the proteins were measured in PBS at pH 7.4. The fluorescence and absorption spectra of phiLOV2.1, phiLOV3, TagRFP657, and TagRFP658 were measured using a Fluorolog3 spectrofluorometer (Jobin Yvon) and a Lambda 35 UV/Vis spectrometer (PerkinElmer), respectively. The fluorescence and absorption spectra of miRFP720 and miRFP2 were measured with a CM2203 spectrofluorometer (Solar, Belarus) and NanoDrop 2000c spectrophotometer (Thermo Scientific), respectively. The extinction coefficient of phiLOV2.1 and phiLOV3 was determined as a ratio between the absorbance value of the peak at 374 nm, which correspond to FMN absorbance with extinction coefficient of 12,500 M⁻¹·cm⁻¹,⁵⁸ and the value of the peak at major band peaked at ~476 nm. For determination of the quantum yield, integrated fluorescence of phiLOV3 was compared with that of equally absorbing phiLOV2.1, characterized by quantum yield value of 0.2.³¹ To determine extinction coefficients of TagRFP657 and TagRFP658, we relied on measuring the mature chromophore concentrations, using alkali-denatured proteins as previously described.³² For determination of the quantum yield, integrated fluorescence of TagRFP658 was compared with that of equally absorbing TagRFP657, characterized by quantum yield value of 0.1.³² The extinction coefficient of miRFP720 and miRFP2 was determined as a ratio between the absorbance value of the peak at Q-band and the value of the peak at Soret band, characterized by extinction coefficient of 39,900 M⁻¹ cm⁻¹.⁸ For quantum yield determination, the integrated fluorescence values of purified miRFP2 were compared with equally absorbing miRFP720 (quantum yield 0.061). pH titrations for phiLOV2.1, phiLOV3, TagRFP657, and TagRFP658 were performed in a 96-well black clear bottom plate (Corning) by 1:20 dilution with a series of commercially available pH buffers (HYDRION) using a SpectraMax-M5 plate reader (Molecular Devices) to read out fluorescence. To determine pH stability, miRFP2 and miRFP720 were diluted 1:100 into a series of home-made pH adjusted buffers with NaOH and HCl (30 mM citric acid, 30 mM borax, or 30 mM NaCl) with pH values ranging from 3 to 10 in 0.5 pH units interval in a 96-well black clear bottom plate (Thermo Scientific) using a Modulus II Microplate Reader (TurnerBiosystems) to read out fluorescence using 625 nm excitation and 660–720 nm emission filters. Size-exclusion chromatography for phiLOV3 and TagRFP658 was performed by GenScript on a Superdex 200 10/300 GL column (GE Healthcare Life Sciences) using a gel filtration standard (#1511901; BIO-RAD). Size-exclusion chromatography for miRFP720 and miRFP2 was performed with a Superdex 200 10/300 GL column using GE AKTA Explorer (Amersham Pharmacia, UK) FPLC System.

Two-photon spectrum and cross sections of TagRFP658 were measured in PBS buffer at concentrations ~1–5·10⁻⁵ M in 1 mm glass spectroscopy cuvettes (Starna cells) using an MOM two-photon fluorescent microscope (Sutter Instrument) coupled with an Insight DeepSee (Newport) femtosecond laser, as described before.³³ For the measurement of spectral shape, fluorescence was collected through a combination of 694SP (Semrock) and 630/60 (Chroma) filters for TagRFP658 and through HQ705/100 (Chroma) filter for Styryl 9-M dye (Aldrich) in chloroform used as a reference standard. The two-photon cross section was measured relatively to LDS 698 dye (Exciton) in chloroform54 at 1,150 nm using a combination of HQ705/100 (Chroma) and 630/60 (Chroma) filters and relatively to Rhodamine 700 in ethanol⁵⁹ at 1,200 nm using 675/20 (Chroma) filter. The spectral shape was then scaled to these values. The differences between the peak absolute values obtained with two different standards were within 10%.

4.3 Protein characterization in mammalian cells

All procedures involving animals at MIT and Westlake University were conducted in accordance with the U.S. National Institutes of Health Guide for the Care and Use of Laboratory Animals and approved by the Massachusetts Institute of Technology or Westlake University Committee on Animal Care. HEK293FT (Invitrogen) and HeLa (ATCC CCL-2) cells were maintained between 10 and 70% confluence at 37°C with 5% CO₂ in DMEM medium (Cellgro) supplemented with 10% heat-inactivated FBS (Corning), 1% penicillin/streptomycin (Cellgro), and 1% sodium pyruvate (BioWhittaker). Cells were authenticated by the manufacturer and tested for mycoplasma contamination to their standard levels of stringency and were here used because they are common cell lines for testing new tools. Primary mouse hippocampal neuronal culture was prepared as described previously. HEK293FT and HeLa cells were transiently transfected using TransIT-X2 (Mirus Bio LLC) or calcium phosphate transfection kit (K278001, Invitrogen) according to the manufacturer's protocol and imaged 24–48 hr after transfection. Mouse primary hippocampal neurons were prepared from postnatal day 0 or 1 Swiss Webster (Taconic) mice (both male and female mice were used) and cultured as previously described.³³ Neuronal cultures were transfected using calcium phosphate transfection kit (Life Sciences) according to the protocol described before.³³ Transduction of neuronal culture was done at four DIV using ~10⁹ viral particles of rAAV8-hSyn-miRFP2 (Janelia Farm Viral Core, the rAAV genome titer was determined by dot blot) per well of standard 24-well plate (Corning). Imaging of HEK293FT cells and neuronal cultures for Figures 1-3 was done using a Nikon Eclipse Ti inverted microscope equipped with a SPECTRA X light engine (Lumencor) with 475/28 nm and 631/28 nm exciters (Semrock), and a 5.5 Zyla camera (Andor), controlled by NIS-Elements AR software, and using 10 × NA 0.3 and 40 × NA 1.15 objective lenses. Imaging of HEK293FT cells for Figure 3 was done under using a Nikon Eclipse Ti2-E inverted microscope equipped with a SPECTRA III light engine (Lumencor) with 475/28 nm and 635/22 nm exciters (Semrock), a 680 nm solid-state laser (MRL-III-680–800 mW, CNI Laser) and 680/13 nm exciter (Semrock), and a Orca Flash4.0v3 camera (Hamamatsu), controlled by NIS-Elements AR software, and using 20× NA 0.75 objective lenses. To perform fair comparison of fluorescence intensity in Cy5 (excitation 635/22 nm from 637 nm laser, emission 730/140 nm) and Cy5.5 (excitation 680/13 nm from 680 nm laser, emission 710 LP) channels, images were acquired under matching excitation power (66 mW/mm²) and the same exposure time (100 ms).

NIH3T3 cells were grown in DMEM (4.5 μg/L glucose) supplemented with 10% FCS, and maintained in a 5% CO₂ incubator at 37°C. The NIH3T3 stable cell line was generated by the transfection of pEF-TGN46-mScarlet-iresPuro, followed by isolation and expansion of a clone grown in DMEM containing Puromycin at the concentration of 2 μg/ml. Zebrafish PAC2 fibroblast cells were cultured in L-15 medium supplemented with 15% FCS, and maintained in an incubator at 28°C and atmospheric CO₂. Transfection of plasmids was performed onto cells grown on μ-slide 4-well glass bottom dish (ibidi) using jetPRIME reagent (Polyplus) according to the manufacturer's protocol. For PAC2 cells, transfection was carried out in L-15 medium supplemented with 5% FCS. Then, 6 hr after transfection, an equal volume of 15% FCS containing medium was added to adjust its final concentration of FCS at 10%. Live NIH3T3 and PAC2 cells were imaged 48 hr post transfection using a laser scanning confocal microscope (TCS SP8, Leica Microsystems, Germany) with 40× water (NA 1.1) objective. The BV solution (Sigma) at the final concentration 25 μM was added to PAC2 cells 48 hr after transfection, followed by recording of their images 3 hr after the BV administration. mClover3 was excited by an argon laser at 488 nm and detection range at 495–530 nm, whereas each of NIR RFs was excited by HeNe 633 laser and detection range at 660–785 nm. For three-color imaging, transfected NIH3T3 cells were fixed with 4%PFA 36 hr after transfection, followed by imaging using a confocal microscope. mScarlet fluorescence was excited by a DPSS 561 nm laser with the detection range at 570–600 nm, followed by simultaneous imaging of mClover3 and the NIR FPs as described above.

4.4 In utero electroporation and acute slice preparation

Embryonic day (E) 15.5 timed-pregnant female Swiss Webster mice (Taconic) were used for in utero electroporation as described before.³³ The pAAV-CAG-emiRFP2-P2A-GFP or pAAV-CAG-mCardinal-P2A-GFP plasmid at ~1 μg/μl concentration were injected into the lateral ventricle of one cerebral hemisphere of an embryo. Acute brain slices were obtained from mice at P20–30 without regard for sex using standard techniques as described before.³³ The brain slices were imaged using a Nikon Eclipse Ti2-E inverted microscope equipped with a SPECTRA III light engine (Lumencor) with 475/28 nm and 635/22 nm exciters (Semrock), and a Orca Flash4.0v3 camera (Hamamatsu), controlled by NIS-Elements AR software, and using 10× NA 0.45 and 20× NA 0.75 objective lenses.

4.5 Zebrafish larvae preparation and imaging

All experiments involving zebrafish at MIT and Technische Universität Braunschweig were conducted in accordance with protocols approved by Massachusetts Institute of Technology Committee on Animal Care following guidelines described in the U.S. National Institutes of Health Guide for the Care and Use of Laboratory Animals or by German legislation following European Union guidelines (EU Directive 2010_63) according to location of the respective experiments. Zebrafish larvae expressing TagRFP658 were prepared and imaged as described previously.³³ Briefly, pTol2-UAS-zTagRFP658 plasmid was co-injected with Tol2 transposase mRNA into homozygous nacre embryos of the pan-neuronal expressing Gal4 line, tg(elavl3:GAL4-VP16)nns6.⁶⁰ Injected larvae were screened for NIR fluorescence in the brain and spinal cord at 2–3 days postfertilization (dpf) using the Nikon wide-field microscope described above and subsequently imaged at 3–4 dpf using Zeiss Lightsheet Z.1 microscope. Lightsheets were generated by two illumination objectives (10×, NA 0.2), and the fluorescence signal detected by a 20× water immersion objective (NA 1.0). The laser line used for excitation was 638 nm. Optical filters used to separate and clean the fluorescence response included a Chroma T647lpxr as a dichroic, and a Chroma ET665lp. Tiled data sets were taken with the Zeiss ZEN Software, and subsequently merged and processed with FIJI, and Arivis Vision4D.

To co-express the mCardinal, TagRFP658, and emiRFP2 H2B fusions with mClover3, one cell stage embryos of the pigmentation-compromised zebrafish brass strain and Tg(4xen.cpce-E1B:gap-mScarlet) line were microinjected with the corresponding E1b:4xcpce:E1b expression vector described above together with tol2 mRNA (1.5 nl of injection mix containing 25 ng/μl of both tol2 and pTol2-plasmid). mClover3 positive larval fish at 4 dpf were subjected to confocal microscopy analysis. The stable transgenic line, Tg(4xen.cpce-E1B: gap:mScarlet) was generated by the injection of tol1 mRNA together with a Tol1-reporter plasmid in which membrane-targeted mScarlet expression regulated by 4xcpce:E1b is restrictively induced in PCs, because ectopically expressed mScarlet in tectal neurons was eliminated by 4× miRNA181a target sequence inserted into the 3′UTR of the reporter gene.⁴⁴ For membrane targeting, mScarlet was fused N-terminally to the first 20 amino acids encoded by the zebrafish gap43 gene. Fish larvae exhibiting no fluorescence in the corresponding channels were excluded from further imaging. Fluorescence imaging was performed using a laser scanning confocal microscope (TCS SP8, Leica Microsystems, Germany) with 40× water (NA 1.1) objectives. mClover3 (excited by an argon laser at 488 nm, detection range at 495–530 nm) and each of NIR FPs (excited by HeNe 633 nm laser, detection range at 660–785 nm) expressed in PCs were imaged simultaneously. For three-color imaging, first, a DPSS 561 nm laser was used to excite mScarlet fluorescence, which was detected with the range at 570–600 nm, followed by simultaneous imaging of mClover3 and the NIR FPs as described above. Reconstructions and projections from z-stacks of images were generated with the 3D-projection program included in the LAS X software (Leica Microsystems, Germany). Acquired images were processed with FIJI to measure the fluorescent intensity ratio of each of NIR FPs and mClover3 in each PC. In vivo photostability of TagRFP658, emiRFP2, and mCardinal was assessed using PCs continuously exposed to HeNe633 laser set at 70% of the laser power in the software setting. The region of interest (116.25 μm × 116.25 μm) was drawn encompassing several PCs labeled with nuclear localized TagRFP658, or mCardinal, and single plan image (optical section: 3.56 μm) was taken every 0.648 s without interval for 5 min. Acquired images were processed with FIJI to measure the fluorescent intensity in each PC in each time point.

4.6 Preparation and imaging in drosophila

Transgenic fly lines with the following genotypes y1 w67c23; P{y[+t7.7] w[+mC] = UAS-mCardinal} attP40, y1 w67c23; P{y[+t7.7] w[+mC] = UAS-mMaroon} attP40, y1 w67c23; P{y[+t7.7] w[+mC] = UAS-iRFP-VC} attP40, y1 w67c23; P{y[+t7.7] w[+mC] = UAS-iRFP-VC-T2A-HO1} attP40, y1 w67c23; P{y[+t7.7] w[+mC] = UAS-miRFP2} attP40, y1 w67c23; P{y[+t7.7] w[+mC] = UAS-miRFP2-T2A-HO1} attP40 were generated by Bestgene using the user provided 20XUAS-IVS plasmids described above. Flies were raised on standard cornmeal medium at room temperature. To drive pan-neuronal protein expression, generated transgenic adult male flies were mated with C155-GAL4 (pan-neural, a gift from Littleton lab at MIT) virgin females to generate heterozygous (C155-GAL4/+ or Y; Transgene/+).

Intact third instar larva and 2- to 4-day old adult flies were immobilized on the coverslip for further imaging. To drive protein expression in specific neurons, generated transgenic flies were crossed with R84C10-GAL4 to generate heterozygous progenies. Dissected brains from 5- to 6-day old adult females were used for further imaging. No larvae or adult flies, carrying the genes of target proteins, were excluded from the study. The wide-field Nikon microscope described above was used to acquire low magnification images and a Zeiss LSM 800 confocal microscope with Airyscan equipped with 631 nm laser for excitation for high magnification images.

4.7 C. elegans preparation and imaging

Worms were cultured and maintained following standard protocols.⁶¹ Transgenic worms with extrachromosomal array co-expressing miRFP2 or miRFP2-T2A-HO1 with jGCaMP7s pan-neuronally were generated by co-injection of the two plasmids tag-168::miRFP2 or tag-168::miRFP2-T2A-HO1 with tag-168::NLS-jGCaMP7s into N2 background worms as described before.⁶² All plasmids were injected at 10 ng/μl. Worms exhibiting the highest green fluorescence in neurons were picked and mounted on 2% agarose pads on microscope slides, worms without green fluorescence were excluded from further imaging, immobilized with 5 mM tetramisole, covered by a coverslip, and imaged using a Zeiss LSM 800 confocal microscope with Airyscan equipped with 631 nm laser for excitation.

4.8 Data analysis and statistics

Data were analyzed offline using NIS-Elements Advance Research software, Excel (Microsoft), OriginPro, ImageJ, the Microscope online application (https://www.fpbase.org/microscope), and Arivis Vision4D. Data collection for fluorescence spectra of NIR FPs was done using https://www.fpbase.org. All attempts at replication of the experiments were successful. We did not perform a power analysis, since our goal was to create a new technology; and as recommended by the NIH, “In experiments based on the success or failure of a desired goal, the number of animals required is difficult to estimate…” As noted in the aforementioned paper, “The number of animals required is usually estimated by experience instead of by any formal statistical calculation, although the procedures will be terminated [when the goal is achieved].” These numbers reflect our past experience in developing neurotechnologies. All attempts at replication of the experiments were successful. No randomization was used in the study. No blinding was used in the study.
