Network representation of protein interactions: Theory of graph description and analysis

Data normalization

For the present study, we investigate residue-resolved data from different two-dimensional NMR experiments. Each experiment yields an independent NMR parameter, P, for each amino acid of a protein's primary sequence. Typically, NMR monitors protein interactions via changes in parameters like chemical shift (CS), transverse relaxation rates (R₂) or heteronuclear ¹⁵N{¹H} Overhauser enhancements (NOE, η).4, 25 We focus on differential values of these parameters, denoted here as ΔP. The latter is defined as the value of a parameter found for the holo-form (ligand bound) of a protein minus the value corresponding to its apo-form (ligand free). The various abovementioned differential NMR parameters report on different aspects of a protein interaction: Changes in CS (i.e., ΔCS) due to the binding of a ligand to a protein depend on variations of the chemical environment of the typically observed amide ¹⁵N-nitrogens and protons, ¹H^N, of the protein backbone. For proteins changes in ¹⁵N transverse relaxation rates, ΔR₂, typically report on variations of the average amplitude of backbone motions on the nanosecond timescale. The differential NOE, Δη, reports complementarily on alterations in mobility on the picosecond timescale.

Note that we generally analyze ΔCS values separately for amide protons, ¹H^N, and backbone amide, ¹⁵N, nitrogens. Such, for a single protein interaction one may readily obtain four independent residue-resolved data sets of differential values ΔCS(¹H^N), ΔCS(¹⁵N), ΔR₂, and Δη.

To quantitatively relate ΔCS(¹H^N), ΔCS(¹⁵N), ΔR₂, and Δη to each other we have to normalize these independent parameters in a common way. (We will focus on the four abovementioned parameters throughout this contribution, although further parameters might be available in many cases.) This means, the data originating from different experiments must be simultaneously referenced to a universal scale. Hence, normalization must not be applied individually for each experiment, but must include some common scaling. This is complicated by the fact that one wants to compare values that span different ranges and that have different units. For example, a change of 5 s¹ in R₂ may not be very large, but a change of 5 ppm in CS would be quite drastic for an ¹H^N nucleus. To compare different NMR parameters we propose a two-step solution. In a first step, each NMR parameter is normalized by dividing it by a “global” standard deviation denoted σ_global. Here, “global” indicates that this standard deviation corresponds to the width of a hypothetical probability distribution of all possible values that an NMR parameter can adopt—independent of a particular experimental context. The four individual σ_global values that “globally” normalize the four NMR parameters (CS(¹H^N), CS(¹⁵N), R₂, and η) are obtained through computation of the standard deviation from all measured values found in the Biological Magnetic Resonance Data Bank (BMRB) database26 for each of these observables.

For R₂ and η, all available entries in the BMRB were found employing home-written Python scripts. The data were then filtered according to magnetic field strength, that is, only values corresponding to the field strength used in the experiments to measure R₂ and η were taken into account to derive σ_global. Such, for a given field strength σ_global was calculated as:

(1)

Here N is the number of values found for a particular observable and magnetic field strength in the BMRB. x_i denotes one of these values and <x> the mean over these values. As an example, in the case of R₂ measured at 14 T experimental field strength we would take all values found in the BMRB for ¹⁵N–R₂ values of protein amides at 14 T and compute the standard deviation of the obtained distribution of values. σ_global provides a “global” estimate of the distribution or span of possible values of R₂. The same argument holds for η. Hence, we can conclude that σ_global of R₂ and η constitutes a global average of the corresponding differential values ΔR₂ and Δη since the latter denote shifts inside the range of possible values of R₂ and η, which in return is approximated by σ_global. This range constitutes the desired universal scale for the normalization of ΔR₂ and Δη.

In principle, an equivalent argumentation holds for ΔCS(¹H^N) and ΔCS(¹⁵N). However, it has to be taken into account that the σ_global parameter needed for normalization of ΔCS depends on the type of amino acid under investigation. Hence, the primary sequence of the protein has to be taken into account for normalization. The standard deviations, σ_global, of chemical shifts for each amino acid type are directly provided by the BMRB26 for ¹⁵N as well as for ¹H^N. We individually normalize the data for both nuclei to bring them to a common scale. For a residue-resolved data set of chemical shift changes of either ¹H^N or ¹⁵N we divide every entry by σ_global found in the BMRB for the underlying amino acid. Through this, a combination of chemical shifts into chemical shift perturbation is not necessary.

Summing up, in order to compare ΔCS(¹H^N), ΔCS(¹⁵N), ΔR₂, and Δη we bring them to a unified scale normalized to an approximation of their global average values. This may simply be expressed as:

(2)

where P stands for ΔCS, ΔR₂, ΔR₁, or Δη and σ_global,P indicates the σ_global value associated with the NMR parameter P. The asterisk denotes the globally normalized value for of an NMR parameter. Other more common statistical methods like range normalization or standard scoring would entail problems concerning the balance between the different NMR parameters. In contrast, normalization by σ_global brings all parameters, P, to a universal scale, such that the different NMR parameters become numerically comparable. The values of P^* have the same significance for each NMR parameter. For instance, a value of 1 for ΔCS(¹H^N)^* and Δ found for a given amide in a ligand–protein binding event indicates in both cases a similarly strong influence of the ligand on CS(¹H^N)^* and of the protein amide. This is not the case for the non-normalized parameters ΔCS(¹H^N) and ΔR₂. Here a value of 5 ppm or 5 Hz, respectively, cannot be numerically compared. The normalization via σ_global makes NMR parameters from different experiments comparable in terms of their significance. ΔCS^* and Δ still have different meanings, since they report on different aspects of a protein interaction, but the significance of their values are all referenced to a unified scale.

In Figure 1, the distribution found for ¹⁵N–R₂ and η in the BMRB are exemplarily shown for 600 and 800 MHz proton Lamor frequency (ω_H). The standard deviations of these distributions yield σ_global,R2 and σ_global,η. To derive σ_global, more than 14,000 values of R₂ and η were obtained. For ω_H = 600 MHz we find σ_global,R2 = 5.41 Hz and σ_global,η = 0.24. For ω_H = 800 MHz we find σ_global,R2 = 14.02 Hz and σ_global,η = 0.18.

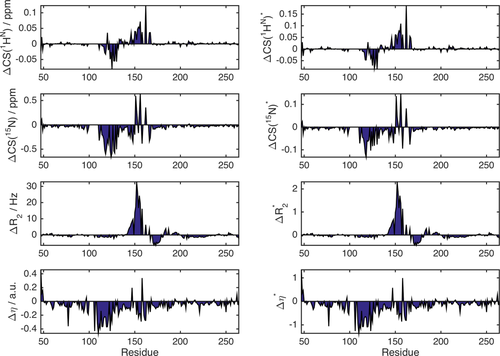

In Figure 2, ΔCS(¹H^N), ΔCS(¹⁵N), ΔR₂, and Δη are exemplarily shown for the well-studied osteopontin (OPN)/heparin interaction [adopted from Ref. 9]. OPN is an intrinsically disordered protein (IDP) involved in metastasis and several kinds of cancer. Its regulatory function involves binding to CD44 receptors employing heparin as a cofactor.27-29 Characterized as an IDP, this protein does not have a rigid three-dimensional structure. Instead, it can be described as a flexible coil comprising a more compact patch between amino acid (aa) 100 and 190 of its primary sequence.9 Earlier studies on the OPN–heparin interaction localized a heparin binding site between aa 140 and aa 160 of OPN. During the binding event aa 100–140 (containing two RGD motifs that are central to CD44 receptor binding27-29) are dispatched from the compacted patch of the IDP leading to a thermodynamic compensation of the loss in configurational entropy due to the protein–heparin association.9 In Figure 2(A) one can clearly see that the binding site and the compensatory site show changes in ΔCS(¹H^N) and ΔCS(¹⁵N) indicating changes in chemical environment of the affected residues due to the presence of the ligand. Furthermore, aa 140–160 display increased R₂ values. This indicates reduced microsecond dynamics due to the presence of bound heparin, which restricts the motional freedom at the binding site. In contrast, aa 100–140 exhibit increased picosecond dynamics as reported by a negative Δη. This augmented mobility entails the entropic compensation of the binding event. Employing the σ_global-based referencing introduced above [see 1), (2)] we arrive at the normalized NMR parameters ΔCS(¹H^N)^*, ΔCS(¹⁵N)^*, Δ and Δη^* shown in Figure 2(B). Note that Δ and Δη^* are larger than ΔCS(¹H^N)^* and ΔCS(¹⁵N)^*. This is in agreement with the experimental observation that, on the one hand, the chemical shift of the detected resonances does not change strongly since the protein remains disordered also in the presence of Heparin, while, on the other hand, the relaxation parameters display more drastic changes due to the inherent flexibility of OPN, which allows for significant changes in local backbone dynamics.

Construction of the graph representation

The argument of equivalent reference scales for ΔCS(¹H^N)^*, ΔCS(¹⁵N)^*, Δ , and Δη^* is only valid in an ideal case. In a real system, the σ_global-normalized data from different experiments will not have an exactly similar significance. The relative scales of the different normalized observables will still be slightly unequal since the relevant reference ranges—as approximated by σ_global—do not constitute rigid thresholds. Contrary, CS(¹H^N), CS(¹⁵N), R₂ and η values depend on factors like sample temperature, pH, or protein concentration. Additionally, R₂ and η depend on the molecular size and correlation times. Hence, σ_global—which approximates the range of possible values over all data found in the BMRB for a given parameter—may constitute a rather unprecise normalization factor for a particular protein interaction, as it neither takes protein sizes and dynamics into account nor experimental conditions. This problem induces a bias of the σ_global-normalized ΔP^* values. Thus, the ΔP^* values found for the different NMR parameters as well as for different protein interactions cannot be compared quantitatively. To eliminate the resulting uncertainties in the ΔP^* values we employ a regularization procedure in the next step.30 This embraces conversion of the normalized differential NMR data into a single covariance matrix, Cov. This n × n matrix has the dimension of the number of residues in the primary sequence of the protein under investigation. The diagonal elements of this matrix are ordered in the sense of the primary sequence meaning that the first diagonal element corresponds to the variance over the four NMR parameters observed for residue one the primary sequence, the second diagonal element analogously corresponds to the second residue of the primary sequence, etc. Subsequently, this matrix will be “digitized” in a second step.

This unification approach is predicated on the intuition that the different NMR parameters detected for a particular protein interaction are based on a single conformational ensemble of protein structures although they might report on different aspects of the ensemble.

Employing the σ_global-normalized, residue resolved NMR parameters, P^*, we generate the matrix Cov with elements:

(3)

Here, i runs over the four normalized NMR parameters, P^*. x and y indicate residues of the primary protein sequence. N denotes the number of data sets (different NMR experiments), that is, here N = 4. <P(x)^*> denotes the average over all four NMR parameters for residue x. The diagonal elements of Cov indicate for each single residue the variance between the four NMR observables. The off-diagonal elements, cov_x,y, with x ≠ y, indicate covariance between the two residues x and y. This means, if x and y show the same deviation of ΔCS(¹H^N)^*, ΔCS(¹⁵N)^*, Δ , and Δη^* from their mean value the associated covariance element cov_x,y will be positive. If the deviation from average is negative for x and positive for y (or vice versa) the element cov_x,y will be negative. Hence, if two residues are strongly affected by a protein interaction and their associated NMR parameters vary the connecting matrix element cov_x,y will indicate a significant nonzero (positive or negative) covariance between these two residues. (Note that correlation coefficients are not applicable in the present case due to the residue specific normalization, which would entail large correlation coefficients between idle residues. Moreover, one could also add further data sets like R₁ to the covariance matrix. Yet, changes in R₁ are less pronounced than changes in R₂ and report on a similar timescale. Thus, if R₂ is available it should be preferred over R₁.)

In order to eliminate the abovementioned uncertainties in ΔP* values that propagate into the covariance matrix it is transformed into a matrix A. A has the same order as Cov, but all elements with values larger than the noise level of the covariance matrix are set to 1 and all other entries to 0. Variations of the elements of the covariance matrix due to imperfect referencing of the four NMR parameters are eliminated through this operation. In other words, the uncertainties introduced by the σ_global normalization (as it does not take into account the particularities of each individual protein) propagate into uncertainties in the elements cov_x,y. However, these uncertainties are eliminated as all values are “digitized” by the transformation into A. Thus, after this regularization the entries of the adjacency matrix are reliable despite a possibly biased ΔP^*. In this context, the normalization via σ_global is required to roughly match the noise levels of the different ΔP^* sets. This prevents that a particular value for an NMR parameter drops below the noise level of any other NMR parameter set. This would lead to the loss of the information contained in this value as the corresponding covariance element would drop below the noise level of the covariance matrix and would be cut off during the normalization procedure. Note that the signal-to-noise ratio of the covariance matrix is generally quite high (as will be shown below). Through this, differences between the noise levels of the different ΔP^* parameters (introduced by a biased σ_global) are compensated and a reliable digitization of the covariance matrix is guaranteed (see the Supporting Information for details).

To derive A, the signs of the covariance elements are first eliminated by taking their square. The average noise level, <n>, of the element-wise squared covariance matrix is given by the variance over all entries of this matrix. <n> defines a threshold that divides the covariance matrix in such a way that all entries that do not contain any information (i.e., only noise) are set to zero, while all others are set to 1. The elements of A can, thus, be defined as:

(4)

A is a matrix that combines all NMR parameters—as determined for each residue of a protein—into a representation of connections between these residues based on correlated functional activity in a molecular interaction. In this context, the first step of our procedure (the normalization of the four NMR parameters via σ_global) guarantees a comparable noise level of each NMR parameter. This ensure that important and significant observation of large values of ΔCS(¹H^N)^*, ΔCS(¹⁵N)^*, Δ , or Δη^* always entail large off-diagonal Cov-elements. Thus, no significant observation is excluded from the analysis through the transformation of Cov into A. In other words, if the scales of ΔCS^*, Δ , Δ , and Δη^* are roughly equivalent it is guaranteed that the noise level of the matrix Cov represents an equal threshold of significance for each NMR parameter. (Note that the diagonal elements of the adjacency matrix are set to zero, which excludes autocorrelation of residues from the graph representation.) Through the transformation of Cov into A, we “digitize” all elements of the covariance matrix. Thus, we avoid the subtle problem of correctly weighting the different observations of relaxation parameters and chemical shifts. For a perfectly weighted normalization factor one would need to take into account the particularities of each individual sample and parameter. In contrast, the here proposed adjacency matrix takes all significant ΔP^* values similarly into account eliminating all deficiencies of the covariance matrix.

Figure 3(A) shows the covariance matrix [cf. Eq. (3)] derived from the data presented in Figure 2. Both axes correspond to the residue index of OPN. Strong covariance can be observed between residues in the heparin binding site (aa 140–160) and the compensatory site (aa 100–140), which are both subject to pronounced ΔCS(¹H^N)^*, ΔCS(¹⁵N)^*, Δ , and Δη^* values [see Fig. 2(B)]. The two sites are correlated among each other, as can be deduced from the large cov_x,y² values connecting them. Residues located in the “hotspot” (around aa 150) of the heparin binding site exhibit a particularly large covariance among themselves.

The average noise level, <n>, of the covariance matrix is represented as yellow plain in Figure 3(A). It divides the covariance matrix in two parts. One part with matrix elements larger than <n> and another part with matrix element smaller than <n>. These two parts define the zero and nonzero elements of the matrix A according to Eqs. (3) and (4). The matrix A derived from the matrix in Figure 3(A) is shown in Figure 3(B).

Note that we combine four different NMR data sets into a unified representation, that is, the covariance matrix. Through this, the signal-to-noise ratio of the covariance matrix (SNR_COV) exceeds the SNR of the individual ΔP^* data sets (SNR_NMR). The magnitude of this gain depends on many factors like the number of residues affected by the interaction, the distribution of affected sites along the primary sequence etc. Under optimal conditions, the SNR_COV exceeds SNR_NMR by an order of magnitude. This renders the network representation of protein interactions a powerful tool for the analysis of weak protein–ligand complexes as their formation frequently entail very small ΔP^* values. In this context, error propagation from NMR data to the covariance and adjacency matrices is negligible, too, as we digitize the covariance matrix (see Supporting Information for details). The main remaining source of error in our analyses is the experimental noise. This source of error is yet reduced by the unification of different data sets and the gain in SNR. A loss of information is excluded as the string separation of signals from noise guarantees a reliable construction of the adjacency matrix. (Details and simulations on the dependence of SNR_COV on SNR_NMR can be found in Supporting Information.)

Significance of the adjacency matrix

The matrix A can be regarded as an adjacency matrix if we picture the covariances/correlations among the residues of OPN as connections in a network: Each diagonal element of A represents a node of this network. Each node is associated with a residue in the backbone of the protein that was investigated by NMR. Two nodes, x and y, are connected by an edge if the matrix element a_x,y that connects the two nodes equals 1. If a_x,y = 0, x and y are not directly connected. In other words, A represents the NMR data in a unified manner by relating residues that display significant changes (covariance) in the different NMR parameters due to the ligand binding. Thus, A constitutes a graph or network of covariance/correlations among residues in a protein interaction. It can be regarded as a functional representation of the protein interaction as it depicts the “correlated implication” of two (functional) residues in the binding event.

This representation allows to determine the “connectivity” between different functional sites of a protein—an important piece of information for the understanding of protein interactions. (More examples are given in part two of this contribution.)

Note that the transformation of the covariance matrix into the adjacency matrix [cf. Eq. (4)] becomes more and more unprecise as the number of signals in the ΔP^* residue plots increases (see Supporting Information for details). It has to be taken into account that the variance of the covariance matrix is increasing with the number elevated ΔP^* values. This might lead to a possible loss of information during the regularization procedure as weak signals might drop below the cut off level of the covariance matrix, Var(Cov). However, as the SNR of the covariance matrix is typically quite high this risk can be neglected in most cases. Several examples are given in part two that show that the adjacency matrix can reliably be constructed also for very complicated protein–ligand interaction patterns.

In the context of “digitized” covariance matrices it should be mentioned that Selvaratnam et al. have already shown how to combine covariance analyses of different NMR CS data sets from different ligands and cluster analysis to identify several allosterically active patches along a protein backbone.31, 32 In this approach residue-resolved correlation coefficients (cov_x,y/σ_xσ_y, where σ_x denotes the standard deviation for residue x) are calculated from sets of chemical shifts obtained from different complexes of the same protein with different ligands. In contrast to covariance matrix elements correlation coefficients tend to correlate spectral noise. Thus, Selvaratnam et al. introduce a cutoff at a very large correlation coefficient of 0.98 and set all values below this threshold to zero.

The here proposed method has the advantage that it uses a covariance matrix that is digitized on the basis of its own noise level. This minimizes the probability to lose significant data points through the cut off procedure. Furthermore, one does not need different ligands, which are frequently not available. We here use data sets that stem exclusively from a single interaction. Thus, while the method of Selvaratnam et al. is superior for the analysis allosterically active epitopes, the here proposed method is superior to observe features that are unique to an interaction with a certain ligand.

A further possibility to obtain different NMR data sets and to combine them mathematically into a unified representation is the monitoring of pH-dependent chemical shift changes and a subsequent principle component analysis of the different CS sets. This method, as introduced by Sakurai and Goto33 allows to identify structural changes of a protein under varying the buffer (pH) conditions.

Brüschweiler and co-workers as well as Karplus and co-workers34 applied a covariance analysis to molecular dynamics simulations of proteins to yield covariance matrices that correlate the dynamics of the different residues. This method identifies intramolecular dynamics.35 In contrast, we here focus on intermolecular phenomena. In general one should differentiate between the well-established intramolecular contact maps between protein residues that give rise to a network representation of a protein structure,36 and the here presented connectivity-based representation of intermolecular interactions. Examples for successful application of intramolecular contact maps are the work by Nussinov and co-workers who developed a way to use the intramolecular network representation of protein structures to classify structural disorder11 or the work by Konrat and co-workers who showed how to use the network representation of proteins to predict pH-dependent conformational changes.37

Analysis of the functional network of the OPN/heparin interaction

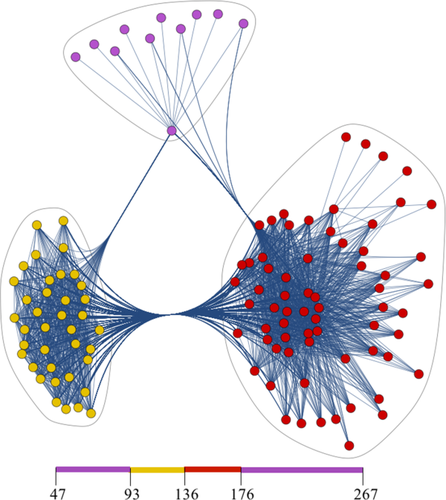

The adjacency matrix A represents a network of residues that are involved in the interaction of a protein. The adjacency matrix can be regarded as a representation of the graph or network indicating the functional particularities—i.e., correlations among residues—of protein–ligand interactions. A schematic display of the network structure corresponding to the OPN/heparin interaction is shown in Figure 4.

The three hubs or clusters of the network correspond to the binding site (red), the affected site (yellow) and residual connected residues of OPN (purple). Note that an edge here stems from pronounced covariance between any two residues, which are represented by the nodes in Figure 4. Hence, the edges indicate a functional correlation between two residues. In Figure 4(a), strong correlation between the two clusters can be observed that represent the binding and the affected sites. This indicates that these two sites are functionality coupled in the Heparin binding event. This is in agreement with earlier studies based on computational metastructure analysis, electron paramagnetic resonance (EPR), NMR, and isothermal titration calorimetry (ITC).5, 9, 38 These studies show that the apo-form of OPN samples cooperatively folded, compacted states that base on electrostatic as they dissolve under high salt conditions.9 The electrostatic interaction that stabilizes these states is constituted by clusters of negatively charged residues in the compensatory site and positively charged residues in the binding epitope. The mutual attraction between these two sites leads to the observed compaction of OPNs core. When the negatively charged Heparin binds to OPN it is attracted by the positively charged binding site and at the same time repels the negatively charged compensatory site. This leads to a compensation of the configurational entropy loss due to the binding event. The depicted network in Figure 4 may, thus, be regarded as a display of this functional correlation between the binding epitope and the compensatory sites in the OPN–heparin interaction.

Since the adjacency matrix, A, can be regarded as a description of a graph it can be analyzed on a graph theoretical basis, which is a well-established branch of mathematics.39 Parameters such as the degree, δ, local clustering coefficient, C, and eigenvalue centrality, W, of any node/residue, x, of can be defined.39 In the case at hand, these paramters corrspond to the functional connectivity of the different amino acids of a protein.

The degree, δ_x, of a residue x is defined by the number of edges connecting the residue x to any other residue y:

(6)

The local clustering coefficient is defined as follows: If we denote a node representing a residue x, as υ_x (which is not an element of A, but an element of the group of nodes, L, of the network described by A) and an edge between two residues x and y as e_xy (which is an element of the group of edges E of the network), we can define the local clustering coefficient of a residue x as:

(7)

Here k_x is the number of neighbors of node υ_x. The denominator in Eq. (6) corresponds to the number of possible edges between the neighbors of a particular node, while the numerator indicates the number of actually realized edges between the neighbors of this node. Equation (6) can further be graphically explained. In Figure 5(A), a graph is depicted with 4 nodes and 4 edges.

The node of interest, υ_x, is connected to three other nodes via three separate edges. Hence, the number of neighboring edges is three. The degree of node υ_x is, thus, δ_x = 3. The number of edges between these three neighboring edges is 1 (highlighted as edge e_y,k in Fig. 5). Thus, the local cluster coefficient for υ_x amounts to C_x = 1/3.

The eigenvector centrality of υ_x can be defined as:

(8)

Here λ denotes the lead eigenvalue of A, which is the largest eigenvalue of the adjacency matrix. The associated lead eigenvector W has only positive entries. W_x can be regarded as the average eigenvector centrality of all residues that are connected by an edge to residue x. Hence, its definition is in a sense recursive.

The node centrality can be regarded as a measure of the importance of a node for a network. This means, if a node with high centrality is deleted form the graph, its constitution will change significantly. Contrary, if a residue with W_x = 0 is deleted the architecture of the network described by the graph does not change at all. This means for a protein interaction that if a residue corresponding to a high W_x is altered or deleted, for example, due to a point mutation, the interaction of the protein with its ligand is likely to be influenced or even suppressed.

Note that the study of eigenvector centralities is based on the extraction of eigenvalues/modes of the correlation network. In the context of the analysis of biomacromolecules Brüschweiler and co-workers as well as Karplus and co-workers34 spearheaded the analysis of eigenmodes in the context of NMR to unravel collective motions in proteins. These methods yet base on molecular dynamics simulations, while the here proposed method identifies regions of importance (high eigenvector centrality) for an interaction with a ligand without the need for computational input.

In the context of protein interactions, it should be mentioned that graph theoretical approaches to the analysis and derivation of protein structures and dynamics have already been successfully applied in the past.40 For example, Kaptein and co-workers apply graph theory to assign intramolecular NOEs.41 Wüthrich and co-workers use graph theoretical concepts for the sequential resonance assignment in multidimensional protein spectra.42 Jacobs et al. apply graph theory to predict the flexibility of proteins.12 We here expand the application of this branch of mathematics to the analysis of intermolecular phenomena.

Graph analysis at the example of the OPN–heparin interaction

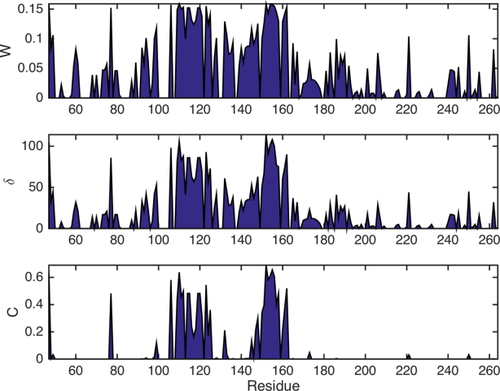

Figure 6 displays the eigenvector centrality, W, local clustering coefficient, C, and local node degree, δ, derived from the adjacency matrix shown in Figure 3(B) for the OPN/heparin interaction. All three measures show increased values around the binding site (aa 140–160) and the compensatory site (aa 100–140). For these residues a high eigenvector centrality, W, means a central function in the interaction with heparin. Their deletion would likely alter the interaction. A large local clustering coefficient, C, means that these residues are embedded in a densely connected graph neighborhood (cf. Eq. (6) and Fig. 5); that is, a large number of correlated residues is neighboring each of them. This can be expected for the directly affected sites, where the presence of the ligand simultaneously affects different (correlated) residues. The large degree, δ, of the residues in the binding and compensatory site means that each of them is functionally correlated with many other residues [cf. Eq. (6)]. Thus, the important residues for the interaction can be distinguished from the others through higher values of W, C, and δ. The binding site shows especially high measures in C, and δ. Hence, it can be distinguished from the compensatory site. Its “hotspot” can be precisely localized to residues 159–166. These results are in agreement with the above mentioned earlier biochemical studies based on EPR, NMR, and ITC9 which indicate that the primary binding epitope is located between residue 160 and 180, while the compensatory site is located between residues 100 and 140. The electrostatic interaction between these two sites is modulated by the heavily charged heparin ligand leading to pronounced changes in the observed NMR parameters. Our method precisely locates these two sites in agreement with the earlier studies and additionally allows to distinguish the binding epitope from the expelled site via the local clustering coefficient, C, as shown in Figure 6.

Note that the local clustering coefficient only displays large values upon pronounced changes in an all NMR parameters of a particular residue, since the local clustering coefficient is based on the connectivity of neighboring nodes (see Fig. 5). This connectivity will only be high if the residue of interest is embedded in a dense network of correlations. This in return requires that the site containing the residue is strongly affected by the ligand, which will result in changes in all observable NMR parameters. In contrast, W and δ are dependent on the direct functional connections of a residue, that is, the number of its edges. Since the adjacency matrix already exhibits an edge if only one of the input data sets is affected by the interaction, W and δ show elevated values as soon as one NMR parameter of a residue deviates significantly from zero. One might say that these two measures are more sensitive to changes in dynamics and structure of the observed protein, while C is more reliable in distinguishing the important sites of the interaction.

Note that none of the three used metrics, W, δ, and C, is creating false positive values nor are they differently insensitive to the NMR data as they are all based on the same adjacency matrix. The different aspects of the NMR data highlighted by the three different measures reflect the particularities of the adjacency matrix that in return reflects the functional structure of the input data.

In part two of this contribution the power of the graph analysis will be demonstrated at further examples. It will be shown how the three different measures, W, δ, and C allow for the identification of binding patterns that are only complicated to determine by conventional means.
