Phenotypic and transcriptomic analysis reveals early stress responses in transgenic rice expressing Arabidopsis DREB1a

2.1 Plant materials

The previously described multigene stacked lines of rice cv. Taipei-309 were used in the present study for drought and salinity stress (Pathak & Srivastava, 2020). These lines contained RD29a:DREB1a gene in addition to four marker genes each expressed by strong constitutive or inducible promoters (NPTII, GUS, GFP, and pporRFP). These lines were developed using a multigene vector, pNS64, in the T5 founder line using Cre-lox mediated site-specific integration approach (Srivastava & Ow, 2002). Because each multigene stacked line is isogenic, and harbored identical transgene integration and genomic location pattern, T1 seeds from homozygous lines carrying biallelic integration of pNS64 construct (lines #11 and #29) or the hemizygous lines containing monoallelic integration (lines #9 and #10) were used in the study (see Pathak & Srivastava, 2020). Here, phenotypic data from homozygous lines are presented. For simplicity, the multigene transgenic lines harboring RD29a:DREB1a are referred to as “transgenic” (T) and the parental T5 line as “non-transgenic” (N) in this study.

2.2 Salinity stress analysis

Rice seeds were germinated on MS½ medium solidified with 2% Phytagel, and the seedlings at S3 stage, that is, having a prophyll emerged from coleoptile, were transferred to borosilicate glass tubes containing MS½ medium supplemented with 0 (control), 100, or 150 mM NaCl. The seedlings were kept under light intensity of 20–40 μE/m²/s at 28°C until third leaf stage (V3) (Moldenhauer et al., 2018). The experiment was conducted in complete randomized design in a factorial scheme (2 × 3), two genotypes in three salinity conditions, with 15 replications and a single plant as the experimental unit. The number of chlorotic and necrotic leaves was evaluated daily, and the growth rate (GR) of the seedlings was evaluated every 3 days using the formula $\mathrm{GR}=l_x-l_y$, in which $l_x$ is the length of the seedling (cm) measured from the base of the stem to the end of the extended leaves on the day and $l_y$ is the same length (cm) observed in the previous measurement.

2.3 Water withholding stress analysis

Rice seeds were germinated on MS½ medium until the S3 stage when it was transferred individually to pots of 0.6 L containing 45 g of a dry mixture of sphagnum peat moss and perlite (9:1), PRO-MIX LP15®. Before sowing, each pot was weighed, saturated with water, and placed in a tray filled with water for 2 days. The pots were then removed from the tray and placed on a grid until the water drained. When no dripping was observed, the pots were weighed again, and this weight was considered as the field capacity (100% SWC). The weight of SWC at the field capacity was calculated as the difference between the pot weight with water-saturated soil and with dry soil (Almeida et al., 2016). All the plants were kept at field capacity for 2 weeks, when half of the plants were subjected to water stress. The irrigation in these plants was suspended, and the pots were weighed every day until they reached 10% of SWC (representing a severe stress). Subsequently, the plants were irrigated again for 1 week for recovery. The plants were kept in growth chamber at 28°C and 300–500 μE/m²/s light intensity with a 12-h photoperiod during throughout the experiment. A completely randomized design in a factorial scheme (2 × 2) with 10 replications was used with one plant as the experimental unit. The two treatments consisted of two water regimes, well-watered control (100% SWC) and water stressed condition (10% SWC). The plants in stress were checked every day to determine the SWC at which the plants started to display the first symptoms of withering, chlorosis, and leaf senescence. After 1 week of recovery, all the plants were analyzed for percentage of leaves with chlorosis and percentage of leaves with necrosis.

2.4 Statistical analysis

The phenotypic data were statistically analyzed by analysis of variance (ANOVA) and the Tukey test for comparisons among treatment; the means was applied with 5% as the level of significance using PROC MIXED of SAS (SAS, 2013) and R (R Core Team, 2017) software using fBasics and agricolae packages.

2.5 RNA-seq

Seeds of the transgenic (T) and non-transgenic controls (N) were germinated in Petri dishes containing MS½ media and grown in 16/8 h (day/night) condition at 28°C in 150 μE/m²/s light intensity. Ten-day-old seedlings were divided into two groups: cold-shock treatment (CS) and the control treatment at the room temperature (RT). Cold-shock treatment was done by placing the plates on crushed ice in 4°C chamber for 20 h starting at 2 p.m. and ending at 10 a.m. on the next day. The control plates were kept at ambient RT during the same time. At the end, the aerial portion of seedlings was separated from the roots and snap-frozen for total RNA isolation using Trizol reagent (Thermo Fisher Scientific, USA). RNA was treated with DNase I, and its concentration and quality were measured with Qubit 2.0 fluorometer (Thermo Fisher Scientific, USA). Subsequently, RNA samples of all six seedlings (biological replicates) were pooled for each genotype and treatment, yielding four pooled groups: T_CS, T_RT, N_CS, and N_RT. Two technical replicates of each pooled group were submitted for cDNA library synthesis, and Illumina sequencing was done at Novogene Inc. RNA quality and quantity was determined by High Sensitivity RNA TapeStation D1000 ScreenTape (Agilent Technologies Inc., California, USA) and Qubit 2.0 RNA High Sensitivity assay (Thermo Fisher Scientific, USA), respectively. Paramagnetic beads coupled with oligo d(T)25 were combined with total RNA to isolate poly(A)+ transcripts based on NEBNext® Poly(A) mRNA Magnetic Isolation Module manual (New England BioLabs Inc., Massachusetts, USA). All libraries were constructed (average insert size ~270 bp) according to the NEBNext® Ultra™ II Directional RNA Library Prep Kit for Illumina® (New England BioLabs Inc., Massachusetts, USA) and sequenced with Illumina® 8-nt dual-indices for paired-end sequencing on Illumina® HiSeq (Illumina, California, USA) with a read length configuration of 150 paired-end for 40 million paired-end reads per sample (20 million in each direction). The data discussed in this publication have been deposited in NCBI's Gene Expression Omnibus (Edgar et al., 2002) and are accessible through GEO Series accession number GSE185088 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE185088).

2.6 Differential gene expression analysis

The differential gene expression analysis was performed using main GALAXY platform (usegalaxy.org) version 2.7.5b (Afgan et al., 2018). The raw data quality in the fastq format was assessed using FastQC tool. Further quality check and removal of adapter sequences were done by TRIMMOMATIC tool using SLIDINGWINDOW, MINLEN, and AVGQUAL parameters. The raw reads were mapped on RNA-STAR using rice genome (O. sativa japonica group) downloaded from Ensemble version 48 in the FASTA format (ftp://ftp.ensemblgenomes.org/pub/plants/release-48/fasta/oryza_sativa/dna/Oryza_sativa.IRGSP-1.0.dna.toplevel.fa.gz). The Ensemble version 48 cDNA annotation in GTF format (ftp://ftp.ensemblgenomes.org/pub/plants/release-49/gtf/oryza_sativa/Oryza_sativa.IRGSP-1.0.48.gtf.gz) was used for generating the genome indexing. The normalized counts were obtained from Featurecounts version 1.6.4 (Liao et al., 2014) using Gene-ID “t” read count, gene_id features, and differentially expressed genes (DEG) were obtained using edgeR with log₂ fold change (FC) ≥ 2, P-value ≤ .05, using P-value adjustment method of Benjamin and Hochberg (Liu et al., 2015). The genes were considered differentially expressed if values were above the threshold (log₂FC ≥ 2 or ≤−1, FDR ≤ 0.01) in the comparisons of cold-stressed RD29a:DREB1a transgenic lines (T_CS) versus cold-stressed non-transgenic control (N_CS) and in room-temperature RD29a:DREB1a transgenic lines (T_RT) versus room-temperature non-transgenic controls (N_RT). To determine the read counts for transgenes stacked in the transgenic line, the reads from T_CS and T_RT were filtered using BAM Split tool into mapped and unmapped reads, and unmapped reads were mapped against NPTII (U55762.1), GFP (U55762.1), GUS (AF485783), DREB1a (NM_118680.2), and pporRFP (DQ206380.1) sequences downloaded from NCBI in the fasta format using “map with BWA version” 0.07.17.4 (Li & Durbin, 2010) containing “IS” algorithm mode. These aligned reads were sorted using Samtools, and reads were obtained using Samtools idxstat. Heatmaps of DEGs, k-means clusters, and gene network were developed using iDEP.94 (http://bioinformatics.sdstate.edu/idep94/; Ge et al., 2018). Gene Ontology (GO) and the gene set enrichment analysis for the DEGs were also carried out on iDEP.94, and Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis was performed on BLASTKOALA (https://www.kegg.jp/blastkoala/; Kanehisa et al., 2016).

2.7 Search of DRE elements

Drought response element (DRE) in DEGs was searched using PLANT PAN 3.0 (Support ≥ 70% frequency of promoters containing the transcription factor [TF]; Chow et al., 2019). For this purpose, 2-kb sequence upstream of the start codon of 683 upregulated genes (log₂ FC ≥ 2, FDR < 0.01) were obtained from BioMart in Plant Ensemble v48. The extracted regions of these genes were searched for DRE core-motif (A/GCCGAC) #292.

2.8 qRT-PCR

The pooled RNA for each genotype and treatment was used for qRT-PCR. One microgram DNase-treated RNA was converted to cDNA using Prime RT-PCR kit (Takara Bio Inc.). The qPCR was performed on 11 selected DEGs containing DRE elements. The primers for each gene are listed in Table S1 with Os7Ubiquitin serving as the reference gene. All reactions were performed in two technical replicates, and fold change in transgenic lines relative to non-transgenic line under the same treatment (RT or CS) was calculated by 2^ddCT method (Livak & Schmittgen, 2001).

3.1 Seedling response to salinity stress

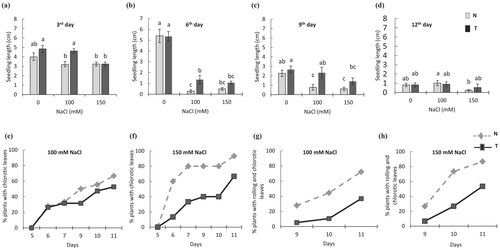

RD29a:DREB1a transgenic (T) lines and non-transgenic (N) controls were tested for the salt stress assay with two different concentrations of NaCl. Significant genotype effect (P < .05) was observed for all evaluated traits, indicating a difference between T and N lines. At the beginning of vegetative stage (third day), T seedlings showed a slightly higher growth rate (increase in seedling length) under non-stress condition and greater tolerance to 100 mM NaCl (Figure 1a). The N seedlings had a negative response to 100 mM salt stress, decreasing 20.2% of growth rate when compared with the salt control (0 mM). The maximum reduction in growth rate in stressed seedlings was observed on the sixth day for both T and N lines (Figure 1b). In 100 mM NaCl, there was a reduction of 4-fold and 19-fold, respectively, for T and N in comparison with non-stress control. However, no significant difference was found in growth rate of T and N seedlings under more severe stress (150 mM NaCl). On the ninth day, the growth rate for T plants was again greater than N plants for both salinity stress conditions (Figure 1c). Although T seedlings had a small reduction in growth rate under 100 mM NaCl, their performance was generally similar to that of N seedlings under no stress. The N lines, on the other hand, were more sensitive to salinity showing a reduction of 2.9-fold under 100 mM and 3.6-fold under 150 mM NaCl. On the 12th day, growth rate slowed down; however, performance of T plants under salt stress was similar to those under non-stress control, whereas N plants showed a significant reduction in growth in 150 mM NaCl (Figure 1d).

Until fifth day, no leaf chlorosis was observed in plants under stress or the control condition (Figure 1e,f). By the seventh day on 100 mM NaCl, both genotypes had 30% of seedlings with chlorotic leaves. However, this percentage increased more sharply over the days in N lines, showing, at the end, 14% more plants with chlorosis than T lines (Figure 1e). In 150 mM NaCl, this difference was greater and could be observed starting the sixth day, reaching in 93% and 67% in N and T seedlings, respectively (Figure 1f). The percentage of chlorotic leaves that also showed rolling, a symptom of severe stress, was greater in N plants with a difference of 35% (100 mM NaCl) and 34% (150 mM NaCl) compared with T plants (Figure 1g,h). Overall, T seedlings displayed higher growth rate and reduced leaf necrosis as compared with N seedlings after 12–15 days of continuous stress (Figure S1). However, because salt stress imposes both ionic and osmotic pressures in rice (Castillo et al., 2007), the observed growth reduction and leaf chlorosis could be caused by osmotic stress.

3.2 Plants response to drought stress

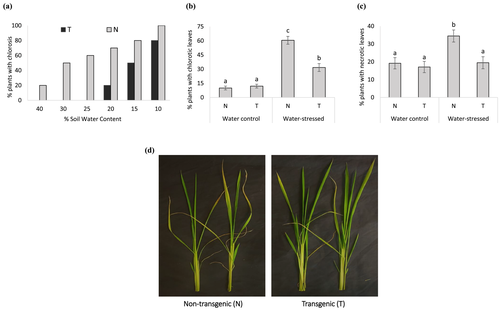

After submitting rice plants to drought stress, the phenotypic symptoms caused by stress were evaluated in the vegetative stage. After withholding water, N plants started to show the first symptoms of stress in leaves (chlorosis) at 40% of SWC, although no symptoms were observed in T plants (Figure 2a). At 20% SWC, 70% of N plants exhibited the leaf chlorosis as the symptom of stress, although T lines had just started to develop first symptoms of stress. The DREB1A gene was associated with increased tolerance to drought as majority of T plants were asymptomatic in 20% SWC. Further, in maximum stress (10% SWC), a few T plants looked normal without any apparent symptoms, whereas all N plants showed chlorosis (Figure 2a). At the end of the experiment (10% SWC), lower number of T plants showed chlorotic and necrotic leaves (Figure 2b,c) and overall looked healthier than N plants (Figure S2). Finally, N plants had more wilted and chlorotic leaves even after the water recovery time than T plants (Figure 2d).

3.3 Transcriptome analysis of cold-stress-induced DREB1a transgenic lines

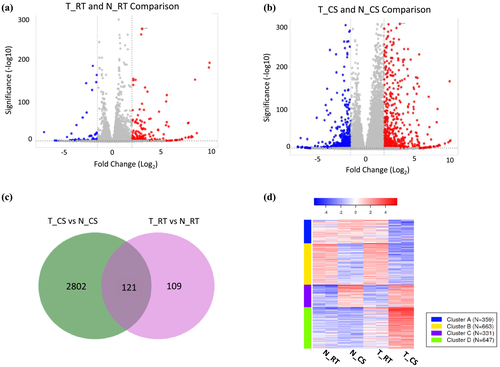

To understand the potential mechanism by which DREB1a provides stress tolerance to rice, RNA-seq was done on cold-stressed (CS) and room temperature controls (RT) of the two genotypes: transgenic line expressing RD29a:DREB1a (T) and non-transgenic controls (N) (Table S2). The DEGs were identified through comparisons between genotypes (T vs. N) in the respective treatment (CS vs RT) (Figure 3a,b). RD29a promoter is induced by multiple abiotic stresses including cold stress (Msanne et al., 2011). Earlier, transgenic rice lines #9, #11, and #29 were characterized to strongly induce DREB1a upon cold treatment (Pathak & Srivastava, 2020). Consistent with that, RNA-seq comparison of cold-stressed transgenic lines with the room temperature control (T_CS vs. T_RT) showed ~49-fold higher read counts of DREB1a, although no significant change (<2-fold) was observed in other transgenes (marker genes) stacked in the same locus (Table S3).

A comparison of T_CS versus N_CS and T_RT versus N_RT showed 2802 unique DEGs in T_CS, 109 unique DEGs in T_RT, and 121 DEGs common to T_CS and T_RT (Figure 3c). The k-means clustering of top 2000 most variable genes using normalized expression values showed that T_CS contained a large cluster of strongly upregulated genes and a smaller cluster of downregulated genes, and the two genotypes at room temperature (T_RT and N_RT) showed a similar expression pattern (Figure 3d). These observations fit the hypothesis that upon induction of RD29a:DREB1a by cold-shock (CS) several genes are induced through binding of DREB1a to the promoters of the target genes, and the leaky expression of RD29a promoter at RT results in the induction of a smaller set of the DREB1a targets at RT. The list of DEGs were further filtered with the criteria of P-value < .01 and log2FC ≥ 2. The resulting 2069 genes were used for the GO and pathway analysis.

3.4 Functional annotation of genes induced in RD29a:DREB1a transgenic line upon cold stress

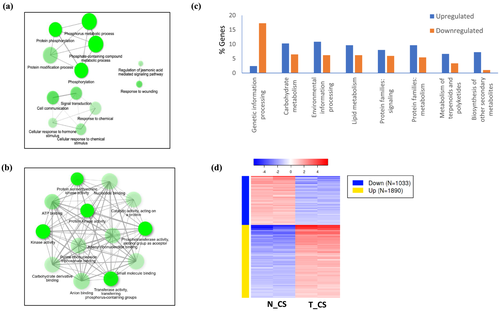

The enriched GO biological processes (BP) in T_CS included protein phosphorylation, signal transduction, response to chemical and hormone stimulus, and jasmonic acid (JA)-mediated signaling, GO molecular functions (MF) included kinase activity and protein Ser/Thr kinase activity, nucleotide binding, and GO cellular component (CC) included plasma membrane and cell periphery (Figures 4a,b and S3a). The downregulated genes in T_CS, on the other hand, were associated with response to heat, protein folding, cell cycle process, and photosynthesis, light harvesting in photosystem I (Figure S3b). The gene set enrichment analysis showed that upregulated DEGs in T_CS were involved in protein serine/threonine kinase activity, kinase activity, catalytic activity, protein kinase activity, oxidoreductase activity, and DNA binding transcription factor activity. The downregulated genes in T_CS were involved in unfolded protein binding, microtubule binding, tubulin binding, protein heterodimerization activity, and microtubule motor activity. Among the biological pathways, plant hormone signal transduction and α-linolenic acid metabolism were highly enriched in the upregulated genes, and diterpenoid biosynthesis, DNA replication, photosynthesis-antennae proteins, and protein processing in endoplasmic reticulum pathways were enriched in downregulated genes. In T_RT, the upregulated genes were enriched in DNA-binding transcription factor activity and transcription-related processes, although no pathways were significantly expressed. In the downregulated genes, no significant pathways were detected; however, two genes involved in cutin, suberin, and wax biosynthesis were enriched.

The KEGG pathways were analyzed only for T_CS. This analysis showed that a higher percentage of downregulated genes were associated with genetic information processing, whereas a higher percentage of upregulated genes were associated with carbohydrate metabolism, environmental information processing, lipid metabolism, signaling, and secondary metabolite synthesis, among others (Figure 4c). Corroborating with the GSEA, the upregulated genes were associated with phenylpropanoid biosynthesis, flavonoid biosynthesis, α-linolenic acid metabolism, and amino acid metabolism, whereas MAPK signaling, hormone signaling, and calcium signaling were among the upregulated environmental information processing pathways. In summary, GSEA and KEGG pathway analysis indicate induction of TF genes that potentially regulate secondary metabolites and sugar metabolism.

The mechanisms by which DREB1a confers stress tolerance in rice was further investigated by analyzing the cluster of DEGs based on K-means clustering (FDR < 0.01, log₂FC ≥ 2) and the function of the top DEGs in T_CS versus N_CS comparison (Figure 4d). The two approaches converged to mostly common outcomes that shed light on likely pathways involved in the process (Figure 5). The most significant pathways are described below.

3.5 JA signaling

The GO analysis of the cluster of DEGs uniquely upregulated in T_CS indicated a role for JA signaling and genes involved in response to wounding, among others (Figure 4a and Table 1). The top JA signaling genes in T_CS include JAZ (JASMONATE ZIM-DOMAIN) family of genes: OsJAZ1, OsJAZ2, OsJAZ5, OsJAZ8/9, and OsJAZ11 (Table 2). Proteasome-mediated degradation of JAZ is a key step in unleashing JA signaling (Chini et al., 2007; Thines et al., 2007). Of the five upregulated JAZ, OsJAZ5 and OsJAZ7 contained three DRE elements each. On the other hand, genes associated with α-linolenic acid metabolism, including lipoxygenases (LOX1) and 12-oxophytodienoic acid reductase (OPR) with putative functions in JA biosynthesis, are also upregulated in T_CS. Some of LOX1 genes and OPR1 contain DRE elements (Table 2).

3.6 Auxin signaling

Cellular response to hormone stimulus was among the upregulated biological processes in T_CS (Table 1). Most notably, GH3-6 and GH3-8 that encode indole-3-acetic acid (IAA)-amido synthetases are upregulated in T_CS (Table 2). These enzymes catalyze conjugation of IAA with amino acids leading to its depletion (Staswick et al., 2005). Consistent with our observation, previous studies showed GH3 induction during cold and drought (Du et al., 2012; Han et al., 2020). The promoter of OsGH3-6 lacks DRE elements, but that of OsGH3-8 contains five DRE elements (Table 2). Thus, OsGH3-8 could be a direct target of DREB1a. Zhang et al. (2009) showed that induction of GH3 not only attenuates IAA signaling but also induces expression of late embryogenesis abundant (LEA) genes in rice. Many LEA genes are induced during desiccation stress; accordingly, OsLEA22 was ~9-fold upregulated in T_CS (Table 2). OsLEA22 gene promoter lacks DRE elements; therefore, its upregulation could be mediated through modulation of IAA signaling.

3.7 WRKY transcription factors

Rice contains a large family of WRKY genes, majority of which is uncharacterized so far. Initially, WRKY were described to mediate insect and pathogen response, but their role in abiotic stress is becoming increasingly evident (Rushton et al., 2010; Viana et al., 2018). Eight WRKY TFs were upregulated in T_CS, five of which contained one DRE each (Table 2). Of these, OsWRKY76, a transcriptional repressor, has been found to have a direct role in cold tolerance (Yokotani et al., 2013). In addition, OsWRKY-8, OsWRKY-24, and OsWRKY-108 are also upregulated >4-fold in T_CS and are likely involved in DREB1a-mediated abiotic stress tolerance.

3.8 Other transcription factors

Besides WRKY, other TFs were also upregulated in T_CS. These include ethylene responsive factors (ERFs), basic helix loop helix (bHLH), and NAC (NAM ATAF1/2 CUC2) (Table 2). Of these, ERFs and NAC are well-known positive regulators of abiotic stress tolerance including cold stress (Hoang et al., 2017). Thus, multiple TFs that regulate abiotic stress are significantly upregulated in T_CS, suggesting that DREB1a regulates a complex network of genes associated with stress tolerance.

3.9 Protective molecules

OsLEA22 and OsLEA9 were strongly upregulated in T_CS (Table 2). LEA are extremely hydrophilic proteins that protect cellular membranes and proteins from desiccation injury (Bray, 1993; Cuming, 1999). Notably, LEA proteins cooperate with trehalose in this process (Goyal et al., 2005). Accordingly, two trehalose-6-phosphate synthase (OsTPS) genes were upregulated in T_CS (Table 2). Next, OsUSP36 was >5-fold upregulated in T_CS. USP36 is a member of universal stress proteins (USP) that is induced by cold stress (Arabia et al., 2021). The precise mechanism by which USPs bring about stress tolerance varies, but OsUSP36 could be a target of DREB1a as its promoter includes a DRE element. Further, two genes encoding chaperon proteins dnaJ were also markedly upregulated in T_CS, possibly providing protective function to cellular components (Table 2). Finally, rice Early Response to Dehydration7 (ERD7) was strongly upregulated in T_CS. Arabidopsis ERD7 accumulates in response to multiple abiotic stresses (Cheng et al., 2013; Rasmussen et al., 2013), and a recent study reported its association with phospholipids and membranes and the susceptibility of erd7 mutant to cold stress (Barajas-Lopez et al., 2021).

3.10 Secondary metabolites

Several genes involved in secondary metabolite production were markedly upregulated in T_CS that include genes encoding geranylgeranyl pyrophosphate synthase (GGPS), terpene synthases (TPS), phenylpropanoid (lignin) pathway, and polyamine oxidase (PAO). OsGGPS, OsTPS3, and OsTPS23 were upregulated four- to fivefold in T_CS, suggesting a role for terpenoids in DREB1a-mediated stress tolerance. Jung et al. (2021) found induction of OsTPS3 as part of the mechanism associated with improved drought tolerance in rice. Phenylpropanoid pathway genes OsCCR and OsC4H that encode cinnamoyl-CoA reductase and cinnamate 4-hydroxylase, respectively, were upregulated >6-fold in T_CS (Table 2). These genes are involved in lignin biosynthesis, and lignin is a well-known cell wall biopolymer that imparts wall strength (Vanholme et al., 2010). Rice genome contains seven polyamine oxidase (OsPAO) genes that are involved in back-conversion of polyamines toward maintaining polyamine homeostasis during stress (Ono et al., 2012; Yu et al., 2019). OsPAO4 and OsPAO6 were upregulated three- to fourfold in T_CS (Table 2). Sagor et al. (2021) found that OsPAO4 and OsPAO6 are rapidly induced by abiotic stresses including cold, salinity, drought, and wounding. The catalytic activity of POA leads to H₂O₂ production that presumably functions as a signal molecule in the defense pathways (Angelini et al., 2010; Gupta et al., 2016).

3.11 Environment sensing and signal transduction

Protein phosphorylation, cell communication, signal transduction, and chemical response were among GO biological processes associated with upregulated genes in T_CS, and plasma membrane, cell periphery, and intrinsic component of plasma membrane were associated with GO cellular component (Table 1). Accordingly, a number of receptor-like kinases (RLK) were markedly upregulated to four- to sevenfold and contained DRE elements. For example, wall-associated receptor like kinase (OsDEES1; Os09g056160) was upregulated 7.5-fold, Ser/Thr receptor-like kinase (OsRLCK253a; Os08g0374600) was upregulated 6.7-fold, putative leucine-rich repeat (LRR) receptor-like protein kinase At2g19210 (Os05g0524500) was upregulated 4.9-fold, serine/threonine-protein kinase NAK (Os04g0563900) was upregulated 4.5-fold, and LRR receptor-like serine/threonine-protein kinase GSO2 (Os01g0162200) was upregulated 4-fold. Additionally, Ca++ sensing proteins such as calmodulin (OsCAM1; Os03g0319300) and calcium-dependent protein kinase (CDPF; Os08g0540400) were upregulated to 2.0- and 4.1-fold, respectively. Over-representation of these genes in T_CS suggests early sensing of the environmental stress and efficient signal transduction in RD29a:DREB1a transgenic rice plants.

3.12 Rice DREB genes

Rice DREB1 gene family (OsDREB1) is upregulated in the early phase (2–6 h) of the cold stress at 4–10°C (DasGupta et al., 2020; Dubouzet et al., 2003; Yun et al., 2010). To check if OsDREB genes play a synergistic effect in stress tolerance in RD29a:DREB1a transgenic plants, expression of OsDREB1 and OsDREB2 genes was compared between genotypes and treatment (Figure S4). Although OsDREB1 gene family has been described to express similarly in response to cold stress (Mao & Chen, 2012), we observed variable pattern among OsDREB1 gene family. OsDREB1C (Os06g0127100) and OsDREB1G (Os02g0677300) were upregulated either by cold treatment in non-transgenic line (N_CS) or in the transgenic line irrespective of the treatment (T_RT and T_CS), suggesting a positive effect of Arabidopsis DREB1a on these genes. Other OsDREB1 genes such as OsDREB1A, OsDREB1B, and OsDREB1H were cold induced in both genotypes, and OsDREB2 paralogs generally remained unaltered between the two genotypes or by the treatment (Figure S4). OsDREB1C and OsDREB1G are significantly upregulated by drought, cold, and flooding (Mittal et al., 2012; Mohanty, 2021; Wang et al., 2011) and found to be highly expressed in drought- or cold-tolerant rice lines (Chawade et al., 2013; Jung et al., 2017). A recent study demonstrated a direct role of OsDREB1G in cold tolerance by developing OsDREB1G over-expressor rice (Japonica cv. Dongjin) that showed tolerance to cold but not to drought or salinity (Moon et al., 2019). Search of DRE elements in the promoter regions of OsDREB1C and OsDREB1G showed that OsDREB1G contains three copies of DRE motif ACCGAC. Arabidopsis DREB1a binds more efficiently to this motif than OsDREB1A, providing an explanation for higher induction of OsDREB1G in DREB1a transgenic rice as compared with the non-transgenic controls.

3.13 Downregulated genes

GO analysis and a survey of the top downregulated genes in T_CS in comparison with N_CS showed that genes associated with response to heat such as heat-shock proteins and heat-shock factors were significantly downregulated in T_CS and photosynthesis-related genes such as protochlorophyllide reductase, chlorophyll a/b-binding proteins, and photosystem II were downregulated in T_CS (Figure S3a,b). One of the downregulated (4.5-fold) heat-shock factors is OsHsfB2b (Os08g0546800), a Class B heat-shock factor, found to negatively regulate drought and salt stress in rice (Xiang et al., 2013). Downregulation of heat response and photosynthesis genes was not found in T_RT and N_RT or N_CS and N_RT comparisons (data not shown). Therefore, the set of downregulated genes in T_CS possibly reflects DREB1a-mediated reprogramming of the cellular response by not only activating defense but also curbing processes that may interfere in the dehydration stress response.

3.14 RNA-seq data validation

To confirm RNA-seq data, quantitative PCR analysis was conducted on the upregulated DEGs which contained DRE elements with following criteria: (i) DEGs co-expressed under abiotic stress conditions, (ii) TF genes co-expressed under abiotic stress conditions, and (iii) possible direct targets of DREB1a but not necessarily co-expressed. The first category included three genes OsRBOH (Os12g0541300), OsJAZ5 (Os03g0402800), and OsJAZ11 (Os04g0395800). The second category involved four transcription factors OsDREB1a (Os09g0522200), OsDERF5 (Os027g0764700), ONAC059 (Os01g0862800), OsbHLH148, and OsWRKY76 (Os09g0417600), and the third category included OsFLS2 (Os04g0618700), MAPKKK17_18 (Os05g0545300), OsCAM1 (Os03g0319300). This analysis found a good correlation between RNA-seq and qPCR (R² = .85) and generally validated RNA-seq data (Figure S5).
