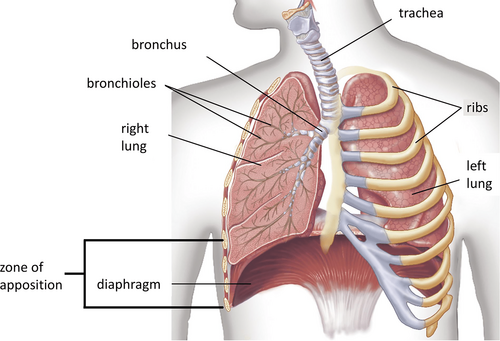

The diaphragm is the most important inspiratory muscle, being responsible for 70% of the inspired air volume during regular breathing (Figure 1).^{1, 2} Patients undergoing cardiac surgery are at risk of diaphragmatic dysfunction which is often caused by phrenic nerve injury.^{3, 4} Postoperative diaphragm dysfunction may involve one or both the hemidiaphragms and it may be due to a partial or a complete loss of function (causing weakness or paralysis, respectively).^{5, 6} The incidence of diaphragm dysfunction after cardiac surgery ranges between 1 and 60%, but in some studies it reaches 75%.^{7, 8} This variability mainly depends on the differences in terms of surgical procedures and techniques used for its diagnosis.⁷

Many factors are related to the damage of the phrenic nerve during cardiac surgery, for example, the traumatic injury following the harvesting of the internal mammary artery (IMA) which is proximal to the nerve⁹ and the hypothermic demyelinating damage caused by the ice slush.^10-12 Moreover, a prolonged time of curarization and/or intubation may induce diaphragmatic muscular atrophy leading to an increased risk of dysfunction.¹³ Eventually, sepsis, uncontrolled hyperglycemia, malnutrition, severe renal failure, and administration of neuromuscular blocking agents or high doses of corticosteroids may contribute to reduce diaphragmatic muscular strength, especially in mechanically ventilated patients.¹⁴

Diaphragm Dysfunction

Diaphragm dysfunction is a condition characterized by a reduced contractile function of the diaphragmatic muscle.¹² It can be caused by muscular weakness, a partial loss of the contractile ability of the diaphragm, or muscular paralysis, the complete absence of the diaphragmatic capacity of contraction.^{4, 13} Weakness or paralysis can involve either one or both the hemidiaphragms. The type of respiratory failure possibly caused by diaphragm dysfunction is a “respiratory pump failure,” considering the “respiratory pump” as the total anatomical and functional apparatus that allows ventilation.¹⁴ The respiratory pump failure may produce an inadequate airflow due to a reduced respiratory effort to overcome increased resistance.^{14, 15} The alteration of ventilation–perfusion ratio provokes an increase of the physiological dead space, which is the part of the air volume that does not participate in gas exchange.¹⁶

Dysfunction may occur following a surgical procedure, in mechanically ventilated patients, in metabolic, inflammatory, or neuro-muscular disorders, in case of mediastinal or abdominal masses and diseases causing lung hyperinflation.¹²

Patients with unilateral diaphragmatic paralysis are usually asymptomatic at rest but may present exertional dyspnoea; patients with bilateral diaphragmatic dysfunction more frequently are symptomatic, even at rest.^{12, 17} Underlying cardiac diseases, obesity, or respiratory affections like chronic obstructive pulmonary disease (COPD) may exacerbate dyspnoea in diaphragm dysfunction, especially when patients are in supine position.^{12, 18}

Patients with severe bilateral diaphragmatic dysfunction may present tachypnoea and anomalous activation of accessory respiratory muscles of ventilation at rest.¹⁹ The most typical sign of diaphragm paralysis is the “abdominal paradox” (also known as “thoraco-abdominal asynchrony”), consisting in the paradoxical inward motion of the abdomen during the inspiration.²⁰

The evolution of the diaphragm dysfunction depends on its own cause. In degenerative neuromuscular diseases the course is progressive,^{12, 21-24} while in case of post-cardiac surgery only 2% of patients have persistent diaphragm paralysis at chest radiography after a 6-month follow-up.⁶

Assessment of Diaphragmatic Function

Several techniques can be used to assess diaphragmatic function.

The gold standard is the measurement of the negative pressure generated by diaphragm contraction in response to phrenic nerve stimulation (electrical or magnetic).²⁵ During the stimulation, the difference between esophageal and gastric pressures (twitch transdiaphragmatic pressure, PDItw) can be evaluated using balloon catheters.^{25, 26} PDItw <15 cmH₂O is suggestive of diaphragm dysfunction.^{25, 27, 28}

At chest x-ray, the presence of an abnormally elevated hemidiaphragm (defined as the right hemidiaphragm located >2 cm higher than the left counterpart or the left hemidiaphragm placed at the same level or higher than the right one) is typical of unilateral diaphragm paralysis with a high sensibility (90%) but a low specificity (33%).²⁹ False positives are attributable to congenital abnormalities of the diaphragm, hepatomegaly, distension of the splenic flexure of the colon, pulmonary atelectasis, and pleural effusion.²⁹

Lung function tests may be performed to quantify the impact of diaphragmatic dysfunction on the ventilatory mechanics.²⁵ Unilateral diaphragm weakness is typically associated with a mild decrease in vital capacity (VC) to about 75% of the predicted value, with a further 10–20% decrease in supine position; instead, functional residual capacity (FRC) and total lung capacity (TLC) are usually preserved in this situation.^{30, 31} In bilateral diaphragm weakness VC reaches ~50% of predicted value with a further decrease by 30–40% in supine position and reduced TLC with elevated residual volume can be found.^{16, 32} Pulmonary function testing can be used to measure the maximal inspiratory pressure (MIP) and the maximal sniff nasal inspiratory pressure (SNIP), which are indices of the respiratory muscles' strength.^33-35 SNIP is measured at FRC using a pressure transducer connected to a catheter placed in the nostril.³⁵ MIP and SNIP are reduced to about 60% of the predicted value in patients with unilateral diaphragmatic paralysis and to <30% in those with bilateral paralysis, while the maximal expiratory pressure (MEP) is usually preserved in patients with diseases that affect the diaphragm but spare the expiratory muscles.³⁶

In the end, diaphragmatic ultrasonography (US) is a novel technique which can be adopted to assess both anatomical and functional characteristics of the diaphragm.

Diaphragm Ultrasonography

US is a non-invasive tool that can be rapidly performed at the bedside in different settings like the intensive care unit (ICU), the CS, and the CR Unit. It allows the visualization of structures below and above the diaphragm, possibly identifying extrinsic causes of pathological diaphragm elevation, such as abdominal masses and organomegaly.³⁷

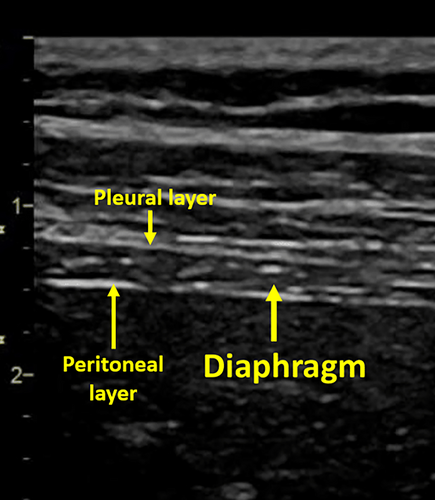

At US, the diaphragm is identifiable by its curved geometry and muscular echotexture.³⁷ Longitudinally, the diaphragm is a hypoechoic structure enclosed by two highly hyperechoic structures which correspond to the pleura and the peritoneum (Figure 2).³⁸ US mainly investigated the lateral and posterior portions of the diaphragm that represent the crural components of the muscle.³⁷ These areas are more mobile than the central tendon region.³⁹

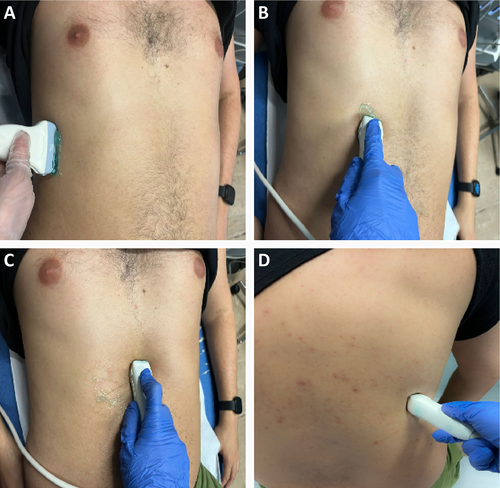

Diaphragm US is usually performed in the supine position due to a less side-to-side variability, and greater reproducibility.^{40, 41} Patients can be evaluated during quiet breathing, deep inspiration, or sniff maneuvers. Both hemidiaphragms can be examined with US. However, while the right hemidiaphragm is easily visualized through the liver window, the evaluation of the left hemidiaphragm is more complex due to the limited extension of the splenic window.^{40, 41} Ultrasonographic B-mode imaging allow the assessment of diaphragm structure and change in thickness during the respiratory cycle,⁴² while M-mode has a higher temporal resolution and it is useful to evaluate diaphragmatic excursion and contraction velocity.⁴³

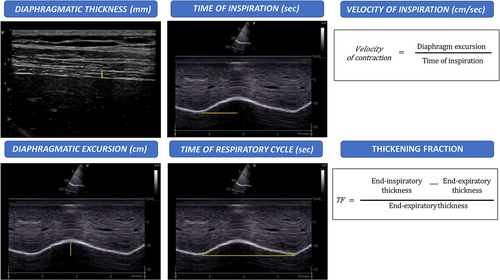

Table 1 shows the lower limit of normal of the main US diaphragmatic parameters.

Post-Cardiac Surgery Diaphragm Dysfunction and the Role of Ultrasound Assessment

Surgical injuries represent one of the major causes of unilateral diaphragm dysfunction. Tralhão et al described that cardiac surgery procedures are usually followed by a transient phase of diaphragm functional impairment called “diaphragmatic stunning,” which is characterized by a reduced amplitude of excursion. The stunning starts 48 hours after surgery and lasts, on average, until the fifth post-operative day.⁵⁹ In the 36% of cases, the transient reduction of the excursion was severe enough to be graded as “dysfunctional,” potentially leading to prolonged MV and other pulmonary complications.⁵⁹ The overall incidence of post-cardiac surgery diaphragm dysfunction is not clear as it depends on the surgical procedure characteristics and the techniques used for its detection.⁶⁰ Coronary artery bypass grafting (CABG) is a technique that may be associated with a traumatic injury of the left phenic nerve due to the anatomical proximity to the left IMA. The incidence of post-CABG diaphragm dysfunction ranges between 1 and 60%.⁷ This enormous variability is partially justified by the different existing surgical approaches used to perform the grafting.

Even if some studies have identified CABG as a predictor of post-operative diaphragm dysfunction,⁴ our group recently found that diaphragm dysfunction was even more frequent in patients undergoing other-than-CABG cardiac surgery procedures compared with the surgical revascularization (79.1 vs 46.7%).⁶ This suggests that there are mechanisms causing post-cardiac surgery diaphragm dysfunction other than the phrenic nerve damage during the harvesting of the left IMA. The cardiac cooling with topical ice slush may induce post-operative diaphragm dysfunction due to the demyelinating injury caused by the exposure to low temperatures.⁶¹ The avoidance of hypothermic injury with the use of cardiac insulation pads and the replacement of topical ice slush with cardioplegia solutions significantly decrease the risk of diaphragmatic dysfunction.⁶²

Trying to reduce the factors favoring post-surgical diaphragm dysfunction is fundamental as it negatively affects patients' prognosis with an increased risk of longer ICU stay, longer time of hospitalization and post-operative pneumonia.^{4, 63} Post-cardiac surgery diaphragmatic dysfunction may also impact on the postoperative rehabilitative period as the affected patients frequently need tailored programs of respiratory exercises to improve their clinical status.⁶ Arterial hypertension and obesity procedures were identified as main predictors of post-operative diaphragm dysfunction.⁴

Another determiner of post-cardiac surgery dysfunction is the MV.⁶⁴ Ventilation-induced diaphragm dysfunction (VIDD) is reported in up to 53% of mechanically ventilated patients within 24 hours of intubation and an additional 26% may develop VIDD while on mechanical ventilation during their stay in the ICU.⁶⁵ The pathophysiological feature of the VIDD is the disuse atrophy which is associated with increased oxidative stress, downregulation of protein synthesis, and activation of proteolytic pathways inside the muscle cells.⁹ Moreover, ultrasonographic assessment of diaphragmatic function has been shown to predict the failure of weaning from MV,^{53, 66} boosting the interest for this technique in the ICU in the last years. In a population of mechanically ventilated patients in the Intensive Care Unit, Spadaro et al described a new index, the diaphragmatic-Rapid Swallow Breathing Index (dRSBI = respiratory rate/diaphragm excursion), which resulted more accurate than traditional RSBI (respiratory rate/tidal volume) in predicting the weaning outcome following the T-tube spontaneous breathing trial (SBT).⁶⁷

One of the main limitations of diaphragmatic US is the lack of pathological cut-offs in specific conditions like the post-cardiac surgery context. Although no specific cut offs have been established for post-operative cardiac patients, the most reliable parameter to assess diaphragm function seems to be the excursion, with the value of 2 cm as a valid cut-off to define diaphragm dysfunction.^{6, 59} Some other authors, instead, adopted TF <20% as diagnostic criterion for this condition.⁸ However, although TF seems to be as accurate as excursion to define diaphragmatic functional impairment, it is also a less feasible and reproducible measurement.⁴⁵ The other US parameters (velocity and respiratory times) show more physiological variations according to age, gender, and health status of the patient: they are more useful for a multiparametric assessment rather than as unique elements to diagnose diaphragm dysfunction.⁶

Diaphragm US may be a useful tool to assess patients' clinical course even in the setting of CR. The incidence of diaphragmatic dysfunction, evaluated as US excursion <2 cm, is about 70% in CR following cardiac surgery.⁶ This condition has a negative impact on the post-operative functional recovery as patients with persistent diaphragm dysfunction after a 10-session rehabilitation program show lower level of functional performance at the 6-minute walking test (6MWT).⁶ Combined surgical procedures and post-operative pneumothorax are strong predictors of failure of diaphragmatic improvement during CR.⁶

Conclusion

Diaphragm dysfunction is a frequent complication after cardiac surgery which negatively affects patients' clinical outcomes. Several techniques can be used to diagnose diaphragm dysfunction. US is an accurate, non-invasive tool to identify and monitor post-operative diaphragm dysfunction in different settings like the CS and the CR Unit. Diaphragm US parameters are also useful to optimize the ventilatory weaning among the ICU patients. Further studies are necessary to establish definite US cut-offs for diaphragm dysfunction in specific populations and to define standardized protocols with the use of diaphragm US in the clinical practice.
