Evaluation of a mobile C-arm cone-beam CT in interstitial high-dose-rate prostate brachytherapy treatment planning

Image quality assessment

Spatial resolution and image uniformity tests, as well as CT number to electron density conversion (CT-to-ED), were performed to test structural resolution and soft tissue contrast of the CBCT. This was to provide an overview of the general image quality of the C-arm scanner and a quantitative impression whether catheter and marker identification, and CTV/OAR contouring, were possible. The details of the image quality assessments are outlined in the Data S1.

Treatment procedure

The following briefly describes the established HDR prostate brachytherapy treatment procedure at Sir Charles Gairdner Hospital (SCGH), Perth, Western Australia. The prescribed dose of 19.5 Gy is delivered over three fractions as a boost following external beam radiation therapy. The time between fractions is at least 6 h. In an operating theatre, 15–20 titanium 16 gauge afterloading catheters are inserted transperineally into the prostate under TRUS and fluoroscopy guidance. Four fiducial gold markers are also inserted transperineally into the prostate (two at the base and two at the apex of the prostate) using a biopsy needle. A silicone catheter is inserted through the urethra, and radiopaque packing is inserted into the rectum. CT images are obtained with the Toshiba Aquilion LB after the patient's recovery from anaesthesia. The SCGH HDR brachytherapy protocol is followed, that is helical scan, 2 mm slice thickness, 32 cm diameter field of view (FOV). A CTV and OARs (rectum and urethra) are contoured and fiducial markers and catheters are identified with the treatment planning system BrachyVision™ (version 10 and later version 13.7, Varian Medical Systems, Palo Alto, CA, USA). The dose is delivered with a single Ir-192 source through the titanium catheters with the GammaMedplus™ iX HDR/PDR Brachytherapy Afterloader (Varian Medical Systems, Palo Alto, CA, USA).

Study design

Six participants, who underwent HDR prostate brachytherapy in the period between May 2017 and July 2017, were recruited to the study which received approval from the SCGH Human Research Ethics Committee (Quality Improvement Approval No. 16143). In addition to the routine CT, a CBCT image (cone-beam scan, 2 mm slice thickness, 12 cm diameter (maximum) FOV) was obtained for each participant with the mobile Siemens C-arm unit when the participants were positioned on the treatment table in the HDR brachytherapy treatment room bunker prior to the first fraction. Legs were positioned the same way as for routine CT scans. The two independent image sets were separately used to plan the HDR treatment, with structures on each contoured by two radiation oncologists. Each radiation oncologist was blinded to the other's contouring and the CT and CBCT plans were generated by a different team of physicists to avoid bias. The CT- and CBCT-based plans were spatially registered by means of rigid registration, using the implanted fiducial markers as reference points, with the software Velocity™ Advanced Imaging 3.2.0 (Varian Medical Systems, Palo Alto, CA, USA) in order to facilitate comparison, with the CBCT images resampled in the space of the CT images. Statistical analysis was undertaken with IBM SPSS Statistics 23 (IBM, Armonk, NY, USA).

CTV/OAR volumes

The volumes of the clinical structures delineated by the two radiation oncologists were calculated with Velocity™ and compared. For this, a paired samples t-test was conducted at 5% significance level to compare the volumes of each delineated structure in the CT and CBCT image sets.

CTV/OAR overlap

The Dice similarity coefficient (DSC)7, 8

(1)

was calculated with Velocity™ and used to determine to what extent the CTV and the rectum of each CT- and CBCT-based plan overlap after spatial registration. X and Y are the two overlapping volumes; here CTV and OARs. Unlike the prostate, the rectum is larger in volume and extends over a longer cranial-caudal range. The radiation oncologists delineated the rectum over the same range of axial slices, that is 1–2 slices inferiorly and superiorly to the CTV. For small and narrow structures such as the urethra, the DSC is an unsuitable measure of overlap as small changes in the overlap have a large impact on the DSC which might lead to misinterpretation. Therefore, the Hausdorff distance d_H (X, Y)9 was used, which measures how far two objects are from each other, to assess urethra overlap

(2)

where sup and inf are the supremum and infimum respectively.

Dose-volume histograms

Dose-volume histograms (DVH) were created for each participant for the CTV, rectum and urethra for both CT- and CBCT-based plans. Paired samples t-tests were conducted at 5% significance level to compare the difference of volumes in CT- and CBCT-based plans at certain dose intervals for each clinical structure. Additionally, DVHs were created using the CBCT-planned dose distribution in combination with the spatially registered CT structures (“CT/CBCT”-based plans). Paired samples t-tests were again undertaken to compare the differences of volumes across DVHs created with the original CT-planned dose distribution.

Dose-volume parameters

In this study, percentage rather than absolute dose or volume is used for the subscripts xx in the dose-volume parameters D_xx and V_xx. The D_xx is the minimum dose delivered to xx% of the volume of the clinical structure and the V_xx is the volume in percentage that received xx% of the prescribed dose. Typical HDR prostate brachytherapy dose-volume parameters were derived (CTV: D₉₀ and V₁₀₀, rectum: V₈₀, urethra: V₁₂₀) as well as values for dose constraints applied at SCGH on all CT- and CBCT-based treatment plans for comparison. Our department attempts to achieve specific constraints, that is CTV-V₁₀₀ = 100%, rectum-V₈₀ = 0% and urethra-V₁₂₀ = 0%. However, these are not always achievable and each case has to be assessed individually. For the sake of better comparison, tolerances in this study were set uniformly for all participants, that is CTV-V₁₀₀ > 90%, rectum-V₈₀ < 2% and urethra-V₁₂₀ < 2%. Paired samples t-tests were conducted at 5% significance level to compare the differences of dose-volume parameters in CT- and CBCT-based treatment plans.

Image quality assessments

The 10%-MTF (modulation transfer function) of the Siemens CBCT was 7.2 ± 1.0. Applying the Nyquist theorem on the 10%-MTF revealed that structures with length L of 0.69 mm were still spatially resolvable. The uniformity tests on the Siemens CBCT revealed capping artefacts and a steep gradient in CT numbers at the edge of the FOV. The CT-to-ED conversion showed that the CBCT underestimated the absolute CT numbers of all tissue and bone types. See Data S1 for more details.

Study design

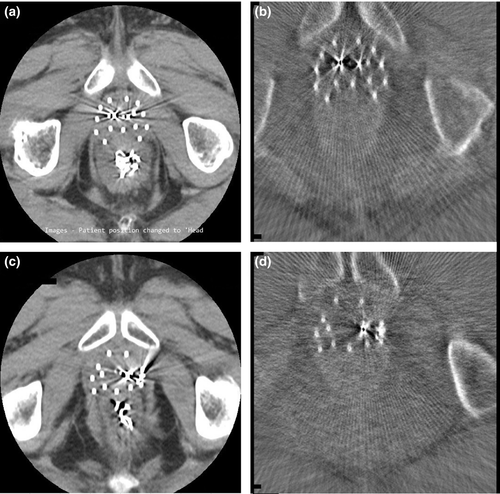

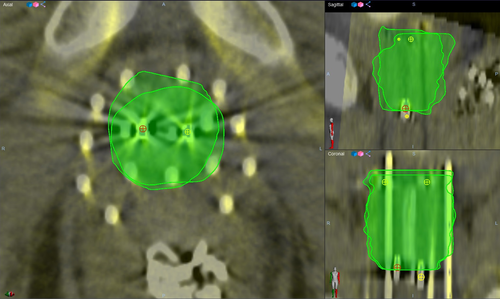

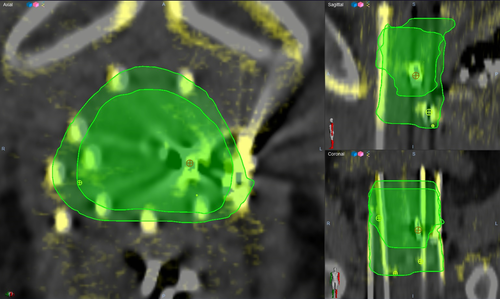

The mean age of participants was 73.80 years, standard deviation (SD) 7.46 years. Figure 1 depicts the axial CT image and the corresponding CBCT image of participant 05 (a, b) and of participant 03 (c, d) showing the catheters and two of the fiducial markers. Compared to CT, the FOV in the CBCT images was smaller, more streaking artefacts were present, and the soft tissue contrast was lower. One of the six CBCT sets was considered unsuitable for treatment planning as some of the catheters were located beyond the boundary of the FOV due to non-ideal positioning of the C-arm gantry. As such, results below are for five participants only. Figures 2 and 3 show the axial view (left), sagittal view (top right) and coronal view (bottom right) of the spatially registered CT and CBCT image sets of participant 05 and 03 respectively. The CT images are coloured in grey and the CBCT in yellow. The axial plane is the same as in Figure 1 and the three planes (axial, sagittal, coronal) are focussing the same fiducial marker (red circled cross). The green contours are the CTV delineation of each image set overlapped.

CTV/OAR volumes

Table 1 shows the results of the t-tests comparing the volumes of each delineated structure in the CT and CBCT image sets. The mean differences indicated larger CTVs and urethrae, and smaller rectums were contoured on the CBCT relative to CT images. However, for the CTV (P = 0.087), rectum (P = 0.262) and urethra (P = 0.088), the results suggested that there was no statistically significant difference between the volumes.

CTV/OAR overlap

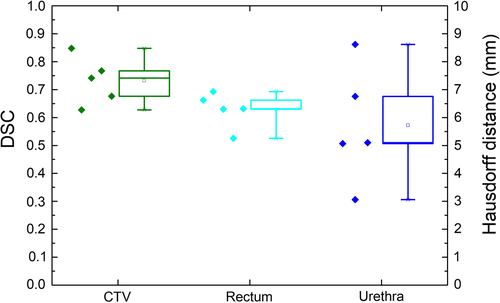

Figure 4 shows a box plot including the raw data points for each clinical structure where the DSC on the left axis is referring to the CTV and rectum, and the Hausdorff distance on the right to the urethra. The mean DSC and SD for the CTV and rectum were 0.73 ± 0.08 and 0.63 ± 0.06, respectively, which were according to Velker et al.10 a moderate level of agreement between delineated volumes, that is mean DSC 0.60–0.79. The mean Hausdorff distance and SD for the urethra was 5.72 ± 2.08 mm. Figures 2 and 3 show an example of a high (0.85) and a low (0.63) DSC.

Dose-volume histograms

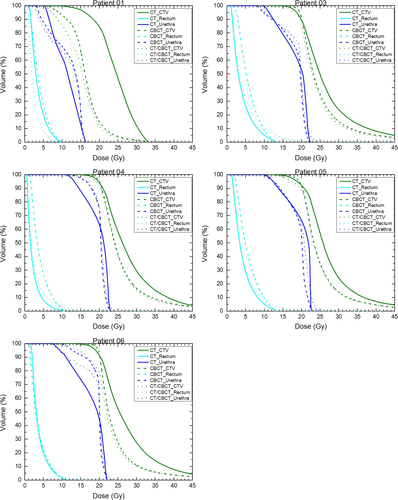

Figure 5 shows the DVHs of all five participants generated with the built-in optimiser of the treatment planning system. The green, dark-blue and cyan graphs are the dose-volume data points of the CTV, urethra and rectum respectively. The solid lines represent the data from the CT-based treatment plans, the dashed lines from the CBCT-based plans and the dotted lines from the CT/CBCT-based plans.

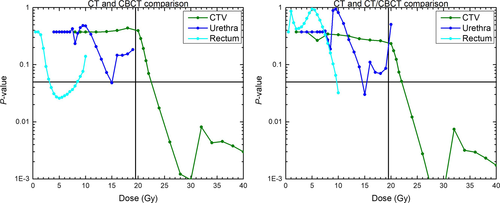

Figure 6 shows the results of the paired t-tests comparing the difference of volumes both in CT and CBCT, as well as in CT- and CT/CBCT-based treatment plans at certain dose intervals for each clinical structure. The horizontal line represents the 5% significance level and the vertical line the prescribed dose of 19.5 Gy. In both comparisons, for the CTV there was a statistical significant difference evident for dose intervals beyond the prescribed dose, and for the urethra for one single dose interval. In the CT and CBCT comparison, for the rectum there were several dose intervals where the P-value was below the threshold.

Dose-volume parameters

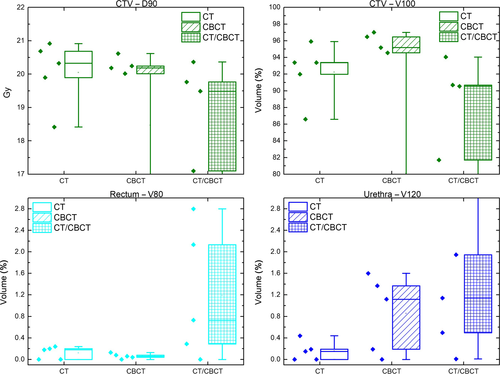

Figure 7 shows box plots of various dose-volume parameters calculated from CT-, CBCT- and CT/CBCT-based treatment plans. Table 2 shows the results of the paired samples t-tests comparing the CT and CBCT plans. Apart from one participant, CTV-D₉₀ was above the prescribed dose of 19.5 Gy and CTV-V₁₀₀ was greater than 91%. Values for rectum-V₈₀ and urethra-V₁₂₀ were less than 0.3% and 1.6% respectively, for all treatment plans.

Table 3 shows the results of the paired samples t-test comparing the CT- and CT/CBCT-based treatment plans. Apart from the one participant mentioned before, there was another participant's plan that failed to achieve sufficient CTV coverage, that is CTV-D₉₀ = 17.1 Gy and CTV-V₁₀₀ = 81.7%. Values for rectum-V₈₀ and urethra-V₁₂₀ were less than 2.8% and 3.8% respectively, for all treatment plans.

The results of the t-tests suggest that there were no statistically significant differences between CT and CBCT for all dose-volume parameters. This was also the fact when comparing CT- and CT/CBCT-based treatment plans since all p-values were greater than 0.05. It has to be noted, however, that the sample size in this study was very small which makes it harder to find statistical significance. The magnitude of the differences in CTV-V₁₀₀ was, however, of clinical significance.

Image quality assessments and identification of catheters and markers

Figure 1 indicates that catheters and fiducial markers were visible and distinguishable which was in accordance with the spatial resolution test, that is structures with a length of 0.69 mm were still spatially resolvable (see Data S1). The catheters used were 1.8 mm in diameter and the fiducial markers were 5 mm in length and 1.0 mm in diameter. Moreover, Figures 2 and 3 show that catheters and markers were also visible in the sagittal and coronal plane and that they overlapped with the CT ones, that is yellow on grey.

There were some challenges during the process. Although the catheters were spatially distinguishable, the auto catheter path detection algorithm in the treatment planning system, which attempted to automatically trace the catheter paths based on CT number differences between the actual catheter and the proximal ambience, was less accurate in the CBCT images due to streaking artefacts in these images. Reconstruction involved more manual adjustments to identify the catheter paths which prolonged the process. The image quality of the catheter tips was slightly poorer in the CBCT images. Although this did not hinder the identification process, it resulted in prolonging the process. There were no challenges during the identification of the fiducial markers. Ultimately, the image quality of the catheters and markers was sufficient for identification in the planning process. The inconvenience of additional time required for the process was not significant considering the overall time for treatment planning.

However, there was potential for acquiring an image that was unsuitable for planning due to the small FOV of the Siemens CBCT and its impact as determined from the uniformity test. The effective size of the FOV determined with our proposed method was on average 10.6 cm rather than 12 cm (see Data S1). The clearance diameter between the X-ray tube and the image intensifier was 80 cm. One study participant was excluded as the catheters on the participant's CBCT images were distorted at the boundary of the FOV which made catheter identification impossible. In this case, the combination of the participant's high body mass index, the effective FOV, the clearance diameter of the C-arm gantry, and the width and thickness of the treatment table (60 and 10 cm) hampered the positioning of the prostate into the isocentre which led to the unsuccessful catheter identification.

Generally, imaging the region of interest in the isocentre is not always possible since the C-arm gantry might collide with either the patient or the treatment table depending on the patient size. Therefore, the anatomy of the patient limits the use of the Siemens CBCT and is not suitable for all patients. It is also necessary to ensure that the catheters and prostate are scanned in a region with high uniformity to obtain the possibly best treatment plan in HDR prostate brachytherapy since deteriorated uniformity affects soft tissue contrast and ultimately CTV/OAR contouring accuracy.

CTV/OAR volumes and overlap

For the CTV, the mean difference of the relative volume was lower and the DSC was higher compared to the rectum. The differences in volumes and the moderate level of agreement of the DSC were attributed to both different modalities and observers. Since the CT and CBCT image sets were contoured by different radiation oncologists, it was not clear whether the modality or observer contributed to the differences. However, since there was no statistically significant difference in volumes and the observers had a moderately good level of agreement with regard to the CTV/OAR overlap, there was an indication that the differences were more likely attributed to the different modalities. The determined differences were of the order found in previous studies identifying differences in CT-derived prostate volumes by pairs of observers.11 The radiation oncologists reported that they were able to use the fiducial markers and catheters as a contouring aid. In all plans, the overlapped urethra crossed in the centre of the prostate in form of an “X”. Therefore, Hausdorff distances were determined either superiorly to the base or inferiorly to the apex of the prostate. Both radiation oncologists agreed anecdotally that the contouring was more challenging on the CBCT images which was confirmed in the CT-to-ED conversion (see Data S1). The C-arm CBCT underestimated the absolute CT numbers for all tissue types relative to the Toshiba CT-derived values. The spectrum of CT numbers ranging from air to bones in CBCT was shorter compared to CT varying from approximately −200 to 700 HU (−1000 to 2000 HU in CT). This reduced the already limited CT number range of soft tissue which could exacerbate recognised difficulties in contouring of the CTV and surrounding OARs. Moreover, typical cone-beam-associated issues such as increased scatter and noise, beam hardening, decreased contrast, streak and truncation artefact alter the CT numbers.12 Increased scatter lowers the apparent CT number as more scattered photons are detected.

Dose-volume histograms

For Figure 5, the DVHs for CBCT and CT/CBCT were similar. This suggests that coverage of the original CT-derived structures using the CBCT-derived dose was much the same as coverage of the CBCT-derived structures with that dose. However, the coverage of the CT-derived structures with the CT-derived dose was quite different mainly for the CTV and at very high doses well above the prescription where they were statistically significantly higher in Figure 6. This might be due to small catheter position changes which led to higher dose changes. With the CT CTV volumes smaller than the CBCT CTV volumes (Table 1), these high-dose regions covered proportionally more of the CT CTV and hence, the relative DVHs were higher in that region.

The region of statistical significant difference in rectal DVHs in Figure 6 reflected a tendency for reduced dose to the rectum in the CT-based plan. This could be due to both the smaller CT CTVs, which kept high-to-medium isodoses in the steep gradient covering a smaller portion of the anterior rectum for the CT-based plans, as well as the smaller rectum on CBCT closer to the larger volumed CTVs, meaning mid-to-higher doses covered proportionally more of the rectum in the CBCT plans.

Dose-volume parameters

All CT and CBCT treatment plans passed the rectum and urethra dose constraints. The CTV constraints were passed by all but one single participant. At this stage, it was not clear why the CTV constraints failed in both CT and CBCT plan for this particular participant. There are two participants who failed both the rectum and urethra dose constraints in the CT/CBCT treatment plans. Another participant failed the CTV coverage on the CT/CBCT plan. The paired samples t-tests suggested that there is no statistical significant difference between CT and CBCT, as well as CT- and CT/CBCT-based treatment plans. However, the mean difference of the CTV-V₁₀₀ between the CT and CBCT, and CT and CT/CBCT plans are 12.13% and 18.07%, respectively, which would be unacceptable in clinical practice.

Recommendations for a suitable mobile C-arm CBCT unit

The study showed that the Siemens Arcadis Orbic 3D was feasible for catheter and fiducial marker identification but had its limitations in the use for CTV and OARs contouring. However, the presented treatment plan comparisons indicated that the CBCT plans were comparable to the CT plans meaning that standard quality CT images may not be necessary for HDR prostate brachytherapy treatment planning. The following recommendations from the authors were based on the observations obtained during this study. A suitable CBCT unit for HDR prostate brachytherapy treatment planning should have a similar spatial resolution as the unit used in this study but with a superior low-contrast resolution in order to have a higher certainty in CTV and OAR contouring, that is the spectrum of CT numbers from air to bones should be longer than the current one ranging from approximately −200 to 700 HU (see Data S1). To facilitate the positioning of the prostate at isocentre and to avoid collision, this work suggests that the suitable C-arm CBCT unit has a FOV at least 5 cm larger than the tested Siemens unit, and a flat panel detector rather than an immense image intensifier. The treatment table in theatres should ideally be as narrow as possible.
