Calcium-Sensing Receptors in Chondrocytes and Osteoblasts Are Required for Callus Maturation and Fracture Healing in Mice

Mice

Floxed-CaSR (CaSR^flox/flox) mice20 were bred with Cart-CreER^T mice,28 which carry a tamoxifen (Tam)-inducible CreER^T transgene under the control of Col2a1 gene promoter for chondrocyte-specific expression, to produce ^Tam-CartCaSR^flox/flox mice that developed normally in the absence of Tam.28 ^Tam-CartCaSR^flox/flox mice were injected daily with Tam (2 mg/25 g body weight, in corn oil [Millipore Sigma, Burlington, MA, USA; #C8267]) through the intraperitoneal (IP) route according to specified schedules (Supplemental Fig. SS1 A, Schedule #1) to induce Casr gene KO in the resulting ^Tam-CartCaSR^{Δflox/Δflox} mice. CaSR^flox/flox mice without expression of Cart-CreER^T transgene were injected with Tam to serve as controls. For cell tracing experiments, ^Tam-CartCaSR^flox/flox mice were bred with tdTomato mice (Jackson Laboratory, Bar Harbor, ME, USA; stock no. 007905),29 which carry the Cre/loxP-inducible Rosa-CAG-LSL-tdTomato reporter, to mark the cells after the induction of CreER activity by Tam injections (Supplemental Fig. SS1 A, schedule #2). Cart-CreER^T mice without floxed-CaSR alleles were bred with Rosa-tdTomato mice to produce ^Tam-CartRosa-tdTomato mice to serve as controls in these cell-tracing experiments. Additional controls, in which ^Tam-CartRosa-tdTomato mice were injected with corn oil only, were performed to confirm the absence of promoter leakage without Tam, as indicted by the lack of tdTomato signals in the GP and soft calluses of the mice (data not shown). To delete CaSRs in mature OBs, CaSR^flox/flox mice were bred with the osteocalcin (OCN)-Cre line30 to generate ^OCNCaSR^{Δflox/Δflox} and control littermates. All mutant mice were in C57/B6 background. Mouse genotypes were determined by PCR analyses of genomic DNAs from tail snips with primer sets for the Cre transgene, the loxP sequence flanking the exon 7 of Casr gene, Rosa-CAG-LSL-tdTomato alleles (Supplemental Table SS1). Genomic DNA from callus cartilage, bone (tibial midshaft without marrow), and various tissues of the ^Tam-CartCaSR^{Δflox/Δflox} mice and/or CaSR^flox/flox littermates were used to confirm tissue-specific excision of the exon 7 of the Casr gene (Supplemental Fig. SS1 B).

To test the impact of PTH (1-34) (Bachem, Torrance, CA, USA; Cat# H-5460) and/or R568 (Tocris, Minneapolis, MN, USA; Cat# 3815) on fracture healing, 3-month-old male C57/B6 mice were ear-tagged for identification, randomly assigned to groups, and injected daily with the drugs individually or in combination with specified doses for 4 weeks starting immediately after fracture. All mice were kept in a climate-controlled room (22°C; 45% to 54% relative humidity) with a 12-hour light/12-hour dark cycle. Water and standard chow (1.3% calcium and 1.03% phosphate) were given ad libitum. All experiments are performed on 3-month-old adult male mice to avoid 1) pre- and perinatal developmental defects due to early ablation of Casr gene20 and 2) female-specific side-effects of Tam on hormonal and reproductive systems, which could complicate data interpretation and prevent a definitive conclusion from our study. All animal experiments (Protocol #18–013) were approved and performed according to guidelines of the Institutional Animal Care and Use Committee at the San Francisco Department of Veterans Affairs Medical Center.

Tibial midshaft fracture

In the 3-month-old male ^Tam-CartCaSR^flox/flox, CaSR^flox/flox, ^Tam-CartCaSR^flox/flox//tdTomato, ^Tam-CarttdTomato, and ^OCNCaSR^{Δflox/Δflox} mice with or without 5 to 9 daily intraperitoneal (IP) injections of Tam, closed unfixed bone fractures were created unilaterally in the right mid-tibia on the second day of Tam administration (Supplemental Fig. SS1 A) by 3-point bending using a Bose Electroforce 3200 Material Testing System (Supplemental Fig. S2A)31 under general anesthesia with locally injected analgesics. The downward middle test probe, positioned exactly at the midshaft position, was controlled by an automated actuator, which retrieved the test probe immediately after the bone was fractured (as detected by an accelerated downward probe movement) to minimize soft tissue damage. X-ray radiography was performed immediately after the procedure to ensure fracture consistency (Supplemental Fig. S2B). Mice with inadequate fractures were excluded from the analyses. The mice were allowed to ambulate freely in their cages after successful fracture. Fracture calluses were collected and analyzed at times specified (Supplemental Fig. SS1 A) by investigators who were blinded to mouse groupings.

Power analyses

The numbers of mice needed for the proposed μCT imaging, histomorphometric, histological, and biochemical analyses (see below sections) were determined using statistical methods of experimental design with a statistical software (DSS Research, Fort Worth, TX, USA). Per standard scientific practice, experiments were designed using alpha = 0.05 to find effects that are significant at the 95% confidence level. Using expected means and standard deviations derived from our previous studies31 and an estimated power (1-β) of 80%, the sample sizes required to detect a difference in μCT, static, and dynamic skeletal parameters were estimated to be 8 mice/group for comparisons between KO versus Cont mice and 15 mice/group for comparisons among mice treated with or without PTH and/or R568. We added additional 20% of the estimated animal numbers to account for unsuccessful fracture or poor animal ambulation. Because of limited quantity of cartilage from each fracture site, for cell culture experiments described in Fig. 1, {FIG1} a large number of mice were used to harvest sufficient chondrocytes.

Culturing callus chondrocytes

Cartilage in the calluses at day 10 post-fracture was dissected free from surrounding fibrous tissues and preexisting cortical bones were pulled away to separate them from the cartilage. If necessary, remaining minute bony tissues were further scraped off using a 15C-type surgical blade (Southern Anesthesia and Surgical, Inc., West Columbia, SC, USA) under a stereomicroscope. Some dissected cartilage was randomly selected for combined Alcian green (AG) and Alizarin red (AR) staining to check for inclusion of bony tissue. The rest of cartilage was then minced into small fragments and incubated briefly (15 minutes) with trypsin to remove loosely attached fibroblasts and/or OBs before the cartilage fragments were subjected to serial digestions with a mixture of collagenase IA, hyaluronidase, and deoxyribonuclease II (30 minutes per digestion with refreshed enzyme mixture) and the digested chondrocytes were collected by centrifugations. These procedures were repeated until all chondrocytes were released. We discarded the first digestion mixture as a precaution to further exclude any residual fibroblasts and OBs. This protocol produced highly enriched chondrocyte preparations, as indicated by robust expression of chondrogenic markers and strong propensity of the cells to synthesize proteoglycans-rich cartilage matrix.24, 32 The isolated callus chondrocytes were plated in monolayer at a density of 10⁵ cell/cm² as described previously.24-26, 32, 33 The cells were cultured to confluency (≈4 days) before treatments with various [Ca²⁺] (0.5, 1.5, and 3.0 mM) with or without addition of 5 μM NPS-R568 (in 0.1% DMSO), an allosteric CaSR agonist, for 7 days. Cells were stained sequentially with von Kossa (VK) and AG reagents for Ca²⁺- containing mineral and proteoglycans, respectively, or used for RNA analyses as previously described.24, 32

Micro-computed tomography (μCT) and histomorphometric analyses

Fracture calluses and nonfractured tibias were dissected free of attached muscle at days 10 and 28 post-fracture, fixed in 10% phosphate-buffered formaldehyde (PBF), and stored in 70% ethanol. Because of poor delineation between cartilage versus immature bone mineral by μCT in the 10-day-old calluses, only 28-day fracture calluses were analyzed using the Scanco μCT 50 scanner (Scanco Medical AG, Basserdorf, Switzerland) with 10 μm voxel size and X-ray energies of 55 kVp and 109 μA. A lower excluding threshold of 400 mg hydroxyapatite (HA)/mm³ was applied to segment total mineralized bone matrix from soft tissue in studies of control and KO mice, and a high threshold of 1000 mg hydroxyapatite (HA)/mm³ was further used to segment bone with high-density mineral from those with low-density mineral in studies of mice treated with PTH and/or R568. Linear attenuation was calibrated using a Scanco hydroxyapatite phantom. The regions of interest (ROI) included the entire callus without existing cortical clearly distinguished by its anatomical location and much higher mineral density. For trabecular bone parameters in nonfractured tibias, the ROI included all trabecular bone within 1 mm below the growth plate. μCT reconstruction and quantitative analyses were performed to obtain the following structural parameters with slightly modified acronyms to indicate their trabecular (Tb) versus callus (Cal) origin: total Tb or callus volume (Tb.TV or Cal.TV); Tb or callus bone volume (Tb.BV or Cal.BV), which excludes the preexisting bone; Tb.BV/TV or Cal.BV/TV ratio; thickness (Tb.Th or Cal.Th); number (Tb.N or Cal.N); connectivity density (Tb.CD or Cal.CD); and spacing (Tb.Sp or Cal.Sp).

After μCT scanning, both 10- and 28-day fractured bones were dehydrated with 100% ethanol, defatted with xylene, and embedded in methyl methacrylate (MMA) (Sigma, St. Louis, MO, USA). Serial sections (5 or 10 μm in thickness) were cut and mounted on gelatin-coated slides for different staining procedures. Adjacent sections (≈50 to 100 μm apart) from each side of the centermost (usually the largest) section of each callus were stained with 1) combined VK/Safranin O (SO); 2) Goldner; or 3) tartrate-resistant acid phosphatase (TRAP) reagent to assess static histomorphometric parameters. Averaged number of the 2 callus sections from each of the fractured bones was used for statistical analyses. To assess dynamic bone parameters, calcein and demeclocycline (15 mg/kg body weight) were injected intraperitoneally 3 days and 1 day before bone collection. This shorter interval between calcein and demeclocycline injections, in contrast to the conventional 7/3-day regimen for normal remodeling activities,34 was adapted because it is proven to be more accurate in detecting faster bone remodeling activity during fracture repair in preliminary experiments (data not shown). The terminology and units used for histomorphometric parameters are those recommended by the Histomorphometry Nomenclature Committee of the American Society for Bone and Mineral Research,35 except that trabecular bone (Tb) was replaced with callus bone (Cal). In addition, callus cartilage volume (Cal.CV), which stains positively only for SO, and mineralized cartilage volume (MCV), which stains positively for both SO and VK, were also assessed in soft calluses at day 10 post-fracture. Images were acquired by a Zeiss AXIO Imager M1 Microscope and analyzed by Bioquant OSTEO 2009 software (Bioquant, Nashville, TN, USA).

Cell tracing

For cell tracing experiments, both fractured and nonfractured bones were collected from ^Tam-CartCaSR^flox/flox//tdTomato (KO) and ^Tam-Cart tdTomato (control) mice at day 8 post-fracture, when most of the soft callus was largely composed of cartilage, and at day 21 post-fracture, when soft callus was just completely converted to bony callus. After fixation in 4% PFA and decalcification in 10% EDTA (pH 7.0) for 14 days, the bones were embedded in OCT media and sectioned in 7 μm thickness. Two adjacent sections (≈70 μm apart) from each side of the centermost section of each callus were mounted/counterstained with a medium containing DAPI (art no. DUO82040-5ML, Sigma). Red tdTomato and blue DAPI fluorescent images were obtained and analyzed by TissueGnosticts HistoQuest software (TissueGnosticts, USA, Ltd, Tarzana, CA, USA). The averages of 2 callus sections from each of the fractured bones and of the 2 growth plate sections from each of the contralateral nonfractured bones were used for statistical analyses.

Quantitative real-time polymerase chain reaction (qPCR) assays

Total RNA was extracted from cartilage dissected from 10-day soft calluses, cultured callus chondrocytes, or 28-day bony callus without preexisting cortical bone. For soft callus, the majority of preexisting cortical bone could be easily pulled out, followed by microdissection to remove any remaining bone fragments, which were easily distinguished by their white opaque color and hard texture. For the bony callus, microdissection was performed to separate (cut or scrape off) “trabeculae-like” bony callus from the preexisting cortex. Real-time PCR analyses were performed using murine specific Taqman primers/probes sets for aggrecan (AGG), alpha-subunits of type II [Col(II)] or type X [Col(X)] collagen, osteopontin (OPN), osteonectin (ON), osteocalcin (OCN), dentin matrix protein 1 (DMP1), insulin-like growth factor 1 (IGF1) and its receptor (IGF1R), and parathyroid hormone-related peptide (PTHrP), as reported previously.20, 27 Levels of gene expression were normalized to the level of housekeeping gene ribosomal protein L₁₉.

Serum chemistries

Blood was drawn from mice 3 hours after the last injection of PTH (1-34) and/or R568 or vehicle by the retroorbital route under anesthesia by isoflurane inhalation. Serum samples were prepared by centrifugation and analyzed for total serum calcium and phosphate (Pi) by an automated ACE Alera Clinical Chemistry bioanalyzer (Alfa Wassermann, Inc, West Caldwell, NJ, USA).

Statistics

Comparisons were evaluated by unpaired two-tailed Student's t tests between KO and controls or by one-way or two-way ANOVA followed by Tukey's test for multiple comparisons using Prism 8 for MacOS software (GraphPad Software, Inc., San Diego, CA, USA). Values are expressed as mean ± SEM. Any p values <0.05 were considered significant for all analyses.

CaSR expression and actions in callus chondrocytes

To delineate the actions of the CaSR during the chondrogenic phase of fracture repair, we employed a closed, unfixed fracture model produced by unilateral controlled 3-point bending at the midshaft of right tibia of the mouse31 (Supplemental Fig. S2A). This procedure produces relatively consistent fractures, due to its precise location and minimal soft tissue damage. This unfixed fracture also produced prolonged chondrogenic activity (compared with fixed fracture models) from days 6 to 14 post-fracture in mice, followed by osteogenic activity until complete bridging of the fractured bone was evident at day 28 (Supplemental Fig. S2B) and then by active bone remodeling until completion of the repair. We first confirmed the expression of CaSR protein by immunohistochemistry using a custom-made polyclonal antibody against the ADDYGRPGIEKFREEAEE epitope in the extracellular domain of the CaSR36 (Supplemental Fig. SS1 C, Cont) and the expression of RNA by quantitative qPCR (Fig. 2 C, leftmost panel, CaSR:Cont) in chondrocytes from soft calluses of mice 10 days after fracture.

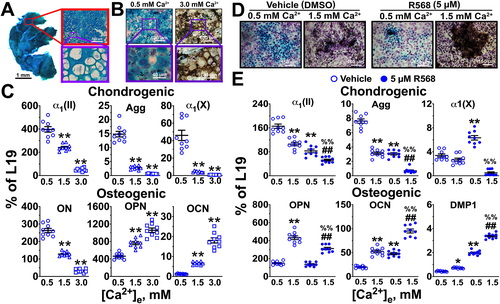

To determine whether these CaSRs are functional, we carefully dissected callus cartilage free of bone tissues (Fig. 1 A), enzymatically released chondrocytes, and grew the cells in 2D culture to test their responses to changes in extracellular [Ca²⁺] ([Ca²⁺]_e) (Fig. 1 B, C) and the allosteric CaSR agonist (NPS-R568) (Fig. 1 D, E). These cells grew to confluence after ≈4 days of plating (10⁵ cells/cm²) in monolayer and continued to proliferate, forming multilayer sheets/nodules (Fig. 1 B, D) as seen in cultures of primary GP chondrocytes24, 32 and clonal nontransformed rat chondrogenic RCJ.3.1.C518 cells.25, 26 Our previous studies of the latter two cell cultures consistently showed spontaneous cell progression through the steps of endochondral differentiation (at 1.8 mM Ca²⁺) as seen in the GP in vivo in a time-dependent manner and the ability of raising [Ca²⁺]_e over a wide physiological range (0.5 to 3 mM) to alter the pace of cell differentiation.24-26, 32, 33 Compatible with the responses from cultures of GP chondrocytes and RCJ3.1C5.18 cells, raising [Ca²⁺]_e from 0.5 to 1.5 and 3.0 mM dose-dependently altered chondrogenic activity of callus chondrocytes. After culture at 0.5 mM Ca²⁺ for 7 days (a total of 11 days), we observed a relatively uniform proteoglycan-rich (AG-positive) cartilage matrix with a very high expression ratio (400:1) of the chondrocyte marker, α1 subunit of type II collagen [α₁(II)], over the mature osteoblastic marker (OCN), indicating a highly enriched chondrocyte culture. In contrast, growth of these cultures at 3 mM Ca²⁺ for 7 days produced a 15-fold increase in the expression of OCN and 10-fold and 22-fold decreases in the expression of α₁(II) and Agg, respectively, compared with the cultures at 0.5 mM Ca²⁺, suggesting a profound Ca²⁺-dependent transition of cellular phenotype from chondrogenic to osteogenic. The latter cell transition was further indicated by a global reduction of AG staining and an increase in Ca²⁺-containing mineral in cultures at high Ca²⁺. These effects of high [Ca²⁺]_e on chondrocyte differentiation and their putative transition into an “osteoblast-like” phenotype could be facilitated by adding NPS-R568 (or R568), which enhances the sensitivity of the CaSR, to cultures at low [Ca²⁺]_e (Fig. 1 D, E), supporting the action of CaSR agonism in mediating differentiation of callus chondrocytes.

Delayed chondrocyte differentiation and fracture repair in mice lacking chondrocyte CaSRs

To further define the actions of the CaSR in callus chondrocytes in vivo, we studied the impact of acute chondrocyte-specific Casr gene KO on chondrogenic and osteogenic activities in calluses at different times of repair by employing a Tam-inducible, chondrocyte-targeted CaSR KO (^Tam-CartCaSR^{Δflox/Δflox}, KO) mouse model. Gene KO in the latter model was induced by giving 5–9 consecutive daily injections of Tam to ^Tam-CartCaSR^flox/flox mice, which carry the inducible chondrocyte-specific CreER^T (^Tam-CartCreER^T) alleles28 and homozygous floxed-CaSR alleles,20 1 day before fracture (Supplemental Fig. SS1 A). The ability of Tam to ablate CaSR gene, protein, and RNA expression in ^Tam-CartCaSR^{Δflox/Δflox} callus chondrocytes was confirmed, respectively, by genomic DNA (Supplemental Fig. SS1 B), immunohistochemical (Supplemental Fig. S1 C), and RNA (Fig. 2 C) analyses.

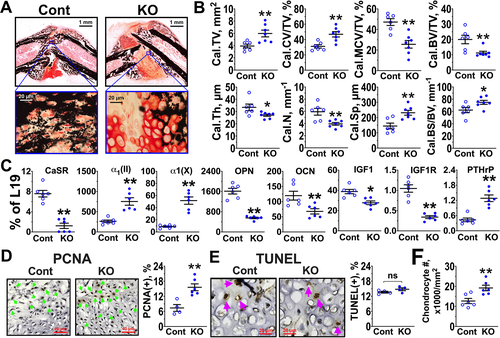

As assessed by histomorphometry at day 10 post-fracture, the callus sizes (Cal.TV) of ^Tam-CartCaSR^{Δflox/Δflox} mice were ≈50% larger compared with those from CaSR^flox/flox control (Cont) littermates, which also received Tam (Fig. 2 A, B). {FIG2} This size change was accompanied by an increased callus cartilage fraction (Cal.CV/TV), which was stained positively by Safranin O (SO) reagents (Fig. 2 A, B), and reduced callus trabecula-like bone fraction (Cal.BV/TV), which was demonstrated by VK reagents with preexisting cortical bone excluded from the quantitation. This reduced Cal.BV/TV was mainly due to decreases in callus bone thickness (Cal.Th) and number (Cal.N) and an increase in spacing (Cal.Sp) (Fig. 2 B). Despite the increased Cal.CV/TV, the fraction of mineralized cartilage (Cal.MCV/CV), which was made by terminally differentiated chondrocytes and stained positively by both SO and VK reagents, was reduced by ≈50% in the KO versus Cont calluses (Fig. 2 A, B). Goldner staining of adjacent callus sections showed profound reductions in newly synthesized osteoid in the chondrocyte-to-OB transition zone of the KO versus Cont mice (Supplemental Fig. S3), indicating defects in osteogenic activity. Consistent with these morphological changes were increased RNA expression of chondrogenic markers, α₁-subunits of type II [α₁(II)] and X collagen [α₁(X)], and reduced expression of the terminal differentiation marker, osteopontin (OPN), and the mature OB marker, osteocalcin (OCN), in calluses dissected free of preexisting cortical bone (Fig. 2 C).

As we have shown previously, there is a reduced ability of high [Ca²⁺]_e to promote terminal differentiation and matrix mineralization of cultured GPCs lacking IGF1R.20 We, therefore, assessed if CaSR KO impeded terminal differentiation by interfering with this signaling pathway. In support of this hypothesis, we observed significantly decreased expression of IGF1 and IGF1R RNA in the soft callus of ^Tam-CartCaSR^{Δflox/Δflox} (KO) versus Cont mice (Fig. 2 C). We have also shown that Ca²⁺/ CaSR signaling antagonizes the proliferative actions of PTHrP/PTH1R signaling to promote chondrocyte terminal differentiation.24 To determine whether the enlarged callus cartilage in the CaSR KO mice was due to increased PTHrP expression (which might lead to increased cell proliferation), we assessed PTHrP RNA expression and performed immunohistochemical detection of proliferating cell nuclear antigen (PCNA) and terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) assays to determine the status of proliferation and apoptosis in these calluses. There were robust increases in PTHrP RNA expression (≈3-fold) (Fig. 2 C) and in the number of PCNA(+) cells (≈2-fold) (Fig. 2 D), along with no changes in the number of TUNEL(+) cells (Fig. 2 E) in the KO versus Cont calluses. The increased cell proliferation also led to an increase in overall cell density in the callus cartilage of the KO versus Cont mice (Fig. 2 F). These findings suggested that enhanced PTHrP signaling, in the absence of CaSR expression, could be responsible for the enlargement of cartilage by promoting cell proliferation. These and the above morphological and biochemical data together indicate a critical role for CaSRs in promoting chondrocyte terminal differentiation, transition of cartilage to bone, and mineralization in callus cartilage.

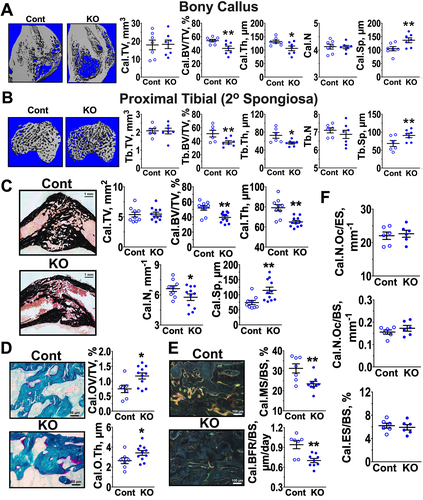

To examine whether the aforementioned chondrogenic defects interfered with subsequent osteogenic activities, we assessed static and dynamic bone structural parameters in calluses at day 28 post-fracture, when chondrogenic activities had ceased for several days in our fracture model. μCT analyses showed significantly thinner and demineralized calluses in the ^Tam-CartCaSR^{Δflox/Δflox} (KO) versus Cont mice, as indicated by reduced Cal.BV/TV and Cal.Th and increased Cal.Sp (Fig. 3 A). {FIG3} Similar reductions in Tb.BV/TV and Tb.Th and increases in Tb.Sp were observed in the secondary spongiosa in the proximal tibias of contralateral bones of ^Tam-CartCaSR^{Δflox/Δflox} (KO) versus Cont mice (Fig. 3 B), indicating an osteogenic defect in response to the ablation of CaSR in GP chondrocytes of nonfractured bone. The changes in callus bone parameters in the KO mice were confirmed by histomorphometric analyses of callus sections stained with SO and VK reagents (Fig. 3 C). In addition, the latter analysis showed a significant decrease in callus bone number (Cal.N). Furthermore, the bony calluses of KO mice displayed larger amounts of unmineralized osteoid (Fig. 3 D, in pink) by Goldner staining and reductions in mineralizing surface and bone formation rate assessed by dual calcein and demeclocycline labeling (Fig. 3 E), when compared with Cont mice. These data indicate overall reductions in osteogenic activity and mineralizing function in the metaphysis and calluses of mice lacking chondrocyte CaSRs. Analyses of osteoclast number and erosion surfaces in TRAP-stained callus sections showed comparable osteoclastic activity between the two groups (Fig. 3 F), suggesting that defects in OB function are the major cause for the poorly developed bony callus in ^Tam-CartCaSR^{Δflox/Δflox} mice.

Delayed transition of CaSR-deficient chondrocytes into osteoblastic lineage cells in fracture calluses

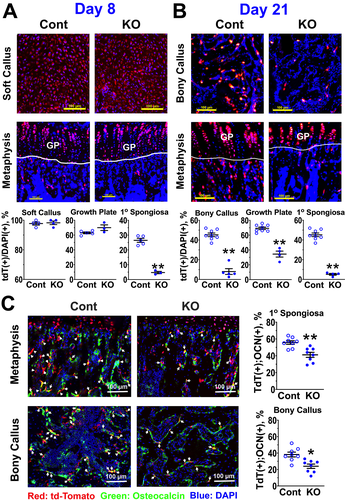

We hypothesized that delayed maturation/terminal differentiation of callus chondrocytes lacking CaSRs impaired their ability to transition into the osteoblastic lineage, consequently reducing osteogenic activity in the subsequent bony calluses. To test this hypothesis, we bred ^Tam-CartCaSR^flox/flox mice or ^Tam-CartCreER^T mice with mice carrying a floxed Rosa-CAG-LSL-tdTomato gene allele29 to introduce red tdTomato fluorescent protein in chondrocytes in the presence or absence of Tam-induced CaSR KO, respectively. Daily injections of Tam until day 8 post-fracture activated tdTomato expression in nearly all chondrocytes in the soft callus of both CaSR KO and Cont mice (Fig. 4 A; {FIG4} Soft Callus). Similarly, ≈60% of GPCs in the metaphysis of nonfractured bones in both KO and Cont groups expressed tdTomato, with no significant difference between the two groups (Fig. 4 A; Metaphysis, GP). However, we observed significantly (p < 0.01) higher numbers of tdTomato(+) OBs on the surface of bone in the primary (1^o) and secondary (2^o) spongiosa of Cont mice, when compared with that in KO mice (Fig. 4 A; Metaphysis, areas below GP). Similarly, at day 21 post-fracture, when chondrogenic activities in fracture calluses had ceased for several days, we observed significantly higher numbers of tdTomato(+) OBs in both bony calluses and spongiosa of Cont mice, when compared with KO mice (Fig. 4 B). Interestingly, numbers of tdTomato(+) chondrocytes were also reduced in the tibial GPs of the KO mice at day 28 post-fracture (Fig. 4 B). To further examine whether those tdTomato(+) cells can differentiate into mature OBs, we performed immunohistochemistry with antisera against a mature OB marker (OCN). We observed ≈60% of tdTomato(+) cells, which were also positive for OCN expression, in the 1^o and 2^o spongiosa and ≈40% of double positive cells in bony callus of the control mice (Fig. 4 C). Interestingly, at both anatomical sites, the % of double tdTomato(+);OCN(+) cells were significantly lower (≈40 and ≈25%, respectively) in the mice with CaSR KO (Fig. 4, scatter plots), supporting a role of CaSR in mediating maturation of OB into the state that expresses OCN. Our study also revealed substantial amounts of tdTomato (+)/OCN(−) cells with unknown identities at those sites. The latter cells could represent immature cells transitioning to mature OBs or cells committing to other cell lineages. Future studies are required to distinguish these possibilities. Nevertheless, the above data together indicate a deficient chondrocyte-to-OB transition in GPs and fracture calluses in the absence of chondrocyte CaSRs.

CaSRs mediate osteogenic activities in bony callus

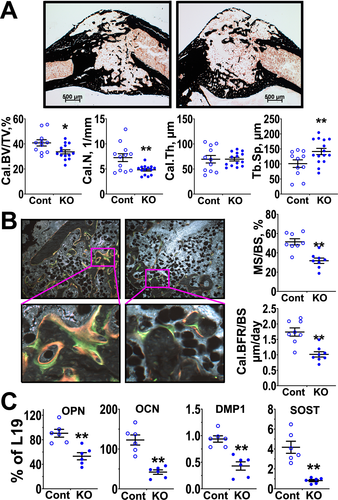

To test whether the impaired osteogenic activity and mineralizing function in bony calluses of ^Tam-CartCaSR^{Δflox/Δflox} mice lacking chondrocyte CaSRs (Fig. 3) were at least in part due to the continuous absence of CaSR function in the chondrocyte-derived OBs, we studied the effects of CaSR KO targeted specifically to mature OBs. We bred OCN promoter-driven Cre (OCN-Cre) line30 with the floxed-CaSR mice and studied the resulting ^OCNCaSR^{Δflox/Δflox} and control littermates by histomorphometric analyses. We reported previously that the ^OCNCaSR^{Δflox/Δflox} mice developed normally but displayed osteopenic trabeculae in their long bones at 3 months of age.20 Similarly, at day 28 post-fracture, we observed osteopenic calluses, reflected in reduced Cal.BV/TV and Cal.N and increased Cal.Sp (Fig. 5 A), {FIG5} along with reduced mineralizing surface and bone formation rates (Fig. 5 B) and decreased expression osteoblastic markers (Fig. 5 C) in the ^OCNCaSR^{Δflox/Δflox} versus control mice. These data support an important role of OB CaSRs in normal fracture repair.

A novel regimen for skeletal anabolism in fracture calluses by targeting CaSRs

Given the above anabolic actions of CaSRs in callus chondrocytes and OBs, we examined the potential for targeting the CaSR to enhance fracture repair. We first tested the effects of an injectable allosteric CaSR agonist (or calcimimetic), NPS-R568, on serum calcium and phosphorus, as calcimimetics such as cinacalcet are used to treat patients with hypercalcemia and both primary and secondary hyperparathyroidism (HPTH).37 In mice injected once daily with R568 for 4 weeks, this compound did lower serum calcium and phosphate acutely by 3 hours after (Fig. 6 A), {FIG6} raising a concern for using this compound alone to enhance fracture healing. Considering that the acute hypocalcemic effect of R568 parallels the opposite acute hypercalcemic effects of PTH (1-34) (Fig. 6 A), we hypothesized that combining PTH and R568 could mutually offset their effects on serum calcium and concomitantly produce synergistic skeletal anabolism in fracture calluses. Indeed, co-injections of R568 (20 μmol/kg/d) prevented the acute rise in serum [Ca²⁺] in 3-month-old male mice subjected to daily injections of PTH (1-34) up to 40 μg/kg (Fig. 6 A). Likewise, co-injections of 40 μg/kg PTH (1-34) completely abrogated the acute hypocalcemia seen in the mice 3 hours after injection of R568 alone (Fig. 6 A). Interestingly, R568 co-injected with lower doses of PTH (1-34) (10 and 20 μg/kg) actually produced acute mild hyperphosphatemia along with mild hypocalcemia. However, these hyperphosphatemic effects disappeared with the 40 μg/kg PTH (1-34) dose, at which the hypocalcemic effects of R568 (20 μmole/kg) were also completely offset. It appears that the R568 induced opposite effects on phosphate metabolism in the presence of exogenous PTH (1-34) compared with R568 treatment alone. Future studies are needed to delineate the underlying mechanisms.

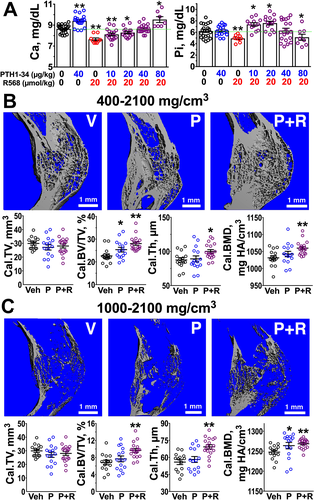

We next compared osteogenic activity in fracture calluses from mice subjected to daily injections of vehicle, PTH (1-34) (40 μg/kg) alone, or the PTH (1-34)/R568 (20 μmol/kg) combination for 4 weeks. Analyses of hard calluses treated with PTH (1-34) alone by μCT with a 400 mg HA/cm³ threshold showed a significant increase in Cal.BV/TV (by ≈12% versus vehicle controls, p < 0.05) but had no significant effects on Cal.Th or mineral density (Cal.BMD) (Fig. 6 B). In contrast, cotreatments with PTH (1-34) and R568 increased Cal.BV/TV by 24% (p < 0.01), Cal.Th by 10% (p < 0.05) and Cal.BMD by 2.5% (p < 0.05) when compared with vehicle controls (Fig. 6 B), indicating more robust osteoanabolism than treatment with PTH (1-34) alone. We reasoned that the increased levels of apparent Cal.Th and Cal.BMD might be due to increasing amount of higher-density bone, considering the role of CaSR in promoting mineralizing functions of OBs (Fig. 5). In support of this idea, μCT analyses of calluses treated with combined PTH (1-34)/R568 using a higher threshold for bone mineral density (1000 to 2100 mg HA/ cm³) showed a larger increase in Cal.BV/TV (by 27% or 13%) and Cal.Th (by 17% or 13%) versus calluses treated with vehicle or PTH (1-34) alone, respectively (Fig. 6 C). These data together indicate that the combined PTH (1-34)/R568 treatment could produce stronger anabolic effects than PTH (1-34) alone in bony calluses without the unwanted calcemic side effects.
