1.1 Background and significance

Natural language processing (NLP) combined with machine learning may add value to suicide documentation research. Supervised machine learning methods use “supervised,” or preclassified data. However, naïve attempts at note retrieval using keyword search alone quickly demonstrate the difficulty of this problem, as words such as “suicide” occur in standard questionnaires which are included in many notes, with few actually documenting suicidality. For instance, in a prior experiment we carried out, we randomly collected 1000 VA notes containing the term “suicidal” or “suicide” from 1000 individual patients and performed manual chart review for affirmed suicidality. Only 1.57% of these notes documented actual suicidality. Patient reluctance to disclose suicidal ideation provides a further complicating factor.¹⁷ As a result, a patient's negative response to a suicide ideation inquiry may not reflect their real feelings or intentions. Additionally, relying on structured data alone will result in incomplete identification of patients who have or are experiencing suicidality, because relevant coding is prone to underuse.⁹ However, not all clinical notes associated with relevant structured data document suicidality. For example, a note documenting a secondary service such as group therapy, or a note documenting fluid intake may not directly document suicidality.

Prior attempts to apply NLP and machine learning are often limited to mental health-oriented notes and may suffer if using imbalanced data. Levis et al.¹⁸ applied sentiment analysis and various machine learning algorithms to classify suicide, using VA psychotherapy notes, yielding area under the curve (AUC) ratings comparable to chance. Fernandes et al.¹⁹ obtained excellent NLP performance in their study of clinical notes from the Clinical Record Initiative Search (CRIS), but performance was computed after removing neutral (non-suicide) results from their machine learning output. Carson et al. enriched notes associated with suicide attempt that were then used to train a random forest model achieving 83% sensitivity, but only 22% specificity.²⁰ Cook et al.²¹ applied a bag-of-words approach with machine learning to identify suicide ideation and psychiatric symptoms using notes for patients identified as having performed self-harm, achieving 61% PPV (positive predictive value), 59% sensitivity, and 60% specificity, with results varying depending on the task. Zhang et al. sought to identify psychological stressors using a preannotated data set of psychiatric evaluation records from the CEGS N-GRID 2016 challenge²² as a gold standard, for a conditional random fields machine learning model,²³ yielding final F scores of 73.91% and 89.01%, respectively, on exact and inexact stressor matching, and 97.73% and 100% respectively, for exact and inexact suicide recognition on instances of the positive keywords with the stressors; however, their evaluation methods for this are not detailed.

Zhong et al. applied structured data and NLP to identify suicidal behavior in pregnant women, achieving PPV of 76% and 30%, for women identified through relevant diagnostic codes and through NLP for women not receiving a relevant diagnostic code, respectively.²⁴ Obeid et al.²⁵ trained a convolutional neural network that achieved an AUC of 0.882 and an F1 score of 0.769 in predicting relevant suicide ICD codes in subsequent years. Using notes from psychiatric encounters, Cusick et al.²⁶ developed a rule-based NLP tool to identify positive instances of suicide-oriented keywords that leveraged NegEx.²⁷ They also developed different weakly supervised machine learning models. A convolutional neural network receiving Word2Vec²⁸ word embeddings as input achieved precision, recall, F1 score, and AUC values of 0.81, 0.83, 0.82, and 0.946, respectively. In a subsequent evaluation, the convolutional neural network correctly classified 87% of the 23 notes (of 5000 clinical notes) receiving a positive classification, from notes for patients diagnosed with depression or prescribed an antidepressant. Recently, Rozova et al. obtained promising results (87% AUC) using a gradient boosting model, although the study was limited to emergency room triage notes.²⁹

Seeking suicidality in all types of clinical notes, among all types of patients, or when hampered by imbalanced data, that is, when there are few positive examples, is indeed a complex task. Some of the methods in the papers cited above tend to suffer from low precision, specificity, and possibly also low sensitivity (recall). Identifying probability thresholds addresses these problems, providing flexibility for a given task. A strategic implementation of a technique like zero-shot learning (ZSL) may provide accurate identification of suicidality in clinical notes.

1.2 ZSL

ZSL enables predictions on unseen data using a model trained on data that has labels that are different than those of the unseen data.^{30, 31} It largely operates by mapping select properties of the data (i.e., the “feature space”) to a semantic representation (i.e., the “semantic space”) that enables prediction of unseen classes.³² In other words, auxiliary information must be provided on the labels of the unseen classes to make it possible for a trained model to recognize them in the testing data.

ZSL has been applied in several computer vision tasks,^33-36 as well as NLP tasks.³⁷ Accordingly, a feature space can consist of data derived from images³⁸ or text.³⁷ The semantic representation can be based on several different approaches, including data attributes, semantic word vectors as those provided by skip-gram or continuous-bag-of-word architectures³² or BERT output,³⁹ or knowledge graphs.³² Examples in NLP applications include semantic utterance classification⁴⁰ multilingual translation⁴¹ and emotion detection.⁴² However, other than Sivarajkumar and Wang's work³⁹ there is little ZSL research in unstructured clinical text data.

1.3 Objectives

We are unaware of previous descriptions of this methodology and to our knowledge it has not been used before this study.

2.1 Ethical approval

This project was carried out in support of the Understanding Suicide Risks among LGBT Veterans in VA Care study, which was approved by the VA Central IRB #01955. No patients were contacted, only data from the EHR database were used.

2.2 Training data

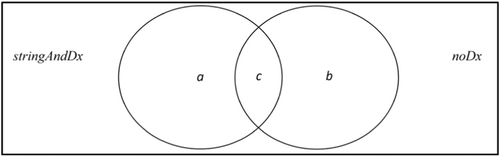

A training data set was created using two corpora. The first corpus consisted of 50,000 randomly selected VA clinical notes from outpatient encounters recorded between 2016 and 2019 which contained the base string “suicid” (e.g., “suicide,” “suicidal”) and were associated with at least one ICD-CM-10⁴³ code identified by the National Health Statistics Report from the Centers for Disease Control and Prevention (CDC) indicating suicide attempt or intentional self-harm.⁴⁴ This corpus is referred to as stringAndDx (9170 unique patients). The second corpus consisted of 50,000 randomly selected VA clinical notes from outpatient encounters recorded between 2016 and 2019 that were associated with other ICD-CM-10 codes that were irrelevant to suicidality or self-harm. These notes were extracted from patients matching the stringAndDx patients in age (at the time of document retrieval), race, and ethnicity. This second corpus is referred to as noDx (8638 unique patients). Each corpus was preprocessed by transforming all letters to lower case, removing basic formatting markup and punctuation, separating character strings into tokens (words), separating relevant concatenated tokens (e.g., “suicidalhomicidal” to “suicidal” ”homicidal”), and removing all tokens that did not entirely consist of letters.

2.3 Semantic space feature extraction and mapping

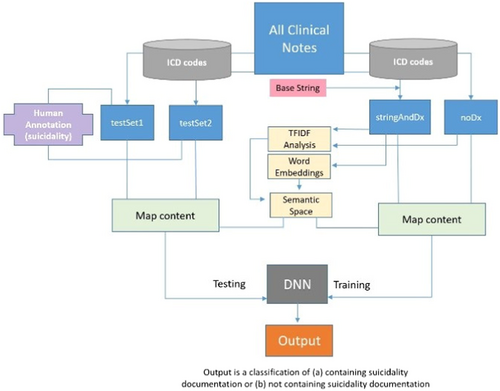

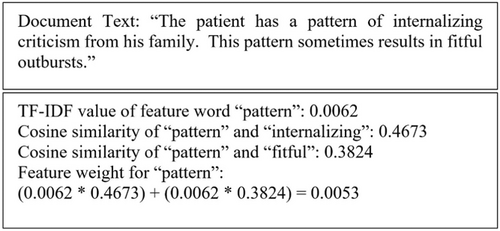

The task to build the semantic space consisted of four steps: First, we identified a list of features that were potentially relevant for the positive training label. Second, word embeddings were created using a skip-gram architecture. Third, we identified context words of the selected features using the word embeddings. In the fourth step, a contextual weight was assigned to each feature for each document in mapping the semantic space to the feature space.

In the second step, we created a Word2Vec model using the stringAndDx corpus. In this study, the model was a shallow neural network with the hidden layer containing 300 nodes, applying the skip-gram architecture, with an analytic window size of 5, trained through 10 iterations.

In the third step, the top m context words for each feature word were identified using the word embeddings from the Word2Vec model. The m words most similar to each feature word, according to cosine similarity values, served as its context words. In this investigation, m = 50.

If a feature word is not in the text, its value is zero for the given document.

2.4 Model development

The authors randomly selected 20,000 documents from each corpus (stringAndDx and noDx). These documents were used to train a DNN model (here referred to as the ZSL DNN) consisting of five fully connected hidden layers of alternating sizes of 30 or 70 nodes, with each layer implementing a dropout rate of 0.5. The Adam optimizer⁴⁵ was implemented, with a learning rate of 0.0012, beta 1 value of 0.92, beta 2 value of 0.9992, and an epsilon value of 1e-08, with binary cross entropy as the loss function, and the sigmoid function in the output layer, since it was a binary classification task. The architecture and hyperparameters were chosen on empirical grounds, after experimentation. Each document from the stringAndDx corpus was classified as “1” (a generic positive instance), and each document from the noDx corpus was classified as “0” (a generic negative instance). These labels do not indicate whether or not the given document directly pertains, or not pertains, to suicidality or its risks, but an association with a structured data element, and for those labeled “1,” also containing a base string. Balancing the training data in this manner (i.e., providing balanced training examples) addressed the problematic issue of otherwise training a model with few positive and many negative instances. We implemented a 60% training, 20% validation, and 20% testing split in developing the ZSL DNN. Figure 3 illustrates the method.

2.5 Evaluation

The authors retrieved 5000 different clinical notes recorded in 2020 that were associated with at least one of the relevant ICD-10-CM codes. This corpus is subsequently labeled as testSet1. The authors also randomly retrieved 5000 different clinical notes recorded in 2020 that were associated with other ICD-10-CM codes irrelevant to suicidality or self-harm. This corpus is subsequently labeled testSet2.

The contents of each of the notes in testSet1 and testSet2 were mapped to the semantic space, that is, deriving a weight for each feature word as described earlier in the fourth step. Then, the trained ZSL DNN was used to classify the notes in testSet1 and testSet2 as (a) containing suicidality documentation, or (b) not containing suicidality documentation.

In joint sessions, two clinical psychologists familiar with VA clinical note documentation together identified suicidality (i.e., current or past suicide ideation or attempt) in 200 notes randomly selected from testSet1 and testSet2 (100 from each test set), after being instructed to look for documentation for these specific events. They addressed differences of opinion through discussion and mutual consensus during the joint sessions. In a second evaluation, to explore how the application's output may serve to identify patients who had experienced or were at risk for suicidality, but never formally diagnosed as such, the clinicians examined the testSet2 notes containing the base string “suicid” that received a probability value of 0.90 or greater from the trained ZSL DNN, for documentation of suicidality and/or its risk factors, according to NIH guidelines.⁴⁶ This threshold was chosen to explore how high-probability documents (i.e., the top 10% in terms of probability) would be representative in identifying documented suicidality or its risk factors with high precision, thus addressing our second question.

3.1 ZSL DNN and baseline DNN performance

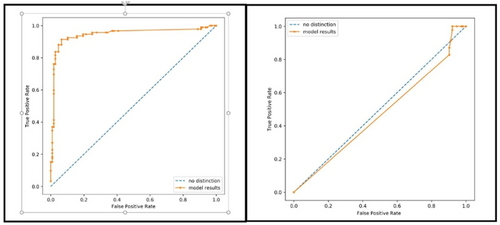

The classifications by the clinicians and the probabilities assigned by the ZSL DNN and the Baseline DNN were first assessed by AUC score. The results are in Table 2 and Figure 4.

In terms of AUC, the ZSL DNN trained through mapping the semantic space to the feature space outperformed the Baseline DNN trained with the bigram bag-of-words features.

The sensitivity, specificity, and PPV results at 0.15, 0.5, and 0.85 probability thresholds for each DNN are in Tables 3–5. Probability refers to the probability the DNN assigned to each note for positive suicidality documentation. We applied the median probability (0.1499, rounded) assigned by the ZSL DNN to the testSet2 documents (the test set containing random notes associated with irrelevant ICD-10-CM codes) in forming minimum and maximum thresholds; 0.5 is a standard midpoint probability threshold. The combined scores in these tables were computed with all true positives, true negatives, false positives, and false negatives for both test sets, for the indicated metrics. Values of NaN (not a number) occurred where there were no true positives or false positives.

The ZSL DNN outperformed the Baseline DNN in most metrics at all probability thresholds.

3.2 Second evaluation

Of these 16 clinical notes (associated with 16 different patients), seven documented current or past suicide ideation or attempt. Eight of the remaining notes included one or more risk factors for suicide (nearly all included multiple risk factors). In all, 15 of the 16 notes contained documentation of current or past suicide ideation or attempt, and/or suicide risk factors, for patients who had never received a suicidality ICD-10-CM code diagnosis during the study period, achieving a PPV of 93.8%.

4.1 Semantic space

In this work, the semantic space development is framed as feature extraction where mapping is enhanced by attaching weights to features found in the data, an approach also used in computer vision ZSL.⁴⁷ The semantic space captures natural data properties by identifying salient terms and relevant contextual terms in collective clinical suicidality documentation (i.e., a corpus of notes associated with relevant ICD codes). Table 1 lists 30 prominent feature words associated with collective suicidality documentation after removing terms associated with other kinds of documents. There is an intuitive sense to these words; “flag” is found in the phrase “high risk for suicide flag”; “overdose” and “cut” refer to suicide methods; “pills” and “gun” refer to suicide instruments. Identifying terms contextually similar to these provides patterns in relevant documentation. Again, this has an intuitive logic. The most contextually similar terms to “flag” include “reactivate” and “deactivate” (for a high suicide risk flag) and “high” (the level of risk). The most contextually similar terms to “pills” include “handful,” “fistfuls,” and “bunch,” implying large quantities, along with “overdosing” and “took,” the associated actions. The feature word “spc” indicates VA's suicide prevention coordinators, which is a structural change that VA implemented for suicide prevention.¹⁰ Concordantly, “police” and “lcsw” (i.e., licensed clinical social worker) refer to other professions highly associated with individuals at risk for suicide. For example, police may be activated for a rescue, and a licensed clinical social worker may be involved in treatment planning or referral connections for suicidal individuals. The feature words “prf” and “sdv” refer to “patient record flag” and “self-directed violence,” respectively. The semantic space provided an efficient representation for effective mapping to the feature space.

4.2 Data retrieval and model training

Using associated structured data elements like ICD-10-CM codes, and a base string provides a means to locate equally sized corpora for training that could be generically labeled “0” or “1.” These labels were primarily based on a structured data association, since their individual unstructured content was mostly unknown. This approach solves the issue of imbalanced training data. The predominant clinical note types (Appendix) also illustrate this. Most of the frequent note types associated with one of the relevant CDC ICD-10-CM codes and containing the base string are relevant to suicidality. Addendum is a common note type⁴⁸ associated with many domains.⁴⁹ The most frequent note types not associated with a relevant code resemble frequencies of all note types in the VA.⁴⁸

4.3 Identifying suicidality documentation

To our knowledge, this method has not been applied in other studies. Unlike VA surveillance methods using structured data, it also leverages information found in EHR notes. Also, unlike other NLP methods^{18, 20, 21, 23, 24, 26, 29, 50} it can be applied to all patients and note types. In other studies, a bag-of-words approach has been applied to suicidality identification and other machine-learning tasks.^{21, 51, 52} However, the results of this current study suggest that the complexity of suicidality documentation demands a more targeted approach.

This method could complement existing measures like SPAN, alerting suicide prevention coordinators of additional patients at risk. The results of the two clinical psychologists' evaluations demonstrate the method's efficiency in identifying suicidality documentation for documents where there is no relevant ICD-10-CM code. The performance on both test sets demonstrates the methodology's effectiveness in classifying notes that are mixed in terms of ICD-10-CM coding.

Tables 3–5 suggest that the probability threshold can be adjusted to suit a specific task like finding suicidality and its risk factors with high precision among notes not associated with a relevant ICD-10-CM code. This is especially true considering the small prevalence of suicidality documentation in clinical notes. The second evaluation (which yielded 93.8% PPV) demonstrates this. By applying a high probability threshold of 0.90 to all 5000 testSet2 documents and focusing on clinical notes containing the base string, of the 16 documents (for 16 different patients), 94% contained suicidality and/or suicidality risk factor documentation, based on clinician review. These results exceed those of Cusick et al.'s²⁶ similar task, where 87% of notes were correctly classified, among notes for patients diagnosed with depression or prescribed an antidepressant. In this current study's second evaluation, none of the 16 patients identified had ever received a suicide ICD-10-CM code during the study's time period. It is impossible to know if the patients in the 8 notes simply containing documented risk factors were suicidal or not based solely on EHRs. Suicidal patients sometimes deny suicide ideation or attempt.^{53, 54} For example, in one note from the chart review associated with a relevant ICD-10-CM code, the patient reportedly denied suicide ideation, even after checking into the hospital hours earlier for a self-reported suicide attempt.

4.4 Future work

This work is part of a larger study of patients at risk for suicide.⁵⁵ The next step is to combine these findings with prior work. We also plan an analysis of patients from first suicide ideation or attempt documented in the VA system, to understand their evolution of care.

4.5 Limitations

VHA data largely cover a population of older men. However, the amount of women and younger patients is increasing, thus also increasing the generalizability of these findings. The corpora retrieval method we used to train the ZSL DNN is dependent on clinicians' use of the relevant ICD-10-CM codes in documenting care, which may be prone to underuse.⁹ However, the results of this study indicate the method's utility. Due to environmental computational limitations, we randomly selected 20,000 notes from the stringAndDx corpus, and 20,000 notes from the noDx corpus for training the ZSL DNN.
