HepaRG cells: A human model to study mechanisms of acetaminophen hepatotoxicity

Mitchell R. McGill

Mitchell R. McGill

Department of Pharmacology, Toxicology and Therapeutics, University of Kansas Medical Center, Kansas City, KS

*These authors contributed equally to this study.

Search for more papers by this author
Hui-Min Yan

Hui-Min Yan

Department of Pharmacology, Toxicology and Therapeutics, University of Kansas Medical Center, Kansas City, KS

*These authors contributed equally to this study.

Search for more papers by this author
Anup Ramachandran

Anup Ramachandran

Department of Pharmacology, Toxicology and Therapeutics, University of Kansas Medical Center, Kansas City, KS

Search for more papers by this author
Gordon J. Murray

Gordon J. Murray

Center for Human Toxicology, University of Utah, Salt Lake City, UT

Search for more papers by this author
Douglas E. Rollins

Douglas E. Rollins

Center for Human Toxicology, University of Utah, Salt Lake City, UT

Search for more papers by this author
Hartmut Jaeschke

Corresponding Author

Hartmut Jaeschke

Department of Pharmacology, Toxicology and Therapeutics, University of Kansas Medical Center, Kansas City, KS

fax (913) 588-7501

Department of Pharmacology, Toxicology & Therapeutics, University of Kansas Medical Center, 3901 Rainbow Blvd., MS 1018, Kansas City, KS 66160===Search for more papers by this author
First published: 17 December 2010
Citations: 247

Potential conflict of interest: Nothing to report.

Supported in part by National Institutes of Health Grants R01 DK070195 and R01 AA12916, and by grants P20 RR016475 and P20 RR 021940 from the National Center for Research Resources (NCRR), a component of the National Institutes of Health. HepaRG cells were provided by Biopredic, Intl. (Rennes, France). The analysis of APAP protein adducts was supported by a grant from McNeil Consumer Healthcare, Fort Washington, PA.

Abstract

Acetaminophen (APAP) overdose is the leading cause of acute liver failure in Western countries. In the last four decades much progress has been made in our understanding of APAP-induced liver injury through rodent studies. However, some differences exist in the time course of injury between rodents and humans. To study the mechanism of APAP hepatotoxicity in humans, a human-relevant in vitro system is needed. Here we present evidence that the cell line HepaRG is a useful human model for the study of APAP-induced liver injury. Exposure of HepaRG cells to APAP at several concentrations resulted in glutathione depletion, APAP-protein adduct formation, mitochondrial oxidant stress and peroxynitrite formation, mitochondrial dysfunction (assessed by JC-1 fluorescence), and lactate dehydrogenase (LDH) release. Importantly, the time course of LDH release resembled the increase in plasma aminotransferase activity seen in humans following APAP overdose. Based on propidium iodide uptake and cell morphology, the majority of the injury occurred within clusters of hepatocyte-like cells. The progression of injury in these cells involved mitochondrial reactive oxygen and reactive nitrogen formation. APAP did not increase caspase activity above untreated control values and a pancaspase inhibitor did not protect against APAP-induced cell injury. Conclusion: These data suggest that key mechanistic features of APAP-induced cell death are the same in human HepaRG cells, rodent in vivo models, and primary cultured mouse hepatocytes. Thus, HepaRG cells are a useful model to study mechanisms of APAP hepatotoxicity in humans. (HEPATOLOGY 2011)

Acetaminophen (APAP) is a widely used over-the-counter analgesic and antipyretic drug and is a common component of opioid-containing prescription formulations. Although safe at therapeutic levels, overdose of APAP causes liver injury and is the foremost cause of acute liver failure in the US and the UK.1 At therapeutic doses, >90% of the drug is glucuronidated or sulfated in the liver and subsequently excreted. The remainder is metabolized by cytochromes P450 (CYP450) to the electrophilic intermediate N-acetyl-p-benzoquinoneimine (NAPQI), which can be neutralized by conjugation with glutathione.2 However, after an overdose of APAP, formation of NAPQI exceeds the detoxification capacity of glutathione, resulting in covalent binding to cellular proteins.3 Although the overall protein binding caused by an overdose of APAP or its isomer 3′-hydroxyacetanilide is similar and many adducted proteins have been identified, toxicity only occurred with APAP, which shows greater binding to mitochondrial proteins.3-6 The subsequent mitochondrial dysfunction leads to inhibition of mitochondrial respiration,7 ATP depletion,8 and formation of reactive oxygen8 and peroxynitrite9 (ROS and RNS) inside mitochondria. The oxidant stress is involved in activation of the c-jun-N-terminal kinase (JNK) pathway10 and eventually triggers the opening of the mitochondrial membrane permeability transition (MPT) pore,11 resulting in collapse of the mitochondrial membrane potential.11, 12 Mitochondrial matrix swelling and rupture of the outer membrane causes the release of intermembrane proteins including cytochrome c, endonuclease G, and apoptosis-inducing factor (AIF).13 Only endonuclease G and AIF translocate to the nucleus and induce DNA fragmentation.14 The severe impairment of aerobic energy metabolism, massive ATP depletion, and nuclear DNA damage result in necrotic cell death.15 Despite the release of cytochrome c from mitochondria, no significant activation of caspases has been detected and apoptosis contributes less than 5% to the overall injury in mice.15-17

Most of our present knowledge of APAP hepatotoxicity has been learned from rodent studies in vivo and in primary culture.2, 13 However, notable differences exist in the time course of injury between rodents and humans. In particular, increased aminotransferase activity can be detected in rodent plasma within 2-6 hours of administration of a toxic dose of APAP, with peak activity achieved around 12 hours.18 In humans, increased plasma enzyme activity is rarely observed before 12-24 hours following ingestion and does not peak until 48-72 hours.19 Although such differences between humans and rodents may be mainly due to species differences in metabolic rate and body size, mechanistic dissimilarities cannot be completely ruled out.

In order to bridge this gap between rodents and humans, a human in vitro system is needed. Primary human hepatocytes as the gold standard have major drawbacks. The availability of these cells is limited, and due to significant differences in donor background they can vary considerably in drug response. Moreover, primary human hepatocytes have a limited lifespan, undergoing phenotypic changes and displaying highly variable CYP450 expression as a function of time in culture. In contrast, most hepatoma cell lines are very stable, available in large quantities, and easy to work with. Unfortunately, the majority do not express the CYP450 enzymes necessary for metabolism of drugs and are therefore not useful for studies of drug toxicity.20, 21

HepaRG cells were recently isolated and cultured from a hepatoma in a female patient with cirrhosis subsequent to hepatitis C virus infection (HCV).22 HepaRG cells are bipotent progenitors. Upon differentiation, two morphologically distinct populations become apparent: hepatocyte-like cells and biliary epithelial-like cells.23, 24 Several studies have demonstrated high expression and activity of xenobiotic metabolizing enzymes in this cell line, comparable to primary human hepatocytes, suggesting their use in drug studies.25, 26 However, detailed investigations into the mechanisms of drug toxicities have not been performed with this cell line. Therefore, the objective of the current investigation was to assess the value of HepaRG cells as a human system to study APAP hepatotoxicity and to determine if mechanisms of cell death observed in primary mouse hepatocytes are applicable to human hepatocytes.

Abbreviations

APAP, acetaminophen; CYP450, cytochrome P450; DHR, dihydrorhodamine; GSH, glutathione; GSSG, glutathione disulfide; LDH, lactate dehydrogenase; NAC, N-acetylcysteine; NAPQI, N-acetyl-p-benzoquinone imine; PI, propidium iodide; RNS, reactive nitrogen species; ROS, reactive oxygen species.

Materials and Methods

Cell Culture.

HepaRG cells were obtained from Biopredic International (Rennes, France). The cells were seeded at 1 × 105 undifferentiated cells/cm2 in hepatocyte wash medium (Invitrogen, Carlsbad, CA) containing additives for growth (Biopredic). The cells were cultured at 37°C with 21% O2 and 5% CO2 for 14 days before differentiation. Medium was renewed every 3 days. Cell differentiation was induced as described.22 The cells were maintained up to 4 weeks after differentiation for use. HepG2 cells were grown to 90% confluence in dimethyl sulfoxide (DMSO)-free Williams' E Medium containing penicillin/streptomycin, insulin, and 10% fetal bovine serum (FBS). For APAP treatment, HepaRG or HepG2 cells were washed with phosphate-buffered saline (PBS) and changed to DMSO-free medium containing the desired concentration of APAP. For caspase inhibition, some cells were pretreated for 1 hour with medium containing 20 μM Z-VD-fmk (generous gift from Dr. S.X. Cai, Epicept, San Diego, CA), then changed to medium containing 20 μM Z-VD-fmk and 20 mM APAP. As a positive control for caspase activation, some cells were treated for 16.5 hours with 5 mM galactosamine and 100 ng/mL recombinant human tumor necrosis factor (rhTNFα) (Genzyme, Cambridge, MA). HepaRG cells were used at passages 18, 19, and 20. Within this range, no variation in glutathione (GSH) depletion or in the kinetics of injury was observed after APAP exposure, suggesting no relevant change in CYP expression or activity between these passages.

Analysis of APAP Protein Adducts.

After protease digestion, APAP-cysteine (APAP-CYS) adducts were measured in cells and in the culture medium by liquid chromatography dual mass spectrometry (LC-MS/MS) as described in detail in the Supporting Material.

Biochemical Analyses.

Cell death was assessed by lactate dehydrogenase (LDH) release, as described in detail.12 LDH release is a more sensitive parameter of cell death because HepaRG cells contain only low levels of alanine aminotransferase activity. The JC-1 Mitochondrial Membrane Potential Kit (Cell Technology, Mountain View, CA) was used according to the manufacturer's instructions.12 Cellular glutathione was measured using a modified Tietze assay, as described.27 For measurement of mitochondrial ROS generation, HepaRG cells were seeded on glass bottom dishes and ROS and peroxynitrite generation was measured using Mitosox Red and dihydrorhodamine, respectively, as described.28 Caspase activity based on Z-VAD-fmk inhibitable Ac-DEVD-AMC fluorescence was measured as described.29

Propidium Iodide (PI) Staining.

Cells were seeded on glass bottom dishes and treated with APAP and 30 μM PI in DMSO-free, phenol red-free Williams' E Medium with penicillin/streptomycin and 10% FBS. At various timepoints the live cells were imaged on a Zeiss Axiovert inverted fluorescence microscope through a Texas Red filter to assess PI uptake. All fluorescence images were taken at the same exposure and later superimposed on phase contrast images of the same fields using ImageJ software.

Statistics.

All results are expressed as mean ± standard error (SE). Comparisons between multiple groups were performed with one-way analysis of variance (ANOVA) followed by a post-hoc Bonferroni test. If the data were not normally distributed, we used the Kruskal-Wallis Test (nonparametric ANOVA) followed by Dunn's Multiple Comparisons Test; P < 0.05 was considered significant.

Results

The first event in the pathogenesis of APAP hepatotoxicity in rodents is metabolism of the drug to the reactive intermediate NAPQI, which can bind to and deplete glutathione. To verify metabolism of APAP in this model, differentiated HepaRG cells were treated with 20 mM APAP and the GSH content of the cells was measured at various timepoints. Significant glutathione depletion (16% decrease from baseline) could be detected as early as 3 hours, with only 26% of control GSH levels remaining at 24 hours (Fig. 1A). Measurement of APAP-protein adducts in these cells showed a significant increase as early as 1 hour, peak levels at 6 hours, and a gradual decline during the subsequent 18 hours (Fig. 1B). Protein adducts in culture medium were only detected at 12 hours (4.38 ± 0.20 ng/ml) and 24 hours (24.38 ± 1.05 ng/ml), which correlated with the decline in cellular adduct levels at these timepoints. These results indicate that protein adducts were formed well before cellular GSH levels were exhausted.

Details are in the caption following the image

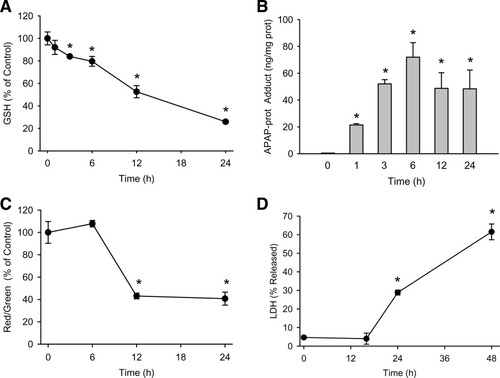

Time course of APAP toxicity in HepaRG cells. Confluent cells were treated with 20 mM APAP and GSH, APAP-protein adducts, JC-1 fluorescence, and LDH release were measured as described in Materials and Methods. (A) Glutathione content before and 1-24 hours after treatment with APAP. (B) APAP-protein adducts before and 1-24 hours after APAP treatment. (C) Ratio of red to green fluorescence of the JC-1 dye before and 6-24 hours after APAP treatment. (D) Percentage of total LDH activity found in culture medium before and 15-48 hours after APAP treatment. Data are expressed as mean ± SE of 3-6 independent cell preparations. *P < 0.05 (compared to time 0).

To explore the role of mitochondrial dysfunction after APAP exposure in HepaRG cells, we examined mitochondrial integrity using the JC-1 assay. In healthy cells the dye preferentially localizes to mitochondria, where it forms aggregates which fluoresce red. When the mitochondrial membrane potential collapses (e.g., after the membrane permeability transition), the dye can diffuse into the cytosol in monomeric form which fluoresces green. Thus, the ratio of red to green fluorescence reflects mitochondrial membrane integrity. HepaRG cells showed a significant decrease in red/green fluorescence by 12 hours in the presence of 20 mM APAP, which persisted to at least 24 hours (Fig. 1C). As an indicator of cell death, LDH activity was measured in cell lysate and in culture medium. LDH release into the culture medium was not observed up to 15 hours with 20 mM APAP (Fig. 1D). However, a significant increase was found at 24 hours (29%), and this continued to rise until at least 48 hours, reaching 62% (Fig. 1D). Notably, all four parameters discussed (GSH levels, protein adducts, JC-1 fluorescence, and LDH release) exhibited a clear concentration-response (Fig. 2).

Details are in the caption following the image

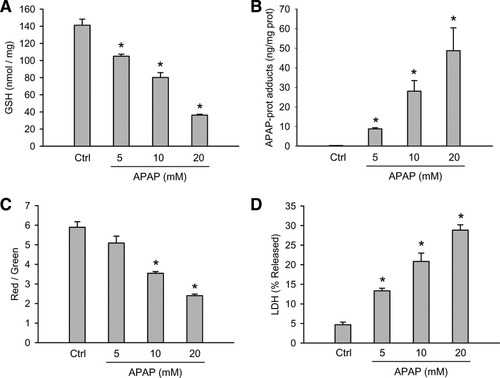

Dose-response for APAP toxicity in HepaRG cells. Confluent cells were treated with various concentrations of APAP and GSH, APAP-protein adducts, JC-1 fluorescence, and LDH release were measured before and 24 hours after APAP treatment (0-20 mM) as described in Materials and Methods. (A) Cellular glutathione content, (B) APAP-protein adducts, (C) ratio of red to green fluorescence of the JC-1 assay, (D) percentage of total LDH activity found in culture medium. Data are expressed as mean ± SE of 3-4 independent cell preparations. *P < 0.05 (compared to controls).

To test for mitochondrial ROS in HepaRG cells, cultures were treated with 20 mM APAP and Mitosox Red fluorescence was evaluated. It has been suggested that Mitosox Red detects mainly mitochondrial superoxide.30 Compared to control cells there was a clear increase in Mitosox Red fluorescence 6 hours after APAP (Fig. 3), which was the timepoint with the highest fluorescence (data not shown). Higher magnification (inserts) shows the punctate fluorescence characteristic of mitochondrial staining (Fig. 3). Merging the Mitosox Red fluorescence with phase contrast images demonstrates that the oxidant stress occurred only in hepatocytes (Fig. 3).

Details are in the caption following the image

Mitochondrial reactive oxygen species generation after APAP exposure in HepaRG cells. Confluent HepaRG cells were treated with 20 mM APAP as described in Materials and Methods. Six hours following APAP, cells were loaded with Mitosox Red and live cell imaging carried out. The top panels show MitoSOX fluorescence in control and APAP treated cells (400×), with the boxed areas digitally magnified in the inserts to demonstrate mitochondrial localization of the signal. The bottom panel is a merge of fluorescence and phase contrast images to demonstrate that the majority of MitoSOX signal is from hepatocytes.

In rodents, RNS such as peroxynitrite are critically involved in the injury mechanism after APAP overdose.18, 31 Dihydrorhodamine (DHR) fluorescence can serve as a marker of peroxynitrite in biological systems.32 The compound is taken up into cells, where it can react with intracellular RNS resulting in formation of the fluorescent rhodamine. To investigate RNS formation in HepaRG cells, DHR fluorescence was measured at several timepoints during exposure to APAP. Rhodamine fluorescence was much more intense than untreated controls at 6 and 12 hours post-APAP (Fig. 4A-C). Similar to rodent hepatocytes,28 rhodamine fluorescence peaked in HepaRG cells (12 hours) after the peak of Mitosox Red fluorescence (Fig. 4A-C).

Details are in the caption following the image

Reactive oxygen and reactive nitrogen species and cell type-specific death after APAP. (A-C) HepaRG cells were treated with 20 mM APAP. At various timepoints the cells were washed and loaded with 10 μM dihydrorhodamine (DHR) and 300 nM DAPI for imaging. Merged images showing DAPI (blue) and DHR (green) fluorescence at 0, 6, and 12 hours. (D-F) HepaRG cells were cotreated with 20 mM APAP and 30 μM propidium iodide in phenol red-free medium and imaged at 24 hours. (D) Phase contrast, (E) PI fluorescence, and (F) merged images of cells 24 hours after APAP treatment. Images A-C: 200× Images D-F: 100×.

HepaRG cells are bipotent progenitors that differentiate into two morphologically distinct cell populations.23, 24 The hepatocyte-like cells have a characteristic granular appearance and grow in small clusters or “hepatocyte islands” (Figs. 3, 4D). Surrounding these islands are flatter, clearer biliary epithelial-like cells (Figs. 3, 4D). To assess the contribution of each cell type to our data showing APAP toxicity, APAP-treated cells were exposed to PI, which stains nuclei of necrotic cells red (Fig. 4E,F). At 24 hours the majority of the PI staining was seen in the hepatocyte-like cells, with very little among the biliary epithelial-like cells (Fig. 4E,F). The distribution was similar at 48 hours (data not shown). This suggests that APAP mainly affects the hepatocytes. Together, these data indicate that—similar to rodent hepatocytes—cell death in human HepaRG cells is preceded by GSH depletion, protein binding, formation of reactive oxygen and peroxynitrite, and mitochondrial dysfunction.

To compare HepaRG cells with other hepatoma cell lines, APAP toxicity was evaluated in HepG2 cells. HepG2 cells treated with 20 mM APAP for 24 hours showed no evidence of GSH depletion, mitochondrial dysfunction (JC-1 assay), or cell injury (LDH release) in response to the toxic dose of APAP (Table 1). However, low levels of protein adducts were identified despite the absence of toxicity (Table 1). Thus, the near absence of drug-metabolizing enzymes drastically reduced the metabolic activation of APAP and prevented any toxicity in HepG2 cells.

Table 1. APAP Toxicity in HepG2 Cells
Treatment GSH + GSSG (nmol/mg protein) JC-1 Red/Green LDH Released (% of total) APAP-Prot. Adducts (ng/mg protein)
Controls 98.5 ± 12.0 4.38 ± 1.0 5.9 ± 2.0 ND
20 mM APAP 90.8 ± 11.0 4.43 ± 0.1 10.3 ± 3.0 3.9 ± 0.8
  • HepG2 cells were grown to 90% confluence and treated with 20 mM APAP for 24 hours. Total glutathione (GSH+GSSG) content, mitochondrial function (JC-1 assay), LDH release, and APAP-protein adducts were measured as described in Materials and Methods. Values represent mean ± SE (n=3 experiments). ND, not detectable.

Loss of mitochondrial membrane integrity can result in the release of proapoptotic proteins, including the caspase activator cytochrome c, into the cytosol. To determine whether or not APAP toxicity in HepaRG cells involves apoptosis, caspase-3 activity was measured in lysates of cells treated for 24 hours with APAP. There was no significant increase in caspase activity over control with 20 (Fig. 5A), 5, or 10 mM APAP (data not shown). In addition, the potent pan-caspase inhibitor Z-VD-fmk had no effect on APAP-induced LDH release at 24 hours (Fig. 5B), suggesting that APAP did not cause apoptosis in HepaRG cells. In contrast, caspase activity was significantly increased when cells were exposed to 100 ng/mL human TNF alpha (rhTNFα) and 5 mM galactosamine for 16.5 hours as a positive control (Fig. 5A). The caspase inhibitor prevented the increase in caspase activity after G/TNF. This indicates that HepaRG cells do have the capacity to undergo apoptotic cell death in response to an appropriate stimulus.

Details are in the caption following the image

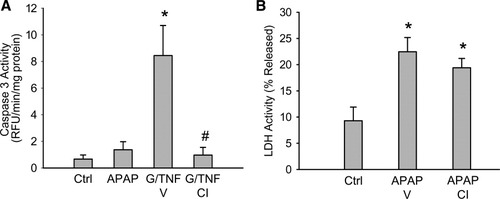

Effect of a pan-caspase inhibitor on APAP toxicity in HepaRG cells. (A) Caspase-3 activity was measured in cell lysates of untreated cells or 24 hours after APAP treatment (20 mM). As positive control, cells were treated with galactosamine and recombinant human TNF for 16.5 hours in the presence or absence of vehicle (Tris-buffer) or the pan-caspase inhibitor (CI) Z-VD-fmk (20 μM). (B) LDH release in untreated cells or 24 hours after APAP treatment. Some cells were pretreated for 1 hour with vehicle or CI before addition of 20 mM APAP. Data are expressed as mean ± SE for four independent cell preparations. *P < 0.05 (compared to Ctrl) #P < 0.05 (compared to APAP or G/TNF).

Discussion

HepaRG Cells as a Tool to Study Hepatotoxicity.

The objective of this study was to assess the value of HepaRG cells as a model to investigate mechanisms of APAP toxicity in a human system and to determine if certain key features of toxicity observed in rodents apply to this cell line. Our data suggest that APAP treatment leads to GSH depletion, protein adduct formation, mitochondrial dysfunction, and oxidant stress and eventually oncotic necrosis in HepaRG cells, similar to what has been observed in primary mouse hepatocytes but not in typical human hepatoma cells. The basis for this behavior is that HepaRG cells are capable of differentiating into two subpopulations: one with hepatocyte-like morphology and gene expression and one with the appearance of biliary epithelial cells.22, 24 The hepatocyte-like cells express a nearly complete complement of drug-metabolizing enzymes, including most of the cytochrome P450 enzymes.25, 26 HepaRG cells also possess many other characteristics unique to adult differentiated hepatocytes, including hepatocyte-specific transporter expression,25, 33 iron-loading capacity,34 and inducibility of CYPs and other proteins.33, 35 Thus, these cells have the potential to be a useful tool to study mechanisms of drug hepatotoxicity in a human system. The distinct advantage of the HepaRG cell line over primary human hepatocytes is the unlimited availability of identical cells. Nevertheless, they are hepatoma-derived and there is the possibility that certain intracellular signaling mechanisms might be different. It is therefore important to study mechanisms of cell death induced by known hepatotoxicants in these cells.

Mechanisms of APAP-Induced Liver Injury.

Acetaminophen hepatotoxicity in rodents depends on the formation of the reactive metabolite NAPQI, which can be detoxified by glutathione. However, after depletion of GSH in the cell, NAPQI binds to cellular proteins, which is considered the initiating event in the toxicity.2, 36 Our experiments with HepaRG cells identified depletion of cellular GSH and the formation of protein adducts as the earliest detectable events. This is consistent with mouse studies of APAP hepatotoxicity.18, 37 Evidence for increased GSH turnover and detection of APAP-protein adducts in human plasma after APAP exposure suggests that these events also occur in humans.38, 39 Although our data agree with the general hypothesis of reactive metabolite formation, GSH depletion and protein adduct formation as early response to APAP exposure, the sequence of events is not as previously assumed. Our data clearly show that protein adduct formation occurs parallel to GSH consumption and does not require extensive GSH depletion. In fact, protein adducts were detected in HepaRG cells and in HepG2 cells before significant effects on GSH levels and well before any evidence of mitochondrial dysfunction and cell death. This suggests that small amounts of protein binding per se does not initiate toxicity and probably a certain level needs to be reached to trigger the early mitochondrial effects.

More recently, mitochondrial dysfunction and the MPT have emerged as central to the mechanism of APAP-induced cell death in cultured rodent hepatocytes10-12 and in vivo.8, 9, 18 Consistent with this, APAP triggered mitochondrial dysfunction in HepaRG cells (indicated by JC-1 fluorescence) before cell death (LDH release). In addition, mitochondrial oxidant stress with peroxynitrite formation is a hallmark of the mechanism of APAP-induced injury in rodents8, 9, 31 and is critically involved in the MPT pore opening and cell death.40 Similar evidence for mitochondrial oxidant stress (MitoSox Red) and peroxynitrite (DHR) was detected in the HepaRG cells before massive mitochondrial dysfunction and cell death. Although the specificity of fluorescence dyes is sometimes questioned, DHR can be directly oxidized by peroxynitrite but not by reactive oxygen without a catalyst41 and DHR fluorescence has been used as an indicator for peroxynitrite in cell culture.32 Consistent with these findings, we showed the correlation between nitrotyrosine protein adducts and DHR fluorescence as indicators for peroxynitrite formation in mouse hepatocytes.28 Thus, the mechanisms of APAP-induced cell death in human HepaRG cells is similar to rodent hepatocytes, involving reactive metabolite formation with GSH depletion, protein adduct formation, mitochondrial oxidant stress and peroxynitrite formation, and loss of the mitochondrial membrane potential (MPT) before cell death (LDH release, PI uptake). Interestingly, however, the time course of cell death resembles more closely what is observed in humans. The discussed events appear to occur almost exclusively in the hepatocyte-like cells as markers of oxidant stress and cell death (PI staining) were only observed in hepatocytes but not in the biliary epithelial-like cells. The fact that none of the events (except very minor protein adduct formation) including cell death are observed in HepG2 cells, which lack relevant P450 activity, indicates that HepaRG cells are a suitable human model to study drug hepatotoxicity that is dependent on metabolic activation.

A limitation of HepaRG cells as with other cultured cells is the absence of nonparenchymal cells. Although the majority of experimental evidence argues against direct cytotoxicity of Kupffer cells, infiltrating neutrophils, and macrophages in this model, cytokines derived from nonparenchymal cells may modulate the intracellular signaling mechanisms and this limitation needs to be kept in mind when extrapolating these data to the in vivo situation.42

Mode of APAP-Induced Cell Death.

It is generally accepted that the mode of cell death in APAP hepatotoxicity in primary mouse hepatocytes and in vivo is oncotic necrosis.11, 15 Our findings in HepaRG cells indicate that there is no significant caspase activation and a potent pancaspase inhibitor did not prevent APAP-induced cell injury. In addition, loss of cell viability correlated with PI uptake and LDH release, both of which are indicators of necrotic cell death. In contrast, exposure of HepaRG cells to galactosamine/rhTNF-α, a well-established system of TNF-mediated apoptosis, induced substantial caspase activation, which was inhibited by the caspase inhibitor. This demonstrated that HepaRG cells have the capability to undergo apoptosis when appropriately stimulated. However, APAP exposure was not able to induce caspases and apoptotic cell death in these cells. The absence of apoptosis in human HepaRG cells is consistent with a case report on APAP overdose where no markers of apoptosis were detectable in plasma.43

In summary, our data indicate that APAP overdose causes necrotic cell death in HepaRG cells. The hepatocyte-like cells but not the biliary epithelial cell-like cells are primarily affected. The sequence of cellular events include GSH depletion, APAP-protein adduct formation, oxidant stress and peroxynitrite generation, loss of the mitochondrial membrane potential, and ultimately necrotic cell death. Thus, these mechanisms of APAP-induced cell death are the same as were reported for mouse hepatocytes and mouse liver in vivo. In addition, APAP-induced cell death in HepaRG cells follows a time course similar to that in humans and all intracellular events are also consistent with the limited mechanistic observations in humans. Therefore, we conclude that HepaRG cells are a reliable and useful model to study mechanisms of APAP hepatotoxicity and possibly other drugs in a human system.
