Hepatocyte expression of serum response factor is essential for liver function, hepatocyte proliferation and survival, and postnatal body growth in mice†
Potential conflict of interest: Nothing to report.
Abstract
Serum response factor (SRF) is a transcription factor that binds to a CarG box motif within the serum response element of genes that are expressed in response to mitogens. SRF plays essential roles in muscle and nervous system development; however, little is known about the role of SRF during liver growth and function. To examine the function of SRF in the liver, we generated mice in which the Srf gene was specifically disrupted in hepatocytes. The survival of mice lacking hepatic SRF activity was lower than that of control mice; moreover, surviving mutant mice had lower blood glucose and triglyceride levels compared with control mice. In addition, SrfloxP/loxPAlfpCre mice were smaller and had severely depressed levels of serum insulin-like growth factor 1 (IGF-1). Srf-deficient livers were also smaller than control livers, and liver cell proliferation and viability were compromised. Gene array analysis of SRF depleted livers revealed a reduction in many messenger RNAs, including those encoding components of the growth hormone/IGF-1 pathway, cyclins, several metabolic regulators, and cytochrome p450 enzymes. Conclusion: SRF is essential for hepatocyte proliferation and survival, liver function, and control of postnatal body growth by regulating hepatocyte gene expression. (HEPATOLOGY 2009.)
Serum response factor is a transcription factor that regulates immediate-early and muscle gene expression.1 It belongs to the MADS-box family of transcription factors that possess an N-terminal motif capable of binding CArG box elements within target promoters.2, 3 Although serum response factor (SRF) is widely expressed, its abundance varies between cell types. For example, it is highly expressed in skeletal and cardiac muscle, whereas expression in the brain, liver, lung, and spleen is relatively lower.4
SRF plays a key role in activating immediate early genes, including c-fos, egr-1, and jun-B in response to mitogenic signals.3, 5-8 Activation of immediate-early genes in quiescent cells following the addition of serum is important for cells to exit G0 and re-enter the G1 phase of the cell cycle. When anti-SRF antibody was introduced into quiescent rat embryonic fibroblasts, it abolished serum-stimulated c-fos induction and suppressed DNA synthesis.9, 10 More recently, SRF was found to act downstream of phosphoinositide 3-kinase signaling and to be required for phosphoinositide 3-kinase–induced cell proliferation.11 SRF activity, therefore, appears to be necessary for growth factor–mediated cell cycle progression.
SRF is also essential for mesoderm formation during gastrulation and is required for the function of multiple tissues and organs.12, 13 Conditional loss-of-function of SRF in the mouse heart causes defects in cardiac trabeculation, compact layer expansion, and sarcomere assembly, and loss of SRF in cultured cardiac myocytes disrupts the structure of the contractile apparatus.14-17 Deletion of SRF in skeletal muscle also causes severe hypoplasia, and mutant mice die during the perinatal period.18 In addition to its roles in normal muscle growth and function, SRF is important in regulating neuronal migration and synaptic plasticity.19, 20
While SRF function has been intensely studied in muscle and the nervous system, little is known about the contribution of SRF to hepatic growth and function. Although relatively low levels of Srf messenger RNA (mRNA) are expressed in the adult mouse liver,4 a role for SRF during liver regeneration was recently uncovered.21 In these studies, SRF expression was increased in mouse livers following partial hepatectomy, and SRF-deficient hepatocytes failed to enter the cell cycle or proliferate after surgery. The observed impairment in the regeneration of SRF-deficient livers correlated with reduced induction of immediate-early genes, including JunB, c-fos, and pip92. These data seemed provocative and suggested that SRF may not only act in response to liver damage but may have a role in normal liver function and development. To test this, hepatocyte-specific SRF knockout mice were generated from a strain harboring a conditional null allele of Srf (SrfloxP), which has previously been demonstrated to completely abolish expression of SRF protein in cells that express Cre recombinase.14, 20 Analysis of the resulting animals revealed that SRF has a crucial role in regulating hepatocyte proliferation, survival, and normal liver function. As a consequence of loss of hepatic function and liver mass, SRF-liver deficient mice display severe defects in body growth.
Abbreviations
BrdU, bromodeoxyuridine; E, embryonic day; IGF-1, insulin-like growth factor 1; mRNA, messenger RNA; RT-PCR, reverse-transcriptase polymerase chain reaction; SRF, serum response factor.
Materials and Methods
Animals.
All mice were housed in the MCW Animal Research Center, and all procedures received Institutional Animal Care and Use Committee approval. Three-week-old mice, fed ad libitum, were sacrificed to harvest serum, and phospholipid, cholesterol, triglyceride, glucose, and IGF-1 levels were determined by the Mouse Metabolic Phenotyping Center at the University of Cincinnati.
Reverse-Transcriptase Polymerase Chain Reaction.
Reverse-transcriptase polymerase chain reaction (RT-PCR) was performed as described22 with the following primers: Hprt, AGCGCAAGTTGAATCTGC, AGCGACAATCTACCAGAG; Pol2, CTGATGCGGGTGCTGAGTGAGAAGG, GCGGTTGACCCCATGACGAGTG; Srf (8750F-8995R), AGATCCCTGTCTCTGCAGTTCAGC, GCGTGGCATCCAGGTTCA; Srf (146F-395R), CCATAGGGGCAGGAAAGTGAGG, GGGGTCCGGTTCAGGTT.
Immunohistochemistry.
Immunohistochemistry was performed as described22 using the following primary antibodies: anti–hepatocyte nuclear factor 4α (sc-6556 [1:500]; Santa Cruz Biotechnology, Santa Cruz, CA), anti-SRF (sc-335 [1:500]; Santa Cruz Biotechnology), anti-SRF (1:2,000; provided by R. P. Misra), anti-Ki-67 (sc-7846 [1:500]; Santa Cruz Biotechnology), anti-phospho-Histone H3 (#06-570 [1:1,500]; Upstate/Millipore, Billerica, MA), anti-activated caspase-3 (559565 [1:100]; BD Bioscience/Pharmingen, San Jose, CA), anti-bromodeoxyuridine (BrdU) (1:100; Accurate Chemical and Scientific Corporation). Cell counts using ImageJ software were taken from digital images of three sections from each mouse analyzed. To identify cells in S phase, 50 mg/kg body weight of BrdU (Sigma Aldrich, St. Louis, MO) was introduced into 8-week-old mice via intraperitoneal injection for 2 hours.
Gene Expression Profiling.
Total RNA (15 μg) was isolated from three independent control (SrfloxP/+AlfpCre) and mutant (SrfloxP/loxPAlfpCre) 3-week-old mouse liver fragments using RNeasy (Qiagen, Valencia, CA) and was used to prepare biotinylated complementary RNA following procedures described by Affymetrix. After hybridization to GeneChip Mouse Genome 430 2.0 arrays (Affymetrix, Santa Clara, CA), data were collected using GeneChip Operating Software (Affymetrix) and dChip v.1.3 software23 (http://biosun1.harvard.edu/complab/dchip/) and analyzed using Ingenuity Pathways Analysis software (Ingenuity Systems, Redwood City, CA).
Results
SRF Is Expressed Throughout Hepatogenesis.
Srf mRNA has been identified in the adult and embryonic day (E) 11.5 mouse liver4 and has been found to increase in response to partial hepatectomy21; however, a detailed profile of SRF expression throughout hepatogenesis has not been reported. Using RT-PCR analyses, we identified the presence of Srf mRNA in fetal livers from E10.5, which was the earliest time tested, through to adult (Fig. 1A). This expression profile mirrored that of Hnf4α, an mRNA that is characteristically expressed in hepatocytes.24, 25

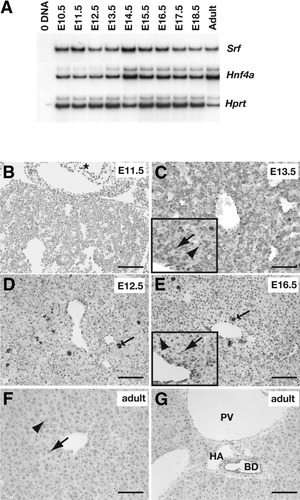

SRF is expressed in multiple cell types in fetal and adult mouse liver. (A). RT-PCR analysis identified Srf, Hnf4a, and Hprt (loading control) mRNAs in livers isolated from mouse embryos at daily intervals between E10.5 and E18.5 as well as in adult livers. (B-G) Sections through livers at indicated stages of development in which the presence of SRF was detected in hepatoblasts (arrow), cardiac myocytes (asterisk), sinusoidal endothelial cells (arrowhead), bile ducts (BD), portal vein (PV), hepatic artery (HA), and hematopoietic cells (barbed arrow) by immunohistochemistry. Scale bar = 100 μM.
To document the cellular distribution of SRF during liver development, we detected SRF protein in sections of mouse embryos by immunohistochemistry using two different anti-SRF antibodies, which gave indistinguishable results. Between E11.5 and E16.5, the abundance of SRF within the hepatoblasts appeared to be relatively low compared, for example, to cardiac myocytes where SRF levels appeared higher (Fig. 1B, asterisk). By E16.5, SRF staining in hepatoblasts increased and became clearly localized within the nucleus (Fig. 1E), and this distribution was maintained throughout the remainder of development as well as in the adult liver (Fig. 1F,G). In addition to the hepatocytes, SRF was identified in the hepatic endothelial cells and in hematopoietic cells throughout hepatogenesis (Fig. 1B-E). In the adult liver, SRF was present in the endothelial cells of the portal and central veins, the walls of the hepatic artery, and the cholangiocytes of the bile duct (Fig. 1F,G).
Disruption of Hepatic SRF Results in Increased Postnatal Mortality and Impaired Body Growth.
Development of Srf −/− embryos arrests at E6.5-7.0 due to lack of mesoderm formation,12 thereby preventing the use of such embryos to study SRF function in the liver. We therefore used the Cre-loxP system to conditionally delete Srf in hepatocytes by breeding SrfloxP/loxP mice (SrfTm1Rmn)20 with AlfpCre transgenic mice (Tg(Alb1-Cre)1Khk) that express Cre recombinase specifically in the developing hepatocytes starting at E9.5.26 In these mice, the Srf promoter and exon 1 are flanked by loxP elements.20 Cre-mediated deletion of the intervening sequence results in the absence of a detectable Srf mRNA, SRF DNA binding activity, and SRF protein, and therefore SrfloxP/loxP mice are believed to harbor a null allele.14, 15, 20
To determine whether SrfloxP/loxPAlfpCre mice were viable, we established the genotype of 199 offspring that resulted from SrfloxP/+AlfpCre × SrfloxP/loxP matings. Mice harboring a functional allele of Srf were recovered with normal Mendelian ratios: SrfloxP/loxP (25.1%), SrfloxP/+ (28.6%), and SrfloxP/+AlfpCre (28.1%). In contrast, SrfloxP/loxPAlfpCre mice contributed only 18.1% of the total offspring, suggesting that loss of SRF within hepatocytes leads to increased mortality before weaning, although the penetrance of this phenotype is partial. We also monitored mortality of control and SrfloxP/loxPAlfpCre mice after weaning. Because livers of male and female mice display sexually dimorphic responses to various stresses,27 mice were divided into male and female groups. As shown in Fig. 2A, 10 weeks after birth, 96.8% of SrfloxP/+AlfpCre male and 95.2% of SrfloxP/+AlfpCre female mice had survived, which was indistinguishable from wild-type mice (not shown). Survival of SrfloxP/loxPAlfpCre female mice, in contrast, dropped to 88.2% and SrfloxP/loxPAlfpCre male mice to 64.3% (Fisher's exact test, P = 0.024). These data demonstrate that loss of SRF function in hepatocytes results in postnatal lethality, which is most predominant in male mice.

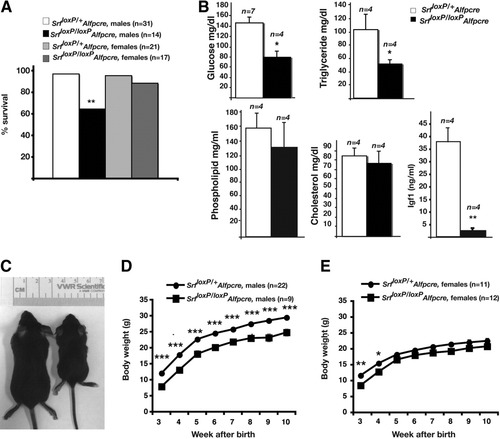

SrfloxP/loxPAlfpCre mice show increased mortality, disrupted serum glucose, and triglyceride levels, and diminished body growth. (A) Bar graph showing percent of male and female SrfloxP/+Alfp-Cre and SrfloxP/loxPAlfp-Cre mice surviving until 10 weeks of age. **P = 0.024 (two-sided Fisher's exact test). (B) Bar graphs showing serum levels of glucose, triglycerides, phospholipids, cholesterol, and IGF-1 in control (SrfloxP/+Alfp-Cre) and mutant (SrfloxP/loxPAlfp-Cre) male mice at 3 weeks of age. *P ≤ 0.01, **P ≤ 0.001 (Student t test). (C) Photograph showing size comparison between control (SrfloxP/+Alfp-Cre; left) and mutant (SrfloxP/loxPAlfp-Cre; right) mice at 3 weeks of age. (D, E) Graphs showing difference in body growth over time between control (circles) and mutant (squares) male (D) and female (E) mice. *P ≤ 0.05, **P ≤ 0.01, ***P ≤ 0.005 (Tukey-Kramer post hoc multiple comparison test).
The liver has a central role in controlling nutrient metabolism, and so we considered the possibility that the increase in mortality among SrfloxP/loxPAlfpCre male mice could at least in part reflect a diminished capacity of the liver to control serum nutrient levels. We therefore measured the levels of glucose, triglyceride, phospholipid, and cholesterol in 3-week-old control and SrfloxP/loxPAlfpCre male mice. As shown in Fig. 2B, although phospholipid and cholesterol levels were not significantly different, blood glucose and triglyceride levels in SrfloxP/loxPAlfpCre mice were significantly lower (Student t test, P ≤ 0.01) than those in control mice. In SrfloxP/loxPAlfpCre mice, blood glucose levels were 54% and triglyceride levels were 49% of control mice. These results show that depletion of SRF in hepatocytes results in deficiencies in carbohydrate and lipid metabolism.
As shown in Fig. 2C, surviving SrfloxP/loxPAlfpCre male mice were considerably smaller than control mice. Although control and SrfloxP/loxPAlfpCre male mice gained weight over time, the weight of SrfloxP/loxPAlfpCre male mice remained significantly and reproducibly lower than those of control mice at any given point, and by 10 weeks, surviving SrfloxP/loxPAlfpCre males weighed approximately 85% that of controls (Fig. 2D). The weight of SrfloxP/loxPAlfpCre female mice, although less dramatic, was also reproducibly lower over the 10-week time course (Fig. 2E). The difference in weight between control and SrfloxP/loxPAlfpCre female mice was most significant at 3 weeks of age, with mutant mice weighing 73% of control mice, after which time the difference between control and mutant mice narrowed. Circulating IGF-1 is a major determinant of body growth,28-30 so we measured the levels of IGF-1 in the serum of SRF-deficient male animals. At 1 week of age, male IGF-1 levels in SrfloxP/loxPAlfpCre mice were 46% of control levels (P ≤ 0.05; not shown) and by 3 weeks had dropped precipitously to 6% of control levels (P ≤ 0.001) (Fig. 2B). Based on these data, we conclude that SRF is required in hepatocytes to maintain an environment that supports normal body growth.
SRF Is Required for Proliferation and Survival of Hepatocytes.
The observation that only a subset of SrfloxP/loxPAlfpCre mice died raised the possibility that there was variation in the efficiency through which Srf was deleted in these animals. We therefore examined expression of SRF protein in SrfloxP/loxPAlfpCre livers via immunohistochemistry (Fig. 3A -C). In contrast to control mice, where SRF was detected throughout the hepatic parenchyma (Fig. 3A), SRF was undetectable in the hepatocytes of a subset (<10%) of SrfloxP/loxPAlfpCre livers (Fig. 3B), regardless of where the section was taken. Such mice looked particularly sickly with standing fur and displaying hunched and lackadaisical behavior, suggesting that complete loss of SRF in the liver is not compatible with long-term survival and could account for the mortality recorded in Fig. 2A. In contrast to this small subset of sick mice in which SRF was undetectable, the majority (>90%) of the mutant mice displayed variability in the presence of SRF with areas of SRF-positive hepatocytes interspersed with areas of SRF-negative hepatocytes (Fig. 3C). Moreover, when small independent regions of individual SrfloxP/loxPAlfpCre livers were isolated and analyzed via RT-PCR to detect Srf mRNA, although the majority of the isolates robustly expressed Srf, regions in which Srf levels were low to undetectable could be recovered (Fig. 3D).

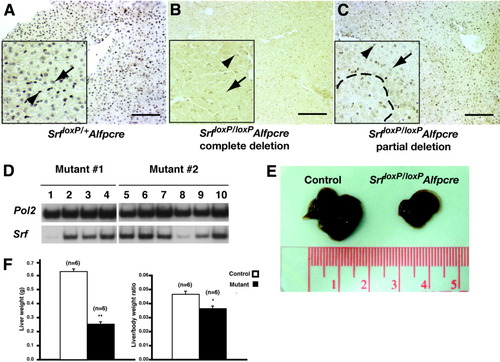

Efficiency of SRF depletion is variable in SrfloxP/loxPAlfpcre livers. (A-C) Immunohistochemistry detecting SRF protein in livers of SrfloxP/+Alfp-Cre (A) and SrfloxP/loxPAlfp-Cre (B, C) mice. Inset shows high-resolution images, with hepatocytes indicated by an arrow and endothelial cells by an arrowhead. The dashed line demarcates an area of SRF-negative hepatocytes in panel C. Scale bar = 100 μM. (D) RT-PCR analysis on multiple liver fragments (numbered) from two SrfloxP/loxPAlfp-Cre mice (mutant #1 and #2) to detect Srf mRNA. Note reduced Srf mRNA levels in samples 1 and 8. Amplification using primers to detect RNA Polymerase II (Pol2) was used to normalize. (E) Micrographs comparing the size of typical livers isolated from control (left) and SrfloxP/loxPAlfp-Cre (right) male mice. (F) Bar graphs showing the weight of livers (left) and relative body weight to liver ratio (right) in SrfloxP/+Alfp-Cre (white) and SrfloxP/loxPAlfp-Cre (black) mice. Student t test, *P ≤ 0.005, **P ≤ 0.001.
Although the extent to which SRF was depleted from the livers of mutant mice was often minimal, surviving SrfloxP/loxPAlfpCre mice were consistently smaller. Importantly, the weight of the liver was reduced by 60% in SrfloxP/loxPAlfpCre male mice (P ≤ 0.001), and the liver/body weight ratio was significantly lower in mutant male mice (P ≤ 0.005) compared with controls (Fig. 3E,F). These observations seemed at first to contradict our finding that SRF persisted in the livers of the majority of SrfloxP/loxPAlfpCre mice. However, we reasoned that if SRF were necessary for hepatocyte viability, then the action of Cre recombinase could result in loss of hepatocytes. This in turn could manifest in smaller livers that were perpetually in a state of regeneration in an attempt to restore normal liver mass. If SRF were also required for hepatocyte proliferation and the action of Cre was less than complete, an environment would exist that selected for cells that maintained SRF. Such a model is not unprecedented, because a similar situation exists for the Alb-uPA transgenic mouse in which hepatocytes that have undergone somatic rearrangement of the hepatotoxic Alb-uPA transgene selectively proliferate and replace liver mass.31
To test this model, we first examined whether SRF was required for hepatocyte proliferation. Hepatocytes are generally quiescent in adult mice32; however, in weanlings, hepatocyte proliferation is still relatively high. Cell proliferation was therefore measured in 3-week-old control and the rare SrfloxP/loxPAlfpCre mice that lacked detectable SRF expression using immunohistochemistry to identify the cell cycle markers Ki-67 (G1/S) and phosphohistone-H3 (G2/M), along with the hepatocyte marker hepatocyte nuclear factor 4α (not shown). Fig. 4 shows that while proliferating hepatocytes were detectable in control livers, they were exceedingly infrequent in SRF-depleted livers, with depleted livers exhibiting a 16-fold reduction in phosphohistone H3–positive cells (P ≤ 0.01) and a six-fold reduction in Ki-67–positive cells (P ≤ 0.01). We also measured the incidence of cell death using an antibody to detect activated caspase-3, which revealed a 2.4-fold increase in the number of apoptotic cells (P ≤ 0.01) found in SrfloxP/loxPAlfpCre livers compared with controls (Fig. 4E,F).

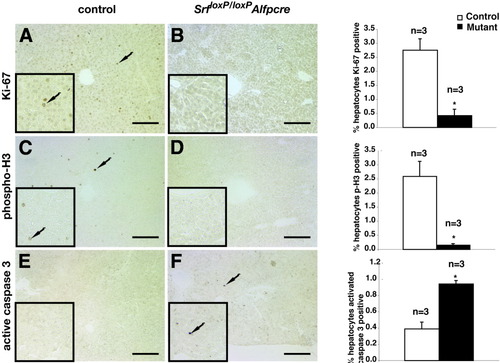

SRF is essential for proliferation and viability of hepatocytes. (A-F) Immunohistochemistry detected Ki-67 (A,B), phosphohistone H3 (C,D), and activated caspase-3 (E,F) expressing cells in control (A,C,E) and SrfloxP/loxPAlfp-Cre (B,D,F) livers from 3-week-old male mice. Insets show higher-resolution images and adjacent bar graphs show cell counts from three independent control and mutant mouse livers. *P ≤ 0.05 (Student t test). Arrows indicate stained cells.
The observation that the absence of SRF results in both reduced proliferation and increased death of hepatocytes in 3-week-old mice suggested that, in adult SrfloxP/loxPAlfpCre mice, an environment could exist that would select for proliferating SRF-positive cells. To address this possibility, we compared the extent of proliferation in adult control livers, in SrfloxP/loxPAlfpCre livers that exhibited extensive loss of SRF as determined via immunohostochemistry for SRF expression in adjacent sections, and in SrfloxP/loxPAlfpCre livers that exhibited a partial loss of SRF, by detecting in vivo BrdU incorporation using immunohistochemistry (Fig. 5). As expected, the number of BrdU-positive cells was relatively low in adult livers; however, extensive loss of SRF resulted in a five-fold reduction in proliferating cells (P < 0.05) compared with control livers, which is consistent with the proliferation data obtained from 3-week-old mice. When SrfloxP/loxPAlfpCre livers in which deletion of SRF was mosaic were examined, we recorded a significant six-fold increase in BrdU-positive cells (P < 0.01) compared with control livers. In addition, cell death was examined in the same livers using immunohistochemistry to detect activated caspase-3 (Fig. 5). Whereas the level of apoptotic cell death was relatively low in control hepatocytes and increased only slightly in SrfloxP/loxPAlfpCre mice in which deletion of SRF was mosaic, in SrfloxP/loxPAlfpCre livers harboring extensive loss of SRF, the number of apoptotic cells increased by 19-fold (P < 0.001) compared with control livers. Cumulatively, these analyses demonstrate that SRF is essential for normal hepatocyte proliferation, that the absence of SRF results in loss of hepatocytes by apoptotic cell death, and that the livers of the majority of SrfloxP/loxPAlfpCre mice are in a chronic state of regeneration.

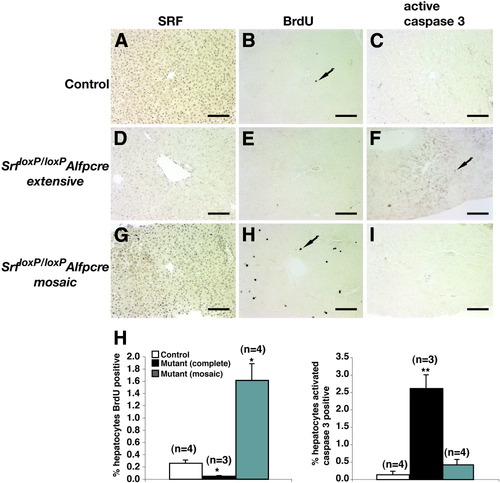

SrfloxP/loxPAlfp-Cre mice are in a perpetual state of liver regeneration. (A-I) Immunohistochemistry detected SRF (A,D,G), incorporated BrdU (B,E,H), and activated caspase-3 (C,F,I) (arrows) in livers of adult control (A,B,C) mice or SrfloxP/loxPAlfp-Cre mice having undergone extensive (D,E,F) or mosaic (G,H,I) deletion of SRF. (H) Bar graphs quantifying the number of cells incorporating BrdU or expressing activated caspase-3 in control and experimental animals. *P ≤ 0.01, **P ≤ 0.001 (Student t test).
SRF Is Required for Normal Hepatocyte Gene Expression.
Given that SRF is a transcription factor, it seemed most likely that the deficiencies observed in SrfloxP/loxPAlfpCre livers reflected a disruption in hepatocyte gene expression. We therefore performed oligonucleotide array analyses on liver samples isolated from control and SrfloxP/loxPAlfpCre male mice at 3 weeks of age. Because we had observed mosaicism in depletion of SRF in the mutant mice, SrfloxP/loxPAlfpCre livers were dissected into small fragments and screened via RT-PCR to identify liver fragments with minimal SRF expression (Fig. 3D). Total RNA isolated from liver fragments with low to undetectable levels of Srf mRNA collected from three independent SrfloxP/loxPAlfpCre mice were used to screen Affymetrix GeneChip arrays.
Supporting Tables 1 and 2 list the genes whose average mRNA level in the mutant mice changed by more than two-fold (P ≤ 0.05) compared with the control mice. Using these criteria, expression of 294 genes decreased (Supporting Table 1) and 109 genes increased (Supporting Table 2) in mutant compared with control livers, suggesting that SRF is predominantly an activator of gene expression in hepatocytes. Annotation of these genes by gene ontology implicated SRF in controlling a wide variety of biological processes, including cell cycle control, lipid metabolism, DNA replication, and cell death (Fig. 6A), which was consistent with our phenotypic characterization. Analyses of differentially expressed genes using Ingenuity Pathway Analyses software, which uses published reports to identify functional relationships between genes, revealed that the expression of cell cycle regulators was particularly impacted by loss of SRF in the liver, with changes in expression of 57 mRNAs encoding molecules with a variety of roles in controlling cell proliferation identified. This included disrupted expression of a network of factors whose components center on E2F-mediated cell cycle control and act downstream of IGF-1 (Fig. 6B). Importantly, expression of several mRNAs encoding proteins with integral roles in controlling body growth were substantially reduced, including growth hormone receptor (3.7-fold), IGF-1 (13.4-fold), IGF acid labile subunit (25.1-fold), IGF-binding protein 3 (4.8-fold), and the glucocorticoid receptor (2.5-fold). In addition to the disruption of the growth hormone/IGF-1 pathway and cell cycle regulators, we observed alterations in expression of many genes encoding proteins with other key roles in hepatocyte function, including 38 proteins with roles in lipid metabolism and 10 CypP450 enzymes. Although these data support a direct role for SRF in controlling hepatic cell proliferation, they also demonstrate that SRF is an important regulator of hepatocyte function and liver homeostasis.

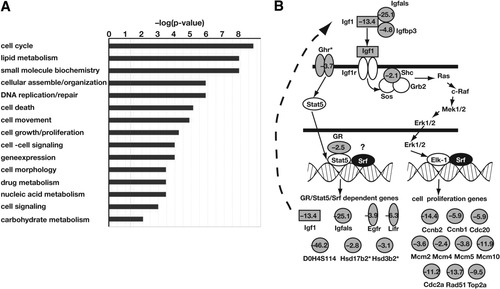

Loss of SRF disrupts hepatic gene expression. (A) Gene array analyses were performed on liver fragments from control and SrfloxP/loxPAlfpcre livers that had low to undetectable levels of Srf mRNA via RT-PCR. Genes whose expression was significantly (P ≤ 0.05) changed in SRF null livers were categorized based on gene function by ingenuity pathway analysis. Fisher's exact test was used to calculate a P value determining the probability that each function assigned to the data set is due to chance alone. The x-axis lists the top cellular and molecular pathways affected by the loss of SRF in the liver. The y-axis expresses the statistical significance −log (P value). (B) Schematic showing that several genes encoding factors required for IGF-1–mediated cell cycle control were negatively affected (gray symbols with fold change) by loss of SRF. *Fold differences that approached significance, but where P < 0.05.
Discussion
Our data reveal a crucial role for the transcription factor SRF in regulating liver homeostasis and function; however, the molecular mechanisms underlying the phenotypes associated with loss of hepatic SRF appear to be complex. Although we have ascertained that loss of SRF has a significant impact on body growth, whether this represents a direct or indirect effect of loss of SRF is more difficult to definitively establish. Analysis of mRNA in SrfloxP/loxPAlfpCre liver fragments lacking SRF revealed that multiple members of the growth hormone/IGF-1 signaling pathway, which is known to control body growth, were substantially reduced compared to control livers (Fig. 6b). This is provocative because growth hormone receptor–deficient mice,33 liver IGF-1 deficient (LID)/acid labile subunit knockout (ALSKO) mice,30 and liver glucocorticoid deficient mice34 – genes encoding mRNAs whose levels are reduced 3.7, 13.4, 25.1, and 2.5-fold in SRF–deficient hepatocytes, respectively – also exhibit severe defects in post-natal body growth. However, although IGF-1 levels are severely depressed in SrfloxP/loxPAlfpCre mice we have shown that, due to selective pressure, the majority of hepatocytes in most SrfloxP/loxPAlfpCre animals continue to express SRF as well as the identified SRF-dependent genes, including IGF-1, ALS, and IGF-BP3 (not shown). Thus the depletion of serum IGF-1 in SrfloxP/loxPAlfpCre mice is likely independent of any regulation of genes involved in IGF signaling by SRF. We, therefore, favor an alternative model to explain the small stature of SrfloxP/loxPAlfpCre mice. In this model the reduction of circulating IGF-1 and consequently growth of the mouse is due to the chronic and severe reduction in total liver mass in the mutant animals. Our studies reveal that 90% of SrfloxP/loxPAlfpCre male mice examined appear to exist in a perpetual state of regeneration; however, the size of the livers in these animals is 30% that of normal. Under these circumstances one would predict that the circulating levels of IGF-1 and, importantly, its regulatory binding proteins ALS and IGF-BP3 would be reduced in mutant mice compared to livers of normal size. Since ALS and IGF-BP3 serve to increase IGF-1 half-life then a reduction in these proteins, which are primarily synthesized by the liver, should also result in destabilization of both hepatic and peripheral sources of IGF-1 resulting in an exacerbated decline in serum IGF-1 (Fig. 2b) and growth reduction.
We also demonstrate that SRF is required for expression of several hepatic mRNAs with roles in various aspects of liver physiology. We believe that the observed disruption to hepatic gene expression associated with loss of SRF appears to be cell autonomous because gene array analyses of regions of liver that expressed SRF in SrfloxP/loxPAlfpCre mice were distinct from the changes observed when SRF was absent (not shown). The reduction in expression in some genes is likely to reflect reduced expression of growth hormone receptor and glucocorticoid receptors (Fig. 6). Growth hormone induces expression of genes through activation of STAT5a/b in concert with glucocorticoid.34-36 Recent studies in mice lacking either Stat5a/b or glucocorticoid specifically in hepatocytes have identified a core set of 17 genes whose expression is dependent upon STAT5-glucocorticoid interactions.37 Of these 17 genes, expression of seven (Igf1, Igfals, Egfr, Lifr, D0H4S114, Hsd17b2, and Hsd3b2) are also reduced in SrfloxP/loxPAlfpCre mice. Whether this is entirely due to a reduction in growth hormone receptor and glucocorticoid or whether SRF also directly controls their expression is yet to be established.
Liver regeneration studies have implicated both autocrine and paracrine signaling mediated by IGF-1/growth hormone in controlling hepatocyte proliferation.38, 39 IGF-1 signals through the Igf1r tyrosine kinase, which activates PI3-kinase and Ras/MEK/ERK (Fig. 6) signal transduction pathways, leading to control of genes involved in cell proliferation and in protecting against apoptotic cell death.40 Elk1, which is a target of Ras/MEK/ERK signaling, has been shown to act in conjunction with SRF to control expression of genes involved in the cell cycle and DNA replication (Fig. 6).41 This would imply that the block in hepatocyte proliferation observed in SrfloxP/loxPAlfpCre mice could reflect reduced expression of cell cycle genes caused both by loss of IGF-1 signaling as well as the absence of direct regulation by Elk1/SRF. This model could presumably be addressed by defining the complete repertoire of SRF target genes using genome scale analyses.42
In conclusion, our data support the proposal that SRF is essential for maintenance of hepatocyte viability and proliferation and that SRF regulates expression of several genes with roles in hepatic function. The fact that livers in SrfloxP/loxPAlfpCre mice exist in a chronic state of regeneration and that stocks of these animals can be maintained with relative ease suggests that these animals could provide a useful model to conduct exogenous cell transplants and facilitate the study of liver progenitor cells. Although our current analyses focused on animals that survived embryonic development, we noted that a subset of SrfloxP/loxPAlfpCre mice (≈30%) died during embryogenesis presumably reflecting a role for SRF in the developing liver. Our results are in contrast with those of Latasa et al.,21 who reported that disruption of SRF in hepatocytes resulted in healthy animals born at expected Mendelian ratios. The most likely explanation for these differences is that the placement of loxP sites within the Srf gene differs between the strains of mice used in the two studies and therefore could potentially impact the efficiency through which Cre mediates deletion of the Srf gene. The position of loxP sites has been shown recently to dramatically influence the efficiency of recombination when Cre activity is analyzed using different reporter mouse strains.43 Regardless, both studies are illuminating with regard to the role of SRF in controlling liver function, and the current analyses extend our understanding of the action of SRF on controlling hepatocyte cell proliferation and viability and are consistent with a role for SRF during liver regeneration.
Acknowledgements
The authors would like to thank David Ginty and Klaus Kaestner for providing mice and Cheryl Stucky for advice with statistical analysis.
