Solid versus Liquid—A Bottom-Up Calculation Model to Analyze the Manufacturing Cost of Future High-Energy Batteries

2.1 Liquid versus Solid Electrolyte

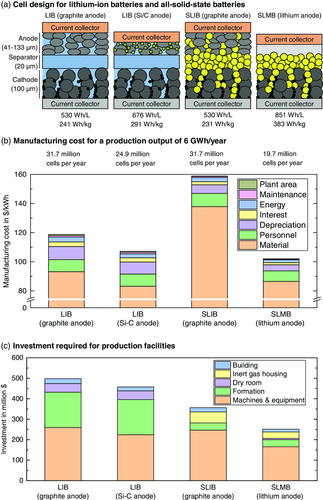

For ASSBs to be competitive in the market, the overall cost must be comparable to the cost of conventional LIBs. However, due to the low maturity degree of ASSBs, a realistic comparison should also take into account future advances of the conventional LIB technology, in particular, with regard to anode development.18 Figure 2a shows a comparison of different cell designs for LIBs with graphite and Si/C anode, and for sulfide-based ASSBs with graphite anode (solid-state LIB, SLIB) and lithium anode (solid-state lithium metal battery, SLMB). To ensure comparability, the cathode area specific capacity was held constant for all scenarios at 5.64 mAh cm⁻², corresponding to a 100 μm thick LiNi_0.8Co_0.1Mn_0.1O₂ (NMC 811) cathode with an active material (AM) content of 60 vol%. Each cathode contains 5 vol% binder and 5 vol% conductive agent (CA), whereas the remaining 30 vol% are taken up either by liquid or SE (“catholyte”). The anode thickness was adjusted to fit the area specific capacity of the cathode, with a balancing factor of 1.1 for the graphite and Si/C anode14 (to ensure all lithium drawn from the cathode can be stored) and a 50% surplus for the lithium metal anode2 (to account for irreversible losses during cycling). The separator thickness was set to 20 μm for all scenarios. The cell design parameters for cathode, separator, and anode are summarized in Table 1. A 15 μm thick aluminum current collector and a 10 μm thick copper current collector were assumed for cathode and anode, respectively. The energy density and specific energy were calculated on the cell level for a plug-in hybrid electric vehicle (PHEV) cell format (type 2)19 with a volume utilization of 85% and appropriate overlap for separator, anode, and cathode (cf. Table S1, Supporting Information).13 As to be expected,2 the LIB and SLIB with graphite anode show the lowest energy density (530 Wh L⁻¹), with a slightly lower specific energy of the SLIB due to the higher density (cf. Table S2, Supporting Information) of the LPS SE (2 g cm⁻³) in contrast to the liquid electrolyte (1.3 g cm⁻³).18 Due to the higher specific capacities of Si/C (1000 mAh g⁻¹)20 and Li (3862 mAh g⁻¹),21 the respective anode thicknesses (and mass) can be decreased. Hence, more galvanic cells (cathode, separator, anode) can be fit into one PHEV cell housing, resulting in a higher energy density and specific energy.18

To estimate the manufacturing cost for the different cell designs, a mass production scenario with an annual output of 6 GWh22 was simulated. Note that a running production with three shifts per day (cf. Supplementary Table S3, Supporting Information) is assumed for the simulation and additional cost for production ramp-up is not taken into account. Due to the different energy content of the respective battery cell types, the number of cells to be produced per year varies from 19.7 million for the SLMB with lithium anode and 24.9 million for the LIB with Si/C anode up to 31.7 million for the LIB and SLIB with graphite anode. Typically, a wet coating procedure is assumed for the electrodes, i.e., a homogeneous slurry is cast directly onto the current collector foil and the solvent is evaporated in a drying tunnel.23 The porosity of the resulting layer is reduced by a calendering step,24 before slitting the resulting coil into several slimmer coils. Main difference for the SLIB is the SES, which can be coated directly onto one of the electrode layers.25 In contrast, for the SLMB, an extrusion step is assumed for fabrication of the lithium anode. The resulting lithium foil is rolled using a calender to achieve the desired thickness before lamination onto the current collector and slitting to width. During cell assembly, electrode sheets are cut to size and stacked (typically by flat winding, z-folding, or single sheet stacking),26 before tab welding and packaging. For the conventional lithium-ion cells, the liquid electrolyte is filled into the cell27 before cell formation, storage, and final quality check. The corresponding process parameters are summarized in Table S4, Supporting Information. All other input parameters for the different scenarios can be found in Table S1–S3, Supporting Information.

Special attention should be paid to the environmental conditions for processing of the different components: For the LIBs with liquid electrolyte, fabrication of the graphite and Si/C anode can take place in a normal production environment, whereas the moisture sensitivity of the NMC 811 cathode28 and the liquid electrolyte necessitates cathode fabrication and cell assembly in a dry room.29 Similarly, fabrication of the lithium anode requires dry atmosphere to hinder unwanted degradation or spontaneous ignition.30 In contrast, an inert gas housing (glovebox) will be required for all process steps involving the sulfide-based SE9 due to the risk of toxic H₂S formation.16 The modeling parameters for dry room and inert gas housing are summarized in Table 2. The dry room area was assumed to take up 4.4 times the machine base area (considering additional space for intralogistics and intermediate storage, etc.),13 whereas the glovebox volume was calculated based on the machine base area multiplied by an average enclosure height of 1.50 m.

A direct comparison of the manufacturing cost and required investment for the different cell designs is given in Figure 2b,c. Please note that the calculated values should not be considered absolute, but rather serve to enable a comparison of the different scenarios (cf. Section 3). Material costs are dominating (>75%) for all cell designs, which is typical for lithium-ion cell production.29 The material cost for the conventional LIB with graphite anode sum up to 93.2 $ kWh⁻¹, whereas the processing costs (personnel, depreciation, interest, energy, maintenance, and plant area cost) only take up to 25.5 $ kWh⁻¹. As predicted in a recent study by Schmuch et al., the material cost for the LIB with Si-C (83.2 $ kWh⁻¹) are lower than for all other scenarios. However, the processing costs (24.0 $ kWh⁻¹) are only slightly lower than for the graphite-based LIB, resulting in an overall manufacturing cost of 107.2 $ kWh⁻¹. The highest material costs are obtained for the sulfide-based SLIB with graphite anode (137.9 $ kWh⁻¹), whereas processing costs (20.9 $ kWh⁻¹) are lower than for the LIBs with liquid electrolyte. Although the material costs for the SLMB with Li anode (86.5 $ kWh⁻¹) are slightly higher than for the LIB with Si/C anode, the overall manufacturing costs (102.0 $ kWh⁻¹) are lower due to the lowest processing cost of all cell designs (15.5 $ kWh⁻¹).

To understand the underlying cost structure and required investment, the manufacturing costs for the four scenarios were clustered in Figure 3 according to the individual cell components and production stages (electrode and separator manufacturing, cell assembly, and cell formation and test). As for the SLIB and SLMB, the SE is already mixed into the cathode slurry, the overall cathode material costs are higher compared with the conventional LIBs with liquid electrolyte. The slightly higher cathode processing costs for the SLIB (4.6 $ kWh⁻¹) in comparison with the conventional LIBs (4.1–4.3 $ kWh⁻¹) are mainly governed by the shorter depreciation period31 for the glovebox environment (19 million dollars over a period of 8 years) in comparison with the dry room (22 million dollars over a period of 15 years). The cathode processing cost of the SLMB are lower (3.8 $ kWh⁻¹) because the smaller number of cells to be produced requires one coating machine less. The anode material costs show the largest deviation. Here again, the additional SE for the SLIB results in the highest overall anode cost. In contrast, the Li anode material costs are even lower than for the Si/C anode, which is in good agreement with previous work.14 More interestingly, the lithium extrusion and calendering process results in a significantly lower processing cost (1.4 $ kWh⁻¹) in comparison with the wet coating processes for the other cell formats (4.1–4.7 $ kWh⁻¹). The overall separator manufacturing cost (material and processing) for the SLIB (14.1 $ kWh⁻¹) and SLMB (13.6 $ kWh⁻¹) are higher than for the conventional LIB cells (9.6–10.3 $ kWh⁻¹), where the separator is typically purchased by an external supplier. Both material and processing cost for cell assembly are lower for the SLIB and SLMB because the cumbersome electrolyte filling step can be omitted. Furthermore, the number of cells to be produced is decisive for the amount of PHEV housings required, resulting in lower cost for the LIB with Si/C anode in comparison with the graphite anode, and lower costs for the SLMB in comparison with the SLIB. The formation, aging, and final cell testing procedures significantly contribute to the processing cost for conventional LIBs due to the high investment for the formation channels and the large production space required for the testing and storage procedures.32 Hence, by replacing the formation cycles33 with a significantly shorter check-up procedure (cf. Section 3), processing costs for formation, storage, and testing can be reduced from 7.6–8.3 $ kWh⁻¹ for the conventional LIBs to 3.0–4.0 $ kWh⁻¹ for SLIB and SLMB.

Despite the overall lower processing cost for the SLIB with graphite composite anode, the high material cost will make this concept hardly feasible in a cost competitive market (such as the automotive industry), unless SE material cost can be pushed far below the assumed 50 $ kg⁻¹ for LPS.14 The direct comparison of the LIB with Si/C anode and the SLMB with lithium anode reveals the cost savings potential for ASSB processing which could, with the underlying assumptions, compensate for the higher material cost. As to be expected, the electrolyte filling and formation procedures are among the main bottlenecks for conventional LIB production.32 However, it should be noted that the assumptions are subject to a high degree of uncertainty and a deeper understanding of the ASSB processing steps will be required.

2.2 Lithium Foil—Make or Buy?

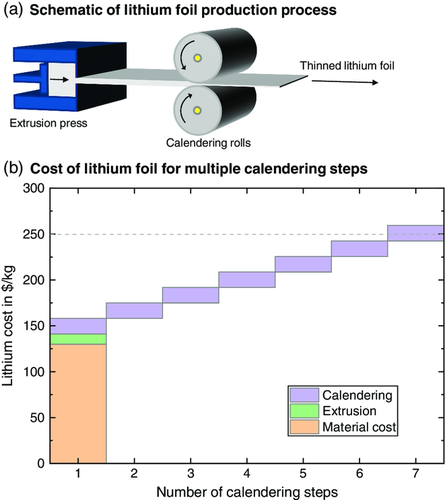

As deduced by Figure 2c, a significant cost savings potential results from reduced effort for lithium anode manufacturing in comparison to conventional wet coating procedures for graphite or Si/C. However, the lithium price is subject to large fluctuations.14 Typically lithium foil is produced from an ingot (50–130 $ kg⁻¹)14 by extrusion and subsequent calendering to achieve the desired thickness (Figure 4a). Rolling of lithium toward foil thicknesses below 50 μm is challenging as lithium is a very adhesive and reactive material.30, 34 Although calendering in one single step toward 20 μm thickness or lower seems possible by controlled detachment using processing aids, usually multiple calendering steps are applied.34 Hence, cost for lithium foil has been estimated to range between 250 and 1000 $ kg⁻¹.14 To estimate whether it is cheaper to produce lithium foil on-site or to buy the foil from an external supplier, the cost for lithium foil was estimated for a varying number of calendering steps. The corresponding input parameters are summarized in Table 3.

As illustrated in Figure 4b, the cost for extrusion add up to 11.1 $ kg⁻¹ to the material cost (a pessimistic value of 130 $ kg⁻¹ was assumed as material cost baseline for the lithium ingot), whereas each calendering step adds an additional 16.9 $ kg⁻¹ due to larger investment, plant area, etc. Although, for instance, a second calendering step would increase the overall cost of the sulfide-based SLMB by 0.5% compared with single-step rolling, buying the foil externally at a price of 250 $ kg⁻¹ (1000 $ kg⁻¹) would result in a cost increase of 3.3% (30%). Hence, an in-house production for up to six successive calendering steps would result in lower cost than buying the foil from an external supplier at a price of 250 $ kg⁻¹. This would also allow for direct further processing which could be beneficial from a quality perspective.35, 36 However, rolling lithium toward layer thicknesses below 50 μm becomes more difficult with each calendering step and requires specific processing know-how. Hence, one of the biggest challenges will be to find skilled personnel to operate the machines.

2.3 Parallel versus Bipolar Stacking

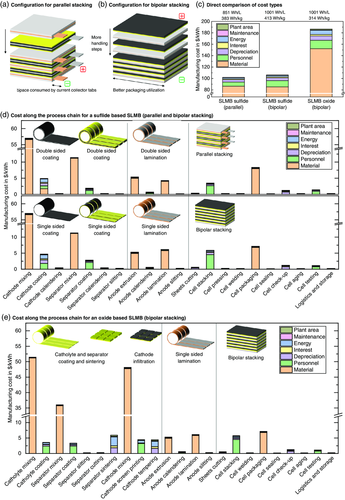

To systematically analyze the production cost of ASSBs, a detailed investigation of the underlying process steps is mandatory. This holds particularly true for the cell stack configuration37 which has a major influence on the layout of the process steps. Typically, for conventional LIBs, the single galvanic elements in a cell stack are connected in parallel, i.e., the overall cell capacity is increased by joining all anode and all cathode current collector foils, respectively. Hence, additional space is consumed inside the packaging for welding joints of the current collector foils and tabs (Figure 5a). In this configuration, every anode current collector (typically copper foil) is sandwiched between two anodes, and every cathode current collector (typically aluminum foil) is sandwiched between two cathodes (double-sided coating). One particular advantage of ASSBs could be the possibility for a bipolar stacking configuration,38 similar to fuel cell stacks. Here, the anode of one galvanic cell and the cathode of the adjacent galvanic cell share the same (bipolar) current collector (Figure 5b). This leads to a serial connection inside the cell stack, accompanied by an increase in the cell voltage for each set of layers. In this configuration, the current is drawn only from the outermost layers of the stack. Hence, less space is required for the welding joints of current collector foils and tabs, leading to a better utilization of the available packaging space.

A direct comparison of the processing cost for a sulfide-based SLMB with parallel and bipolar stacking is given in Figure 5c (left and middle bars). Although the material costs are slightly lower for the bipolar stacked configuration (85.3 $ kWh⁻¹) due to the higher energy content per cell (only 16.8 million cells produced per year), the processing costs are significantly higher (21.0 $ kWh⁻¹). Main contributors to the processing costs of both parallel and bipolar stacking are the wet coating and the cell stacking process (Figure 5d), which is in good agreement with literature for conventional LIBs.13, 29 Although the fabrication steps for the sulfide-based bipolar stacked ASSB are similar to the parallel stacked ASSB, several important deviations need to be considered: In contrast to the double-sided coatings for parallel stacking, a single-sided casting/coating step is used for both the composite cathode and the SES layer on top of the cathode layer. This means, however, that twice as many coating (and calendering and slitting) machines will be required to produce the same amount of layers as for the parallel stacked cell with double-sided coatings. While the investment and power consumption for a single-sided coating machine are assumed to be significantly lower as for a double-sided coating machine (cf. Section 3), the required plant area and personnel cost will potentially be similar, i.e., the overall processing cost will be higher if twice as many machines are used. Furthermore, due to the asymmetric configuration, calendering of the composite cathode when combined with the bipolar current collector will most likely result in undesired strain which will seriously affect the succeeding processing steps.24 Hence, it seems more plausible that the composite cathode is processed as a free-standing layer, for instance, by casting onto a carrier tape which will be removed during further processing. The bipolar current collector is therefore rather joined with the lithium anode (single-sided lamination). When comparing the configurations in Figure 5a,b, it becomes evident that also more cutting and handling steps will be required for the bipolar stacking configuration. Hence, more cutting and stacking machines will be required, further increasing the manufacturing cost. Of course, an additional lamination step could be applied for joining bipolar collector and composite cathode before stacking, thus reducing the number of handling steps.37 However, this would result in further complications such as possible cross-contamination during sheet cutting. Note that the underlying SLMB cell configuration contains 141 single galvanic cells stacked in series, resulting in an average discharge voltage of 536 V. Additional cost for high-voltage safety measures during production were not taken into account for the calculation. Although the overall cell manufacturing cost for the bipolar configuration are higher (+4.1%) than for the parallel stacking configuration, the higher voltage allows to draw smaller currents from the cell, which could potentially result in cost savings on the battery module and pack level.

2.4 Sulfide versus Oxide Solid Electrolyte

Despite the high ionic conductivity of the sulfide-based SEs, their limited (electro)chemical stability is one of the main drawbacks.16, 39 In contrast, oxide-based SEs, such as LLZ, seem to be intrinsically stable against lithium metal39 and also allow for high current cycling.40 However, a high-temperature sintering step (>1000 °C)17 is required to ensure sufficient ionic conductivity and proper densification of the SES. Due to expected complications for cosintering with cathode AMs,41 the SES should be fabricated and sintered before joining with the electrodes. Sintered free-standing LLZ separator layers with relevant geometrical dimensions (layer thickness <100 μm, lateral area several tens of cm²) do not have sufficient mechanical stability.40 To circumvent these complications, a porous-dense LLZ bilayer has been suggested, fabricated by two tape-casting steps where one layer contains pore-formers to create the porosity during high-temperature sintering.42 These pores are subsequently infiltrated with the cathode AM,43 followed by a tempering step (cf. Table 4) at lower temperature (up to 700 °C).44 Li₃BO₃ (LBO) has been suggested as a sintering aid for both SE and composite cathode.44, 45 Joining with the current collector can only take place after this step as the melting point of aluminum is below 600 °C. Hence, an additional handling or lamination step is required—independently on whether the cell is stacked in a parallel or bipolar configuration. Therefore, a bipolar stacking may indeed be more plausible for oxide-based ASSBs.

When comparing the manufacturing cost of the oxide-based SLMB with the sulfide-based SLMB (bipolar stacking), a sharp increase in material cost (152.2 $ kWh⁻¹) and processing cost (34.5 $ kWh⁻¹) is evident (Figure 5c middle and right bars). As the volumetric composition was kept the same for all components, the higher density of LLZ (5.1 g cm⁻³) compared to LPS (2 g cm⁻³)18 results in a higher gravimetric SE content in the cathode (33.57 wt% LLZ vs 16.81 wt% LPS) and in the SES (97.82 wt% LLZ vs 97.44 wt% LPS). As the SE cost was held constant at 50 $ kg⁻¹ for both LPS and LLZ, a higher gravimetric SE content in the SLMB will lead to higher overall material cost. Furthermore, as shown in Figure 5e, the separator sintering and cathode tempering steps significantly contribute to the processing cost. In particular, the energy cost and the depreciation are dominating, resulting from the high sintering temperature and investment, respectively. Note that also the scrap during tempering and sintering leads to a higher material cost.

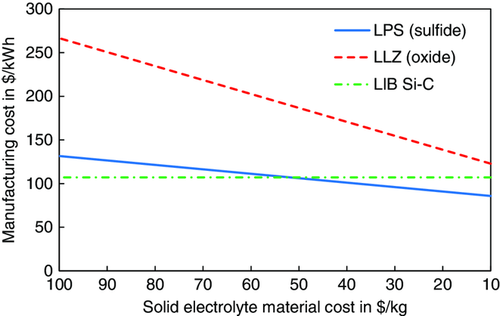

In particular, the SE material cost is currently among the great unknowns for ASSB production. To analyze the influence on the overall manufacturing cost, SE material costs were varied from 100 to 10 $ kg⁻¹ for both LPS (sulfide-based SLMB) and LLZ (oxide-based SLMB). The resulting manufacturing cost for the bipolar stacking configuration are shown in Figure 6. The vertical dash-dotted line corresponds to the LIB with Si/C anode (cf. Figure 2) The manufacturing cost for the sulfide-based SLMB vary from 132 to 86 $ kWh⁻¹, with a “break-even” for the LIB with Si/C anode at ≈50 $ kg⁻¹ LPS. Due to its higher density, the price of LLZ has a stronger influence on the overall manufacturing cost, indicated by the steeper slope (from 267 to 123 $ kWh⁻¹). The analysis also shows that even if the LLZ cost could be pushed toward 10 $ kg⁻¹, manufacturing cost on the cell level will not be competitive with the LIB with Si-C anode. Nonetheless, the oxide-based SLMB could be a viable option in applications where other factors (e.g., energy density or safety) are more relevant than cost. Further cost savings potential lies on the battery module and pack level, for instance, if efforts for safety management can be reduced.

2.5 Sensitivity—Inert Gas for Sulfides versus Sintering for Oxides

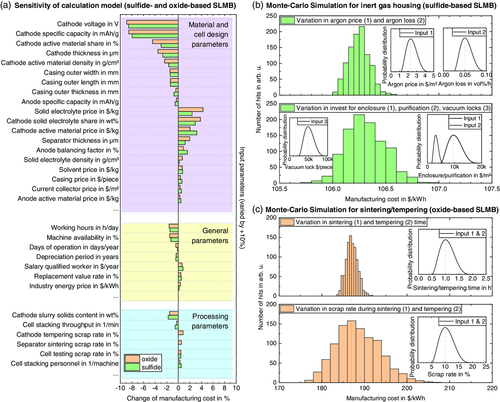

Due to the large number of input parameters (>200 input parameters per process chain), a sensitivity analysis of the cost model was carried out. Hereby, all input parameters were systematically varied by setting one individual parameter to +10% while keeping all other parameters constant and calculating the resulting manufacturing cost. Note that the model is neither symmetric nor linear, i.e., a reduction by −10% will not give the opposite result (similar considerations apply for a variation of ±5%, ±20%, etc.). The parameters with the highest impact (upper 15%) on the manufacturing cost for a bipolar stacked sulfide-based and oxide-based SLMB (cf. Figure 2) are shown in Figure 7a. As to be expected from existing LIB cost models, the model is most sensitive to material and cell design parameters, in particular, the cathode properties: Especially a higher cathode voltage and specific capacity would result in a significant cost decrease,47 followed by the share of AM in the cathode, the cathode coating thickness,48 and the cathode AM density. For the sulfide-based SLMB, an increase in cathode AM price leads to the highest rise in cost, as also predicted by literature on conventional LIBs.49 This will be of particular interest if protective coatings are applied on the cathode: Assuming a 10% rise in cathode AM price, for instance by applying a core-shell coating with ZrO_2,50 the overall SLMB cost will increase by 3.2%. For the oxide-based SLMB, the SE price and the share of SE in the cathode have an even higher impact. This can be attributed to the fact that the LLZ density is even higher than the density of NMC 811 (cf. Table S2, Supporting Information). Also an increase in the separator thickness or the anode balancing factor (corresponding to the anode thickness) results in a higher price, which could be of particular interest if additional protective layers are used.25, 42 Further important cell design parameters are, among others, the cell housing dimensions.51 Interestingly, a 10% increase in anode AM price (i.e., the price for a lithium ingot) would only result in a cost increase of 0.26% to 0.46%. Unsurprisingly, the general parameters with the highest impact on the cell manufacturing cost are labor related (working hours and salary).52 Furthermore, the machine availability plays a significant role as a better machine utilization would allow to install less machines along the whole production line. For the processing parameters, the cathode slurry solids content has the highest impact on the manufacturing cost, which is in good agreement with estimations for conventional LIB production.32, 53 Hence, replacing the wet coating process by a high-viscosity extrusion process9 would result in a significant cost reduction if similar considerations for investment, throughput, and so on, were assumed. Among the other relevant processing parameters are in particular the stacking process (throughput and personnel) for the sulfide-based SLMB (cf. Figure 5d) and the sintering and tempering scrap rate for the oxide-based SLMB (cf. Figure 5e).

Unexpectedly, none of the inert gas housing parameters seem to play a relevant role in the processing cost for the sulfide-based SLMB. To investigate the influence of the inert gas parameters, a Monte Carlo simulation was carried through, allowing for simultaneous variation of multiple parameters (cf. Section 3). Figure 7b shows the resulting histograms for variations of the inert gas loss and inert gas price (upper image) and the cost for housing, gas purification, and vacuum locks (bottom image). The inlays show the input probability distributions, whereas the vertically dashed lines correspond to the direct calculation (without parameter variation). While the resulting battery cell price range for a variation in argon loss (0.025–0.10 vol% h⁻¹) and price (1.15–4.6 $ m⁻³) only lies within 106.0 and 106.6 $ k h⁻¹, cost deviations for enclosure (4820–19 280 $ m⁻³), gas purification (1525–6100 $ m⁻³), and vacuum locks ($ 24 250  per piece to $ 97 000 per piece) lead to a broader distribution (105.7–107.0 $ kWh⁻¹). Of course, the associated technical issues with processing in argon atmosphere (intralogistics, work piece carriers, functionality of electric motors, etc.) have not been considered in the economic model and could result in further expenses. Nonetheless, the overall impact of the inert gas processing parameters on the manufacturing cost seems to be rather small with regard to other input parameters. In comparison, the sintering parameters for the oxide-based SLMB were varied. Figure 7c shows the resulting histograms for variations of the duration (upper image) and the scrap rate (bottom image) of the separator sintering and cathode tempering steps. A variation in sintering and tempering time between 0.5 h and 2 h results in a cost distribution between 183 and 191 $ kWh⁻¹, while scrap rates between 5% and 20% would even result in cost variations between 176 and 208 $ kWh⁻¹. Of course, higher scrap rates in one process step necessitate that all preceding process steps produce more parts. Hence, a reduction in scrap during sintering and tempering would enable to install less machinery for slurry mixing, tape casting, sheet cutting, etc. These results impressively show the strong influence of the sintering process on the overall manufacturing cost of oxide-based SLMBs, as also predicted in a recent top-down cost estimation.15

2.6 The ADM: A Promising Alternative?

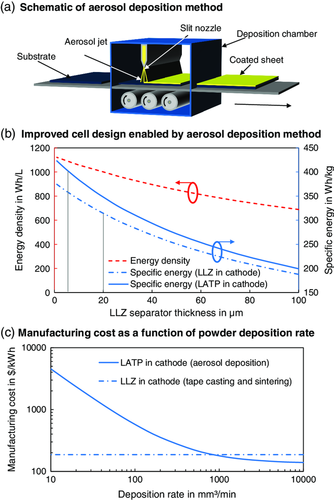

To circumvent the critical sintering step, the ADM has been suggested as a promising alternative for oxide-based SLMBs.15 The ADM allows to fabricate dense LLZ separator layers without the need for high-temperature sintering54 by accelerating the LLZ powder directly onto a substrate (e.g., the cathode composite) using a carrier gas stream55 (Figure 8a). The ADM would enable to fabricate thinner separator layers (e.g., 5 μm)54 and to combine different types of SE materials in cathode and separator layer.56 This would allow for an improved cell design with reduced LLZ content, as shown in Figure 8b: Here, the energy density (in Wh L⁻¹, red dashed line) and the specific energy (in Wh kg⁻¹, blue lines) on the cell level (incl. PHEV 2 housing, bipolar stacking) are plotted as a function of the LLZ separator thickness. The dash–dotted blue line corresponds to an SLMB with LLZ as separator and catholyte, whereas the solid blue line corresponds to an SLMB with LLZ as separator but LATP as catholyte. While both energy density and specific energy decrease with thinner separator layers, the lower density of LATP (2.9 g cm⁻³) results in a higher specific energy: For instance, by replacing LLZ in the cathode with LATP and decreasing the separator layer thickness from 20 μm to 5 μm, the specific energy could be increased from 314 up to 405 Wh kg⁻¹ (vertical gray bars). Despite the great potential of the ADM,57 the technology is quite immature15 and the deposition rate is currently limited to approximately 10 mm³ min⁻¹.55 Hence, assuming a separator sheet area of 127 cm² and a separator thickness of 5 μm, the throughput would be limited to 0.157 sheets per minute (cf. Table 5). In comparison, a tape casting machine with a tape speed of 20 m min⁻¹ at a coating width of 600 mm can produce almost 1000 sheets per minute.

Figure 8c shows a rough estimation of the overall manufacturing cost for an improved cell design (LATP in the cathode) as a function of the LLZ deposition rate for a 5 μm thick separator layer. Note that the calculation is based on simplified assumptions, i.e., material losses due to overspray and limited deposition efficiency were neglected and the investment, machine baseline area, power consumption, and nitrogen flow were held constant. The corresponding process chain was adapted from Schnell et al.;15 all other process parameters are summarized in Supplementary Table S4, Supporting Information. The horizontal dash–dotted line corresponds to the oxide-based SLMB (cf. Figure 5) as a reference. Starting from the initial 10 mm³ min⁻¹ (0.157 sheets per minute), the overall manufacturing cost drop from over 4000 $ kWh⁻¹ and do not break even with the reference until a deposition rate of approximately 1000 mm³ min⁻¹ (15.7 sheets per minute) is reached. Of course, the number of aerosol deposition machines required to produce an output of 6 GWh per year can be drastically reduced by increasing the deposition rate. However, to achieve such high deposition rates, multi-nozzle systems with broad nozzles59 and transport belts will be required.60 This means, even higher throughputs will be required to account for the additional cost for increased gas flow, power consumption, and plant area cost for such a machine. The low maturity degree of the technology15 will require additional cost for development which were not taken into account in the underlying model.

3.1 Calculation Logic

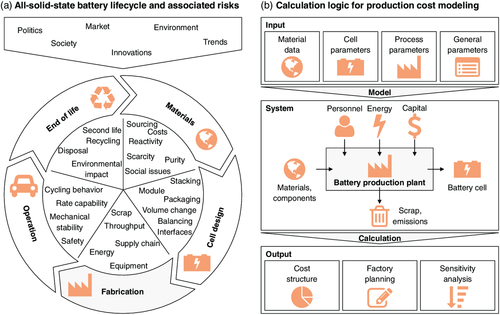

Due to its abstract calculation logic and the relatively transparent documentation of input parameters, the bottom-up cost model for LIB cell production by Schünemann13 was used as a reference for the implemented calculation tool. Other established battery calculation models, such as Batpac,61 also provide a sound basis for battery production cost estimation, but lack the flexibility required for comparison of different manufacturing processes and sequences. The input and output parameters for the cost model were stored as MS Excel sheets, whereas the calculation logic was implemented in MATLAB (version R2018 b), as illustrated in the UML diagram in Figure S1, Supporting Information. Depending on the process chain layout, the modeling tool requires a total number of approximately 200 input parameters per process chain which were gathered empirically based on literature values, expert interviews, and supplier quotations. To enable a certain comparability to other works in the field, most parameters were taken from literature values; however, some of which are based on data collected as early as 201148 and might be outdated. Furthermore, inflation and so on were not taken into account. Material prices, in particular, are subject to strong fluctuations and often depend on the negotiation position. Prices for machinery and equipment were mostly taken from literature, in some cases based on expert interviews with machine tool manufacturers, and, wherever possible, based on actual supplier quotations. Note that the names of the experts and companies cannot be published due to confidentiality reasons. Values given in EUR were transferred to USD at a currency exchange rate of 1.15 (10 Jan 2019).

Starting from the total amount of cells produced per year, the input required for the final process step—typically the quality check—can be calculated. An iterative procedure is applied for a backward calculation along the whole process chain, based on the assumption that the output of each process step serves as input for the succeeding process. Hereby, the throughput of a single machine (in cell equivalents per unit time) is used to deduce the total number of machines per process step. Thus, the total amount of material and purchased parts can be determined, and the cost types (material, personnel, depreciation, etc.) can be attributed to each process step. Hence, considering additional cost such as logistics and storage, the overall cost for cell production can be calculated for the different scenarios. More details can be found in the cited reference.13 Since the process steps for ASSBs can only be vaguely described up to date, fixed scrap was neglected in all scenarios. To verify the modeling tool, the parameter set suggested in Schünemann13 was used to model the production of a conventional LIB cell in PHEV 2 format with a graphite anode and NMC 111 cathode, as shown in Figure S2, Supporting Information.

3.2 Modeling Parameters

An overview of the cell design parameters for the different scenarios is given in Table 1 and Table S1, Supporting Information. Material data can be found in Table S2, Supporting Information. The underlying general assumptions (availability of workforce, wages and salaries, financial aspects, plant floor and building, logistics and storage) are summarized in Table S3, Supporting Information. The process parameters for the different scenarios are summarized in Table S4, Supporting Information. The following section describes the underlying assumptions for the processes along the process chain of a conventional LIB based on Schünemann13 and the reasons for parameter variations in the different scenarios.

3.3 Monte Carlo Simulation

For the Monte Carlo Simulation, a random value is generated for the input parameters to be varied. A beta function ($\alpha =3,\beta =5$)70 was chosen as the probability density distribution, the outline of which resembles the shape of a slightly asymmetric Gaussian distribution. However, the restricted domain (0–1) ensures non-negative values and the asymmetrical shape allows to take into account outliers. The beta distribution was renormalized such that the baseline value x represents the most likely value and 95% of all values lie within $x\pm \frac{x}{2}$. However, outliers can be accounted for by setting the upper boundary to $2\times x$. The lower boundary was set to $\frac{x}{2}$. Each Monte Carlo Simulation was run with 1000 iterations.
