2.1 Sampling and DNA sequencing

Altogether 41 samples of all 12 species of Saxifraga section Saxifraga subsection Arachnoideae, one sample each of all five species of Saxifraga section Saxifraga subsection Androsaceae (Engl. & Irmsch.) Tkach, Röser & M.H.Hoffm. and one sample of Saxifraga irrigua M.Bieb., the last two very close relatives of subsection Arachnoideae, were collected from wild populations in the European Alps, the Apennines and the Dinaric Alps in 2016 or were obtained from herbarium material (Table 1). DNA was extracted from dried specimens using a Macherey-Nagel NucleoSpin Plant II kit (Machery-Nagel GmbH & Co. KG, Düren, Germany) and purified by ethanol precipitation following Sambrook and Russell (2001). For creating a next generation sequencing (NGS) DNA library, 400–2000 ng of DNA per sample were used. The libraries were pooled in groups of five to seven individuals and enriched using hybrid capture-based target enrichment (Lemmon et al., 2012; Lemmon & Lemmon, 2013) for a panel of 301 loci (Folk et al., 2019) plus additional 28 loci from Stubbs et al. (2018). The enriched NGS DNA libraries were mixed with 10% of non-enriched DNA library and sequenced on an Illumina HiSeq 2500 sequencer with a read length of 2 × 250 bp and a total number of 2 × 138 M reads. Library construction, target enrichment, and DNA sequencing were performed by Arbor Biosciences (Ann Arbor, Michigan, USA). All DNA sequences generated in this study were submitted to the NCBI short-read archive (Table 1). Additionally, DNA sequences of 17 species of Saxifraga subsection Saxifraga (sensu Tkach et al., 2015) and of Saxifraga hirsuta L. of Saxifraga section Gymnopera D.Don were added from the NCBI BioProject PRJNA492276 (Folk et al., 2019).

2.2 Sequence assembly and alignment

We merged forward and reverse reads for each sample and removed PCR duplicates using ParDRe v2.2.5 (González-Domínguez & Schmidt, 2016). Adapter sequences as well as read segments of poor quality were removed with Trimmomatic v0.36 (Bolger et al., 2014) using a sliding window of 4 bp with a sliding window minimum phred quality score of 20. DNA sequence assembly was performed using the BWA version of HybPiper v1.3.1 (Johnson et al., 2016) with default settings. Exons were filtered for paralogs (Method 1 in Appendix A) and aligned across all samples locus-wise using MAFFT v7.305 (Katoh & Standley, 2013). Seven species of Saxifraga subsection Saxifraga aligned poorly in most loci with high numbers of base mismatches and indels. We removed these samples from the data set and repeated the alignment of the exons with the 58 remaining samples. Subsequently, the non-exonic sequences were added to the exonic alignments using the ‘-addlong’ option in MAFFT. The resulting alignments frequently contained indel-rich stretches of poorly aligned non-exonic sequences which were several thousand base pairs long. We used BuddySuite v1.3.0 (Bond et al., 2017) to reduce the number of these regions by trimming alignment positions that consisted of more than 50% gaps. Any alignments that were missing more than 20% of the samples or the S. hirsuta sample were also excluded from further analysis. We removed residual paralogs with TreeShrink v1.3.3 (Mai & Mirarab, 2018; Method 2 in Appendix A). The resulting data set consisted of 405 loci in 58 samples.

2.3 Phylogenetic analysis

We calculated bootstrapped maximum likelihood (ML) gene trees for all 405 loci of the full data set in RAxML v8.2.12 (Stamatakis, 2014) and used ASTRAL v5.7.3 (Zhang et al., 2018) to infer two bootstrapped summary coalescent (SC) species trees from the 405 ML gene trees, using a taxon map for the second run (Rabiee et al., 2019). Taking into account the results of the first ASTRAL run, the S. muscoides samples were coded into two groups (S. muscoides 1 and 2) for the taxon map of the second ASTRAL run.

Additionally, we inferred phylogenetic networks to include both incomplete lineage sorting (ILS) and reticulation in the modeling process under the multispecies network coalescent (Wen et al., 2016). We calculated SC species networks from the 405 gene trees under the maximum pseudo-likelihood (MPL) method “InferNetwork_MPL” (Yu & Nakhleh, 2015) in PhyloNet v3.8.0 (Than et al., 2008; Wen et al., 2018), using a taxon map and a gene tree bootstrap threshold of 70. We computed 11 MPL networks with a number of hybrid nodes (K) ranging from zero to ten. Each network was inferred with 10 independent runs to optimize the pseudo-likelihood. For each K the best network weighted by pseudo-likelihood was identified. We inferred the major trees, i.e., the species trees underlying the networks, from the best networks for K = 1–10 to explore the commonalities of the network topologies. For this purpose, all minor edges were removed from the best networks using the “majorTree” command in PhyloNetworks v.0.11.0 (Solís-Lemus et al., 2017) as implemented in Julia-REPL v.1.2.0 (Bezanson et al., 2017). The major trees were visually compared to draw conclusions about the monophyly of Saxifraga subsection Arachnoideae and to identify its most likely sister clade. To assess the relative model fit, we plotted the log-likelihoods of the best networks against their respective K.

To assess uncertainty in network inference for interspecific relationships in Saxifraga subsection Arachnoideae, we pruned the data set to include the 41 samples of subsection Arachnoideae and one sample of S. pedemontana All. as new outgroup (see results) and removed any alignments that were missing more than 20% of the samples or the outgroup sample, resulting in a total of 388 loci. We here used S. pedemontana as outgroup because this species, which is part of section Saxifraga subsection Saxifraga, is more closely related to subsection Arachnoideae than S. hirsuta which was used as outgroup in those analyses which sampled across section Saxifraga. We calculated bootstrapped ML gene trees in RAxML v8.2.12 and used ASTRAL v5.7.3 to infer an SC species tree with 100 bootstrap replicates from the 405 ML gene trees, using a taxon map. We used SNaQ (Solís-Lemus & Ané, 2016) as implemented in PhyloNetworks v0.11.0 to calculate six SC species networks for zero to five hybrid nodes (H), assessed the relative model fit by the Log pseudo-likelihood profile and performed 100 bootstrap replicates each for the best networks with H = 1 and H = 2 (Method 3 in Appendix A).

2.4 Divergence times estimation

Divergence times for Saxifraga subsection Arachnoideae were modeled on a multi-labeled phylogenetic tree (Blanco-Pastor et al., 2012; Huber et al., 2006; Pirie et al., 2009). The multi-labeled species tree used was based on the ASTRAL species tree as calculated from the full data set. Based on the network reconstructions, a second parent lineage of the hybrid species S. facchinii was added to the ASTRAL species tree and the two lineages of S. facchinii were labeled ‘S. facchinii 1’ and ‘S. facchinii 2’. Of the full data set of 58 samples, we selected 10 loci each for which the ML gene trees could be unambiguously assigned to either of the two topologies contained in the multi-labeled tree (Method 4 in Appendix A). The 20 associated DNA alignments were visually inspected in MEGA X v10.0.5 (Kumar et al., 2018) and manually re-aligned to ensure overall good alignment quality. In the ten alignments used to reconstruct the lineage ‘S. facchinii 1’, sequences of the two samples of S. facchinii were labeled with the suffix ‘1’. Correspondingly, in the ten alignments used to reconstruct the lineage ‘S. facchinii 2’, S. facchinii sequences were labeled with the suffix ‘2’. Time-calibrated phylogenetic trees were calculated with STARBEAST2 v0.15.5 (Ogilvie et al., 2017) as implemented in BEAST v2.6.3 (Bouckaert et al., 2019), using an uncorrelated lognormal relaxed molecular clock (Drummond et al., 2006) with a birth-death speciation process (Gernhard, 2008; Stadler, 2009) and the nucleotide substitution model GTR + Γ. Based on the results of a molecular dating analysis of Saxifragales (Folk et al., 2019), a uniformly distributed root prior of 9.12–24.4 Ma was used for a secondary calibration of the Saxifraga section Saxifraga stem. Tree topology was restricted to the multiple-labeled species tree both to prevent a bias in divergence time estimation due to convergence on alternative tree topologies and to reduce calculation time. All other parameters of the model were optimized in STARBEAST2. We set up four independent runs, each with 62 parallel adaptive Metropolis-coupled Markov chains (Altekar et al., 2004; Müller & Bouckaert, 2020) and run them for a total of 450 million generations. Every 5000th generation was sampled. We used Tracer v.1.7.1 (Rambaut et al., 2018) to assess convergence and an effective sample size of at least 200 to identify an appropriate burn-in for each run. The four runs were combined using LogCombiner v.2.6.3 (Drummond & Rambaut, 2007). We used TreeAnnotator v.2.6.3 (Drummond & Rambaut, 2007) to calculate a maximum clade credibility tree from the species tree distribution. Node heights of the maximum clade credibility tree were set to the medians of the respective node height distributions. The chronogram was plotted using the R package phyloch (Heibl, 2013) in R v.4.1.2 (R Core Team, 2021).

2.5 Ecological trait reconstruction

We reconstructed the evolution of three ecological traits of Saxifraga subsection Arachnoideae using the ecological indicator values (EIV) of Landolt et al. (2010). According to Silvertown et al. (2006), EIVs can be considered as numerical representations of ecological niche traits and therefore can be used to reconstruct ecological niche evolution in a phylogenetic framework (Prinzing et al., 2001; Silvertown et al., 2006). Because EIVs represent quasi-cardinal numbers (Ellenberg, 1992), they can be directly translated into continuous trait states as long as the EIVs under consideration show little intraspecific variation. Values for the niche trait indicators temperature (T), light (L) and soil pH (R) were taken from Landolt et al. (2010). Since Landolt EIVs were not available for S. prenja, we collected and comparatively reviewed available information on the ecology of S. prenja from various sources (Hörandl, 1993; Kaplan, 1995; Webb & Gornall, 1989). We concluded that the ecological traits of S. prenja are comparable to those of S. hohenwartii and used the EIVs of the latter for the former.

All taxa for which no Landolt EIVs exist were pruned from the time-calibrated multi-labeled species in the R package ape v5.0 (Paradis & Schliep, 2019). The hybrid species S. facchinii was removed because its inclusion violates the model's essential assumption of a bifurcating tree. As two independent measures of the strength of phylogenetic signal, we calculated Blomberg's K (Blomberg et al., 2003) and Pagel's λ (Pagel, 1999) using the R package phytools v.0.7–90 (Revell, 2012). We used the R package geiger v2.0.7 (Pennell et al., 2014) to fit four models of ecological trait evolution to all three EIVs, i.e. (1) a simple Brownian motion model (BM; Felsenstein, 1973), (2) an Ornstein-Uhlenbeck model (OU; Butler & King, 2004), (3) an early burst model (EB; Harmon et al., 2010), and (4) a white-noise model. We calculated the corrected Akaike information criteria (AICc) weights (wi) from the AICc of the four models as a measure of the model's predictive power. Reconstruction of ancestral traits was performed for each of the three EIVs under the respective model with the largest AICc weight using the phytools ‘anc.ML’ function with 1 million iterations each. Finally, we projected the inferred traits onto the pruned species tree using the ‘contMap’ function of phytools.

We also used the Maximum Parsimony approach for the reconstruction of continuous characters implemented in Mesquite v3.70 (Maddison & Maddison, 2021). Landolt EIVs were reconstructed as continuous characters with the squared change assumption. For the analysis we used the same phylogenetic tree as above.

3.1 DNA assembly and alignment statistics

In the initial assembly, reads mapped to 326 of the original 329 reference loci. After three iterations of assembly, visual paralog assessment and reference file editing, reads were mapped successfully to 567 loci in the final assembly, of which 463 were retained for further analysis. After filtering for a minimum sample coverage of 80% and for loci that included a sequence of the outgroup sample S. hirsuta, the full data set contained the filtered alignments of 405 loci with a total length of approximately 1.33 Mbp, an average taxon coverage per locus of 53.5 of 58 samples, a mean alignment length of 3293 bp, a mean proportion of missing data of 18%, a mean proportion of variable alignment positions of 60%, and a mean proportion of parsimony informative alignment positions of 40%. The pruned data set (samples of subsection Arachnoideae and S. pedemontana as outgroup) contained 388 loci with a total length of approximately 1.28 Mbp, an average taxon coverage of 39.3 of 42 samples, an average alignment length of 3294 bp, an average proportion of missing data of 10%, an average proportion of variable alignment positions of 40%, and an average proportion of parsimony informative alignment positions of 20%.

3.2 Phylogenetic relationships and hybridization

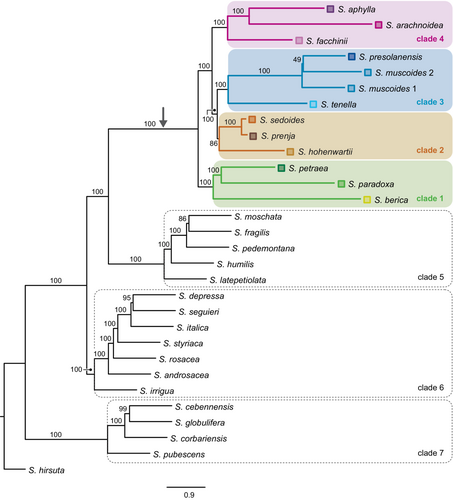

For the full data set with 58 samples, the two ASTRAL species trees (Figure 2, Figure A1) and the major trees of the 10 best PhyloNet networks for K = 1 to K = 10 (Figure A2a–j) were mostly congruent. In all phylogenetic analyses, Saxifraga subsection Arachnoideae (sensu Gerschwitz-Eidt & Kadereit, 2020) was reconstructed as monophyletic. In the ASTRAL trees, a clade of S. berica, S. paradoxa and S. petraea (clade 1) was sister to the rest of the group. In this, a clade of S. hohenwartii, S. prenja and S. sedoides (clade 2) was sister to a clade of S. muscoides, S. presolanensis and S. tenella (clade 3). A clade of S. facchinii, S. aphylla and S. arachnoidea (clade 4) was sister to clades 2 and 3.

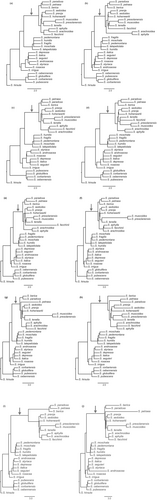

Clades 1–4 were found in identical form only in the PhyloNet network for K = 1 (Figure A2a). In the PhyloNet networks for K = 2 to K = 10, reconstruction of clades 1–4 differed in the placement of only one or two taxa (Figure A2b–j). Three additional clades were always reconstructed: First, a clade consisting of S. moschata Wulfen, S. fragilis Schrank, S. pedemontana, S. humilis Engl. & Irmsch. and S. latepetiolata Willk. (clade 5) as sister to subsection Arachnoideae (clades 1–4). A clade of Saxifraga subsection Androsaceae, S. irrigua and S. rosacea Moench (clade 6) was identified as sister to clades 1–5. A clade consisting of S. cebennensis Rouy & E.G. Camus, S. globulifera Desf., S. corbariensis Timb.-Lagr., and S. pubescens Pourr. (clade 7) was reconstructed as sister to clades 1–6. No optimal number of reticulations could be inferred unequivocally from the shape of the saturation curve of the log likelihoods of the phylogenetic networks for K = 0 to K = 10 (Figure A3a).

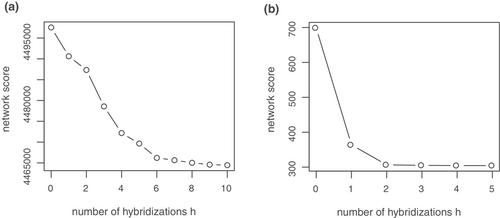

For the data set with 42 samples, the saturation curve of the pseudo-likelihoods of the networks plotted against H showed a strong decrease from H = 0 to H = 1 and a moderate decrease from H = 1 to H = 2 (Figure A3b). A further increase of H resulted in only minor improvement of the pseudo-likelihood, indicating that one or two hybrid nodes are the best hypotheses for the true species network topology. The ASTRAL species tree and the major trees of the species networks were congruent with each other. Consistent with the 58 samples data set ASTRAL species trees and the major trees of the phylonet species networks, clades 1–4 as described above were also found in the 42 samples species networks of subsection Arachnoideae (Figure 3a,b).

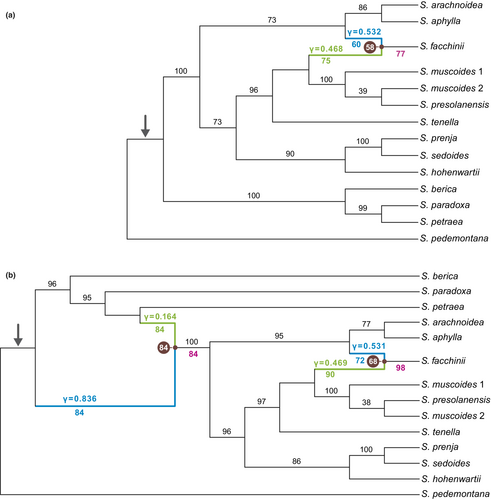

In the best networks for H = 1 (Figure 3a) and H = 2 (Figure 3b), S. facchinii was reconstructed as a hybrid species (BS = 77 and BS = 98, respectively). In 58 (H = 1) and 68 (H = 2) of 100 BS replicates, the hybrid parents were a lineage in clade 3 (BS = 75 and BS = 90, respectively) with inheritance values of γ = 0.468 and γ = 0.469, respectively, and a lineage in clade 4 (BS = 60 and BS = 72, respectively) with γ = 0.532 and γ = 0.531, respectively. A second hybrid node (BS = 84) was reconstructed in the network for H = 2, with one of the two hybrid edges connecting the stem of S. petraea (BS = 84, γ = 0.164) to the stem lineage of clades 2–4 (BS = 84, γ = 0.836).

3.3 Divergence times

For the first topology in the multi-labeled phylogenetic species tree, with the parent lineage of S. fachinii in clade 4, we selected 10 alignments with a length of 40,970 bp. For the second topology, with the parent lineage of S. fachinii in clade 3, we selected 10 alignments with a length of 33,130 bp. The maximum clade credibility tree was constructed from a total of 133,204 dated species trees (Figure 4). The stem age of subsection Arachnoideae was dated to 5.12 (95% confidence interval 3.28–9.32) million years ago (myr). Their crown age was estimated at 3.54 (2.21–6.43) myr. For clade 1, stem and crown ages of 3.54 (2.21–6.43) myr and 3.16 (1.81–5.79) myr were estimated. Stem and crown ages of clade 4 were estimated at 2.77 (1.66–5.08) myr and 1.7 (0.94–3.18) myr, respectively. The stem age of the S. facchinii lineage in this clade corresponds to the clade crown age. For clade 2, stem and crown ages of 2.39 (1.47–4.39) myr and 2.35 (1.42–4.3) myr were estimated. In clade 2, the overall youngest node was found for the last common ancestor (MRCA) of S. sedoides and S. prenja with an age of 0.06 (0–0.16) myr. Stem and crown ages of 2.39 (1.47–4.39) myr and 2.29 (1.41–4.22) myr were calculated for clade 3. The stem age of the S. facchinii lineage in this clade was dated to 1.94 (1.1–3.57) myr.

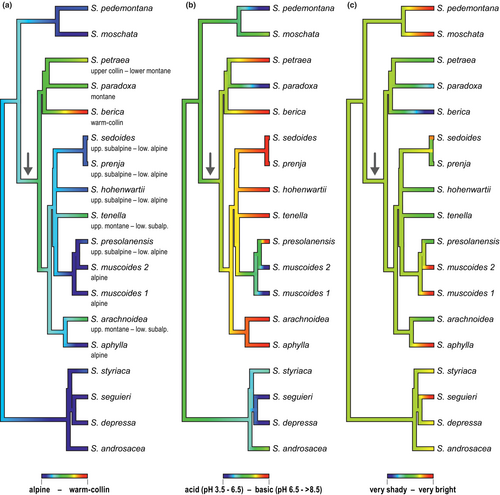

3.4 Ancestral ecology

Based on Blomberg's K and Pagel's λ, a strong phylogenetic signal was detected in the temperature indicator (K = 0.947, p = .004; λ = 1.009, p = 8.01 × 10⁻⁵). Consistent with this finding, a simple Brownian motion model was fitted as the best model (wi = 0.642; Table 2). The stem group node of subsection Arachnoideae was reconstructed as 1.96, corresponding to subalpine elevations, and its descendants shifted into lower (clade 1) or higher elevations (clades 2–4, Figure 5a). The same result (1.96) was obtained in our Mesquite reconstruction. No phylogenetic signal was indicated for the light indicator (K = 0.120, p = .627; λ = 4.83 × 10⁻⁵, p = 1.0) and for the soil pH indicator (K = 0.448, p = .123; λ = 0.234, p = .494). Accordingly, white noise models were fitted as the best models for soil pH and light niche evolution (Table 2). The second best model for soil pH evolution was an OU model (α = 0.692, wi = 0.390). According to the model, the stem group node of subsection Arachnoideae was reconstructed as 3.66, corresponding to neutral to slightly alkaline soils, and adaptation to base-poor soils took place independently in S. paradoxa and the MRCA of S. muscoides and S. presolanensis (Figure 5b). The same result (3.66) was obtained in our Mesquite reconstruction. The second best model for light niche was also an OU model, however, with a large rubber band parameter α and a low Akaike weight (α = 321.974, wi = 0.189) indicating poor model fit. According to the model, the stem group node of subsection Arachnoideae was reconstructed as 3.77, corresponding to just below bright. Adaptation to half-shady, shady or very shady habitats took place independently in S. arachnoidea, S. paradoxa and S. berica. The Mesquite reconstruction resulted in a very similar value (3.76).

Apart from our reconstruction of ecological traits, S. arachnoidea as a species from upper montane to lower subalpine elevations and shady to half-shady habitats clearly differs strongly from its closest relative, S. aphylla, a species from alpine elevations and very bright habitats (Landolt et al., 2010). In case of S. berica and S. paradoxa, S. paradoxa grows on acid substrates in contrast to S. berica (basic) and S. petraea (basic). Differentiation in light requirements are less pronounced than in S. arachnoidea/S. aphylla, with S. berica growing in very shady, S. paradoxa in shady and S. petraea in half-shady habitats (Landolt et al., 2010).

4.1 Phylogeny of subsection Arachnoideae and the origin of ecologically divergent species

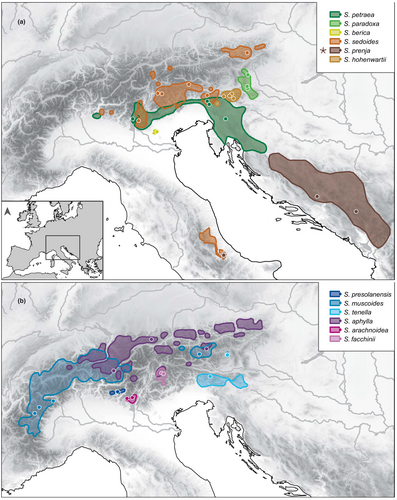

The three species of clade 1, S. petraea, S. paradoxa and S. berica all grow in shady and humid conditions under overhanging rocks, in recesses and hollows or at the entrance of caves. Whereas S. berica, only known from the Colli Berici near Vicenza (northern Italy), grows at elevations lower than 450 m, both S. petraea and S. paradoxa mostly grow at elevations lower than 500 m but occasionally can be found at higher elevations (Kaplan, 1995; Webb & Gornall, 1989). Considering the extant distribution of the three species (Figure 1) and their relationships to each other (Figure 2), speciation likely was allopatric and the narrowly distributed S. berica split from the more widely distributed S. petraea + S. paradoxa before these two latter species separated. Following Landolt et al. (2010), ecological divergence in terms of light requirements is very limited in this clade (S. berica: very shady; S. paradoxa: shady; S. petraea: half-shady). Interestingly, S. paradoxa, by growing on gneiss or mica-schists, is one of only two species of the subsection which is not calcicole. The extant range of S. paradoxa lies in the ‘easternmost Central Alps’ refugium for calcifuge taxa (Schönswetter et al., 2005; Tribsch & Schönswetter, 2003), and that of S. berica in the ‘Monte Baldo, Monti Lessini, and Prealpi Bellunesi’ refugium for calcicole taxa (Schönswetter et al., 2005; Tribsch & Schönswetter, 2003). Of all clades of subsection Arachnoideae (except part of S. sedoides and S. prenja of clade 2, see below), clade 1 has the southernmost distribution range by occurring along the southern and eastern periphery of the Alps. As clade 1 is sister to the remainder of the subsection, it is likely that clade 1 as a whole separated parapatrically from the remainder of the subsection in a cold phase of the late Pliocene and acquired its extant ecology in its further evolution (see below). The hypothesis of an essentially parapatric divergence of clade 1 from the remainder of the subsection finds support in the detection of hybridization between S. petraea and the last common ancestor of clades 2, 3 and 4 (Figure 3b).

As in clade 1, the three species of clade 2, S. sedoides, S. hohenwartii und S. prenja, are largely allopatric in distribution. The only exception from this is the co-occurrence of S. sedoides and S. prenja in the Apennines. They all occur at subalpine to alpine elevations and grow on limestone and dolomitic scree. As shown in detail by Hörandl (1993), the niche of S. hohenwartii is much narrower than that particularly of S. sedoides. Saxifraga hohenwartii as sister to S. sedoides + S. prenja is likely to have split allopatrically from the latter two species. The species has been interpreted as a relict endemic by Hörandl (1993), and its current range lies in the ‘southeasternmost calcareous Alps’ refugium for calcicole taxa (Tribsch & Schönswetter, 2003). Considering the extant ranges of S. sedoides and S. prenja, their last common ancestor most likely attained a wide range including areas outside the Alps, and the two species most likely originated by vicariance. Equally, S. sedoides, by occurring in the southern and northeastern Alps, a disjunction long known from other taxa (Merxmüller, 1952), and also in the Apennines, must have had a wider range in the past. The same applies to S. prenja which also occurs in the Apennines. Long-distance dispersal to the Apennines of both S. sedoides and S. prenja, however, cannot be excluded. The subrange of S. sedoides in the northeastern Alps lies in the ‘northeastern calcareous Alps’ refugium for calcicole taxa (Tribsch & Schönswetter, 2003). Clade 2 (except for S. prenja) essentially is distributed allopatrically with clade 1 in the south and the remainder of the subsection in the north (Figure 1). The three species of clade 3, S. muscoides, S. presolanensis and S. tenella, are also distributed allopatrically. They differ strongly in ecology. Whereas the calcifuge S. muscoides, not resolved as monophyletic in our phylogenetic tree, is a distinctly alpine species by occurring at elevations between 2250 and 4200 m (Kaplan, 1995; Webb & Gornall, 1989), S. tenella grows at between 700 and 2000 m on shady limestone rocks and screes, and S. presolanensis grows on north-facing and shady vertical or even overhanging limestone cliffs (Kaplan, 1995; Merxmüller & Wiedmann, 1957; Webb & Gornall, 1989) between 1800 and 2100 m. The range of S. tenella lies, as that of S. hohenwartii, in the ‘southeasternmost calcareous Alps’ refugium for calcicole taxa (Skubic et al., 2018; Tribsch & Schönswetter, 2003), and that of S. presolanensis, located on the very edge of the main range of S. muscoides, in the ‘Alpi Bergamasche’ refugium for calcicole taxa (Tribsch & Schönswetter, 2003). Although the range of S. tenella is widely disjunct with the major part of the range of S. muscoides in western parts of the Alps, the disjunct subrange of S. muscoides in the Tauern somewhat connects the two species. With the exception of S. tenella, clade 3 clearly is allopatric with clades 1, 2 and 4. Although there is a broad overlap, at a large scale, of S. muscoides with S. aphylla of clade 4, these two species are well separated by their different bedrock requirements. Finally, in clade 4, excluding S. facchinii as a species of hybrid origin, S. aphylla and S. arachnoidea are distributed allopatrically and are strongly differentiated ecologically. Whereas S. aphylla grows on calcareous scree and stony ground, often where the snow lies late, at elevations between 1730 and 3200 m (Kaplan, 1995) but mostly between 2100 and 2800 m (Webb & Gornall, 1989), S. arachnoidea grows between 600 and 1850 m in limestone dust under overhanging rocks (Pitschmann & Reisigl, 1959) sheltered from rain and sun (Webb & Gornall, 1989). Accordingly, the light requirements (Landolt et al., 2010) of S. arachnoidea (half-shady) are much lower than those of S. aphylla (very bright). Saxifraga arachnoidea is allopatric with the more widely distributed S. aphylla, and its range lies within the ‘Monte Baldo, Monti Lessini, and Prealpi Bellunesi’ refugium for calcicole taxa (Schönswetter et al., 2005; Tribsch & Schönswetter, 2003).

In summary, the distribution of the four clades recognized and the distribution of species within these four clades is largely para- and allopatric.

4.2 Saxifraga facchinii, a hybrid species

As evident from our analyses, S. facchinii originated through hybridization between the last common ancestor of S. presolanensis and S. muscoides on the one hand and the last common ancestor of S. aphylla and S. arachnoidea on the other hand (Figure 2). Although a hybrid origin of S. facchinii had never been suspected, its relationship to S. muscoides is reflected in its treatment as a variety of that species by Engler (1872), and a close relationship between S. facchinii and S. aphylla had been found by Vargas (2000). Gerschwitz-Eidt and Kadereit (2020) found the species to be closest relative of S. muscoides/S. presolanensis in their ITS phylogenetic tree, and to be closest relative (unsupported) of one sample of S. aphylla in their plastid phylogenetic tree. Saxifraga facchinii grows on calcareous rocks and scree at alpine elevations between 2250 and 3000 m and in this respect is ecologically comparable to S. aphylla and S. muscoides of its two parental lineages. Accordingly, this hybridization event did not result in major changes in ecological preferences of the resulting hybrid species.

The distribution of S. facchinii on the one hand and its two parental lineages on the other hand is allopatric, as very commonly observed in both homoploid and allopolyploid hybrid species (Kadereit, 2015). Following Kadereit (2015), this may be the result of the segregation of ranges of ecologically differentiated entities in response to climatic changes. Considering the distribution of S. facchinii, it seems possible that its parental lineages were sympatric in the area of the extant range of S. facchinii at a time when the range of the last common ancestor of S. muscoides included the major range of this species in the west and the disjunct subrange of this species in the Tauern (Figure 1). In this case the hybrid species might have persisted in its area of origin and the parental lineages migrated tracking their niches in times of climatic change. As the chromosome number of S. facchinii is unknown, we do not know whether the species is a homoploid or polyploid hybrid species.

4.3 The ancestral ecology of subsection Arachnoideae

Subsection Arachnoideae is part of section Saxifraga (Ebersbach et al., 2017; Tkach et al., 2015) together with subsection Saxifraga, subsection Androsaceae and S. irrigua. Subsection Saxifraga is found mainly in the Iberian peninsula, subsection Androsaceae mainly in the Alps, and S. irrigua is from Crimea, where the species grows in rocky woods and on shady cliffs, always on limestone, between 500 and 1250 m elevation (Webb & Gornall, 1989). Relationships among these three well-supported clades and S. irrigua were not resolved in the phylogenetic tree of Tkach et al. (2015), although Tkach et al. (2019) obtained support for a sister relationship between S. irrigua and subsection Androsaceae. As reconstruction of the ancestral ecology of subsection Arachnoideae requires an outgroup, our reconstruction used part of our species tree based on Hybseq sequences (Figure 2) which altogether included nine species of subsection Saxifraga and resulted in a non-monophyletic subsection Saxifraga. In our reconstruction, the stem group node of subsection Arachnoideae was reconstructed as subalpine, neutral to slightly alkaline soils and (just below) bright (Figure 5). Accordingly, the calcifuge ecology of S. paradoxa (and S. muscoides) and the reduced light requirement of S. berica, S. paradoxa and S. arachnoidea evolved twice independently each within the subsection. With respect to elevational distribution, our results imply that high elevation (subalpine) rather than low elevation distribution is ancestral in the subsection. However, alpine distributions evolved twice independently (S. aphylla, S. muscoides), as known from other examples (Trucchi et al., 2017).

4.4 Origin of divergent ecologies through adaptive evolution in refugia - a hypothesis

The definition of a refugium as an area where a particular species survived for an entire glacial–interglacial cycle (Hewitt, 2004) appears to suggest that such areas were sanctuaries where species were preserved from extinction (Nieto Feliner, 2011). However, it is widely appreciated that evolutionary change resulting in speciation took place in the Quaternary through geographical isolation in refugia and through hybrid speciation upon secondary contact (Kadereit & Abbott, 2022). Evolutionary change most likely also took place in response to exposure to novel selection pressures in biotic and abiotic conditions, different from the conditions in areas where the species lived and went extinct in glacial periods of the Quaternary (Davis & Shaw, 2001; De Lafontaine et al., 2018; Nieto Feliner, 2011; Stewart et al., 2010; Stewart & Stringer, 2012). Abiotic and biotic conditions in refugia changed through Quaternary times. Considering alpine species, the glacial refugia in the area of the European Alps identified by Schönswetter et al. (2005) were cold-stage refugia (Birks & Willis, 2008). In interglacials or the Holocene, both changing climatic conditions and competition in the former cold-stage refugia in most cases will have resulted in the re-migration of alpine species into high elevation habitats, i.e., into their warm-stage refugia (Birks & Willis, 2008). Considering the extant distribution of S. berica, S. paradoxa and S. arachnoidea in well-known refugial areas, and assuming that these refugia, identified for the Last Glacial Maximum (Schönswetter et al., 2005; Tribsch & Schönswetter, 2003), can be taken as proxies for the location of cold-stage refugia in earlier parts of the Quaternary, we here hypothesize that the extant ecology of these species originated through adaptive evolution in refugial areas where they persisted irrespective of climatic change. Saxifraga paradoxa is one of two calcifuge species of the subsection by growing on gneiss or mica-schists. We consider it highly likely that the shift from calcicole to calcifuge followed the climatically enforced migration of a calcicole ancestor into a cold-stage refugium for calcifuge plants. Shifts from calcicole to calcifuge and vice versa linked to and likely resulting from Quaternary migration and dispersal into edaphically different areas had before been postulated for Adenostyles Cass. (Dillenberger & Kadereit, 2013) and Jovibarba (DC.) Opiz and Sempervivum L. (Klein & Kadereit, 2015).

The low light requirements of S. berica, S. paradoxa and S. arachnoidea are likely to have evolved in response to changing environmental conditions in their respective distribution ranges. These three species all have very small distribution ranges which lie within well known cold-stage refugia (Schönswetter et al., 2005). Accordingly, they are likely to have persisted in their refugia. Considering that cold-stage refugia on the edges of the Alps most likely contained more or less all habitat types of extant alpine species, we consider it likely that the extant habitats of S. berica, S. paradoxa and S. arachnoidea do not correspond to those encountered when the populations which gave rise to these species initially migrated into cold-stage refugial areas. Instead, occupation of these very marginal habitats with little interspecific competition probably is the result of competitive exclusion from other sites after the recolonization of cold-stage refugial areas by more competitive species in interglacial times. All three species, as indeed all species of subsection Arachnoideae, were assessed as stress-tolerators (vs. competitors; Grime, 1974) by Landolt et al. (2010). Interestingly, the habitats of S. berica, S. paradoxa and S. arachnoidea somewhat resemble some of those habitats occupied by extant alpine species when growing at low elevations. These, in the British Isles, include screes, north-facing slopes, steep cliffs and cool ravines (Birks & Willis, 2008; Pigott & Walters, 1954), and gorges in the Mediterranean area (Gentili et al., 2015). Whereas the ecology of extant alpines at low elevations or southern latitudes is, as far as known, the result of competition and thus of ecological processes, we hypothesize that the limitation of S. berica, S. paradoxa and S. arachnoidea to their specific habitats is the result of adaptation and thus of evolutionary processes. Adaptation to conditions into which species were forced by competition before has been postulated for an eastern North American narrow endemic of Dodecatheon L. limited to patchy cool cliffs by Oberle and Schaal (2011) and the serpentine endemic Cherleria (= Minuartia L.) laricifolia (L.) Iamonico subsp. ophiolitica (Pignatti) Iamonico from the northern Apennines by Moore et al. (2013). Interestingly, Webb and Gornall (1989) observed that cultivation of S. berica, S. paradoxa and S. arachnoidea is only possible when the conditions of their natural habitat, particularly shade, are reproduced as closely as possible. This clearly implies that these three species are not limited to their present niches by competition alone but require the conditions found for successful growth and reproduction. It remains unclear whether these marginal habitats were colonized only as the result of increasing competition or had been part of the niche of these species before. In the first case, novel selection pressures resulting in evolutionary divergence thus not only arose from abiotic environmental conditions but probably mainly from interspecific competition, the ‘new neighbors’ of Hewitt (1996, 2000, 2004). When considered together with their closest relatives, S. berica (closest relatives: S. petraea, S. paradoxa), S. paradoxa (S. petraea) and S. arachnoidea (S. aphylla), persisting in cold-stage refugial areas upon climatic warming, can be considered stable rear edge populations or species (Hampe & Petit, 2005). For such populations, Ackerly (2003) proposed, in his ‘trailing edge hypothesis of adaptive evolution’, that the most important condition for adaptive evolution to occur at the rear edge is the exclusion of competitors. In case of S. berica, S. paradoxa and S. arachnoidea this appears to have been realized by the evasion of competitors through adaptation to shady habitats unsuitable for them.

If indeed adaptation to novel selection pressures in S. berica, S. paradoxa and S. arachnoidea took place in warm stages of the late Pliocene and Pleistocene, as also postulated for adaptive differentiation within Taxus baccata L. (Mayol et al., 2015), geological time available for evolutionary change was even shorter than in cold stages because warm stages were substantially shorter than cold stages in the Pleistocene (Birks, 2019). Although it has been argued that periods of isolation required for speciation were never long enough in the Quaternary (Willis & Niklas, 2004), speciation in Quaternary glacials has been implied by Kadereit et al. (2004). For S. berica, S. paradoxa and S. arachnoidea we do not postulate that they originated in interglacial times. Instead, they are more likely to have originated when pushed into refugia in late Pliocene/Pleistocene cold stages. However, their extant ecological make-up appears to be the result of adaptive evolution in Quaternary interglacials. In consequence, both Late Pliocene/Pleistocene cold stages, resulting in geographical isolation, and warm stages, inducing adaptive change, shaped the evolution of these species.
