2.1 Sample collection and DNA extraction

Adult specimens of Ampittia virgate Leech, 1890 and Halpe nephele Leech, 1893 were sampled at Jiuxian Mountain and Wuyi Mountain in Fujian Province, China, respectively, in July 2016. The adult Onryza maga Leech, 1890 was collected at Matou Mountain, Jiangxi Province, China in August 2018. All materials were preserved in 100% ethanol immediately after collecting and stored at −20˚C at the Entomological Museum of the Northwest A&F University, Yangling, Shaanxi Province, China. Specimen identification was based on morphological characteristics following Yuan et al. (2015) and the identity was confirmed via cox1 barcoding using the BOLD database (Ratnasingham & Hebert, 2013). The genomic DNA was isolated from the thoracic tissue using the EasyPure^R Genomic DNA Kit (TransGen Biotech, Beijing).

2.2 Sequencing, assembly, annotation, and bioinformatic analyses

Three complete mitogenomes were sequenced using next-generation sequencing (NGS) on an Illumina HiSeq 2000 platform (Biomarker Technologies, Beijing). The correct recognition rate of bases reaches 99.9%. Each Illumina HiSeq read was 150 bp, and about 1.2 Gb raw data were trimmed with default parameters, then the raw paired reads were retrieved and quality-trimmed using CLC Genomics Workbench v10.0.1 (CLC Bio, Aarhus, Denmark) with default parameters. The clean paired reads were then used for mitogenome reconstruction using MITObim v1.7 software (Hahn et al., 2013) with default parameters and the mitogenome of Ampittia dioscorides (KM102732) (Qin et al., 2017) as the reference. Annotation of the mitogenomes and comparative analyses were conducted following the methodology outlined above. The various genomic features were annotated using Geneious 8.1.3 (Biomatters, Auckland, New Zealand) and referenced to the complete mitogenome sequence of A. dioscorides. Protein-coding genes (PCGs) were determined by finding the ORFs based on the invertebrate codon table (codon Table 5), and RNAs (tRNAs and rRNAs) were identified using MITOS Web Server (Bernt et al., 2013). Transfer RNAs were manually plotted according to the secondary structure predicted by MITOS, using Adobe Illustrator CS5. Finally, all genes were visually inspected against the reference mitogenome in Geneious. Nucleotide composition, codon usage, comparative mitogenomic architecture tables for the three mitogenomes, and data used to plot RSCU (relative synonymous codon usage) figures were all calculated and created using PhyloSuite (Zhang et al., 2020). The AT-skew and GC-skew were computed according to the following formulas: AT-skew = [A − T]/[A + T] and GC-skew = [G − C]/[G + C] (Perna & Kocher, 1995). The three newly sequenced mitogenome sequences of Aeromachini (Ampittia virgata, Halpe nephele, and Onryza maga) have been uploaded onto GenBank with the accession number MW288057, MW288058, and MW288059, respectively.

2.3 Sequence read archive (SRA) data extraction

We referred to and used the data of six genomes from over 300 hesperiid species determined in previous study to extract the mitochondrial genomes because of the lack of directly available mitogenomes on GenBank. The SRA data of the subfamily Trapezitinae (Hewitsoniella migonitis, Anisynta dominula, Toxidia parvulus, and Signeta flammeata) and two species of the tribe Aeromachini (Aeromachus stigmata and Ampittia dioscorides) were obtained from GenBank with the DNA Voucher NVG-17108D07, NVG-17069D05, NVG-7813, NVG-7760, NVG-7915, and NVG-7291, respectively (Li, Cong, et al., 2019; Zhang et al., 2019). The raw data of 4 species of Trapezitinae were assembled into mitogenomes referred to Barca bicolor (Han et al., 2018), and the 2 species of Aeromachini were referred to Isoteinon lamprospilus (Ma et al., 2020) using Geneious.

2.4 Phylogenetic analysis

A total of 41 species (3 newly determined in this study, 38 available from GenBank) representing 9 subfamilies of Hesperiidae sens Li, Cong, et al. (2019) and Zhang et al. (2019) were used to reconstruct their phylogenetic relationships. The ingroup contains 5 species of Coeliadinae, 1 species of Euschemoninae, 2 species of Pyrginae, 4 species of Tagiadinae, 2 species of Eudaminae, 3 species of Heteropterinae, 2 species of Barcinae, 4 species of Trapezitinae, and 18 species of Hesperiinae. The 4 Papilionidae species (P. machaon, P. helenus, G. timur and P. apollo) were selected as outgroups (Table 1).

The complete mitogenome genes were extracted using PhyloSuite v1.2.2, and the sequences of 13 PCGs of the 39 species were aligned in batches with MAFFT integrated into PhyloSuite. Nucleotide sequences were aligned using the G-INS-i (accurate) strategy and codon alignment mode. All rRNAs were aligned in the MAFFT with the Q-INS-i strategy (Katoh & Standley, 2013). Poorly matched sites in the alignments were removed using Gblocks v0.91b (Castresana, 2000). Individual genes were also concatenated using PhyloSuite v1.2.2.

We used 3 datasets to reconstruct the phylogenetic relationship: (1) PCG matrix, containing all codon positions of the 13 protein-coding genes; (2) PRT matrix, concatenating all codon positions of the 13 protein-coding genes, 22 tRNAs and 2 rRNAs; and (3) 12PRT matrix, including the first and second codon positions of 13 protein-coding genes plus 22 tRNAs and 2 rRNAs. Based on 3 datasets, the maximum likelihood (ML) and Bayesian inference (BI) methods were used to reconstruct the phylogeny. The optimal partitioning scheme and nucleotide substitution model for ML and BI phylogenetic analyses were selected using PartitionFinder 2.1.1 (Lanfear et al., 2017) with the greedy algorithm and BIC (Bayesian information criterion) criteria (Tables S1 and S2). Maximum likelihood analysis was inferred using IQ-TREE (Nguyen et al., 2015) with the standard bootstrap approximation approach, as well as the Shimodaira–Hasegawa-like approximate likelihood ratio test (Guindon et al., 2010), and the bootstrap value (BS) of each node of the ML tree was evaluated via the bootstrap test with 10,000 replicates. Bayesian inference was carried out using MrBayes 3.2.6 (Ronquist et al., 2012) with the following requirements: 2 independent runs of 1 × 10⁷ generations were conducted with four independent Markov Chain Monte Carlo (MCMC) runs, including 3 heated chains and a cold chain, by sampling every 1,000 generations. A consensus tree was obtained from all the trees after the initial 25% of trees from each MCMC run was discarded as burn-in, with the chain convergence assumed after the average standard deviation of split frequencies fell below 0.01. The confidence value of each node of the BI tree was presented as the Bayesian posterior probability (BP).

3.1 Mitogenome organization and base composition

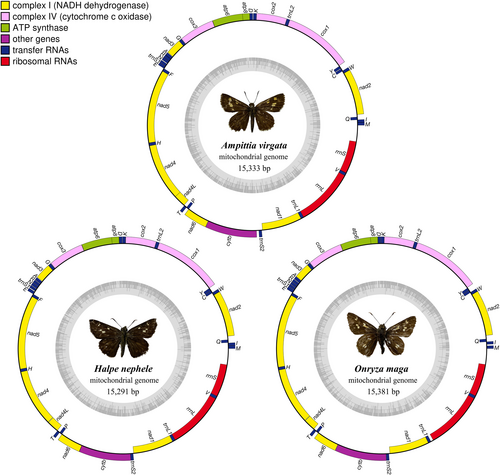

The total lengths of the mitogenomes of Ampittia virgata, Halpe nephele, and Onryza maga are 15,333 bp, 15,291 bp, and 15,381 bp, respectively (Figure 1). The gene order and organization are similar to those of other butterflies previously determined, containing 13 protein-coding genes (PCGs), 22 transfer RNAs (tRNAs), 2 ribosomal RNAs (rRNAs), and a noncoding A + T-rich region. Among them, 14 genes are encoded from the N-strand, and the remaining 23 genes are from the J-strand (Table 2).

Nucleotide composition of A. virgata is A = 39.7%, C = 11.8%, G = 7.5% and T = 41.0%. The base composition of H. nephele is A = 40.3%, C = 12.3%, G = 7.6% and T = 39.7%, and A = 39.8%, C = 12.2%, G = 7.7% and T = 40.2% in O. maga. The A + T content are 80.7%, 80.0% and 80.0%, respectively, showing a relatively strong A + T bias (Table 3). Compared with the whole-genome, the noncoding A + T-rich region (NCR) has the highest A + T content, up to 89.7%, 89.3%, and 91.9%, respectively. On the contrary, PCGs are the regions with the lowest A + T content, which is 79.1%, 78.4%, and 78.2% respectively. In addition, the T content of these mitogenomes on the major strand is higher than that of A, with the exception of H. nephele (Table 3).

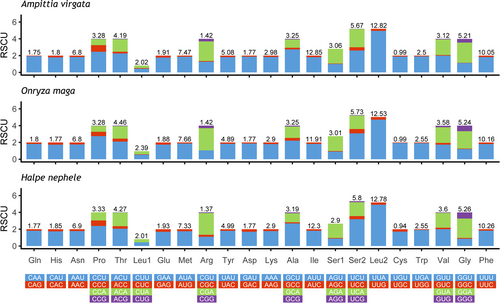

3.2 Protein-coding genes and codon usage

The total lengths of the 13 PCGs of Ampittia virgata, Halpe nephele, and Onryza maga are 11,190 bp, 11,202 bp, and 11,187 bp, respectively (Table 3). In these 3 sequenced species, 9 of 13 PCGs (nad2, cox1, cox2, atp8, atp6, cox3, nad3, nad6, and cytb) are encoded in the J-strand, and the other 4 (nad5, nad4, nad4L, and nad1) are located on the N-strand. The size of the 13 PCGs with the smallest gene for the 13 PCGs is the atp8, and the largest gene is the nad5 ranging in size from 162 bp to 1,744 bp. The AT-skew and GC-skew indicate that the T content of PCGs is obviously higher than that of A among these 3 species, while the content of G and C is not much different. The AT bias of the bases is more significant in the third codon, and the AT content of the third codon (90.5%–92.3%) is remarkably higher than that of the first codon (73.7%–74.6%) and the second codon (70.1%–70.5%), which is consistent with the higher mutation rate of the third codon site compared with the second and first codon sites (Table 3). All PCGs of these 3 mitogenomes start with typical ATN (ATG, ATT, and ATA) codons except cox1 using CGA, and all of them use TAA or TAG as the stop codons, with the exception for cox1, cox2, nad4, and nad5, which use a single T as stop codons (Table 2). Statistics on the relative synonymous codon usage (RSCU) of the 3 skippers shows that the codon UUA (Leu2), UCU (Ser2), and CGA (Arg) are the 3 used most frequently, and the codons terminating with A and T also have a relatively higher frequency (Figure 2).

3.3 Transfer and ribosomal RNA genes

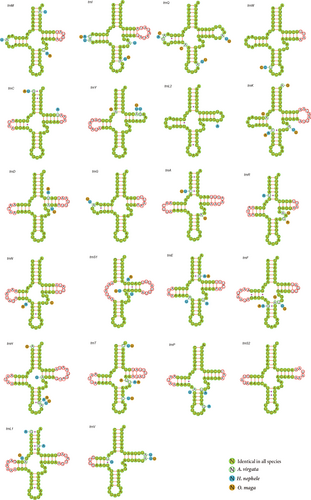

Each of the 3 skipper species harbor 22 tRNA genes, 14 of which are encoded in the J-strand and 8 of them are encoded in the N-strand, ranging from 63 bp to 69 bp in size (Table 2). The total lengths of the tRNA region of A. virgata, H. nephele, and O. maga are 1,458 bp, 1,460 bp, and 1,457 bp, respectively. The A + T content of tRNA is slightly higher than that of the PCGs (Table 3). Most tRNA genes of these 3 mitogenomes could be folded into a cloverleaf secondary structure, except for trnS (AGN), which lacks the DHU arm (Figure 3). The total number of unmatched base pairs found in the tRNAs of the 3 skippers was 28 in O. maga, 29 in A. virgata, and 34 in H. nephele. Most of these unmatched base pairs occur on the amino acid acceptor arm, the DHU arm and the anticodon arm, with only a few occurring on the TΨC arm. The majority of unmatched base pairs is U-G which is a semi-compensatory substitution; the others being U-U A-C, U-C, A-A, and A-G mismatches (Figure 3).

The 2 rRNA genes (rrnL and rrnS) encoded by the N-strand are located between trnL (CUN) and trnV, and between trnV and the A + T-rich region, respectively. The large subunit rRNA (rrnL) is 1,382/1,377/1,382 bp (A. virgata/H. nephele/O. maga, respectively) in length while the small subunit rRNA (rrnS) is 770/768/772 bp (Table 2). In addition, both tRNA and rRNA of the three mitogenomes show a strong AT bias, which is higher than that of the whole mitogenomes (Table 3).

3.4 Overlapping sequences and intergenic spacers

There are 11, 8, and 5 gene overlapping regions in A. virgata, H. nephele, and O. maga mitogenomes, respectively, all ranging in size from 1 to 10 bp. The total lengths of the 3 mitogenomes ranges from 21 to 48 bp (Table 2). The longest of A. virgata mitogenomes is 10 bp located between nad4 and nad4L, the longest of H. nephele is 25 bp located between trnL1-rrnL, while the longest of O. maga is 8 bp located between trnW-trnC. Four identical overlapping regions, namely the nad2-trnW (2 bp), trnW-trnC (8 bp), atp8-atp6 (7 bp), and atp6-cox3 (1 bp) are all present in these 3 mitogenomes (Table 2). Nineteen, thirteen, and sixteen intergenic spacers, ranging from 1 to 77 bp, from 2 bp to 53 bp and 1 bp to 78 bp, with their longest (77bp, 53bp, 78bp), are located between trnQ and trnW, are existed in O. maga, A. virgata and H. nephele mitogenomes, respectively (Table 2).

3.5 A + T-rich region

The A + T-rich region is the longest noncoding region with a relatively high A + T content, deemed to be related to the origin of replication and transcription (Boore, 1999; Cameron, 2014) and usually located between rrnS and trnM. In this study, this region ranges from 89.3% to 91.9%, with the longest (A. virgata) being 379 bp the second longest (H. nephele) being 374 bp, and the shortest (O. maga) being 369 bp in size (Table 3). In this study, a poly-T and poly-A stretches are all present with varying lengths in the A + T-rich region. The poly-T length ranges from 16 bp to 22 bp, and the poly-A stretch ranges from 12 bp to 24 bp, often interrupted by the base T (Figure 4). These 2 types of T/A tandem repeats in the A + T-rich region have been reported in other determined Hesperiidae mitogenomes (Han et al., 2018).

3.6 Phylogenetic relationships

In this study, we used the mitogenomes of a total of 45 hesperiid species containing 3 newly determined species (including 2 new mitogenomes in 2 genera) and 4 papilionid outgroup species to reconstruct the phylogenetic relationships of the tribe Aeromachini and closely related Hesperiinae in the family Hesperiidae. The analyses were conducted with ML and BI methods based on three datasets (PCGs, PRT and 12PRT). The results show that the obtained phylogenetic trees harbor almost the same topological structures, with nodes of the tree being strongly supported (the bootstrap support values, BS, of ML trees and the posterior probability, PP, of the BI trees). For simplicity and brevity, only one phylogenetic hypothesis (12PRT_BI) is presented here (Figure 5). The rest of the trees are in the Supplementary materials (Figure S1–S5).

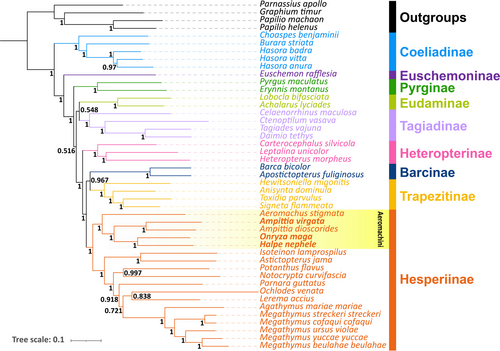

The phylogenetic tree consists of 9 clades corresponding to 9 major hesperiid subfamilies sens Li, Cong, et al. (2019) and Zhang et al. (2019), and their relationships are Coeliadinae + (Euschemoninae + (Pyrginae + ((Eudaminae +Tagiadinae) + (Heteropterinae + ((Trapezitinae +Barcinae) + Hesperiinae))))) (Figure 5). The position of Eudaminae does not agree with that of previous studies where the subfamily is sister to the Pyrginae sensu lato, that is, Tagiadinae, Pyrrhopiginae, and Pyrginae sens Zhang et al. (2019). The inconsistency of phylogenetic relationships may be mainly caused by incomplete lineage sorting and inadequate taxon sampling (Pollard et al., 2006; Sahoo et al., 2016). In addition, Sahoo et al. (2016) thought the data from entire genomes may result in a better-resolved phylogeny. On the contrary, Zhang et al. (2021) pointed out that phylogenetic trees based on whole-genome sequence data may not always represent the true evolutionary history mainly due to the gene flow, which is also one possibility with appropriate references. However, it is difficult to effectively circumvent its influence firstly due to incomplete pedigree selection that results in long-branch attraction and other phylogenetic errors and secondly due to the gene flow that causes the network evolution rather than the branched evolution. There are two taxonomic alternatives: (1) recognize three distinct subfamilies, Pyrginae, Eudaminae, and Tagiadinae as suggested by Zhang et al. (2019) of the subfamily Eudaminae is retained, or (2) combine them all as Pyrginae as in the conventional treatment. Here we tentatively adopt the former, pending further taxonomic investigation.

For the five Aeromachini species in this study, all results indicate that the Aeromachini form an independent clade in the subfamily Hesperiinae, which is the basal lineage among them (PP = 1), that Aeromachus branched at the root of the tribe, and that H. nephele and O. maga are sister groups (PP = 1), and the H. nephele + O. maga clade is sister to the A. virgate + A. dioscorides clade with strong support values (PP = 1). Huang et al. (2019) used two mitochondrial and two nuclear genes from 71 samples and Li, Zhu, et al. (2019) used 45 species in this tribe to infer phylogenetic relationships. Our results do not conflict with theirs. Although our analyses did not select sufficient samples of representative groups, for example, the Eudaminae, a satisfactorily clustering and high node support values were present in all the obtained trees.

Apostictopterus fuliginosus and Barca bicolor had been placed in the subfamily Heteropterinae in previous research (Warren et al., 2008, 2009; Yuan et al., 2015) until Han et al. (2018) proposed that A. fuliginosus and B. bicolor should be placed in subfamily Hesperiinae through phylogenetic analysis of mitogenomes. Subsequently, Zhang et al. (2019) adding Trapezitinae in their analysis, raised them to a subfamily rank Barcinae. Our results show that the two species and Trapezitinae are sister groups and the clade (A. fuliginosus + B. bicolor + Trapezitinae) is sister to the subfamily Hesperiinae with strong support values (PP = 1). Again, there are two taxonomic alternatives: (1) recognize 3 distinct subfamilies, Barcinae, Trapezitinae, and Hesperiinae as suggested by Li, Cong, et al. (2019), or (2) combine them all as Hesperiinae. Taxonomic treatment based only on molecular data is not desirable. Indeed, morphological synapomorphy is vague between Trapezitinae and Hesperiinae (Parsons, 1999; Warren et al., 2009). Here we refrain from drawing conclusion, pending further research.
