2.1 mtDNA Data Analysis

The cytochrome b (Cyt b) combined with control region (CR) yielded a total of 161 sequences. Thirty-two sequences of T. brevicephalus were included in all CR sequences analyses conducted in this study (GenBank accession no. MN030578–MN030609). Multiple sequence alignment was performed using the ClustalW method and inter-population genetic distances based on the uncorrected p-distances were estimated in MEGA 11.0.13. (Larkin et al. 2007; Tamura, Stecher, and Kumar 2021), and haplotype analysis and nucleotide diversity was computed using DnaSP v6.12.03 (Rozas et al. 2017). The analysis of molecular variance (AMOVA) computations was performed using Arlequin 3.5 to detect genetic variation among geographic populations or groups and to calculate genetic variation indices (Excoffier and Lischer 2010). The significance of covariance at different levels of genetic structure was tested through 1000 resampling iterations.

Phylogenetic analysis was conducted using CR and the concatenated dataset (5'-Cyt b + CR-3′) with Maximum Likelihood (ML) estimation in raxmlGUI 2.0 (Edler et al. 2021) and Bayesian Inference (BI) in MrBayes 3.2.7 (Ronquist et al. 2012). The best nucleotide substitution models for Bayesian Inference (BI) and Maximum Likelihood (ML) analyses in CR and Cyt b + CR phylogenetic analysis were identified as HKY + G using MrModeltest 2 and MEGA 11.0.13 (Nylander et al. 2004; Tamura, Stecher, and Kumar 2021). Mongolian grayling (T. brevirostris) (GenBank accession no. MH027384, IMT063033, NC027412, KJ866486), Upper Ob grayling (T. nikolskyi) (MT063030, MT063029, NCO56308), Baikal black grayling (T. baicalensis) (MT063022, MT063023), Chovsgul grayling (T. nigrescens) (NC056307, MTO63028), Lower Amur grayling (T. tugarinae) (KY078217, KY078218), Coregonus muksun (NCO28593) and Hucho taimen (MK258080) were used as outgroups.

Haplotype networks inference methods used TCS for the CR and Cyt b + CR were constructed using PopArt1.7 (Leigh and Bryant 2015). In the CR haplotype networks, four sequences of Mongolian grayling (T. brevirostris) from northeastern Altai Mountains in Mongolia (EU676266, EU676267, EU676274, EU676281) were included to assess the phylogenetic relationships between the study area and adjacent grayling species.

To estimate divergence times between species, a time-calibrated Cyt b + CR phylogeny was constructed using BEAUti in BEAST 1.10.4. This BI phylogenetic analysis used the HKY + G substitution model. A molecular clock was modeled using uncorrelated relaxed molecular clock priors, specifically lognormal distributions (Suchard and Rambaut 2009). The Birth–Death speciation model was selected as the tree prior, due to the dataset encompassing both intra- and inter-specific relationships. The mtDNA molecular clock calibration for Salmoniformes species was set at 1% per Ma (million years ago) as an overall mutational rate applied directly in BEAUti, with a relative death rate following a normal distribution (mean 0.01, SD 0.002). Two divergence times were specified: the most recent common ancestor of Salmoniformes around 50 Ma (lognormal distribution, offset 50, mean 10, SD 1) and the period around 0.13 Ma when Thymallus baicalensis entered Lake Baikal (normal distribution, mean 0.12, SD 0.1) (Koskinen, Nilsson et al. 2002; Weiss et al. 2021). Iterations were run 30 × 10⁶ times, with sampling conducted every 3000 iterations. Generated data were assessed for convergence and effective sample sizes (> 200) using Tracer v1.7 (Rambaut et al. 2018). The final tree was constructed using TreeAnnotator v1.10.4 (Dellicour et al. 2021), and optimized on the iTOL (Letunic and Bork 2021).

Tajima's D test and Fu's Fs test in Arlequin 3.5 software (Excoffier and Lischer 2010), as well as the sum of squared deviation (SSD) and Harpending's raggedness index (r), were used to infer population historical demography. Mismatch distributions were analyzed using DnaSP v6.12.03 (Rozas et al. 2017). BEAST (Drummond et al. 2012) using Bayesian Skyline Plot (BSPs) was used to infer historical demography, using parameter settings consistent with those used in divergence time analysis and under the same clock mutation rate. Finally, Tracer 1.7 software was used to visualize and edit the historical demography of effective population size (Rambaut et al. 2018).

2.2 Nuclear Microsatellite Genotyping and Data Analysis

Preliminary analysis indicates that Grayling populations in the upper Irtysh River are conspecific. We used 10 microsatellite loci markers for supplementary phylogenetic reconstruction to further understand genetic relationships between populations. Using FSTAT v2.9.3.2 (Goudet 2001), we calculated the number of alleles per locus, deviations based on the FIS values for Hardy–Weinberg equilibrium, and deviations from Linkage Equilibrium. ARLEQUIN v3.5.2.2 was used to calculate observed and expected heterozygosity, as well as to perform analyses based on the infinite allele model (FST) (Excoffier and Lischer 2010). GenAlEx was used to calculate Nei's genetic distance among populations. Principal coordinates analysis (PCoA) was performed based on the genetic distances between individuals (Peakall and Smouse 2012). A clustering tree was constructed based on Nei's genetic distance using MEGA (Tamura, Stecher, and Kumar 2021).

Overall genetic structure was assessed using the Bayesian clustering method in STRUCTURE v2.3 (Porras-Hurtado et al. 2013). Prior values of K (number of populations) were assumed between 1 and 5. STRUCTURE was run for 100,000 iterations, with the first 50,000 iterations discarded as burn-in, and five independent MCMC replicates were performed for each K value. The Delta K statistic method (Earl and vonHoldt 2012) were used to determine the most suitable K value. After obtaining output results, K matrices from multiple runs were merged using CLUMPP (Jakobsson and Rosenberg 2007); the visualization was optimized using Distruct (Rosenberg 2004).

To further decipher the potential genetic structure of Thymallus in the upper Irtysh River, a cluster analysis was conducted using the stochastic optimization method in BAPS 6.0 (Corander et al. 2008). BAPS analysis parameters were initially set to K = 1 to 5, with each K value repeated 10 times; the maximum Log marginal likelihood [Log(ML)] value determines the best K. For population admixture analysis, the number of iterations was set to 1000; other settings remained at default values.

3.1 Phylogenetic Analysis

The alignment of the CR region was 1072 bp, with 14 variable sites and 13 parsimony sites. Upon combining our sequences with CR sequences from T. brevicephalus, a total of 193 sequences were generated, with 17 variable sites, 14 of which were parsimony sites, resulting in 19 CR haplotypes. The Cyt b alignment was 1105 bp, with 4 variable sites, all being parsimony sites, resulting in 4 Cyt b haplotypes.

Concatenating each sample into a 2177 bp sequence in the format of 5'-Cyt b + CR-3′ for phylogenetic analysis yielded 17 variable sites, all of which were parsimony informative. The concatenated dataset resulted in a total of 26 mtDNA haplotypes, Except for the KL population, all groups showed results for CR and Cyt b + CR indicating high haplotype diversity (Hd > 0.5) and low nucleotide diversity (π < 0.005) (Table 2).

Based on the analysis of genetic differences (uncorrected p-distances) shown in Figure S1, the grayling from the upper Irtysh River in China exhibits a very small genetic distance (CR minimum distance of 0.0008) compared to T. brevicephalus from Kazakhstan. This suggests that the grayling in the upper Irtysh River are likely the same species (synonymous) as T. brevicephalus. In contrast, the mean divergence distances between T. brevicephalus and T. brevirostris show a greater distance (CR: 0.0053, Cyt b + CR: 0.0063). Within T. brevicephalus, the CR distance between eastern populations (KL and KY) is 0.0009, and the Cyt b + CR distance is 0.0006. For the populations west of KE (KE, HB, BH, KN, CE, BE, HM, HQ), the average CR distance is 0.0023, and the Cyt b + CR distance is 0.0016. The average distance between these two geographic groups is 0.0051 for CR and 0.0029 for Cyt b + CR. The gradient from dark blue to light blue in the images reflects the clear structural differences between species and geographic groups. The AMOVA results (Table 3) for CR and Cyt b + CR indicated that the variation is almost equally divided between among populations and within populations. After dividing the data into two geographic groups, the variation between the two regions accounted for the largest proportion (CR: 63.82%, Cyt b + CR: 56.98%).

Two phylogenetic methods were used to construct CR and Cyt b + CR trees, both of which resulted in identical topological structures. Images illustrate node-support values obtained from tree-building methods. Following divergence of T. tugarinae in the easternmost Eurasian continent, two Grayling species within the Baikal Lake region split. The three grayling species from the Altai–Sayan Mountains form a branch. This also confirms that the grayling species in the upper Irtysh River in China are likely synonymous with T. brevicephalus (Figure S2), with the merged T. brevicephalus population showing a clear internal geographical structuring pattern. This species then clusters with Mongolian grayling (T. brevirostris) from the north of the Altai Mountains. These findings receive robust support from bootstrap values (Figures S2 and S3).

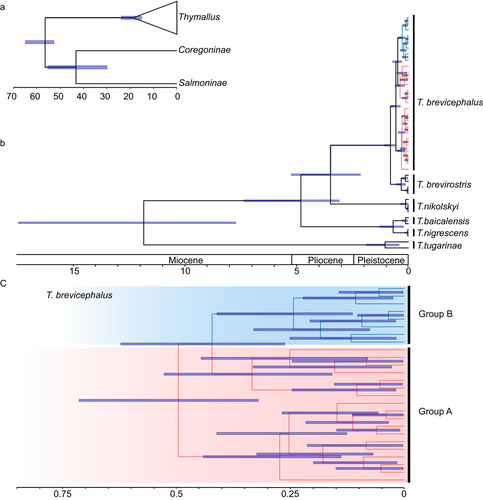

According to the time-calibrated Cyt b + CR phylogenetic estimation, the divergence time between T. brevirostris and T. brevicephalus is estimated at 0.81 Ma (0.57–1.08) (Figure 2b). The time to the most recent common ancestor for the group A and B within T. brevicephalus is estimated to be 0.48 Ma (0.30–0.71), with a divergence time of 0.39 Ma (0.18–0.60) within group A and 0.28 Ma (0.13–0.47) within group B (Figure 2c).

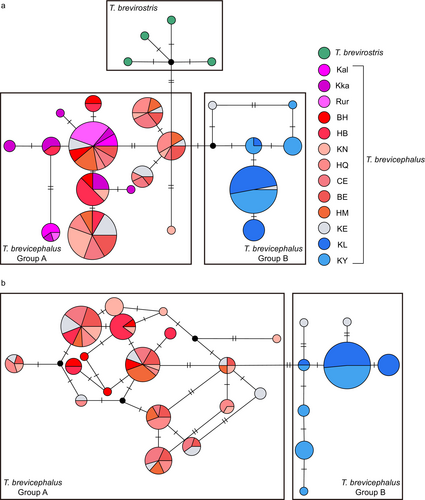

The CR haplotype network exhibits clear geographical structuring (Figure 3a). Except for the KE population (gray), which shares haplotypes in both geographic groups A and B, the two geographic groups show distinct boundaries. Based on the geographical distribution of individuals, all individuals in geographic group A originate from west of KE, while all individuals in geographic group B originate from east of KE. Each side has a central haplotype that may represent the ancestral haplotype of their respective group. The CR haplotype network shows that at the species level, the closest haplotype distance between T. brevirostris and T. brevicephalus is only three mutational steps, indicating a close genetic relationship between the two species. To clarify the geographic structure of T. brevicephalus, we conducted a haplotype network analysis combining Cyt b and CR. The results showed a geographic structure similar to that of the CR results (Figure 3b), but with the KE population sharing haplotypes only with individuals from group A. The combined haplotype network provided a clearer distinction between the eastern and western branches.

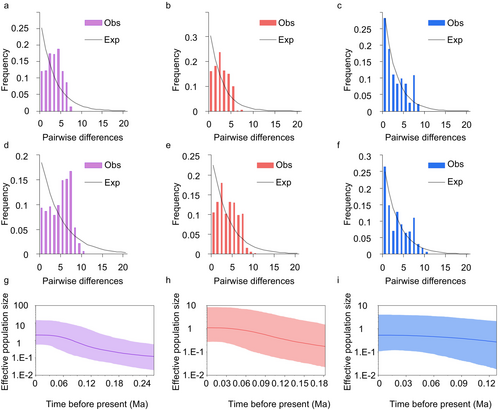

Mismatch distribution analysis based on CR and Cyt b + CR sequences indicate a unimodal distribution for T. brevicephalus as a whole (Figure 4a,d) and for group A (Figure 4b,e). BSP analysis (Figure 4g) reveals sustained expansion events for both the entire T. brevicephalus population and group A over an extended period (0.26–0.06 Ma). Negative Fu's Fs and Tajima's D values also corroborate these population expansion events (Table 4).

3.2 Genetic Diversity and Genetic Structure of Microsatellite Data

Microsatellite Pairwise FST values (Table 5) range from 0.021 to 0.084, with all results showing significant differences (p < 0.01) except for KN/KE (0.021). The genetic distances between KN and HB in the western region range from 0.021 to 0.062, while the distance between KL and KY in the eastern region is 0.041, all indicating moderate to low levels of differentiation. KE exhibits moderate differentiation from both the eastern and western geographic groups (0.056–0.075), while moderate levels of differentiation are observed between eastern and western populations (0.062–0.084). These results are consistent with those based on Nei's unbiased genetic distances.

The average number of alleles per locus (Na) across the five populations is 9.56. The mean allelic richness per sample (AR) is 3.53. The average expected heterozygosity for all sampling locations is relatively high, ranging 0.748 (KN) to 0.860 (KY). Average observed heterozygosity for all sampling locations is also high, ranging 0.623 (KL) to 0.677 (KE). Mean expected heterozygosity values are higher than mean observed heterozygosity values, the FIS value ranging from 0.107 to 0.210 indicates a moderate level of inbreeding within the population. This suggests that random mating among individuals within the population is not entirely occurring, but there is a certain degree of mating among relatives (Table 6).

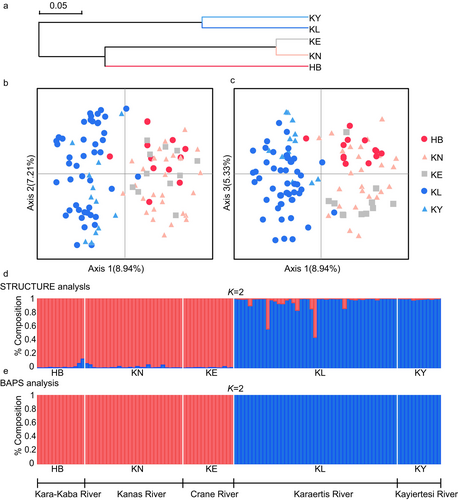

The Neighbor-Joining clustering tree based on Nei's unbiased genetic distances (Figure 5a) also reveals a clear geographic structure. The five populations form two branches, with KE, KN, and HB from the west clustering together, and the eastern populations, KL and KY, forming another distinct cluster. The PCoA diagrams (Figure 5b,c) illustrate the divergence between the East and West geographic groups along the first (8.94%) and second (7.21%) axes, as well as along the first (8.94%) and third (5.33%) axes. Individuals from HB, KN, and KE are primarily concentrated in quadrants 1 and 2, while KL and KY individuals are predominantly clustered in quadrants 3 and 4. These results show that KE groups together with the western populations, forming two distinct lineages and a clear geographic pattern.

STRUCTURE analysis indicates that the highest posterior probability was observed at ΔK = 2. Consequently, we present the clustering model (Figure 5d), revealing that individuals belonging to the western populations of T. brevicephalus (HB, KN, KE) form one cluster, while individuals from the eastern populations (KL, KY) constitute another, with membership coefficients > 96.4% for all individuals. BAPS analysis reveals the Log (ML) statistic to peak at K = 2. the overall pattern (Figure 5e) of differentiation is consistent with the STRUCTURE model. This pattern aligns with conclusions drawn from clustering tree and PCoA analyses, supporting the existence of two geographically structured groups among the five populations of T. brevicephalus: KL and KY as the eastern group, and KE, HB, and KN as the western group.

4.1 Genetic Structure and Phylogeographic Patterns of T. brevicephalus in the Upper Irtysh River

This study suggests that the Arctic grayling (T. arcticus) in the upper Irtysh River in China should be classified as Markakol grayling (T. brevicephalus). Combining geographical distribution and divergence time, T. brevicephalus and Mongolian grayling (T. brevirostris) were geographically isolated on the northern and southern sides of the Altai Mountains at approximately 0.81 MY. This isolation is attributed to geological changes induced by the second uplift of the Altai Mountains since the Middle Pleistocene (~1.00 MY) (Bolikhovskaya and Shunkov 2014; Pan et al. 2007; Zang et al. 2015). This uplift led to the rearrangement of drainage systems and migration of major river channels, isolating the species on opposite sides of the Altai Mountains. Specifically, Mongolian grayling (T. brevirostris) became isolated in the northern Mongolian Kobdo Basin, while Markakol grayling (T. brevicephalus) remained on the southern side of the Altai range. During this period, the Altai Mountains moved, with one end of the fault block forming a near-upright tilted structure, and on the southern slope there is a continuous mountain massif. The asymmetric north–south topography created distinct environments for fish. The steep and short northern slope of the Altai Mountains lies adjacent to the large Mongolian Kobdo Basin. Mongolian grayling underwent divergent evolution within the species' poor lakes of the basin, and developed a phenotype that included well-developed jaws, teeth, palatine and tongue as probable adaptations to harsher environmental conditions (Knizhin et al. 2008). Many mountainous regions globally exhibit noticeable disparities in drainage systems and ecosystems on either side, which are often attributed to the results of tilting movements. For instance, the formation of watersheds caused by mountain uplift further led to the rearrangement of river systems, which shaped the distribution patterns of grayling species in the Baikal Lake basin (Knizhin, Weiss, and Sušnik 2006; Koskinen, Nilsson et al. 2002). The rapid uplift of the Qinling Mountains has led to river capture-related events, resulting in fish dispersion and the formation of isolated habitats in the north and south (Liu et al. 2014; Chen, Jiao, and Ni 2022).

One of the striking findings in this study is the differentiation between eastern and western groups of T. brevicephalus, We report two distinct geographic groups (A and B) in this area, Genetic divergence is observed between eastern (group B: Karaertis and Kayiertesi rivers) and western sides (group A: Kara-Kaba, Akkaba, Kanas River, Burqin, Hemu and Crane rivers, and Chonghuer and Hongqi reservoirs), with the Crane River (KE) serving as a potential boundary between these genetically distinct lineages. Both mtDNA and microsatellite data corroborate this geographical pattern. The dating analyses yielded divergence times at 0.48 Ma (0.30–0.71 Ma), suggesting a Pleistocene split between the two geographic groups. We hypothesize that differences in these geographic groups are associated with the occurrence of glacial refugia, a concept supported by various theories. During the Pleistocene epoch, two spatially separated lineages of Thymallus in Lena River may have arisen through prevalence of a Polar continental shelf ice sheet during the Siberian Pleistocene, which isolated Thymallus populations in glacial refugia in the Lena Delta and middle reaches of Lena River (Weiss et al. 2006). In Europe, the European grayling (Thymallus thymallus) exhibits significant genetic differences over relatively short geographical distances, a phenomenon attributed to glaciation-mediated processes (Gum, Gross, and Kuehn 2005; Koskinen, Sundell et al. 2002). Similarly, in North America, T. arcticus underwent genetic differentiation during a Pleistocene glacial period because of refugia formation (Redenbach and Taylor 1999; Stamford and Taylor 2004). During the continuous uplift of the Altai Mountains, the region experienced its first Quaternary glaciation. As the Altai Mountains froze, their southern slope was influenced by the MIS12 Burqin Glaciation (0.47 ± 0.051 Ma) (Devyatkin 1981; Jiang 2012). During a period of significant climate cooling, many glaciers formed, creating glacial refuges in river valleys for various organisms. This period coincides with the divergence time of the eastern and western lineages of T. brevicephalus. Evidence suggests that river valleys at the southern foot of the Altai Mountains served as such refugia during the Pleistocene ice ages, harboring species like the Green toad (Bufo viridis subgroup), Clematis sibirica, and Larix sibirica (Zhang et al. 2008; Zhang and Zhang 2012; Zhang, Zhang, and David 2014). It is also possible that T. brevicephalus sought refuge in these glacial refugia within the river valleys during that time.

However, while ecological barriers are often considered a primary driver of divergence, it is essential to recognize that other factors, such as behavioral isolation, or selective pressures, may have contributed to the observed genetic patterns. Comparative studies of freshwater fish in other regions provide insights into the possible mechanisms of genetic divergence. For instance, the studies on sea trout (Salmo trutta) in Estonian and Russian (Koljonen, Gross, and Koskiniemi 2014) and research on S. trutta (L.) in European rivers (Bekkevold et al. 2020) suggests that life history traits, such as short-distance migration, natal homing, and reproductive isolation, can result in genetic divergence even in the absence of obvious physical barriers. Notably, the easternmost (Kayiertesi River) and westernmost (Kara-Kaba River) sampling locations are separated by only 280 km. The genetic distances indicate a Moderate level of differentiation (FST > 0.05) between these populations. The genetic differentiation observed between eastern and western populations of T. brevicephalus at a relatively small geographic scale suggests a conservative behavioral pattern, consistent with the genus's typical life history traits. Specifically, grayling exhibit limited dispersal and strong reproductive migration behaviors, which can hinder gene flow between different geographic populations, and even within the same waterbody, leading to genetic differentiation (Gönczi 1989; Northcote 1995; Nykänen, Huusko, and Mäki-Petäys 2001). Furthermore, phylogenetic analysis indicates that the upper Enisei grayling (T. nikolskyi), which coexists with T. brevicephalus in the Irtysh River system, exhibits a more distant genetic relationship compared to the closer genetic relationship between T. brevicephalus and Mongolian grayling (T. brevirostris). This highlights that the pattern of genetic differentiation is further accentuated at the species level.

4.2 Genetic Diversity and Expansion in Small Populations

Genetic diversity, shaped by natural processes throughout species evolutionary history, has been recognized by the IUCN as a crucial component of biodiversity. In this study, microsatellite markers consistent with prior research on three T. brevicephalus populations in Kazakhstan were used (Weiss, Grimm et al. 2020) to enhance comparability with existing studies. The Na, AR, HO, and HE values observed in this study are similar to the results of previous research in Kazakhstan. The genetic diversity observed in this study confirms existing information in the field. Takezaki and Nei (1996) suggested that the heterozygosity of naturally expanding populations should range between 0.5 and 0.8. The HO (0.583–0.677) and HE (0.772–0.876) values for T. brevicephalus in this study indicate that they are stable populations. However, the FIS values for the population suggest a certain degree of inbreeding in T. brevicephalus, hinting at a possible historical population bottleneck event, the mtDNA results indicate that T. brevicephalus falls into a group with a high level of haplotype diversity (Hd > 0.5) and a low level of nucleotide diversity (π < 0.005) (Grant, 1998), consistent with the genetic diversity pattern observed in T. grubii, T. nikolskyi, T. brevirostris, and T. Thymallus (Ma et al. 2012; Weiss, Grimm et al. 2020; Pettersen et al. 2021). This pattern suggests that during population expansion, the increase in population size leads to higher haplotype diversity, but nucleotide variation cannot accumulate in a short period, resulting in a founder effect. Consequently, the population may be subject to potential genetic drift. The Bayesian Skyline Plots (BSP) indicate that T. brevicephalus, particularly the western group, may have experienced extensive postglacial colonization from separate refugia. Mismatch distribution and neutrality tests also support evidence of population expansion.

These phenomena are likely associated with the interglacial periods that followed glacial epochs within the Central Asian region (Agatova et al. 2019; Bohorquez, Jimenez-Ruiz, and Carling 2019; Herget et al. 2020). During the late Quaternary interglacial climate changes, rising temperatures, increased water flow, and glacial melt in the Central Asian region caused the breaching or overflow of moraine-dammed lakes in mountain basins, resulting in multiple giant floods, including the Altai Great Flood event (Komatsu et al. 2015). The recurrent flooding in the Altai mountain valleys created favorable conditions for the population expansion of aquatic organisms in this region (Agatova et al. 2019; Weiss, Grimm et al. 2020).

As the boundary between the eastern and western regions, the presence of Crane River's haplotypes in grayling from both evolutionary geographic groups most likely reflects a scenario of secondary contact following postglacial expansion (Larson et al. 2013; Wen and Fu 2021). This contact zone (KE) contains haplotypes from both group A and B and exhibits higher levels of genetic diversity compared to other populations.

4.3 Conservation and Management Implications

Due to increasing human activities, T. brevicephalus populations have suffered a serious decline of over 50% due to overfishing in Ob-Irtysh River headwaters (Weiss et al. 2021). Genetic diversity studies indicate that the species is at risk of reduced genetic diversity over time and may lack the ability to adapt to environmental changes. These findings highlight the urgent need for strengthened conservation and management efforts for T. brevicephalus. To safeguard the genetic resources and habitats of the grayling in the upper Irtysh River, which is listed as endangered in Kazakhstan and mistakenly identified as the Arctic grayling (T. arcticus) in China, the species has been included in China's national register of key protected wildlife, prohibiting its commercial capture.

Based on this study, we recommend reclassifying the currently listed Arctic grayling (T. arcticus) in Xinjiang, China, to reflect its true identity and implementing international cooperation in conservation efforts alongside Kazakhstan, given the shared population across the border in the vicinity of Lake Markakol. While recognizing the species as a whole, the observed genetic differentiation between eastern and western populations necessitates careful management, particularly concerning restocking efforts. To prevent genetic admixture, restocking should utilize fish specific to their respective eastern or western geographic group, with the Crane River acting as a natural boundary. Furthermore, the Crane River population, exhibiting characteristics of both geographic groups, could be considered a unique intermediate group and warrant separate conservation efforts. This approach safeguards the genetic integrity and unique evolutionary history of each lineage, ultimately preserving the overall health and diversity of the T. brevicephalus.
