Targeted Management of Perovskite Film by Co(II) Sulfophenyl Porphyrin for Efficient and Stable Solar Cells†
Xiao-Xia Feng,
Xudong Lv,
Jing Cao,
Yu Tang,
Xiao-Xia Feng
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
Search for more papers by this authorXudong Lv
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
Search for more papers by this authorCorresponding Author
Jing Cao
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
E-mail: [email protected]; [email protected]Search for more papers by this authorCorresponding Author
Yu Tang
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
E-mail: [email protected]; [email protected]Search for more papers by this authorXiao-Xia Feng,
Xudong Lv,
Jing Cao,
Yu Tang,
Xiao-Xia Feng
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
Search for more papers by this authorXudong Lv
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
Search for more papers by this authorCorresponding Author
Jing Cao
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
E-mail: [email protected]; [email protected]Search for more papers by this authorCorresponding Author
Yu Tang
State Key Laboratory of Applied Organic Chemistry, Key Laboratory of Nonferrous Metal Chemistry and Resources Utilization of Gansu Province, College of Chemistry and Chemical Engineering, Lanzhou University, Lanzhou, Gansu, 730000 China
E-mail: [email protected]; [email protected]Search for more papers by this author†Dedicated to the 120th Anniversary of Northwest Normal University.
Comprehensive Summary

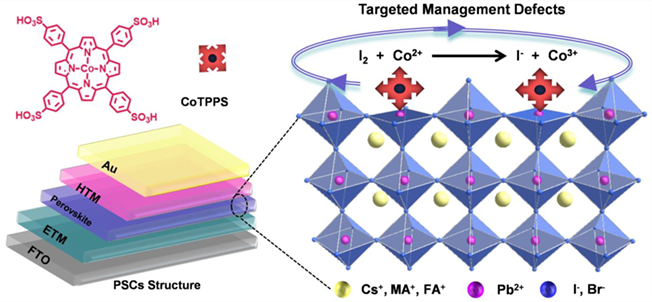

In the lead halide perovskite solar cells (PSCs), the redox reaction of I– and Pb2+ ions in perovskite materials under the fabrication and operation processes causes the formation of defects to destroy the cell efficiency and long-term stability. Herein, we have employed a Co(II) sulfophenyl porphyrin (CoTPPS) to modify the perovskite film. The sulfonic group could coordinate with Pb2+ to efficiently passivate the uncoordinated Pb2+. Additionally, Co2+ ions in CoTPPS could react with I2 generated under the thermal and light stress to yield the Co3+ and I–, thus achieving the regeneration of I– in perovskite film. Therefore, the CoTPPS could realize the targeted management of the imperfections in perovskite film. As a result, the modified PSCs reveal the remarkably enhanced cell performance. More importantly, the CoTPPS modified device retains 75% of its initial efficiency value storing at 85°C for 2000 h and about 70% of its efficiency when being continuously illuminated at a simulated sunlight for 1200 h. This strategy tackles the chemical reaction and inhibits the defect generation, thus improving the operational stability and efficiency of PSCs.
