Ammonium Ion and Structural Water Co-Assisted Zn2+ Intercalation/De-Intercalation in NH4V4O10∙0.28H2O†
Ting Zhu
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
‡These authors contributed equally to this work.
Search for more papers by this authorBo Mai
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
‡These authors contributed equally to this work.
Search for more papers by this authorPing Hu
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Foshan Xianhu Laboratory of the Advanced Energy Science and Technology Guangdong Laboratory, Xianhu Hydrogen Valley, Foshan, Guangdong, 528200 China
Search for more papers by this authorZiang Liu
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Search for more papers by this authorCongcong Cai
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Search for more papers by this authorXuanpeng Wang
Department of Physical Science & Technology, School of Science, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Foshan Xianhu Laboratory of the Advanced Energy Science and Technology Guangdong Laboratory, Xianhu Hydrogen Valley, Foshan, Guangdong, 528200 China
Search for more papers by this authorCorresponding Author
Liang Zhou
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Foshan Xianhu Laboratory of the Advanced Energy Science and Technology Guangdong Laboratory, Xianhu Hydrogen Valley, Foshan, Guangdong, 528200 China
E-mail: [email protected]Search for more papers by this authorTing Zhu
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
‡These authors contributed equally to this work.
Search for more papers by this authorBo Mai
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
‡These authors contributed equally to this work.
Search for more papers by this authorPing Hu
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Foshan Xianhu Laboratory of the Advanced Energy Science and Technology Guangdong Laboratory, Xianhu Hydrogen Valley, Foshan, Guangdong, 528200 China
Search for more papers by this authorZiang Liu
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Search for more papers by this authorCongcong Cai
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Search for more papers by this authorXuanpeng Wang
Department of Physical Science & Technology, School of Science, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Foshan Xianhu Laboratory of the Advanced Energy Science and Technology Guangdong Laboratory, Xianhu Hydrogen Valley, Foshan, Guangdong, 528200 China
Search for more papers by this authorCorresponding Author
Liang Zhou
State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan, Hubei, 430070 China
Foshan Xianhu Laboratory of the Advanced Energy Science and Technology Guangdong Laboratory, Xianhu Hydrogen Valley, Foshan, Guangdong, 528200 China
E-mail: [email protected]Search for more papers by this author† Dedicated to the Special Issue of Nanostructured Materials for Electrochemical Energy Conversion and Storage.
Main observation and conclusion

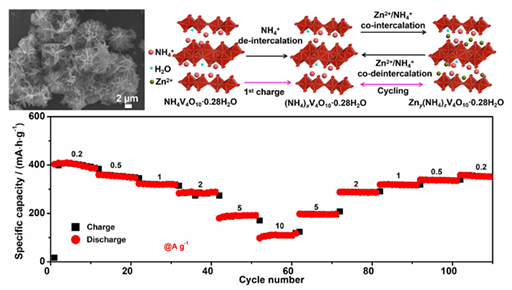

The cathode material plays a crucial role in the performances of aqueous zinc-ion batteries (ZIBs). Herein, we report an ammonium vanadate (NH4V4O10∙0.28H2O, NHVO) aqueous ZIB cathode material. The obtained NHVO microflowers manifest high discharge capacity (410 mA·h∙g–1 at 0.2 A∙g–1), long-term durability (76% capacity retention over 500 cycles), as well as ideal rate performance (112 mA·h∙g–1 at 10 A∙g–1). The impressive electrochemical performance can be attributed to the ammonium ion and structural water co-assisted Zn2+ intercalation/de-intercalation, which has been demonstrated by various ex-situ and in-situ characterizations. The superior electrochemical performance makes the NHVO microflower an ideal candidate cathode material for aqueous ZIBs.
