Episodic Recollection Difficulties in ASD Result from Atypical Relational Encoding: Behavioral and Neural Evidence

Introduction

The broader cognitive profile of Autism Spectrum Disorder (ASD) is now well known to include a pattern of memory difficulties that holds clues to the neuropathology underlying the disorder and has important implications for the design of effective educational programs [see Boucher & Bowler, 2008; Bowler, Gaigg, & Lind, 2011; Boucher, Mayes, & Bigham, 2012; Gaigg & Bowler, 2012 for comprehensive reviews]. Briefly, working memory poses some difficulties for individuals with ASD when tasks probe the maintenance of progressively more numerous spatial locations [Morris, Rowe, Fox, Feigenbaum, Miotto, & Howlin, 1999; Steele, Minshew, Luna, & Sweeney, 2007; Williams, Goldstein, Carpenter, & Minshew, 2005] or when the unaided retrieval of the precise order of events is required [Poirier, Martin, Gaigg, & Bowler, 2011; Gaigg, Bowler, & Gardiner, 2013]. When demands go beyond the limited capacity of working memory, unaided free recall tends to be compromised, particularly for material that can be organized conceptually [Bowler, Matthews, & Gardiner, 1997; Bowler, Gaigg, & Gardiner, 2009, 2010; Cheung, Chan, Sze, Leung, & To, 2010; Gaigg, Gardiner, & Bowler, 2008; Tager-Flusberg, 1991], or when learning is assessed over multiple trials [Bennetto, Pennington, & Rogers, 1996; Bowler, Gaigg, & Gardiner, 2008a; Minshew & Goldstein, 2001]. When individuals with ASD do recall previously encountered material they frequently fail to retrieve contextual details associated with the study episode such as where, when, how or from whom they have learned a particular fact [Bowler, Gardiner, & Berthollier, 2004; Hala, Rasmussen, & Henderson, 2005; Lind & Bowler, 2009; O'Shea, Fein, Cillessen, Klin, & Schultz, 2005; Russell & Jarrold, 1999]. Their recall of autobiographical memories also tends to be relatively void of contextual details that characterizes the personally experienced past [Crane & Goddard, 2008; Crane, Goddard, & Pring, 2009; Goddard, Howlin, Dritschel, & Patel, 2007; Lind & Bowler, 2010; Millward, Powell, Messer, & Jordan, 2000]. Contrasting these difficulties on tests of unaided recall, the performance of individuals with ASD on supported test procedures tends to be generally unaffected. Thus, tasks using rhymes [Tager-Flusberg, 1991], word fragments [Boucher & Warrington, 1976; Bowler, Matthews, & Gardiner, 1997; Gardiner, Bowler, & Grice, 2003], category labels [Bowler, et al., 2009; Mottron, Morasse, & Belleville, 2001] or paired associates [Gardiner, et al., 2003; Minshew & Goldstein, 2001] as cues to previously studied material generally yield preserved levels of performance in ASD. Similarly, tests of recognition memory that require participants to discriminate studied from novel stimuli pose relatively few difficulties [Barth, Fein, & Waterhouse, 1995; Beversdorf, et al., 2000; Boucher, Cowell, Howard, Broks, Mayes, & Roberts, 2005; Bowler, Gaigg, & Gardiner, 2008b; Bowler, Gardiner, & Grice, 2000; Bowler, Gardiner, & Gaigg, 2007; Salmond, Ashburner, Connelly, Friston, Gadian, & Vargha-Khadem, 2005].

The pattern of performance across supported and unsupported test procedures is indicative of relatively greater impairments in the retrieval than the encoding of information and has led Bowler et al. [2014, 2004] to formulate the “Task Support Hypothesis” according to which performance decrements in ASD can be alleviated by procedures that scaffold particularly memory retrieval. There are, however, important exceptions in the relevant literature. First, some studies report attenuated performance on cued recall and recognition tests by individuals with ASD [Bowler et al.2014, 2004; Chen et al.,2014, 2009; Scherf, Behrmann, Minshew, & Luna, 2008]. Second, when overall recognition performance is preserved, individuals with ASD consistently report fewer experiences of recollecting contextual information associated with the items they recognize, reporting a sense of familiarity that is contextually relatively void instead [Bowler et al.2014, 2000; Bowler et al.2014,2014, 2007]. Finally, when recognition is tested for specific combinations of items or item features, individuals with ASD perform significantly worse [Bowler, Gaigg, & Gardiner, 2014]. These exceptions indicate that certain encoding processes may also be compromised in ASD, which is further supported by studies that manipulate encoding conditions whilst holding retrieval conditions relatively constant [e.g., Gaigg et al., 2008; Mottron, et al., 2001; Toichi & Kamio, 2002]. In particular, the encoding of relations between items and between items and their contexts (relational information) appears to be compromised in ASD while the encoding of item-specific information, including physical as well as conceptual features of items (e.g., that a banana is a curved, yellow fruit) is relatively preserved [Bowler, et al., 2011; Gaigg et al., 2008].

Disentangling encoding from retrieval processes is notoriously difficult because we inevitably retrieve information about the material we encode and we (re)encode material when we retrieve it. Nevertheless, elegant behavioral experimentation and advances in neuroimaging methods have led to a relatively detailed understanding of the functional organization of the human declarative memory system including the contributions of encoding and retrieval processes to performance on various memory tasks. Briefly, during encoding enthorhinal (ErC) and perirhinal (PrC) cortices of the medial temporal lobe (MTL) are thought to process information specific to individual elements of experience (item-specific information) whereas the hippocampus establishes relations between them to bring about unique event representations [e.g., Mayes, Montaldi, & Migo, 2007]. Regions in the prefrontal cortex (PFC) modulate these encoding processes as a function of stimulus properties and task demands and during retrieval they orchestrate retrieval strategies and monitor their success. Contextually rich recollection is thought to ensue when the hippocampus (under the influence of PFC) successfully re-establishes the spatial-temporal relations that uniquely define a specific prior event, whilst a sense of familiarity prevails when information is retrieved through ErC and PrC processes that do not yield sufficient relational context to support the reconstruction of unique episodes [see Brown & Aggleton, 2001; Eichenbaum, 2004; Eichenbaum, Yonelinas, & Ranganath, 2007; Fletcher & Henson, 2001; Henson, 2005; Simons & Pierce, 2003; Spaniol, Davidson, Kim, Han, Moscovitch, & Grady, 2009, Squire, Wixted, & Clark, 2007 for reviews].

To date, relatively few studies have examined the neural underpinnings of memory decrements in ASD through imaging methods, with those that have focusing primarily on the domain of working memory. The evidence in this context suggests reduced involvement of prefrontal regions in the online maintenance of information over short (a few seconds) periods of time [Luna, et al., 2002; Koshino, Carpenter, Minshew, Cherkassky, Keller, & Just, 2005; see Brandse, et al., 2013 for a review]. Such abnormalities may contribute to difficulties over longer delays by hampering the generation of relations between elements of an episode, thus attenuating the tendency for contextually rich recollection at retrieval [Bigham, Boucher, Mayes, & Anns, 2010; Boucher, 2007; Bowler et al.2014, 2007]. A recent EEG experiment lends some support to this possibility by demonstrating that event related potentials (ERPs) associated with recollection are relatively undifferentiated from those associated with familiarity based retrieval in ASD [Massand, Bowler, Mottron, Hosein, & Jemel, 2013]. It remains unclear, however, to what extent these anomalies might reflect differences already at the stage of encoding. The present study examines this issue, by drawing on a paradigm by Addis and McAndrews [2006] who asked participants to study word-triplets during fMRI scanning that varied in the number of conceptual relations between component words for a later recognition task. Their results suggested that the inferior frontal gyrus (IFG) of the PFC is involved in generating relational information when it is not obviously given by the stimulus, whilst the hippocampus binds available relations in the service of later retrieval [see also Lepage, Habib, Cormier, Houle, & McIntosh, 2000].

If difficulties in contextually rich recollection in ASD are, at least in part, mediated by difficulties in the encoding of relational information we would expect the following pattern of results on a task such as that by Addis & McAndrews [2006]. First, based on the view that relational encoding fosters subsequent contextually rich recollection we would expect that experiences of recollection but not familiarity would increase as a function of the number of conceptual relations in the to-be-remembered word triplets. Second, individuals with ASD would be expected to report fewer experiences of recollecting studied word triplets despite overall preserved levels of recognition memory. Third, the IFG encoding processes that have been linked to the generation of relational information should be attenuated in ASD. And fourth, the MTL processes typically associated with the binding of available relational information should also be attenuated in ASD.

Materials and Methods

Materials

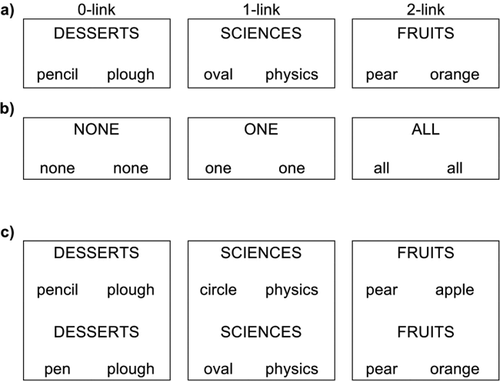

With the exception of minor amendments during test, the materials and procedures of this experiment were identical to those used by Addis and McAndrews [2006].1 Briefly, 108 word triads were constructed, each comprising a capitalized category label and two words in lower-case font. Either none, one or both of these words were legitimate examples of the named category (36 triads each); hereafter, “0-link,” “1-link,” and “2-link” triads, respectively. During the encoding scan 36 control triads, comprising the words “None,” “One,” or “All,” were randomly interspersed with target triads. For the two-alternative forced choice recognition test that participants performed outside the scanner, encoded word triads were presented alongside lure triads on the top and bottom half of a laptop monitor. Lure triads differed from encoded triads only with respect to one of the lower-case exemplar words, which was substituted with a conceptually related item. The position of target and lure triads on the screen and the left right position of substituted items in lure triads was counterbalanced across items. For half of the “1-link” triads the lure triads substituted the legitimate category exemplar while for the remaining half the unrelated exemplar word was substituted. Figure 1 provides examples of the experimental materials.

Results

Behavioral Data

Table 2 summarizes the reaction time and accuracy data for participants' responses during the encoding runs. Reaction time data for 1 individual in the TD group were not available due to a misunderstanding of the instructions (a response was given after rather than during triad presentation). A 2 (Group: ASD vs. TD) × 3 (Triad Type: 0-link vs. 1-link vs. 2-link) analysis of variance (ANOVA) of reaction times yielded a main effect of Triad Type (F(2,44) = 9.55, P < 0.001) that was due to slower responses during 0-link than 1-link (t = 2.79, df = 24, P < 0.05) or 2-link triads (t = 3.84, df = 24, P < 0.01), which in turn did not differ significantly from one another (t = 1.54, df = 24, P = 0.14). Although there was no overall group effect (F(1,22) =.15, P = 0.69), there was a Group × Triad Type interaction (F(2,44) = 3.31, P < 0.05), whereby TD participants responded fastest during 1-link triads while ASD participants responded fastest during 2-link triads. Response accuracy was also characterized by a main effect of Triad Type (F(2,44) = 15.24, P < 0.001) and a Group × Triad Type interaction (F(2,44) = 5.71, P < 0.01) in the absence of a main effect of Group (F(1,22) = 2.17, P = 0.16). This pattern was the result of participants generally responding most accurately to 0-link triads and least accurately to 2-link triads with the ASD group performing worse than the TD group on 2-link triads (t = 2.89, df = 22, P < 0.01) but not 0-link (t = 1.00, df = 22, P = 0.33) or 1-link triads (t = .28, df = 22, P = 0.78). Considered together, these results do not suggest gross differences in encoding performance between groups.

Table 2. Reaction Time and Accuracy During the Encoding Task in the Scanner

	ASD		TD		Cohen's d
	M	SD	M	SD
Reaction Time (ms)
0-link	2880	532	2795	508	0.16
1-link	2789	599	2563	443	0.43
2-link	2567	618	2628	501	0.13
Accuracy
0-link	0.95	0.06	0.97	0.03	0.42
1-link	0.93	0.08	0.94	0.07	0.13
2-link	0.87	0.06	0.94	0.05	1.27

• Both groups performed the encoding task (i.e., deciding how many exemplar words were valid members of the named category) at near ceiling levels of accuracy with ASD participants committing somewhat more errors for 2-link triads.

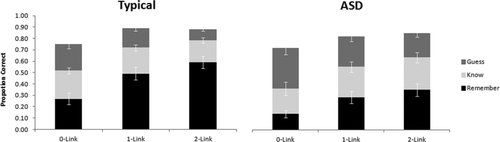

Performance on the forced-choice recognition test following the scan is set out in Figure 2. A 2 (Group: ASD vs. TD) × 3 (Triad Type: 0-link vs. 1-link vs. 2-link) × 3 (Recognition Judgment: Remember vs. Know vs. Guess) mixed ANOVA of these data revealed main effects for Trial Type (F(2,46) = 26.40, P < 0.001) and Recognition Judgment (F(2,46) = 5.06, P < 0.05), with better performance on 1-link (t = 5.69, df = 25, P < 0.001) and 2-link (t = 6.30, df = 25, P < 0.001) as compared to 0-link trials and overall more Remember than Know (t = 4.44, df = 25, P < 0.001) and more Know than Guess responses (t = 8.62, df = 25, P < 0.001). More importantly, we observed the predicted interaction between Group and Recognition Judgment (F(2,46) = 6.10, P < 0.01), which replicates earlier demonstrations of attenuated “Remembering” in ASD (t = 2.95, df = 23, P < 0.01) despite overall preserved levels of recognition memory [e.g. Bowler, et al., 2007]. In addition, the data were characterized by the expected Recognition Judgment × Triad Type (F(4,92) = 26.40, P < 0.001) interaction whereby “Remember” responses increased as a function of the number of category relations in word triads (F(2,50) = 49.68, P < 0.001) while “Know” responses were unaffected (F(2,50) = 0.10, P = 0.90) and “Guess” responses decreased (F(2,50) = 21.04, P < 0.001). This interaction confirms that recollection, as indexed by “Remembering” at retrieval, is strongly associated with the processing of relational information during encoding.

fMRI Results

Successful encoding effects

To identify regions involved in the successful encoding of stimuli in ASD and TD participants, the fixed-effects models generated for each participant at the first level of the SPM analysis were contrasted as random-effects at the second level using a 2 (ASD vs. TD) × 2 (Combined Remember and Know vs. Baseline Triads) whole-brain ANOVA (P ≤ 0.005, whole-brain FDR corrected, minimum extent threshold of 10 voxels). In line with Addis and McAndrews [2006] there was evidence of robust bilateral activation of PFC and MTL regions during successfully encoded (Remembered and Known) as compared to baseline triads. This observation held for both groups individually and a conjunction analysis showed considerable group overlap, including in clusters of the left IFG and the middle segment of the left hippocampus (see Table 3 for details). Somewhat unexpectedly, a group comparison of this contrast within our anatomical ROIs revealed a more pronounced successful encoding contrast in ASD as compared to TD individuals in left IFG (BA45; x = −51, y = 24, z = 8; z-score = 2.90; P < 0.005). No group differences were apparent in the MTL, unless the statistical criterion was relaxed to P < 0.01 (maintaining a minimum extent threshold of 10 contiguous voxels). At this threshold, and in line with predictions, the successful encoding signal in a posterior region of the left hippocampus (x = −31, y = −38, z = −5; z-score = 2.57) was enhanced in TD as compared to ASD participants.

Table 3. Brain Regions Associated with Successful Encoding Processes in Both ASD and TD Groups

Brain Regions	Talairarch			z-score
	x	y	z
L Lingual Gyrus (BA 18)	−18	−94	−14	6.24
L Middle/IFG (BA 46/47)	−44	15	23	5.96
L Cerebellum	−42	−61	−24	5.79
L Parahippocampal/Hippocampus	−30	−17	−14	4.53
L Precentral Gyrus (BA 4)	−42	−10	53	4.27
L Fusiform Gyrus (BA 37)	−47	−40	−8	3.93
R Inferior Occipital Gyrus (BA 17)	21	−93	−6	6.67
R Cerebellum	34	−67	−23	4.34
R Insula (BA13)	31	25	0	3.68

• A conjunction analysis of ASD and TD groups identified the tabulated regions as significantly involved in successful encoding processes (i.e., combined Remember & Know versus Baseline triad contrast) in both participant groups (P < 0.005, whole-brain FDR corrected; minimum extent 10 contiguous voxels).

Remember/know effects

To examine the above group differences in encoding processes more closely, and to begin to establish how they might underpin diminished recollection in ASD at retrieval, we first modeled the main effect of recognition judgment (Remember > Know) across both groups, followed by the interaction between recognition judgment and group in a 2 (Group) × 2 (Remember vs. Know) full-factorial ANOVA. In line with previous observations [e.g., Ranganath, Yonelinas, Cohen, Dy, Tom, & D'Esposito, 2003; see Kim, 2011 for a review] robust clusters extending over large areas of the middle and inferior frontal gyri exhibited increased signal changes during the encoding of items subsequently “Remembered” as opposed to “Known” (BA46; x = −44, y = 16, z = 19; z-score = 3.34 and x = −40, y = 30, z =10; z-score = 2.87; P < 0.005). When examining the groups separately this pattern was reliable only for TD participants and when the Group × recognition judgment interaction was modeled directly, two clusters in the left (BA6; x = −40, y = −2, z = 27; z-score = 3.67; P < 0.005) and right (BA6; x = 36, y = 5, z = 31; z-score = 3.61; P < 0.005) IFG were identified. As Figure 3 illustrates, this interaction is the result of robust signal differentiation between subsequently Remembered versus Known word triads in TD but not ASD participants, which, incidentally, helps to explain why the successful encoding contrast in the ASD group in the analysis above was enhanced overall. In other words, because groups did not differ in relation to signal changes related to baseline triads (shown for comparison in Fig. 3), the reduced signal differentiation between “Remembered” versus “Known” triads in ASD participants essentially augments the overall successful encoding contrast in comparison to TD participants. Turning to the MTL regions of interest, no reliable Remember versus Know signal contrasts or group differences in such contrasts were observed and no regions in either IFG or MTL demonstrated enhanced signal changes for subsequently “Known” over “Remembered” word triads.

Parametric effects of the number of categorical links in word triads

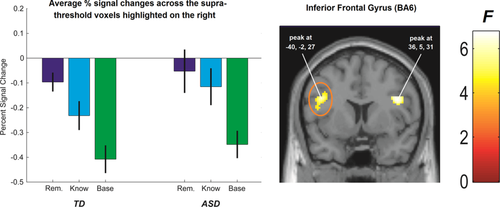

The evidence above suggests that the encoding of subsequently “Remembered” versus “Known” word triads is subserved by distinguishable neural processes in TD but not ASD participants in regions of the prefrontal cortex. To shed further light on this pattern, we next examined the parametric modulation of encoding related signal changes in this area as a function of the number of relational links in word triads. For this analysis, we subjected the linear parametric predictors (with three levels identifying 0-link, 1-link, and 2-link triads) entered at the first level to a 2 (Group) × 2 (predictor associated with Remembered vs. Known triads) full-factorial ANOVA at the second level. In line with Addis and McAndrews [2006], this analysis confirmed, irrespective of recognition judgment and across both groups, a negative association between relational links and signal changes in the left IFG (BA 45/9; x = −45, y = 23, z = 4; z-score = 3.90; P < 0.005). When examining this association for the two groups separately, it was found to be reliable only for ASD but not TD participants. The source of this somewhat surprising observation became apparent when we extracted % signal changes, which are set out in Figure 4 as a function of group, recognition judgment (Remember vs. Know) and relational links (zero, one, or two). As the data illustrate, in the ASD group signal changes decreased as a function of relational links irrespective of whether triads were subsequently “Remembered” or “Known.” In the TD group by contrast, the negative association between signal changes and relational links was apparent only for subsequently “Known” but not “Remembered” triads. Unlike Addis & McAndrews [2006], we did not observe the predicted positive association between signal changes in the hippocampus and the number of relational links in word triads.

Discussion

Based on existing behavioral evidence concerning memory functioning in ASD it remains unclear whether difficulties in this domain stem from atypicalities at the stage of encoding, retrieval or both. We tested the prediction that difficulties in recollection in ASD are, at least in part, attributable to anomalies in the encoding of relational information, and the behavioral data provided clear support for this prediction. Specifically, recollection but not familiarity based recognition was compromised in ASD [e.g., Bowler et al2014, 2007] and only recollection but not familiarity increased as a function of the number of relational links in the studied word-triads. Together, these observations confirm that recollection at retrieval is closely linked to the processing of relational information at encoding and they lend support to the suggestion that attenuated recollection in ASD is in part attributed to anomalies in relational encoding processes.

At the neural level, the present results offer an independent replication of Addis & McAndrews [2006] observation that signal changes in the inferior frontal region of the left PFC generally increase as a function of decreasing category relations in to-be-remembered word-triads, supporting the notion that this region is important for the generation of relational information when this is not immediately given by the stimulus environment. The observations also confirm previous demonstrations of robust signal differentiation in the IFG for subsequently recollected versus familiar stimuli [e.g., Ranganath, et al., 2003]. Although hippocampal activity was related to later retrieval success, the results did not replicate Addis & McAndrews [2006] observations of a positive association between hippocampal signal changes and the number of category relations in to-be-remembered triplets that would underscore the role of the hippocampus in relational binding processes [Mayes et al., 2007]. Since the sample size, and scanning parameters are very comparable between the current and Addis & McAndrews [2006] original study, the most likely source for these discrepancies are the changes we implemented to the recognition procedure. Specifically, participants had unlimited time to respond during the recognition test (compared to the original 6s time limit) and they were required to qualify their choices as either “Remembered,” “Known,” or “Guessed.” This may have led participants to engage more elaborate and varied recognition strategies that potentially obscured some of the hippocampal effects that would otherwise be driven by stimulus characteristics.

In ASD, we expected the prefrontal and medial-temporal processes mediating the generation and binding of relational information to be attenuated. In line with predictions, the data indicated somewhat reduced engagement of a left posterior hippocampal region in the ASD group, which suggests anomalies in relational binding processes. This observation, however, merits replication in larger samples. In relation to prefrontal processes the prediction of attenuated or atypically modulated encoding processes in ASD was clearly not confirmed. Instead the successful encoding contrasts were overall enhanced in the PFC in the ASD group, and signal changes in this region demonstrated a robust inverse relation with the number of category relations in to-be-remembered word triads. Increases in prefrontal activity during memory formation have also been observed in the elderly [Miller et al., 2008; Presson et al., 2006], where they are thought to reflect the engagement of more effortful encoding processes that compensate for age-related structural and/or functional declines in memory networks. Structural and functional PFC abnormalities are widely reported in the ASD literature [e.g., Duerden, Mak-Fan, Taylor, & Roberts, 2012] and behaviorally some parallels have been noted between the memory profile seen in ASD and that seen in older adults [see Bowler & Gaigg, 2008] and patients with frontal lobe pathology [e.g., Bowler et al.2014, 2010; Steele, et al.2014, 2007]. Thus, it seems highly likely, that the enhanced successful encoding contrast observed in the current study, is a reflection of the engagement of more effortful encoding strategies, possibly to compensate for attenuated hippocampal binding processes.

Besides the overall enhanced encoding related PFC activation in ASD, there was also a relative lack of signal differentiation between subsequently recollected versus familiar word triads in this group. This may simply be a corollary of more effortful encoding processes in ASD, which could result in a ceiling-type effect within the PFC whereby each triplet is processed with the maximum resources available. This seems unlikely, however, since PFC activation is clearly sensitive to the number of conceptual relations available for processing, and ceiling effects should attenuate also these effects. Another possibility is that ASD constitutes an example of a single dissociation of functions where one of two processes is either absent or so significantly compromised that the other process dominates behavior. This suggestion was first put forward by Massand et al., [2013] who observed that in TD participants, temporally and topographically distinct ERP components are associated with item (line drawings) versus associative (line drawing—color association) recognition judgments during retrieval whereas in an ASD group the same ERP components were associated with both types of recognition judgments. In previous behavioral studies, we have shown that memory encoding processes in ASD tend to be biased to the processing of item-specific information, whereas TD participants tend to process relational as well as item-specific information in parallel [Gaigg et al., 2008; Bowler et al.2014, 2009]. Thus, the neural observations in the current study and in Massand et al. [2013] may be a reflection of a processing bias for item-specific information in ASD. Because such a bias would be less optimal, it is likely to require greater effort. In other words, a processing bias could account for both the overall greater PFC engagement during encoding as well as the relative lack of signal differentiation as a function of subsequent recognition judgment.

Importantly, and in line with the “Task Support Hypothesis” [Bowler et al.2014, 2004], previous behavioral work suggests that certain encoding conditions that promote the explicit processing of relational information can ameliorate memory difficulties in ASD [Gaigg et al., 2008; Bowler et al., 2010] similar to how retrieval support does. It would be of interest for future studies to establish in how far such encoding conditions also “normalise” neural encoding processes, since any conditions that do may be utilized fruitfully by educators and practitioners to ameliorate behavioral difficulties in the domain of learning and memory in ASD and also promote the development of neural circuitry that may not mature typically without targeted support.
