Loading Dyes into Chiral Cd/Zn-Metal–Organic Frameworks for Efficient Full-Color Circularly Polarized Luminescence
Dr. Hua-Qing Yin
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorJia Chen
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorYu-Wei Xue
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorJing Ren
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorXin-Hui Wang
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorHeng-Rui Fan
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorShu-Yan Wei
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorBo Sun
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorCorresponding Author
Prof. Zhi-Ming Zhang
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorDr. Hua-Qing Yin
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorJia Chen
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorYu-Wei Xue
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorJing Ren
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorXin-Hui Wang
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorHeng-Rui Fan
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorShu-Yan Wei
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorBo Sun
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorCorresponding Author
Prof. Zhi-Ming Zhang
Institute for New Energy Materials and Low Carbon Technologies, School of Materials Science & Engineering, School of Chemistry and Chemical Engineering, Tianjin University of Technology, 391 West Binshui Road, Tianjin, 300384 China
Search for more papers by this authorGraphical Abstract

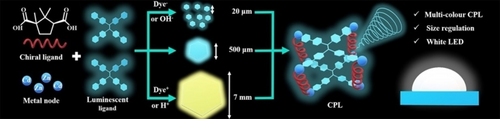

The sizes of chiral MOFs can be controlled from sub-20 μm to over 7 mm by tuning the types and additional amounts of organic dyes. The full-color circularly polarized luminescence MOFs are synthesized by different dyes encapsulation, which are further assembled into a white CPL light-emitting diode.
Abstract
Host-guest chemistry of chiral metal-organic frameworks (MOFs) has endowed them with circularly polarized luminescence (CPL), it is still limited for MOFs to systematically tune full-color CPL emissions and sizes. This work directionally assembles the chiral ligands, metal sites and organic dyes to prepare a series of crystalline enantiomeric D/L-Cd/Zn-n MOFs (n=1~5, representing the adding amount of dyes), where D/L-Cd/Zn with the formula of Cd2(D/L–Cam)2(TPyPE) and Zn2(D/L–Cam)2(TPyPE) (D/L-Cam=D/L-camphoric acid, TPyPE=4,4’,4’’,4’’’-(1,2-henediidenetetra-4,1-phenylene)tetrakis[pyridine]) were used as the chiral platforms. The framework-dye-enabled emission and through-space chirality transfer facilitate D/L-Cd/Zn-n bright full-color CPL activity. The ideal yellow CPL of D-Cd-5 and D-Zn-4, with |glum| as 4.9 × 10−3 and 1.3×10−3 and relatively high photoluminescence quantum yield of 40.79 % and 45.40 %, are further assembled into a white CPL light-emitting diode. The crystal sizes of D/L-Cd/Zn-n were found to be strongly correlated to the types and additional amounts of organic dyes, that the positive organic dyes allow for the preparation of > 7 mm bulks and negative dyes account for sub-20 μm particles. This work opens a new avenue to fabricate full-color emissive CPL composites and provides a potentially universal method for controlling the size of optical platforms.
