Strategies for Achieving Ultra-Long ORR Durability—Rh Activates Interatomic Interactions in Alloys
Xiaoke Li
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
These authors contributed equally to this work
Search for more papers by this authorXiao Duan
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
These authors contributed equally to this work
Search for more papers by this authorSiao Zhang
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorChuanjie Wang
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorKang Hua
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Search for more papers by this authorZejin Wang
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Search for more papers by this authorYongkang Wu
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Search for more papers by this authorCorresponding Author
Dr. Jia Li
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorCorresponding Author
Prof. Jianguo Liu
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorXiaoke Li
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
These authors contributed equally to this work
Search for more papers by this authorXiao Duan
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
These authors contributed equally to this work
Search for more papers by this authorSiao Zhang
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorChuanjie Wang
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorKang Hua
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Search for more papers by this authorZejin Wang
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Search for more papers by this authorYongkang Wu
National Laboratory of Solid-State Microstructures, College of Engineering and Applied Sciences, and Collaborative Innovation Center of Advanced Microstructures, 22 Hankou Road, Nanjing, 210093 P. R. China
Search for more papers by this authorCorresponding Author
Dr. Jia Li
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorCorresponding Author
Prof. Jianguo Liu
Institute of Energy Power Innovation, North China Electric Power University, 2 Beinong Road, Beijing, 102206 P. R. China.
Search for more papers by this authorGraphical Abstract

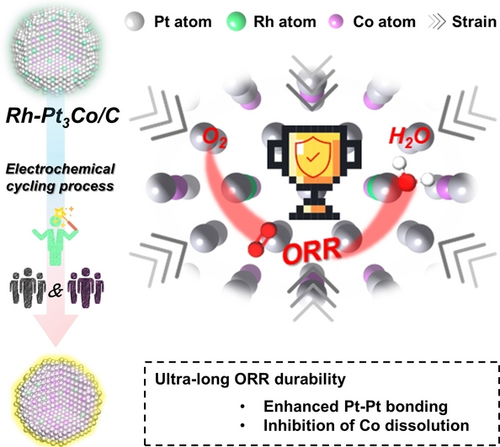

By modulating the interatomic interactions between the constituent atoms of the catalyst, a novel approach has been introduced to prevent the dissolution of transition metals, resulting in ultra-long durability in the oxygen reduction reaction (ORR). Rh−Pt3Co/C catalysts demonstrate high activity and excellent durability with low platinum group metal (PGM) loading.
