Introduction

It is widely recognized that block copolymer self-assembly offers potential applications in cell biology,¹ templating,² sensors,³ nanolithography^{3a, 4} and other technologies.⁵ One of the most convenient and versatile chemistries for the synthesis of well-defined functional block copolymers is reversible addition-fragmentation chain transfer (RAFT) polymerization.⁶ This approach provides good control over the target degree of polymerization (DP) and the molecular weight distribution.⁷ Traditional post-polymerization processing routes to block copolymer nano-objects are typically only conducted at rather low copolymer concentrations (<1% w/w).⁸ Fortunately, the development of RAFT-mediated polymerization-induced self-assembly (PISA) provides convenient access to a wide range of block copolymer nano-objects at relatively high solids (25–50 % w/w).⁹ Moreover, the latter method is suitable for a wide range of media, including polar solvents, non-polar solvents and ionic liquids.^{9b, 10} In particular, PISA syntheses via RAFT dispersion polymerization involves chain extension of a solvophilic stabilizer block using a miscible monomer to produce a solvophobic structure-directing block.^{9b, 10a} Once a critical chain length has been achieved, micellar nucleation occurs and the growing diblock copolymer chains self-assemble to form spherical nuclei.^{9b, 9c, 10a, 11} Under certain well-established conditions, the copolymer morphology can subsequently evolve to produce sterically-stabilized worms, vesicles, multilamellar vesicles or lamellae.^{9b, 10a} Alternatively, the nascent nuclei can simply grow in size to produce kinetically-trapped spheres.^{9f, 12} Clearly, RAFT dispersion polymerization is a complex multistage process. It is well-known that the in situ self-assembly of the growing diblock copolymer chains that occurs during such heterogeneous PISA formulations strongly influences the reaction kinetics.^{9b, 9k, 10a, 13}

¹H NMR spectroscopy is widely used to determine monomer conversion during PISA syntheses^{9b, 10a} and in situ experiments have been performed in a few cases.^{7b, 14} Although this technique is useful for monitoring the monomer concentration, it cannot provide any information regarding the evolution in particle size and morphology. However, such studies are crucial because they enable rigorous characterization of the self-assembled nanoparticles that act as individual nanoreactors during PISA. In principle, dynamic light scattering (DLS) can offer useful insights, at least for kinetically-trapped spheres. Indeed, periodic sampling of polymerizing reaction mixtures followed by ex situ DLS analysis has been conducted in various studies.^{9j, 11, 13a, 15, 16} However, conventional DLS instruments cannot be used to monitor concentrated colloidal dispersions in situ.¹⁷ Moreover, DLS provides only very limited structural information for higher order morphologies such as worms and vesicles. As an alternative to DLS, transmission electron microscopy (TEM) is widely used to assign copolymer morphologies but this technique usually suffers from relatively poor statistics and can be prone to drying artefacts.^{8a, 9b, 10a} To overcome the latter problem, cryo-TEM studies have been undertaken for selected PISA formulations. However, in at least some cases there is insufficient contrast between the nano-objects and the frozen aqueous matrix.¹⁸ Recently, a liquid cell has been developed for in situ TEM studies during PISA.¹⁹ Unfortunately, imaging can only be performed under certain conditions because radicals generated by the electron beam can initiate the polymerization. In principle, using a lower energy electron beam can reduce this problem and minimize beam damage but in practice this approach invariably leads to lower resolution.²⁰

Over the past decade, small-angle X-ray scattering (SAXS) has been used to characterize block copolymer spheres, worms, vesicles and framboidal vesicles prepared via PISA in various media.^{11, 13c, 14c, 15e, 21} Moreover, this powerful structural technique also enables the in situ evolution in copolymer morphology to be monitored during PISA.^{13b, 14c, 22} For example, Derry and co-workers employed time-resolved SAXS (TR-SAXS) combined with ex situ ¹H NMR spectroscopy studies to examine the RAFT dispersion polymerization of benzyl methacrylate (BzMA) at 90 °C in mineral oil using a poly(stearyl methacrylate) (PSMA) precursor (see Scheme 1).^13c Depending on the mean DP of the PSMA stabilizer block, the final copolymer morphology was either vesicles or kinetically-trapped spheres.^13c Unfortunately, the high-energy synchrotron X-ray beam generated a radical flux in addition to that provided by the initiator, which meant that the rate of polymerization within the capillary sample holder was significantly faster than that observed for the equivalent synthesis conducted in the absence of any X-ray flux. Thus, ¹H NMR kinetic data obtained for a laboratory-scale synthesis conducted under the latter conditions could not be used to determine the instantaneous monomer conversion for each SAXS pattern. To address this problem, the NMR kinetic data were renormalized to the much shorter timescale indicated by the SAXS experiments. Subsequently, close reference to the phase boundaries observed within the relevant pseudo-phase diagram constructed for a series of such diblock copolymer nano-objects indicated that such renormalization was a reasonable approach.^13c Accordingly, SAXS patterns were analyzed using appropriate scattering models but satisfactory data fits required further information regarding the degree of solvation of the insoluble poly(benzyl methacrylate) (PBzMA) chains by BzMA monomer, as well as the extent of solvent plasticization by the mineral oil. In the present study, this particular PISA formulation is revisited and the original SAXS patterns are subjected to a much more powerful and rigorous SAXS analysis. This new analytical approach reveals fundamental new insights regarding the true nature of PISA.

For dispersion polymerization formulations, the monomer should be fully miscible with the solvent. Hence the initial reaction solution comprises a binary mixture of monomer and mineral oil that has a mean X-ray scattering length density (SLD) which lies between the SLD of each pure component. As the polymerization proceeds, monomer is converted into polymer and the binary monomer/solvent composition gradually shifts towards that of the pure solvent. If this system remained homogeneous, SAXS studies would not be particularly informative. However, micellar nucleation results in the formation of nascent nanoparticles (see Scheme 1) and the growing insoluble chains within such nuclei quickly become solvated by unreacted monomer. Indeed, such monomer solvation is essential for the polymerization to continue and often leads to a significant rate enhancement owing to the relatively high local monomer concentration within the nanoparticles compared to that within the continuous phase.^{9c, 13c} Importantly, such solvation necessarily also lowers the effective X-ray SLD for the nascent nanoparticle cores. Prior to the present study, this subtle point appears to be under-appreciated in the literature. More specifically, if a distinct interface develops between the locus of polymerization and the continuous phase, this should enable calculation of both the instantaneous monomer concentration and the local monomer concentration within the growing nanoparticles, which in turn provides useful information regarding the mass transport of monomer and the ensuing rate of polymerization.

Herein a generic SAXS model for RAFT dispersion polymerization formulations has been developed by applying the law of conservation of mass to the oil-soluble homopolymer precursor, the BzMA monomer and the final diblock copolymer chains. In particular, the TR-SAXS data reported by Derry and co-workers^13c have been reanalyzed to determine the kinetics of polymerization directly during the synthesis of PSMA₃₁-PBzMA₂₀₀₀ spherical nanoparticles. This new analytical approach enables calculation of the instantaneous mean DP of the growing PBzMA chains during the evolution in copolymer morphology. Moreover, the results provide important new information regarding the change in local monomer concentration within the growing nanoparticles over time and their degree of solvent plasticization, as well as the evolution in particle size and aggregation number. Accordingly, valuable new insights can be obtained regarding the RAFT polymerization kinetics, the rate of formation of block copolymer nanoparticles and their growth mechanism. In principle, this powerful strategy can be applicable to any dispersion polymerization formulation regardless of the solvent composition.

Results and Discussion

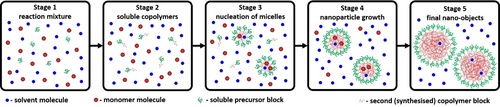

According to prior TEM and ¹H NMR spectroscopy studies,^{9b, 9c} the PISA synthesis of diblock copolymer nano-objects via RAFT dispersion polymerization comprises at least five stages (Figure 1). Stage 1 involves the preparation of a reaction mixture consisting of the solvent, the soluble precursor or steric stabilizer block (sometimes denoted as the ‘macro-CTA’), and a suitable missible monomer for producing the insoluble structure-directing block. Each of these components is uniformely distributed within the reaction solution. During Stage 2, some of the monomer is converted into the second block but at this early stage these growing chains are too short to cause nucleation and hence remain soluble within the monomer/solvent binary mixture. Once the growing second block reaches its critical DP (Stage 3), nucleation occurs and the diblock copolymer chains undergo spontaneous self-assembly to form nascent micelles. Thus, the reaction mixture becomes heterogeneous. At this point, unreacted monomer is preferentially located within the micelles because it can solvate (or plasticize) the growing insoluble block. In contrast, the solvent is a poor solvent for such chains and hence is expected to be (at least partially) excluded from the micelle cores. Since the local concentration of the unreacted monomer within the micelles is higher than that in the continuous phase, a pronounced rate acceleration is usually observed immediately following micellar nucleation (Stage 4).^9c At this stage, the reaction takes place mainly in the self-assembled micelles, which act as individual nanoreactors. As the monomer within the micelle cores is consumed, it is replenished via diffusion of further monomer from the continuous phase.²³ Thus, a relatively fast rate of polymerization within the micelles is maintained and is most likely diffusion-controlled. Once all the unreacted monomer is consumed, polymerization ceases and the final diblock copolymer nano-objects are obtained (Stage 5). If the soluble precursor block is relatively long, then only kinetically-trapped spheres are obtained via PISA.^13c This is because steric stabilization is more effective and hence prevents sphere-sphere fusion, which is the critical first step for the formation of higher order morphologies (e.g. worms or vesicles). On the other hand, if the soluble precursor block is relatively short and the growing insoluble chains are sufficiently mobile, then the copolymer morphology can evolve into either worms (via stochastic 1D fusion of multiple spheres)^15c or vesicles (via a series of intermediate species that include worms, branched worms, octopuses and jellyfish) depending on the final DP targeted for the insoluble block.^{9c, 10a, 21d} Given the complexity of the analysis, PISA syntheses that produce only kinetically-trapped spheres were chosen for this initial proof-of-concept study. More specifically, the RAFT dispersion polymerization of BzMA in mineral oil at 90 °C using a PSMA₃₁ precursor has been examined. For such PISA formulations, a sophisticated structural model has been constructed for the analysis of TR-SAXS data recorded during the BzMA polymerization (equations S1–S31). ¹H NMR spectroscopy analysis confirmed that virtually all of the BzMA monomer is converted into PBzMA during PISA. Moreover, TEM and DLS studies^13c indicated that the final diblock copolymer nano-objects had a well-defined kinetically-trapped spherical morphology (see Stage 5 in Figure 1). Furthermore, there was no significant difference between the last few SAXS patterns, indicating cessation of the BzMA polymerization within the experimental timeframe of 194 min. Thus, to a good approximation, the final frame of the time-resolved SAXS data recorded after 194 min corresponds to PSMA₃₁-PBzMA₂₀₀₀ spherical nanoparticles. This assumption enabled the new SAXS model to be verified first on the known (final) product and then effectively applied frame-by-frame backwards from the final frame to the beginning of the reaction. Eq S2 can be combined with equations S31 and S32. Thus, the total scattering intensity for the final frame, as well as all other frames associated with Stage 4 of this PISA synthesis (Figure 1), can be expressed as

A full description of all the parameters given in eq 1 can be found in the Supporting Information.

Indeed, eq 1 produced a good fit to the SAXS pattern recorded for the final product (see Figure 2, uppermost pattern), indicating a final spherical micelle core radius of R_mc=61.2 nm and =5.4 nm. The relative standard deviation of the particle size [RSD, which is defined as the coefficient of variability ( )] is 0.088, which suggests a relatively narrow size distribution (Figure 3a). This SAXS data fit also indicates minimal solvent plasticization of the spherical micelle cores by the mineral oil (x_sol=0.07) (Figure 3a), which is consistent with NMR data obtained in earlier study.^13c The radius of gyration of the corona block of 1.6 nm indicated by SAXS analysis is consistent with calculations based on a Gaussian chain model.²⁴ More specifically, the mean contour length of a PSMA₃₁ stabilizer chain is estimated to be 7.9 nm (assuming that the length of two C−C bonds in an all trans configuration is 0.255 nm, hence 31 × 0.255 nm=7.9 nm). Given that the mean Kuhn length of the PSMA₃₁ stabilizer is estimated to be around 1.53 nm (based on data available for PMMA²⁵), an unperturbed radius of gyration for PSMA₃₁ is calculated to be (7.9 nm× 1.53 nm/6)^0.5=1.42 nm. The parameters obtained from the data fit for the final SAXS pattern were then used as initial parameters for fitting the penultimate SAXS pattern and this protocol was repeated for each subsequent pattern [N.B. The SAXS pattern number, t_m, is directly related to the corresponding reaction time expressed in minutes according to the relation m=t_m/2]. In principle, this data-fitting strategy should minimize any uncertainty in each fitted parameter because this is constrained by results obtained for adjacent frames.

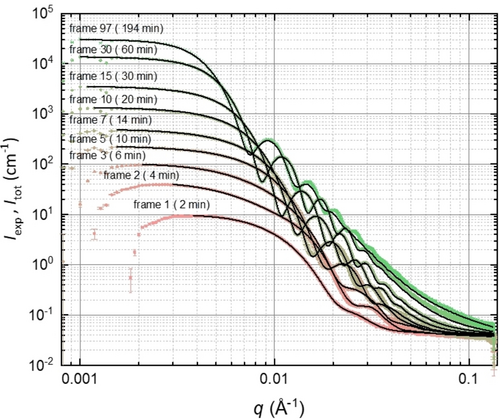

The total scattering intensity equation (eq 1) produced reasonably good fits to most of the SAXS patterns collected during the time-resolved experiment, starting from the last frame (frame 97, t₉₇=194 min) down to frame 7 inclusive (Figure 2). Since eq 1 only relates to Stages 4 and 5 of the PISA synthesis, this suggests that no free copolymer chains were detected in the continuous phase after the first 12 min of the polymerization. However, the spherical micelle model did not provide satisfactory data fits for the first six frames even when accounting for a population of free copolymer chains (see Stage 3 in Figure 1 and eq S2).

Close inspection of the SAXS data reveals that the first recorded SAXS pattern contains the first minimum of the particle form factor function, which is located at a slightly lower q value than that for the second pattern (0.020 Å⁻¹ versus 0.023 Å⁻¹, respectively), see Figures 2 and S3. This suggests that the initial nascent particles formed within the first 2 min are larger than those observed at a later stage. In addition, the scattering intensity for the second and third patterns has a non-zero gradient in the Guinier region (0.0035 Å⁻¹<q<0.015 Å⁻¹), see Figures 2 and S3. In principle, this suggests the formation of weakly anisotropic nascent particles. This hypothesis is supported by analysis using a pair-distance distribution function (PDDF) (Figure S4a), indicating the possible presence of particle dimers (Figure S4a, pattern corresponding to frame 2).²⁶ It is conceivable that the initial micelles might immediately become elongated²⁷ (or undergo fission to form two smaller micelles) before regaining their isotropic character at a later stage (see pattern 7 in Figures 2 and S3). However, analysis of the first six SAXS patterns confirmed that neither an ellipsoidal micelle model nor a spherical micelle dimer model provided satisfactory data fits. Since the intermediate species are observed in the presence of a relatively high concentration of unreacted BzMA monomer, an alternative explanation for the formation of relatively large particles within the first few minutes of the polymerization is that the growing copolymer chains could stabilize BzMA-rich droplets (see Figure S5). To examine this hypothesis, a suitable SAXS model was developed (equations S34 and S35). Reasonable fits to the first six SAXS patterns were obtained by combining a BzMA-rich droplet population with the spherical micelle population (eq S34), observed at later reaction times (see Figures 2 and S3). It is perhaps worth emphasizing that analysis of the curves fitted to the experimental SAXS patterns (Figure S4b) produced similar pair-distance distribution functions to those reconstructed from the experimental SAXS patterns (Figure S4a). This two-population model (Figure S5) indicates that there is a significant reduction in the relative volume fraction of the BzMA-rich droplets within a few minutes of their formation, with the spherical micelle population dominating thereafter (Figure S6). More specifically, the BzMA-rich droplets increase up to a limiting core radius of around 28 nm, while the spherical micelle core radius increases monotonically up to the same value before surpassing it (Figure S7). At this time point, the mean aggregation numbers for these two populations are comparable (Figure S8). Although this structural model is physically reasonable, it is not clear whether these two populations are formed independently or if there is a gradual transformation of the BzMA-rich droplets into the spherical micelles. In order to address this issue in more detail, further time-resolved SAXS experiments would be required that focus on the initial reaction period. However, this is beyond the scope of the current study.

Although the copolymer morphology is ill-defined for the first few minutes of this PISA synthesis, useful structural parameters related to the reaction kinetics can be extracted from TR-SAXS measurements. Unfortunately, SAXS lacks sufficient sensitivity to detect the molecularly-dissolved copolymer chains shown in Stages 2 and 3 of the synthesis (Figure 1). Nevertheless, the SAXS analysis suggests that pre-micellar self-assembly occurs at a very early stage and is likely to involve the formation of BzMA-rich droplets. Moreover, spherical micelles (Figure 1, Stage 3) are also formed within the first few minutes. This means that Stage 2 (Figure 1) must be neglected for the SAXS analysis, which reduces the number of structural parameters by excluding the population of molecularly-dissolved copolymer chains from the scattering model.

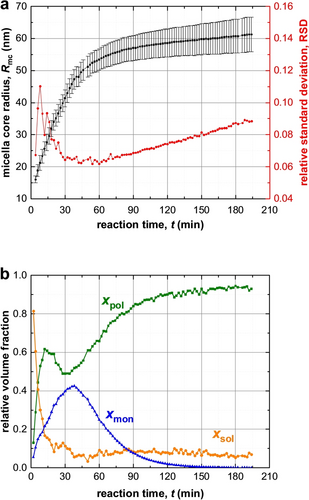

In principle, the spherical micelle radius can be determined by DLS by periodic sampling of the reaction mixture.²⁸ However, TR-SAXS measurements provide much more detailed information (Figure 3b). For example, SAXS analysis indicates that the solvent volume fraction within the growing micelles (x_sol) is initially high (>0.80) but drops to less than 0.10 within 20 min and is then further reduced to around 0.07 over the course of the BzMA polymerization. During the early stages of this reaction, the PBzMA chains are relatively short (DP<87, Figure 4) and hence remain molecularly dissolved in mineral oil. However, the growing PBzMA chains become increasingly solvophobic and micellar nucleation occurs once they reach a certain critical DP. The monomer volume fraction within the micelle cores (x_mon) is initially low at the onset of micellar nucleation (Figure 3). However, as the BzMA polymerization progresses, further monomer diffuses into the micelles and displaces the mineral oil, which is no longer a good solvent for the growing PBzMA chains. Moreover, the rate of monomer mass transport is initially faster than the rate of polymerization, which leads to the gradual build-up in the local monomer concentration (Figure 3b). The maximum value for x_mon is approximately 0.43, which is observed after around 38 min (Figure 3b) (or a BzMA conversion of 46 %, Figure 4). This relatively high BzMA concentration within the micelles significantly exceeds the BzMA concentration remaining in the continuous phase, which explains the pronounced rate acceleration. Moreover, this time point most likely corresponds to that for maximum chain mobility within the micelle cores—thereafter, the local concentration of BzMA monomer is reduced as the effective glass transition temperature increases for the growing PBzMA chains. The volume fraction of the growing PBzMA chains within the micelle cores (x_pol) rapidly increases from 0.13 to 0.62 after micellar nucleation owing to the concomitant expulsion of solvent. However, a local maximum in x_pol is observed after 15 min (Figure 3b) owing to the gradual ingress of BzMA monomer into the micelle cores. x_pol then passes through a local minimum at around 30–32 min, with this time point lying close to that observed for the local maximum in x_mon (Figure 3b).

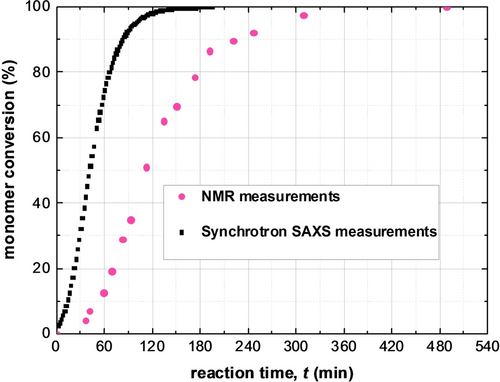

The monomer conversion vs. time curve derived from the TR-SAXS measurements shows that almost all of the BzMA is converted into PBzMA within 120 min at 90 °C (Figure 4). This is much shorter than the 8 h timescale required for the equivalent laboratory-scale synthesis (Figure 4). This discrepancy has been attributed to the high-flux X-ray synchrotron radiation producing an additional radical flux,²⁹ most likely owing to its interaction with the mineral oil.^13c Previously, a single logistic function, which serves as a reasonable empirical approximation, was employed to renormalize the NMR-derived kinetic data and hence calculate a conversion vs. time curve for the synchrotron SAXS measurements.^{13c, 30}

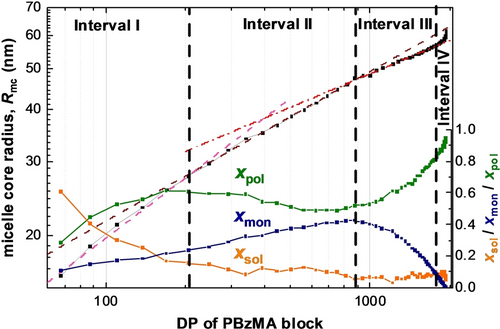

At first sight, the monotonic increase in micelle core radius after micellar nucleation (Figure 3a) appears to be straightforward and consistent with the earlier observations.^13c However, SAXS analysis reveals a much more complex scenario (Figures 3b and 4). Using a power law relationship (R_mc=k_{R_DP}⋅DP^ω, where k_{R_DP} is the coefficient and ω is the exponent), the dependence of the micelle core radius, R_mc, on the PBzMA DP shown in Figure 5 can be divided into four distinct time intervals. The first interval ranges from a PBzMA DP of around 70 (frame 2, 4 min) up to 200 (frame 7, 14 min) and follows a power law with an exponent ω₁ of 0.48, Figure 5. The second interval is from 14 to 38 min, in which the limiting slope of R_mc as a function of DP approaches ω₂=0.36 as DP tends to 1000 (i.e. frames 7–19), while the third interval is from 38 to 86 min, whereby the PBzMA DP increases from around 880 to 1780 (i.e. frames 19–43) and a satisfactory data fit was achieved using ω₃=0.26 (Figure 5). The final interval is from 88 to 194 min (or frames 44–97), for which the PBzMA DP varies from around 1780 up to approximately 2000. No power law fit could be obtained in this case. This is most likely because the BzMA conversion is 99 % after 132 min (frame 66), so the PBzMA DP remains essentially unchanged (Figure 4).

The initial power law scaling relationship for R_mc shows that the ω₁ exponent lies close to 1/2. This suggests that the insoluble PBzMA chains remain partially stretched during interval I.^{13a, 13c, 31} This is not unexpected, as this period coincides with a relatively high solvent volume fraction within the micelle cores (Figure 3). However, this solvent is gradually displaced from the micelle cores by the incoming BzMA monomer, which is a much better solvent/plasticizer for the growing PBzMA chains. During interval II, the increase in the micelle core radius is characterized by a smaller exponent, ω₂, which is slightly higher than 1/3. Since the micelles are spherical, this suggests that the increase in their core volume is mainly because of the volume occupied by the PBzMA chains but with an additional contribution from a second component. Thus, to a reasonably good approximation, the increase in particle volume during this period simply involves uptake of BzMA monomer from the surrounding medium and its subsequent conversion into PBzMA chains (the so-called ‘nanoreactor’ concept). The scaling exponent and x_mon are lower during interval III (Figure 5), which indicates a reduction in the rate of mass transport of BzMA monomer into the growing micelles. The fact that ω₃ <1/3 is also expected: although monomer swelling leads to an increase in particle volume, concomitant conversion of monomer into polymer leads to densification and hence a reduction in the particle volume growth rate. In contrast to the first three intervals, no power law dependence on the PBzMA DP is observed during interval IV (Figure 5). The spherical micelle core radius over the entire experiment increases monotonically, while the RSD remains relatively low (Figure 3a). The latter parameter reaches its minimum value of about 0.06 within the first 45 min and then steadily increases up to around 0.09 by the end of the reaction. The increase in R_mc and the corresponding RSD observed after 88 min (Figure 3a), when the polymerization is close to completion (>90 % BzMA conversion, see Figure 4), may be the result of either micelle fusion and/or chain exchange mechanisms.^{21c, 32} Indeed, SAXS analysis shows that the rate of growth of the micelle core volume, [R_mc³(t_m)-R_mc³(t_m-1)]/(t_m-t_m-1), is approximately constant after 88 min (Figure 6). In principle, this suggests that an Ostwald ripening-type mechanism might account for the change in particle size during interval IV.³³ However, Ostwald ripening would require dissociation and diffusion of relatively long (and highly asymmetric) copolymer chains. Instead, it seems much more likely that the observed increase in size is the result of particle fusion. It should also be noted that the time point for maximum change in the particle volume (Figure 6) approximately corresponds to that for maximum monomer swelling (Figure 3b). This correlation indicates that the uptake and consumption of the BzMA monomer has a direct effect on the particle growth.

It is possible to relate the rate of polymerization, R_p(t), to the instantaneous monomer concentration determined by SAXS. In principle, R_p(t) can be written as³⁴

where k_p is the propagation rate coefficient, c_{ini_mon} is the initial molar concentration of monomer, c_mon is the molar concentration of monomer and c_P⋅ is the molar concentration of polymer radicals. Moreover, eq 2 can be rewritten in terms of SAXS model parameters as:

where V_tot is defined by eq S6, M_co is the molar mass of the repeat units within the solvophobic block (176 g mol⁻¹ for BzMA), k_d is the initiator decomposition rate constant [calculated to be 1.92×10⁻⁴ s⁻¹ from k_d=ln(2)/t_1/2 given that t_1/2=1 h for T21s initiator at 90 °C³⁵], k_t is the termination rate coefficient, n_T21s is the initial number of moles of T21s initiator, f_in is the initiator efficiency³⁶ (often assumed to be less than unity and constant for T21s initiator),³⁷ and k_p′ is the composite propagation rate coefficient for the PISA synthesis (see equations S36–S42 for further details).

Accordingly, the overall rate of polymerization can be calculated from the TR-SAXS data using:

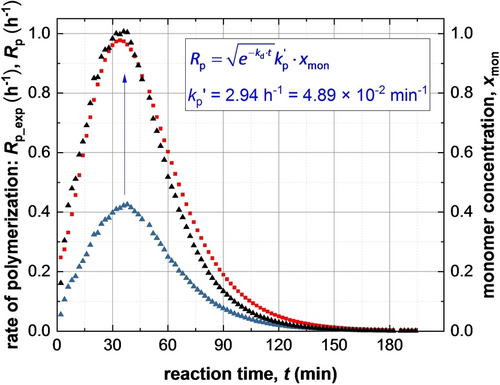

Given that the rate of polymerization, R_{p_exp}(t), calculated from SAXS analysis using eq 4 can be equated to R_p(t) (eq 3), a least squares fit was applied using results obtained for all SAXS frames. A linear relationship between R_{p_exp}(t) (eq 4) and x_mon (eq 3) was obtained, for which k_p′=4.89×10⁻² min⁻¹ (Figure 7). This analysis requires further refinement because the synchrotron X-ray beam significantly accelerates polymerization (Figure 4), which is attributed to the generation of a radical flux in addition to that provided by the initiator. Under such conditions, any reduction in initiator concentration may be neglected and k_d is assumed to be constant because the X-ray irradiation provides a continuous supply of radicals. Indeed, this adjustment produced an even better correlation between x_mon and R_{p_exp} with a similar k_p′ of 4.46×10⁻² min⁻¹ (Figure S9). Overall, these results confirm that the monomer concentration within the micelles (x_mon) governs the overall rate of polymerization. In addition, using the calculated k_p′ value, the typical k_t range of 10⁶–10⁸ L⋅mol⁻¹⋅s^−1[37b] and assuming f_in=1, k_p can be estimated from eq 3 as ranging from 7.09×10² to 7.09×10³ L⋅mol⁻¹⋅s⁻¹. This range of values is consistent with the k_p value of 3.0×10³ L⋅mol⁻¹⋅s⁻¹ determined for the bulk polymerization of BzMA at 90 °C.³⁸ This analysis suggests that TR-SAXS should be a powerful generic technique for determining kinetic data during RAFT dispersion polymerization (and perhaps any dispersion polymerization formulation). However, it remains to be seen whether the established linear relationship is also applicable for RAFT aqueous emulsion polymerization formulations, for which the vast majority of the monomer is immiscible with the aqueous continuous phase.

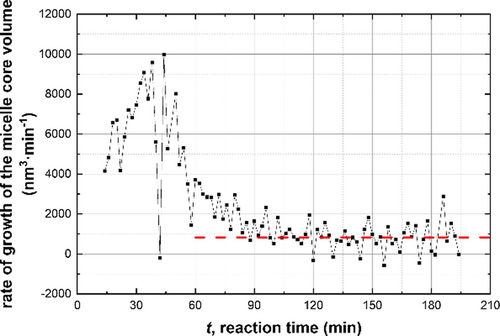

Given that x_mon is the only time-dependent parameter in eq 3, the relative volume fraction of BzMA monomer within the micelle cores dictates the rate of polymerization. However, x_mon not only depends on the rate of monomer supply according to eq S18 but also on x_sol and/or x_pol. This suggests that invoking a suitable model to describe the expulsion of solvent from the micelle cores (Figure 5) could be employed to predict the change in x_sol over time.

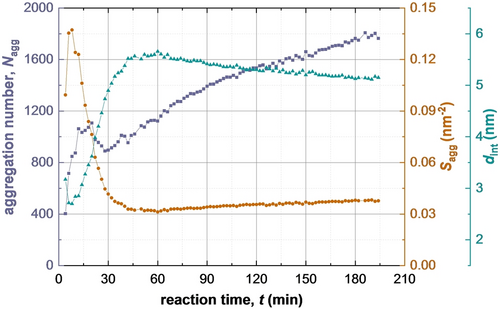

Combining R_mc with x_mon, x_sol and x_pol can be used to characterize micellar self-assembly. In particular, the mean aggregation number (N_agg, see eq S30), the average number of copolymer chains per unit surface area of micelle (S_agg) and the average inter-separation distance between adjacent copolymer chains packed at the surface of the micelle cores (d_int) can be expressed using the following equation:

Clearly, the micelle core radius must increase as the solvophobic PBzMA chains grow longer, even if there is no change in N_agg. In practice, N_agg also increases during the BzMA polymerization (Figure 8, first 20 min). Jones et al.¹¹ reported similar results for the RAFT dispersion polymerization of BzMA in ethanol. This results in a relatively high packing density for the copolymer chains: the radius of gyration of the PSMA₃₁ stabilizer chains is around 1.6 nm, so d_int would be expected to be at least 3.2 nm to avoid any overlap with neighboring chains. However, the d_int gradually increases (accordingly, the copolymer packing density is gradually reduced) and attains an equilibrium value at around 60 min. After the initial sharp increase, a slight reduction in N_agg is observed after 30 min of the reaction. This coincides with the second interval for growth of the micelle cores (Figure 5). During this period, there is a power law relationship between R_mc and DP with an exponent of approximately 1/3. This means that N_agg mainly depends on x_pol but is not sensitive to R_mc during the second period (see eq S30). Thus, the reduction in N_agg should be attributed to relatively fast monomer diffusion into the micelle cores (Figure 3b). This is likely to release a minor fraction of copolymer chains into the continuous phase, which would then undergo self-assembly to form new micelles. As the BzMA monomer is consumed, the volume fraction of PBzMA chains within the micelles increases. The steady growth in N_agg observed after 60 min (Figure 8) occurs when the polymerization is close to completion (Figure 4) and is likely to be related to relaxation via a micelle fusion mechanism (Figure 3a).

Conclusion

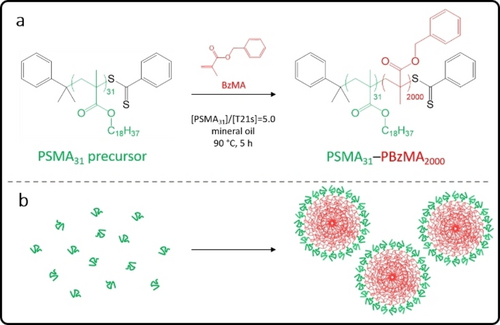

A new structural model has been developed to describe the X-ray scattering during RAFT dispersion polymerization, which is an important example of PISA. More specifically, combining the law of conservation of mass with an appropriate scattering model enables SAXS data acquired during the PISA synthesis of PSMA₃₁–PBzMA₂₀₀₀ spherical nanoparticles in mineral oil at 90 °C to be analyzed in unprecedented detail. Importantly, this new approach enables the instantaneous monomer conversion to be directly determined. Moreover, the evolution in the mean particle radius, R_mc, and the relative volume fractions of both unreacted monomer and solvent within the growing spherical micelle cores can be calculated, which provides a direct measure of the extent of monomer swelling and solvent plasticization of the growing nanoparticles during PISA. When combined with the volume fractions of mineral oil and BzMA monomer within the continuous phase (as calculated from the X-ray scattering length density), these data enable the kinetics of this RAFT dispersion polymerization to be monitored. Furthermore, monomer ingress into (and concomitant solvent depletion from) the micelle cores can be monitored in situ by SAXS. This provides vital information that is simply not accessible using other characterization techniques. For example, the instantaneous rate of BzMA polymerization observed after micellar nucleation is proportional to the local BzMA concentration within the nanoparticle cores.

The synthesis of PSMA₃₁–PBzMA₂₀₀₀ spherical nanoparticles comprises three steps. The initially soluble diblock copolymer chains first form relatively large ill-defined nascent nuclei (step 1). These species are then transformed into a single population of well-defined spherical micelles by either expelling some copolymer chains and/or undergoing fission (step 2). This is followed by micelle growth (step 3). A power law scaling relationship between the mean micelle core radius and the mean PBzMA DP indicates that step 3 can be subdivided into three distinct time intervals. For the first interval, which occurs immediately after micellar nucleation, the solvophobic PBzMA chains remain partially stretched (plasticized) within the micelle cores. During the second interval, the solvent is gradually displaced from the micelle cores by the incoming BzMA monomer. There is a monotonic increase in the local monomer concentration within the micelles up to a volume fraction of 0.43, which corresponds to the maximum rate of polymerization. Moreover, the rate of polymerization and the rate of monomer diffusion from the continuous phase into the growing micelle cores both remain constant, until a slower rate is eventually observed under monomer-starved conditions. The third interval coincides with a reduction in the rate of monomer diffusion into the growing particles as this reagent becomes depleted within the continuous phase. Conversion of monomer into polymer under such monomer-starved conditions necessarily leads to densification and hence a reduction in the rate of growth of the mean particle volume.

In the future, it would be useful to extend this new TR-SAXS approach to monitor the evolution in copolymer morphology from spheres to worms to vesicles by employing a relatively short steric stabilizer block. Given that the strategy for SAXS data analysis developed in this work is based on the general principle of mass balance, it should be also applicable to other heterogeneous formulations involving the spatial segregation of reagents and products.
