Exploiting Coordination Isomerism for Controlled Self-Assembly

The occurrence of geometrical isomerism in coordination complexes, sometimes termed coordination isomerism, has been recognized for more than a century, and it is a commonly observed phenomenon in the photochemistry of square-planar complexes.^{1, 2} In particular, Pt^II compounds have been reported to undergo geometrical isomerization upon UV irradiation, leading to photostationary states whose isomer composition primarily depends on the choice of ligands and solvent.^{2, 3} To date, geometrical isomerization of Pt^II complexes has been exclusively investigated at the molecular level, for instance to obtain otherwise inaccessible coordination compounds,⁴ rotors,⁵ and photoactivated catalysts.⁶

In an attempt to broaden the scope of coordination isomerism, we reasoned that the inherently different geometry of cis and trans Pt^II complexes might be exploited as a new method to control self-assembly processes. Based on the versatility of metal coordination in providing multiple directional interactions, this strategy would complement the existing arsenal of tools in stimuli-responsive materials⁷ and living supramolecular polymerization.⁸

In order to facilitate geometrical isomerism in Pt^II complexes, the use of small and/or conformationally unrestricted coordinating ligands appears to be a prerequisite.^{9, 10} Otherwise, steric repulsion between cis-coordinated ligands, along with the stronger aggregation propensity of the more preorganized trans species, will preferentially stabilize the trans form, which can inhibit isomerization,¹¹ or even induce photodecomposition.¹²

While screening our library of ligands, we noticed that the inclusion of an azobenzene moiety in the molecular design enhances the conformational freedom of the system,^{13, 14} which might allow a good balance between isomerization and aggregation. Additionally, complexation with Pt^II inactivates the azobenzene moiety to light irradiation so it will not influence the coordination isomerism through additional isomerization possibilities.^{15, 16} On this basis, we designed a new Pt^IIL₂Cl₂ complex (C₁), with L being a 4-phenylazopyridyl-based ligand featuring peripheral amide groups and dodecyloxy side chains^{13, 14} (Scheme 1; for synthesis and characterization, see the Supporting Information). This rational choice of ligand, solubilizing groups, and hydrogen-bonding units enables simultaneous control over coordination isomerism and self-assembly for the first time. UV irradiation and appropriate choice of solvent, temperature, and concentration allows fully reversible switching in the aggregate morphology (1D↔2D) and represents an innovative strategy towards stimuli-responsive self-assembled materials.

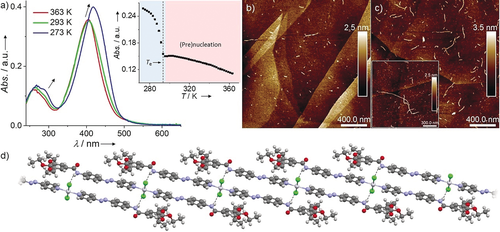

The self-assembly behavior of C₁, synthesized as a pure trans form, was initially probed in methylcyclohexane (MCH) using variable-temperature (VT) UV/Vis studies at 2×10⁻⁵ m. These experiments showed only negligible absorption changes when monomer solutions where cooled from 363 K to 293 K (Figure 1 a). However, further cooling to 273 K causes a marked red shift in the absorption maximum from 406 nm to 418 nm along with an isosbestic point at 401 nm and a concurrent hyperchromism (Figure 1 a). These spectral changes, which are independent of the cooling rate (see Figure 1 a and Figure S6), can be attributed to the aggregation of C₁. Notably, the corresponding plots of absorption versus temperature monitored at different wavelengths show a rather unusual two-step curve (Figure 1 a inset and Figure S7): a smooth regime between 363 K and around 293 K followed by a sharp transition below a critical elongation temperature (T_e≈293 K) that is characteristic of a nucleated supramolecular polymerization (for thermodynamic analysis, see Figure S8 and Table S1). The initial transition, which cannot be fitted to any of the existing thermodynamic models for supramolecular polymerization, suggests a pre-nucleation event involving conformational changes of the azobenzene group(s), such as planarization, at higher temperatures. VT dynamic light scattering (DLS) studies at temperatures above the T_e showed no significant changes in the correlation and size distribution functions (Figure S9), thus validating our hypothesis. Further cooling to 283 K (below the T_e) does initiate the self-assembly of C₁, as evident by the marked increase in the particle size (Figure S9). Atomic force microscopy (AFM) on highly-oriented pyrolytic graphite (HOPG) revealed the absence of assemblies above 293 K (Figure S10). At the T_e, short rods with a uniform height of 2–3 nm and a length of 40–70 nm are observed (Figure 1 b and Figure S11), which further grow longitudinally into fibers with lengths between 60 and 700 nm (average length (l_ave)=261±73 nm) when the temperature is decreased to 273 K (Figure 1 c, and Figures S12, S13). Combined 1D and 2D NMR studies, both in CDCl₃ and MCH-d₁₄ (Figures S14–S17), demonstrate a slipped molecular packing stabilized by aromatic and N−H⋅⋅⋅Cl interactions.^{11b, 13} This proposed arrangement is in agreement with the packing observed in the crystal state for structurally related model compound C₂ with shorter ethoxy chains, which exhibits N−H⋅⋅⋅Cl, C(aromatic)−H⋅⋅⋅Cl and aromatic interactions (Figure 1 d and Figure S18).

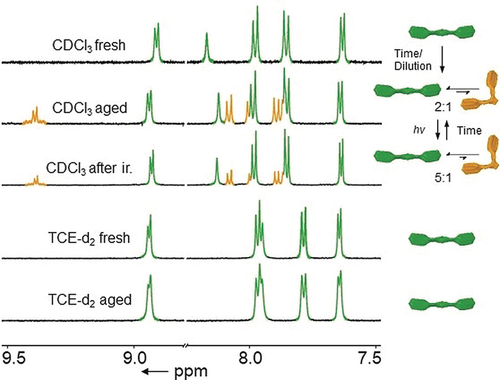

After detailed self-assembly studies of C₁, we confirmed that the azobenzene moieties are indeed inactive under UV irradiation when coordinated to Pt^II (Figure S19–S25).¹⁵ In a recent example, Shionoya and co-workers⁵ elegantly showed that discrete Pt^II-centred azaphosphatriptycene molecular gears efficiently undergo coordination isomerism under irradiation in appropriate solvents. Polar solvents favour efficient trans-to-cis conversion due to preferential stabilization of the dipole moment of the cis form.^{3, 5} On a similar basis, we tested whether coordination isomerism is also possible for our system (C₁). To our satisfaction, a new set of signals corresponding to cis-C₁ are observed over time in the ¹H NMR spectra when solutions of trans-C₁ are kept under ambient conditions in moderately polar solvents such as CDCl₃ and CD₂Cl₂ (Figure 2). A similar trend is observed when a concentrated solution of trans-C₁ in CDCl₃ (20 mm) is diluted to 1 mm (Figure S26). For both time- and concentration-dependent ¹H NMR experiments in CDCl₃, a maximum of 33 % cis-C₁ is obtained at equilibrium. The ratio of cis-C₁ can be further increased to 40 % in more polar solvents such as DMSO using high temperatures (Figure S27). However, the strong hydrophobicity of C₁ due to the presence of long alkyl chains results in rapid precipitation even when using these harsh conditions, which precludes further analysis in polar media. Nevertheless, using the same experimental protocol for less hydrophobic C₂ allowed us to achieve a maximum cis ratio of 73 % (Figure S28). Decreasing the solvent polarity by using CD₂Cl₂ leads to a reduction in the maximum amount of formed cis-C₁ (10 %), whereas no traces of cis-C₁ were observed in nonpolar solvents such as MCH-d₁₄ and TCE-d₂ (c=1×10⁻³ m, Figure 2 and Figures S29, S30). This behavior can be rationalized by comparing the relative stability of both isomers using DFT calculations (Figure S31). Thus, while polar and dilute solutions stabilize cis-C₁, high concentration and solvents of low polarity favor the trans form, a phenomenon that appears to be reinforced by aggregation. Accordingly, we expect that only trans-C₁ has the appropriate geometry to promote aggregation, rendering the distorted cis form as a dormant species. Interestingly, the reverse cis-to-trans isomerization of C₁ can be readily achieved by UV irradiation, irrespective of the solvent polarity (CDCl₃ 33 % to 16 % and DCM-d₂ 10 % to 2 %; Figure 2 and Figure S32). The absence of the free ligand in solution during this transition is indicative of a twisting mechanism as the most probable isomerization pathway.¹⁰ Even though UV irradiation does not fully back-isomerize the system, a complete recovery of trans-C₁ is possible by re-dissolution of the corresponding cis-containing mixtures in a nonpolar solvent (MCH) upon evaporation of the polar solvent (CDCl₃) at high concentration (Figure S33).

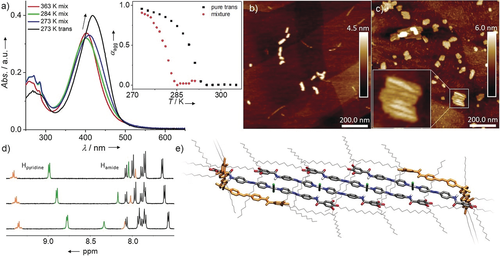

We envisaged that this precise control over the coordination isomerism of C₁ could represent an efficient method to tune supramolecular assembly processes. To this end, a small volume (30 μL) of an equilibrated mixture of trans-C₁ (67 %) and cis-C₁ (33 %) at high concentration (1 mm) in chloroform was rapidly dried using argon flow to avoid back-isomerization. The resulting fine powder was immediately thereafter dissolved in MCH (3 mL) to a final concentration of 1×10⁻⁵ m (100-fold lower than in NMR experiments, in which back isomerization was observed), heated to 363 K and finally subjected to VT UV/Vis experiments. Upon cooling from 363 K to 283 K, small fluctuations in the absorption without a clear trend were observed, which can be attributed to a weak coupling of the π-scaffolds (Figure S34). Further cooling to 273 K leads to a bathochromic shift, which is a distinctive spectral feature of slipped aggregate formation. However, this spectrum differs from the one obtained for pure trans-C₁ (Figure 3 a), thus indicating that a different self-assembly pathway occurs in the mixture of isomers. Analysis of the VT cooling curves reveals a lower T_e for the mixture of cis+trans-C₁ compared to the pure trans-C₁ species (Figure 3 a inset, Figure S36). This delayed aggregation process (>4 h for the mixture versus <10 min for pure trans) is also evident from kinetic UV/Vis studies (Figure S37). VT ¹H NMR also supports the dormant nature of the cis-C₁ isomer, since the critical aggregation concentration of the cis+trans mixture is around 2.5 times higher (c=2.5×10⁻³ m) than that of the pure trans-C₁ in CDCl₃. Notably, all proton signals from trans-C₁ in the mixture followed the same trend as for the compound in isolation (Figure 3 d and Figure S38), thus suggesting a similar molecular packing. In contrast, most signals of the cis-C₁ species in the mixture undergo no broadening and less pronounced shifts upon cooling (Figure 3 d and Figure S38). In particular, the fact that some protons, for example, the amide protons H′_e are slightly deshielded (Figure 3 d, orange signals at ca. 8 ppm) suggests that these groups might add as stoppers to the active ends of the supramolecular fibers. This attenuated growth is further supported by dispersion-corrected PM6 simulations, which reveal a significantly lower stability for a hexamer containing two cis isomers instead of pure trans due to the loss of intermolecular interactions. Further, the simulations reveal that co-assembly with the cis isomer disrupts the alkyl chain shell around the stacked aromatic units of pure trans-C₁ (Figure 3 e and Figures S39–S41). VT DLS experiments in MCH (c=2×10⁻⁴ m) yield considerably smaller particle sizes for the cis+trans mixture compared to the pure trans species under identical conditions (maxima at 170 nm versus 2600 nm; Figure S42). AFM measurements at 2×10⁻⁵ m demonstrate the formation of short rigid rods (Figure 3 c) at the T_e (283 K) with a uniform height of 2 nm and lengths between 30 and 110 nm (l_ave=48.4±11.9 nm), which is in agreement with the results obtained for pure trans-C₁ (Figures S11, S45). Interestingly, instead of a longitudinal growth, further cooling to 273 K causes a transformation of the short rods into 2D lamellae with similar height and length (l_ave=69.5±15.6 nm) but slightly larger widths (between 20 and 60 nm), which is a product of bundling of the rods already observed at higher temperature (Figure 3 d and Figure S44). This behavior can be rationalized by the simulations, since the alkyl chains surrounding the aromatic core of the stacks potentially offer lateral van der Waals binding sites. This effect, together with the restriction in the degrees of freedom of the stacks containing the distorted cis isomer compared to the fibers formed by the pure trans isomer, is expected to facilitate the bundling of the rods.

Ultimately, we validated the reversibility of the system through full recovery of the trans form. To this end, the lamellar aggregates from the cis+trans mixture were heated to the monomer state (363 K) and subsequently irradiated with UV light in order to back-isomerize the cis isomers present (ca. 33 %) to the trans form. Cooling the resultant hot solution led to the same aggregation pathway as the freshly prepared trans-C₁ in MCH (c=2×10⁻⁴ m, Figure S47). This indicates a nearly quantitative recovery of the trans form, as demonstrated by the observation of short fibers by AFM imaging (Figure S48).

In conclusion, we have described a new Pt^II complex (C₁) that undergoes both geometrical isomerism and supramolecular polymerization under controlled experimental conditions. While nonpolar media (MCH) induce the formation of thin 1D fibers of pure trans-C₁, the use of more polar solvents (CHCl₃) to prepare the aggregate solution enables the formation of the distorted cis form and leads to attenuated growth into small 2D lamellae. Current work in our lab aims at optimizing the efficiency of coordination isomerism with the ultimate goal of controlling the size of supramolecular assemblies.
