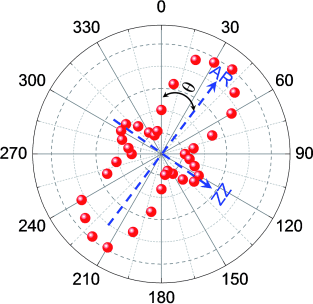

A compass to precisely identify the zigzag and armchair directions of black phosporus (BP) sheets is provided by angle-resolved polarized Raman spectroscopy. The Raman modes of BP show periodic variation (90° or 180°) with the sample rotation angle. Under parallel polarization, the A_g² mode intensity achieves the larger (or smaller) local maximum when the armchair (or zigzag) direction is along the polarization direction of scattered light.

Abstract

An optical anisotropic nature of black phosphorus (BP) is revealed by angle-resolved polarized Raman spectroscopy (ARPRS), and for the first time, an all-optical method was realized to identify the crystal orientation of BP sheets, that is, the zigzag and armchair directions. We found that Raman intensities of A_g¹, B_2g, and A_g² modes of BP not only depend on the polarization angle α, but also relate to the sample rotation angle θ. Furthermore, their intensities reach the local maximum or minimum values when the crystalline orientation is along with the polarization direction of scattered light (e_s). Combining with the angle-resolved conductance, it is confirmed that A_g² mode intensity achieves a relative larger (or smaller) local maximum under parallel polarization configuration when armchair (or zigzag) direction is parallel to e_s. Therefore, ARPRS can be used as a rapid, precise, and nondestructive method to identify the crystalline orientation of BP layers.
