Selective Nitrate Binding in Competitive Hydrogen Bonding Solvents: Do Anion–π Interactions Facilitate Nitrate Selectivity?†
Michelle M. Watt
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)
Search for more papers by this authorDr. Lev N. Zakharov
CAMCOR—Center for Advanced Materials Characterization in Oregon, University of Oregon, Eugene, OR 97403-1443 (USA)
Search for more papers by this authorCorresponding Author
Prof. Michael M. Haley
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)Search for more papers by this authorCorresponding Author
Prof. Darren W. Johnson
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)Search for more papers by this authorMichelle M. Watt
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)
Search for more papers by this authorDr. Lev N. Zakharov
CAMCOR—Center for Advanced Materials Characterization in Oregon, University of Oregon, Eugene, OR 97403-1443 (USA)
Search for more papers by this authorCorresponding Author
Prof. Michael M. Haley
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)Search for more papers by this authorCorresponding Author
Prof. Darren W. Johnson
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)
Department of Chemistry and Biochemistry & Materials Science Institute, University of Oregon, Eugene, OR 97403-1253 (USA)Search for more papers by this authorThis work was supported by NIH grant R01-GM087398, which also funded early stage intellectual property that was licensed by SupraSensor Technologies, a company co-founded by the principal investigators. We also thank the National Science Foundation for support in the form of an instrumentation grant (CHE-0923589) and a GK12 fellowship to M.M.W. (DGE-0742540). The authors acknowledge the Biomolecular Mass Spectrometry Core of the Environmental Health Sciences Core Center at Oregon State University (NIH P30ES000210). We thank Timothy E. Robitshek for assistance in the synthesis of compound 2.
Graphical Abstract

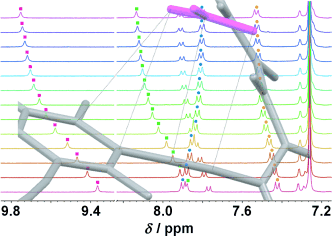

New tripodal urea receptors demonstrate preferential binding of anions over competitive hydrogen bonding solvents. 1H NMR titrations in 10 % [D6]DMSO/CDCl3 show a higher affinity for nitrate over the halides for the fluorinated receptor, which is lost when the fluorine atoms are absent. An anion–π interaction between the nitrate and the π-system of the ethynyl-substituted arene is proposed as the source of this selectivity.
