Homochiral Crystallization of Metal–Organic Silver Frameworks: Asymmetric [3+2] Cycloaddition of an Azomethine Ylide†
Xu Jing,
Dr. Cheng He,
Dapeng Dong,
Linlin Yang,
Prof. Chunying Duan,
Xu Jing
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorDr. Cheng He
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorDapeng Dong
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorLinlin Yang
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorCorresponding Author
Prof. Chunying Duan
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)Search for more papers by this authorXu Jing,
Dr. Cheng He,
Dapeng Dong,
Linlin Yang,
Prof. Chunying Duan,
Xu Jing
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorDr. Cheng He
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorDapeng Dong
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorLinlin Yang
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
Search for more papers by this authorCorresponding Author
Prof. Chunying Duan
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)
State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, 116023 (P.R. China)Search for more papers by this author†
We gratefully acknowledge financial support from the NSFC (21171029 and 21025102).
Graphical Abstract

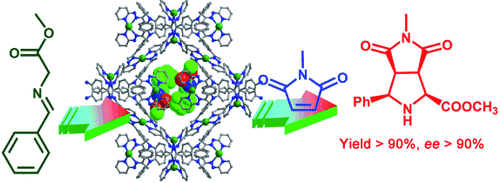

Enantiomeric silver-based MOFs were obtained through a homochiral crystallization of cinchonine and cinchonidine enantiomers as chiral adducts with silver. These MOFs exhibited excellent catalytic activity for asymmetric [3+2] cycloaddition (see scheme), giving products with high enantioselectivity.
