Azoporphyrin: The Porphyrin Analogue of Azobenzene†
Louisa J. Esdaile
School of Physical and Chemical Sciences, Queensland University of Technology, G.P.O. Box 2434, Brisbane 4001, Australia, Fax: (+61) 7-3138-1804
Search for more papers by this authorPaul Jensen Dr.
Crystal Structure Analysis Facility, School of Chemistry, University of Sydney, N.S.W. 2006, Australia
Search for more papers by this authorJohn C. McMurtrie Dr.
School of Physical and Chemical Sciences, Queensland University of Technology, G.P.O. Box 2434, Brisbane 4001, Australia, Fax: (+61) 7-3138-1804
Search for more papers by this authorDennis P. Arnold Dr.
School of Physical and Chemical Sciences, Queensland University of Technology, G.P.O. Box 2434, Brisbane 4001, Australia, Fax: (+61) 7-3138-1804
Search for more papers by this authorLouisa J. Esdaile
School of Physical and Chemical Sciences, Queensland University of Technology, G.P.O. Box 2434, Brisbane 4001, Australia, Fax: (+61) 7-3138-1804
Search for more papers by this authorPaul Jensen Dr.
Crystal Structure Analysis Facility, School of Chemistry, University of Sydney, N.S.W. 2006, Australia
Search for more papers by this authorJohn C. McMurtrie Dr.
School of Physical and Chemical Sciences, Queensland University of Technology, G.P.O. Box 2434, Brisbane 4001, Australia, Fax: (+61) 7-3138-1804
Search for more papers by this authorDennis P. Arnold Dr.
School of Physical and Chemical Sciences, Queensland University of Technology, G.P.O. Box 2434, Brisbane 4001, Australia, Fax: (+61) 7-3138-1804
Search for more papers by this authorWe thank the Australian Research Council for Discovery Grant DP0663774, and the Faculty of Science, Queensland University of Technology for a Postgraduate Scholarship for L.J.E.
Graphical Abstract

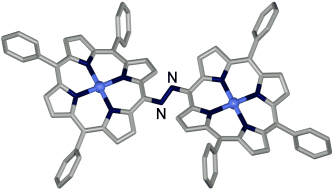

Excellent conjugation: The novel azoporphyrins (1,2-bis(porphyrinyl)diazenes) have been prepared by using copper-catalyzed coupling of primary amines. The structure of the azo(triphenylporphyrin) was determined by X-ray crystallography (see picture). The azo linker provides an excellent conjugating pathway for expansion of porphyrin π conjugation.
