Introduction

Compared to other technologies, membrane-based separations possess several advantages, which include high efficiency, simple process/equipment, and low energy consumption.¹ It is a promising technology for CO₂ separation in natural gas and syngas purification and flue gas recycling. Polymers of intrinsic microporosity (PIMs) are a subclass of microporous polymers with a rigid, contorted backbone structure, providing high free volume. Compared to rubbery or inorganic membranes as well as other conventional glassy polymers (such as polyamides), PIM membranes show much higher intrinsic permeability for gases, e.g. ≈3,000 barrer for CO₂.² However, superglassy PIMs tend to densify over time due to the relaxation of the nonequilibrium polymer chains toward the equilibrium state, that is, physical aging. This leads to a decrease in permeability and hinders practical applications. Additionally, the selectivity of such membranes is relatively low due to the broad distribution of cavity sizes in PIMs.

Thin film composite membranes (TFCs) have an active layer thickness of <5 μm and thus tens to hundreds of times higher permeance than that of free-standing membranes. Also, TFCs can be processed easily with good durability, being promising for practical adoptions. However, compared to thick self-standing ones, TFCs of the most widely used PIM, PIM-1, suffer from more rapid aging (40–90 % loss in CO₂ permeability in just a week) due to the fast rearrangement of polymer chains within the thin active layer.³ Although the free volume of the aged PIM-1 TFCs could be restored to a certain extent (e.g. by the exposure of the aged membranes to methanol vapor),⁴ intrinsic anti-aging properties are still desired.

To reduce the aging issue, the rearrangement of the polymer chains should be constrained within the chain network of the PIM-1 membranes. Many strategies were developed, including modification of the intrinsic topology of PIM-1^{3, 5} and preparation of PIM-1 thin film nanocomposite membranes (TFN) with porous and non-porous fillers. PIM-1 structural modifications can help to reduce aging, but it is challenging to maintain separation performance at the same time.^{3, 5} In addition, the modification may affect the membrane-forming properties, increasing the brittleness of the resulting films and decreasing the reproducibility of membrane fabrication.⁶ Regarding the second strategy, fillers that have high sieving effects and/or CO₂ philicity can improve the selectivity of PIM membranes as well. Yet, it is worth noting that common porous fillers, such as hypercrosslinked polystyrene (HCP)⁷ and silica nanosheets (SN)⁸ do not show good interaction with the polymer, and thus are not very effective in impeding aging. In addition, the inclusion of fillers that have low compatibility with the polymer is prone to introducing interfacial defects, which decrease the selectivity of membranes, especially for thin membranes. It has been reported that functionalized fillers, such as sulfonated (S−)SN,⁸ carbonized (C−)HCP,⁷ functionalized metal–organic frameworks (MOFs, such as UiO-66−NH₂),⁹ and porous aromatic framework (PAF),¹⁰ can interact with the PIM-1 chains to reduce chain relaxation, and thus aging.^{7, 8} In particular, PAF allows partial intrusion of polymer segments into its pores and effectively inhibits the aging in thick film PIM-1 membranes (thickness >100 μm),¹⁰ but poorly performed in TFCs for preventing the aging.¹¹ It is worth noting that the chain-filler interaction only takes place on the outer surface of the fillers, and hence, for common fillers of >50 nm in size, the effective surface area is limited, making them not very ideal for reducing aging.

Here, nanosized UiO-66−NH₂/carboxylated PIM-1 (cPIM-1) was synthesised and used as a composite filler in PIM-1-based TFNs, forming a stable three-dimensional (3D) network in the membrane. The network intertwines and entangles with the PIM-1 chains, hindering chain relaxation and preventing TFN aging effectively. UiO-66−NH₂ was selected as the candidate for preparing the composite filler due to the predefined pore size, good stability, and high CO₂ selectivity,⁹ as well as its capability to bond with cPIM-1. The UiO-66−NH₂ was nanosized to ≈10 nm by regulating the nucleation kinetics using carbon quantum dots (CQD) during the synthesis. The nanosized UiO-66−NH₂ particles have several times more surface functional groups (−NH₂) to bond to cPIM-1 chains (−COOH) via hydrogen bonding than conventional large particles (≈100 nm), enabling enhanced interactions with cPIM-1. The free carboxyl groups on the cPIM-1 (those that are not bonded to the amine group of the MOF) can also undergo dipole-dipole attraction to each other, leading to a stable 3D network. As a result, the novel PIM-1 TFNs show minimal aging in CO₂ separation (i.e. ≈6 % loss in CO₂ permeability over 63 days). In addition, the improved interfacial compatibility between the network and polymer chains minimised the structural defects, which enhanced its ideal selectivity to 37.2 and 23.8, respectively, for CO₂/N₂ and CO₂/CH₄ systems.

Results and Discussion

We began by nanosizing the UiO-66−NH₂ MOF. Based on LaMer's model, crystallisation includes nucleation and crystal growth. The primary nucleation starts when the supersaturation degree surpasses the critical supersaturation degree for nucleation (S_n), then consumes metal ions and ligands, and finishes when the supersaturation degree decreases to S_n (Figure 1A).¹² Increasing the supersaturation degree can boost nucleation and increase the number of nuclei, thus decreasing the size of the resulting MOF particles. As shown in Figure 1B–C, adding deionised (DI) water into the N,N-dimethylformamide (DMF) mother solution was able to decrease the size of UiO-66−NH₂ from ≈100 nm to ≈40 nm (denoted as L−UiO-66−NH₂ and S−UiO-66−NH₂, respectively), as it led to a higher supersaturation degree by reducing the association effects between the 2-aminoterephthalic acid (NH₂-BDC) molecules and accelerating their deprotonation rate.^{9b, 13} However, the primary nucleation makes the system heterogeneous, leading to secondary nucleation in the presence of parent crystals due to the low energy barrier of heterogeneous nucleation, which results in polydispersed crystals (Figure 1C).

Our approach is to seed the supersaturated solution using ultrasmall heterogeneous nucleation sites (i.e. CQDs) to encourage heterogeneous nucleation instead of primary nucleation. The introduction of sufficient nucleation sites can reduce the supersaturation degree rapidly below S_n, thus preventing secondary nucleation (Figure 1D). The CQDs (with average diameters of ≈2.7 nm, Figure S1A–B) possess surface carboxyl and hydroxyl groups (Figure S1C–D), which are able to bond Zr and NH₂-BDC via chelation and hydrogen bonding, respectively, thus making CQDs favourable candidates as the heterogeneous sites for promoting nucleation.¹⁴ Facilitated by the CQDs (as the nucleation sites), monodispersed and ultrasmall UiO-66−NH₂ crystals (denoted as C−UiO-66−NH₂) were prepared (Figure 1E and Figure S2). Especially, the ≈10 nm size of C−UiO-66−NH₂ is the lowest recorded in the literature for the UiO-66 MOF.⁹ The strategy is generic, which was also used for the synthesis of the nanosized UiO-66 (i.e. C−UiO-66) with similar diameters of ≈10 nm (Figure 1F). Thanks to the ultrasmall particle size of CQDs, they do not interfere with crystallisation, and relevant properties of C−UiO-66−NH₂ and C−UiO-66 are consistent with those of other MOFs prepared in this work (Figure S3 and S4).

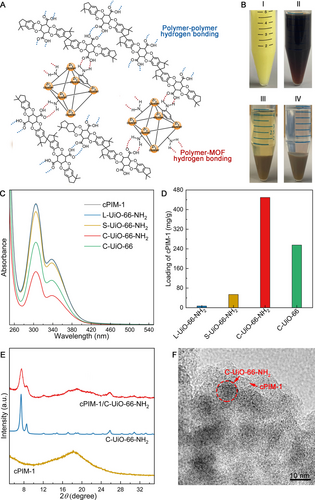

One of the key benefits of nanosizing C−UiO-66−NH₂ is the increased outer surface area (based on the weight fraction), allowing greater exposure of the surface −NH₂ groups for functionalization. Here, the UiO-66 MOFs under investigation were functionalized by cPIM-1 (Figure S5 and S6 and Table S1)¹⁵ by simply mixing the dispersed C−UiO-66−NH₂ with cPIM-1 in tetrahydrofuran (THF). The −COOH groups of cPIM-1 can bind to the surface −NH₂ groups of C−UiO-66−NH₂ via hydrogen bonding (red dotted lines as illustrated in Figure 2A) between the two. Importantly, the remaining −COOH groups of cPIM-1 can bond with each other via hydrogen bonding (blue dotted lines as illustrated in Figure 2A) to construct a stable cPIM-1/C−UiO-66−NH₂ network (Figure 2A), and such a composite with the network structure might be able to intertwine with the PIM-1 chain, being beneficial to retard chain relaxation, and hence membrane aging.

The integration of UiO-66−NH₂ and cPIM-1 was visualized as shown in Figure 2B. The colour of the pristine C−UiO-66−NH₂ (in THF) and the cPIM-1 (in THF) was pale yellow (I) and brown (II), respectively. After mixing and centrifugation, the precipitate i.e. the resulting cPIM-1/C−UiO-66−NH₂ composite (III) showed a lighter brown colour, which remained unaltered after THF washing and centrifugation (IV). This and the clear supernatant in (IV) suggest a stabilized microscopic structure through hydrogen bonding (between −NH₂ and −COOH). To estimate the cPIM-1 loading on the MOFs, supernatants from different mixture systems were analysed by ultraviolet-visible (UV/Vis) spectroscopy (to determine the unused cPIM-1 contained in them), as described in the supplementary material. The cPIM-1 (solubilized in THF) shows the characteristic absorbance band at 305 nm, and the band intensity of the supernatant decreased to different extents, as shown in Figure 2C, suggesting different loadings of cPIM-1 for the different UiO-66 MOFs. In detail, the intensity of the band ascribed to cPIM-1 in the supernatant of the C−UiO-66−NH₂ sample mixture was the lowest, corresponding to the highest loading of cPIM-1 on the composite (i.e. 449.4 mg/g). Conversely, the cPIM-1 loading on S−UiO-66−NH₂ and on L−UiO-66−NH₂ was estimated as 53.8 mg/g and 6.9 mg/g, respectively (Figure 2D). The results indicate that the ultrasmall particle sizes of C−UiO-66−NH₂ render up to two orders of magnitude more surface functional groups available for the electrostatic interaction with cPIM-1 than the larger UiO-66−NH₂. Interestingly, although C−UiO-66 has comparable particle size to C−UiO-66−NH₂, its cPIM-1 loading (via physical adsorption) was almost half (i.e. 255.5 mg/g); likewise, the loading of PIM-1 on C−UiO-66−NH₂ was 243.0 mg/g (Figure S7), suggesting hydrogen bonding capabilities provided by the amine groups are important for the bonding between the cPIM-1 and C−UiO-66−NH₂. Figure 2E presents the X-ray diffraction (XRD) patterns of cPIM-1, C−UiO-66−NH₂, and cPIM-1/C−UiO-66−NH₂, showing the composite material (red line) with the characteristic diffraction peaks of both, the crystalline MOF phase (2θ=7.4°) and the amorphous hump of cPIM-1 (2θ=18.2°).

Figure 2F shows the transmission electron microscope (TEM) image of cPIM-1/C−UiO-66−NH₂ (cPIM-1 loading at ≈449.4 mg/g), in which the nanosized C−UiO-66−NH₂ particles are found to be embedded in the cPIM-1. The soft and non-defective outer layer around the MOF particles attributed to hydrogen bonding is likely to avoid particle aggregation and defects in the membranes. In addition, available −COOH groups on cPIM-1 chains that have not bonded to amine groups of the MOFs can form hydrogen bonding between them, leading to a chain network. Such a unique structure of the cPIM-1/C−UiO-66−NH₂ composite filler, when dispersed into PIM-1 thin films, could prevent the aging issue and improve gas separation. In particular, the network structure could intertwine and entangle with PIM-1 chains to hinder chain relaxation, and the structural similarity between PIM-1 and cPIM-1 could avoid the formation of interfacial defects between the filler and polymer chains, which is crucial to obtain good selectivity properties.

The PIM-1 TFNs were prepared using the composite filler with the loading at 5–10 wt. % (Figure S8).

The pristine PIM-1 TFC and PIM-1 TFNs with fillers have comparable active layer thickness of ≈2 μm (Figure S9). Exemplified by the PIM-1 TFN with 7.5 wt. % cPIM-1/C−UiO-66−NH₂ loading, the cross-sectional scanning electron microscopy (SEM) micrograph (Figure 3A) shows a thickness of 2.12±0.02 μm). Based on the high-angle annular dark-field scanning transmission electron microscopy image (HADDF-STEM) of the membrane cross-section (Figure 3B1), the fillers in the PIM-1 matrix showed network structures. Energy dispersive X-ray spectroscopy (EDS) mapping of Zr confirms the location of the network fillers and suggests an even distribution of the C−UiO-66−NH₂ in the network fillers (Figure 3B2). For the PIM-1 TFN with 7.5 wt. % of cPIM-1/C−UiO-66−NH₂, the percentage area covered by the network fillers is approximately 70 %. This high coverage potentially ensured effective confinement of the PIM-1 chains in the polymer matrix and prevented membrane aging. Besides, the even distribution of the network filler throughout the intramembrane space was also proved by the even distribution of Zr in EDS mapping of the membrane surface (Figure 3C–D).

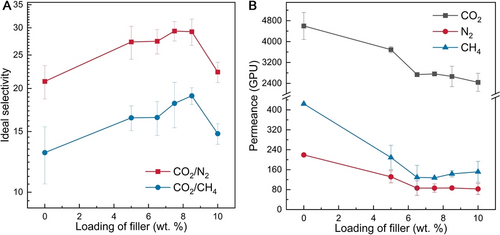

The PIM-1 TFNs were assessed by single gas permeation using CO₂, N₂, and CH₄ and ideal selectivity values were estimated. Figure 4A shows that the ideal CO₂/N₂ and CO₂/CH₄ selectivity increases up to maximum values of ≈29 and ≈19 for CO₂/N₂ and CO₂/CH₄, respectively, for filler loadings in the range 7.5–8.5 wt. %. These are 40 % and 46 % higher than those of the pristine PIM-1 TFCs (≈21 for CO₂/N₂ and ≈13 for CO₂/CH₄). The initial enhancement in the selectivity could be attributed to (i) selective separation via C−UiO-66−NH₂¹⁵ and (ii) suppressed interfacial defects (between the PIM-1 phase and the composite filler phase).⁷ Excessive loading of the composite filler (beyond 8.5 wt. %) may lead to ineffective attachment of the PIM-1 polymer chains to the cPIM-1-MOF 3D structure, producing larger regions of unaltered PIM-1 which jeopardise the selectivity. The PIM-1 TFNs have good reproducibility, proved by the relatively low error bars in the selectivity and the permeance (Figure 4).

It is worth noting that filler inclusion in the PIM-1 TFNs compromised the gas permeance of the resulting TFNs (Figure 4B), possibly due to polymer rigidification arising from the interaction between the filler and the polymer,¹⁶ and the intrinsic lower permeability of the filler as compared to PIM-1. For example, the CO₂ permeance of PIM-1 TFN with 7.5 wt. % cPIM-1/C−UiO-66−NH₂ was 2763 GPU, which is much lower than that of the pristine PIM-1 thin film membranes (4599 GPU). Therefore, considering the trade-off between membrane permeability and selectivity, the PIM-1 TFNs with 7.5–8.5 wt. % cPIM-1/C−UiO-66−NH₂ exhibited the best overall performance among the membranes investigated here, as well as the state-of-the-art (Figure S10). Also, the best TFN in this work demonstrated better performance in a binary CO₂/N₂ separation system than the pristine PIM-1 TFC (i.e. the initial membrane selectivity: 13.3 for the PIM-1 TFC vs. 20.5 for the PIM-1 TFN with 8.5 wt. % cPIM-1/C−UiO-66−NH₂, Table S2).

In addition to the improved selectivity, the inclusion of the cPIM-1/C−UiO-66−NH₂ composite filler in the PIM-1 TFN significantly reduced the physical aging. Figure 5A shows the comparison of the normalised CO₂ permeance of the TFNs with different filler loadings on Day 7 and 28, and for the best performing ones also on Day 63 (using all Day 1 CO₂ permeance as the reference value for the calculations), the absolute permeance and selectivity data are presented in Table S3. The pristine PIM-1 TFC showed the lowest normalised CO₂ permeance (0.29), thus the most significant aging, viz. ≈71 % loss in CO₂ permeance after 28 days. Again, the PIM-1 TFN with 7.5–8.5 wt. % loading of cPIM-1/C−UiO-66−NH₂ showed the comparatively best anti-aging performance, i.e. for that with 8.5 wt. % filler, the CO₂ permeance only decreased by approximately 4 % and 6 % after 28 and 63 days, respectively.

The improved membrane performance of the developed TFNs could be attributed to the 3D network formed by the cPIM-1/C−UiO-66−NH₂ composite filler, which runs throughout the entire PIM-1 matrix (as illustrated by Figure 5B). The 3D network could interlace and intertwine with the PIM-1 matrix, thus providing a much stronger restriction to the rearrangement of the PIM-1 chains compared to other fillers. One key to the network is the intermolecular hydrogen bonding between respective −COOH groups on cPIM-1 and −NH₂ groups on the C−UiO-66−NH₂. To test the hypothesis above, we prepared relevant control TFNs with the composite filler of cPIM-1/C−UiO-66 (without −NH₂ group) and C−UiO-66−NH₂ (without introducing cPIM-1 and thus no −COOH groups). As shown in Figure 5C (with similar filler loading amounts of ≈8.5 wt. %), the normalised CO₂ permeance of cPIM-1/C−UiO-66 TFN (without the −NH₂ group) after 7 and 28 days was 0.63 and 0.47, respectively. The fast aging could be attributed to the loose and unstable network of the filler, since the loading of cPIM-1 on C−UiO-66 is low (Figure 2C–D), and the interaction between them could be weak. Likewise, without introducing the −COOH group, the network formation could be hindered, and the normalised CO₂ permeance for C−UiO-66−NH₂ TFN (without the −COOH group) after 7 and 28 days was 0.72 and 0.52, respectively (Figure 5C).

Another key to the network is the hydrogen bonding between the −COOH groups on the cPIM-1/C−UiO-66−NH₂ composites, and thus, substantial cPIM-1 loading in filler is necessary. To validate the hypothesis above, control TFNs were prepared with the composite filler of cPIM-1/L−UiO-66−NH₂ and cPIM-1/S−UiO-66−NH₂ (with low cPIM-1 loading in the filler of 6.9 and 53.5 mg/g, respectively) for comparison. Both the L−UiO-66−NH₂ and S−UiO-66−NH₂ TFNs show fast aging (with the normalised CO₂ permeance of 0.33 and 0.39, respectively, after 28 days, Figure 5C). Membranes from the four control experiments showed a significant decrease in CO₂ permeance over time, proving the critical role played by the hydrogen bonding and the resulting 3D network for preventing aging.

By comparing with the state-of-the-art (Table S4), the PIM-1 TFN with the cPIM-1/C−UiO-66−NH₂ composite filler shows one of the lowest decreases in CO₂ permeance over time (6 % in 63 days). In detail, after 63 days of aging, the PIM-1 TFN (with 8.5 wt. % composite filler) maintained a CO₂ permeance of 2504 GPU and showed an ideal CO₂/N₂ and CO₂/CH₄ selectivity of 37.2 and 23.8, respectively, which is also among the best performances after aging in comparison with the published data (Figure 5D and Figure S11).

Previously, Yu et al.⁶ developed branched cPIM-1 TFCs with higher CO₂ permeance at ≈3200 GPU and higher ideal CO₂/N₂ selectivity at 50–90 (Figure 5D). However, in a real CO₂/N₂ binary system, the CO₂ permeance of branched cPIM-1 TFC was low (at 700–1000 GPU) with poor selectivity of 13–19, which was lower than the non-carboxylated branched PIM-1 counterpart (CO₂/N₂=16–19).¹⁷ Comparatively, using the linear PIM-1, the PIM-1 TFNs developed in our work containing 7.5–8.5 wt. % C−UiO-66−NH₂/cPIM-1 showed the higher CO₂ permeance (≈1700 GPU) and CO₂/N₂ selectivity (≈21) for the real CO₂/N₂ binary system after aging (Table S2), representing the best reported performance in the literature. The 30–40 % reduction in CO₂ permeance and ≈30 % in selectivity compared to the ideal results may be due to CO₂-induced plasticization and the competition for sorption sites between CO₂ and N_2.¹⁸

Importantly, the CO₂ permeability and CO₂/N₂ selectivity of the 7-day aged optimised PIM-1 TFN were ≈65 % and ≈50 % higher than that of the aged PIM-1 TFC, respectively (Figure 5E), demonstrating the significant role of the novel cPIM-1/C−UiO-66−NH₂ composite filler in retarding aging.

Conclusion

In this study, UiO-66−NH₂ was successfully nanosized to ≈10 nm for the first time by regulating the nucleation kinetics using CQD. In detail, the CQD provided sufficient heterogeneous nucleation sites before primary nucleation occurred, thus increasing the number of nuclei, rapidly decreasing the supersaturation degree of reactants, and avoiding secondary nucleation. The nanosized UiO-66−NH₂ particles exposed more surface −NH₂ groups to bond −COOH groups of cPIM-1 by hydrogen bonding. This allowed the formation of a stable 3D network which was used as filler for the preparation of thin films of PIM-1.

In the thin layer of the developed PIM-1 TFN (≈2 μm thick), the 3D network intertwined with PIM-1 chains across the whole membrane network, preventing chain relaxation significantly and thus physical aging. For CO₂ separation from single gas measurements, there was only ≈6 % loss in permeability over 63 days.

Additionally, the interfacial defects were diminished due to the hydrogen bonding between nanosized UiO-66−NH₂ and cPIM-1 and the tight entanglement between the cPIM-1 and PIM-1. The novel TFN also showed improved selectivity to CO₂ separation from the model CO₂/N₂ and CO₂/CH₄ binary systems with ideal selectivities of 37.2 and 23.8, respectively. This was due to the sieving effect of the nanosized UiO-66-NH₂.

This work provides a generic solution to address the physical aging of PIM-1 membranes, which is one of the major issues preventing their use in industrial applications. In addition, due to the wide range of hydrogen bonds and the diversity of MOFs, the 3D network can be synthesised in diverse ways and has great potential to be applied in various glassy polymers to prevent aging and improve the target selectivity.

Conflict of interest

The authors declare no conflict of interest.
