Organic π-conjugated semiconductors (OCSs) with tunable energy levels, excellent chemical stability and broad absorption, have triggered a huge interest in photocatalysis.¹ Substantial efforts such as molecule design, structure regulation and side-chain engineering have recently been invested to improve the photocatalytic performance of OCSs by fine-tuning optical property, band energy levels and conductivity.² Because of the insolubility in aqueous solution and intermolecular non-covalent interactions (such as electrostatic, hydrophobic, and π-π stacking), OCSs usually exhibit distinct aggregation characteristics in aqueous photocatalytic solution, i.e., self-assemble to form nano- or micro- agglomerates.³ Therefore, the entire photocatalytic process including generation, separation and migration of photogenerated carriers, takes place in aggregates instead of individual organic molecules. On one hand, the size of aggregates, which determines both the number of surface-active sites in term of specific surface area and the transportation distance of electrons to the surface, has a remarkable influence on the photocatalytic performance.⁴ On the other hand, the crystallinity of the aggregates critically affects the intrinsic charge separation and transport. A higher crystallinity with fewer recombination centers facilitates more photogenerated charge carrier to diffuse from the bulk to surface for redox reactions. Therefore, judiciously engineering the intramolecular packing to regulate the size and crystallinity of aggregates is essential to achieve efficient photocatalytic performance for OSCs.

Side-chain engineering is an effective strategy to fine-tune the intramolecular packing and crystallinity by alteration of chain length, branching position and size of the branched alkyl chains.^{5, 6, 7} In this work, methyl groups (−CH₃), as the smallest alkyl substitution unit, with minimal competition for space-filling, were selected as side chain groups, which can effectively avoid side chain entanglement caused by long side chain, thus reducing the interference of other factors. Thiophene-based conjugated trimers with donor-acceptor-donor (D−A−D) molecule structure were prepared as an OCS model because the strong intermolecular interactions generated by the D−A moiety favor the self-organization of trimers into ordered structures and close packing with increasing π-π orbital overlap.⁸ The relationships of aggregation-property-activity was systematically studied by introducing -CH₃ side chain on different positions of TBT. 4,7-bis(3-methylthiophen-2-yl)benzo[c][1,2,5]thiadiazole (TBT-3) which possessed larger steric hindrance than TBT, 4,7-bis(4-methylthiophen-2-yl)benzo[c][1,2,5]thiadiazole (TBT-4) and 4,7-bis(5-methylthiophen-2-yl)benzo[c][1,2,5]thiadiazole (TBT-5) showed the smallest size and the best crystallinity. The smaller aggregates and favorable crystalline properties contributed to the solid long-range order and charge carrier transport of TBT-3, leading to a superior photocatalytic activity for hydrogen production. DFT calculations demonstrated that TBT-3 maintained weak aggregation ability, which enabled the reaction on a larger surface area; TBT-3 also exhibited reactive molecular orbitals, making it favorable for hydrogen evolution. The deep understanding of the relationship between the aggregation and photocatalytic activity - provides important insight in design of OCSs for efficient photocatalytic fuel production.

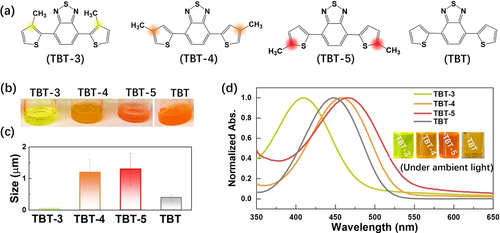

The D−A−D conjugated trimers (TBT) were synthesized by Pd -catalyzed Suzuki–Miyaura cross-coupling and Stille cross-coupling reactions (Figure 1a and Schemes S1–S4), in which thiophene (T) and benzothiadiazole (B) served as electron donor and acceptor, respectively. (Figure S1). The chemical structures of these purified trimers were confirmed by ¹H NMR, ¹³C NMR, mass spectrometry, elemental analysis and single crystal X-ray diffraction (Figure S2–S10, Table S1). All the prepared trimers were fully soluble in common organic solvents such as dichloromethane, tetrahydrofuran (THF), acetone, dimethyl sulfoxide (DMSO) and ethanol, but insoluble in water, which thus resulted in the formation of aggregates in aqueous photocatalytic system (H₂O/TEOA=9: 1, v/v). Obviously, TBT-3 presented the best dispersion compared with TBT-4, TBT-5 and TBT (Figure 1b). The aggregates size of the trimers in H₂O/TEOA solution was further measured by dynamic light scattering (DLS). Compared to TBT (≈400 nm), TBT-4 (≈1.2 μm) and TBT-5 (≈1.3 μm), TBT-3 exhibited the smallest aggregates size with the average dimeter of ≈50 nm (Figure 1c and Figure S11). The similar surface tension for all the samples suggested that the aggregates size was not dominated by the surface tension (Figure S12). Compared to TBT, a blue shift of absorption and emission wavelengths was observed for TBT-3 while a red shift was obtained for TBT-4 and TBT-5 (Figure 1d and Figure S13), consistent with the simulated results (Figure S14). The different absorption shifts of these trimers indicated that the position of the side chains affect the photophysical properties.^{5a, 9}

Transmission electron microscopy (TEM) was used to characterize the morphology of the prepared TBT-based trimers. All of these trimers exhibited rod-like structures (Figure 2a–i and Figure S15–16). The EDS (Energy Dispersive Spectroscopy) diagram showed that the trimers only contained S and C elements without additional Pd. The absence of Pd signal in inductively coupled plasma-mass spectrometry (ICP-MS) and X-ray photoelectron spectroscopy (XPS) further confirmed the extremely low amount residual Pd in the samples (Figure S17, Table S2). Raman spectra was used to characterize the chemical structure of the prepared trimers. The strong peaks around 1377 cm⁻¹ and 1419 cm⁻¹ correspond to the C−C and C=C stretches, respectively, on the bridging thiophene units. The peaks in the range 1324–1360 cm⁻¹ and the peak at 1538 cm⁻¹ correspond to the C−C bands and ring stretch in B unit, respectively.¹⁰ Furthermore, the increased steric hindrance caused by the side chain led to some peaks splitting into two components. Similar phenomenon also occurred in previous research in regio-random P3HT.^10a Differential scanning calorimetry (DSC), X-ray powder diffraction (XRD), and thermogravimetric analysis (TGA) revealed that all the trimers possessed good crystallinity and thermal stability (Figure 2n, Figure S18–19). The diffuse rings in two-dimensional (2D) scattering pattern maps indicated that the crystals were randomly oriented (Figure 2o) and all the trimers were 2D hexagonal structures based on the peak position of (100) Bragg reflection (Figure S20). Unlike TBT-3, a wide peak appeared in the pattern of TBT, TBT-4 and TBT-5, which suggested the presence of an amorphous phase in TBT, TBT-4 and TBT-5 (Figure 2p). The crystalline fraction for TBT-3 was further determined to be 88.1 %, which was much higher than that of TBT (65.1 %), TBT-4 (74.6 %) and TBT-5 (70.0 %) (Figure S21). Evidently, TBT-3 displayed the best crystallinity compared with TBT-4, TBT-5 and TBT, possibly due to the enhanced steric hinderance which prevent the tight packing of molecules and increase the intermolecular spacing, leading to an improved crystallinity.¹¹ Therefore, the introduction of methyl side-chains at the 3-position of TBT improved the crystalline properties, which contributed to solid long-range order and charge carriers’ transport in photocatalysis.^{8a, 12}

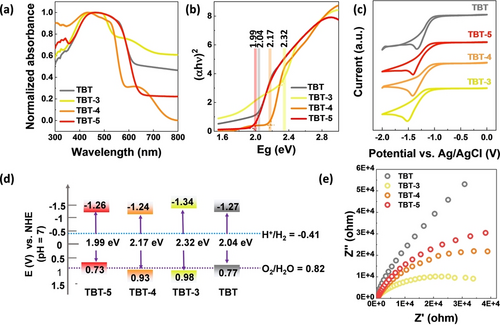

The optical absorption properties of the solid trimers were investigated by UV/Vis diffuse reflectance spectroscopy (DRS) and simulated DFT calculations. The results showed that all the trimers exhibit broad light absorption (Figure 3a and Figure S22). Notably, different stacking modes in the solid state contribute differently to the absorption properties.^{3, 13} TBT-5 and TBT show red-shifted absorption compared to that of TBT-3 and TBT-4, which may be ascribed to more planar backbone of TBT and TBT-5.¹⁴ The optical band gaps (E_g) of the trimers were calculated and found to be 2.32 eV (TBT-3), 2.17 eV (TBT-4), 2.04 eV (TBT) and 1.99 eV (TBT-5) from the Tauc plots (Figure 3b). The HOMO (highest occupied molecular orbital) and LUMO (lowest unoccupied molecular orbital) energy levels of trimers were determined by electrochemical cyclic voltammetry (Figure 3c–d and Figure S23). The HOMO/LUMO energy levels of TBT, TBT-3, TBT-4 and TBT-5 were calculated to be 0.77/−1.27 eV, 0.98/−1.34 eV, 0.93/−1.24 eV and 0.73/−1.26 eV, respectively, according to the equations: E_LUMO=-e [E_red-E_(Fc/Fc+)+4.8] eV and E_HOMO=E_g-E_LUMO. All the trimers were thermodynamically suitable for driving the reduction of protons to H₂ due to their more negative reduction potential than the reduction of proton. The smallest semicircle in a Nyquist plot for TBT-3 demonstrated a better charge transfer ability than TBT, TBT-4 and TBT-5 (Figure 3e).

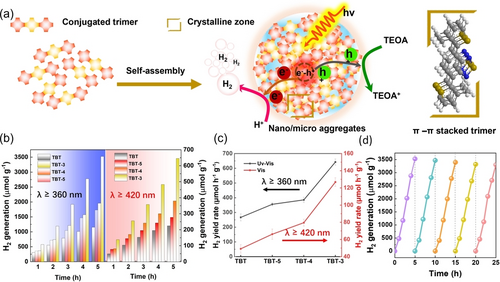

As discussed above, photocatalytic process took place in aggregates instead of individual organic molecules, (Figure 4a). The photocatalytic hydrogen production of the prepared trimers was investigated in TEOA/H₂O (V_TEOA/V_H2O=1: 9) solution without any cocatalysts modification under both UV/Vis light (λ≥360 nm) and visible light (λ≥420 nm) irradiation. No hydrogen was measured without trimers in the solution or under dark conditions. Large amounts of H₂ were produced for all the trimers under UV and visible light illumination (Figure 4b–c, Table S3). Due to the electron donating effect of the alkyl group, TBT-3, TBT-4 and TBT-5 presented higher H₂ production than TBT. TBT-3 displayed the best activity although it has larger band gap and blue-shifted absorption compared to TBT-4 and TBT-5, which was attributed to its better crystalline properties and smaller aggregation size. It should be noted that the activity of TBT-3 was comparable to other OCSs even without cocatalyst and residual Pd (Table S4). The photocatalytic stability of the TBT-3 was also tested, and no obvious change was observed during 25 h test (Figure 4d). FTIR analysis of the recycled TBT-3 revealed the high stability of its chemical structure and composition after photocatalytic tests (Figure S24). To further study the dynamics of photo-excited carriers of the aggregates, transient absorption spectroscopy (TAS) was carried out (Figure S25). Notably, the charge-transfer signal in TBT-3 was much more pronounced and persisted for a longer timescale than that in TBT, TBT-4 and TBT-5. The lifetime was estimated to be ∼1.2 ns, which possibly reflects the fewer structural defects in TBT-3 which effectively decelarate the charge trapping and recombination. These results demonstrated that the smaller size and higher crystallinity of TBT-3 enabled it with much enhanced charge carrier dynamics, which possibly promoted the light-driven electron transfer from aggregates to bulk solvent for H₂ production.¹⁵

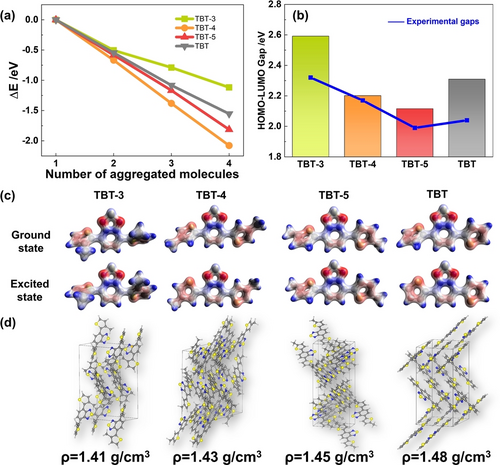

Density functional theory (DFT) was further employed to provide molecular-level understanding on these trimers. Figure 5a showed the energy change (ΔE) of the aggregation process from separated molecules. Compared with TBT, TBT-4 and TBT-5, TBT-3 released the smallest amount of energy, suggesting that the TBT-3 had the lowest tendency to aggregate. In addition to the aggregates, the energy change for the formation of crystal structures from separated molecules was also determined (Figure S26). The ΔE of forming the crystal structures of TBT-3, TBT-4 and TBT-5 were −1.04 eV, −1.20 eV and −1.14 eV per molecule, respectively, consistent with the trend in Figure 5a. The smaller aggregate size of TBT-3 created a smaller reaction platform for HER, which facilitated the reaction on a larger specific surface area and shortens the transportation distance of photogenerated carriers to the surface of the aggregates. The decreased thermodynamic driving force for aggregation of TBT-3 was further confirmed by the lower densities of TBT-3 crystals (Figure 5d). In addition, the calculated HOMO–LUMO gaps were generally consistent with the optical gaps determined experimentally (Figure 5b). Despite the large HOMO–LUMO gap of TBT-3, TBT-3 exhibited a superior activity as indicated from its large density of electrons at the HOMO state (Figure S27). Electrons were mainly distributed around the S atoms of the thiophen- group and the N atoms of the thiadiazole- group at both ground and excited states, indicating the existence of intramolecular charge transfer (Figure 5c). In addition, there was an obvious structural deformation at the thiophen side groups after excitation due to the largest steric hindrance effect of TBT-3, which will also contribute to the charge transfer by forming a larger π-conjugated region. In summary, the decreased aggregation tendency of TBT-3 leads to a smaller aggregate size, and its reactive molecular orbitals strongly enhance the photocatalytic HER, which is responsible for the higher H₂ production of TBT-3.

In summary, the aggregation size and crystallization properties of TBT were successfully regulated by incorporating and alternating the position of methyl side chains on thiophene units. The introduction of −CH₃ at the 3-position of TBT not only increased the crystallinity, but also reduces the degree of agglomeration, which in turn reduced the distance for electrons to migrate to the surface and improved the charge transportation performance, resulting in an enhanced photocatalytic activity. These results demonstrated that the aggregation behavior and crystalline state of OSCs can be effectively tuned by the subtle manipulation of side chain, which opens a new avenue for the design of high-performance OCSs photocatalysts for solar fuels production.
