Electrostatic reversible adhesion

Emulsion polymerization produces polymer nano- or microparticles formed of two phases: a hydrophobic core stabilized by a surfactant shell. In this research, styrene (St) and butyl acrylate (BA) were copolymerized through a free radical process to produce anionic and cationic emulsions depending on the material acting as surfactant. Anionic emulsions were produced with sodium dodecyl sulfate (SDS) as initial stabilizer and by polymerizing acrylic acid as a shell in a second reaction. Cationic emulsions were produced by using chitosan (Chi) as surfactant. It was also demonstrated that styrene can be substituted by acrylated epoxidized soybean oil (AESO), enhancing the sustainable aspect of these materials. Fourier transfer infrared spectroscopy (FTIR) analysis was performed to monitor the polymerization process; relevant spectra are included in Figure S1. Briefly, for St-based emulsions, spectra at t=0 h are predominantly related to the surfactant, as St and BA easily volatilize. As the monomers polymerize, the peaks associated to P(St-BA) become visible. Something similar occurs for AESO-based samples, except that AESO is non-volatile so the bands associated to it are detectable from t=0 h. Monomer conversion percentages and solid weight fractions were calculated gravimetrically at t=5 h and are presented in Table 1. As AESO is non-volatile, monomer conversion for AESO-based formulations only considers BA conversion. It is presumed that agitation (i.e., speed and method) and viscosity are the limiting factors for both monomer conversion and maximum solid content. In particular, the highly viscous chitosan 1.5 wt % solution restricts the diffusion of monomers and initiator, especially during the first stages of polymerization. In addition, the total volume and native viscosity of the monomers contribute to this effect.

For St-BA formulations, those containing 2 : 3 styrene to butyl acrylate mass ratio were chosen for further study due to their excellent film formation properties. Figure S2 shows representative films produced from the dispersions of the different St-BA mass ratios. Films form as the charged particles are mechanically forced into close contact which causes counterion condensation, neutralizing monomers beneath the surface of the coating. Formulations resulted in paint-like viscous liquids that can be easily spread on various surfaces such as: poly(ethylene terephthalate) (PET), polypropylene (PP), cellulose acetate, and glass. Coverage values for each of the previous surfaces and formulations can be found in Table S1. Good film formation at room temperature requires low glass transition temperatures, T_g,¹³ which are reported in Figure S3. Here, T_g values are reported for the St-BA or AESO-BA copolymer regions, and the Chi or poly(acrylic acid) (PAA) shells. For instance, Figure 1(A, B) shows the films formed on PET.

To test the reversible behaviour of these adhesive systems, PET and PP were chosen to simulate the application of PP labels to PET bottles. Surfaces measuring 1 cm² were covered with either the anionic or the cationic emulsion, brought together and left to dry. Samples were then exposed to HCl or NaOH solutions with pH ranging from 1 to 14. Table S2 lists the samples that were used for this test. It was found that samples where surfaces were covered with complementary formulations detached overnight when exposed to highly acidic (pH<3) or highly basic (pH>12) solutions. Detachment was observed at the interface between the two layers, i.e., adhesive failure was observed and samples with only cationic or only anionic emulsions did not debond, hence confirming the reversibility of the adhesion.

It is hypothesized that bonding and debonding of this reversible system is based on an analogue mechanism to the one previously reported.^{6, 10, 14, 15} Cationic emulsions consist of core–shell particles where the hydrophobic core is responsible for the bulk film formation while the surrounding Chi is responsible for the reversible behaviour. Chi is a polysaccharide containing amine functional groups, which can be protonated in acidic environments. Above the pK_b (≈6.5), depending on the deacetylation degree,¹⁶ the amino groups display no charge (−NH₂). When exposed to low pH, amine groups become protonated (−NH₃⁺) and Chi undergoes a conformational change¹⁷ that causes chain expansion. PAA, on the other hand, contains negatively charged carboxylic groups (−COO⁻) above its pK_a (≈4.5). When exposed to low pH, these groups are neutralized.¹⁸ Relevant zeta potential measurements for the formulations are included in Table S3.

When a surface coated with the anionic emulsion is brought into contact with a cation-covered one, electrostatic adhesion occurs, and adhesion is strengthened as the system dries. Cationic samples are prepared from an initial acetic acid solution at pH=4.5 so pH<pK_b, and for anionic samples the pH>pK_a, where the initial SDS solution is at pH=6. This locates both formulations in a mid-pH region where both emulsions carry significant charge, allowing the electrostatic interaction.

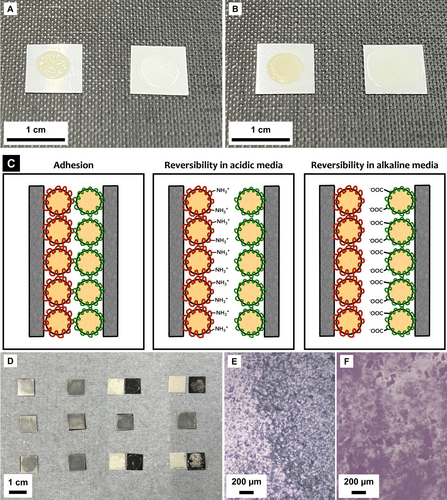

When exposed to pH<3, PAA is sufficiently neutralized that the electrostatic bonding fails. In contrast, at pH>12, Chi becomes neutral causing adhesion to fail. Adhesion remains when exposed to neutral conditions, which means the adhesion does not degrade in humid environments. The symmetry of the adhesive failure and the lack of an obvious hydrogen bonding mechanism dictates that the bonding is primarily electrostatic.¹⁴ Figure 1(C) illustrates the proposed adhesion and detachment mechanisms.

The swelling capabilities of individual films were studied in three media at room temperature (20 °C): water, HCl solution at pH=1, and NaOH solution at pH=14. The swelling equilibrium ratio after 24 h was calculated for each sample and it was found that films from cationic emulsions display higher swelling ratios in acidic environment, while films from anionic emulsions possess improved swelling capabilities in alkaline media. Table S4 records the equilibrium swelling ratios for the formulations. In addition, contact angles for liquid droplets on emulsion films were obtained and are summarized in Table 2. Anionic films display the lowest contact angles for alkaline solution and cationic films for acidic solution, further confirming the pH-dependent hydration processes. Figure S4 presents the relevant images.

The difference in contact angles in contrasting pH environments provides an indication of the debonding mechanism, where Chi leads the hydration and ion diffusion processes at low pH and PAA, at high pH. Detachment is regulated by two main factors. The first of these is the diffusion of the aqueous media and hydration of the films that is hindered by the lack of porosity of the films and their predominantly hydrophobic nature. The second is the concentration of amine groups in Chi or carboxylic groups in PAA. A greater number of functional groups implies the potential for a stronger interaction between systems (more electrostatic bonds). It is worth noticing the hydrophobic nature of cationic films, where the chitosan backbone seemingly confers hydrophobicity to the overall structure. Surface energies for all films were calculated from their contact angles and are reported in Table S5.

Presumably, detachment times can be tuned by modifying the surface contact area through pattering techniques or modifying the chemical identity of either or both polyelectrolytes to reduce the strength of the electrostatic interaction. A second reversibility experiment showed that patterned deposition can be used to decrease detachment times, and the results verifying it are shown in the Supporting Information (Figure S5, Table S6).

Performance of water-based reversible adhesives

The performance of the adhesive formulations was investigated in their wet state using a mechanical tester and in their dry state through lap shear measurements. Overall, the strength of adhesion is dependent on the water content at the time of measurement and the mechanisms of adhesion between anionic or cationic emulsions and surface, whereas the film properties are predominantly determined by the presence of either AESO or St.

The strength of adhesion in the wet state was measured for pairs of 1 cm² PET films covered with the same formulation as control or complementary emulsions. In a typical test, a cylindrical probe to which a PET film was attached, approaches the bench surface with a similar PET film on it. Each PET film was covered with the corresponding formulation and the force required for the probe to detach was recorded. A baseline was generated from the test using water to discard any cohesion effects. Figure S6 shows the force of adhesion of individual P(St-BA)/Chi and P(St-BA)/PAA couples, and for the P(St-BA)/Chi—P(St-BA)/PAA dual system 1 min after having been pressed together with a force of 0.5 N.

The forces of adhesion for the P(St-BA)/Chi, P(St-BA)/PAA, and P(St-BA)/Chi—P(St-BA)/PAA couples were 0.75 N±0.13 N, 2.48 N±0.38 N and 2.94 N±0.23 N, respectively. Overall, the low values are due to the high-water content of the as-prepared emulsions. Although the solid content is lower than commercial adhesive formulations, which contain higher polymer concentrations and additives, the adhesive can keep the joints together until drying consolidates adhesion. Wet adhesion for AESO-derived formulations was too low to be measured accurately with the available equipment.

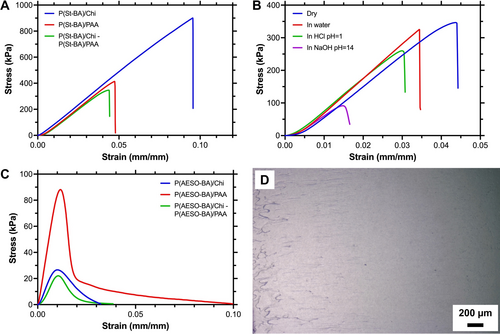

Adhesion in the dry state greatly improves for control and dual system samples. Lap shear strength was measured through tension tests on PET films. Figure 2(A) presents the stress-strain curves for St-based formulations; curves for AESO-based emulsions are shown in Figure 2(C). Samples where both PET substrates were covered with P(St-BA)/Chi have a shear strength of up to 0.91±0.08 MPa, only P(St-BA)/PAA achieves 0.40±0.02 MPa, and the dual system, 0.36±0.03 MPa. These values position this reversible adhesive in the range between conventional pressure sensitive (tens of kPa) and structural adhesives (typically >5 MPa, depending on the surface).

The shear strengths are linked to the adhesion mechanism that dominates each system and to the native mechanical properties of their components. Polystyrene is a rigid material,¹⁹ but, in contrast, poly(butyl acrylate) is considered soft and commonly used to improve toughness.²⁰ The properties of the copolymer derived from these are defined by the mass ratio between St and BA, with high St content copolymers being predominantly stiff and high BA content materials, tough.

Although these emulsions contain 2 : 3 St to BA weight ratio, and BA properties are expected to dominate, one must also consider the presence of Chi or PAA; pure Chi and PAA films are known to be brittle.^{21, 22} Both formulations contain a combination of stiff and soft components, although PAA tends to be hygroscopic,²³ which may explain the reduced shear strength for anionic formulations and the dual adhesive system. Overall, water may have a plasticizer effect, so water content in samples used for the lap shear strength tests was measured gravimetrically. For all samples, water content was ∼3 wt %.

An additional lap shear measurement was performed for adhesion to PP films, showing outstanding results (Figure S7, Table S7). In particular, P(St-BA)/Chi is notable because its shear strength achieves 0.64 MPa±0.02 MPa. PP is a difficult substrate to coat due to its low surface energy (34.9 mN m⁻¹, Table S5) and requires specialized glues to stick or plasma treatments to render the surface more compatible. Adhesion to low density polyethylene (LDPE), another low surface energy (28.6 mN m⁻¹) material, was tested qualitatively. Figure S8 shows two LDPE films glued by P(St-BA)/Chi over a surface of 3.2 cm² holding a weight of 300 g. Significantly greater tests were limited by the weakening of the LDPE sample as it stretched, which also precluded quantitative lap shear measurements. A commercial cyanoacrylate glue could also support the weight, but the samples glued with P(St-BA)/Chi remained flexible, whereas the commercial glue enforced a rigid joint (Figure S8).

While St-based formulations show a predominantly brittle behaviour during shear deformation, emulsions containing AESO significantly differ. Not only are the shear strengths lower (Table S8), but their behaviour is consistent with typical dissipative failure. While optical analysis of the detached substrates revealed the presence of both adhesive and cohesive failure in St-based samples, similar analysis for AESO samples show characteristics of dissipative processes (Figure 2(D)). Such distinct behaviours rely on the absence of St and the native properties of AESO, which is often used as a plasticizer.²⁴

The lap shear properties of the dual (oppositely charged) systems were tested after samples were exposed to water, acid, and alkaline environments for 16 h at 20 °C and reported in Table S9. For the St-based system, shear strengths were reduced by only 14 % in water, but by 34 % in acid conditions and by 70 % in basic media. Measurements for the degraded mechanical properties of AESO formulations were beyond the reliable detection limits of the equipment and are not included here.

Stability of water-based reversible adhesives

Stability of the described formulations was studied for the as-prepared emulsions over time and for the individual films in different conditions. As-prepared emulsions were stored at room temperature (16–20 °C) and their particle size measured monthly using light scattering over six months and then after one year. For instance, P(St-BA)/Chi increased its mean particle size from 306.0 nm to 350.8 nm after six months and to 459.0 nm after one year, P(St-BA)/PAA, from 122.2 nm to 139.3 nm and then to 178.2 nm over the same time. Table S10 and Figure S9 summarize these findings. Although measurements indicate an increase in mean particle size, the change is not enough to be due to agglomeration or aggregation, demonstrating that the formulations are stable for shelf storage as required for real-world applications.

The ability to recycle components after detachment demands that the previously adhered surfaces are clean. It is therefore important that the coatings can be readily removed after separation. The stability of the individual films was assessed by exposing them to six environments and monitoring their appearance for 30 days to explore meaningful ways the adhesive can be removed after detachment has been promoted. The chosen media were water, acid solution, alkaline solution, ethanol, acetone, and turpentine. Figure 3 shows some images of the films before and after exposure. Additional images are included in Figure S10.

Overall, adhesion of individual films to a PET substrate remains stable in water, acidic, and alkaline media except for P(AESO-BA)/PAA, which significantly swells in alkaline solution and eventually detaches from the substrate (Figure 3(B)). The resulting film is extremely fragile. St and AESO cationic emulsions in ethanol remained adhered for the duration of the experiment, but anionic emulsions detached after ethanol dried off, presumably due to drastic dehydration processes. Acetone and turpentine are effective at removing the adhesive film in under 2 h. While the physical integrity is conserved for cationic films (i.e., the film remains visible), some physical degradation is observed (Figure S10(A–D)). Anionic films were completely removed and partially solubilized. Figure 3(E, F) shows micrographs of PET and PP after being cleaned with turpentine.
