Proton-Induced Change of the Coordination Mode of a Boron Group: Boryl Complexes [Mn(CO)4(PR3)(BH2⋅PMe3)] and Cationic Borane σ Complexes [Mn(CO)4(PR3)(η1-BH3⋅PMe3)]+†
Takahiro Yasue Dr.
Department of Basic Science, Graduate School of Arts and Sciences, University of Tokyo, Meguro-ku, Tokyo 153-8902, Japan, Fax: (+81) 3-5454-6567
Search for more papers by this authorYasuro Kawano Dr.
Department of Basic Science, Graduate School of Arts and Sciences, University of Tokyo, Meguro-ku, Tokyo 153-8902, Japan, Fax: (+81) 3-5454-6567
Search for more papers by this authorMamoru Shimoi Prof.
Department of Basic Science, Graduate School of Arts and Sciences, University of Tokyo, Meguro-ku, Tokyo 153-8902, Japan, Fax: (+81) 3-5454-6567
Search for more papers by this authorTakahiro Yasue Dr.
Department of Basic Science, Graduate School of Arts and Sciences, University of Tokyo, Meguro-ku, Tokyo 153-8902, Japan, Fax: (+81) 3-5454-6567
Search for more papers by this authorYasuro Kawano Dr.
Department of Basic Science, Graduate School of Arts and Sciences, University of Tokyo, Meguro-ku, Tokyo 153-8902, Japan, Fax: (+81) 3-5454-6567
Search for more papers by this authorMamoru Shimoi Prof.
Department of Basic Science, Graduate School of Arts and Sciences, University of Tokyo, Meguro-ku, Tokyo 153-8902, Japan, Fax: (+81) 3-5454-6567
Search for more papers by this author(PR3=PMe2Ph, PEt3).
Graphical Abstract

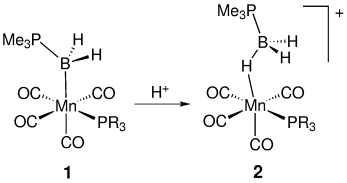

Koordinationswechsel bei Protonierung: Die Borylmangankomplexe 1 reagieren unter Protonierung zu den kationischen Boran-σ-Komplexen 2. Die Zersetzung von 2 verläuft unter heterolytischer Spaltung der Metall-koordinierten B-H-Bindung.
References
- 1R. H. Crabtree, Acc. Chem. Res. 1990, 23, 95.
- 2R. H. Morris, P. G. Jessop, Coord. Chem. Rev. 1992, 121, 155.
- 3D. M. Heinkey, W. J. Oldham, Jr., Chem. Rev. 1993, 93, 913.
- 4R. H. Crabtree, Angew. Chem. 1993, 105, 823;
10.1002/ange.19931050605 Google ScholarAngew. Chem. Int. Ed. Engl. 1993, 32, 789.
- 5G. J. Kubas, Metal Dihydrogen and σ-Bond Complexes, Kluwer Academic/Plenum Publishers, New York, 2001.
10.1007/b113929 Google Scholar
- 6
- 6aProtonation of a silyl complex [CpRu(PMe3)2SiCl3]: F. R. Lemke, J. Am. Chem. Soc. 1994, 116, 11 183; S. T. N. Freeman, F. R. Lemke, L. Brammer, Organometallics 2002, 21, 2030;
- 6bprotonation of [CpFe(CO)(PEt3)SiEt3]: E. Scharrer, S. Chang, M. Brookhart, Organometallics 1995, 14, 5686.
- 7Y. Kawano, T. Yasue, M. Shimoi, J. Am. Chem. Soc. 1999, 121, 11 744.
- 8T. Yasue, Y. Kawano, M. Shimoi, Chem. Lett. 2000, 58.
- 9M. Shimoi, S. Nagai, M. Ichikawa, Y. Kawano, K. Katoh, M. Uruichi, H. Ogino, J. Am. Chem. Soc. 1999, 121, 11 704.
- 10T. Kakizawa, Y. Kawano, M. Shimoi, Organometallics 2001, 20, 3211.
- 11Crystal data for 1 a: pale yellow crystals, triclinic, space group P
(no. 2); T=150 K; a=10.5746(8), b=10.6779(9), c=9.0029(7) Å; α=109.026(2), β=96.043(3), γ=88.092(2)°; V=955.69(13) Å3; Z=2, R=0.024, wR2=0.060 for 4070 reflections with |Fo|>3σ(Fo), 296 parameters, GoF=1.110. The boron-attached hydrogen atoms were found by the difference Fourier syntheses and their positions were refined. CCDC-190001 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge CB2 1EZ, UK; fax: (+44) 1223-336-033; or [email protected]).
- 12K. M. Waltz, H. He, C. N. Muhoro, J. F. Hartwig, J. Am. Chem. Soc. 1995, 117, 11 357.
- 13M. Brookhart, B. Grant, A. F. Vople, Jr., Organometallics 1992, 11, 3920.
- 14R. Macías, N. P. Rath, L. Barton, Angew. Chem. 1999, 111, 203;
10.1002/(SICI)1521-3757(19990115)111:1/2<203::AID-ANGE203>3.0.CO;2-E Google ScholarAngew. Chem. Int. Ed. 1999, 38, 162.10.1002/(SICI)1521-3773(19990115)38:1/2<162::AID-ANIE162>3.0.CO;2-U CAS Web of Science® Google Scholar
- 15M. Ingleson, N. J. Patmore, G. D. Ruggiero, C. G. Frost, M. F. Mahon, M. C. Willis, A. S. Weller, Organometallics 2001, 20, 4434.
- 16The stationary point was located at the B3 LYP level of theory, by using density functional theory calculations based on hybrid functionals. A double ζ plus polarization valence basis set, 6-31G(d) was employed for all the atoms except manganese. For Mn, a basis set with an approximation of effective core potentials, LANL2DZ was applied. The NBO analysis was carried out on the resulting structure at the B3 LYP level using a 6–311+G(2d,p) basis set.[20] All calculations were performed with the Gaussian 98W package of programs.[17]
- 17Gaussian 98 (Revision A.11), M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, V. G. Zakrzewski, J. A. Montgomery, R. E. Stratmann, J. C. Burant, S. Dapprich, J. M. Millam, A. D. Daniels, K. N. Kudin, M. C. Strain, O. Farkas, J. Tomasi, V. Barone, M. Cossi, R. Cammi, B. Mennucci, C. Pomelli, C. Adamo, S. Clifford, J. Ochterski, G. A. Petersson, P. Y. Ayala, Q. Cui, K. Morokuma, D. K. Malick, A. D. Rabuck, K. Raghavachari, J. B. Foresman, J. Cioslowski, J. V. Ortiz, B. B. Stefanov, G. Liu, A. Liashenko, P. Piskorz, I. Komaromi, R. Gomperts, R. L. Martin, D. J. Fox, T. Keith, M. A. Al-Laham, C. Y. Peng, A. Nanayakkara, C. Gonzalez, M. Challacombe, P. M. W. Gill, B. G. Johnson, W. Chen, M. W. Wong, J. L. Andres, M. Head-Gordon, E. S. Replogle, J. A. Pople, Gaussian, Inc., Pittsburgh, PA, 2001.
- 18Several boryl cations with the formula [BX2⋅L]+ (L=neutral Lewis base) have been reported: P. Kölle, H. Nöth, Chem. Rev. 1985, 85, 399.
- 19
- 19aJ. Huhmann-Vincent, B. L. Scott, G. J. Kubas, Inorg. Chim. Acta 1999, 294, 240;
- 19bJ. Huhmann-Vincent, B. L. Scott, G. J. Kubas, J. Am. Chem. Soc. 1998, 120, 6808;
- 19cX. Fang, J. Huhmann-Vincent, B. L. Scott, G. J. Kubas, J. Organomet. Chem. 2000, 609, 95;
- 19dJ. Huhmann-Vincent, B. L. Scott, G. J. Kubas, Inorg. Chem. 1999, 38, 115;
- 19eX. Fang, B. L. Scott, K. D. John, G. J. Kubas, Organometallics 2000, 19, 4141.
- 20E. D. Glendening, A. E. Reed, J. E. Carpenter, F. Weinhold, NBO version 3.1.
