Volume 7, Issue 9 pp. 1716-1725
Brief Communication
Open Access

Neuronal intranuclear inclusion disease is genetically heterogeneous

Zhongbo Chen

Zhongbo Chen

Department of Neurodegenerative Disease, Queen Square Institute of Neurology, University College London (UCL), London, UK

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Wai Yan Yau

Wai Yan Yau

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Zane Jaunmuktane

Zane Jaunmuktane

Queen Square Brain Bank, Department of Clinical and Movement Neurosciences, Queen Square Institute of Neurology, UCL, UK

Search for more papers by this author
Arianna Tucci

Arianna Tucci

Clinical Pharmacology, William Harvey Research Institute, School of Medicine and Dentistry, Queen Mary University of London, London, UK

Search for more papers by this author
Prasanth Sivakumar

Prasanth Sivakumar

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Sarah A. Gagliano Taliun

Sarah A. Gagliano Taliun

Center for Statistical Genetics and Department of Biostatistics, University of Michigan, Ann Arbor, Michigan

Search for more papers by this author
Chris Turner

Chris Turner

Queen Square Institute of Neurology, UCL and the National Hospital for Neurology and Neurosurgery, Queen Square, London, UK

Search for more papers by this author
Stephanie Efthymiou

Stephanie Efthymiou

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Kristina Ibáñez

Kristina Ibáñez

Clinical Pharmacology, William Harvey Research Institute, School of Medicine and Dentistry, Queen Mary University of London, London, UK

Search for more papers by this author
Roisin Sullivan

Roisin Sullivan

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Farah Bibi

Farah Bibi

University Institute of Biochemistry & Biotechnology, PMAS – Arid Agriculture University, Rawalpindi, Pakistan

Search for more papers by this author
Alkyoni Athanasiou-Fragkouli

Alkyoni Athanasiou-Fragkouli

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Thomas Bourinaris

Thomas Bourinaris

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
David Zhang

David Zhang

Department of Neurodegenerative Disease, Queen Square Institute of Neurology, University College London (UCL), London, UK

Search for more papers by this author
Tamas Revesz

Tamas Revesz

Queen Square Brain Bank, Department of Clinical and Movement Neurosciences, Queen Square Institute of Neurology, UCL, UK

Search for more papers by this author
Tammaryn Lashley

Tammaryn Lashley

Department of Neurodegenerative Disease, Queen Square Institute of Neurology, University College London (UCL), London, UK

Queen Square Brain Bank, Department of Clinical and Movement Neurosciences, Queen Square Institute of Neurology, UCL, UK

Search for more papers by this author
Michael DeTure

Michael DeTure

Department of Neuroscience, Mayo Clinic, Jacksonville, Florida

Search for more papers by this author
Dennis W. Dickson

Dennis W. Dickson

Department of Neuroscience, Mayo Clinic, Jacksonville, Florida

Search for more papers by this author
Keith A. Josephs

Keith A. Josephs

Mayo Clinic, Neurodegenerative Research Group, Rochester, Minnesota

Search for more papers by this author
Ellen Gelpi

Ellen Gelpi

Neurological Tissue Bank of the Hospital Clinic-Institut d’Investigacions Biomediques August Pi I Sunyer (IDIBAPS) Biobank, Barcelona, Spain

Division of Neuropathology and Neurochemistry, Department of Neurology, Medical University of Vienna, Austria

Search for more papers by this author
Gabor G. Kovacs

Gabor G. Kovacs

Division of Neuropathology and Neurochemistry, Department of Neurology, Medical University of Vienna, Austria

University of Toronto, Tanz Centre for Research in Neurodegenerative Disease, Toronto, Canada

Search for more papers by this author
Glenda Halliday

Glenda Halliday

Neuroscience Research Australia, Sydney, Australia

School of Medical Sciences, Faculty of Medicine, University of New South Wales, Sydney, Australia

Brain and Mind Centre, Sydney Medical School, The University of Sydney, Sydney, Australia

Search for more papers by this author
Dominic B. Rowe

Dominic B. Rowe

Centre for Motor Neuron Disease Research, Department of Biomedical Sciences, Faculty of Medicine and Health Sciences, Macquarie University, Sydney, NSW, Australia

Search for more papers by this author
Ian Blair

Ian Blair

Centre for Motor Neuron Disease Research, Department of Biomedical Sciences, Faculty of Medicine and Health Sciences, Macquarie University, Sydney, NSW, Australia

Search for more papers by this author
Pentti J. Tienari

Pentti J. Tienari

Department of Neurology, Helsinki University Hospital, Helsinki, Finland

Translational Immunology Research Program, Faculty of Medicine, University of Helsinki, Helsinki, Finland

Search for more papers by this author
Anu Suomalainen

Anu Suomalainen

Research Programs Unit, Stem Cells and Metabolism, University of Helsinki, Helsinki, 00290 Finland

Neuroscience Center, HiLife, University of Helsinki, Helsinki, 00290 Finland

HUSlab, Helsinki University Hospital, Helsinki, 00290 Finland

Search for more papers by this author
Nick C. Fox

Nick C. Fox

Dementia Research Centre, UCL, London, Queen Square, UK

Search for more papers by this author
Nicholas W. Wood

Nicholas W. Wood

Department of Clinical and Movement Neurosciences, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Andrew J. Lees

Andrew J. Lees

Queen Square Brain Bank, Department of Clinical and Movement Neurosciences, Queen Square Institute of Neurology, UCL, UK

Reta Lila Weston Institute, UCL Queen Square Institute of Neurology, Wakefield Street, London

Search for more papers by this author
Matti J. Haltia

Matti J. Haltia

Department of Pathology, Faculty of Medicine, University of Helsinki, Helsinki, Finland

Search for more papers by this author
Genomics England Research Consortium

Genomics England Research Consortium

Genomics England, London, UK

William Harvey Research Institute, Queen Mary University of London, London, EC1M 6BQ UK

Members of the Consortium are listed in the Acknowledgements section of this paper.

Search for more papers by this author
John Hardy

John Hardy

Department of Neurodegenerative Disease, Queen Square Institute of Neurology, University College London (UCL), London, UK

Reta Lila Weston Institute, UCL Queen Square Institute of Neurology, Wakefield Street, London

UK Dementia Research Institute at UCL, Queen Square Institute of Neurology, UCL, London, UK

NIHR University College London Hospitals Biomedical Research Centre, London, UK

Institute for Advanced Study, The Hong Kong University of Science and Technology, Hong Kong SAR, China

Search for more papers by this author
Mina Ryten

Mina Ryten

Department of Neurodegenerative Disease, Queen Square Institute of Neurology, University College London (UCL), London, UK

Search for more papers by this author
Jana Vandrovcova

Jana Vandrovcova

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Search for more papers by this author
Henry Houlden

Corresponding Author

Henry Houlden

Department of Neuromuscular Disease, Queen Square Institute of Neurology, UCL, London, UK

Correspondence

Henry Houlden, Department of Neuromuscular Disease, Queen Square Institute of Neurology, University College London, London WC1N 3BG, UK. Tel: +44 (0)203 4484249; Fax: +44 (0)20 3448 4723; E-mail: [email protected]

Search for more papers by this author
First published: 10 August 2020
Citations: 51

Abstract

Neuronal intranuclear inclusion disease (NIID) is a clinically heterogeneous neurodegenerative condition characterized by pathological intranuclear eosinophilic inclusions. A CGG repeat expansion in NOTCH2NLC was recently identified to be associated with NIID in patients of Japanese descent. We screened pathologically confirmed European NIID, cases of neurodegenerative disease with intranuclear inclusions and applied in silico-based screening using whole-genome sequencing data from 20 536 participants in the 100 000 Genomes Project. We identified a single European case harbouring the pathogenic repeat expansion with a distinct haplotype structure. Thus, we propose new diagnostic criteria as European NIID represents a distinct disease entity from East Asian cases.

Introduction

Neuronal intranuclear inclusion disease (NIID) is a clinically heterogeneous, multi-system neurodegenerative condition with manifestations comprising cognitive impairment, parkinsonism, and neuropathy at varying ages of onset.1 Central to the pathological diagnosis is presence of characteristic intranuclear eosinophilic ubiquitinated inclusions in both neuronal and non-neuronal cells. Despite the first case being described in 1968,2 a CGG repeat expansion in NOTCH2NLC has only been found recently to be associated with NIID in Japanese patients.3, 4 This was prompted by the clinico-pathological overlap with Fragile X-associated tremor-ataxia syndrome (FXTAS)5 and increasing recognition of noncoding repeat expansions being crucially causative in neurological disorders.3, 4 Since these findings, the same expansion has been reported in several East Asian cohorts including Chinese patients with skin-biopsy proven NIID6, 7; Chinese essential tremor cases8 and Japanese leukodystrophy cases.9

Inspired by the high prevalence of this expansion within East Asian patients, we instigated screening for the repeat within Europeans with pathological confirmation of neuronal and/or glial hyaline intranuclear inclusions on brain tissue to further understand the molecular basis of disease. The very similar intranuclear inclusions seen in NIID can occur concomitantly with another proteinopathy. Therefore, we also screened post-mortem cases with neuronal intranuclear inclusions (NIIs) in other neurodegenerative diseases with the aim of assessing whether clinically heterogeneous presentations converge on a common proteinopathy aggregate. Lastly, we applied in silico-based screening of a deeply-characterized cohort of 20,536 patients with neurological presentations enrolled in the 100,000 Genomes Project to characterize the prevalence within a predominantly European population.10 We show that the NOTCH2NLC repeat expansion is a rare cause of NIID in Europeans and that at least two distinct disease entities exist under the name NIID.

Methods

Case selection

The study was approved by UCL Institute of Neurology Institutional Review Board. Tissue and DNA samples from other institutions met approval from local ethics boards. Eleven NIID cases (Cases 1–11) were identified from: Queen Square Brain Bank (QSBB)11; Spain (IDIBAPS Brain Bank Barcelona)5; Finland12; Australia (South Australian Brain Bank13 and Macquarie University) and USA (Mayo Clinic). Thirteen cases with primary protein misfolding pathology and NIIs (Cases 2-1 to 2-13) were included from: QSBB; Austria (Vienna Brain Bank)14; IDIBAPS5 and Mayo Clinic. Five cases of FTLD-FUS were also included from IDIBAPS and QSBB (Cases 2-14 to 2-18). We used a Japanese patient previously described with NOTCH2NLC repeat expansion-associated NIID (Case J) as a positive control.3 DNA extraction from QSBB, Spain, and USA samples of fresh frozen cerebellar tissue was carried out as per Qiagen Gentra Puregene Tissue Kit protocol (concentration ≥ 219.7 ng/µL).

Repeat-primed polymerase chain reaction and fragment analysis

Repeat-primed polymerase chain reaction (RP-PCR) was designed as described3 to assess for CGG repeat expansion using genomic DNA. RP-PCR analysis was performed using primers: 5’-AGCGCCCACAGCAGAGCGGC-3’; 5’-CCGGGAGCTGCATGTGTCAGAGGCGGCGGCGGCGGCGG-3’; 5’-(FAM)-CCGGGAGCTGCATGTGTCAGAGG3’, LA taq with GC buffer (TaKaRa Bio) and deaza-dGTP. The PCR protocol used initial denaturation at 95°C for 5 minutes, followed by 50 cycles of 95°C for 30 seconds, 98°C for 10s, 62°C for 30 seconds and 72°C for 2 minutes. The ramp rate to 95°C and 72°C was 2.5°C per second and that to 62°C was 1.5°C per second3. For fragment analysis, 9.2 µL HiDi formamide was combined with 0.5 µL LIZ 500 size standard per 1 µL PCR product. FAM-labeled PCR products were denatured at 95 °C for three minutes and on ice for three minutes then separated on ABI3730 DNA Analyser (ThermoFisher). Electropherograms were visualized on GENEMAPPER (ThermoFisher). We judged a sawtooth tail pattern in the electropherogram as the disease-associated repeat expansion (Figure 1). This process was replicated three times, with three positive controls to ensure negative results did not arise from technical error. Estimating repeat size from fragment analysis employed previously described protocol.3

Details are in the caption following the image

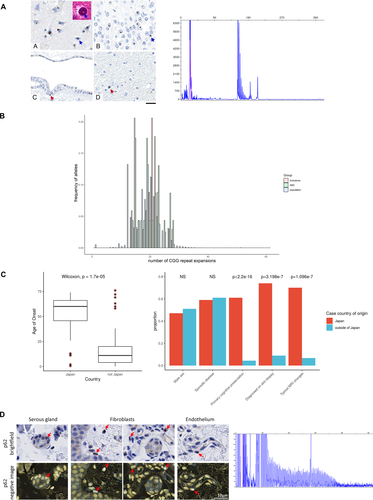

Distribution of NOTCH2NLC repeat expansions. Panel A is that of Patient 111: intranuclear p62 immunoreactive inclusions are present in the majority of the neurons across the neocortex (A, blue arrow), dentate gyrus in the hippocampus (B, blue arrow), deep grey nuclei, brainstem nuclei and cerebellar neurons (not shown). The inclusions are eosinophilic on routine haematoxylin and eosin stained sections (inset in A, blue arrow). The intranuclear inclusions are also frequently seen in the ependymal cells (C, red arrow) but only rarely observed in glial cells (D, red arrow). Scale bar: 20 µm in A-D. The corresponding electropherogram confirms absence of the repeat expansion within this patient. Panel B shows the histogram distributions of the number of CGG repeats in the population (population) (estimated from ExpansionHunter based on 20,536 participants with neurological presentations enrolled into the 100,000 Genomes Project) compared with cases of neuropathologically confirmed NIID within our samples (NIID) and cases with evidence of pathological intranuclear inclusions (inclusions). Panel C summarizes the comparison of clinical characteristics between cases of NIID described within and outside of Japan. Panel D shows brightfield-positive and brightfield-negative images for p62 immunoreactivity in the skin biopsy of the patient identified from 100,000 Genomes Project (Case 12). The corresponding electropherogram infers presence of a repeat expansion as seen by the typical sawtooth pattern.

Whole-genome sequence analysis for repeat expansion

We used ExpansionHunter v.2,15, 16 a validated tool that identifies repeat expansions using whole-genome sequencing (WGS) data. We searched for “CGG” repeats within the genomic co-ordinates of the repeat expansion (Chr1:149390802-149390841, GRCh38) in a cohort of 20,536 patients with neurological presentation recruited into the 100 000 Genomes Project.10 Interruptions within the repeat sequence were accounted for in the algorithm. Ethnicities were estimated using a random forest classifier based on 1,000 Genomes Project as a training dataset.

Genotyping

Sample processing for Illumina GSAv2.0 arrays was carried out according to Infinium HTS Assay protocol (Illumina Inc.) at UCL Genomics. Three hundred nanogram of DNA was whole-genome amplified, fragmented, precipitated, and resuspended in hybridization buffer. Samples were hybridized onto Illumina GSA beadchips and incubated at 48 °C for 16 hours. Beadchips were stained then scanned using iScan (Illumina). Total genotyping rate was 0.993. Principal components were calculated using PLINK v.1.917 and population stratification analysis for inferred ancestries using Peddy (Python).

Haplotype analysis

Haplotype blocks were estimated based on 90% confidence intervals of D’ disequilibrium statistic for pairs of variants (PLINK17). The haplotype analysis was set within the NOTCH2NL paralogous region (Chr1:120705588–149410843, GRCh38) containing 380 genotyped SNPs. The genotyped SNP overlap between the three patient groups compared (NOTCH2NLC expansion-negative European NIID, Case 12 and Case J) was high at 96.7% remaining consistent at 96.3% with minor allele frequency (MAF) >0.05.

Comparisons of clinical characteristics

We reviewed Medline and Pubmed databases for cases of “neuronal intranuclear inclusion disease”; “neuronal intranuclear hyaline disease”; “neuronal intranuclear hyaline inclusion disease” and “intranuclear hyaline inclusion disease,” using key search terms as applied, without a date restriction. We identified 145 independent cases of NIID reported in the literature (April 2019). All statistical analyses were executed in R (version 3.5.1).

Results

NIID is genetically and phenotypically heterogeneous

We find no evidence of the repeat to a pathological level within eleven NIID cases of European ancestry confirmed on post-mortem brain examination (Table 1: Cases 1–11). These cases have been well-characterized including a monozygotic twin with juvenile-onset movement disorder, from whom the term NIID was coined12; as well as other cases with both juvenile-onset11 and adult-onset5, 13 disease. Revisiting the pathology confirmed that NIIs stained positive for p6211 further validating the diagnosis (Figure 1A). The median number of CGG repeats in NOTCH2NLC was 20 (range 14–28) in these patients (Figure 1B), falling within the range of repeats seen in asymptomatic Far East populations.3, 4 This suggests genetically heterogeneous mechanisms underlie NIID in European patients. In support of this diverse underlying molecular mechanism is the dichotomy in clinical presentation between non-Japanese and Japanese NIID cases. Of 145 reported NIID cases, two thirds are from Japan (100 cases) and are of an older age of onset compared to non-Japanese cases (median (IQR): 60 years (46–66) and 11 years (4–20) respectively, Wilcoxon rank sum P-value = 1.67e-5). Most Japanese patients had a primary cognitive presentation (61%), with a large proportion of cases having pathognomonic MRI changes at the corticomedullary junction (70%). Furthermore, 74% of Japanese cases were diagnosed on antemortem skin biopsy compared with ~ 9% of non-Japanese cases reflecting the lack of extraneuronal involvement in cases outside of Japan12 (Figure 1C). Deeper comparison of the inclusions has demonstrated differences also in their composition; inclusions were likely filamentous in European cases12 without the fine granular material reported in Japanese cases.1

Table 1. Estimated number of repeat expansions in cases with pathologically confirmed NIID and cases with evidence of neuronal intranuclear inclusions on pathological examination of the brain.
Case ID Estimated number of CGG repeats Age of onset Sex Family history Country of origin Clinical Diagnosis/ Presentation pre-biopsy Main pathological findings and diagnosis Other pathological findings
Allele 1 Allele 2
Pathologically-confirmed NIID 11 21 - 17 M Yes UK Parkinsonism, tremor, bulbar and autonomic symptoms. Died aged 24 years. NIID: widespread neuronal hyaline intranuclear inclusions immunoreactive for ubiquitin and p62 See Figure 1C
22 22 28 33 M Yes Australia Slowly progressive motor and sensory neuronopathy with ataxia. Death at 46 years. NIID: eosinophilic neuronal intranuclear inclusions Degeneration of substantia nigra, medial thalamus and cerebellum
32 15 20 60s F No Australia Unknown presentation. Death aged 67 years. NIID: cortical neurons especially large pyramidal cells show eosinophilic intranuclear inclusions No overt neuronal loss from the cerebral cortex and no reactive astrogliosis
4 15 23 52 F No Australia Slowly progressive primary lateral sclerosis. Death aged 72 years. NIID: neuronal and astrocytic intranuclear inclusions throughout the cerebral cortex Upper motor neuron loss and lateral corticospinal tract degeneration
53 19 22 11 F Yes (MZ twin) Finland Ataxia, rage, seizures and extrapyramidal symptoms. Death aged 21years. NIID: inclusion bodies in most nerve cell types of central and peripheral nervous systems Inclusions also seen in the retina and subtotal loss of nigral neurons
64 15 25 49 F Yes Spain Ataxia. Death aged 62 years. NIID: abundant glial nuclear inclusions Rosai-Dorfman disease (Case 3 Gelpi et al.)
74 16 23 82 F Yes Spain Dementia. Death aged 84 years. NIID: abundant glial nuclear inclusions ARTAG and SVD (Case 2 Gelpi et al.)
8 17 23 26 F No USA Clinical diagnosis unclear NIID
9 15 19 84 M No USA Alzheimer’s disease, ataxia NIID: intranuclear hyaline inclusions in neurons and glia in widespread areas of the brain Hippocampal sclerosis, argyrophilic grain disease, Braak 0, Thal 1, TDP 1
10 14 27 69 M No USA Diagnosed clinically with NIID NIID: neuronal intranuclear inclusions
11 19 - 80 M No USA Unknown presentation NIID Inferior olivary hypertrophy
12 19 expanded 51 F No Ukraine Relapsing encephalopathy and migraines Antemortem skin biopsy contains p62 positive intranuclear inclusions
Case ID Estimated number of CGG repeats Age of onset Sex Family history Country of origin Clinical Diagnosis/ Presentation pre-biopsy Main pathology Presence of p62/ ubiquitin-positive and TDP43 or FUS-negative NIIs
Allele 1 Allele 2
Other pathology with neuronal intranuclear inclusions (NIIs) 2-1 15 19 49 F Unknown UK Parkinson’s disease Parkinson’s disease, Braak 6 (diffuse neocortical) Medial temporal lobe
2-2 15 23 49 M Yes (PD in distant family) UK Progressive supranuclear palsy Parkinson’s disease, Braak 4 (limbic) Medial temporal lobe
2-3 15 22 51 F No UK Corticobasal syndrome Alzheimer’s disease with amygdala-restricted Lewy pathology Medial temporal lobe
2-4 15 21 56 M Unknown UK Progressive supranuclear palsy Progressive supranuclear palsy Medial temporal lobe and neocortex
2-5 20 - 78 F Unknown UK Corticobasal syndrome Corticobasal degeneration Medial temporal lobe, neocortex and cerebellum
2-6 14 22 60 M No UK Atypical progressive aphasia Intermediate level Alzheimer’s disease pathological change Medial temporal lobe
2-7 15 22 83 M No UK Parkinson’s disease Parkinson’s disease, Braak 5 (limbic) Medial temporal lobe
2-8 18 27 64 M No UK Corticobasal syndrome Lewy pathology, Braak 5 (limbic); Cerebellar degeneration of unknown nature Medial temporal lobe, neocortex and cerebellum
2-9 18 27 66 F No USA Dementia Dementia with Lewy bodies Present
2-104 22 23 47 M Yes Spain Rapidly progressive ataxia/ parkinsonism Fatal familiaI insomnia and incidental inclusions (Case 4 in Gelpi et al. 2017) Hippocampus
2-11 21 22 77 M Unknown Spain FXTAS FXTAS, NFT II, AGD I and SVD Present
2-12 21 28 86 N Unknown Austria Severe dementia Vascular encephalopathy, AGD, ARTAG, AD A2B2C2, CAA type 1 + 2 Present
2-135 15 20 63 F Unknown Austria Rapidly progressive dementia, pyramidal and extrapyramidal symptoms MM1/MV1 CJD, Braak and Braak stage II Cerebellar Purkinje cells
2-14 21 - 56 M Unknown Spain Fronto-temporal dementia FTLD-ALS-FUS (ubiquitin), LBD (olfactory bulb) None
2-15 19 23 69 F No UK Fronto-temporal dementia FTLD-FUS None (NIFID)
2-16 16 21 44 M Unknown UK Fronto-temporal dementia FTLD-FUS None (NIFID)
2-17 20 21 41 F No UK Fronto-temporal dementia FTLD-FUS None (NIFID)
2-18 14 22 49 M No UK Fronto-temporal dementia FTLD-FUS None (FTLD-U)
  • Estimated number of CGG repeats using fragment analysis in our patients with NIID (Cases 1 to 12) and in other cases with concomitant intranuclear inclusions and with inclusions associated to other proteinopathies (Cases 2-1 to 2-13 and cases of FTLD-FUS: Cases 2-14 to 2-18). Where the sizing is not applicable (-), it is likely that the allele may be homozygous for the number of repeats in that patient providing overlapping traces and this allele is not expanded as no sawtooth pattern is visualized in comparison to our positive control. ABC score: A, amyloid phase according to Thal; B, Braak and Braak neurofibrillary stage; C, neuritic plaque score according to CERAD (each score ranges from 0 to 3); AD, Alzheimer's disease neuropathological changes; AGD, argyrophilic grain disease; ARTAG, aging-related tau astrogliopathy; CAA, cerebral amyloid angiopathy; CJD, Creutzfeldt-Jakob disease; FTLD, frontotemporal dementia; FTLD-FUS, FTLD-fused in sarcoma subtype; FTLD-ALS-FUS, FTLD and amyotrophic lateral sclerosis of FUS-subtype; FXTAS, fragile X-associated tremor/ataxia syndrome; LBD, Lewy body disease; MM, methionine homozygosity at codon 129 of the PRNP gene; MV, methionine valine heterozygous genotype at codon 129 of the PRNP gene; MZ twin, monozygotic twin; NIFID, neuronal intermediate filament inclusion disease; NIID, neuronal intraneuronal inclusion disease; NIIs, neuronal intranuclear inclusions; NFT, neurofibrillary tangles; PD, Parkinson’s disease; SVD, small vessel disease.

NOTCH2NLC repeat expansion does not underlie other neurodegenerative diseases with secondary intranuclear inclusions

Further confounding the diagnostic definition of NIID is the presence of similar intranuclear inclusions with concomitant protein-misfolding pathology.5 FXTAS was excluded from these cases. To investigate the underlying pathophysiology of such disorders, we screened a cohort of 13 cases with primary pathology in addition to NIIs (Table 1: Cases 2-1 to 2-13, Supplementary Figure S1). Within QSBB, ten cases were found to have intranuclear inclusions with positive staining for p62 and ubiquitin out of 850 brain samples. The other cases have been previously reported5, 14 in a range of presentations such as with coexisting prion disease.14 We further screened specific cases of FTLD-FUS subtype (Table 1: Cases 2-14 to 2-18) where the alike intranuclear inclusions have FUS recruited within. We also found no evidence of the repeat expansion within this cohort, which harbour similar estimated CGG repeats as seen in the asymptomatic population (median 20.5, IQR 16–22) (Figure 1B). This suggests that the abnormal repeat expansion in NOTCH2NLC is not the only driver for diseases with NIIs and highlights that multiple pathways are likely to converge on the end-product of intranuclear inclusion formation.

Frequency of repeat expansion within the European population

We have shown that the repeat expansion is not found in any of our European patients with pathologically-proven NIID compared to pathogenic expansions in 93–100% of Japanese and Chinese patients.3, 4 Leveraging the availability of WGS data in a large cohort of 20 536 deeply phenotyped participants presenting with neurological symptoms recruited in the 100 000 Genomes Project,10 we found the median number of NOTCH2NLC CGG repeats to be 20 (IQR 16–22) within this population (Figure 1B). The number of repeat expansions in our cohort of NIID patients and in those with pathological intranuclear inclusions did not differ significantly from this ‘background’ population (ANOVA p> 0.05). Furthermore, there were no significant differences in the number of repeats among ethnic groups (Supplementary Figure S2). Fragment analysis was used to verify the expansion size in ten individuals who had an estimated repeat size greater than 40 on one allele as ascertained using ExpansionHunter. In a patient with 58 repeats on one allele estimated from ExpansionHunter, fragment analysis demonstrated a pathogenic repeat expansion in a 59-year-old woman of Ukrainian ancestry who presented with a 10-year history of recurrent encephalopathy and migraines (Case 12). The patient was reviewed with respect to these results and subsequent skin biopsy revealed intranuclear p62 and ubiquitin-positive inclusions, confirming a diagnosis of NIID (Figure 1D).

Prompted by our observation of the low prevalence (approximately 1 in 20,000) of the pathogenic repeat expansion within a European population and lack of expansion within pathologically-confirmed cases, analyses of principal components and inferred genetic ancestry showed that the Ukrainian patient (Case 12) had no overlapping ancestry with the Japanese patient (Case J) (Supplementary Figure S3). Analysis of the entire NOTCH2 region encompassing associated paralogs revealed 27 haplotype blocks from the genotyped SNPs although no SNPs overlapped with expansion-containing region. This showed differing haplotypes for the Ukrainian patient (Case 12), European NOTCH2NLC-CGG-negative NIID patients (Cases 1–11) and the expansion-positive Japanese patient (Case J), even for SNPs with MAF>0.05 (Supplementary Table S1). Thus, presence of the rare repeat expansion in our European patient has likely arisen from a separate founder effect to that seen in Japanese cases.

Discussion

These results suggest that European NIID cases arise through a separate pathophysiological process to East Asian patients despite both diseases converging on the same signature of abnormal intranuclear inclusions. These differences in genetic, clinical, and pathological features suggest that at least two distinct disease entities exist under the name NIID. While Far East cases are driven by repeat expansion in NOTCH2NLC, in the single patient of European ancestry diagnosed with NIID due to NOTCH2NLC repeat expansion, haplotype analysis suggested a separate, rarer, founder mutation than that in Japanese cases. Further characterization of the genetic associations with NIID in other populations would be important although we are limited in the number of cases available. We therefore propose new criteria for characterization of NII-associated disorders (Figure 2) distinguishing between diseases with primary and secondary NIIs partitioned by pathological and molecular features. Thus, our findings are important by showing that the NOTCH2NLC repeat expansion is not the only cause underlying NIID pathogenesis or NII formation.

Details are in the caption following the image

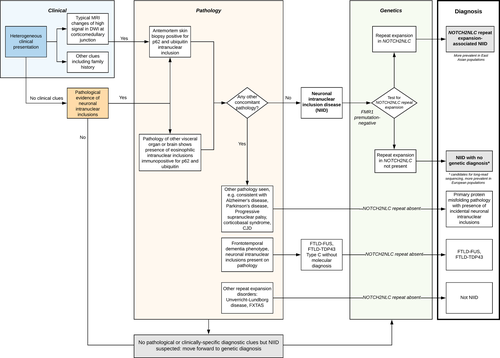

Proposed diagnostic criteria for neuronal intranuclear inclusion-related diseases. The classification is based on clinical, pathological and genetic criteria. MRI: Magnetic resonance imaging. DWI: diffusion-weighted imaging. CJD: Creutzfeldt-Jakob disease. FXTAS: Fragile X-associated tremor/ataxia syndrome. FTLD-FUS: frontotemporal dementia-fused in sarcoma subtype. FTLD-TDP43: frontotemporal dementia with transactive response DNA binding protein 43 kDa-positive inclusions.

Acknowledgments

The authors thank the participants and their families for their help with this work. We are grateful to Professor Shoji Tsuji, University of Tokyo, for his contribution of the positive control case from Japan for our study. The authors thank Professor Janice Holton from the Queen Square Brain Bank for reporting and identifying cases used for this paper. The authors thank the Neurological Tissue Bank of the Biobank-Hospital Clinic – IDIBAPS, Barcelona, Spain and Teresa Ximelis for sample and data procurement. We are grateful to Dr Rebecca Ormsby and the South Australian Brank Bank for providing samples. ZC was funded by a Leonard Wolfson Clinical Research Fellowship (Grant number 157793). ZJ is supported by the Department of Health’s NIHR UCLH/UCL Biomedical Research Centre’s funding scheme. AT is a Medical Research Council Clinician Scientist (MR/S006753/1). TL is supported by an Alzheimer’s Research UK Senior Fellowship. We would also like to thank the MSA Trust, Medical Research Council (MR/S01165X/1), Wellcome Trust (WT093205 MA and WT104033AIA), Ataxia UK and Rosetrees Trust for funding. This research was made possible through access to the data and findings generated by the 100,000 Genomes Project. The 100,000 Genomes Project is managed by Genomics England Limited (a wholly owned company of the Department of Health and Social Care). The 100,000 Genomes Project is funded by the National Institute for Health Research and NHS England. The Wellcome Trust, Cancer Research UK and the Medical Research Council have also funded research infrastructure. The 100,000 Genomes Project uses data provided by patients and collected by the National Health Service as part of their care and support.

    Genomics England Research Consortium

    Ambrose J. C.1, Arumugam P.1, Baple E. L.1, Bleda M.1, Boardman-Pretty F.1,2, Boissiere J. M.1, Boustred C. R.1, Brittain H.1, Caulfield M. J.1,2, Chan G. C.1, Craig C. E. H.1, Daugherty L. C.1, de Burca A.1, Devereau A.1, Elgar G.1,2, Foulger R. E.1, Fowler T.1, Furió-Tarí P.1, Hackett J. M.1, Halai D.1, Hamblin A.1, Henderson S.1,2, Holman J. E.1, Hubbard T. J. P.1, Ibáñez K.1,2, Jackson R.1, Jones L. J.1,2, Kasperaviciute D.1,2, Kayikci M.1, Lahnstein L.1, Lawson K.1, Leigh S. E. A.1, Leong I. U. S.1, Lopez F. J.1, Maleady-Crowe F.1, Mason J.1, McDonagh E. M.1,2, Moutsianas L.1,2, Mueller M.1,2, Murugaesu N.1, Need A. C.1,2, Odhams C. A.1, Patch C.1,2, Perez-Gil D.1, Polychronopoulos D.1, Pullinger J.1, Rahim T.1, Rendon A.1, Riesgo-Ferreiro P.1, Rogers T.1, Ryten M.1, Savage K.1, Sawant K.1, Scott R. H.1, Siddiq A.1, Sieghart A.1, Smedley D.1,2, Smith K. R.1,2, Sosinsky A.1,2, Spooner W.1, Stevens H. E.1, Stuckey A.1, Sultana R.1, Thomas E. R. A.1,2, Thompson S. R.1, Tregidgo C.1, Tucci A.1,2, Walsh E.1, Watter S. A.1, Welland M. J.1, Williams E.1, Witkowska K.1,2, Wood S. M.1,2, Zarowiecki M.1.

    1Genomics England, London, UK

    2William Harvey Research Institute, Queen Mary University of London, London, EC1M 6BQ, UK.

    Author Contributions

    ZC, WYY, and HH designed the study. ZC, WYY, SE, RS, FB, AF, and TB performed experimental analyses for the study. ZJ provided pathological interpretation and analysis of samples from QSBB. ZC, AT, PS, SAGT, KIG, DZ, JV, and MR carried out either the haplotype analyses, analyses of Genomics England data, provided by GERC and other data analyses. JH, TR, TL, MD, DWD, KAJ, EG, GGK, GH, DBR, IB PT, ASW, NCF, NWW, AJL, and MJH all provided pathological samples, or patient data. HH, ZC, WYY, and JV conceived and designed the study. HH, JV, and MR supervised the project. All authors discussed the results and contributed to the final manuscript.

    Conflict of Interest

    The authors declare no competing interests.
