Annals of Clinical and Translational Neurology

Volume 7, Issue 6 pp. 903-910

Research Article

Open Access

Serum neurofilament light chain in FTLD: association with C9orf72, clinical phenotype, and prognosis

Antti Cajanus,

Antti Cajanus

orcid.org/0000-0002-3676-8965

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Kasper Katisko,

Kasper Katisko

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Aleksi Kontkanen,

Aleksi Kontkanen

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Olli Jääskeläinen,

Olli Jääskeläinen

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Päivi Hartikainen,

Päivi Hartikainen

Neuro Center, Neurology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Annakaisa Haapasalo,

Annakaisa Haapasalo

orcid.org/0000-0003-0959-2957

A.I. Virtanen Institute for Molecular Sciences, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Sanna-Kaisa Herukka,

Sanna-Kaisa Herukka

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Neuro Center, Neurology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Ritva Vanninen,

Ritva Vanninen

Department of Radiology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Eino Solje,

Eino Solje

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Neuro Center, Neurology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Anette Hall,

Anette Hall

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Anne M. Remes,

Corresponding Author

Anne M. Remes

[email protected]

Unit of Clinical Neuroscience, Neurology, University of Oulu, Oulu, Finland

Medical Research Center, Oulu University Hospital, Oulu, Finland

Correspondence

Anne M. Remes, Faculty of Medicine, University of Oulu, Aapistie 5 A, FIN-90230 Oulu, Finland. Tel: +358 50 533 0090; E-mail: [email protected]

Search for more papers by this author

Antti Cajanus,

Antti Cajanus

orcid.org/0000-0002-3676-8965

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Kasper Katisko,

Kasper Katisko

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Aleksi Kontkanen,

Aleksi Kontkanen

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Olli Jääskeläinen,

Olli Jääskeläinen

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Päivi Hartikainen,

Päivi Hartikainen

Neuro Center, Neurology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Annakaisa Haapasalo,

Annakaisa Haapasalo

orcid.org/0000-0003-0959-2957

A.I. Virtanen Institute for Molecular Sciences, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Sanna-Kaisa Herukka,

Sanna-Kaisa Herukka

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Neuro Center, Neurology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Ritva Vanninen,

Ritva Vanninen

Department of Radiology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Eino Solje,

Eino Solje

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Neuro Center, Neurology, Kuopio University Hospital, Kuopio, Finland

Search for more papers by this author

Anette Hall,

Anette Hall

Institute of Clinical Medicine - Neurology, University of Eastern Finland, Kuopio, Finland

Search for more papers by this author

Anne M. Remes,

Corresponding Author

Anne M. Remes

[email protected]

Unit of Clinical Neuroscience, Neurology, University of Oulu, Oulu, Finland

Medical Research Center, Oulu University Hospital, Oulu, Finland

Correspondence

Anne M. Remes, Faculty of Medicine, University of Oulu, Aapistie 5 A, FIN-90230 Oulu, Finland. Tel: +358 50 533 0090; E-mail: [email protected]

Search for more papers by this author

First published: 22 May 2020

https://doi.org/10.1002/acn3.51041

Citations: 22

Funding Information

This study has received funding from Finnish Medical Foundation, Finnish Alzheimer’s Disease Research Society, Olvi Foundation, Maire Taponen Foundation, Päivikki and Sakari Sohlberg Foundation, Finnish Cultural Foundation, Maud Kuistila Memorial Foundation, University of Oulu, Kuopio University Hospital and Academy of Finland (no. 315459, AH; no. 315460, AMR). This study is part of the FinFTD network research activities.

Share a link

Email
Wechat
Bluesky

Abstract

Objective

The aim of the present study was to compare the levels of serum neurofilament light chain (sNfL) in frontotemporal lobar degeneration (FTLD) patients of different clinical subtypes (bvFTD, PPA, and FTLD-MND) and with or without the C9orf72 repeat expansion, and to correlate sNfL levels to disease progression, assessed by the brain atrophy rate and survival time.

Methods

The sNfL levels were determined from 78 FTLD patients (C9orf72 repeat expansion carriers [n = 26] and non-carriers [n = 52]) with Single Molecule Array (SIMOA). The progression of brain atrophy was evaluated using repeated T1-weighted MRI scans and the survival time from medical records.

Results

In the total FTLD cohort, sNfL levels were significantly higher in C9orf72 repeat expansion carriers compared to non-carriers. Considering clinical phenotypes, sNfL levels were higher in the C9orf72 repeat expansion carriers than in the non-carriers in bvFTD and PPA groups. Furthermore, sNfL levels were the highest in the FTLD-MND group (median 105 pg/mL) and the lowest in the bvFTD group (median 27 pg/mL). Higher sNfL levels significantly correlated with frontal cortical atrophy rate and subcortical grey matter atrophy rate. The higher sNfL levels also associated with shorter survival time.

Interpretation

Our results indicate that the C9orf72 repeat expansion carriers show elevated sNFL levels compared to non-carriers and that the levels differ among different clinical phenotypes of FTLD. Higher sNfL levels correlated with a shorter survival time and cortical and subcortical atrophy rates. Thus, sNfL could prove as a potential prognostic biomarker in FTLD.

Introduction

Frontotemporal lobar degeneration (FTLD) is a neuropathological umbrella term including various clinical, genetic, and histopathological subtypes. The most common clinical phenotype is the behavioral variant frontotemporal dementia (bvFTD). Other main phenotypes consist of primary progressive aphasias (PPA) that further are divided into non-fluent primary progressive aphasia (nfvPPA), semantic variant primary progressive aphasia (svPPA), and logopenic variant primary progressive aphasia (lvPPA).^{1, 2} Of predisposing genetic causes of familial FTLD, the C9orf72 hexanucleotide repeat expansion is the most common in different populations.^{3, 4} The C9orf72 repeat expansion is associated with TDP-43 neuropathology.⁵ This mutation is also associated with amyotrophic lateral sclerosis (ALS) and especially with the FTLD clinical phenotype concomitantly presenting with motoneuron disease (FTD-ALS or FTD-MND).^6-8

Due to diagnostic challenges and variability in disease progression, specific diagnostic and prognostic biomarkers are needed for FTLD. Also, considering future therapeutic trials, appropriate biomarkers are essential for determining the adequate time to start the treatment and for evaluation of treatment effects.

Neurofilaments are intracellular intermediate filaments present in the central and peripheral nervous systems, which form assemblies that maintain the shape and diameter of neuronal axons, thus regulating the response of the neurons to different stimuli.⁹ Upon axonal damage, neurofilaments can leak out of the neurons to the extracellular space, and eventually end up in blood. Neurofilament light chain (NfL) is a subunit of the intracellular neurofilament assemblies, and its elevated concentrations in blood and cerebrospinal fluid (CSF) have been associated with neuroinflammation and axonal damage.^{10, 11} Elevated levels of CSF and serum NfL (sNfL) have been reported in several neurodegenerative conditions, such as FTLD, Alzheimer’s disease, (AD) and multiple sclerosis (MS), and also after head trauma and ischemic stroke, suggesting that it is a non-specific biomarker for these conditions.^12-21 In FTLD, CSF and serum NfL levels have been shown to vary between distinct clinical phenotypes and higher concentrations have been associated with a more aggressive disease progression and greater rate of brain atrophy.^{15, 22, 23} Previous reports indicate that CSF and serum NfL concentrations correlate well with each other, proposing that sNfL may represent a potential minimally invasive biomarker for early diagnostic and prognostic purposes.¹⁸

In this study, the aim was to analyze the sNfL levels in FTLD patients having different clinical phenotypes with and without the C9orf72 repeat expansion using the ultrasensitive SIMOA assay. Carriers and non-carriers of the C9orf72 repeat expansion were analyzed separately since carriers are associated with TDP-43 pathology and the certainty of the FTLD diagnosis is considered definite. Given that sNfL is a non-specific biomarker for neuronal damage, we defined the characteristic levels of sNfL in different clinical phenotypes and genotypes of FTLD. Furthermore, we examined the prognostic value of sNfL by measuring how the sNfL levels correlate to brain atrophy rates and survival time in FTLD patients.

Materials and Methods

Patients

We examined a total of 78 subjects with FTLD including patients with a diagnosis of bvFTD (n = 54), PPA (n = 19), and FTD-MND (n = 5). The study was conducted and patients were recruited at Kuopio University Hospital, Finland. The diagnoses of neurodegenerative diseases were set by an experienced neurologist specialized in memory disorders according to the most recent standard criteria^{1, 2}. For bvFTD, only patients fulfilling the clinical diagnostic criteria of probable (n = 35) or definite (n = 19) bvFTD were included. Patients were excluded if they had obvious other brain disorders or trauma that could affect cognitive functions, such as stroke or tumor. To evaluate disease progression, time from the FTLD diagnosis to death was calculated for those patients that died in the course of the study (N = 44).

The ethics committee of the Northern Savo Hospital District approved the research protocol in accordance with the principles of the Declaration of Helsinki. Written informed consent was obtained from all participants prior to enrollment.

Laboratory analyses

Genomic DNA was extracted from venous blood samples using QIAamp DNA blood mini extraction kit (QIAGEN). The blood sample was obtained in the early diagnostic phase. The presence of the C9orf72 repeat expansion was detected using Repeat-Primed PCR (RP-PCR)³. Patients were considered positive for the C9orf72 repeat expansion if the number of repeats were ≥ 30 and negative if the number of repeats was < 30. SNfL concentration and the genetic status of C9orf72 repeat expansion were determined from all patients; 26 were carriers and 52 non-carriers for the repeat expansion. Mutations in the other FTLD-associated genes were not systematically screened because the prevalence of these mutations is very low in Finnish patients.^24-26

Frozen (−80˚C) serum samples were thawed in room temperature, mixed, centrifuged (10,000g, 5 min, at room temperature), and transferred to a 96-well plate. The sNfL was quantified using a NfL Advantage kit (REF#: 102258) for the Quanterix single molecule array (SIMOA, Lexington, MA, USA) according to the manufacturer’s instructions.²⁷ All measured values were within the calibration range. The mean intra-assay CV was 4.6% and the inter-assay CV was 13.9%.

MRI acquisition and quantification

The MRI examinations were performed with 3.0 T (n = 17) or 1.5 T (n = 24) scanners in the early diagnostic phase. Three-dimensional T1-weighted gradient echo sequences were acquired with the slice thickness varying from 1 to 1.5 mm. An appropriate cross-sectional 3D T1-weighted MRI scan was available for 41 patients, of whom 15 were C9orf72 repeat expansion carriers and 26 non-carriers. Longitudinal data from repeated scans were available for 11 patients. There were six C9orf72 repeat expansion carriers and five non-carriers having repeated scans. The time between the scans varied from 8 to 42 months, with a mean of 23 months.

The scans were preprocessed and analyzed using Freesurfer version 6.0.0 image analysis suite. The precise pipeline is demonstrated in http://surfer.nmr.mgh.harvard.edu. In short, processing includes motion correction and averaging of multiple volumetric T1-weighted images, removal of non-brain tissue using a hybrid watershed/surface deformation procedure, automated Talairach transformation, segmentation of the subcortical white matter and deep grey matter volumetric structures, intensity normalization, tessellation of the grey matter white matter boundary, automated topology correction, and surface deformation following intensity gradients to optimally place the grey/white and grey/cerebrospinal fluid borders at the location where the greatest shift in intensity defines the transition to the other tissue class. Cortices were parcellated with Desikan atlas, and thicknesses of cerebral lobes were merged as defined in the original publication.²⁸ Subcortical segmentation was performed using probabilistic atlas.²⁹ Freesurfer morphometric procedures have been demonstrated to show good test–retest reliability across scanner manufacturers and field strengths,³⁰ and thus we permitted the use of heterogeneous field strength.

To extract reliable volume and thickness estimates, images were automatically processed with the longitudinal stream³¹ in FreeSurfer. Specifically, an unbiased within-subject template space and image is created using robust, inverse consistent registration.³² Several processing steps, such as skull stripping, Talairach transformations, atlas registration as well as spherical surface maps and parcellations, are then initialized with common information from the within-subject template, significantly increasing reliability and statistical power.³¹

Cortical measures are presented as a mean of cortical thicknesses. Subcortical grey matter structures of interest are presented as volumes. Volumes were corrected for total intracranial volume by simple division. Brain atrophy rates were calculated by subtracting baseline MRI measures from the follow-up scan measures and dividing the remainder by baseline. Atrophy rates were then annualized using the time between scans:

$urn:x-wiley:23289503:media:acn351041:acn351041-math-0001$

Statistical analysis

Mean scores of demographic and neuropsychological data were compared across the genetic groups (C9orf72 repeat expansion carriers vs. non-carriers) with t-test. Chi-square analysis was used for differences in gender distribution. Differences in sNfL levels between carriers and non-carriers of the C9orf72 repeat expansion and between bvFTD and PPA were analyzed with the Mann–Whitney U-test.

Given the statistically significant correlation between sNfL and age (P = 0.026), regression analyses using age as a covariate were conducted. For regression analyses, sNfL values were log-transformed to deal with skewed data.

The difference between sNfL levels according to C9orf72 genetic status and clinical phenotype was evaluated using a multivariate linear regression model with age as a covariate.

A comparison of cortical thickness between the two genetic groups was performed with a t-test and correlation between sNfL levels and cortical thickness with Pearson's correlation. Correction for multiple comparisons was performed with FDR < 0.05 correction.

Association of sNfL and C9orf72 genetic status with survival after disease onset was assessed using a multivariate cox regression model. The regression model was adjusted for age at disease onset. All tests were two-sided and the standard statistical significance level was set at P < 0.05. Data were analyzed using SPSS 25.

Results

The patients carrying the C9orf72 repeat expansion were on average 5.3 years younger than those not carrying the repeat expansion (P = 0.008) (Table 1). The groups did not differ in gender distribution or the clinical severity of the disease as measured by MMSE and ADCS-ADL tests (Table 1).

Table 1. Demographic and clinical data.

	C9orf72 pos	C9orf72 neg	Total	P value
N (%)	26 (34)	52 (67)	78
Gender, female n (%)	13 (50)	29 (56)	42 (54)	0.630
Age (SD)	61.9 (9.4)	67.2 (7.6)	65.5 (8.6)	0.008
Serum NfL, pg/mL, mean (SD)	78 (115)	40 (35)	53 (74)	0.039
MMSE (SD)	22 (5.7)	24 (3.6)	23 (4.7)	0.302
ADCS-ADL (SD)	58 (17)	55 (15)	57 (15)	0.267
bvFTD, n (%)	19 (36)	35 (65)	54 (100)	0.739
PPA, n (%)	5 (26)	14 (74)	19 (100)
FTLD-MND, n (%)	2 (40)	3 (60)	5 (100)

ADCS-ADL, Alzheimer’s Disease Co-operative Study-Activities of Daily Living; bvFTD, Behavioral Variant Frontotemporal Dementia; FTLD-MND, Frontotemporal Lobar Degeneration with Motoneuron disease; MMSE, Mini Mental State Examination; NfL, Neurofilament light chain; PPA, Primary Progressive Aphasia.

Serum NfL levels are higher in C9orf72 repeat expansion carriers than in non-carriers

In the total FTLD cohort, SIMOA-based analysis of the sNfL levels indicated that sNfL concentration median was 10 pg/mL higher in the C9orf72 repeat expansion carriers compared to non-carriers (median 40 pg/mL vs. 30 pg/mL, p_MWU = 0.039). In the bvFTD group, sNfL levels did not differ between the carriers and non-carriers (median 33 pg/mL vs. 27 pg/mL, p_MWU = 0.24). In contrast, in the PPA group, sNfL concentration was significantly higher in C9orf72 repeat expansion carriers than in the non-carriers (median 87 pg/mL vs. 37 pg/mL, p_MWU = 0.019). Also, in the FTLD-MND group, C9orf72 expansion carriers had higher levels of sNfL compared to non-carriers, but the sample size was insufficient for reliable statistical comparison (median 106 pg/mL vs. 54 pg/mL).

Since the C9orf72 repeat expansion carriers were significantly younger and the sNfL levels showed a strong correlation with age (R_P = 0.22, P = 0.026), we performed similar comparisons as above with multivariate linear regression analyses using age at the time of blood sample as a covariate, to take the effect of age into account. After the correction, the C9orf72 repeat expansion carriers in the total group had a higher concentration of sNfL to non-carriers (β = 0.35, P = 0.002). Moreover, the C9orf72 repeat expansion carriers had higher sNfL concentrations in the bvFTD group (β = 0.30, P = 0.039) as well as in the PPA group (β = 0.59, P = 0.008) as compared to the non-carriers (Fig. 1).

Details are in the caption following the image — **Figure 1**
Open in figure viewer PowerPoint

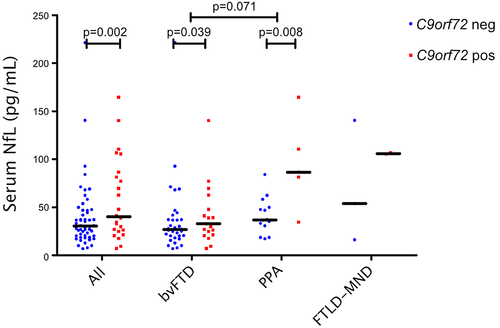

SNfL concentrations of FTLD patients displaying different clinical phenotypes and grouped according to the *C9orf72* repeat expansion genetic status. Blue dots represent repeat expansion non-carriers (*C9orf72* neg) and red squares carriers (*C9orf72* pos). Black horizontal lines indicate a group median. The P values displayed stem from the linear regression model with sNfL log-transformed and age as a covariate. Statistical testing among the FTLD-MND group and other groups was not done due to insufficient sample size.

Serum NfL levels in patients with different FTLD clinical phenotypes

We observed that the highest sNfL levels were present in the FTLD-MND group (median 105 pg/mL), the second highest in the PPA group (median 47 pg/mL) and the lowest in the bvFTD group (median 27 pg/mL). The difference between the bvFTD and PPA groups was statistically significant (p_MWU = 0.017). Statistical difference between FTLD-MND and the two other groups was not assessed due to insufficient sample size in the FTLD-MND group.

In the regression model using age as a covariate, the PPA groups had higher sNfL levels compared to bvFTD, but the difference was not statistically significant (β = 0.21, P = 0.071) (Fig. 1).

Serum NfL levels associated with shorter survival time

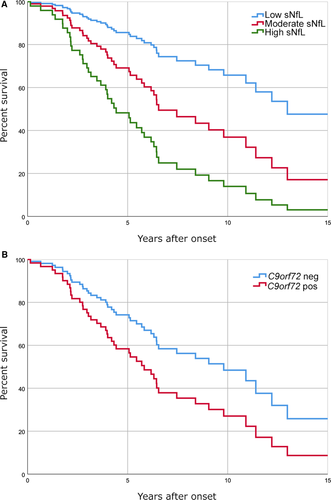

A total of 44 patients died during the follow-up time of the study. Fifteen of them were C9orf72 repeat expansion carriers (58 % of all carriers) and 29 non-carriers (56 % of all non-carriers). The mean time from diagnosis to death was 4.4 (SD 3.5) years for carriers and 5.6 (SD 4.2) years for non-carriers (P = 0.32). Higher sNfL levels associated with shorter survival time (β = −0.47, P = 0.002), in both carriers (β = −0.57, P = 0.035) and non-carriers (β=−0.38, P = 0.044) of the C9orf72 repeat expansion. When dividing the whole cohort in three equally sized subgroups according to sNfL levels (low < 26.1 pg/mL, moderate 26.1–44.4 pg/mL, and high> 44.4 pg/mL), the survival was significantly shorter in the groups with the highest sNfL levels (HR 4.7, CI 95% 2.1–10.5, P < 0.001) and moderate sNfL levels (HR 2.4, CI 95% 1.0–5.6, P = 0.047) compared to the group with the lowest sNfL levels (P < 0.001) (Fig. 2A). Carriers of the C9orf72 repeat expansion showed a trend of shorter survival compared to non-carriers; however, the difference was not statistically significant (HR 1.8, CI 95% 0.93–3.5, P = 0.080) (Fig. 2B).

Association of serum NfL levels to cortical thickness and subcortical volume

First, the differences from baseline MRI scans in cortical thickness and subcortical volume between the C9orf72 repeat expansion carriers and non-carriers were evaluated cross-sectionally at the time of the diagnosis. There were no significant differences neither in the cortical thickness nor in the subcortical structure volumes between these groups. Interestingly, in a cross-sectional correlation analysis on baseline MRI scans, a negative correlation between mean cortical thickness and sNfL concentration was found (R_P = −0.26, P = 0.048).

Next, we tested whether the sNfL concentration correlated with brain atrophy rates, that is, the progression of atrophy based on repeated MRI measures (Table 2). The overall cortical atrophy rate was found to significantly correlate with elevated sNfL levels (R_p = −0.64, P = 0.018). Of separate brain lobes, only frontal lobe atrophy rate was observed to correlate with a higher sNfL concentration (R_P = −0.72, P = 0.006). Furthermore, when correlating subcortical grey matter structures, there was a significant correlation between sNfL levels and the atrophy rate of the thalamus (R_p = −0.61, P = 0.024), caudate (R_p = −0.62, P = 0.022), pallidum (R_p = −0.73, P = 0.005), and putamen (R_p = −0.70, P = 0.008). Also, atrophy of the overall subcortical grey matter correlated with sNfL levels (R_p=−0.68, P = 0.011). All the statistically significant correlations between longitudinal MRI measures and sNfL levels survived the FDR < 0.05 correction for multiple comparisons.

Table 2. Correlation of sNfL levels to cortical and subcortical grey matter atrophy rates.

	Mean atrophy rate, % (SD)	Corr. with sNfL levels (R_p)	P value
Cortical Grey Matter	−1.9 (2.7)	−0.64	0.018
Frontal	−3.0 (3.6)	−0.72	0.006
Temporal	−1.3 (2.3)	−0.38	0.122
Parietal	−1.1 (2.9)	−0.48	0.069
Occipital	1.3 (6.0)	−0.21	0.264
Cingulate	−2.8 (3.6)	−0.36	0.142
Subcortical Grey Matter	−4.1 (3.9)	−0.68	0.011
Thalamus	−5.5 (5.3)	−0.61	0.024
Caudate	−4.3 (5.2)	−0.62	0.022
Putamen	−2.8 (3.6)	−0.70	0.008
Pallidum	−1.5 (3.7)	−0.73	0.005

Discussion

The sNfL levels in FTLD patients with bvFTD, PPA, and FTLD-MND phenotypes were higher in the C9orf72 repeat expansion carriers compared to non-carriers. In addition, the sNfL levels were the highest in patients with FTLD-MND and the lowest in bvFTD patients. Also, the elevated sNfL levels were proven to correlate with higher cortical and subcortical atrophy rates. Moreover, higher sNfL levels also associated with a shorter survival time. Altogether, our data suggest that higher sNfL levels associate with the C9orf72 repeat expansion and worse disease prognosis.

Our results are in line with previous findings. Previously, higher levels of CSF and serum NfL have been reported in FTLD patients carrying the C9orf72 repeat expansion compared to non-carriers.^{22, 23, 33} Also, after the onset of symptoms, sNfL levels do not change over time and remain elevated in sporadic FTLD patients, as well as FTLD patients with the C9orf72 repeat expansion.^{20, 23} Previous studies have also shown, that genetic mutations causing TDP-43 neuropathology (C9orf72 and progranulin) tend to higher NfL levels and faster rate of neurodegeneration compared to tau pathology.^{5, 15, 22, 34} Notably, in our cohort, higher sNfL levels were strongly associated with atrophy of the frontal cortex and subcortical grey matter structures, as seen also in previous studies.^{20, 22} One previous study observed a similar association between elevated sNfL and brain atrophy among bvFTD patients, but not with patients with AD.²⁰ This could be explained by the degeneration of abundant neural connections originating from subcortical grey matter structures, as more prominent degeneration of these structures is seen in FTLD compared to AD.³⁵ Also, pathology-specific analyses are needed to unveil whether the elevated NfL levels are only associated with certain underlying pathologies or certain areas of the cerebrum or both.

Elevated CSF and blood NfL levels compared to healthy controls, and sNfL levels’ association to disease severity and progression have also been found in several other neurodegenerative conditions involving axonal damage.^{12-14, 19, 36-39} These results indicate that NfL measured from blood has poor differential diagnostic value among neurodegenerative diseases.⁴⁰ Due to the lack of specificity of the elevated sNfL levels between different neurodegenerative diseases, the diagnostic potential of sNfL may be restricted to discriminating neurodegenerative conditions from their non-neurodegenerative mimics. For example, disparate sNfL levels could be used to differentiate FTLD from psychiatric conditions, as suggested by our previous study.⁴¹ However, according to the present and previous findings, sNfL levels show great clinical potential as a non-specific prognostic tool in various neurodegenerative conditions, including FTLD.^{16, 23, 42}

We also evaluated the differences in sNfL levels between distinct clinical phenotypes of FTLD. Previously, similar evaluations have been made with CSF-derived NfL^{33, 34} and also with sNfL.²² Our results with sNfL are in accordance with the previous studies and indicate that FTLD-MND patients harbor the highest sNfL levels, patients with PPA the second highest, and bvFTD patients the lowest levels. The difference in the levels of sNfL between C9orf72 repeat expansion carriers and non-carriers was apparent in patients manifesting with PPA and bvFTD clinical phenotypes. Also, the FTLD-MND group showed a similar trend that the C9orf72 repeat expansion carriers had higher sNfL levels as compared to non-carriers. However, the sample size of this group of patients was insufficient for statistical testing.

The greatest strength of our study is the large patient cohort considering the number of the C9orf72 repeat expansion carriers and non-carriers with different clinical phenotypes of FTLD. All the patients were diagnosed according to the revised diagnostic criteria by an experienced neurologist specialized in memory disorders. A limitation in the present study is that healthy controls or asymptomatic C9orf72 repeat expansion carriers were not available for evaluating the increase in sNfL levels between patients and controls or between pre-symptomatic and symptomatic C9orf72 repeat expansion carriers.

In conclusion, we observed that C9orf72 repeat expansion carriers are characterized by higher sNfL levels as compared to non-carriers and that the sNfL levels differed among different clinical phenotypes of FTLD, with the highest levels detected in FTLD-MND, the second highest in PPA, and the lowest levels in bvFTD patients. Higher sNfL levels also correlated with a shorter survival time as well as more severe cortical and subcortical atrophy rates. Therefore, sNfL levels could be considered as a biomarker of disease progression and as a potential minimally invasive prognostic tool in FTLD.

Acknowledgments

Authors’ Contributions

AC, KK, ES, AH, and AMR contributed to the study concept and design. AC, KK, ES, AH, AMR, AK, OJ, PH, AKH, and SKH were involved in data acquisition and analysis. All authors contributed to drafting the manuscript and accepted the final manuscript.

Conflicts of Interest

Dr. Haapasalo reports grants from Academy of Finland, during the conduct of the study. Other authors have no conflicts of interest to be reported.
