2.1. Case 1

A 40-year-old female was referred to the hepatology clinic for chronic left upper quadrant abdominal pain, attributed to NCPH–related splenomegaly, secondary to a portal vein thrombosis (PVT) from perinatal insult diagnosed at age 14. The patient had two previous episodes of variceal hemorrhage during her adolescence, which were managed through variceal banding. Her treatment for PVT had included anticoagulation with warfarin, which was later discontinued due to evidence of PVT recanalization on serial imaging and normal thrombophilia testing.

Previously, the management of her painful splenomegaly involved high doses of oral opiates, up to 100 mg morphine equivalent per day, a spinal cord stimulator, and nine hospital admissions for ketamine infusions. Despite these interventions, her pain remained poorly controlled, significantly negatively impacting her quality of life.

Initial assessment with computerized tomography (CT) demonstrated splenomegaly measuring 158 mm in the craniocaudal dimension, two splenic artery aneurysms, the largest measuring 21 × 15 mm, and multiple splenorenal varices (Figure 1). Given the absence of a physical shunt or significant intraabdominal collaterals, a surgical shunt was not considered. Instead, the patient underwent PSE with insertion of coils and lipoidal with the anticipated outcome being a reduction in splenic volume and improvement in pain.

The procedure was complicated by postembolization syndrome, resulting in an acute worsening of pain and nausea, necessitating a nine-day hospital admission for symptom management. In the follow-up CT scan five months postprocedure, there was a 70% reduction in blood flow and a decrease in spleen size to 88 mm in the craniocaudal dimension. During the initial three-month review, the patient had complete resolution of her pain with no further requirement for opiates. This benefit has persisted during subsequent follow-up assessments at 15 months.

2.2. Case 2

A 54-year-old female with NCPH, due to pregnancy-related PVT at the age of 39, was referred to the hepatology clinic for management of worsening painful splenomegaly.

The patient’s NCPH was complicated by painful splenomegaly, Grade 1 esophageal varices without complicating hemorrhage, and no cytopenias. During subsequent workup, the patient was found to be JAK2 positive and confirmed to have myeloproliferative neoplasm favoring myelofibrosis on a bone marrow biopsy.

Previous treatment for the NCPH had included warfarin for 2 years. This was subsequently ceased due to labile INR and patient preference. Patient’s pain was managed with regular oral opiates and one hospital admission for acute pain crisis. The pain was reported as severe on most days limiting the patient’s ability to carry out her activities of daily living and work.

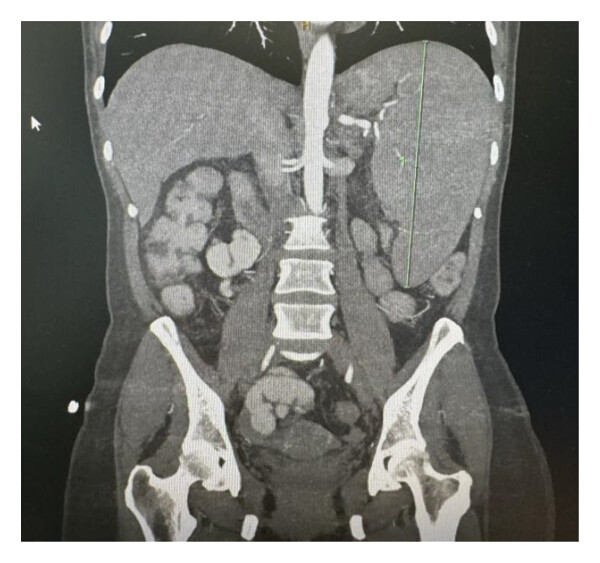

This patient underwent PSE with a 12 mm Amplatzer plug into the midsplenic artery. The procedure was uncomplicated, and the patient was discharged at 24 h postprocedure. On the initial 3-month review, the splenic diameter had reduced from a maximal craniocaudal dimension of 203 mm to 176 mm, with multiple small areas of splenic infarction (Figure 2). The patient had a complete resolution of her chronic pain syndrome with no further reliance on oral analgesia.

For the management of her myeloproliferative neoplasm, the patient was commenced on aspirin to prevent thrombotic complications. In the absence of cytopenias or constitutional symptoms, cytoreductive therapy was not commenced.
