2.1. Materials

Epoxy resin of grade LY556 was chosen as a binder for the formation of matrix with fibers. The hardener selected was HY951. Both were mixed in the ratio 10 : 1 (Resin: Hardener) for facilitating the polymerization process. At present, a specially designed machine exists for the extraction of banana fibers. It consists of horizontal beams which have a carriage attached to them. It has also a specially designed comb. First, the fibers are placed on a platform which is clamped by jaws. Then it was dried and cleaned at a temperature of 200°C for three hours. Once the process is completed, it is sent to industries for weaving into required patterns. The pineapple fibers are crushed, washed, and brushed with combs to separate the fiber. Finally, the fibers were spun by using chakra. Lastly, it is sent to industries for weaving in a required pattern. Basalt fiber was kept in the outer layer of the composites. In all of the manufactured composites, the basalt fiber is kept at the outer layer. The properties of banana and pineapple fibers are shown in Table 1. All the fibers were obtained from Go green composites, Chennai.

2.2. Manufacturing of Composites

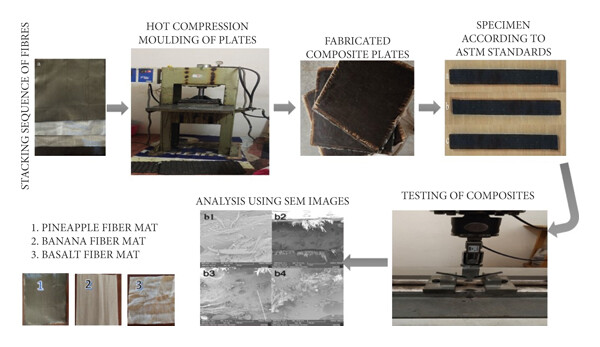

Composites containing stacking sequences were manufactured by hand layup process. In the present work, five layers of fibers were with basalt fiber at the outer ends. The other two layers were stacked with banana or pineapple fibers according to the required sequences which are tabulated in Table 2. The different layers of the fibers were manufactured using epoxy resin and hardener with a ratio of 10 : 1. The outer edges were covered with basalt fibers which provide a better load carrying capacity. The stacking sequence carried out is very much similar to Sanjay et al. [11] neglecting the stacking sequence. When the required stacking sequence was completed, a load of 25 kg was applied over the surface and it was cured at room temperature for one day as shown in Figure 1.

2.3. Characterization of Manufactured Composites

The tensile strength of the manufactured composites was analyzed according to the ASTM D638-14. The tensile tests were done at a strain rate of 0.5 mm/min using a Universal Testing Machine (Manufacturer: Kalpak, Pune with a capacity of 100 KN). The flexural strength of the manufactured composites was evaluated using the three-point bending test according to ASTM D790-10 at a displacement rate of 2 mm/min. The three-point bending test was carried out with a roller support of size 30 mm. The impact strength of the manufactured composites was estimated according to ASTM D256-10 using a computerized impact testing machine. The specimen size for impact testing is 55 × 55 mm. The hardness of the manufactured composite was measured using Shore D hardness according to ASTM D2250-15. The flammability tests of the composites were carried out according to ASTM D635. The fractured specimen of tensile samples was cut into 10 × 10 mm to study its characteristics. The samples were gold-sputtered to make them conductive. All the tests were carried out thrice, and the average value was noted.

3.1. Tensile Strength

The tensile strength of any fiber depends on characteristics such as the strength of the fiber, the orientation in which the fibers are placed and the sequence of the fibers in which they are arranged. Failure during the test depends on how cracks develop on the surface during the test [12]. Figure 2 shows the tensile strength of the manufactured composites. The tensile strength of the C-4 composite was 1.16 times higher than that of the C-2 composite, 1.28 times higher than that of the C-3 composite, and 1.37 times higher than that of the C-1 composite. The tensile strength of the composite C-4 is 282.8 MPa. When the high strength fibers are kept on the layer of the skin, they result in better tensile strength characteristics. Similar kinds of results were reported by Jawaid et al. [12] in the case of oil palm fruit fibers and jute fibers where there is an increase in tensile strength when the high strength jute fibers are kept at the outer layer.

The tensile strength of the fiber depends on the cellulose content of the fiber [13]. When the content of cellulose was higher, the tensile strength increased. In the current study, pineapple fiber has a higher content of cellulose, which is a reason for improving the tensile strength characteristics. This results in a greater degree of polymerization with the matrix and the resistance from tension. A similar increase in tensile strength characteristics was also reported by Islam et al. [14] in the case of kenaf/coir polymer composites in which the higher cellulose content in kenaf resulted in enhanced tensile strength characteristics.

The better bonding between the fiber and matrix also played a vital role in determining the tensile strength characteristics. Jawaid et al. [12] also reported that there is an increase in tensile strength when there is a proper bonding between matrix and fiber. In the case of C-4 composites, there will be a proper bonding between the matrix and fiber as shown in Figure 3(a).

3.2. Flexural Strength

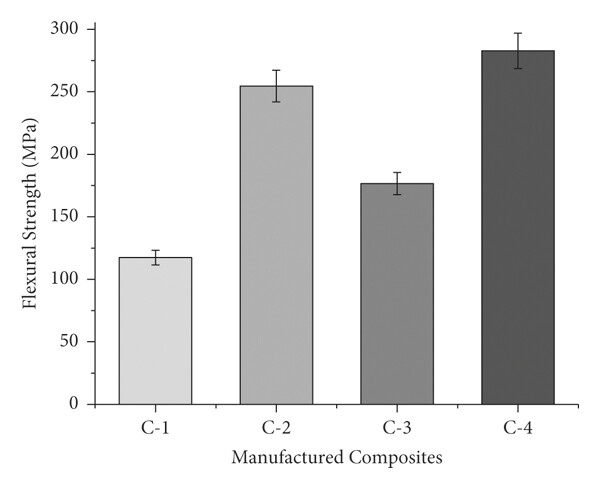

The flexural test is usually performed to study the stiffness of the composites. During the flexural testing, the tensile force acts at the bottom, while compression at the top layer and shear at the middle section, which results in higher values when compared to tensile tests. In the case of flexural testing, most of the stress is carried by the outer layer. The proper bonding between fiber and matrix also results in increase in flexural strength [15]. The flexural strength of the manufactured composite is shown in Figure 4. The flexural strength of the C-4 composite is more followed by C-3, C-2, and C-1 composites. The raise in flexural properties of the C-4 composite is due to the good adhesion between the fibers and the matrix. During the flexural testing, the outer layer undergoes tensile stress while the inner layer undergoes compressive stress. The presence of high strength fiber at the skin layer results in more flexural strength values. The observed results also get matched with the results suggested by Nampoothiri et al. [16]. The presence of higher moisture content in banana fiber resulted in less flexural strength values in the case of C-1 composites. The presence of moisture content makes the bonding between the fibers a weaker one and makes delamination easier which results in poor flexural strength values as shown in Figure 3(b). Jawaid et al. [17] also concluded that placing high strength fiber at the skin layer increases the flexural strength considerably.

3.3. Impact Strength

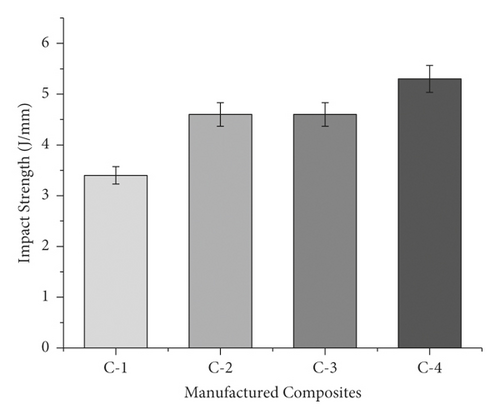

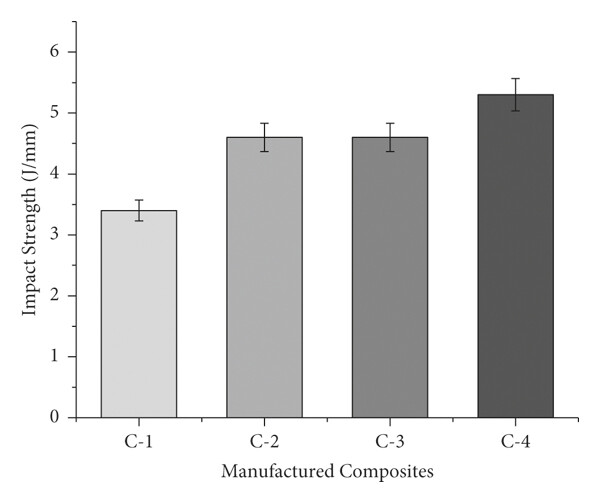

The impact nature of any composite depends on the energy absorbed during the fracture. The Izod impact test was used to measure energy-absorbing characteristics. The energy absorbed by a composite depends on factors such as chemical composition of the fiber, the interface between the matrix and the fiber, the sequence of stacking, and the conditions for testing [18]. Pure fiber has better energy-absorbing properties in all directions as the stacking sequence is made up of the same fiber [19]. The energy absorbed by the manufactured composite is shown in Figure 5. Figure 5 shows that the C-2 composite has higher energy-absorbing characteristics before it breaks down. The results obtained are very similar to those reported by Devi et al. [20] where pure pineapple fiber has improved energy-absorbing characteristics. In the case of C-1 composite, the energy absorbed is much less which makes it necessary to stack the fiber. Jothibasu et al. [18] also suggested that the fibers with less energy-absorbing capacity could be improved by hybridizing them. When banana fiber is hybridized with pineapple fiber, there is an improvement in energy-absorbing properties. In the current study, the composite C-4 manufactured is suitable for energy-absorbing properties due to the increased amount of pineapple fibers in the composite. From the previous literature survey, it can be concluded that the impact is also dependent on the manufacturing process and from where the fiber is extracted.

3.4. Shore D Hardness

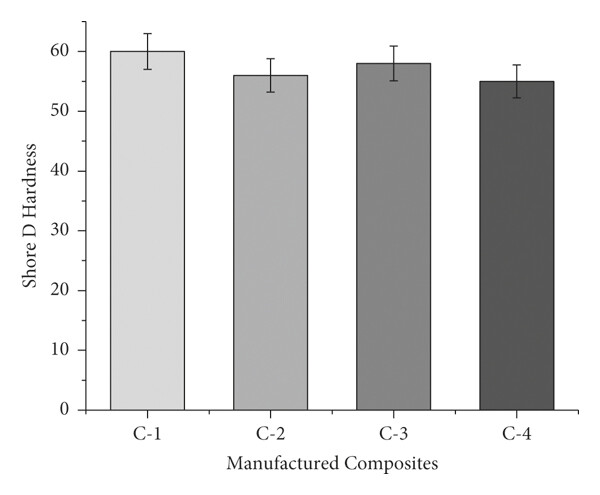

The term hardness is defined as surface indentation resistance. Figure 6 shows the Shore D hardness of the manufactured composites. In the current study, the C-1 composite has a higher level of Shore D hardness. The Shore D hardness of the C-1 composite is more due to the presence of stiffer banana fiber at the core and outer layers which prevents the indentation resistance. Similar results have also been reported by Bharath et al. [21].

3.5. Flammability Tests

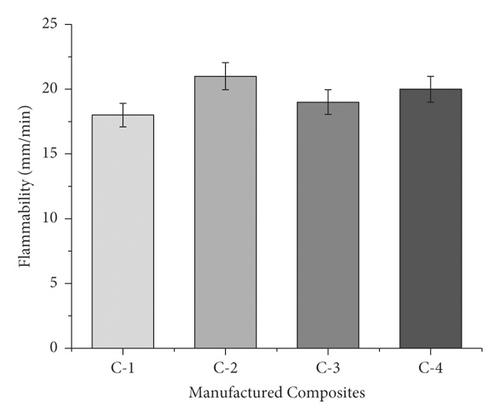

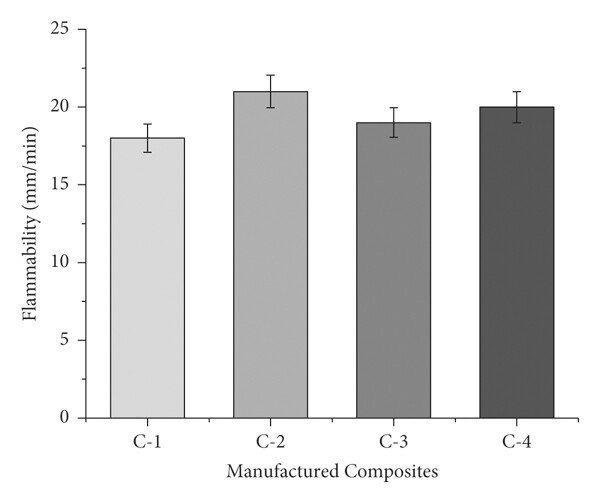

The flammability of the composites depends on the chemical nature of the fiber and its properties. Fiber decomposition occurs when exposed to heat. The flammability test values for the manufactured composites are shown in Figure 7. Both the selected fibers have a meager amount of difference in the cellulose content. Figure 6 shows that C-2 composites are more flammable resistant. The presence of more moisture content is the primary reason for the increase in flammability properties. The order of flammability characteristics are C-2, C-4, C-3 and C-1 composites. Among the manufactured composites, the composite C-1 was more resistant to flammability due to the presence of more amount of moisture content in the composite [22, 23].

3.6. Morphological Characteristics

Figure 3(a) shows the SEM image of the C-4 composite. There is a better bonding between the matrix and the fiber which improved the tensile characteristics. This property has resulted C-4 composite as the best one among the other manufactured composites. Figure 3(b) shows the SEM image of the C-1 composite. A similar kind of increase in strength due to the better bonding between matrix and fiber was also reported by Ramnath et al. [7]. The presence of less amorphous content in the case of C-4 composites resulted in better bonding characteristics. The banana fiber showed more pull out and debonding when compared with pineapple fibers. Due to this debonding and pull out of fibers there was a decrease in several properties. The decrease in properties is also due to more amount of amorphous content which reduced the bonding nature of fiber also leading to a decrease in properties. Due to this debonding, the presence of cracks and voids can be seen on the surface. Vijay and Singaravelu [8] also reported that there was a decrease in properties when there is poor bonding between matrix and fiber. Thus, the output of morphological characteristics gets matched with the experimental results.
