Abstract

Medicinal plants are composed of a rich pool of biomolecules and have been increasingly recognized for their antimicrobial properties; however, increasing concerns have been put on the bioavailability features. Thus, this study is aimed at exploring the synthesis and characterization of silver nanoparticles synthesized by Chenopodium album L. leaf extract and assessing the antifungal activity against Aspergillus terreus Thom. Plant extract was prepared in methanol to synthetize silver nanoparticles, which were then characterized by Scanning Electron Microscopy (SEM), UV-Visible spectroscopy, and particle size analysis. UV-Visible analysis indicated maximum absorption at 378 nm, and an average particle size was observed as 25.6 nm. Oval to hexagonal shape was observed by SEM. Antifungal activity of silver nanoparticles (1, 1.5, 2, 2.5, 3, and 3.5%) was addressed against A. terreus biomass. At 3.5%, silver nanoparticles revealed to be highly effective, leading to 92% retardation in fungus growth. In next phase, various organic fractions, viz., chloroform, n-butanol, n-hexane, and ethyl acetate, were obtained from plant methanol extract, and the corresponding silver nanoparticles were prepared. These fractions were also assessed for antifungal activity, and n-hexane fraction led to 64% inhibition in A. terreus biomass. Following gas chromatography-mass spectrometry (GC-MS), 18 compounds were identified, namely, 1,3-cyclopentadiene-5-(1 methylethylidene and o-xylene), ethyl benzene, octadecane, nonane, decane, 2-methylheptane, n-hexadecane, 2-methylheptane, and eicosane, along with carbonyl compounds (4,4-dimethyl-3-hexanone) and phenols, like stearic acid, propionic acid hydrazide, and 2,4-di-T-butylphenol. These findings proved that C. album silver nanoparticles are highly effective against A. terreus.

1. Introduction

Aspergillus terreus Thom belongs to the Ascomycetes class and causes postharvest diseases in a number of economically important crops, including wheat, rice, maize, soybean, and potato. With a growth pattern presenting as branched hyphae, white colonies, globose-shaped conidia (diameter 1.5-2.3 μm), and broom-shaped conidiophore [1], this fungus also produces various harmful metabolites, i.e., territrem A, B, and C, which increase its pathogenicity [2]. For example, A. terreus causes foliar blight in potato (Solanum tuberosum L.), identified by the presence of a dark colored leaf pinnacle that contains up to 35–65% of the entire leaf surface [3].

Physical control of A. terreus can be done by crop rotation, being those cultivars less susceptible to disease, and thus can be planted to minimize disease spread up to some extent [4]. Also, a postharvest disease can be chemically controlled using a fungicide spray upon growing season onset, leading to a disease control up to 90% [5]. Nevertheless, despite a proper timing and fungicide amount can prevent the crop, chemical fungicides are not environment friendly and not cost effective as well [6].

Increasing evidences have shown that natural products can be useful to reach a proper biological control of plant pests, attributed to the presence of several secondary metabolites, which control the disease up to an extent. Plant-derived phytochemicals, like saponins, alkaloids, terpenoids, flavonoids, tannins, and cardiac glycosides, have shown excellent antifungal properties against pathogenic fungi [711].

Chenopodium album L. is a member of Chenopodiaceae family, Chenopodium genus with a rich content of chemical constituents, including carbohydrates, sodium, calcium, potassium, zinc, and β-carotene and secondary metabolites, like saponins, tannins, alkaloids, terpenoids, and cardiac glycosides [9, 12]. C. album leave extract possesses antifungal potential of against Ascochyta rabiei. Various concentrations (1-7%) of methanolic extracts were prepared and checked against A. rabiei. 7% concentration exhibited strong antifungal activity up to 68% against test fungus [8]. It was reported that antimicrobial property of C. album was due to presence of saponins, flavonoids, alkaloids, phenolics, ascorbic acids, calcium, phosphate, minerals, salts, and protein [12].

Nanotechnology is an interdisciplinary field focus on nano-sized elements with a range in size from 1 to 100 nm [13]. However, the nanoparticle synthesis using chemicals following reduction method is not safe and is linked to many biological hazards, i.e., poisoning and threatening eco-friendly environment. Due to these problems, biological methods are preferred for nanoparticle synthesis. Thus, the nanoparticle formation using green synthesis is chosen nowadays over chemical method as it is an eco-friendly approach, where phytochemicals present in plant perform reduction of salt solution and stabilization of nanoparticles [13]. In this sense, the present study is aimed at synthetizing and characterizing the silver nanoparticles synthesized by Chenopodium album L. leaf extract and at assessing their antifungal activity against Aspergillus terreus Thom.

2. Materials and Methods

2.1. Collection of Experimental Material

Chenopodium album was taken from Phool Nagar, Punjab, Pakistan. The test plant was surface sterilized using sodium hypochloride (1%) solution and then washed with distilled water. Dried plants were dried and stored at room temperature. Aspergillus terreus cultures were from the Fungal Culture Bank of Pakistan, University of the Punjab, Lahore, and preserved on malt extract (ME) medium.

2.2. Synthesis and Characterization of Silver Nanoparticles

A 4 mM silver nitrate solution was prepared by dissolving 0.68 g of AgNO3 in 100 mL of distilled water. In 30 mL of the test plant extract, 30 mL of AgNO3 solution was added in 250 mL beaker, with beaker being then covered with an aluminum foil. The solution was kept in dark for 2 h for incubation, and changes in the solution color were observed after interval of 2, 4, and 24 h. After 24 h, the solution was centrifuged at 5000 rpm for 10 min, the supernatant was removed, and pellet was stored at 4°C.

Silver ion reduction in colloidal solution was checked on UV-Visible spectroscopy to confirm the synthesis of silver nanoparticles. For this purpose, small sample amounts were taken and analyzed between wavelengths of 300 and 700 nm after 2, 4, and 24 h in a UV-Visible Spectrometer (Perkin Elmer Lambda 950). Then, particle size analyzer (Model BT-90, Bettersize Instruments Ltd.) laser was used to analyze the particle size of silver nanoparticles.

JSM-6480 scanning electron microscope (SEM) was used to study the morphology of silver nanoparticles. In this analysis, a little amount of dried silver nanoparticles was taken on carbon coated copper grid, and images were taken [14]. The selected samples with least particle size were used for EDX analysis to do the elemental analysis.

2.3. Antifungal Bioassay with Silver Nanoparticles

Antifungal bioassay with silver nanoparticles synthesized using methanol plant extract was performed in vitro against A. terreus, following the protocol by Waheed et al. [15]. Briefly, malt extract medium was autoclaved and cooled at room temperature. Six concentrations, i.e., 1, 1.5, 2, 2.5, 3, and 3.5%, were set up by addition of 1.5, 3, 4.5, 6, 7.5, and 9 mL of stock solution of nanoparticles in flasks containing 58.5, 57, 55.5, 54, 52.5, and 51 mL of malt extract media to make to volume up to 60 mL. Also, 60 mL of media was used as control treatment. Chloromycetin was added in solution to control bacterial contamination. Three replicates were prepared from each dose by dividing into three flasks. Inoculation was performed using a freshly prepared culture of A. terreus, which were filtered after 7 days of inoculation with the help of preweighed and labelled filter papers. Fungal biomass obtained after filtration was oven dried till obtained a constant weight and was plotted against conc. of nanoparticles used. Percentage of biomass inhibition of test fungus was checked by using the following formula:
(1)

2.4. Antifungal Assay with Silver Nanoparticles of Isolated Fractions

Plant extract (30 g) was soaked in 100 mL methanol. Then, solution was evaporated leaving 2 g of gummy mass which was partitioned among n-hexane, chloroform, ethyl acetate, and n-butanol. Four isolated fractions were prepared from the abovementioned method and used for formation of silver nanoparticles by dissolving gummy mass in distilled water and then mixing with the 4 mM silver nitrate solution separately. Each beaker of 4 fractions was covered using an aluminum foil and then kept in darkness for 2 h for incubation. Change in color was observed after intervals of 2, 4, and 24 h. Then, solution was centrifuged at 5000 rpm for 10 min, and the supernatant was removed, and pellet was stored at 4°C.

Nanoparticles from these fractions were evaluated against A. terreus over serial dilution method presented by Waheed et al. [15]. For this purpose, stock solution of nanoparticles (20%) made from each fraction was divided into two concentrations (0.1% and 0.2%). Their effect on growth of fungal colony was measured. A control treatment was also prepared without nanoparticles. Three replicates were prepared of each concentration. Mycelial disk from actively grown culture was inoculated in each petri plate.

2.5. Gas Chromatography-Mass Spectrometry Analysis (GC-MS)

n-Hexane fraction of C. album extract was analyzed by using gas chromatography-mass spectrometry (GC-MS). The sample analysis was performed on GC-MS-QP 2010 chromatograph equipped with a DB-5 capillary column (0.25 μm, 0.25 mm, 30 mm). The ionization voltage was of 70 eV, m/z scan range 55-950 Da, and the oven temperature was kept at 45°C for 1 min. After that, temperature was gradually increased at a rate 10°C min-1, and up to 200°C was maintained for 5 min by using carrier gas (helium). The temperature of injector was kept 200°C, and detector temperature was 250°C. Qualitative analysis was done by comparing the retention times, indices, and mass spectra with the corresponding data in the literature (NIST Library word software).

2.6. Statistical Analysis

Data obtained were analyzed statistically by analysis of variance followed by DMRT (Duncan’s multiple range test) with 5% level of significance as likelihood p values, utilizing the PC programming Costat, cs6204 W.exe [16].

3. Results and Discussion

In this study, C. album leaf extract was used for nanoparticle synthesis. Plant extract was mixed with salt solution, and color changes indicated the nanoparticle synthesis, with characterization being done using UV-Visible spectroscopy, particle size analyzer, and SEM. Nanoparticles synthetized from C. album showed maximum absorption at wavelength ranging from 300 to 700 nm (mean, 380 nm), with maximum absorption peaks corresponding to the confirmation of silver nanoparticle synthesis (Figure 1(a)). When methanol plant extract was portioned in organic solvents, i.e., n-hexane, chloroform, ethyl acetate, and n-butanol, and nanoparticles synthesized from these fractions also showed maximum absorption at a wavelength range from 300 to 700 nm (mean, 382) (Figure 1(b)). Furthermore, particle size of silver nanoparticles, formed from various fractions of methanol extract of C. album, ranged from 1 to 200 nm mainly, and a comparison showed that n-hexane fraction showed minimum size of AgNPs formed (Figure 2). Later on, SEM was used for a detailed analysis of silver nanoparticles of plant extract. Results showed that plant extract (methanol) formed AgNPs with smallest size of 197 nm (Figure 3(a)), while in n-hexane fraction, AgNPs synthesized had 150 nm (Figure 3(b)). Similarly, in chloroform fraction, the smallest size of 133 nm was observed (Figure 3(c)), whereas Figures 3(d) and 3(e) are showing the SEM images of AgNps being formed by the ethyl acetate and n-butane fraction of the C. album with a minimum size of 161 and 150 nm, respectively. SEM images also show that overall shape of silver nanoparticles formed by various fractions of C. album is oval to hexagonal. Likewise, Dwivedi and Gopal [17] researched on gold and silver nanoparticle synthesis with C. album aqueous extracts with 1 mM salt solution and found an absorption peak at 460 nm, and in SEM, a quasi-spherical shape was observed. Carrillo-Lopez et al. [18] reported similar results while using C. ambrosioides as a source plant. Physical and chemical techniques also exist for nanoparticle synthesis, but biological method is dominated over other methods as small amounts of plant material are used for reduction, and stabilization and chemicals involved are natural and environment friendly [19]. C. album has been reported to have a number of phytochemicals like phenols, alkaloids, saponins, carotenes, lignans, essential oils, etc., which have strong antioxidant and reducing capability [12, 20, 21]. These antioxidants act as capping and stabilizing agents for NPs formed. Various fractions of C. album were used in present study to find the potential of various metabolites to stabilize the nanoparticles. If metabolites present in plant extract are not able to stabilize properly, nanoparticles formed may give rise to their own aggregates, thus increasing their overall functional size and reducing their effectivity [18]. Present study proved the fact in terms of size of nanoparticles formed, as different sizes of NPS are formed by different fractions, and smallest size was obtained by n-hexane fraction of plant extract used. EDX analysis of plant AgNPs formed by plant extract (Figure 4(a)) and n-hexane fraction (Figure 4(b)) clearly shows the presence of silver, further confirming the synthesis of silver nanoparticles.

Details are in the caption following the image

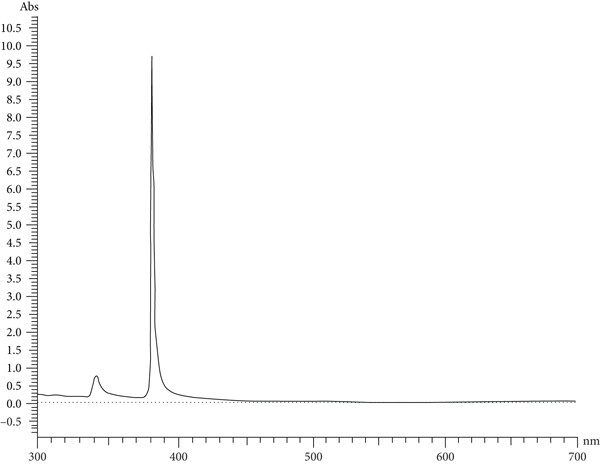

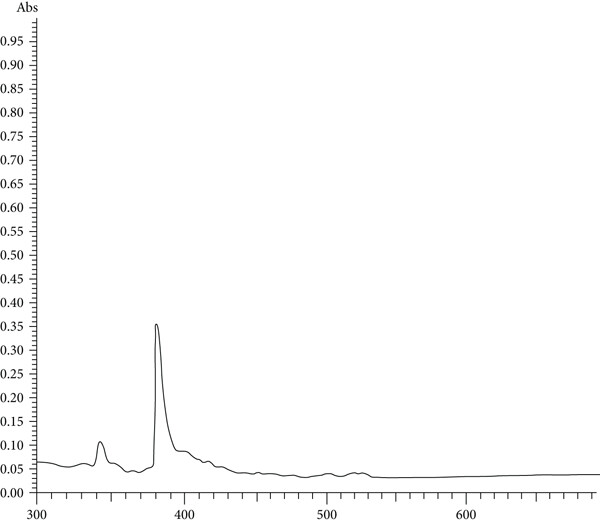

The UV/Vis spectrum of the silver nanoparticles synthesized from (a) methanol extract and (b) n-hexane fraction from extract of C. album.
Details are in the caption following the image
The UV/Vis spectrum of the silver nanoparticles synthesized from (a) methanol extract and (b) n-hexane fraction from extract of C. album.
Details are in the caption following the image

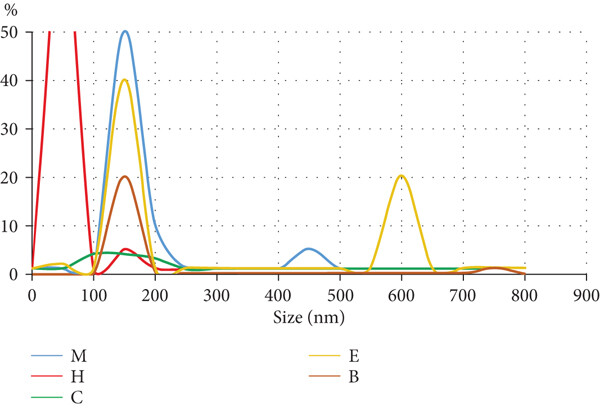

Particle size analysis of silver nanoparticles of C. album, where colored lines are indicating AgNPs of relative fractions. M: methanol; H: n-hexane; C: chloroform; E: ethyl acetate; B: n-butanol.
Details are in the caption following the image

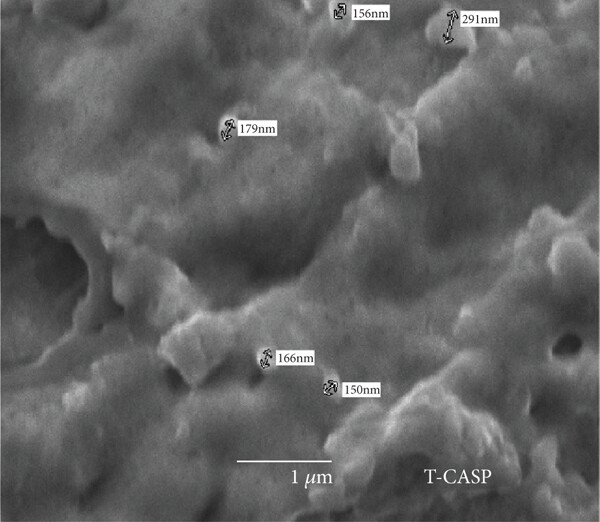

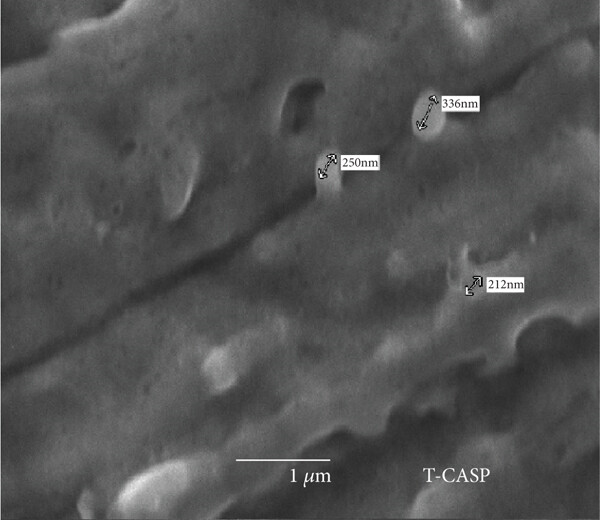

SEM analysis of silver nanoparticles of formed by: (a) methanol extract; (b) n-hexane fraction; (c) chloroform fraction; (d) ethyl acetate fraction; (e) n-butanol fraction of C. album.
Details are in the caption following the image
SEM analysis of silver nanoparticles of formed by: (a) methanol extract; (b) n-hexane fraction; (c) chloroform fraction; (d) ethyl acetate fraction; (e) n-butanol fraction of C. album.
Details are in the caption following the image
SEM analysis of silver nanoparticles of formed by: (a) methanol extract; (b) n-hexane fraction; (c) chloroform fraction; (d) ethyl acetate fraction; (e) n-butanol fraction of C. album.
Details are in the caption following the image
SEM analysis of silver nanoparticles of formed by: (a) methanol extract; (b) n-hexane fraction; (c) chloroform fraction; (d) ethyl acetate fraction; (e) n-butanol fraction of C. album.
Details are in the caption following the image
SEM analysis of silver nanoparticles of formed by: (a) methanol extract; (b) n-hexane fraction; (c) chloroform fraction; (d) ethyl acetate fraction; (e) n-butanol fraction of C. album.
Details are in the caption following the image

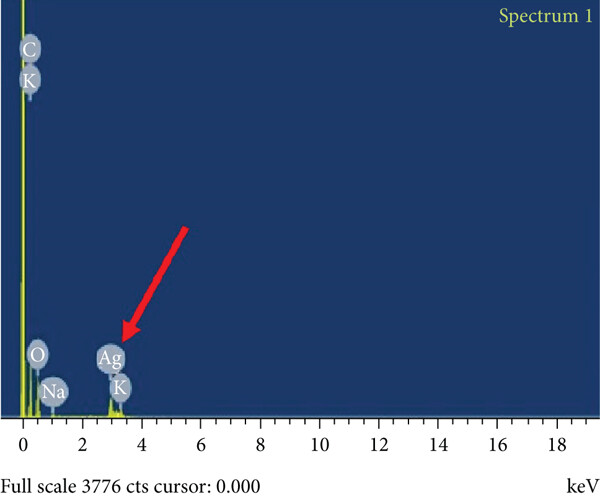

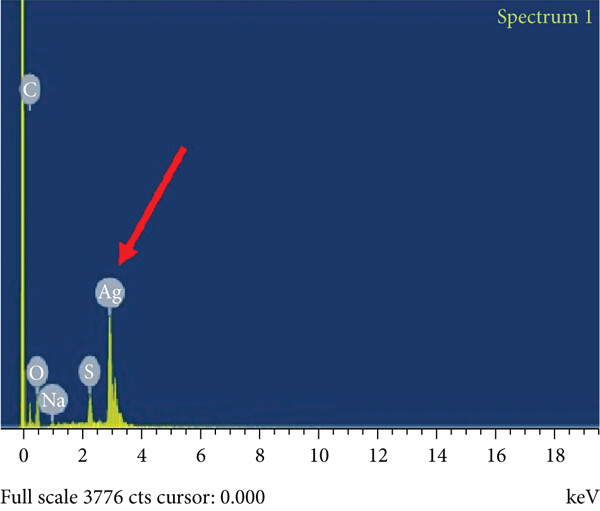

EDX analysis of silver nanoparticles synthesized from (a) methanol extract and (b) n-hexane fraction from extract of C. album.
Details are in the caption following the image
EDX analysis of silver nanoparticles synthesized from (a) methanol extract and (b) n-hexane fraction from extract of C. album.

All applied concentrations of C. album extract nanoparticles markedly retarded the test fungal biomass (Figure 5). Minimum biomass of fungus, i.e., 0.023 g (92% reduction), was observed at 3.5% concentration of silver nanoparticles of C. album methanol extract. The other concentrations, i.e., 1.5, 2, 2.5, and 3%, were capable of effectively inhibiting the test fungal growth by 32.1%, 40.4%, 50.0%, and 60.7%, respectively, when compared to control treatment. Finally, at 1%, conc. of NPs, only 14% reduction in fungal growth was observed (0.24 g fungal biomass as compared to 0.28 g fungal biomass in control). However, all applied concentrations of nanoparticles derived from C. album organic fractions significantly reduced the A. terreus growth (Figure 6), with the n-hexane fraction nanoparticles being stated as strongest fungicide as they were highly effective at both selected concentrations (0.1% and 0.2%) leading up to 62-64% inhibition in the fungal biomass. The chloroform fraction nanoparticles also retarded the A. terreus biomass up to 58%, while n-butanol nanoparticle fraction was found comparatively less effective, with only 49% and 54% retardation. Finally, the ethyl acetate nanoparticles led to 56% and 53% retardation in the A. terreus diameter. These antifungal results may be correlated with the sizes of AgNPs formed; the smaller is the size of nanoparticles, more efficient they are to cross the fugal cell wall [22]. Small dimensions of acting nanoparticles help them to penetrate fungal hyphae by interacting with cell membranes and finally attacking fungal cell DNA and proteins. This usually leads fungal cells to death [23, 24].

Details are in the caption following the image

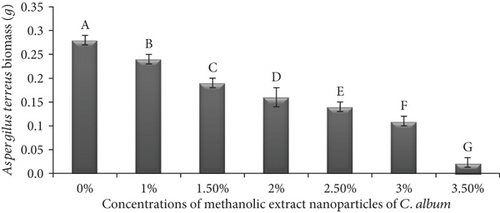

Decrease in A. terreus biomass after application of C. album silver nanoparticles.
Details are in the caption following the image

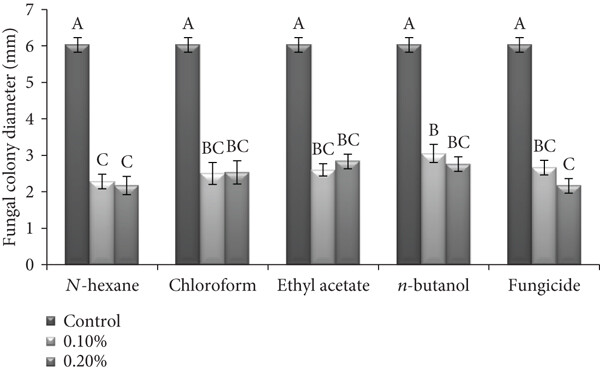

Antifungal activity of silver nanoparticles of different organic fractions of C. album.

GC-MS analysis was performed to the most effective fraction, and a total of 18 compounds were identified, namely, belonging to phenols, hydrocarbons, steric acids, propionic acid hydrazine, carbonyl compounds, and aromatic hydrocarbons. In detail, following chemical composition comprises of aromatic hydrocarbons, such as 1, 3-cyclopentadiene-5-(1 methylethylidene and o-xylene), ethyl benzene, octadecane, nonane, decane, 2-methylheptane, n-hexadecane, 2-methylheptane, and eicosane, were identified, along with carbonyl compounds, such as 4,4-dimethyl-3-hexanone, and phenols, like stearic acid, propionic acid hydrazide, and 2,4-di-T-butylphenol (Table 1 and Figure 7). Data obtained here is corroborated by that obtained by Sherazi et al. [8], who identified carboxylic acids, fatty acids, and hydrocarbons in GC-MS analysis of C. album n-hexane fraction. Similarly, Yuan et al. [25] performed GC-MS analysis of C. album and showed that highest peak was observed between 5.24 and 6.24 min of retention time. The authors also found the presence of aromatic hydrocarbons, i.e., ethyl benzene, O-xylene, P-xylene, and 1-ethyl-4-methylcyclohexane at higher amounts. These aromatic hydrocarbons possess antifungal potential, namely, ethyl benzene was able to boost a reduction in mycelial growth and spores’ germination of F. oxysporum when compared to control. Earlier, Toliwal et al. [26] evaluated the antifungal activity of different fatty hydrazides against A. niger using immidil as standard. The authors stated inhibition ratios ranging from 50% to 70%. In the current study, the steric acid hydrazide and propionic acid hydrazide were also identified and therefore may be the responsible for the good antifungal potential stated to the n-hexane fraction of C. album.

Table 1. GC-MS analysis of n-hexane extract of C. album leaves.
Sr. no RT (min) Compound name Molecular formula MW Peak area %
1 5.242 Ethyl benzene C8H10 106.17 44.9
2 5.242 O-Xylene C8H10 106.16 4.08
3 5.558 P-Xylene C8H10 126 9.2
4 6.242 1-Ethyl-4-methylcyclohexane C9H18 126 14.28
5 6.392 Nonane C9H20 128 3.06
6 6.392 Decane C10H22 142.286 2.04
7 8.233 2, 6-Dimethylendecane C13H28 184.361 1.02
8 8.233 2-Ethyl-4-methyl-1-pentanol C8H18O 130.22800 4.08
9 8.233 Octadecane C19H40 268 1.02
10 9.7 3,5,5-Trimethyl-1-hexene C9H18 126 1.53
11 9.7 2-Methylheptane C8H18 114.23 0.51
12 10.25 2-Bromooctane C8H17Br 193.12 0.51
13 25.608 4,4-Dimethyl-3-hexanone C8H16O 128 1.02
14 25.608 Stearic acid hydrazide C18H38N2O 298.52 3.06
15 26.33 Propionic acid hydrazide C3H8N2O 104 3.06
16 26.33 2,4-Di-t-butylphenol C14H22O 206 1.02
17 50.475 Eicosane, 2-methyl C21H44 296 4.08
18 51. n-Hexadecane C16H34 226.45 1.53
Details are in the caption following the image

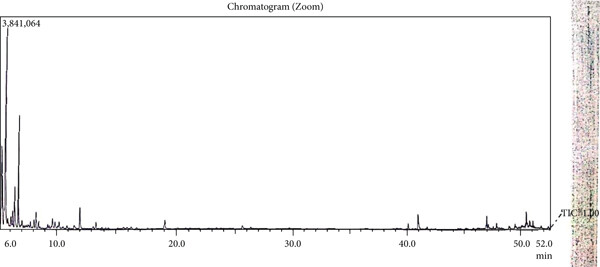

Chromatogram of n-hexane fraction of C. album.

4. Conclusion

In short, this study concluded that C. album possesses high antifungal activity against A. terreus, silver nanoparticles of C. album revealing more effective against A. terreus; silver nanoparticles were prepared and tested from simple extract (maceration/microwave assisted) and from isolated organic fractions of plant, various organic fractions, viz., chloroform, n-butanol, and n-hexane. These silver nanoparticles were also assessed for antifungal activity, and n-hexane fraction led to 64% inhibition in A. terreus biomass. In addition, GC-MS revealed a high abundance of secondary metabolites, suggesting that they might be the main responsible for the C. album antifungal efficiency against A. terreus; 18 compounds were identified, namely, 1,3-cyclopentadiene-5-(1 methylethylidene and o-xylene), ethyl benzene, octadecane, nonane, decane, 2-methylheptane, n-hexadecane, 2-methylheptane, and eicosane, along with carbonyl compounds (4,4-dimethyl-3-hexanone) and phenols, like stearic acid, propionic acid hydrazide, and 2,4-di-T-butylphenol. These findings proved that C. album silver nanoparticles are highly effective against A. terreus.

Conflicts of Interest

The authors declare no conflict of interests.

Acknowledgments

N.C.-M. acknowledges the Portuguese Foundation for Science and Technology under the Horizon 2020 Program (PTDC/PSI-GER/28076/2017).

    Data Availability

    The data used to support the findings of this study are available from the corresponding author upon request.
