Departamento de Neurobiología del Desarrollo y Neurofisiología, Instituto de Neurobiología, Universidad Nacional Autónoma de México, 76230 Querétaro, QRO, Mexico unam.mx
Departamento de Neurobiología del Desarrollo y Neurofisiología, Instituto de Neurobiología, Universidad Nacional Autónoma de México, 76230 Querétaro, QRO, Mexico unam.mx
Departamento de Neurobiología del Desarrollo y Neurofisiología, Instituto de Neurobiología, Universidad Nacional Autónoma de México, 76230 Querétaro, QRO, Mexico unam.mx
Departamento de Neurobiología del Desarrollo y Neurofisiología, Instituto de Neurobiología, Universidad Nacional Autónoma de México, 76230 Querétaro, QRO, Mexico unam.mx
Alterations in prefrontal cortex (PFC) function and abnormalities in its interactions with other brain areas (i.e., the hippocampus) have been related to Alzheimer Disease (AD). Considering that these malfunctions correlate with the increase in the brain’s amyloid beta (Aβ) peptide production, here we looked for a causal relationship between these pathognomonic signs of AD. Thus, we tested whether or not Aβ affects the activity of the PFC network and the activation of this cortex by hippocampal input stimulation in vitro. We found that Aβ application to brain slices inhibits PFC spontaneous network activity as well as PFC activation, both at the population and at the single-cell level, when the hippocampal input is stimulated. Our data suggest that Aβ can contribute to AD by disrupting PFC activity and its long-range interactions throughout the brain.
1. Introduction
The prefrontal cortex (PFC) is implicated in cognitive processes including working memory, temporal processing, decision making, flexibility, and goal-oriented behavior [1–4]. Alterations in some of these processes are observed in Alzheimer’s Disease (AD) patients [5, 6], and they correlate with amyloid beta (Aβ) peptide accumulation in the PFC and other related brain areas [7, 8]. Similar alterations in PFC function are observed in AD transgenic mice [9–11], which also correlate with increased Aβ levels in the PFC and other connected brain areas [9, 11]. These findings suggest that Aβ can alter PFC functionality [11]. In fact, alterations in PFC synaptic transmission [12] and plasticity [11], as well as in cell excitability [13] and in network activity [14], have been reported in AD transgenic mice. Some data indicate that these deleterious effects might be produced directly by the presence of Aβ in the PFC [15–17].
Alterations in PFC-controlled behaviors [18–20] and function [18, 19] can also be induced by intrahippocampal application of Aβ, which indicates that altered PFC function can also be induced by dysfunctional connectivity with other brain areas [18–20]. The hippocampal connection with the PFC consists of excitatory glutamatergic fibers that synapse on both PFC pyramidal neurons [21–23] and interneurons [23–25]. This connection allows the synchronization between these two structures, in different frequency patterns, which correlates with animals’ behavioral performance in PFC functions mentioned above [18, 19, 26–28]. Moreover, AD patients exhibit alterations in PFC coupling with the hippocampus and in the functions that rely on this reciprocal connection [29–32]. The possibility that alterations in the synaptic interactions between the hippocampus and the PFC also contribute to Aβ-induced pathology prompted us to test the effects of Aβ on the PFC activity isolated in a brain slice [23] as well as on the PFC activation induced by the stimulation of the hippocampal fibers preserved in a PFC slice preparation developed by Parent et al. [23]. We found that Aβ inhibits both PFC spontaneous network activity and PFC activation, both at the population and at the single-cell level, induced by hippocampal fiber-activation. Our data suggest that Aβ contributes to PFC dysfunction by a direct effect on its network activity as well as by a reduction in its synaptic innervation from the hippocampus.
2. Materials and Methods
2.1. Ethics Statement
Approval of the Bioethics Committee of the Instituto de Neurobiología at Universidad Nacional Autónoma de México was granted for all the experimental procedures (protocol number 91.A), which were carried out according to the guidelines of the Institutional Animal Care and Use Committee Guidebook (NIH publication 80-23, Bethesda, MD, USA, 1996).
2.2. Subjects
Specific pathogen-free Wistar rats (8–12 weeks old) were obtained from our breeding colony located in the facility of the Instituto de Neurobiología. All animals were housed in groups of four animals, in transparent acrylic cages located in ventilated racks (12 to 15 complete air changes per hour) at constant temperature (21 ± 1°C) and humidity (50 ± 10%) and maintained on a 12-h/12-h light/dark cycle with free access to food (Irradiated Picolab Rodent Diet 20, PMI) and water ad libitum.
2.3. Amyloid Beta Preparation
Aβ42 peptide was obtained from BACHEM (Heidelberg, Germany). The oligomerization procedure was performed as previously described [33, 34]. Briefly, solid Aβ1-42 peptide was dissolved in 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP) to a final concentration of 1 mM. This solution was incubated for 60 min at room temperature, the HFIP was evaporated overnight, and DMSO was added to prepare a 5 mM solution. Then, by adding F12 medium (MF12), a new solution of Aβ42 was obtained with a final concentration of 100 μM (100 pmoles/μL). This solution was incubated for 24 h at 5°C and then centrifuged at 14,000 ×g at 4°C for 10 min. Aβ oligomers found in the supernatant were collected and maintained at 4°C until being used for experiments. Previous characterization of our solution indicates that it contains a mixture of Aβ aggregates, with hexamers as the main Aβ oligomeric form present [34].
2.4. Prefrontal Cortex Slice Preparation
Animals were anesthetized with sodium pentobarbital (62 mg/Kg) and perfused transcardially with cold modified artificial cerebrospinal fluid containing (in mM) 238 sucrose, 3 KCl, 2.5 MgCl2, 25 NaHCO3, and 30 D-glucose, pH 7.4, and bubbled with carbogen (95% O2 and 5% CO2). Then, the brain was removed and dissected in ice-cold artificial cerebrospinal fluid (aCSF) containing (in mM) 119 NaCl, 3 KCl, 1.5 CaCl2, 1 MgCl2, 25 NaHCO3, and 30 D-glucose, pH 7.4, and bubbled with carbogen. The cerebellum was removed, both hemispheres were mounted onto an agar block with a 10–12° inclination [23], and coronal slices containing both the PFC (400 µm thick) and the hippocampal bundle were obtained using a vibratome (Microm HM 650 V, Thermo Scientific, USA). Only one slice was obtained per animal. The slices were left to recover at room temperature for at least 60 min before any further experimental manipulation.
2.5. Electrophysiological Recordings
For extracellular field population recordings, PFC slices were transferred to a submerged recording chamber continuously perfused at 15–17 ml/min with oxygenated aCSF maintained at 30–32°C. The field recordings were obtained using borosilicate electrodes (0.5–1 MΩ) filled with aCSF and positioned on layer 5-6 of the prelimbic region of the PFC [23]. PFC spontaneous activity was recorded for 20 min to obtain the basal network activity. Thereafter, Aβ was added to the bath, and its effects were recorded for 1 h. Finally, 1 mM lidocaine was added to the bath to block neural activity, as a control for the viability of the slice [35]. Alternatively, the hippocampal axonal bundle was stimulated electrically with a concentric bipolar microelectrode (FHC Inc., Bowdoin, ME, USA) [36–38]. The synaptic potentials were evoked by trains of 5 pulses at different frequencies (5, 10, 20, and 50 Hz). Each stimulus in the train had a duration of 100-μs and was delivered at 0.04 Hz. The stimulus intensity was adjusted in each experiment and for each preparation to evoke a response of 50% maximal amplitude [36–38]. After recording control potentials, 30 nM Aβ was added to the bath, and its effects on the synaptic transmission were monitored for 60 min. Then 10 µM APV and 10 µM CNQX were added to the bath to block all glutamatergic transmission. Finally, 1 mM lidocaine was added to the bath to block any neuronal activity.
2.6. Calcium Imaging
PFC slices were incubated at room temperature, in the dark, for 2 h in the presence of 10 µM Fluo-8 AM (Invitrogen) and 0.3% pluronic acid in aCSF equilibrated with carbogen [37, 39–41]. Then, after a recovery period of 2 h, the slices were transferred and immobilized, with a nylon mesh, into a perfusion chamber on a microscope adapted to an epifluorescence system (Eclipse E600FN; Nikon, Melville, NY). Slices were continuously perfused with aCSF equilibrated with carbogen at 30–32°C. Excitation at 488 nm was performed with a Lambda LS illuminator (Sutter Instrument, Novato, CA), and images were acquired with a cooled digital camera (CoolSNAP-ES, Roper Scientific, Tucson, AZ). The imaging software used was RS Image (Photometrics; Roper Scientific, Tucson, AZ), and the imaged field was 800 × 600 µm. Short movies (175 s, 40-µs exposure, four images per second) were taken. Cells active during the experiment were analyzed. The hippocampal axonal bundle was stimulated electrically as described above in control conditions and in the presence of Aβ.
2.7. Data Analysis
For all electrophysiological experiments, the signal was amplified and filtered (highpass, 0.5 Hz; lowpass, 1.5 KHz) with a wide-band AC amplifier (Grass Instruments, Quincy, MA, USA). All recordings were digitized at 9 KHz and stored on a personal computer with an acquisition system from National Instruments (Austin, TX, USA) using custom-made software designed for the LabView environment. The recordings obtained were analyzed off-line. All evoked synaptic responses were measured from the start of the stimulation artifact to the valley of the synaptic response in Clampfit (Molecular Devices). Three 10-sec segments of each condition were analyzed using a Fast Fourier Transform Algorithm with a Hamming window also in Clampfit. The power spectra of all segments were averaged and normalized to the basal spontaneous activity of each individual experiment.
For calcium imaging, image processing was carried out with ImageJ (v.1.36, National Institutes of Health) and custom-made programs in LabView and MATLAB [40, 41]. All active neurons in a field were semiautomatically identified, and their mean fluorescence was measured as a function of time. Single pixel noise was discarded using a 5-pixel ratio mean filter. Calcium-dependent fluorescence signals were computed as (Fi − Fo)/Fo, where Fi is the fluorescence intensity at any frame and Fo is the resting fluorescence, that is, average fluorescence of the first four frames of the movie. Calcium signals were detected based on a threshold value given by their first time derivative (2.5 times the standard deviation (SD) of the noise value). Thus, we obtained a C × F binary matrix, where C represents the number of active cells and F the number of frames for each movie. Recordings were inspected manually to remove artifacts and slow calcium transients which are likely to correspond to glial cells [37, 40]. After defining all neuronal-like calcium transients, we built raster plots and quantified both the number of active neurons per bin (250 ms) and the number of neuronal-like calcium transients per neuron (cell-activation instances).
All data are expressed as mean ± standard error of the mean (SEM). In most cases the data distribution was markedly skewed, and hence we used a Mann–Whitney Rank Sum Test or a Kruskal-Wallis One-Way Analysis of Variance on Ranks followed by Dunn’s Method for multiple comparisons. Differences with statistical significance are denoted by p < 0.05.
3. Results
To evaluate the effect of Aβ on the general activity of the prelimbic region of the PFC, we measured its spontaneous population activity in vitro (Figure 1). Spontaneous prefrontal network recordings in slices showed low-voltage neuronal activity that includes a broad range of frequency components (Figure 1; n = 10; meaning 10 slices obtained from 10 animals, with only one slice per animal). As previously shown for other neuronal networks [34–37], this activity is reduced by the application of 30 nM Aβ (Figure 1, representative traces and power spectra). Analysis of the integrated power (from 1 to 120 Hz) showed a significant reduction of the prefrontal spontaneous network activity 60 min after Aβ application (to 63.2 ± 8.5% of basal activity, p < 0.05; n = 10) (Figure 1, inset bar graph).

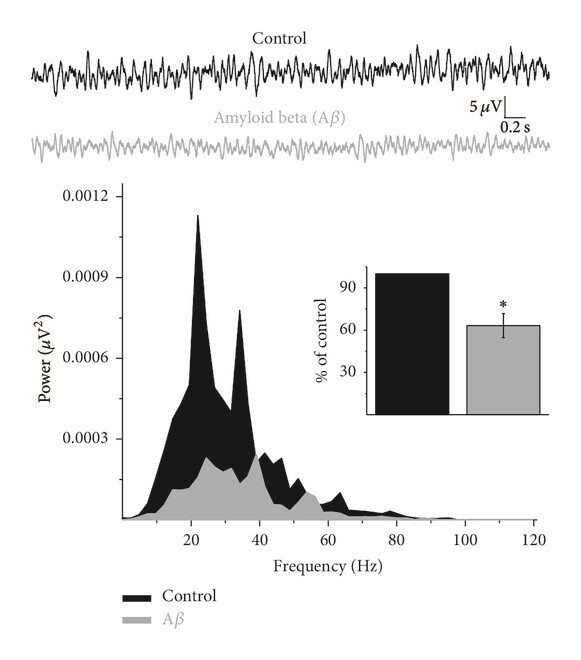

Aβ inhibits PFC spontaneous population activity. At the top, representative traces of PFC spontaneous activity are shown recorded in basal conditions (black traces) and after 60 min of continuous application of Aβ (30 nM; gray traces). Their corresponding power spectra are shown at the bottom, and the integrated power for each condition (basal power set as 100%) is shown as an inset. Note that Aβ application significantly reduces the power of the PFC spontaneous population activity. Data are presented as mean ± SEM. ∗p < 0.05 versus control activity (n = 10 slices).
To evaluate the effect of Aβ on the hippocampal input into the PFC, we initially measured the field excitatory postsynaptic potentials (fEPSPs) in the PFC induced by the stimulation of the hippocampal input at different frequencies [42]. The repetitive stimulation of the hippocampal fibers induces fEPSPs in the PFC that exhibit different degrees of facilitation depending of the stimulation frequency [42] (Figure 2(a)). For instance, the amplitude of the fifth fEPSP increases to 141.9 ± 12.0% of the first fEPSP when the stimulation is applied at 5 Hz (Figure 2(b)). When the stimulation is applied at 10 Hz, the amplitude of the fifth fEPSP increases to 162.7 ± 14.8% of the first fEPSP (Figure 2(b)). When the stimulation is applied at 20 Hz, the amplitude of the fifth fEPSP increases only to 128.7 ± 15.0% of the first fEPSP (Figure 2(b)). When the stimulation was applied at 50 Hz the individual fEPSPs get mixed into a “compound” fEPSP that does not allow individual fEPSPs to be evaluated accurately. Thus, in this case, we quantified the maximal amplitude of the compound fEPSP (20.3 ± 6.8 µV; (Figure 2(c)). Bath application of Aβ reduces the amplitude of the fEPSPs, as well as that of the compound fEPSP (Figure 2(a)), regardless of the stimulation frequency or the fEPSP number (1 to 5; Figure 2(b); p < 0.05), except for the third fEPSP of the stimulation applied at 20 Hz, for which no significant reduction was observed after Aβ application (81.1 ± 13.2% of control, Figure 2(c); p = 0.07). In spite of this generalized reduction in synaptic coupling produced by bath application of Aβ, no change in the synaptic facilitation was observed for any of the fEPSP trains evoked at 5, 10, or 20 Hz (Figure 2(b); p < 0.05). This can be seen more clearly when the amplitude of each fEPSP in the train is normalized to the amplitude of the first fEPSP (set as 1; Figure 2(b)). In the case of the compound fEPSP, Aβ application significantly reduced the maximal amplitude to 78.6 ± 2.8% of control (Figure 2(c); p < 0.05). Thus, these results indicate that bath application of Aβ produces a generalized reduction in the synaptic neurotransmission provided by the hippocampus into the PFC.

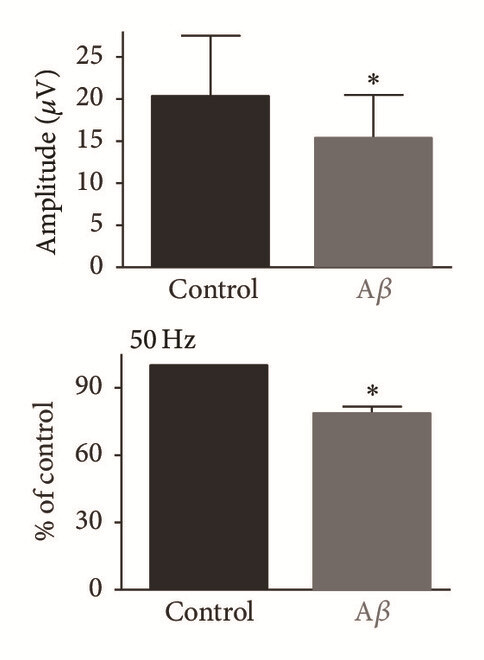

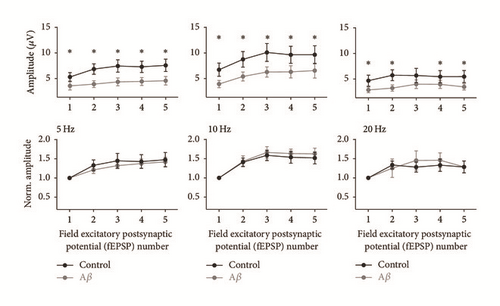

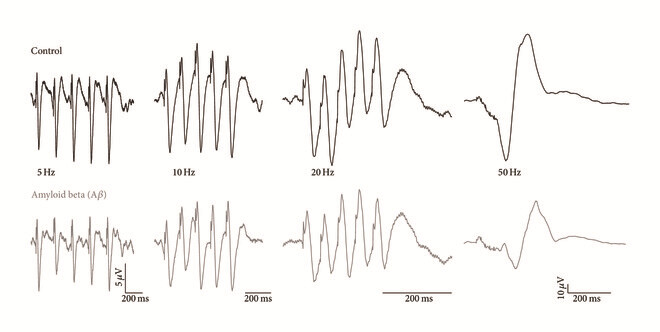

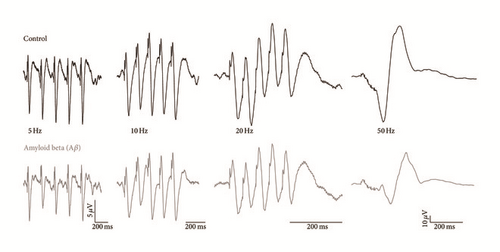

Aβ inhibits hippocampal input into PFC. (a) Representative traces of EPSPs recorded in the PFC and evoked by stimulation of the hippocampal bundle at different frequencies (5–50 Hz) are shown. The EPSPs are represented both under basal conditions (black traces) and after 60 min of continuous application of Aβ (30 nM; gray traces). (b) The amplitude of each EPSP during the different trains is plotted as the absolute value and also as the value normalized to the first EPSP (EPSPn/EPSP1 = Norm. Amplitude). The mean amplitudes of the EPSPs are represented under basal conditions (black dots/lines) and after 60 min of continuous application of Aβ (30 nM; gray dots/lines). (c) The amplitudes of the “compound” EPSPs are represented in the bar graphs quantified as absolute values (upper graph) and also after normalizing to the control (set at 100%; lower graph). Note that Aβ application significantly reduces the synaptic input from the hippocampal fibers into the PFC. Data are presented as mean ± SEM. ∗p < 0.05 versus control activity (n = 10 slices).
Aβ inhibits hippocampal input into PFC. (a) Representative traces of EPSPs recorded in the PFC and evoked by stimulation of the hippocampal bundle at different frequencies (5–50 Hz) are shown. The EPSPs are represented both under basal conditions (black traces) and after 60 min of continuous application of Aβ (30 nM; gray traces). (b) The amplitude of each EPSP during the different trains is plotted as the absolute value and also as the value normalized to the first EPSP (EPSPn/EPSP1 = Norm. Amplitude). The mean amplitudes of the EPSPs are represented under basal conditions (black dots/lines) and after 60 min of continuous application of Aβ (30 nM; gray dots/lines). (c) The amplitudes of the “compound” EPSPs are represented in the bar graphs quantified as absolute values (upper graph) and also after normalizing to the control (set at 100%; lower graph). Note that Aβ application significantly reduces the synaptic input from the hippocampal fibers into the PFC. Data are presented as mean ± SEM. ∗p < 0.05 versus control activity (n = 10 slices).
Aβ inhibits hippocampal input into PFC. (a) Representative traces of EPSPs recorded in the PFC and evoked by stimulation of the hippocampal bundle at different frequencies (5–50 Hz) are shown. The EPSPs are represented both under basal conditions (black traces) and after 60 min of continuous application of Aβ (30 nM; gray traces). (b) The amplitude of each EPSP during the different trains is plotted as the absolute value and also as the value normalized to the first EPSP (EPSPn/EPSP1 = Norm. Amplitude). The mean amplitudes of the EPSPs are represented under basal conditions (black dots/lines) and after 60 min of continuous application of Aβ (30 nM; gray dots/lines). (c) The amplitudes of the “compound” EPSPs are represented in the bar graphs quantified as absolute values (upper graph) and also after normalizing to the control (set at 100%; lower graph). Note that Aβ application significantly reduces the synaptic input from the hippocampal fibers into the PFC. Data are presented as mean ± SEM. ∗p < 0.05 versus control activity (n = 10 slices).
To evaluate the effect of Aβ on the hippocampal input into the PFC at the cellular level, we measured the calcium transients induced in single neurons by the stimulation of the hippocampal input. First, we found that the stimulation of the hippocampal fibers recruits PFC neurons, increasing their calcium transients (cell-activation instances) for several seconds (Figure 3). Then, we observed that there is a differential recruitment of PFC neurons depending on the stimulation frequency [42] (Figure 3). In control conditions, a maximal number of PFC neurons are recruited when hippocampal fibers are stimulated at 5 Hz (21.2 ± 5.4 neurons; n = 5 slices; Figure 3(b)). This cell recruitment is significantly reduced when stimulation is applied both at 10 Hz (17.4 ± 5.44 neurons; p < 0.05) and at 20 Hz (15.4 ± 3.7 neurons; p < 0.05), whereas it tends to be reduced when stimulation is applied at 50 Hz (15.7 ± 2.8 neurons; p < 0.09). The maximal number of PFC neurons recruited after hippocampal stimulation is reduced in the presence of Aβ, compared to control conditions, when the hippocampal fibers are stimulated at 20 Hz (to 66.4 ± 13.7% of control; p < 0.05; Figure 3(b) right upper part) and 50 Hz (to 71.0 ± 13.2% of control; p < 0.05; Figure 3(b) right lower part). No significant differences versus control conditions were observed in the maximal number of PFC neurons recruited after hippocampal stimulation in the presence of Aβ when the stimulation was applied at 5 and 10 Hz (Figure 3(b) left upper and lower part). The result was similar when the total number of cell-activation instances in 3 seconds was quantified (Figure 3(c)). Compared to control conditions, the total number of cell-activation instances was significantly reduced in the presence of Aβ when the hippocampal fibers were stimulated at 20 Hz (to 59.2 ± 8.4% of control; p < 0.05; Figure 3(c)) and 50 Hz (to 68.6 ± 11.1% of control; p < 0.05; Figure 3(c)), but there were no significant differences when the hippocampal fiber stimulation was applied at 5 and 10 Hz (Figure 3(c)).

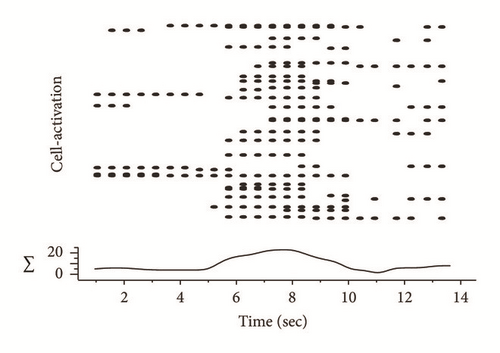

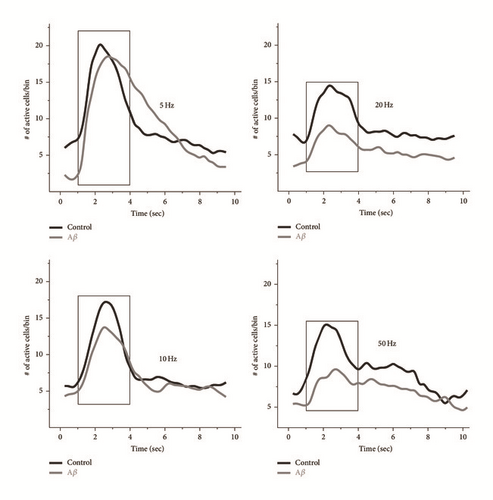

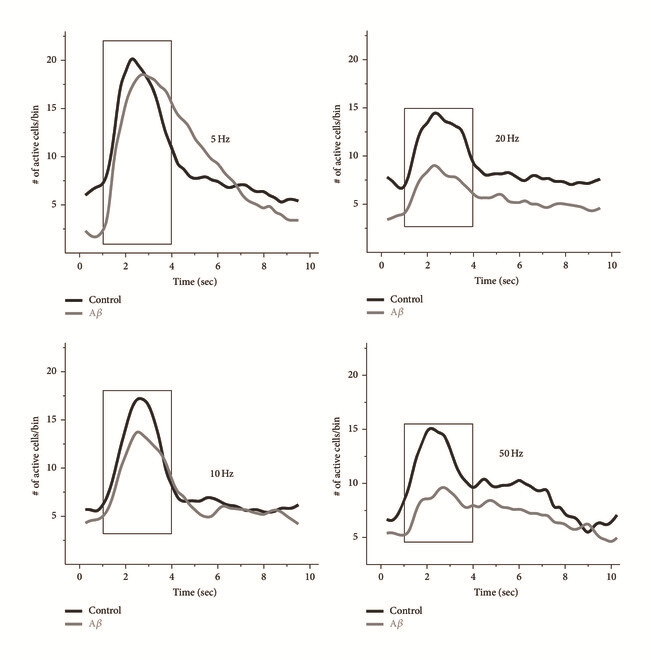

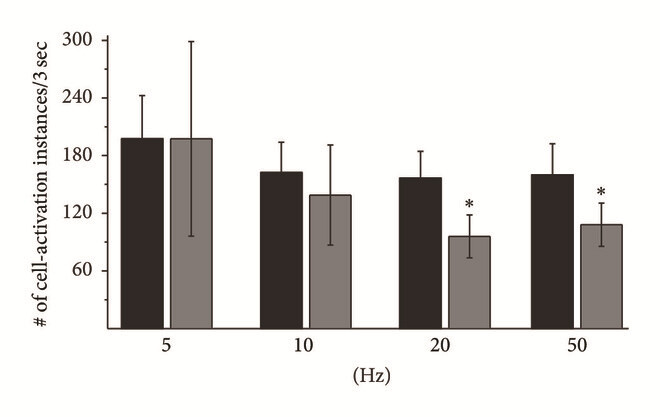

Aβ inhibits PFC-neuron recruitment by hippocampal input stimulation. (a) A representative raster plot shows the activity of PFC neurons and its response to the stimulation of the hippocampal bundle (delivered at second five). Each row represents the activity of a single cell, and each dot represents a cell-activation (i.e., calcium transient). At the bottom, the sum of all the cell-activation instances per bin (bin = 250 ms) is quantified. (b) The graphs represent the mean sums of cell-activation instances per bin for all the frequencies tested. The mean sums are represented both under basal conditions (black lines) and after 60 min of continuous application of Aβ (30 nM; gray lines). (c) Quantification of the number of cell-activation instances in 3 sec (represented by the rectangle) after the different stimulation trains is presented. Note that Aβ application significantly reduces PFC-neuron recruitment when the hippocampal bundle stimulation is applied at high frequencies. Data are presented as mean ± SEM. ∗p < 0.05 versus control activity (n = 5 slices).
Aβ inhibits PFC-neuron recruitment by hippocampal input stimulation. (a) A representative raster plot shows the activity of PFC neurons and its response to the stimulation of the hippocampal bundle (delivered at second five). Each row represents the activity of a single cell, and each dot represents a cell-activation (i.e., calcium transient). At the bottom, the sum of all the cell-activation instances per bin (bin = 250 ms) is quantified. (b) The graphs represent the mean sums of cell-activation instances per bin for all the frequencies tested. The mean sums are represented both under basal conditions (black lines) and after 60 min of continuous application of Aβ (30 nM; gray lines). (c) Quantification of the number of cell-activation instances in 3 sec (represented by the rectangle) after the different stimulation trains is presented. Note that Aβ application significantly reduces PFC-neuron recruitment when the hippocampal bundle stimulation is applied at high frequencies. Data are presented as mean ± SEM. ∗p < 0.05 versus control activity (n = 5 slices).
Aβ inhibits PFC-neuron recruitment by hippocampal input stimulation. (a) A representative raster plot shows the activity of PFC neurons and its response to the stimulation of the hippocampal bundle (delivered at second five). Each row represents the activity of a single cell, and each dot represents a cell-activation (i.e., calcium transient). At the bottom, the sum of all the cell-activation instances per bin (bin = 250 ms) is quantified. (b) The graphs represent the mean sums of cell-activation instances per bin for all the frequencies tested. The mean sums are represented both under basal conditions (black lines) and after 60 min of continuous application of Aβ (30 nM; gray lines). (c) Quantification of the number of cell-activation instances in 3 sec (represented by the rectangle) after the different stimulation trains is presented. Note that Aβ application significantly reduces PFC-neuron recruitment when the hippocampal bundle stimulation is applied at high frequencies. Data are presented as mean ± SEM. ∗p < 0.05 versus control activity (n = 5 slices).
4. Discussion
Here, we found that Aβ inhibits PFC spontaneous network activity as well as the PFC activation induced by hippocampal fiber-activation both at the population and at the single-cell level, suggesting that Aβ might contribute to PFC dysfunction by a direct effect on this network as well as by a reduction in its synaptic innervation. This finding might constitute the cellular basis of several cognitive deficits that can be produced by PFC dysfunction and/or disrupted PFC-hippocampal coupling and are observed in both AD patients and AD transgenic models.
Our finding that Aβ inhibits PFC spontaneous network activity is very similar to observations by our group and others that direct application of Aβ inhibits spontaneous network activity in a variety of networks including the olfactory bulb [43], the entorhinal cortex [44], and the hippocampus [37, 45]. In fact, a previous finding already indicated that direct application of Aβ inhibits synchronized activity induced by calcium depletion in PFC slices [46]. In this case, inhibition of Aβ-induced network activity was related to changes in cell excitability [46]. This Aβ-induced inhibition of cell excitability was found to be more prominent in PFC interneurons [17]. This finding correlates with those obtained previously in our laboratory, which show that, despite the lack of effect of Aβ on action potential firing in hippocampal pyramidal cells, the presence of Aβ does induce a reduction in subthreshold membrane potential oscillation [37]. This latter effect might contribute to the Aβ-induced action potential desynchronization in the hippocampus that contributes to the inhibition of its neural network activity [45]. Aside from the changes in cell excitability, the inhibition of neural network activity induced by Aβ has also been related to a reduction in both excitatory [34, 37, 47, 48] and inhibitory [47, 48] synaptic transmission. In fact, these findings are consistent with the observation that Aβ reduced cholinergic modulation of the inhibitory transmission in the PFC [17]. Altogether, the changes in cell excitability and synaptic transmission might contribute to the Aβ-induced inhibition of PFC network activity [15–17]. It is important to point out that our finding that Aβ inhibits PFC spontaneous network activity coincides with studies showing changes in PFC network function in AD animal models [14, 18, 19] and AD patients [29–31, 49], suggesting that this pathological process can contribute to PFC dysfunction in AD.
AD-associated PFC dysfunction also seems to be the result of reduced PFC coupling to other brain areas [18–20, 29–31, 49]. One PFC connection that is disturbed in AD is the PFC-hippocampal coupling [29–31]. As was already mentioned, alterations in PFC-controlled behaviors [18–20] and function [18–20] can be induced by intrahippocampal injection of Aβ. It is well known that Aβ affects hippocampal function both in vivo [37, 50] and in vitro [33, 45, 51] and, here, we show that Aβ can affect hippocampal input into the PFC. As this connection is required for the proper synchronization between these two structures and for normal PFC function [18, 19, 26, 27, 32], it is likely that PFC-hippocampal uncoupling could contribute to Aβ-induced pathology and, perhaps, to AD. Considering that PFC-hippocampal coupling occurs at a variety of different oscillatory frequencies [32, 52, 53], we tested whether Aβ affects hippocampal input when it is stimulated at different frequencies. Whereas we observed a generalized reduction in PFC activation at all frequencies tested, the inhibition was more prominent, at least at the unicellular level, when the stimulation was delivered at high frequencies (Figure 3). One possible explanation is that this connection is tuned to synchronize the two circuits at low frequencies [26, 35, 42] and, thus, not only is the hippocampal input more efficient in recruiting the PFC at low frequencies [26, 35, 42] but it also renders the connection less vulnerable to Aβ effects when stimulated at low frequencies. It is well known that the synaptic components recruited by different stimulation frequencies vary [42] and that stimulation at higher frequencies favors the recruitment of inhibitory components [42]. Inhibitory neurons and synapses seem to be more sensitive to the effects of Aβ [17, 54], which might explain why Aβ had a major effect on hippocampal input to the PFC when tested at high-frequency stimulation. In fact, this finding is consistent with the observation that fast oscillatory activity, which relies heavily on inhibitory networks [54, 55], is more sensitive to the effects of Aβ [35, 44, 45, 54] compared to slow oscillatory activity. Moreover, fast oscillatory activity is more disrupted both in AD patients [56, 57] and in AD animal models [54, 58, 59]. Thus, understanding the cellular basis of the changes in neural network activity and the alteration in neural network coupling induced by Aβ would help to explain the cellular basis of AD pathophysiology and also would reveal therapeutic strategies to reactivate such networks or reestablish their connections in order to palliate AD symptoms [60–62].
Competing Interests
The authors declare that they have no competing interests.
Acknowledgments
The authors thank Dr. Dorothy Pless and Jessica González for editorial comments. They thank Dr. Benito Ordaz for technical support. Ernesto Flores-Martínez is a doctoral student from Programa de Doctorado en Ciencias Biomédicas, Universidad Nacional Autónoma de México (UNAM), and received Fellowship 231675 from CONACYT. This study was supported by Alzheimer’s Association Grant NIRG-11-205443, Fundación Marcos Moshinsky, and CONACyT Grants 117, 235789, 237570, 246888, and 181323 and by DGAPA-UNAM Grant IN200715.
1Dalley J. W.,
Cardinal R. N., and
Robbins T. W., Prefrontal executive and cognitive functions in rodents: neural and neurochemical substrates, Neuroscience and Biobehavioral Reviews. (2004) 28, no. 7, 771–784, https://doi.org/10.1016/j.neubiorev.2004.09.006, 2-s2.0-8844286003.
3Kesner R. P. and
Churchwell J. C., An analysis of rat prefrontal cortex in mediating executive function, Neurobiology of Learning and Memory. (2011) 96, no. 3, 417–431, 21855643, https://doi.org/10.1016/j.nlm.2011.07.002, 2-s2.0-80053592197, 21855643.
4Godsil B. P.,
Kiss J. P.,
Spedding M., and
Jay T. M., The hippocampal-prefrontal pathway: the weak link in psychiatric disorders?, European Neuropsychopharmacology. (2013) 23, no. 10, 1165–1181, https://doi.org/10.1016/j.euroneuro.2012.10.018, 2-s2.0-84884289723.
5Baddeley A. D.,
Bressi S.,
Della Sala S.,
Logie R., and
Spinnler H., The decline of working memory in Alzheimer′s disease: A Longitudinal Study, Brain. (1991) 114, no. 6, 2521–2542, https://doi.org/10.1093/brain/114.6.2521, 2-s2.0-0026327462.
6Kensinger E. A.,
Shearer D. K.,
Locascio J. J.,
Growdon J. H., and
Corkin S., Working memory in mild Alzheimer′s disease and early Parkinson′s disease, Neuropsychology. (2003) 17, no. 2, 230–239, 12803428, https://doi.org/10.1037/0894-4105.17.2.230, 2-s2.0-0038689292, 12803428.
7JackC. R.Jr., Lowe V. J.,
Senjem M. L.,
Weigand S. D.,
Kemp B. J.,
Shiung M. M.,
Knopman D. S.,
Boeve B. F.,
Klunk W. E.,
Mathis C. A., and
Petersen R. C., 11C PiB and structural MRI provide complementary information in imaging of Alzheimer′s disease and amnestic mild cognitive impairment, Brain. (2008) 131, no. 3, 665–680, 18263627, https://doi.org/10.1093/brain/awm336, 2-s2.0-39749108812, 18263627.
9Zhuo J.-M.,
Prakasam A.,
Murray M. E.,
Zhang H.-Y.,
Baxter M. G.,
Sambamurti K., and
Nicolle M. M., An increase in Aβ42 in the prefrontal cortex is associated with a reversal-learning impairment in Alzheimer′s disease model Tg2576 APPsw mice, Current Alzheimer Research. (2008) 5, no. 4, 385–391, https://doi.org/10.2174/156720508785132280, 2-s2.0-48749104822.
11Lo A. C.,
Iscru E.,
Blum D.,
Tesseur I.,
Callaerts-Vegh Z.,
Buée L.,
De Strooper B.,
Balschun D., and
D′Hooge R., Amyloid and tau neuropathology differentially affect prefrontal synaptic plasticity and cognitive performance in mouse models of Alzheimer′s disease, Journal of Alzheimer′s Disease. (2013) 37, no. 1, 109–125, 23788007, https://doi.org/10.3233/JAD-122296, 2-s2.0-84883145571, 23788007.
12Bories C.,
Guitton M. J.,
Julien C.,
Tremblay C.,
Vandal M.,
Msaid M.,
de Koninck Y., and
Calon F., Sex-dependent alterations in social behaviour and cortical synaptic activity coincide at different ages in a model of Alzheimer′s disease, PLoS ONE. (2012) 7, no. 9, article e46111, https://doi.org/10.1371/journal.pone.0046111, 2-s2.0-84866636084.
13Proulx É.,
Fraser P.,
McLaurin J., and
Lambe E. K., Impaired cholinergic excitation of prefrontal attention circuitry in the TgCRND8 model of Alzheimer’s disease, Journal of Neuroscience. (2015) 35, no. 37, 12779–12791, https://doi.org/10.1523/JNEUROSCI.4501-14.2015, 2-s2.0-84941786727.
14Platt B.,
Drever B.,
Koss D.,
Stoppelkamp S.,
Jyoti A.,
Plano A.,
Utan A.,
Merrick G.,
Ryan D.,
Melis V.,
Wan H.,
Mingarelli M.,
Porcu E.,
Scrocchi L.,
Welch A., and
Riedel G., Abnormal cognition, sleep, eeg and brain metabolism in a novel knock-in alzheimer mouse, plb1, PLoS ONE. (2011) 6, no. 11, article e27068, https://doi.org/10.1371/journal.pone.0027068, 2-s2.0-80855156783.
15Zhong P.,
Gu Z.,
Wang X.,
Jiang H.,
Feng J., and
Yan Z., Impaired modulation of GABAergic transmission by muscarinic receptors in a mouse transgenic model of Alzheimer′s disease, The Journal of Biological Chemistry. (2003) 278, no. 29, 26888–26896, https://doi.org/10.1074/jbc.m302789200, 2-s2.0-0038711760.
16Liu W.,
Dou F.,
Feng J., and
Yan Z., RACK1 is involved in β-amyloid impairment of muscarinic regulation of GABAergic transmission, Neurobiology of Aging. (2011) 32, no. 10, 1818–1826, 19954860, https://doi.org/10.1016/j.neurobiolaging.2009.10.017, 2-s2.0-80051557607, 19954860.
18Bai W.,
Yi H.,
Liu T.,
Wei J., and
Tian X., Incoordination between spikes and LFPs in Aβ1-42-mediated memory deficits in rats, Frontiers in Behavioral Neuroscience. (2014) 8, article 411, https://doi.org/10.3389/fnbeh.2014.00411, 2-s2.0-84913540818.
19Wei J.,
Yi H.,
Zhang D.,
Bai W., and
Tian X., Aberrant neuronal activity and dysfunctional connectivity in Aβ1-42 mediated memory deficits in rats, Current Alzheimer Research. (2015) 12, no. 10, 964–973, https://doi.org/10.2174/1567205012666151027141324.
20Faucher P.,
Mons N.,
Micheau J.,
Louis C., and
Beracochea D. J., Hippocampal injections of oligomeric amyloid β-peptide (1–42) induce selective working memory deficits and long-lasting alterations of ERK signaling pathway, Frontiers in Aging Neuroscience. (2016) 7, article 245, https://doi.org/10.3389/fnagi.2015.00245.
22Jay T. M.,
Thierry A.-M.,
Wiklung L., and
Glowinski J., Excitatory amino acid pathway from the hippocampus to the prefrontal cortex. Contribution of AMPA receptors in hippocampo-prefrontal cortex transmission, European Journal of Neuroscience. (1992) 4, no. 12, 1285–1295, https://doi.org/10.1111/j.1460-9568.1992.tb00154.x, 2-s2.0-0027093913.
23Parent M. A.,
Wang L.,
Su J.,
Netoff T., and
Yuan L.-L., Identification of the hippocampal input to medial prefrontal cortex in vitro, Cerebral Cortex. (2010) 20, no. 2, 393–403, 19515741, https://doi.org/10.1093/cercor/bhp108, 2-s2.0-74249087884, 19515741.
24Gabbott P.,
Headlam A., and
Busby S., Morphological evidence that CA1 hippocampal afferents monosynaptically innervate PV-containing neurons and NADPH-diaphorase reactive cells in the medial prefrontal cortex (Areas 25/32) of the rat, Brain Research. (2002) 946, no. 2, 314–322, 12137936, https://doi.org/10.1016/S0006-8993(02)02487-3, 2-s2.0-0037118950, 12137936.
25Tierney P. L.,
Dégenètais E.,
Thierry A.-M.,
Glowinski J., and
Gioanni Y., Influence of the hippocampus on interneurons of the rat prefrontal cortex, European Journal of Neuroscience. (2004) 20, no. 2, 514–524, 15233760, https://doi.org/10.1111/j.1460-9568.2004.03501.x, 2-s2.0-3242762873, 15233760.
26Jones M. W. and
Wilson M. A., Theta rhythms coordinate hippocampal-prefrontal interactions in a spatial memory task, PLoS Biology. (2005) 3, no. 12, article e402, https://doi.org/10.1371/journal.pbio.0030402, 2-s2.0-34548065418.
27Hyman J. M.,
Zilli E. A.,
Paley A. M., and
Hasselmo M. E., Working memory performance correlates with prefrontal-hippocampal theta interactions but not with prefrontal neuron firing rates, Frontiers in Integrative Neuroscience. (2010) 4, https://doi.org/10.3389/neuro.07.002.2010, 2-s2.0-77955115325.
28Sigurdsson T.,
Stark K. L.,
Karayiorgou M.,
Gogos J. A., and
Gordon J. A., Impaired hippocampal-prefrontal synchrony in a genetic mouse model of schizophrenia, Nature. (2010) 464, no. 7289, 763–767, 20360742, https://doi.org/10.1038/nature08855, 2-s2.0-77950431449, 20360742.
29Wang L.,
Zang Y.,
He Y.,
Liang M.,
Zhang X.,
Tian L.,
Wu T.,
Jiang T., and
Li K., Changes in hippocampal connectivity in the early stages of Alzheimer′s disease: evidence from resting state fMRI, NeuroImage. (2006) 31, no. 2, 496–504, https://doi.org/10.1016/j.neuroimage.2005.12.033, 2-s2.0-33646850082.
30Goveas J. S.,
Xie C.,
Ward B. D.,
Wu Z.,
Li W.,
Franczak M.,
Jones J. L.,
Antuono P. G., and
Li S.-J., Recovery of hippocampal network connectivity correlates with cognitive improvement in mild Alzheimer′s disease patients treated with donepezil assessed by resting-state fMRI, Journal of Magnetic Resonance Imaging. (2011) 34, no. 4, 764–773, 21769962, https://doi.org/10.1002/jmri.22662, 2-s2.0-80052982355, 21769962.
31Zarei M.,
Beckmann C. F.,
Binnewijzend M. A.,
Schoonheim M. M.,
Oghabian M. A.,
Sanz-Arigita E. J.,
Scheltens P.,
Matthews P. M., and
Barkhof F., Functional segmentation of the hippocampus in the healthy human brain and in Alzheimer′s disease, Neuroimage. (2013) 66, 28–35, https://doi.org/10.1016/j.neuroimage.2012.10.071.
36Peña F.,
Bargas J., and
Tapia R., Paired pulse facilitation is turned into paired pulse depression in hippocampal slices after epilepsy induced by 4-aminopyridine in vivo, Neuropharmacology. (2002) 42, no. 6, 807–812, 12015207, https://doi.org/10.1016/S0028-3908(02)00024-2, 2-s2.0-0036095009, 12015207.
37Peña F.,
Ordaz B.,
Balleza-Tapia H.,
Bernal-Pedraza R.,
Márquez-Ramos A.,
Carmona-Aparicio L., and
Giordano M., Beta-amyloid protein (25–35) disrupts hippocampal network activity: role of Fyn-kinase, Hippocampus. (2010) 20, no. 1, 78–96, https://doi.org/10.1002/hipo.20592, 2-s2.0-75149170925.
38Vargas-Barroso V.,
Ordaz-Sánchez B.,
Peña-Ortega F., and
Larriva-Sahd J. A., Electrophysiological evidence for a direct link between the main and accessory olfactory bulbs in the adult rat, Frontiers in Neuroscience. (2016) 9, article 518, https://doi.org/10.3389/fnins.2015.00518, 2-s2.0-84958050893.
39Ramírez M.,
Hernández-Montoya J.,
Sánchez-Serrano S. L.,
Ordaz B.,
Ferraro S.,
Quintero H.,
Peña-Ortega F., and
Lamas M., GABA-mediated induction of early neuronal markers expression in postnatal rat progenitor cells in culture, Neuroscience. (2012) 224, 210–222, 22940108, https://doi.org/10.1016/j.neuroscience.2012.08.044, 2-s2.0-84866514570, 22940108.
40Carrillo-Reid L.,
Tecuapetla F.,
Tapia D.,
Hernández-Cruz A.,
Galarraga E.,
Drucker-Colin R., and
Bargas J., Encoding network states by striatal cell assemblies, Journal of Neurophysiology. (2008) 99, no. 3, 1435–1450, 18184883, https://doi.org/10.1152/jn.01131.2007, 2-s2.0-40949086768, 18184883.
41Pérez-Ortega J.,
Duhne M.,
Lara-González E.,
Plata V.,
Gasca D.,
Galarraga E.,
Hernández-Cruz A., and
Bargas J., Pathophysiological signatures of functional connectomics in parkinsonian and dyskinetic striatal microcircuits, Neurobiology of Disease. (2016) 91, 347–361, https://doi.org/10.1016/j.nbd.2016.02.023.
42Stone M. E.,
Maffei A., and
Fontanini A., Amygdala stimulation evokes time-varying synaptic responses in the gustatory cortex of anesthetized rats, Frontiers in Integrative Neuroscience. (2011) 5, article 3, https://doi.org/10.3389/fnint.2011.00003, 2-s2.0-82255191392.
43Alvarado-Martínez R.,
Salgado-Puga K., and
Peña-Ortega F., Amyloid beta inhibits olfactory bulb activity and the ability to smell, PLoS ONE. (2013) 8, no. 9, e75745, https://doi.org/10.1371/journal.pone.0075745, 2-s2.0-84884599125.
45Kurudenkandy F. R.,
Zilberter M.,
Biverstål H.,
Presto J.,
Honcharenko D.,
Strömberg R.,
Johansson J.,
Winblad B., and
Fisahn A., Amyloid-β-induced action potential desynchronization and degradation of hippocampal gamma oscillations is prevented by interference with peptide conformation change and aggregation, The Journal of Neuroscience. (2014) 34, no. 34, 11416–11425, https://doi.org/10.1523/jneurosci.1195-14.2014, 2-s2.0-84906244988.
46Wang Y.,
Zhang G.,
Zhou H.,
Barakat A., and
Querfurth H., Opposite effects of low and high doses of Aβ42 on electrical network and neuronal excitability in the rat prefrontal cortex, PLoS ONE. (2009) 4, no. 12, article e8366, https://doi.org/10.1371/journal.pone.0008366, 2-s2.0-77549084548.
48Xing C.,
Yin Y.,
Chang R.,
He X., and
Xie Z., A role of insulin-like growth factor 1 in β amyloid-induced disinhibition of hippocampal neurons, Neuroscience Letters. (2005) 384, no. 1-2, 93–97, https://doi.org/10.1016/j.neulet.2005.04.063, 2-s2.0-20444474427.
49Montez T.,
Poil S.-S.,
Jones B. F.,
Manshanden I.,
Verbunt J. P. A.,
Van Dijk B. W.,
Brussaard A. B.,
Van Ooyen A.,
Stam C. J.,
Scheltens P., and
Linkenkaer-Hansen K., Altered temporal correlations in parietal alpha and prefrontal theta oscillations in early-stage Alzheimer disease, Proceedings of the National Academy of Sciences of the United States of America. (2009) 106, no. 5, 1614–1619, 19164579, https://doi.org/10.1073/pnas.0811699106, 2-s2.0-60849095091, 19164579.
50Peña-Ortega F. and
Bernal-Pedraza R., Amyloid beta peptide slows down sensory-induced hippocampal oscillations, International Journal of Peptides. (2012) 2012, 8, 236289, https://doi.org/10.1155/2012/236289, 2-s2.0-84879191897.
51Gutiérrez-Lerma A. I.,
Ordaz B., and
Peña-Ortega F., Amyloid beta peptides differentially affect hippocampal theta rhythms in vitro, International Journal of Peptides. (2013) 2013, 11, 328140, https://doi.org/10.1155/2013/328140, 2-s2.0-84880169704.
52Bitzenhofer S. H.,
Sieben K.,
Siebert K. D.,
Spehr M., and
Hanganu-Opatz I. L., Oscillatory activity in developing prefrontal networks results from theta-gamma-modulated synaptic inputs, Cell Reports. (2015) 11, no. 3, 486–497, 25865885, https://doi.org/10.1016/j.celrep.2015.03.031, 2-s2.0-84928214616, 25865885.
53Igarashi K. M., Plasticity in oscillatory coupling between hippocampus and cortex, Current Opinion in Neurobiology. (2015) 35, 163–168, https://doi.org/10.1016/j.conb.2015.09.005, 2-s2.0-84942591268.
54Verret L.,
Mann E. O.,
Hang G. B.,
Barth A. M. I.,
Cobos I.,
Ho K.,
Devidze N.,
Masliah E.,
Kreitzer A. C.,
Mody I.,
Mucke L., and
Palop J. J., Inhibitory interneuron deficit links altered network activity and cognitive dysfunction in alzheimer model, Cell. (2012) 149, no. 3, 708–721, 22541439, https://doi.org/10.1016/j.cell.2012.02.046, 2-s2.0-84860334015, 22541439.
56Van Straaten E. C. W.,
Scheltens P.,
Gouw A. A., and
Stam C. J., Eyes-closed task-free electroencephalography in clinical trials for Alzheimer′s disease: an emerging method based upon brain dynamics, Alzheimer′s Research and Therapy. (2014) 6, no. 9, article 86, https://doi.org/10.1186/s13195-014-0086-x, 2-s2.0-84927945410.
57Engels M. M.,
Hillebrand A.,
van der Flier W. M.,
Stam C. J.,
Scheltens P., and
van Straaten E. C., Slowing of hippocampal activity correlates with cognitive decline in early onset Alzheimer′s disease. An MEG study with virtual electrodes, Frontiers in Human Neuroscience. (2016) 10, article 238, https://doi.org/10.3389/fnhum.2016.00238.
58Driver J. E.,
Racca C.,
Cunningham M. O.,
Towers S. K.,
Davies C. H.,
Whittington M. A., and
LeBeau F. E. N., Impairment of hippocampal gamma (γ)-frequency oscillations in vitro in mice overexpressing human amyloid precursor protein (APP), European Journal of Neuroscience. (2007) 26, no. 5, 1280–1288, 17767505, https://doi.org/10.1111/j.1460-9568.2007.05705.x, 2-s2.0-34548321410, 17767505.
59Goutagny R.,
Gu N.,
Cavanagh C.,
Jackson J.,
Chabot J. G.,
Quirion R.,
Krantic S., and
Williams S., Alterations in hippocampal network oscillations and theta-gamma coupling arise before Aβ overproduction in a mouse model of Alzheimer′s disease, European Journal of Neuroscience. (2013) 37, no. 12, 1896–1902.
60Balleza-Tapia H. and
Peña F., Pharmacology of the intracellular pathways activated by amyloid beta protein, Mini-Reviews in Medicinal Chemistry. (2009) 9, no. 6, 724–740, 19519498, https://doi.org/10.2174/138955709788452784, 2-s2.0-69249209789, 19519498.
61Salgado-Puga K.,
Prado-Alcalá R. A., and
Peña-Ortega F., Amyloid β enhances typical rodent behavior while it impairs contextual memory consolidation, Behavioural Neurology. (2015) 2015, 12, 526912, https://doi.org/10.1155/2015/526912, 2-s2.0-84937013027.
62Salgado-Puga K. and
Peña-Ortega F., Cellular and network mechanisms underlying memory impairment induced by amyloid β protein, Protein and Peptide Letters. (2015) 22, no. 4, 303–321, 25642991, https://doi.org/10.2174/0929866522666150202112154, 2-s2.0-84931262761, 25642991.
