We have proposed a new approach to evaluate self-friction (SF) three-center nuclear attraction integrals over integer and noninteger Slater type orbitals (STOs) by using Guseinov one-range addition theorem in standard convention. A complete orthonormal set of Guseinov ψ^(α) exponential type orbitals (ψ^(α)-ETOs, α = 2,1, 0, −1, −2, …) has been used to obtain the analytical expressions. The overlap integrals with noninteger quantum numbers occurring in SF three-center nuclear attraction integrals have been evaluated using auxiliary functions. The accuracy of obtained formulas is satisfactory for arbitrary integer and noninteger principal quantum numbers.

1. Introduction

It is well known that Roothaan open-shell Hartree-Fock theory (HFR) and its extensions are not, in general, applicable to any state of a single configuration, which has any symmetry of open shells [1–10]. In a recent paper [11], Guseinov has eliminated the insufficiencies arising in HFR theory and has suggested a combined open-shell Hartree-Fock-Roothaan theory (CHFR) which includes the arbitrary number and symmetry of closed- and open-shell cases. It is clear that the evaluation of multicenter molecular integrals arising in CHFR theory has prime importance in many branches of physics particularly quantum physics, atomic and molecular physics, and nuclear physics. Using different approximations, considerable efforts have been made for calculating these integrals over STOs with noninteger principal quantum numbers n (NISTOs). Notice that the NISTOs describe the physical systems more accurately than do ISTOs with integer principal quantum numbers [12–17]. But the main problem of using NISTOs basis in molecular calculations arises in the evaluation of the multicenter integrals. Various methods have been proposed in the literature for improving evaluation for the use of NISTOs in molecular calculations. It should be noted that most of the studies in the literature on the evaluation of multicenter molecular integrals with NISTOs were not entirely successful [18–20].

According to classical electrodynamics, the Lagrangian for a system of charges does not include the Lorentz self-friction (SF) potentials [21–23]. By considering this deficiency, Guseinov had suggested a new centrally symmetric potential of the SF field and on the basis of this idea Guseinov proposed the new complete orthonormal sets of ψ^(α)-ETOs. The indices α arising from the use of total potential and occurring in the Guseinov ψ^(α)-ETOs are the frictional quantum number. For the evaluation of multicenter molecular integrals of integer Slater type orbitals (ISTOs) and noninteger Slater type orbitals (NISTOs) appearing in the CHFR approximation, Guseinov derived one-range addition theorems by the use of complete orthonormal sets of Guseinov ψ^(α)-ETOs [24].

In this case the analytical formulas for the evaluation of multicenter molecular integrals are directly depending on the SF quantum number. Thus, considering SF interactions, the calculation results of physical and chemical properties of atoms and molecules obtained from CHFR equations are closer to their real values. Therefore, the new type of multicenter molecular integrals arising in CHFR equations should be called SF multicenter molecular integrals. SF three-center nuclear attraction integral is one of the most important molecular integrals arising in CHFR equations.

The aim of this paper is to provide the general analytical expressions of SF three-center nuclear attraction integrals over ISTOs and NISTOs. With the help of Guseinov one-range addition theorems and ψ^(α)-ETOs, we have established new algorithm for calculating SF three-center nuclear attraction integrals. We noticed that the SF three-center nuclear attraction integrals are expressed in terms of two-center overlap integrals and two-center nuclear attraction integrals over NISTOs. The convergence, accuracy, and CPU time have been tested by our previous studies.

2. Definitions and Basic Formulas

The ISTOs can be written as follows [25, 26]:

(1)

where n is an integer principal quantum number, ζ is the screening constant, and S_lm(θ, φ) is a complex or real spherical harmonic (see [27–29] for exact definitions).

The NISTOs with noninteger values of the principal quantum number n^∗ are defined by

(2)

Here, Γ(x) is the gamma function.

To obtain the expansion of NISTO’s about a new center by the use of complete orthonormal sets of Ψ^α-ETOs we can use the method for the expansion of ISTOs. Finally the formulas for the expansion of NISTOs in terms of ISTOs at a new origin are defined as [24]

(3)

where

, α = 2,1, 0, −1, −2, …, and the coefficients

are determined as follows:

(4)

In (3) and (4), F_μ(k) = k! /[μ! (k − μ)!] and the quantities

are the overlap integrals between the NISTOs and ISTOs:

(5)

For the evaluation of overlap integrals we use the formula defined in terms of auxiliary functions [30]. As can be seen from (3), the coefficients for expansion of NISTOs for R ≠ 0 are expressed through the noninteger n^∗ overlap integrals with the same screening constants defined by (5). It is clear that the obtained expansion formulas from this paper can also be used in the case of integer values of n^∗. Equation (3) becomes the series expansion formulas for translation of ISTOs (see, (5) of [31]).

3. Evaluation of SF Three-Center Nuclear Attraction Integrals

The SF three-center nuclear attraction integrals over NISTOs are defined by

(6)

where

and

Taking into account (3) in (6) we obtain the following relations:

(7)

Here

is the two-center nuclear attraction integral over NISTOs determined by [32]

(8)

In order to calculate the two-center nuclear attraction integrals we use the Laplace expansion of Coulomb potential. Then we find the following analytical expression for the two-center nuclear attraction integrals:

(9)

here z = ζ + ζ^′, p = zR/2, and t = (ζ − ζ^′)/(ζ + ζ^′). See Appendix for exact formulas of C^L|M|(lm, l^′m^′),

and S_lm(θ, φ) quantities and functions occurring in (9). The quantities Γ(α) and Γ(α, x) in (9) are well-known complete and incomplete gamma functions defined by, respectively,

(10)

(11)

These functions have already been investigated by numerous authors with different algorithms (see, e.g., [33, 34] and references therein).

As can be seen from (7) and (9), by the use of Guseinov one-range addition theorems, the SF three-center nuclear attraction integrals are expressed through the two-center overlap integrals, gamma functions, auxiliary functions, and coefficients. The obtained formula is basic and valid for arbitrary integer and noninteger principal quantum numbers.

4. Numerical Results and Discussion

We have presented a new analytical method for the calculation of self-friction three-center nuclear attraction integrals over STOs and NISTOs with the help of Guseinov one-range addition theorems. The computer programs of established formulas have been performed by using Mathematica 7.0 programming language in Intel (R) Core (TM) 2.5 GHz computer. On the basis of (7), the calculation results of SF three-center nuclear attraction integrals over STOs and NISTOs have been given in Tables 1, 2, and 3. In Table 1, for α = 0 and α = 1, the comparison results of SF three-center nuclear attraction integrals over STOs and NISTOs have been presented. As can be seen from Table 1 our calculation results are satisfactory. Also, for different values of self-friction quantum number α, the convergence of the series expansion relations of SF three-center nuclear attraction integral over NISTOs as a function of summation limits of N had been shown in Tables 2 and 3.

Table 1. Comparison methods of computing integer and noninteger SF three-center nuclear attraction integrals over STOs obtained in the molecular coordinate system for N = 15 (in a.u.).

n^∗	l	m	ζ		l^′	m^′	ζ^′	R_ca	θ_ca	ϕ_ca	R_ab	θ_ab	ϕ_ab	Eq. (7)
n^∗	l	m	ζ		l^′	m^′	ζ^′	R_ca	θ_ca	ϕ_ca	R_ab	θ_ab	ϕ_ab	α = 0	α = 1
1.1	0	0	7.6	1.1	0	0	3.4	2.1	108	300	1.4	60	180	2.5334592872E − 3	2.5349685569E − 3
1.3	0	0	5.3	1.1	0	0	4.2	1.8	30	60	1.1	60	60	6.6712892627E − 3	6.6035172472E − 3
1.5	0	0	7.6	1.3	0	0	3.2	0.9	45	108	0.7	120	180	2.99057431511E − 1	2.99065465003E − 1
1.8	0	0	2.7	1.2	0	0	7.3	0.5	135	108	0.3	100	180	5.86131016003E − 1	5.8573726096E − 1
2	0	0	7.6	1	0	0	3.4	2.1	108	300	1.4	60	180	4.27245235718E − 2	4.274584963E − 2
2	1	0	9.4	2	1	0	6.7	2.2	30	45	1.2	60	36	9.91265419036E − 5	9.6780655244E − 5
2.1	1	0	5.8	2.2	0	0	3.7	0.2	105	45	0.5	120	30	−2.307460518359E − 1	−2.30614140417E − 1
3	1	0	7.6	1	0	0	3.4	0.2	108	30	0.4	60	45	4.91667625231E − 1	4.91268324946E − 1
3	1	0	8.8	3	0	0	7.9	0.8	45	45	0.3	120	60	−4.470146899767E − 1	−4.46962329953E − 1

Table 2. Convergence of the series expansion relations for noninteger SF three-center nuclear attraction integrals over STOs as a function of summation limits for N. R_ac = 1.8, θ_ac = 30, ϕ_ac = 60, R_ab = 1.1, θ_ab = 60, ϕ_ab = 60, and α = 0.

N	Eq. (7) for
5	0.336896384834373
6	0.339487682453034
7	0.340270532993467
8	0.340116042929251
9	0.339661315498115
10	0.339243752352591
11	0.338980006668039
12	0.338868607202027
13	0.338861299222622
14	0.338908803548408
15	0.338971794137852
16	0.339028513191853
17	0.339068958094987
18	0.339092542090420
19	0.339102386725724
20	0.339103160558990

Table 3. Convergence of the series expansion relations for noninteger SF three-center nuclear attraction integrals over STOs as a function of summation limits for N. R_ac = 1.8, θ_ac = 30, ϕ_ac = 60, R_ab = 1.1, θ_ab = 60, ϕ_ab = 60, and α = 1.

N	Eq. (7) for
5	0.34020570374536
6	0.34023045324266
7	0.33972836080133
8	0.33926825347282
9	0.33899764955237
10	0.33890266956856
11	0.33891035305428
12	0.33896166770645
13	0.33901588628170
14	0.33905691933072
15	0.33908024198451
16	0.33909004101075
17	0.33909111299376
18	0.33908862095281
19	0.33908529189431
20	0.33908278090016

The coefficients F_m(n),

, and

are repeatedly needed in a computation of the three-center nuclear attraction integrals. We believe that a common storage scheme for the F_m(n) and

coefficients and

overlap integrals with the same selection rule, as proposed in this study, will give important contributions in reducing requirements of computer time for computation of multicenter integrals which arise in the Hartree-Fock-Roothaan and Hylleraas approaches. For quick calculations, the F_m(n) and

coefficients and

integrals are stored in the memory of the computer. In order to put these coefficients and integrals into or to get them back from the memory, the positions of certain coefficients F_m(n),

, and

integrals are determined by the following relations.

For F_m(n) binomial coefficients
(12)
For coefficients
(13)
For overlap integrals
(14)

To demonstrate the effectiveness of storage method for given coefficients and integrals we calculated three-center nuclear attraction integral with noninteger quantum numbers. The computer time required for the calculation of three-center nuclear attraction integrals is not given in the tables due to the fact that the comparison cannot be made with the different computers used in the literature. For instance, for with sets R_ca = 0.2, θ_ca = π/3, ϕ_ca = 2π/3, R_ab = 0.5, θ_ab = π/4, ϕ_ab = 5π/6, α = 0, and N = 15 CPU time takes about 5.897 ms and 2.57 ms by using usual and storage methods, respectively.

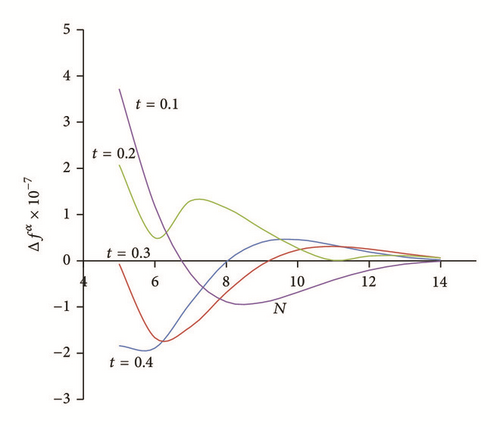

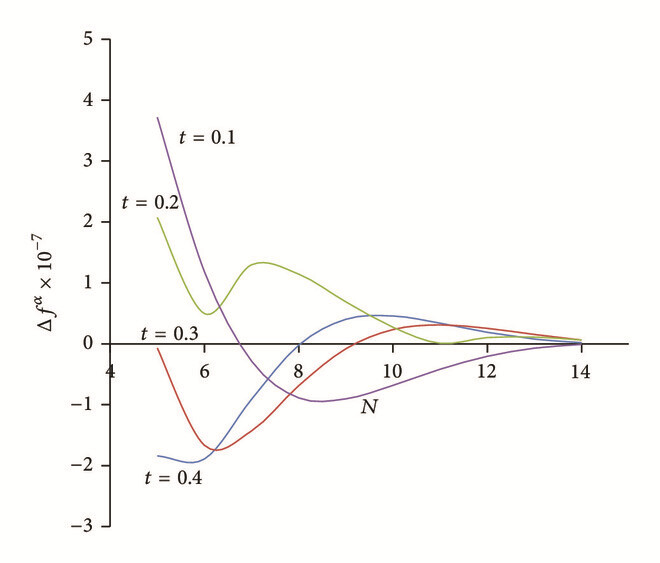

In Figure 1 we plot the convergence of the series (see (7)) of for α = 0 with different values of parameter t as a function of the indices N. The series accuracy is shown in Figure 1 where the quantities are the values of integral for L < N = N^′. As can be seen from Figure 1, for given α, the convergence rates are satisfactory for arbitrary values of parameter t. Greater accuracy is attainable by the use of more terms of expansions (7).

Details are in the caption following the image — **Figure 1**
Open in figure viewer PowerPoint

The convergence of series in (7) for α = 0 with different values of parameter t for noninteger SF three-center nuclear attraction integrals in atomic units (a.u.) as a function of the indices N (R_ac = 1.8, θ_ac = 30, ϕ_ac = 60, R_ab = 1.1, θ_ab = 60, ϕ_ab = 60, and α = 0).

5. Conclusion

In conclusion, by considering self-friction effects, we have proposed an analytical efficient method for the calculation of three-center nuclear attraction integrals over STOs and NISTOs using Guseinov one-range addition theorems. This allows us to take into account the self-friction field effect in atomic and molecular electronic structure evaluations.

Competing Interests

The author declares that they have no competing interests.

Appendix

The generalized Gaunt coefficients C^ν|σ|(lm, l^′m^′) and

occurring in (9) are determined by the following relationships [32]:

(A.1)

where

(A.2)

See [32] for the exact definition of quantities

and

In this work S_lm(θ, φ) is the complex (S_lm ≡ Y_lm) or real spherical harmonics. The definition of phases for the complex spherical harmonics

differs from the Condon-Shortley phases [27] by the sign factor (−1)^m and can be defined as

(A.3)

where

(A.4)

Here λ = |m| and 0 ≤ k ≤ (1/2){l − λ − (1/2)[1 − (−1) ^l−λ]}.

References

1 Roothaan C. C., Self-consistent field theory for open shells of electronic systems, Reviews of Modern Physics. (1960) 32, 179–185, https://doi.org/10.1103/RevModPhys.32.179, MR0129358, ZBL0092.23203, 2-s2.0-0042977504.
10.1103/RevModPhys.32.179
Web of Science® Google Scholar
2 Huzinaga S., Coupling operator method in the SCF theory, The Journal of Chemical Physics. (1969) 51, no. 9, 3971–3975, https://doi.org/10.1063/1.1672617, 2-s2.0-36849115937.
10.1063/1.1672617
CAS Web of Science® Google Scholar
3 Hirao K. and Nakatsuji H., General SCF operator satisfying correct variational condition, The Journal of Chemical Physics. (1973) 59, no. 3, 1457–1462, https://doi.org/10.1063/1.1680203, 2-s2.0-36849105991.
10.1063/1.1680203
CAS Web of Science® Google Scholar
4 Kagawa T., Relativistic Hartree-Fock-Roothaan theory for open-shell atoms, Physical Review A. (1975) 12, no. 6, 2245–2256, https://doi.org/10.1103/PhysRevA.12.2245, 2-s2.0-0001139311.
10.1103/PhysRevA.12.2245
CAS Web of Science® Google Scholar
5 Silverstone H. J., Hartree-Fock equations for open shell states, The Journal of Chemical Physics. (1977) 67, no. 9, 4172–4180, 2-s2.0-0042617726.
10.1063/1.435396
CAS Web of Science® Google Scholar
6 Carbo R. and Riera J. M., Lecture Notes in Chemistry: A General SCF Theory, 1978, 5, Springer, Berlin, Germany.
10.1007/978-3-642-93075-1
Google Scholar
7 Fieck G. and Wirsich J., Electrostatic interaction for arbitrary point groups, configurations, and coupling schemes, International Journal of Quantum Chemistry. (1980) 18, no. 3, 753–773, https://doi.org/10.1002/qua.560180310, 2-s2.0-84987097960.
10.1002/qua.560180310
CAS Web of Science® Google Scholar
8 Haser M., Molecular point-group symmetry in electronic structure calculations, The Journal of Chemical Physics. (1991) 95, no. 11, 8259–8265, https://doi.org/10.1063/1.461305, MR1135692.
10.1063/1.461305
CAS Web of Science® Google Scholar
9 Koc K. and Ishikawa Y., Single-Fock-operator method for matrix Dirac-Fock self-consistent-field calculations on open-shell atoms, Physical Review A. (1994) 49, no. 2, 794–798, https://doi.org/10.1103/PhysRevA.49.794, 2-s2.0-0001301649.
10.1103/PhysRevA.49.794
CAS PubMed Web of Science® Google Scholar
10 Kozlowski P. M. and Davidson E. R., Construction of open shell perturbation theory invariant with respect to orbital degeneracy, Chemical Physics Letters. (1994) 226, no. 5-6, 440–446, https://doi.org/10.1016/0009-2614(94)00763-2, 2-s2.0-0007648855.
10.1016/0009-2614(94)00763-2
CAS Web of Science® Google Scholar
11 Guseinov I. I., Combined open shell Hartree-Fock theory of atomic-molecular and nuclear systems, Journal of Mathematical Chemistry. (2007) 42, no. 2, 177–189, https://doi.org/10.1007/s10910-006-9090-0, MR2344128, ZBL1119.92071, 2-s2.0-34547239366.
10.1007/s10910-006-9090-0
CAS Web of Science® Google Scholar
12 Guseinov I. I., Mamedov B. A., Ertürk M., Aksu H., and Şahin E., Application of combined Hartree-Fock-Roothaan theory to atoms with an arbitrary number of closed and open shells of any symmetry, Few-Body Systems. (2007) 41, no. 3-4, 211–220, https://doi.org/10.1007/s00601-007-0179-1, 2-s2.0-37249028725.
10.1007/s00601-007-0179-1
CAS Web of Science® Google Scholar
13 Guseinov I. I., Sahin E., and Erturk M., An improvement on-exponential type orbitals for atoms in standard convention, Molecular Physics. (2014) 112, no. 1, 35–40, https://doi.org/10.1080/00268976.2013.795665.
10.1080/00268976.2013.795665
CAS Web of Science® Google Scholar
14 Erturk M., An improvement on noninteger n-generalized exponential type orbitals with hyperbolic cosine in atomic calculations, Bulletin of the Chemical Society of Japan. (2012) 85, no. 7, 753–757, https://doi.org/10.1246/bcsj.20120075, 2-s2.0-84864227251.
10.1246/bcsj.20120075
CAS Web of Science® Google Scholar
15 Koga T. and Kanayama K., Noninteger principal quantum numbers increase the efficiency of Slater-type basis sets: singly charged cations and anions, Journal of Physics B: Atomic, Molecular and Optical Physics. (1997) 30, no. 7, https://doi.org/10.1088/0953-4075/30/7/004.
10.1088/0953-4075/30/7/004
Web of Science® Google Scholar
16 Koga T. and Kanayama K., Noninteger principal quantum numbers increase the efficiency of Slater-type basis sets: heavy atoms, Chemical Physics Letters. (1997) 266, no. 1-2, 123–129, https://doi.org/10.1016/S0009-2614(96)01500-X.
10.1016/S0009-2614(96)01500-X
CAS Web of Science® Google Scholar
17 Koga T., Shimazaki T., and Satoh T., Noninteger principal quantum numbers increase the efficiency of Slater- type basis sets: double-zeta approximation, Journal of Molecular Structure: THEOCHEM. (2000) 496, 95–100, https://doi.org/10.1016/s0166-1280(99)00176-1, 2-s2.0-0034614538.
10.1016/S0166-1280(99)00176-1
CAS Web of Science® Google Scholar
18 Kay K. G. and Silverstone H. J., Analytical evaluation of multicenter integrals of r 12− 1 with Slater-type atomic orbitals. V. four-center integrals by Fourier-transform method, The Journal of Chemical Physics. (1969) 51, 4287–4304, https://doi.org/10.1063/1.1671791, MR0332021, 2-s2.0-0001096709.
10.1063/1.1671791
CAS Web of Science® Google Scholar
19 Steinborn E. O. and Filter E., Translations of fields represented by spherical-harmonic expansions for molecular calculations, Theoretica Chimica Acta. (1975) 38, no. 4, 247–260, https://doi.org/10.1007/bf00963465, MR0452228, 2-s2.0-0001124775.
10.1007/BF00963465
CAS Web of Science® Google Scholar
20 Filter E. and Steinborn E. O., A matrix representation of the translation operator with respect to a basis set of exponentially declining functions, Journal of Mathematical Physics. (1980) 21, no. 12, 2725–2736, https://doi.org/10.1063/1.524390, MR597587, ZBL0452.33016, 2-s2.0-36749109543.
10.1063/1.524390
Web of Science® Google Scholar
21 Lorentz H. A., The Theory of Electrons, 1953, Dover, New York, NY, USA.
Google Scholar
22 Heitler W., The Quantum Theory of Radiation, 1950, Oxford University Press, Oxford, UK.
Google Scholar
23 Landau L. D. and Lifshitz E. M., The Classical Theory of Fields, 1987, Pergamon, New York, NY, USA.
Google Scholar
24 Guseinov I. I., Unified treatment of one-range addition theorems for complete orthonormal sets of generalized exponential-type orbitals and noninteger N slater functions, Bulletin of the Chemical Society of Japan. (2014) 87, no. 10, 1101–1103, https://doi.org/10.1246/bcsj.20140073, 2-s2.0-84909608180.
10.1246/bcsj.20140073
CAS Web of Science® Google Scholar
25 Löwdin P.-O., Expansion theorems for the total wave function and extended Hartree-Fock schemes, Reviews of Modern Physics. (1960) 32, 328–334, https://doi.org/10.1103/revmodphys.32.328, MR0112658, 2-s2.0-0000611891.
10.1103/RevModPhys.32.328
Web of Science® Google Scholar
26 Slater J. C., Quantum Theory of Atomic Structure, 1960, 2, McGraw-Hill, New York, NY, USA.
Web of Science® Google Scholar
27 Condon E. U. and Shortley G. H., Theory of Atomic Spectra, 1963, Cambridge University Press, London, UK.
Google Scholar
28 Gradshteyn I. S. and Ryzhik I. M., Table of Integrals, Series, and Products, 1980, Academic Press, New York, NY, USA, MR582453.
Google Scholar
29 Abramowitz M. and Stegun I. A., Handbook of Mathematical Functions, 1972, Dover, New York, NY, USA, Zbl0543.33001.
CAS Google Scholar
30 Guseinov I. I. and Mamedov B. A., Evaluation of overlap integrals with integer and noninteger n Slater-type orbitals using auxiliary functions, Journal of Molecular Modeling. (2002) 8, no. 9, 272–276, https://doi.org/10.1007/s00894-002-0098-5, 2-s2.0-0036974198.
10.1007/s00894-002-0098-5
CAS PubMed Web of Science® Google Scholar
31 Guseinov I. I., One-range addition theorems for complete sets of modified exponential type orbitals and noninteger n slater functions in standard convention, Journal of the Chinese Chemical Society. (2014) 61, no. 4, 477–480, https://doi.org/10.1002/jccs.201300369, 2-s2.0-84898603815.
10.1002/jccs.201300369
CAS Web of Science® Google Scholar
32 Guseinov I. I., Analytical evaluation of two-centre Coulomb, hybrid and one-electron integrals for Slater-type orbitals, Journal of Physics B: Atomic and Molecular Physics. (1970) 3, no. 11, 1399–1412, https://doi.org/10.1088/0022-3700/3/11/001, 2-s2.0-17744374404.
10.1088/0022-3700/3/11/001
Web of Science® Google Scholar
33 Çopuroğlu E. and Mehmetoğlu T., Full analytical evaluation of the einstein relation for disordered semiconductors, IEEE Transactions on Electron Devices. (2015) 62, no. 5, 1580–1583, https://doi.org/10.1109/ted.2015.2414474, 2-s2.0-84928749165.
10.1109/TED.2015.2414474
Web of Science® Google Scholar
34 Guseinov I. I. and Mamedov B. A., Evaluation of incomplete gamma functions using downward recursion and analytical relations, Journal of Mathematical Chemistry. (2004) 36, no. 4, 341–346, https://doi.org/10.1023/B:JOMC.0000044521.18885.d3, MR2104931, ZBL1059.81187, 2-s2.0-6344229214.
10.1023/B:JOMC.0000044521.18885.d3
CAS Web of Science® Google Scholar
