Experimental Investigations into Abrasive Waterjet Machining of Carbon Fiber Reinforced Plastic

Prasad D. Unde

Prasad D. Unde

Marathwada Institute of Technology, Aurangabad 431028, India mit.asia

Search for more papers by this author
M. D. Gayakwad

M. D. Gayakwad

Marathwada Institute of Technology, Aurangabad 431028, India mit.asia

Search for more papers by this author
N. G. Patil

Corresponding Author

N. G. Patil

Marathwada Institute of Technology, Aurangabad 431028, India mit.asia

Search for more papers by this author
R. S. Pawade

R. S. Pawade

Dr. Babasaheb Ambedkar Technological University, Lonere 402103, India dbatuonline.com

Search for more papers by this author
D. G. Thakur

D. G. Thakur

Defence Institute of Advanced Technology, Pune 411025, India diat.ac.in

Search for more papers by this author
P. K. Brahmankar

P. K. Brahmankar

Dr. Babasaheb Ambedkar Technological University, Lonere 402103, India dbatuonline.com

Search for more papers by this author
First published: 29 September 2015
Citations: 64
Academic Editor: Nikhil Gupta

Abstract

Abrasive waterjet machining (AWJM) is an emerging machining process in which the material removal takes place due to abrasion. A stream of abrasive particles mixed with filtered water is subjected to the work surface with high velocity. The present study is focused on the experimental research and evaluation of the abrasive waterjet machining process in order to evaluate the technological factors affecting the machining quality of CFRP laminate using response surface methodology. The standoff distance, feed rate, and jet pressure were found to affect kerf taper, delamination, material removal rate, and surface roughness. The material related parameter, orientation of fiber, has been also found to affect the machining performance. The kerf taper was found to be 0.029 for 45° fiber orientation whereas it was 0.036 and 0.038 for 60° and 90°, respectively. The material removal rate is 18.95 mm3/sec for 45° fiber orientation compared to 18.26 mm3/sec for 60° and 17.4 mm3/sec for 90° fiber orientation. The Ra value for 45° fiber orientation is 4.911 µm and for 60° and 90° fiber orientation it is 4.927 µm and 4.974 µm, respectively. Delamination factor is found to be more for 45° fiber orientation, that is, 2.238, but for 60° and 90° it is 2.029 and 2.196, respectively.

1. Introduction

Carbon fibers which are commonly used to reduce the weight of structural components on the aircraft result in improved fuel economy, reduced emissions, and increased load carrying capacity of the aircraft. CFRP also found application in automobile parts like car body, frame, hood, roof, and body panel for bus, propeller shaft, compressed natural gas tank, radiator core support, and chassis. They are also used in sporting goods like ski, bicycle, fishing rods, hockey sticks, badminton rackets, and golf shaft. CFRP proved to be good for environment and energy related applications like wind power blades, tidal power blades, fuel cells, tube trailer tank, battery charging flywheel, and electric cable core. However, some properties of composite laminates like nonhomogeneity, anisotropy, and highly abrasive and hard reinforced fibers make the machining of these laminates difficult [1, 2]. During machining, kinds of damage such as delamination and fiber pull-out occur which may reduce strength against fatigue, thus degrading the long-term performance of composite laminates [3]. The material delamination is serious issue associated with the machining of these materials [4, 5]. Carraro et al. [3] reported that voids present in the stacking of laminate may lead to propagation of damage in the laminate during processing. They further mentioned that the intralaminar and interlaminar properties play significant role in development of the damage. It was reported that, in aircraft industry, the rejection of parts due to delamination of material was as high as 60% [6]. Delamination remains the major challenge in machining of CFRP laminate by using most of the machining processes. Presently, there is no process which gives the complete solution for the delamination of the CFRP material. It has been demonstrated that the performance of AWJM is superior compared to laser machining and waterjet machining as far as delamination is concerned [5, 7]. Also it has been reported that the waterjet cutters are the efficient tools for the machining of the layered composites [2, 5]. They further added that delamination reduces significantly using AWJM. In AWJM, high velocity jet of abrasive slurry is impacted on work surface and it removes the material based on the principle of erosion of the material. AWJM has advantages like high machining versatility, relatively small cutting forces, high flexibility, and no thermal distortion [8]. While comparing with other machining processes like laser cutting and conventional machining process, no heat affected zone on the workpiece is produced [9]. Due to wide applications in aerospace and probable penetration in automotive industry, successful machining of these materials is necessary. Conventional machining is associated with poor surface integrity, laser beam machining leads to severe thermal damage, and wire electrodischarge machining is limited to conductive materials only. Although AWJM is associated with noisy pump and higher operating cost, it appears to show promise in machining of CFRP as compared to laser and WJM [1, 5, 10]. In addition, delamination is significantly reduced in this process [1, 5]. Besides, like laser beam machining, workpiece thickness is not a limitation in AEJM. Based on the literature, it appeared that although many attempts have been made to study AWJ and AWJM of CFRP, most of the studies have been undertaken on drilling. Therefore, it is necessary to investigate the profile cutting using AWJM. Besides, to the best of our knowledge, there are very few studies on modeling of AWJM of these materials. Therefore, the present study was undertaken to investigate the combination of input process parameters such as jet pressure, standoff distance, feed rate on dimensional accuracy, surface quality, and material removal rate. The effects of fiber orientation of these performance measures have also been studied, especially due to probable applications with different fiber orientation. In addition, empirical models have also been developed for kerf, surface roughness, and materials removal rate using response surface methodology. The scope of this study is, therefore, limited to empirical study of machinability of CFRP using AWJM.

2. Experimentation

The machine tool used for experimentation is manufactured by Waterjet Germany Pvt. Ltd. and model number is S3015, a CNC machine with working bed size 3200 × 1700 mm. The x-, y-, and z-axis travel are 3000 mm, 1500 mm, and 200 mm, respectively, with table height 910 mm. The maximum working pressure is 400 MPa which is generated with 37 KW motor. The accuracy and repeatability of the machine are ±0.05 mm and ±0.03 mm, respectively. The workpiece used is a bidirectional CFRP laminate with size 100 × 100 × 8 mm and with fiber orientation being 45°, 60°, and 90°. A carbon fiber is a fibrous carbon material having a micrographite crystal structure made by fibrillation of epoxy resin. The strength to weight ratio for carbon fiber is 2457 with fiber diameter about 7 μm. The tensile strength of the samples is about 1600 Nmm−2.

2.1. Planning of the Experiments

The experimentation is carried out considering the jet pressure, feed rate, standoff distance, and fiber orientation. The jet pressure in AWJM is important parameter as it decides the kinetic energy of the abrasive particles. The greater the jet pressure is, the more the kinetic energy is and the less the deflection of jet is [6]. The jet pressure also decides the MRR in the process. It has been also reported that with an increase in standoff distance the kerf width increases. The feed rate decides the efficiency of the process [11]. The surface roughness increases with increase in feed rate and standoff distance [12, 13]. However, relatively less study is available about the influence of fiber orientation. The different fiber orientations affect the quality of the cut. It has been reported that the CFRP laminate with 90° fiber orientation gives superior results for surface roughness [14]. The effect of fiber orientation on surface roughness of the CFRP laminate while trimming using polycrystalline diamond tool is studied reporting that the fiber orientation plays role in deciding the surface roughness [15].

In the present study, the input parameters which have been decided are abrasive waterjet pressure, feed rate, standoff distance, and a material related parameter, that is, fiber orientation. Table 1 shows the levels and range of abovementioned process parameter for the experimentation.

Table 1. Process parameter levels considered for experimentation.
Parameter Levels
−2 −1 0 +1 +2
Jet pressure, MPa (JP) 80 160 240 320 400
Feed rate, m/min (FR) 2 4 6 8 10
Standoff distance, mm (SoD) 10 15 20 25 30
Fiber orientation, degree (OR) 45 45 60 90 90

2.2. Response Surface Methodology

Response surface methodology (RSM) is a collection of mathematical and statistical techniques for empirical model building. To reduce the size of experiments without compromising the accuracy, the uniform precision rotatable central composite experimental design (CCD) was used [16, 17]. In physical experiments, inaccuracy can be due, for example, to measurement errors while, in computer experiments, numerical noise is a result of incomplete convergence of iterative processes, round-off errors, or the discrete representation of continuous physical phenomena. In RSM, the errors are assumed to be random. The application of RSM to design optimization is aimed at reducing the cost of expensive analysis methods and their associated numerical noise.

Table 2 shows the details of response surface experiments.

Table 2. Experimental design matrix.
Experiment number Jet pressure [MPa] Feed rate [m/min] Standoff distance [mm] Fiber orientation [degree]
1 160 4 15 45
2 320 4 15 45
3 160 8 15 45
4 320 8 15 45
5 160 4 25 45
6 320 4 25 45
7 160 8 25 45
8 320 8 25 45
9 160 4 15 90
10 320 4 15 90
11 160 8 15 90
12 320 8 15 90
13 160 4 25 90
14 320 4 25 90
15 160 8 25 90
16 320 8 25 90
17 80 6 20 60
18 400 6 20 60
19 240 2 20 60
20 240 10 20 60
21 240 6 10 60
22 240 6 30 60
23 240 6 20 45
24 240 6 20 90
25 240 6 20 60
26 240 6 20 60
27 240 6 20 60
28 240 6 20 60
29 240 6 20 60
30 240 6 20 60

3. Results and Discussion

3.1. Kerf Taper

The kerf taper is an undesirable outcome of any machining process. In the present study, kerf taper was found to be influenced by fiber orientation and standoff distance.

The kerf taper is calculated as [18]
()
where Lt is kerf width at top side; Lb is kerf width at bottom side; T is thickness of the laminate; unit for kerf taper is mm/mm.
Based on response surface design of experiments empirical model for kerf taper has been developed. The model is presented as
()
The correlation coefficient (r) is 0.80.

The most significant process parameter was found to be fiber orientation. For 45° fiber orientation it gives best results. Compared to 60° and 90° fiber orientation, kerf taper was found to reduce while machining of workpiece with 45° fiber orientation. This might be attributed to less volume fraction of reinforcement in this material.

The kerf taper was found to increase with standoff distance. This can be attributed to the reduced cutting ability of the abrasives when moving from the top to the bottom. The abrasive particles retard the cutting ability when moving from top surface to bottom surface. Figures 1 and 2 show the effect of fiber orientation and standoff distance on kerf taper. Kerf taper was found to reduce with increased jet pressure as shown in Figures 3 and 4. This can be attributed to increased cutting ability of the abrasive particles at greater jet pressure due to higher kinetic energy.

Details are in the caption following the image

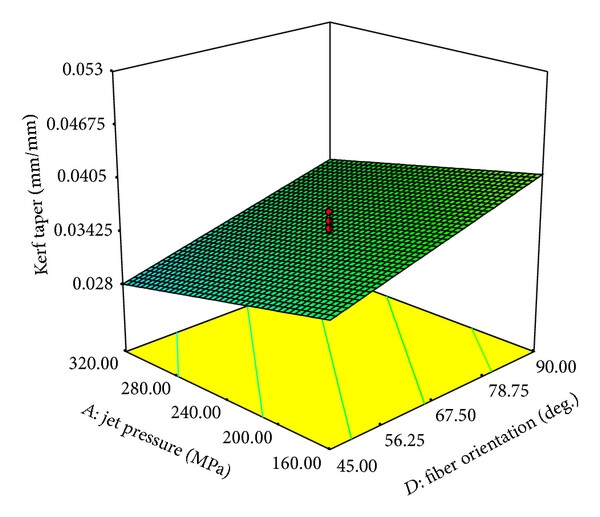

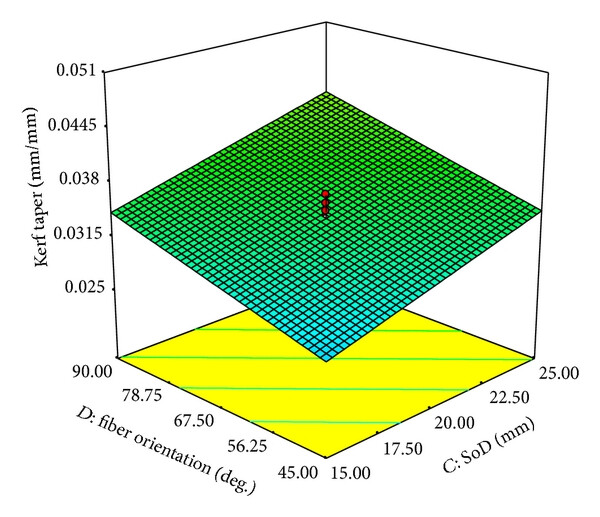

Kerf taper versus fiber orientation and standoff distance.
Details are in the caption following the image

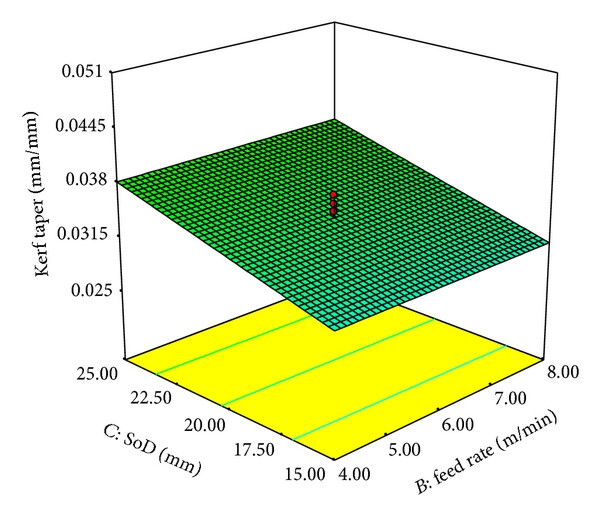

Kerf taper versus standoff distance and feed rate.
Details are in the caption following the image

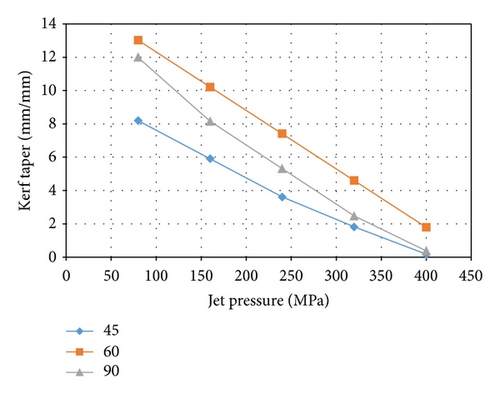

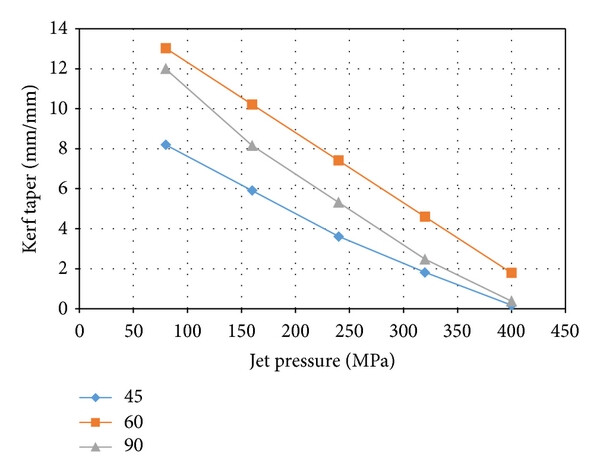

Jet pressure versus kerf taper.
Details are in the caption following the image
Kerf taper versus jet pressure and fiber orientation.

Findings in the past [5, 7] are in agreement with the present observations. The feed rate has no effect on the kerf taper. Thus, the jet pressure, fiber orientation, and standoff distance decide the taper in AWJM process.

3.2. Delamination Factor

Delamination is the major defect found in machining of the composite materials. In CFRP laminate, the delamination has been observed on both sides of the laminate, that is, top and bottom side. It has been reported that the delamination is initiated by the shock wave generated by the jet in AWJM [5]. Therefore delamination is more on top side as compared to the bottom side. Figures 5, 6, and 7 show that delamination is more on top side as compared to bottom side. When the abrasive particles reach the top surface they possess more energy to cut the material and then they continuously lose some part of the energy during propagation of the jet. Figure 8 shows surface plot of delamination versus standoff distance. As the standoff distance increases the jet gets diverge and the cutting area increases with an increase in jet diversion.

Details are in the caption following the image
SoD versus top DF.
Details are in the caption following the image

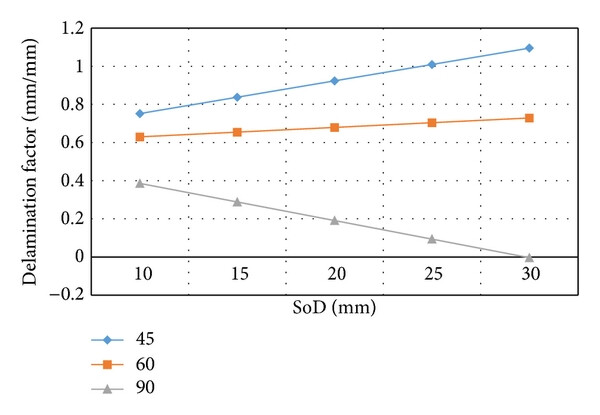

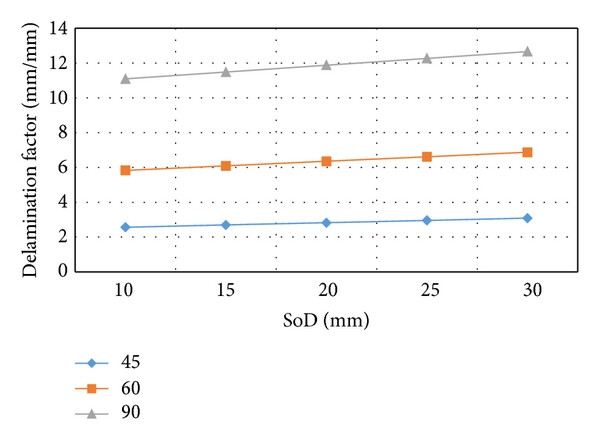

SoD versus bottom DF.
Details are in the caption following the image

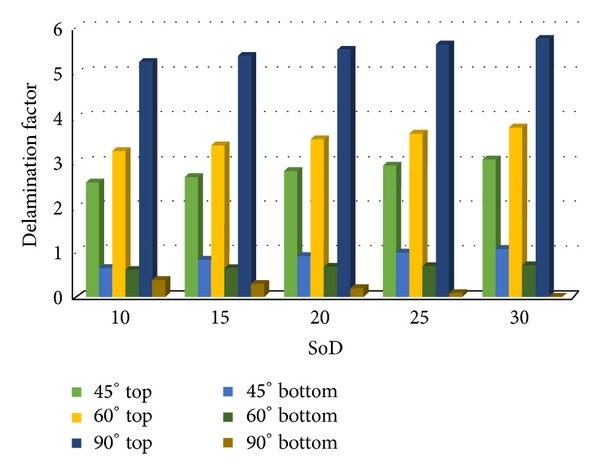

Comparison of delamination factor.
Details are in the caption following the image

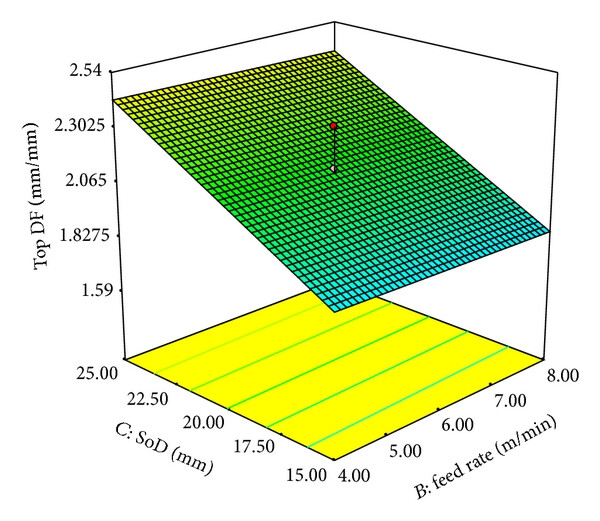

Delamination on top side versus standoff distance and feed rate.
The delamination factor is calculated as [19]
()
where Wd is maximum damaged width and Wo is original width of cut.
Based on results of experiments, empirical models for top and bottom delamination factor have been developed as
()
The correlation coefficients (r) are 0.86 and 0.81, respectively, for top and bottom side.

The standoff distance has been found to significantly influence the delamination on the top as well as bottom side of the CFRP laminate. The parameters like jet pressure and feed rate decide the kinetic energy and the cutting time for the process. But the standoff distance decides the area of cutting which increases or decreases the impact area. Topography of the machined surface is as shown in Figure 9.

Details are in the caption following the image

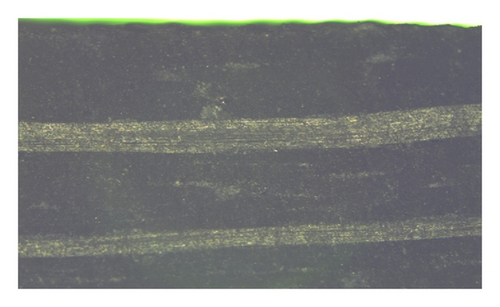

Figure 9 (a) Optical microimage
Machined surface.
Details are in the caption following the image

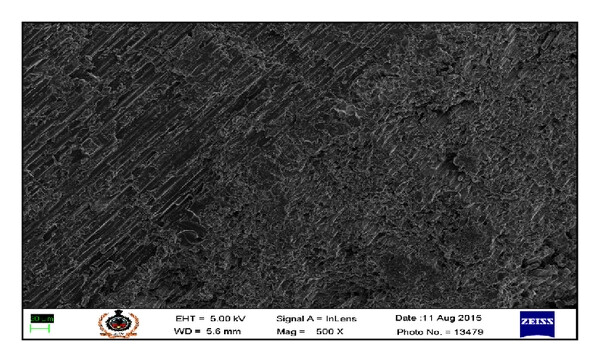

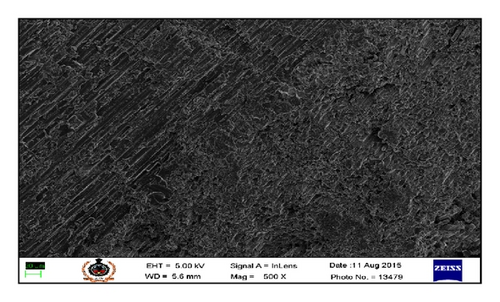

Figure 9 (b) SEM image
Machined surface.

3.3. Material Removal Rate (MRR)

The material removal rate in any machining process is imperative parameter to decide the efficiency of the process. The feed rate was found to be the most significant parameter. MRR was found to improve with increased feed rate, Figure 10. The surge in feed rate reduces the time required to complete the process. The feed rate decides the time required to complete the process.

Details are in the caption following the image

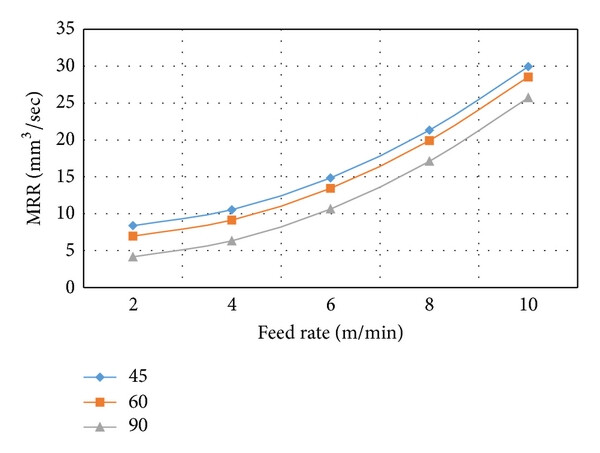

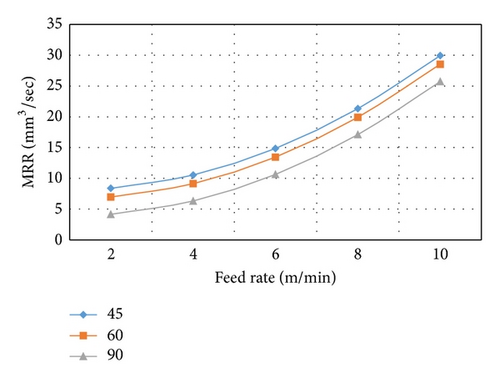

Feed rate versus MRR.
Material removal rate is calculated by using [20]
()
where Lt is kerf width at top side, Lb is kerf width at bottom side, Lc is length of cut, T is thickness of the laminate, t is time required to perform operation, and unit is mm3/sec.
A model has been developed by using RSM experiments:
()
The correlation coefficient (r) is 0.96.

Figure 11 shows that, along with feed rate and standoff distance, MRR was found to be greater at higher jet pressure and at 45° fiber orientation. The CFRP material with 45° has less interaction of abrasive jet with fiber as compared to 60° and 90°. Polymer resin is easy to cut as compared to fibers and therefore the 45° fiber orientation gives better MRR than the 60° and 90°. Also with increased jet pressure the kinetic energy of the abrasive particles increases. The higher kinetic energy increases the cutting ability of the abrasive particles which helps to remove more volume of material. MRR was found to increase with increased standoff distance, Figure 12. This can be attributed to divergence in jet and low kinetic energy of the abrasive particles due to more distance between the jet and the workpiece.

Details are in the caption following the image

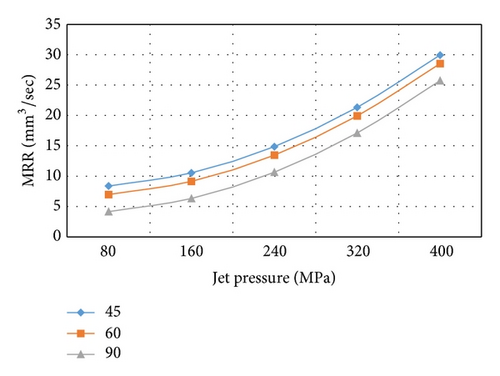

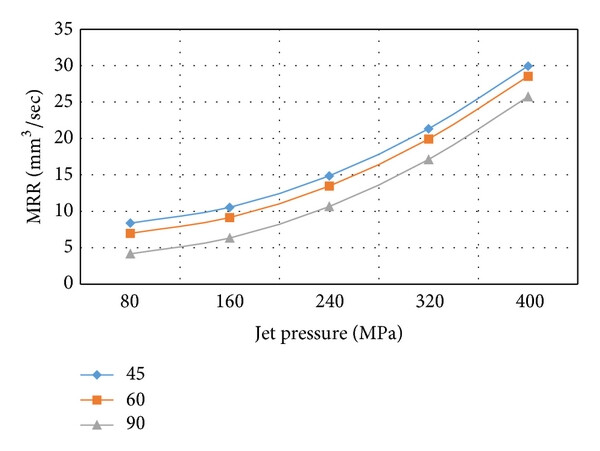

Jet pressure versus MRR.
Details are in the caption following the image

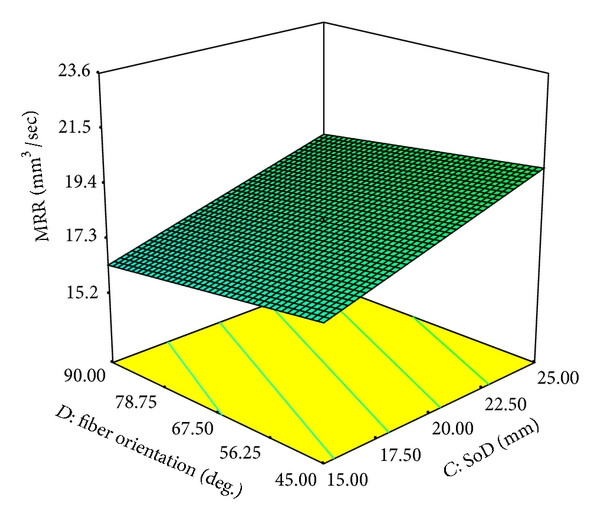

MRR versus fiber orientation and SoD.

3.4. Surface Roughness

The AWJM parameters have been found to influence the surface roughness measured in terms of Ra, Rp, and Rz. However, values like Rv, Rku, Rsk, and Rsm remain unaffected. Figures 13, 14, and 15 show that Ra value increases with increase in feed rate and SoD. The feed rate influences the time required for the cutting of the material. With increase in feed rate the abrasive particle gets less time to cut the material and new particles arrive in cutting region. With increase in feed rate the abrasive particles get less time to cut the material though particles possess more or less cutting energy. This increases the surface roughness. As standoff distance increases the distance to be traveled by the abrasive particles also increases. With increase in distance, the sharp cutting of the material is not possible which might be effect of reduced cutting ability of the abrasive particles. Therefore, as standoff distance increases the abrasive particles lose cutting ability during traveling owing to distance traveled and the intercollision between particles. This is in agreement with the findings of previous investigations [7, 8].

Details are in the caption following the image

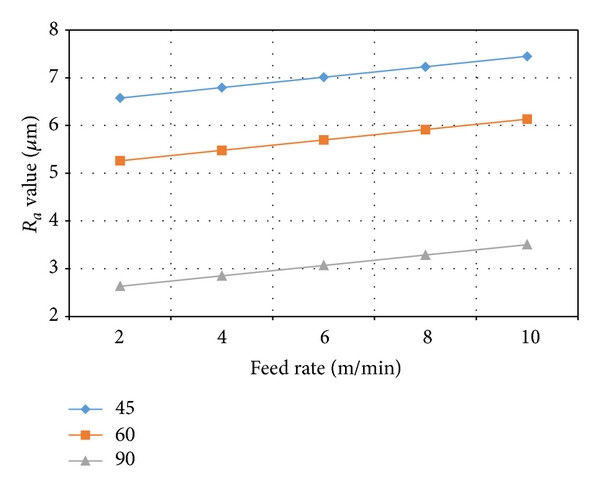

Feed rate versus Ra.
Details are in the caption following the image

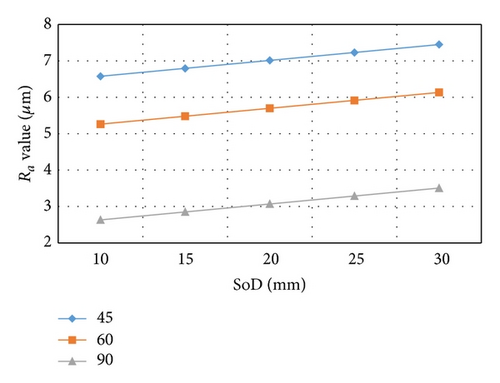

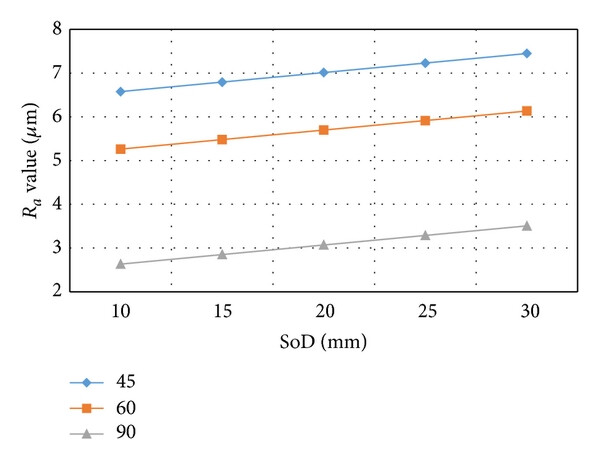

SoD versus Ra.
Details are in the caption following the image

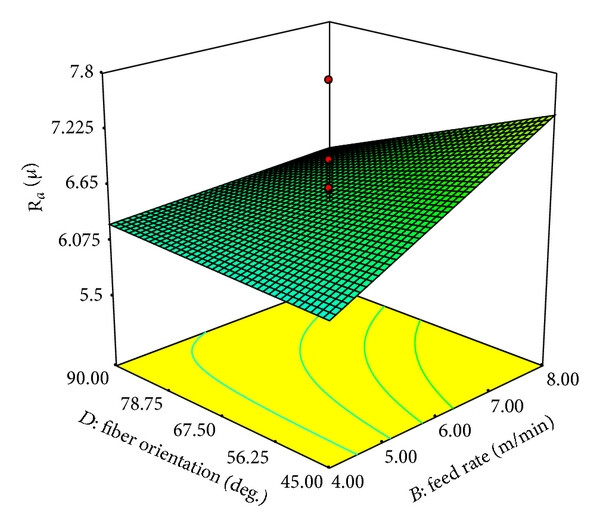

Ra versus fiber orientation and feed rate.
Empirical models for Ra, Rp, and Rz value have been developed using RSM experiments as
()
The correlation coefficients for Ra, Rp, and Rz value are 0.85, 0.87, and 0.85, respectively.

The jet pressure and the fiber orientation also influence the surface roughness of the component, Figures 16 and 17. Figures 18 and 19 show that as the Jet pressure increases the Ra, Rp, and Rz value decease, because, with increase in jet pressure, the cutting ability of the abrasive particles increases. Stoi et al. also recommended increase of jet pressure and reduced feed rate to improve the surface finish [13]. It has been found that the fiber orientation also plays important role in deciding the surface roughness. The roughness values are higher for the 45° fiber orientation as compared to 60° and 90°. For 45° and 60° fiber orientation, the shear plane is elliptical and for 90° it is circular. Figure 20 shows the jet direction and shear plane for different fiber orientations. Sharp and clean cuts are possible with 90° orientation. This might be attributed to greater resistance offered by the fibers at 45° and 60° orientation. The greater resistance could be due to large shear area at 45° and 60° compared to 90°. In 45° fiber orientation the shear plane area is more as compared to 60° and 90° due to reduction in shear angle. As the shear angle decreases, the shear plane becomes more elliptical which results in increase in area to be cut.

Details are in the caption following the image

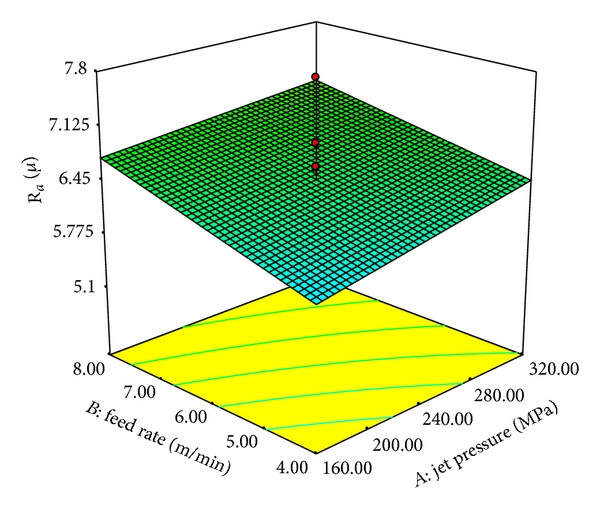

Ra versus feed rate and jet pressure.
Details are in the caption following the image

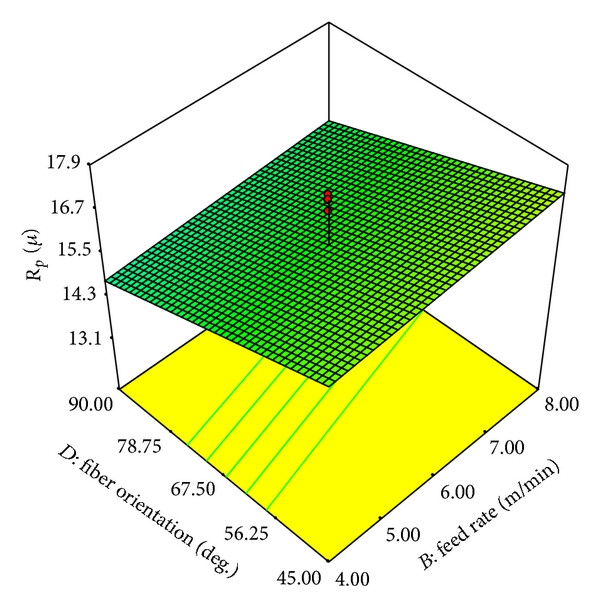

Rp versus fiber orientation and feed rate.
Details are in the caption following the image

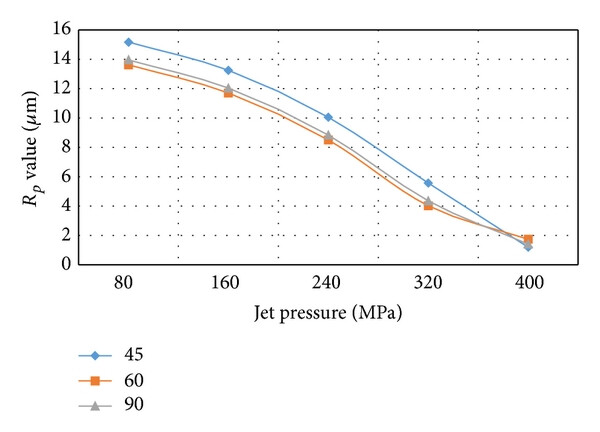

Jet pressure versus Rp.
Details are in the caption following the image

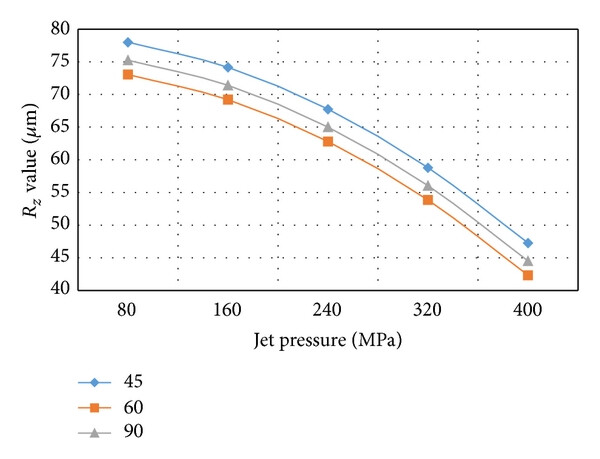

Jet pressure versus Rz.
Details are in the caption following the image

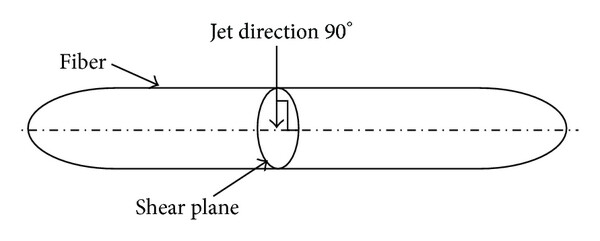

Impact of jet on the fiber.

4. Conclusions

In cutting of CFRP laminate using AWJM, various process parameters have influence on the performance measures. The standoff distance and feed rate have been found to show significant influence on the kerf taper, delamination factor, and the MRR. The fiber orientation and jet pressure affect the surface roughness of the cut. The laminate with 45° fiber orientation gives superior results as compared to 60° and 90°.
  • (i)

    The laminate with 45° fiber orientation shows kerf taper 0.029 while 60° and 90° show 0.036 and 0.038, respectively.

  • (ii)

    Also the laminate with 45° fiber orientation shows greater MRR, that is, 18.95 mm3/sec as compared to 60° and 90°, that is, 18.26 mm3/sec and 17.4 mm3/sec, respectively.

  • (iii)

    The delamination factor and Ra value for the laminate with fiber orientation 45 are about 2.239 and 6.967, respectively, which is more as compared to 60° and 90°.

The fiber orientation is slightly unheeded part in composite machining and there is no significant literature available to study the effect of fiber orientation; we hope that this study will contribute in this concern. It is recommended that, in AWJM, higher jet pressure, less standoff distance, and moderate feed rate will give desirable results.

Conflict of Interests

The authors have no conflict of interests to declare.

Acknowledgments

The authors would like to thank Indutech Composites Tech. Pvt. Ltd., Baroda, for supplying the CFRP material and Sasa Engineering, Pune, for providing the machining facilities during the experimentation work.

    Appendix

    See Table 3.

    Table 3. Results of experiments.
    Orientation Kerf taper Top delamination factor Bottom delamination factor Material removal rate Ra value Rp value Rz value
    mm/mm mm/mm mm/mm mm³/sec μm μm μm
    45 8.198 2.568075 0.7517 8.3782 6.576 15.168 77.9855
    5.906 2.698575 0.83755 10.5438 6.794 13.248 74.1455
    3.614 2.829075 0.9234 14.8598 7.012 10.048 67.7455
    1.822 2.959575 1.00925 21.3262 7.23 5.568 58.7855
    0.17 3.090075 1.0951 29.943 7.448 1.192 47.2655
      
    60 13.022 3.2658 0.6296 6.9712 5.262 13.62 73.046
    10.214 3.3963 0.6544 9.1368 5.48 11.7 69.206
    7.406 3.5268 0.6792 13.4528 5.698 8.5 62.806
    4.598 3.6573 0.704 19.9192 5.916 4.02 53.846
    1.79 3.7878 0.7288 28.536 6.134 1.74 42.326
      
    90 11.99 5.2593 0.3854 4.1572 2.634 13.953 75.236
    8.15 5.3898 0.2881 6.3228 2.852 12.033 71.396
    5.31 5.5203 0.1908 10.6388 3.07 8.833 64.996
    2.47 5.6508 0.0935 17.1052 3.288 4.353 56.036
    0.37 5.7813 0.0038 25.722 3.506 1.407 44.516
