The paper presents a new voltage-mode multifunction filter. The proposed filter employs single modified fully differential second generation current conveyor (FDCCII), two grounded capacitors, and three resistors. The proposed circuit enjoys the employment of two grounded capacitors (attractive for absorbing shunt parasitic capacitance and ideal for IC implementation). The proposed circuit provides all five generic filter responses (low pass (LP), high pass (HP), band pass (BP), notch (NH), and all pass (AP) filter responses) simultaneously with single input. The novel proposed filter has low active and passive sensitivities. A number of time domain and frequency domain simulation results depicted through PSPICE using 0.18 µm TSMC process parameters are included to validate the theory. The proposed circuit is expected to enhance the existing knowledge on the subject.
1. Introduction
Analog filters are the basic building blocks and widely used for continuous-time signal processing. Applications of analog filters employing current-mode active elements extend over a large number of areas [1–5]. In the literature, several voltage-mode (VM) universal biquadratic filters with single input and multioutputs (SIMO) have been reported [6–10]. A SIMO circuit configuration reported in [6] employs five current feedback amplifiers (CFAs), two grounded capacitors, and six resistors. It realizes all the standard filter functions, namely, low pass (LP), band pass (BP), high pass (HP), notch (NH), and all pass (AP), simultaneously, and also enjoys the features of using only grounded capacitors and orthogonal control between the resonance angular frequency and quality factor. In [7], two voltage-mode universal filter circuits are presented. Each circuit employs two FDCCII, two resistors, and two capacitors. The filter circuits reported in [8, 9] use single FDCCII, three resistors, and two grounded capacitors and realize all generic filter responses in VM. Two VM universal filters are reported in [10]. The first universal filter employs three DVCCs together with two grounded capacitors and three grounded resistors and provides five outputs with single input but it requires matching condition to realize all the generic filter responses. The second reported VM universal filter with three inputs and one output employs three DVCCs, two grounded capacitors, and three grounded resistors. Over the last decades, numerous voltage-mode biquadratic filters using current conveyors are also presented [11–18]. However, all of these reported filters cannot realize five filtering responses simultaneously.
In this paper, a new voltage-mode multifunction filter has been presented. The proposed filter employs single modified FDCCII as an active element, two grounded capacitors, and three resistors. The proposed circuit realizes all generic filter functions (low pass (LP), band pass (BP), high pass (HP), Notch (NH), and all pass (AP)) simultaneously. The proposed circuit of multifunction filter enjoys the features of minimum number of active and passive components and no requirement of component choice except for to realize all pass filter and low active and passive sensitivities.
2. Circuit Description
Fully differential second-generation current conveyor (FDCCII) as a current-mode active device was proposed to improve the dynamic range especially in mixed-mode applications where fully differential signal processing is required [19]. This active element is a versatile building block whose applications exist in the literature [7–9, 11, 13–17]. One of the most important applications is the design of analog filters.

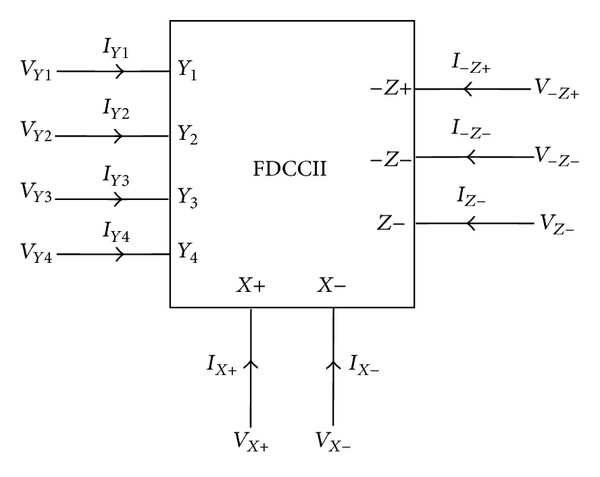

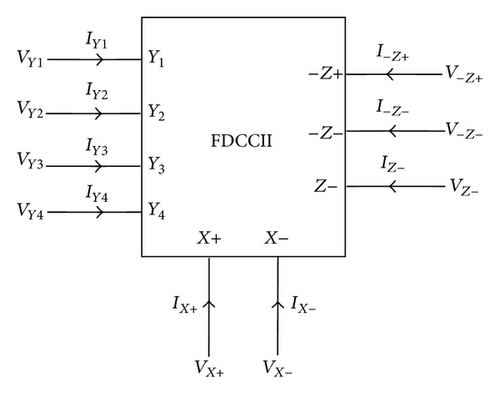

The input-output relationship of the modified FDCCII whose symbol is shown in Figure 1 is characterized by the following matrix equation:
()

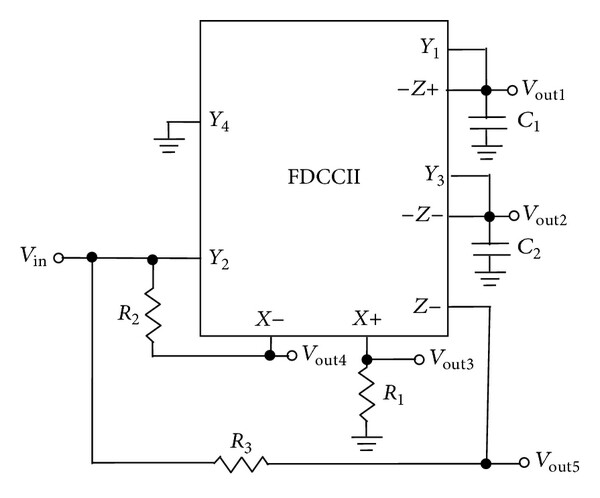

The proposed circuit employing single modified FDCCII, two grounded capacitors, and three resistors is shown in Figure 2. The use of grounded capacitors is particularly attractive for integrated circuit implementation because grounded capacitors compensate stray capacitances at their nodes [20].
Routine analysis of the proposed circuit using (1) yields the following transfer functions:
()
where Δ1 = s2C1C2R1R2 + sC2R2 + 1.
It can be seen from (2) that a noninverting BP response is obtained from Vout1, a noninverting LP response is obtained from Vout2, an inverting HP response is obtained from Vout3, a noninverting NH response is obtained from Vout4, and if R3 = 2R2, a noninverting AP response is obtained from Vout5. It is to be noted that there is no need to impose component choice except in the realization of AP filter response.
The resonance angular frequency (ωo) and the quality factor (Q) are given by
()
The sensitivities of ωo and Q with respect to passive components are given as
()
It is to be noted from (4) that all the sensitivities are less than unity in magnitude.
3. Nonideal Analysis
To account for non ideal sources, two sets of parameters αi and βj are introduced where αi (i = 1,2, 3) and βj (j = 1,2, 3,4, 5,6) represent the current and voltage transfer gains of the internal current and voltage followers of the FDCCII, respectively. They can be approximated by the first order of low pass functions, which can be considered to have unity values for frequencies much less than their corner frequencies [10]. By assuming, the circuit is working at the frequencies much less than the corner frequencies of αi and βj. More specifically, αi = 1 − δi, (|δi | ≪ 1) where δ1 (from X+ to −Z+), δ2 (from X− to −Z−) and δ3 (from X− to Z−) are current tracking errors. Similarly, βj = 1 − εj, (|εj | ≪ 1) where ε1 (from Y1 to X+), ε2 (from Y2 to X+), ε3 (from Y3 to X+), ε4 (from Y1 to X−), ε5 (from Y2 to X−), and ε6 (from Y4 to X−), are voltage tracking errors. By incorporating these two non ideal sources onto the ideal input-output matrix relationship, the modified FDCCII now leads to:
()
The proposed circuit of Figure 2 is reanalyzed using (5) so as to obtain nonideal transfer functions as
()
where Δ2 = s2C1C2R1R2 + sC2R2α1β1 + α1α2β3β4.
The resonance angular frequency (ωo) and quality factor (Q) are obtained by
()
The active and passive sensitivities of ωo and Q are given as
()
It is to be noted from (8) that all the active and passive sensitivities are less than or equal to unity in magnitude.

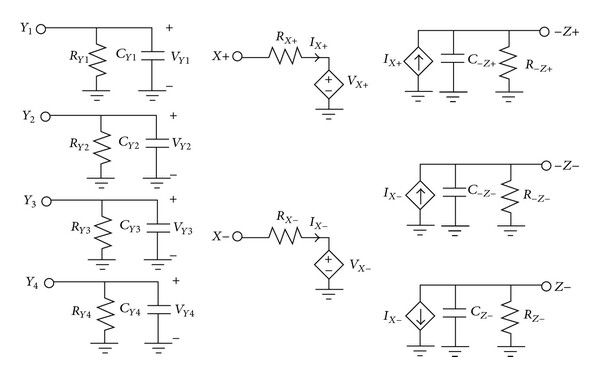

When the parasitic equivalent circuit model of modified FDCCII is used instead of the ideal one, the parasitics of modified FDCCII appear as the undesirable factors in (2), which lead to modified transfer functions as follows:
()
where
()
In practical FDCCII, the external resistors Rk (where, k = 1,2, 3) can be chosen very much smaller than the parasitic resistors at the Y and Z terminals of FDCCII and very much greater than the parasitic resistors at the X terminals of FDCCII, that is, (RY, RZ) ≫ Rk ≫ RX. Moreover, the external capacitances C1 and C2 can be chosen very much greater than the parasitic capacitances at the Y and Z terminals of FDCCII, that is, (C1, C2)≫(CY, CZ).
5. Simulation Results

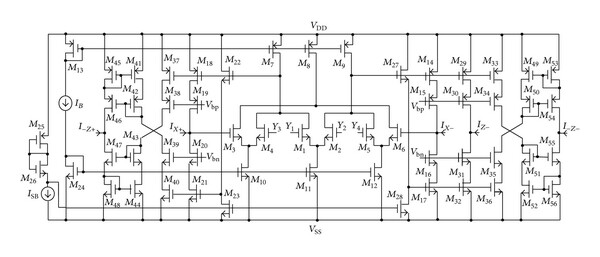

To verify the given theoretical analysis, the proposed voltage-mode multifunction filter has been simulated using PSPICE. The CMOS implementation of modified FDCCII is shown in Figure 4 and is realized using TSMC 0.18 μm CMOS process model parameters. The supply voltages and currents have been selected as VDD = −VSS = 1.1 V, Vbp = Vbn = 0 V, IB = 1.4 μA, and ISB = 1.3 μA.

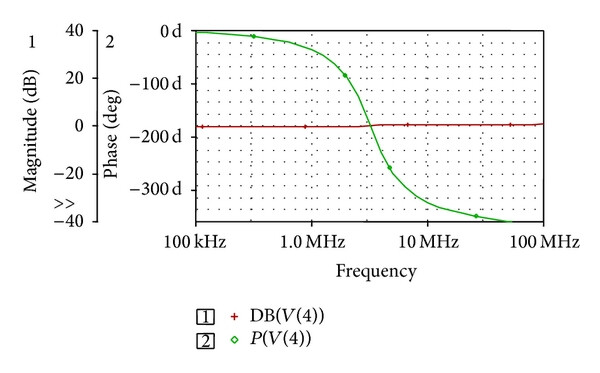

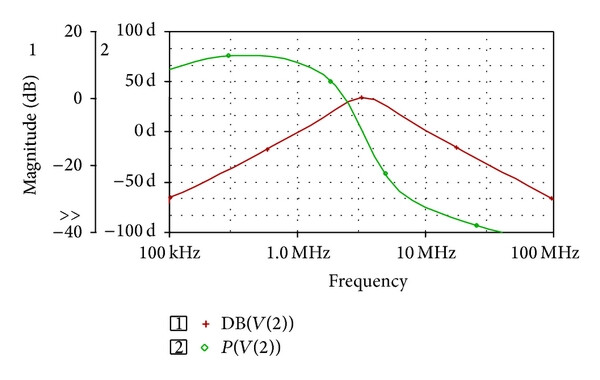

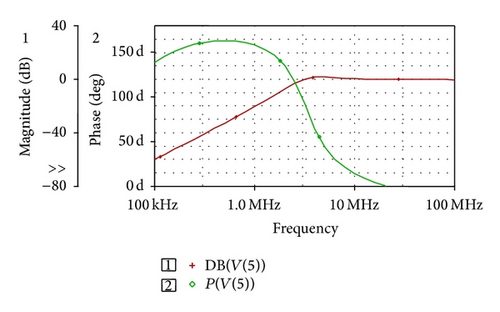

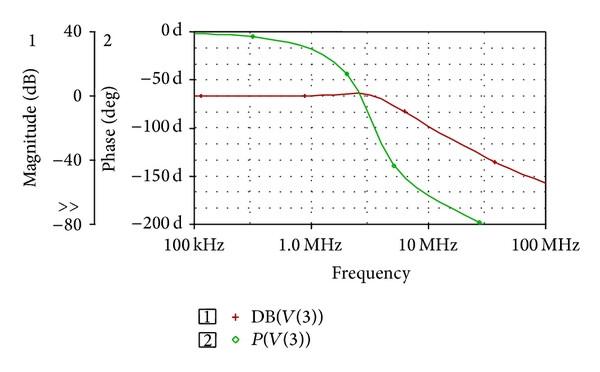

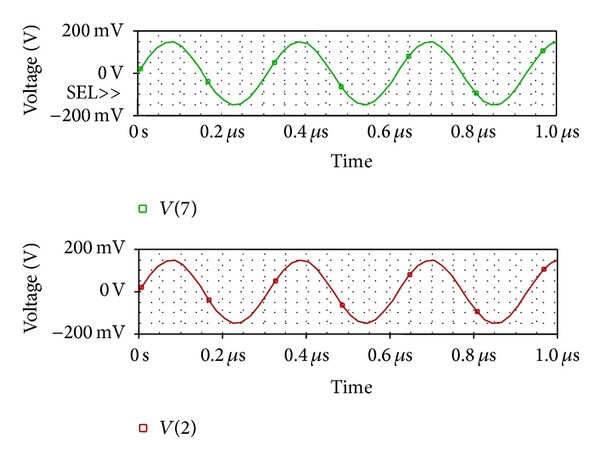

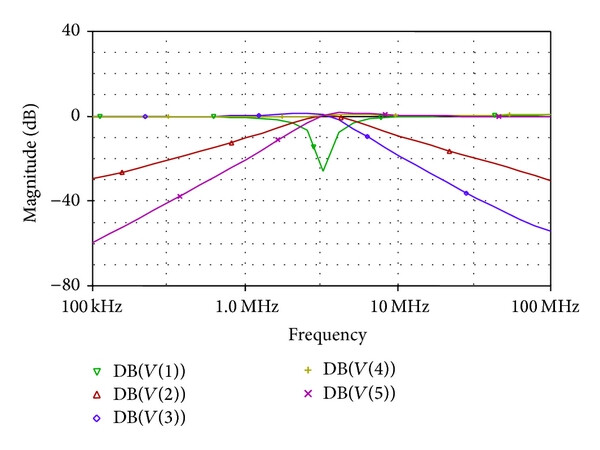

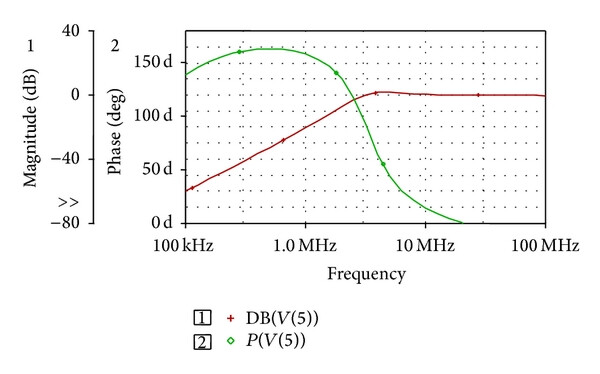

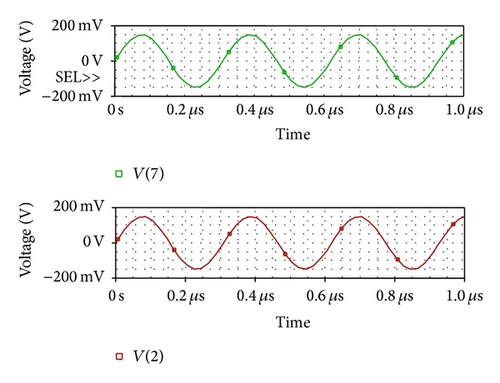

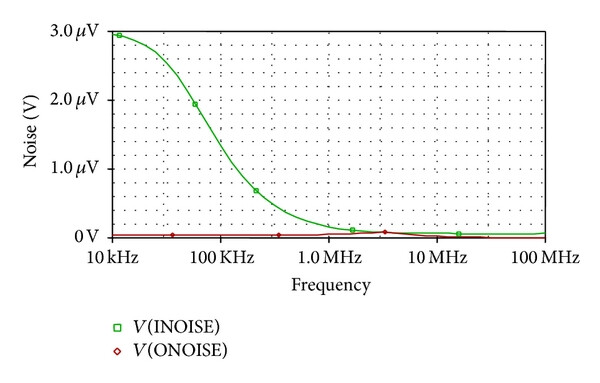

The proposed circuit shown in Figure 2 is designed with the passive component values as C1 = C2 = 50 pF, R1 = R2 = 1 kΩ and R3 = 2 kΩ to obtain angular frequency of 3.18 MHz and a quality factor of Q = 1. All the magnitude responses of the LP, HP, BP, NH, and AP in dB are simultaneously shown in Figure 5. In addition, the magnitude and phase responses of all the generic filter responses are shown in Figures 6, 7, 8, 9, and 10, separately. To test the input dynamic range of the proposed filter, the sinusoidal input signal of an amplitude 300 mV (p-p) at 3.18 MHz is applied. Figure 11 shows the input and output sinusoidal signals of the band pass response. Figure 12 shows the noise behavior of the HP filter using the INOISE and ONOISE statements. Another study is carried out on the temperature performance of the proposed multifunction filter. Figure 13 shows the simulated frequency responses of the AP filter at different operating temperature. (−30°C to 90°C).

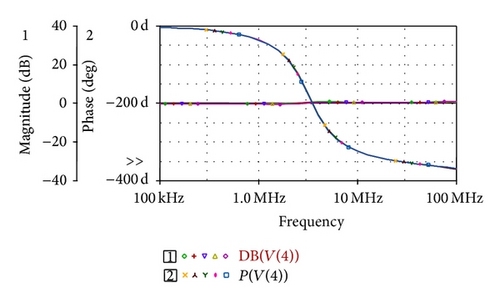

Frequency responses of the AP filter at different operating temperatures.
6. Conclusion
A new voltage-mode multifunction filter is presented. The proposed circuit realizes all generic filter responses simultaneously. Nevertheless, the proposed circuit needs a single matching constraint only to realize an AP response. The proposed circuit is simple and contains a minimum number of active components required to achieve a second-order transfer function. However, with the advantage of circuit simplicity, pole-ω0 and Q are not independently adjustable. PSPICE simulations using 0.18 μm TSMC process parameters are used to support the validity and practical utility of the proposed circuit.
Conflict of Interests
The authors declare that there is no conflict of interests regarding the publication of this paper.
Acknowledgment
The authors thank Academic Editor for recommending this paper. At the time of paper submission paper processing charges for the journal were waived off.
2Fabre A., Saaid O., Wiest F., and Boucheron C., Low power current mode second-order bandpass IF filter, IEEE Transactions on Circuits and Systems II: Analog and Digital Signal Processing. (1997) 44, no. 6, 436–446, https://doi.org/10.1109/82.592570, 2-s2.0-0031168254.
3Ibrahim M. A., Minaei S., and Kuntman H., A 22.5 MHz current-mode KHN-biquad using differential voltage current conveyor and grounded passive elements, International Journal of Electronics and Communications. (2005) 59, no. 5, 311–318, https://doi.org/10.1016/j.aeue.2004.11.027, 2-s2.0-20844433115.
4Biolek D., Senani R., Biolkova V., and Kolka Z., Active elements for analog signal processing: classification, review, and new proposals, Radioengineering. (2008) 17, no. 4, 15–32, 2-s2.0-67649214831.
5Maheshwari S., Analogue signal processing applications using a new circuit topology, IET Circuits, Devices and Systems. (2009) 3, no. 3, 106–115, https://doi.org/10.1049/iet-cds.2008.0294, 2-s2.0-67649239799.
6Abuelma′atti M. T. and Al-Zaher H. A., New universal filter with one input and five outputs using current-feedback amplifiers, Analog Integrated Circuits and Signal Processing. (1998) 16, no. 3, 239–244, https://doi.org/10.1023/A:1008266223999, 2-s2.0-0032136734.
8Chen H. P., Single FDCCII-based universal voltage-mode filter, International Journal of Electronics and Communications (AEU). (2009) 63, no. 9, 713–719, https://doi.org/10.1016/j.aeue.2008.05.012, 2-s2.0-67651148258.
9Lee C. N. and Chang C. M., Single FDCCII-based mixed-mode biquad filter with eight outputs, AEU—International Journal of Electronics and Communications. (2009) 63, no. 9, 736–742, https://doi.org/10.1016/j.aeue.2008.06.015, 2-s2.0-67651152828.
10Minaei S. and Yuce E., All-grounded passive elements voltage-mode DVCC-based universal filters, Circuits, Systems, and Signal Processing. (2010) 29, no. 2, 295–309, https://doi.org/10.1007/s00034-009-9136-1, ZBL1190.94046, 2-s2.0-77954563518.
11Chang C. M., Al-Hashimi B. M., Wang C. L., and Hung C. W., Single fully differential current conveyor biquad filters, IEE Proceedings: Circuits, Devices and Systems. (2003) 150, no. 5, 394–398, https://doi.org/10.1049/ip-cds:20030468, 2-s2.0-0347578020.
12Ibrahim M. A., Kuntman H., and Cicekoglu O., Single DDCC biquads with high input impedance and minimum number of passive elements, Analog Integrated Circuits and Signal Processing. (2005) 43, no. 1, 71–79, https://doi.org/10.1007/s10470-005-6572-0, 2-s2.0-17444373916.
13Chang C. M. and Chen H. P., Single FDCCII-based tunable universal voltage-mode filter, Circuits, Systems, and Signal Processing. (2005) 24, no. 2, 221–227, https://doi.org/10.1007/s00034-004-0422-7, 2-s2.0-22944440989.
14Chen H. P. and Liao Y. Z., High-input and low-output impedance voltage-mode universal biquadratic filter using FDCCIIs, Proceedings of the 9th International Conference on Solid-State and Integrated-Circuit Technology (ICSICT ′08), October 2008, Beijing, China, 1794–1798, https://doi.org/10.1109/ICSICT.2008.4734904, 2-s2.0-60649109666.
15Kaçar F. and Yeşil A., Voltage mode universal filters employing single FDCCII, Analog Integrated Circuits and Signal Processing. (2010) 63, no. 1, 137–142, https://doi.org/10.1007/s10470-009-9440-5, 2-s2.0-77950369679.
16Maheshwari S., Mohan J., and Chauhan D. S., Novel Cascadable All-Pass/Notch Filters Using a Single FDCCII and Grounded Capacitors, Circuits, Systems, and Signal Processing. (2011) 30, no. 3, 643–654, https://doi.org/10.1007/s00034-010-9238-9, 2-s2.0-79960048804.
17Kaçar F. and Yeşil A., FDCCII-based electronically tunable voltage-mode biquad filter, International Journal of Circuit Theory and Applications. (2012) 40, no. 4, 377–383, https://doi.org/10.1002/cta.731, 2-s2.0-84859743730.
18Maheshwari S. and Chaturvedi B., Additional high input low output impedance analog networks, Active and Passive Electronic Components. (2013) 2013, 9, 574925, https://doi.org/10.1155/2013/574925.
19El-Adawy A. A., Soliman A. M., and Elwan H. O., A novel fully differential current conveyor and applications for analog VLSI, IEEE Transactions on Circuits and Systems II: Analog and Digital Signal Processing. (2000) 47, no. 4, 306–313, https://doi.org/10.1109/82.839666, 2-s2.0-0000819753.
