Exponential Stabilizability of Switched Systems with Polytopic Uncertainties

Xia Zhang,

Corresponding Author

Xia Zhang

School of Mathematical Sciences, Dalian University of Technology, Dalian 116024, China dlut.edu.cn

School of Information, Zhejiang University of Finance and Economics Dongfang College, Haining 314408, China zufedfc.edu.cn

Search for more papers by this author
Zun-Quan Xia,

Zun-Quan Xia

School of Mathematical Sciences, Dalian University of Technology, Dalian 116024, China dlut.edu.cn

Search for more papers by this author
Yan Gao,

Yan Gao

School of Management, University of Shanghai for Science and Technology, Shanghai 200093, China usst.edu.cn

Search for more papers by this author
First published: 24 December 2012
https://doi.org/10.1155/2012/853170
Citations: 2
Academic Editor: Piyapong Niamsup

Abstract

The exponential stabilizability of switched nonlinear systems with polytopic uncertainties is explored by employing the methods of nonsmooth analysis and the minimum quadratic Lyapunov function. The switchings among subsystems are dependent on the directional derivative along the vertex directions of subsystems. In particular, a sufficient condition for exponential stabilizability of the switched nonlinear systems is established considering the sliding modes and the directional derivatives along sliding modes. Furthermore, the matrix conditions of exponential stabilizability are derived for the case of switched linear system and the numerical example is given to show the validity of the synthesis results.

1. Introduction

In the last two decades, there has been increasing research in stability analysis and control design for switched systems and many results have been studied on stability and stabilizability problems for various types of switched systems [1–9]. Many interesting results for different kinds of problems of switched systems can be found in some books [10, 11]. The motivation of studying the switched system is out of the fact that many practical systems are inherently multimodal, and several dynamical subsystems are required to describe their behavior which may depend on various environmental factors. Sometimes there are some systems that cannot be asymptotically stabilized by a single continuous feedback control rule but can be stabilized by switching rule [3].

It is very important to investigate switched systems which contain uncertainties due to modelling errors, aging disturbance, and complex environment in realistic problems. One important type of uncertain systems are switched systems which are composed of polytopic uncertainty subsystems. As pointed out in [12], polytopic uncertainties exist in many real systems, and most of the uncertain control systems can be approximated by systems with polytopic uncertainties. The polytopic uncertain systems are less conservative than systems with norm bounded uncertainties [13]. Recently, the stability and stabilization problems for both continuous-time and discrete-time switched systems with polytopic uncertainties are investigated in [14, 15]. In particular, the paper [14] investigated the quadratic stabilizability problem via state feedback, and provided sufficient conditions to be quadratically stabilized for the switched systems which being composed of two subsystems. More recently, necessary and sufficient conditions for continuous-time case via state feedback are proved in the paper [16, 17].

Lyapunov theory is a very important approach to stability analysis or stabilization for switched systems, and the construction of Lyapunov functions is one of the fundamental problem in system theory. The most popular types of Lyapunov function are quadratic functions, piecewise-linear functions, and piecewise affine functions [9, 18–20]. Furthermore, there are some results for the systems with time-delay [21, 22]. Paper [22] investigates the stability and stabilization properties of linear switched time delay dynamic systems subject to; in general, multiple uncommensurate known internal point delays based on Lyapunovs stability analysis via appropriate Krasovsky-Lyapunovs functionals and the related stability study is performed to obtain both delay independent and delay dependent results. In [9], the authors studied the exponential stabilization problem for discrete-time switched linear systems based on a special control Lyapunov function which can make the hybrid-control policy of the related switched system be derived analytically and computed efficiently. Hu and Lin [23] proposed a composed quadratic Lyapunov function for constrained control systems. The composite quadratic Lyapunov function turned out to be very effective in dealing with some constrained control systems as well as a class of more general nonlinear systems [4, 24–26].

Motivated by the methods in [4], we consider the exponential stabilizability problems of switched nonlinear systems with polytopic uncertain subsystems using the composite quadratic functions. We mainly use the minimum quadratic function. The contributions in our work is that, the analysis of possible sliding modes in the switched systems and employing the nonquadratic Lyapunov functions to reduce the conservatism in references [14, 16, 17]. We extend the main result of [14] and establish the matrix conditions of exponential stabilizability for the switched linear systems.

The remainder of this paper is organized as following. In Section 2, we briefly review some conceptions especially the switched systems with polytopic uncertainties and the minimum quadratic functions. Then, in Section 3, the exponential stabilizability results based on the minimum functions are established, and the conditions as matrix inequalities are derived for the switched linear system. Moreover an example is given to demonstrate the effectiveness of our method. Finally, concluding remarks are given in Section 4 and some definitions or conclusions from nonsmooth analysis are listed in the appendix.

Notations. We use I[k1, k2] to represent the set of integers {k1, k1 + 1, k1 + 2, …, k2};  ∇V(x) denotes the gradient of V at x and ∂V(x) the subdifferential of V at x; stands for the one-sided directional derivative of V at x along ζ; co{S} denotes the convex hull of a set S.

2. Switched Systems and the Minimum Quadratic Function

Switched system is a hybrid dynamical system composed by a family of continuous-time or discrete-time subsystems with a rule orchestrating the switching between the subsystems [1, 2]. In this paper, we consider the time-invariant switched nonlinear systems
()
where x(t) ∈ Rn is the state vector and σ(x, t) is the switching rule defined by σ(x, t) : Rn × R+ → I[1, N], R+ denotes nonnegative real numbers. Therefore, the switched system is composed of N continuous time subsystems which are expressed as
()
We assume that all subsystems are uncertain systems of polytopic type described as
()
where fij : Rn → Rn, j ∈ I[1, Ni] are known and in locally Lipschitzian. They are called vertex directions of the subsystems. Ni, i ∈ I[1, N] are integers. λij ≥ 0, j ∈ I[1, Ni] are polytopic uncertain parameters for i ∈ I[1, N] and satisfy .
Define the minimum function
()
where {V1, V2, …, VJ} is a set of differentiable, positive definite, and radially unbounded functions, which are zero at x = 0.

The function Vmin(x) is positive definite and homogeneous of degree two [23]. It is established from the theory of nonsmooth analysis that the function is not convex and not differentiable everywhere even if the functions Vi(x) are all differentiable.

For a vector field , we have V(x(t + Δt)) ≈ V(x + h(x)Δt) for Δt > 0 small enough. Thus directional derivative measures the time derivative of V at x along the trajectory. For this reason the exponential stabilizability of the switched systems in our paper can utilize the directional derivative of the minimum quadratic function.

3. Exponential Stabilizability of the Switched Systems

There are many methods to construct switching rule for the stabilizability of switched systems [4, 14, 27]. Just as the paper [4], our switching rule is constructed by employing the minimum function and its directional derivative. We select the minimum function (2.4), which is constructed from J general functions Vj(x), where each Vj(x) is continuously differentiable.

Now we consider the stability of a closed loop system by examining the directional derivative of Vmin along its trajectories.

Proposition 3.1. Consider the closed loop systems (2.1). Construct the switching rule as follows:

()
Define
()
When x is not in a sliding mode, .

Proof. When x is not in a sliding mode, then may equal to a fi(x). i is chosen by the switching rule σ(x). Then

()
The proof is completed.

From a practical point of view, a sliding mode is very important and it is often unavoidable in the switched systems. So we need to pay particular attention to sliding modes. When there is a sliding mode, we assume that Ism be the set of indices of subsystems involved in the sliding mode. Then may not equal to any of fi(x), instead x(t) stay on the switching surface and is a convex combination of those fi(x)’s, that is,
()
where αi ≥ 0, (see [28]).

Proposition 3.2. Consider the closed loop systems (2.1) with the switching rule (3.1). Assuming a sliding mode involving subsystems , i ∈ I sm , then for each x0 in this sliding mode,

()
Moreover, along the sliding direction , one has
()
where αi ≥ 0, .

Proof. If Vmin is differentiable at x0, then there is an integer k such that Vmin(x0) = Vk(x0) < Vs(x0) for all s ≠ k, and . One has

()
For the structure of the switching rule (3.1), we have
()

Since Vk(x; fi(x)) is continuous in x0, is continuous in x0 too. There is a small neighborhood of x0, say U(x0), where

()
which implies σ(x) ⊂ σ(x0). We can conclude that if s ∉ σ(x0), fs(x) will not be chosen by the switching rule for x ∈ U(x0), that is Ism ⊂ σ(x0), and (3.5) comes from (3.7).

Moreover, along the sliding direction we have

()

Now we consider the case that Vmin is not differentiable at x0; that is, Jmin(x0) has two or more integers. Suppose that Jmin(x0) = I[1, k], then V1(x0) = V2(x0) = ⋯ = Vk(x0) < Vs(x0) for all s > k. When k = 2, then V1(x0) = V2(x0) < Vj(x0), for all j > 0. Furthermore, there must exist two fi’s, say, , and . In this situation Ism = {i1, i2}.

Defining

()
and within the vicinity of x0, we have two cases.
  • (a)

    If x ∈ Φ1, then i1 ∈ σ(x) and a trajectory of would enter Φ2 from Φ1.

  • (b)

    If x ∈ Φ2, then i2 ∈ σ(x) and a trajectory of would enter Φ1 from Φ2.

We interpreter cases (a) and (b) below. Case (a) implies that is chosen by the switching law in Φ1, thus one has

()
for all s ∈ I[1, N]. In particular, one has
()

Taking x → x0, then

()
When s = i2, we have
()
To ensure that a trajectory of would enter Φ2 from Φ1, we must have
()
Similarly, from case (b), we have
()
()
()
Combining the inequalities from (3.15) to (3.19), one has
()
Thus, the following inequalities:
()
are valid. They are all equal to μ(x0). So we have
()
Similarly, we obtain . Thus the relation (3.5) follows for Ism = {i1, i2}.

The above argument can be extended to the case k > 2. Then V1, V2, …, Vk are involved in the sliding motion with corresponding indices i1, i2, …, ik, with pointing from Φ1 to pointing from Φk to Φ1. Similar procedure can be used to derive the conclusion extended from (3.21).

()
Thus we have
()
Similarly, we have . Thus the relation (3.5) is obtained for Ism = {i1, i2, …, ik}.

Now we consider there are three elements in the sliding direction. Let ν1, ν2, ν3 be positive numbers, such that ν1 + ν2 + ν3 = 1. Define . Since sliding mode stays in the set where V1(x) = V2(x) = V3(x), we have

()
For Δt > 0, let , , and x3 = x0 + Δtξ. Due to the sliding motion for Δt sufficient small, x1 ∈ Φ2, x2 ∈ Φ3 and by (3.25), Vj(x3) − Vmin(x3) = o(Δt), j = 1,2, 3:
()
Since each function Vj, j = 1,2, 3 is continuously differentiable, then
()
Above step can be extended to the case where Ism has more than three elements. Therefore, the inequality (3.6) is satisfied and the proof is completed.

To summarize Propositions 3.1 and 3.2 we have the result that if x is not in a sliding mode, then and . If x is in a sliding mode involving subsystems , i ∈ Ism, then there exist αi, i ∈ Ism, satisfying 0 ≤ αi ≤ 1, and , such that . We also have from (3.6). In view of these arguments, we can establish a sufficient condition of stability for the switched systems in terms of μ(x).

Theorem 3.3. For the switched system (2.1) under the switching rule (3.1), if there exists an η ∈ R, such that

()
for all x ∈ Rn∖{0}, then
()
for every solution x(·).

Remark 3.4. This theorem indicates that when a minimum function is used, it is sufficient to use the directional derivatives along all vertex directions of subsystems to characterize stability of the switched systems with polytopic uncertainties, and the existence of sliding modes has no effect.

When we consider the the case of the switched linear systems, then the systems (2.1) turn to

()
()
where Aij, j ∈ I[1, Ni], i ∈ I[1, N] are constant matrices.

We can establish a matrix condition for exponential stabilizability of the systems.

Theorem 3.5. The switched linear system (3.30) is exponentially stabilizable via state switching if there exist real matrices , j ∈ I[1, J], and real number η, , , βjk ≥ 0, j, k ∈ I[1, J], si ∈ I[1, Ni], i ∈ I[1, N], such that

()

Proof. Let Vmin(x) = min{xTPjx∣j ∈ I[1, J]}. Consider x ≠ 0 and assume that Jmin(x) = {1,2, …, J0} for a certain integer J0 ≤ J. Then xTPkx = Vmin(x) for k ≤ J0 and xTPkx > Vmin(x) for k > J0. Hence xT(Pj − Pk)x ≤ 0, for all j ≤ J0. According to (3.32), the following inequalities:

()
hold.

Since , we have

()
It follows that
()
By Lemma A.1 in the appendix,
()

Define the switching rule as

()
Under this switching rule we have Vmin(x(t)) ≤ Vmin(x(0))eηt for every solution x(·) from Theorem 3.3. The proof is completed.

Remark 3.6. If Pj = P for all j ∈ I[1, J] and N = 2, then Vmin can be reduced to a quadratic function and (3.32) can be reduced to the matrix inequalities

()
If η0 = 0, then this corresponds to the stability condition given in [14]. In this sense, Theorem 3.5 is the extension of the main result in [14].

Example 3.7. Consider the switched linear system (3.30) composed of two subsystems, where

()
The eigenvalues of A11, A12, A21, A22 are {2.3166,   − 4.3166}, {−6.1231,  2.1231}, {−4,  2.1}, and {−4.9857,  1.9857}, respectively. They are all unstable. Therefore, neither subsystems is quadratically stable.

We turn to use Vmin composed of two quadratic functions and minimize η subject to (3.32). The minimal η is given as −1.4752 when fix the parameters as following: μ11 = 0.5, μ12 = 0.5, μ21 = 0.4, μ22 = 0.6. That is to say a unified convergence rate is guaranteed. For verification, other parameters are provided as following:

()

Let us investigate the system state trajectory using the two special subsystems

()
They are both unstable.

We suppose that the initial state is x0 = [3,4]T. According to the switched rule (3.37), the dynamic system can exponential stabilizability and the typical result is plotted in Figure 1, which show that the system state converge to zero very quickly.

Details are in the caption following the image

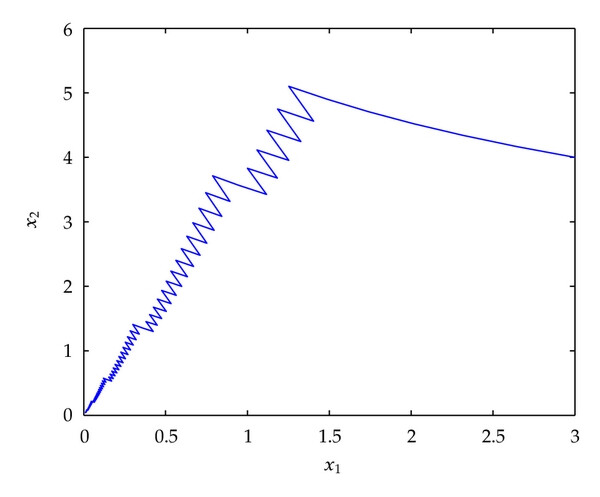

Figure 1
Open in figure viewerPowerPoint
The state of the switched system in example.

4. Conclusion

In this paper, the exponential stabilizability of switched nonlinear systems with polytopic uncertainties is considered employing the methods of nonsmooth analysis and nonquadratic Lyapunov functions. The function is formed by taking the pointwise minimum of a family of quadratic functions. We establish the switching rule to stabilize the switched systems by utilizing the directional derivative along the vertex directions of subsystems. In this process, we take a lot of effort in examining the case that the control systems involving sliding modes. The matrix conditions for exponential stabilizability of the switched linear systems are also obtained. As numerical example demonstrate in this paper, our synthesis result is effective. Future efforts will be devoted to the switched systems with time delay.

Acknowledgment

This work was supported by the National Natural Science Foundation of China (under Grant: 10971187, 11071029, and 11201362).

    Appendix

    For convenience we briefly list some definitions and conclusions from nonsmooth analysis. One can refer to [29, 30] for more detail.

    Suppose f is defined from Rn to , and f(x) is finite. The one-sided directional derivative of f at x in direction ζ can be expressed by
    ()
    Suppose f is a convex function in Rn, and finite at x. The set
    ()
    is called the subdifferential of f at x and x* is a subgradient of f at x [30]. For a convex function f in Rn, f is differential at x0 if and only if ∂f(x0) has only one vector. In this case we have ∂f(x0) = ∇f(x0).
    If f is locally Lipschitz near x and S is any set of Lebesgue measure 0 in Rn. The set of points at which f fails to be differentiable is denoted by Ωf. Then the generalized gradient of f at x in the sense of Clarke denoted by ∂Cf(x) is defined as
    ()

    The following lemma can be obtained by combining some results from [29, 31].

    Lemma A.1. Suppose x0 ∈ Rn. Then one has

    • (1)

      For ζ ∈ Rn, the directional derivative of Vmin at x0 along ζ is given by

      ()
      where the index set Jmin(x0) = {j ∈ I[1, J]∣Vj(x0) = Vmin(x0)}.

    • (2)

      If Vj(x) = xTPjx, j ∈ I[1, J], then ∂CVmin(x0) = co{2Pjx0∣j ∈ Jmin(x0)}.
