CRISPR/Cas9 construct design and assembly

Different CRISPR/Cas9 binary vector constructs were designed and assembled to generate Camelina sativa CRISPR/Cas9-mutants and to evaluate mutation efficiency. Arabidopsis thaliana codon-optimized Cas9 (AtCas9) was expressed under three different promoters: (1) pdCaMV35S (double cauliflower mosaic virus 35S promoter), (2) pPcUbi4-2, the Petroselinum crispum ubiquitin 4-2 promoter, and (3) pRPS5A, the A. thaliana ribosomal protein subunit 5A promoter (Engler et al., 2014; Fauser et al., 2014; Kawalleck et al., 1993; Kay et al., 1987; Lampropoulos et al., 2013; Weijers et al., 2001). The sgRNAs containing the target-specific spacer sequences were expressed under pU6-26 (and pU6-1 in an earlier experiment) which is a promoter for the snRNA gene U6 of the A. thaliana (Lawrenson et al., 2015; Li et al., 2007, 2013, 2014; Waibel and Filipowicz, 1990). Selection markers pCVMV::DsRed::tMas (red fluorescence) and pNos::NptII::tOcs (kanamycin antibiotic resistance) were included in the binary vector constructs for the selection of camelina transformants (Baird et al., 2000; Beck et al., 1982). The sgRNAs were designed to target 5′-proximal conserved coding sequences of the three different FAD2 loci in camelina FAD2-A (alias FAD2-2, LOC104776214, chromosome 1), FAD2-B (alias FAD2-3, LOC104745425, chromosome 15) and FAD2-C (alias FAD2-1, LOC104764975, chromosome 19) and the three F5H loci F5H-A (LOC104716504 on chromosome 10), F5H-B (LOC104721146 on chromosome 11) and F5H-C (LOC104729559 on chromosome 12) (Hutcheon et al., 2010), using assembly GCF_000633955.1 (genome sequence of cultivar DH55). Naming conventions used on NCBI have been used. Supplemental information Data S1 contains the genomic sequences of these loci as reported for DH55. In cultivar Cypress, a few SNPs occur compared to DH55 in these genes, and in FAD2-B a natural 3 nt insertion is present close to the start of the gene.

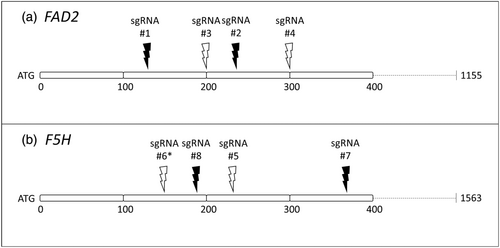

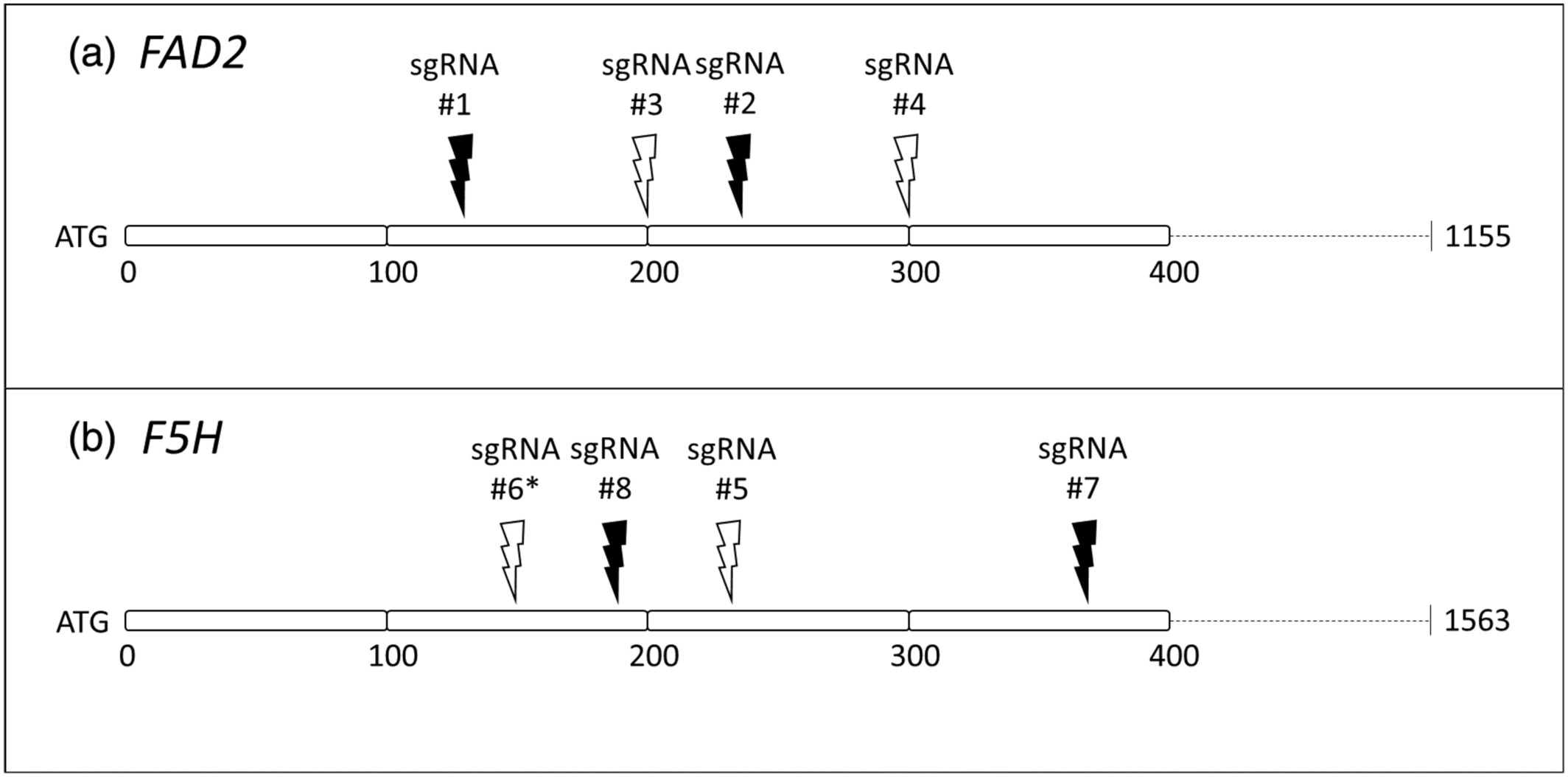

The sgRNAs were designed with the WU-CRISPR tool (Xiaowei Wang Lab, Washington University, St. Louis, MO, USA), which also predicts the sgRNA efficiency by, among others, calculating the sgRNA secondary structure (Doench et al., 2014; Hofacker, 2003; Wong et al., 2015). A single G-nucleotide was added to the 5′-end of each 19-nucleotide-long sgRNA spacer sequence to initiate sgRNA expression under U6 promoters and increase overall sgRNA activity (Moreno-Mateos et al., 2015; Sander and Joung, 2014). Further, each sgRNA was evaluated for potential off-target CRISPR/Cas9 specificity in C. sativa with the BLASTN tool (NCBI). Table S1.1 shows an overview of the FAD2 and F5H gene-specific sgRNAs. One sgRNA was incorrectly designed by unintendingly adding a single nucleotide between the sgRNA target site and PAM and was also included to evaluate the performance of CRISPR/Cas9 systems. CRISPR/Cas9 constructs were assembled using the Golden Gate cloning system (Weber et al., 2011). This cloning system involved the subsequent cloning of level 0 (L0), level 1 (L1) and level 2 (L2) vectors. L1 vectors, containing the expression cassettes of the sgRNAs and AtCas9 and selection markers pCVMV::DsRed::tMas and pNos::NptII::tOcs, were combined into an L2 end vector (pICSL4723, i.e. a fixed version of pAGM4723; Addgene Plasmid #86173) (Baird et al., 2000; Beck et al., 1982). The L1 sgRNA cassettes included pU6-26 from pICSL90002 (Addgene Plasmid #68261), or pU6-1 from pUC119-gRNA (Addgene Plasmid #52255) in earlier experiments of this study (Lawrenson et al., 2015; J.-F. Li et al., 2013). The L1 Cas9 cassettes included AtCas9 from pDe-CAS9 (Addgene Plasmid #61433), and either pdCaMV35S from pICH51288 (Addgene Plasmid #50269), pPcUbi4-2 from pDe-CAS9 (Addgene Plasmid #61433), or pRPS5A from pGGA012 (Addgene Plasmid #48818) (Engler et al., 2014; Fauser et al., 2014; Lampropoulos et al., 2013). The designed CRISPR/Cas9 systems in the final L2-vectors, with different promoters for AtCas9 and different combinations of sgRNAs targeting FAD2 and/or F5H (Figure 1), were introduced in Agrobacterium tumefaciens strain GV3101 by electroporation. CRISPR/Cas9 systems with pU6-1::sgRNA from early experiments are discussed further in the results section. The effectiveness of different promoter-Cas9 combinations was compared using non-parametric Kruskall-Wallis tests.

Camelina transformation and transformant selection

Camelina plants of the cultivar Cypress were transformed based on the floral dip methods (Lu and Kang, 2008). At least 24 plants were transformed for each CRISPR/Cas9 construct with four sgRNAs targeting either FAD2 or F5H and 48 plants for constructs with two sgRNAs targeting FAD2 and two sgRNAs targeting F5H.

Floral buds were submerged into an A. tumefaciens floral dip suspension with 5% (w/v) sucrose, 1/2 strength MS including Gamborg B5 vitamins (M0231, Duchefa Biochemie, Haarlem, the Netherlands) and 0.05% (v/v) Silwet L-77 (Van Meeuwen, Weesp, the Netherlands) with OD₆₀₀ values of ~0.6, and incubated for 5 min at −85 kPa using a high-capacity Secador Techni-Dome 360 Vacuum Desiccator (F42029-0000, Bel-Art, Pocomoke City, MD, USA) and Laboport Vacuum Pump (N840.3FT.18, KNF Neuberger, Freiburg, Germany) in the greenhouse.

Transgenic seeds (T1 seeds) from the dipped plants were selected by DsRed fluorescence using a UV fluorescence stereomicroscope. Leaves positioned close to the flowers of the T1 plants were sampled for mutation detection. Mutations found in these leaves are good indicators of the probability that the gametes of the T1 plants will carry mutations. Leaves from 2 weeks old T2 seedlings of selected T1 plants were sampled to find heritable mutations (although still new somatic mutations may arise). DNA of the T1 and T2 leaves was extracted for PCR of amplicons of the FAD2 and F5H genes for Illumina MiSeq amplicon sequencing.

High-throughput mutation sequencing

Amplicons covering the sgRNA target sites of the T1 and T2 camelina transformants were sequenced with Illumina MiSeq (Illumina MiSeq Preparation Workflow from the 16S Metagenomic Sequencing Library Preparation Guide version #15044223 Rev. B), with adaptations (Figure S1). One crucial adaptation was to include ‘1st Stage PCR’ forward primers (i.e. FAD2 and F5H gene-specific forward primers with 5′-overhang adapters to allow for ‘2nd Stage PCR’) with unique barcodes between the adapters and gene-specific primers (i.e. from 5′ to 3′: ATGACG, CGAGTC, GCATCA, TACTGT, CAGCTA, TCGTAG, CTCCAC, GTGGAT). These form barcodes in which any three successive nucleotides were unique. Including these barcodes allowed to pool up to eight FAD2 with eight F5H amplicon samples. A set of 192 Stage 1 PCR pooled amplicon samples went to ‘2nd Stage PCR’ in which the MiSeq indices were added in the library preparation. Both for FAD2 and F5H, the Stage 1 amplicon PCR amplified the DNA fragments from all three genes present in the genome. So, in each of the 192 Stage 1 PCR pooled samples, the amplicon of 8 samples with each three genes of FAD2 and 8 samples with each three genes of F5H was present, so from 48 amplified loci. The coverage obtained per locus on average was above 1000 reads, so rare (somatic) mutations could be found, and mutation frequencies could be estimated accurately. The FAD2 and F5H gene-specific primers (without adapters and unique barcodes) are shown in Supplemental information Table S1.2. These primers were designed to amplify all three genomic copies of the genes.

Using this approach 135 T1 and 581 T2 camelina mutant plants from 14 selected T1 mutants and 28 camelina wildtype reference plants were analyzed. In total over 3400 unique PCR amplicons were sequenced from 744 plants, some with 6 amplicons (for both FAD2 and F5H) and some with 3 amplicons for either FAD2 or F5H. A more detailed overview of the T1 and T2 camelina samples is shown in Table 1.

Bioinformatics-based mutation detection

Illumina MiSeq raw sequencing data were delivered as 192 sets of fastq files with forward and reverse reads (one per amplicon pool). Fastq files were sorted according to barcode (i.e. per T1 or T2 genotype) using FLEXBAR, giving nine sets of R1 and R2 fastq files (one set per barcode and one set for the cases the barcode could not be assigned) for each of the 192 pooled samples (Dodt et al., 2012; Roehr et al., 2017). Next, for each genotype, the sequence reads were mapped to the FAD2 and F5H loci reference sequence using BBMap which can also map sequences with large indels which were expected with the multiple sgRNAs we used. Mapping results were stored in bam format (Bushnell, 2014; Li, 2011; Li et al., 2009). Variant calling was done using GATK4 MuTect2 and stored in VCF format (Cibulskis et al., 2013). Finally, Linux scripts (Appendix S1: .sh and .py files) were developed to detect somatic and germline CRISPR/Cas9-induced mutations. This script allowed the identification of the most abundant mutation(s) but also rare mutations for each locus and CRISPR/Cas9 site.

The proportion of mutated loci and the mutant allele frequencies in targeted loci were determined from the frequencies in the sequence reads. For each mutated position in each locus, the two mutant alleles with the highest allele frequency were determined. These mutations could be either germline mutations or new somatic mutations. The position of mutated sites, indel length and mutation types were analyzed for the different sgRNA combinations. For T2 plants, the homozygosity or heterozygosity of germline mutations was determined for each of the three FAD2 or F5H loci. A homozygous single allele germline mutant was scored if the highest frequency of a mutant allele was at least 0.85 and a biallelic full mutation was scored if the sum of the two highest mutant allele frequencies was at least 0.85. If only one mutant allele had a frequency higher than 0.4 but lower than 0.85, it was considered a heterozygous mutant/wildtype. Mutant alleles with frequencies lower than 0.4 were regarded as somatic mutations. An additional criterion was applied to validate that indeed the mutations were germline mutations: there should be no more than 5% new mutations at an already fully mutated sgRNA site. Such mutations would be somatic mutations that would contradict the supposition of a fully mutated (either homozygous or biallelic) sgRNA site. The threshold of 5% was used as some contaminant reads could be present in the pool of reads for a mutant (due to strand switches in the multiplexed PCR or due to barcode sorting errors). Out of 135 T1 plants, a set of 14 T1 plants with high a frequency of (somatic) mutations was selected to produce a T2 generation (581 plants), and a set of 31 T2 plants with germline indels in some or all FAD2 and/or F5H loci/alleles was selected for production of T3 seeds. For the set of 31 selected T2 plants for T3 seed analysis, next to the assessment of the germline mutant allele count, also the total mutant allele frequency (germline plus somatic mutations) was determined by assessing the vcf-files from Mutect2 combined with inspection of the reads in IGV to determine the frequency of mutant type reads (containing indels) as a fraction of the total number of reads (mutant + fully wildtype).

Phenotyping

Statistics

After performing ANOVA, Fisher's protected LSDs were used to compare means of wildtypes and mutants.

Combining pRPS5A::AtCas9 and pU6-26::sgRNA and using floral dip transformation is the most effective method for targeted mutagenesis in camelina

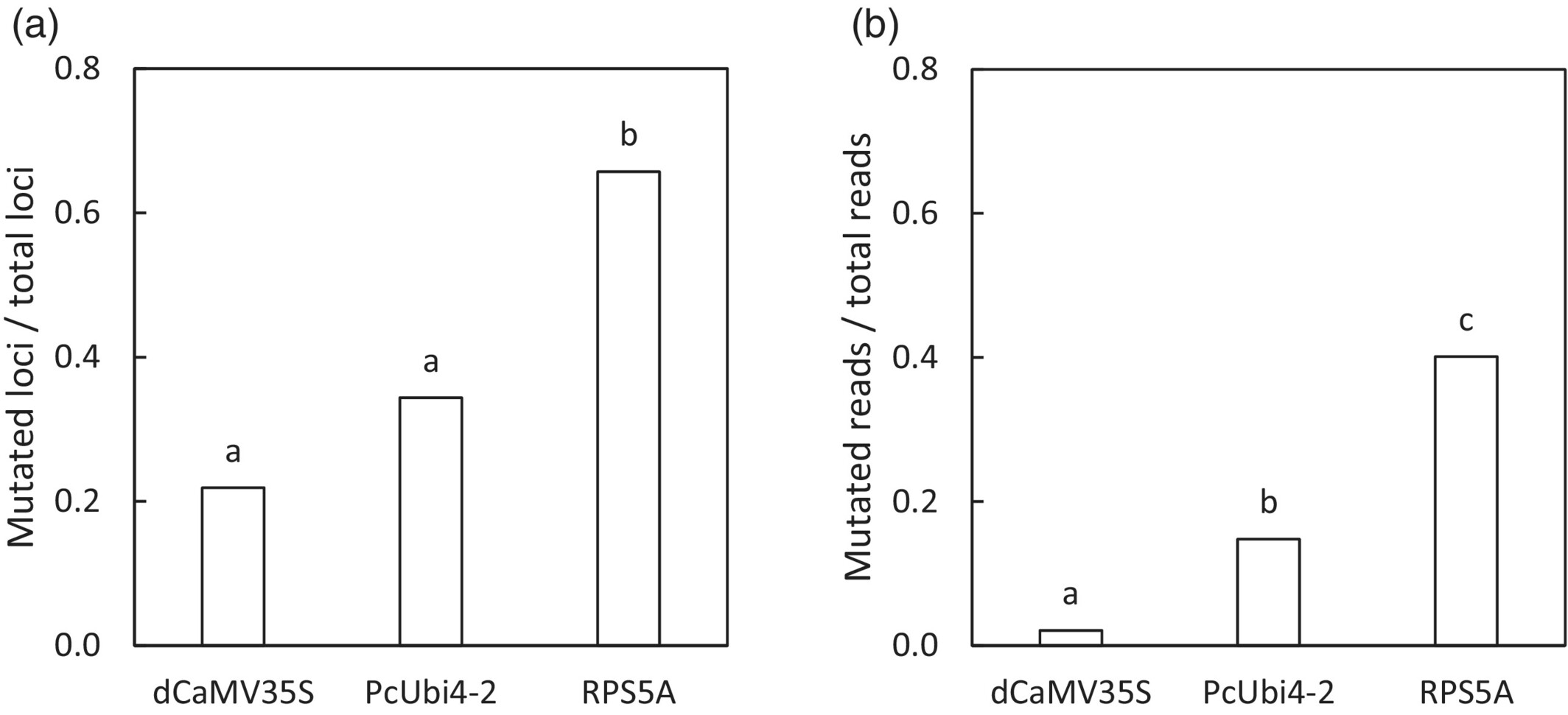

Illumina MiSeq sequences of F5H and FAD2 amplicons from leaf DNA samples of 135 T1 camelina plants with sgRNA under the pU6-26 promoter and AtCas9 under three different promoters, pdCaMV35S, pPcUbi4-2 and pRPS5A showed that the three promoters used, differed widely in mutation efficiency (Figure 2). Cas9 expressed under pRPS5A was more effective than pPcUbi4-2 and pdCaMV35S (P < 0.001) measured by the proportion of mutated loci in all targeted loci and the frequency of mutant reads in all reads. The proportion of mutated loci with pU6-26::sgRNA and pRPS5A::AtCas9 was 66% on average and the frequency of mutant sequence reads was 40%. This includes both germline mutations induced already in the seeds growing on the T0 plants and novel somatic mutations that were induced in the T1 plants. Remarkably, in initial experiments with pU6-1::sgRNA and pdCaMV35SCas9, in 192 T1 and 576 T2 plants no mutations were detected at all, indicating that pU6-1 is not functional in driving sgRNA expression in the floral dip transformation system used, and choosing a highly effective promoter like pU6-26 is essential.

The CRISPR/Cas9 systems generated a wide variety of T1 and T2 mutants

Except for the sgRNA #6 target site, mutations occurred at all target sites. The highest frequency of mutations in T1 was found at the site of sgRNA #8 at 80% of all mutated F5H sites and at the sites of sgRNAs #1/#2/#3 (FAD2) each at ~30%, while sgRNA #4 was less effective and sgRNA #6 (with a design error) was not effective at all. The mutations in T1 were all indels: most were small 1 bp insertions (33% of all indels) or small deletions of 1–5 bp (40%). At target sites also frequently larger deletions (up to 30 bp; 16% of all indels) and larger insertions (up to 33 bp; in 2.7% of cases) were found. In about 9% of mutants, very large deletions of 31 to 290 bp were found between two sgRNAs targeting the same locus.

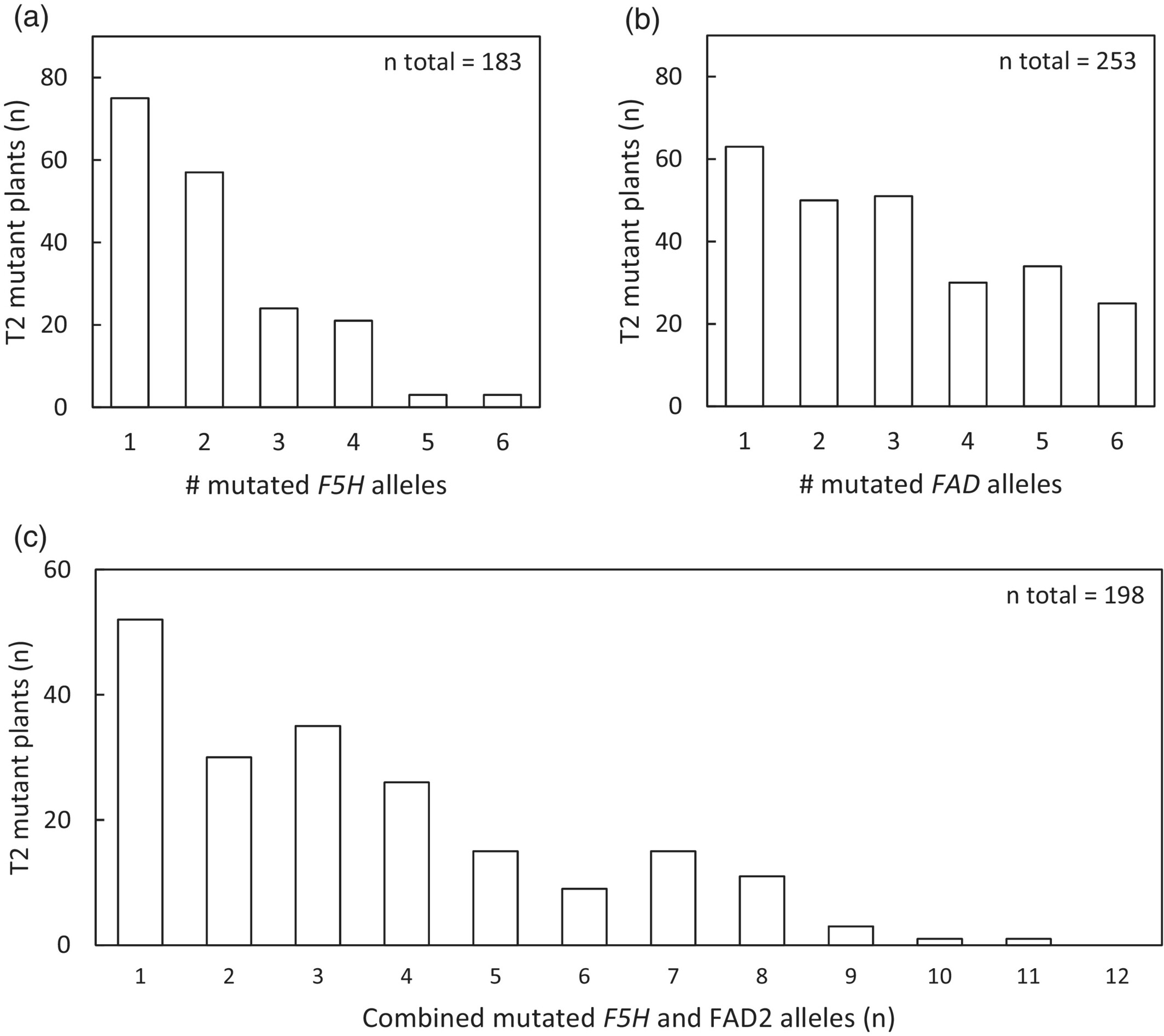

T1 plants were selected for selfing based on the frequency of mutations detected in leaves (mostly somatic mutations). The total mutant allele frequency in the leaves of flowering T2 plants was used to assess the extent of Cas9-induced mutations in the target loci. This total mutant allele frequency shows the efficiency of the Cas9 and chosen sgRNA sequences, but is higher than the germline mutant allele frequency as the CRISPR/Cas9 system was not segregated out and was still active. Germline mutant allele counts were based on the criteria mentioned in the Materials and Methods section (allele frequency of homozygous mutant alleles or the sum of the frequency of two mutant alleles in case of biallelic full mutants >0.85 and no somatic mutations at site already fully mutated in the germline). In the set of 581 T2 offspring plants originating from 14 selected T1 plants, 183 had at least one mutation in one or more of the three F5H loci and 253 had at least one mutated allele in one of the three FAD2 loci (Figure 3). It is expected that to obtain a full knockout in the three genes of either F5H or FAD2, independent mutations are needed in all alleles (assuming that all alleles are functional). In the set of 505 T2 plants with sgRNAs targeting F5H, 10 T2 plants with independent mutations in each of the three F5H loci were found (2%), and in the 371 T2 plants with sgRNAs targeting FAD2, 87 T2 plants with a mutated allele in each of the three FAD2 loci were found (23%). Twenty-five T2 mutants were homozygous mutant or biallelic full mutant for all three FAD2 loci and three were homozygous mutants (or fully biallelic mutant) for all three F5H loci. In the set of 335 T2 plants with sgRNAs targeting both F5H and FAD2, only one T2 plant (#28, Table 2) had germline mutations in all six F5H and FAD2 loci. In conclusion, the multiplexing system targeting three loci of FAD2 and three loci of F5H simultaneously with for each gene group two sgRNAs was successful in generating mutant alleles at all six loci in the T2 generation, but a large number of T1 and T2 offspring lines had to be screened to achieve this.

Selected camelina F5H and FAD2 mutants show altered FA, sinapine and lignin profiles

As an effect of mutations in F5H, the sinapine content in the seed was sharply reduced and in some even to undetectable levels. Also, the lignin syringyl monolignol content in T2 stem lignin of F5H mutants was drastically reduced (down to undetectable) in favour of G-monolignol (Table 2). T2 plants with FAD2 mutations had a higher C18:1 content in leaf tissue (23% of total FA) than WT (<4%). T3 seeds of these mutants showed a C18:1 content of 58% in the FA of seed oil compared to less than 9% in WT (Table 2). A high correlation existed between the C18:1 content in T2 leaf and T3 seeds from the same plant (R² = 0.65; Dataset S2, Table S2.2). The content of C20:1 in mutant T3 seeds was also increased up to 24% of total FA contents, and PUFA content (C18:2 and C18:3) was decreased down to 5% in some mutants.

Effects of F5H and FAD2 germline mutant gene dosage and total mutant allele frequency

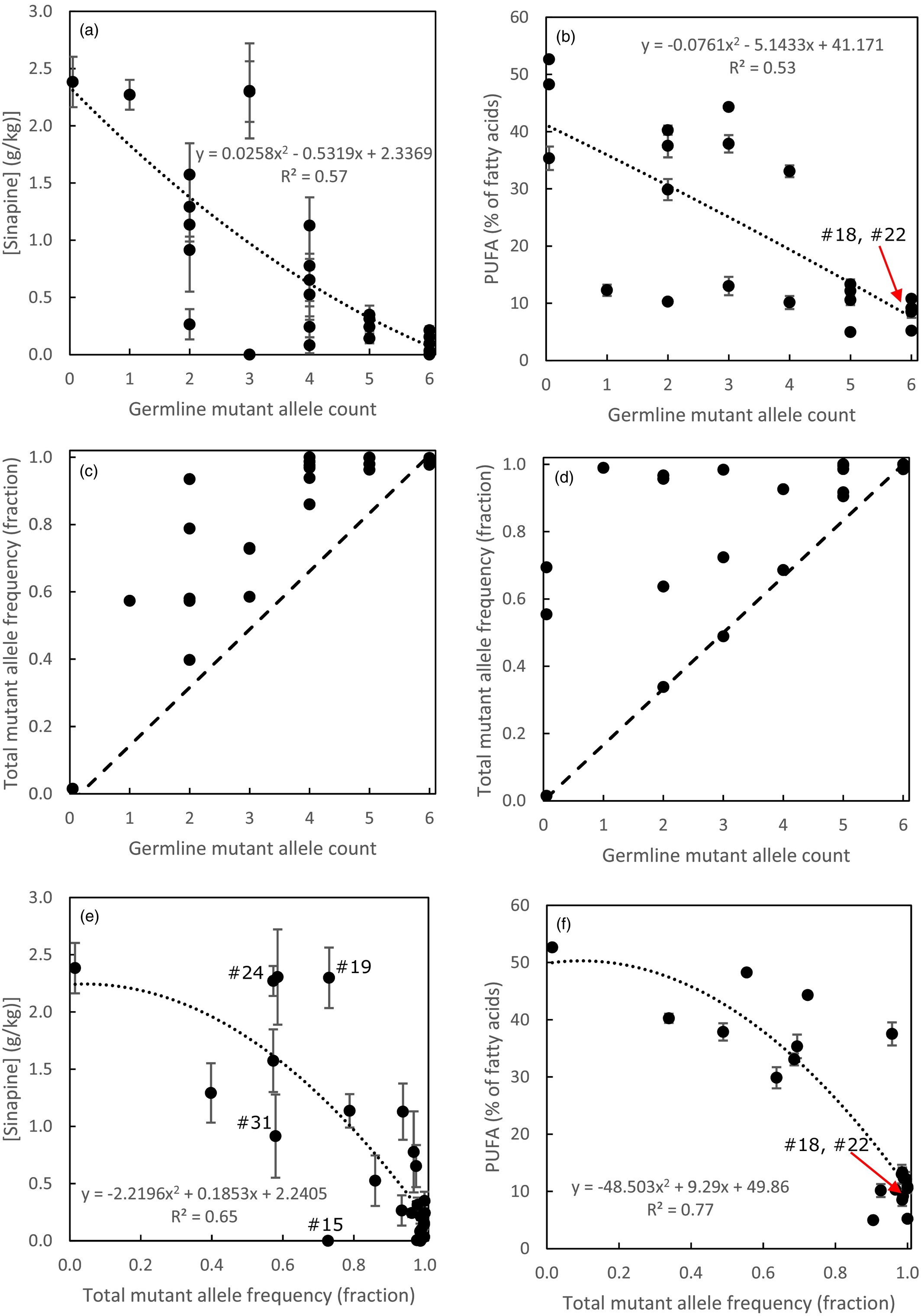

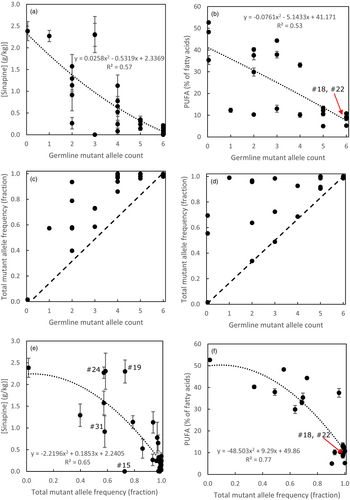

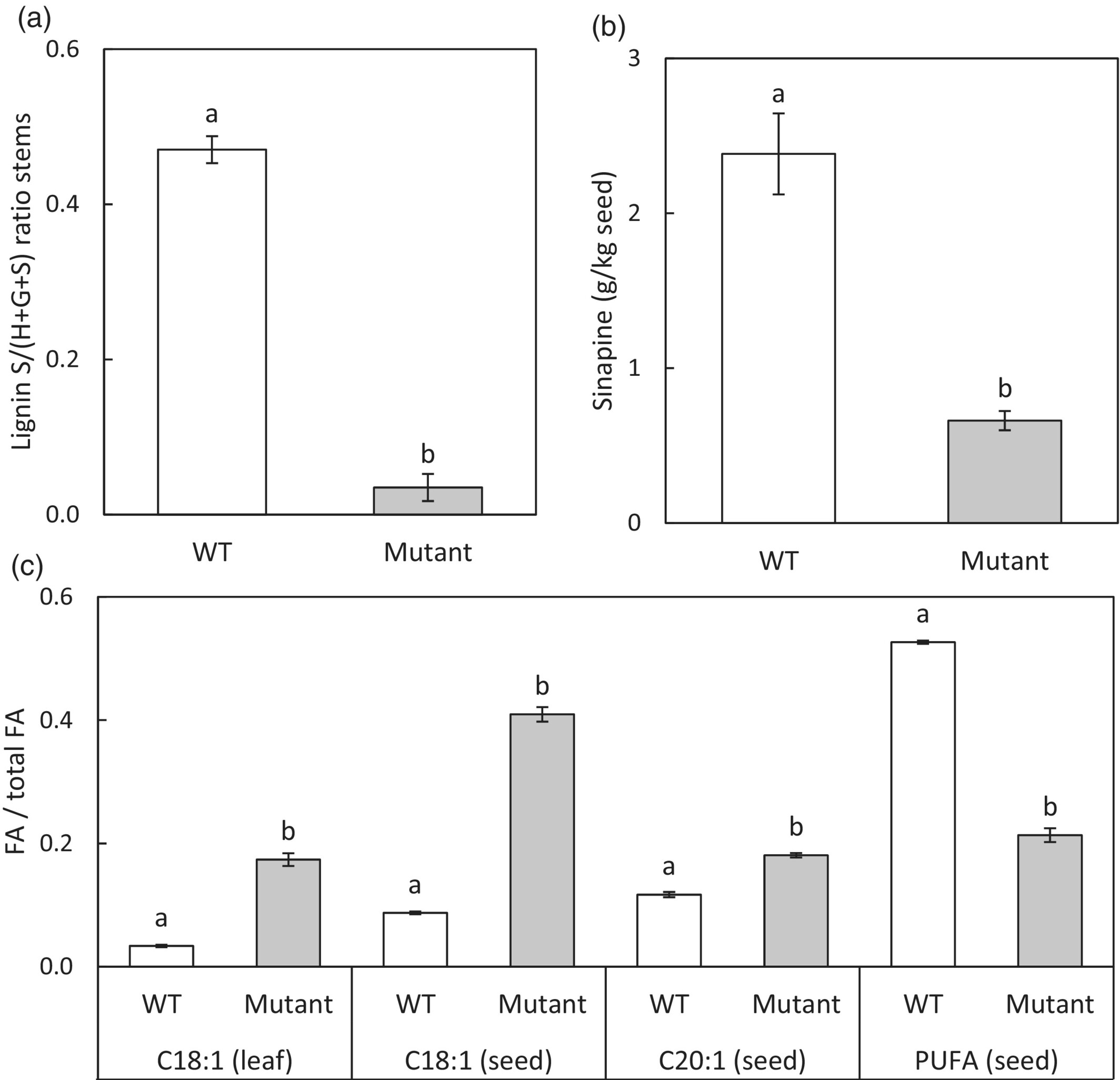

Mutants in F5H had a 70% lower sinapine content and a 90% lower S/G ratio averaged over all mutants irrespective of the number of alleles mutated. All mutants in FAD2 taken together showed a sharp increase in mono-unsaturated FA and a decrease in poly-unsaturated fatty acids (Figure 4). Also, C18:1 content in leaves (showing the reverse trend compared to PUFA) correlated highly to the total mutant allele count (Dataset S2, Table S2.2) as also shown by others (Morineau et al., 2017).

In general, the effects increased monotonously with the number of mutated alleles in T2 plants that were inherited from the T1 plants (the germline mutations). Since the CRISPR/Cas9 system was not segregated out, new somatic mutations still occurred in the T2 plants, making the total mutant allele frequency much higher than the mutant allele frequency in the germline. For both F5H and FAD2, the decline in, respectively, sinapine and PUFA is more closely related to the total mutant allele frequency than the count of mutant alleles inherited in the T2 plants from the T1 generation (Figure 5). Plant #15 showed a strong decrease to an undetectable amount of sinapine, while the mutated allele count in the germline was only 4 and the total mutant allele frequency was only 0.73. This can only be explained when the particular mutation(s) would exert a dominant suppression also on the non-mutated genes.

Pleiotropic dwarfism with full knock-out of FAD2 loci: not with all mutants

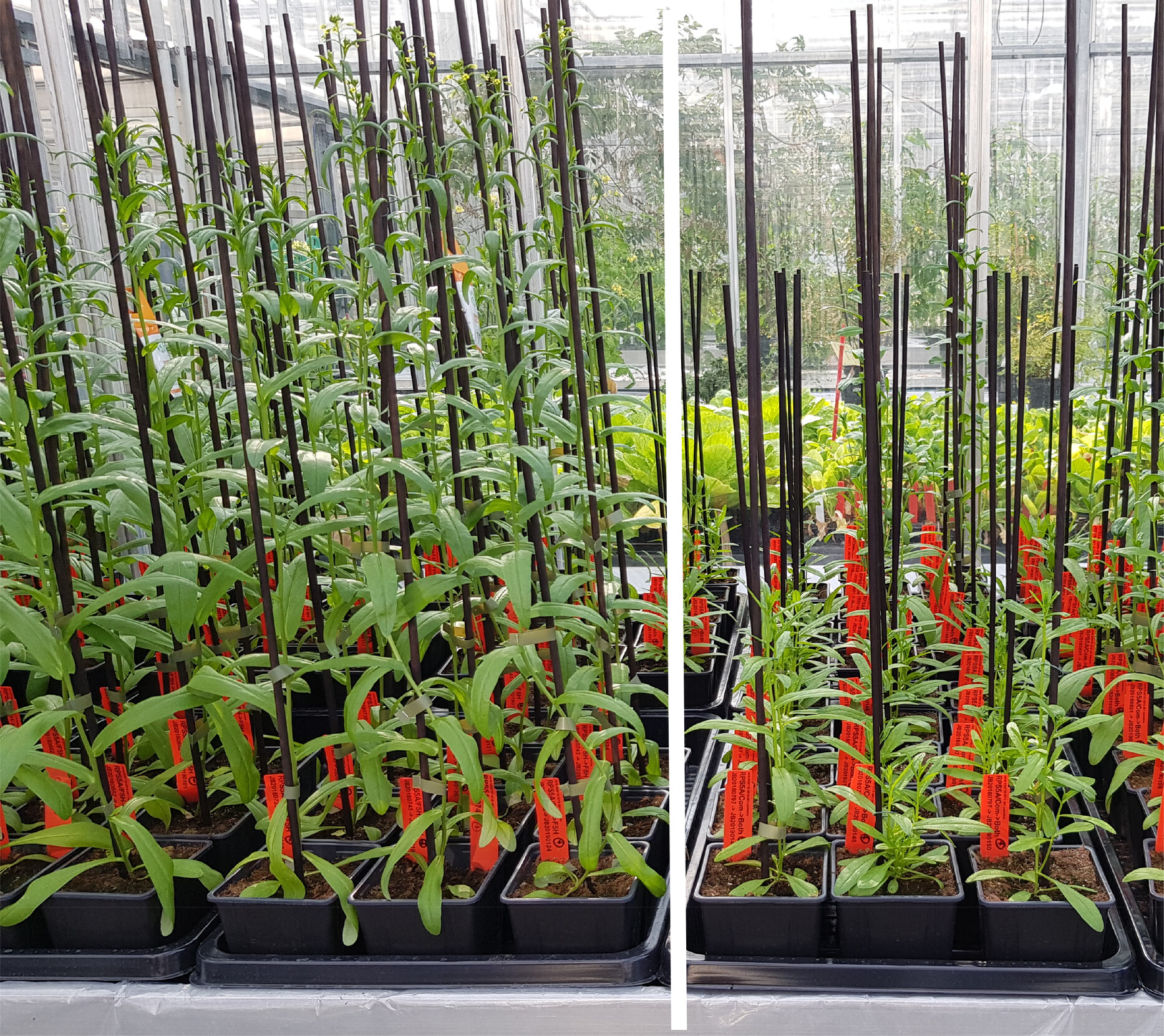

In our study, five out of 21 T2 FAD2 mutants (mostly with 5 or 6 of the FAD2 alleles mutated) showed low PUFA but also a dwarf phenotype (Figure 6). Yet, not all our T2 FAD2 mutants showed dwarfism. Some FAD2 mutants showed a delayed growth and development only but eventually developed into normal plants with wildtype phenotype and wildtype seed yield. Two T2 plants (#18 and #22 in Table 2) with full germline mutations in all three FAD2 genes had highly reduced PUFA contents but were not dwarfed and had good seed yield.

The germline mutations in the FAD2 genes in plants #18 and #22 consisted of various homozygous deletions and biallelic full mutations (Table 3). Mutations occurred at single sgRNA sites (very often a 1 nt insertion of an A or T), but also simultaneous Cas9 action occurred at two sgRNA sites in which cases large deletions regularly occurred (for FAD2 genes often 107 nt deletions). In few cases, triplet deletions or insertions occurred, for example, in plant #18 in FAD2-A, but these mutations were always accompanied by a non-triplet insertion or deletion at another sgRNA site. All FAD2 loci in plants #18 and #22, therefore, had frameshift mutations. If triplet insertions or deletions are desired, it would be best to use only one sgRNA, so a triplet insertion or deletion yields a non-frameshift mutation that cannot be disturbed by frameshift mutations at other sites. For plant #22 the selfed offspring was sown and the T3 plants still showed normal development in 66% of the cases, but 33% was dwarfed, probably because of new, additional germline mutations at sgRNA target sites not yet mutated in the T2.

pRPS5A::AtCas9 and pU6-26::sgRNA are optimal combinations for CRISPR/Cas9 activity in camelina upon floral dip transformation

In this study, the RPS5A promotor to drive Cas9 expression (pRPS5A::AtCas9) resulted in the highest CRISPR/Cas9 mutation frequency in leaves of T1 plants. This was expressed as a fraction of mutated reads per total number of reads (Figure 2B) and as the number of loci with mutated rates as a fraction of the total number of loci targeted (Figure 2B). The latter is higher as also with a low frequency of mutated reads for a locus, the locus counts as mutated in the T1 leaves. pPcUbi4-2::AtCas9 was only half as effective and pdCaMV35S::AtCas9 resulted in the lowest mutation efficiency, which is in line with previous CRISPR/Cas9 studies in camelina and in the genetically very closely related Arabidopsis in which floral dip transformation was used (Fauser et al., 2012; Feng et al., 2013; Jiang et al., 2017; Lynagh et al., 2018; Tsutsui and Higashiyama, 2017; Wang et al., 2015; Wolter et al., 2018; Yan et al., 2016). Overall, the high mutation efficiency with pRPS5A::AtCas9 in camelina was most likely the result of a high constitutive expression throughout all developmental tissues including egg cells, zygotes, early embryos and meristematic cells, whereas the low mutation efficiency with pdCaMV35S::AtCas9 was most likely the result of limited expression until late embryonic development, while female reproductive tissues are the primary target during floral dip transformation (Desfeux et al., 2000; Lynagh et al., 2018; Sunilkumar et al., 2002; Tsutsui and Higashiyama, 2017; Weijers et al., 2001). Similarly, the high mutation efficiency with pU6-26::sgRNA compared to the absence of mutants with pU6-1::sgRNA in our camelina study was most likely the result of different sgRNA expression levels in egg cells, zygotes or early embryos and meristematic cells. A previous study in Arabidopsis U6 genes showed that U6-26 had a higher expression than U6-1 and all other tested U6 genes in all tested tissues, including leaf and stem tissue, but also in flower and silique tissue (X. Li et al., 2007). The true potential of using pRPS5A::AtCas9 combined with pU6-26::sgRNA in camelina upon floral dip transformation is reflected by our second-generation mutants (Figure 3): 10% of the T2 mutants (with FAD2 targets and mostly pRPS5A::AtCas9) showed fixed mutations in all six FAD2 alleles, and 15% T2 plants had at least seven mutated FAD2 and F5H alleles, including one pU6-26::sgRNA|pRPS5A::Cas9 mutant with eleven mutated alleles.

F5H mutants yield seeds with zero sinapine and stems with zero S-lignin

In our study, it was evident that we have obtained T3 camelina mutant seeds (from T2 plants) with F5H mutations that had significantly decreased sinapine contents compared to WT, and T2 mutant plants with significantly decreased lignin S/(H+G+S) ratios. On average sinapine content in mutant seeds went down from 2.4 to 0.7 g/kg seed with T3 lines going down to zero sinapine in all seeds. Moreover, lignin S/(H+G+S) ratios sharply decreased from 47% to 4% in stems in seven out of eleven T2 lines containing zero S-monolignol. Previous studies have shown the crucial role of F5H in S-lignin biosynthesis in Arabidopsis, tobacco and poplar using F5H overexpression and more recently in barrel clover using knockouts of NST1 (i.e. a regulatory gene of MYB58 that is an F5H transcription factor) (Franke et al., 2000; Meyer et al., 1998; Zhao et al., 2010). In rapeseed (Brassica napus) using F5H-antisense the sinapine content in seeds was reduced by up to 40% or by up to 90% using combined F5H- and SCT-antisense (Bhinu et al., 2009; Nair et al., 2000). In our study, we have confirmed the usefulness of CRISPR/Cas9 technology for targeted mutagenesis of F5H in polyploid camelina which resulted in a full loss of sinapine in seeds.

FAD2 mutants yield seeds with higher MUFA and decreased PUFA contents

Besides obtaining camelina seeds with significantly decreased sinapine contents, T3 camelina mutant seeds (from T2 plants) with FAD2 mutations had both increased MUFA and decreased PUFA contents compared to WT (in % of total FA contents). These results were according to our expectations and in line with the findings of other FAD2 knockout camelina studies (Jiang et al., 2017; Morineau et al., 2017). We have also obtained T3 seeds with combined F5H and FAD2 mutations that showed expected effects of both types of mutations: lower sinapine contents from the F5H mutations and higher MUFA and lower PUFA contents caused by the FAD2 mutations. On average, C18:1 content increased from <9% to 58% in T3 seeds and C20:1 content increased from 12% to 24%, while PUFA (C18:2 and C18:3) contents decreased from 53% to 5%. Furthermore, on average the total FA content per seed weight was increased by 40% compared to WT (P < 0.001, Data Set S1). This increased overall FA content per seed weight could have been caused by an increased seed weight of 76% on average compared to WT (P < 0.001, Data Set S1). To gain more insight into overall FA content per WT or mutant seed or whole plant, a follow-up study should be set up that also takes into account the total seed set per plant, which has not been determined in our study. Nevertheless, we have obtained camelina seeds with significantly increased C18:1 and C20:1 contents and decreased PUFA contents.

Germline mutant allele count or total mutant allele frequency

In this study, the Cas9/sgRNA system was not segregated out and still additional somatic mutations could arise in T2 plants and T3 plants. A clear effect of germline allele dosage for both gene groups was apparent, but it proved that the total mutant allele frequency (germline plus somatic as determined in leaves of flowering plants) showed a clearer monotonic effect on the phenotypic effects (lower sinapine or lower PUFA). Also, the correlation of the total mutant allele frequency with sinapine content (for F5H) and PUFA (for FAD2) was higher than the correlations with the germline mutant allele count (Figure 5). In some cases, the mutant allele frequency was close to 100% while the germline mutant allele count was only 2 or 3 (out of 6). When only the germline mutant allele count would be determined, in a case where the CRISPR/Cas9 system is still active, one could falsely conclude that also with a very low mutant allele count strong effects can be found, for example, very low sinapine in a seed with only a few mutated F5H alleles or few mutated FAD2 alleles with very low PUFA. In fact, the strong effect is mediated through a large increase in the somatic mutation frequency. Still, in some cases, a total mutant allele frequency was only 0.75 while sinapine content in seed was reduced to non-detectable (plant #15 in Figure 5e). Plant #15 has a biallelic full germline mutation in F5H-A, a heterozygous mutant/wildtype genotype in F5H-B and no germline mutation in F5H-C and F5H-C has only 17% somatic mutations in its leaf sample, so still functional F5H-C could be available. Still, sinapine content was strongly reduced, which suggests that possibly one of the mutations had a dominant suppressive action, which can be mediated through for example truncated proteins interacting with the wildtype proteins produced by the non-mutant genes (Meinke, 2013), as premature stop codons occurring with frameshifts caused by CRISPR/Cas9 do not always elicit nonsense-mediated mRNA decay (NMD) (Tuladhar et al., 2019).

Combined FAD2 and F5H mutants with improved traits are sources for further breeding

We have successfully obtained a wide collection of genotypically and phenotypically different T3 camelina mutant seeds from an already wide collection of genotypically different T2 mutants (Data Set S1). These mutants form a unique source for in-depth expression studies of FAD2/F5H in camelina, but form most importantly an excellent source for further camelina breeding and to fix specific FAD2 and/or F5H mutated alleles and to remove T-DNA sequences, if still present. Novel camelina cultivars can be obtained that yield both seeds with more MUFA and less sinapine while showing normal plant development and which have stems with optimal lignin compositions for multipurpose use, using all aboveground parts of the plant for bio-based applications. These novel cultivars can then be used as starting materials for further improvements of seed properties. For example, in camelina, C18:1 content may be further increased in seeds by knocking out fatty acid elongase 1 (FAE1) which prevents the conversion of C18:1 into C20:1 (Ozseyhan et al., 2018). Combined FAD2 and FAE1 knockout mutants will expectedly lead to maximized C18:1 content in seeds, providing near-homogeneous reaction mixtures for producing C10:0 from camelina seed oil. Moreover, the level of ANFs can be further reduced in seed meals by reducing glucosinolate contents, for example, by mutagenesis of glucosinolate transporters genes as shown in Brassica oilseeds (Nour-Eldin et al., 2017).

FAD2 mutants with full germline mutations in FAD2 and non-dwarf phenotypes

Most of the lines with full germline mutations for the three FAD2 loci showed dwarf growth and drastically less seeds. This phenomenon has also been observed in camelina (Jiang et al., 2017; Lee et al., 2021; Morineau et al., 2017). Here, two T2 plants (#18 and #22) with CRISPR/Cas9 germline mutations in both alleles of each of the three FAD2 genes and also highly reduced PUFA, showed normal development which is unexpected as all FAD2 genes had mutations.

Plant #18 had a delayed growth but reached the same final length as wildtype plants in the end. Plant #22 showed normal development while it had one of the highest MUFA and lowest PUFA contents in oilseeds (Table 2). Until now, only dwarfed phenotypes were found in previous studies with homozygous FAD2 mutations in all three loci. This study shows it is possible to create homozygous or biallelic FAD2 mutations in all three loci (impairing the function of FAD2) with low PUFA that do not show dwarfed phenotypes. As in our T2 plants CRISPR/Cas9 was still active, and not all sgRNA sites had been mutated already, further mutations could occur in the T2 plants.

The type of mutations in plants #18 and #22 does not differ clearly from any of the mutations in the other T2 plants with six germline mutated alleles in the three FAD2 genes. The finding that these two T2 plants did not show dwarfed plants can, therefore, not be explained easily by the type of mutations. A further test on the T3 offspring of plant #22 showed that a large part of the T3 plants also did not show dwarfism (about 70%), but some T3 offspring did. This result would be obtained if one of the three FAD2 genes was still heterozygous mutant/wildtype, however, the examination of the sequence reads indicated that in these two T2 plants, either fully homozygous mutations or full biallelic mutations were found in all loci (although not necessarily at all sgRNA sites). From the T2 to the T3 generation further germline mutations in the FAD2 genes were possible at sgRNA sites that were not yet mutated as was also seen from the high frequency of somatic mutations that could be detected in many T2 plants. These new germline mutations that were inherited by the T3 plants might have induced the pleiotropic dwarfism that was not found in T2 plant #22 in which the FAD2 genes were already fully mutated in the germline. Possibly, the new (unknown) mutations did have an effect on the pleiotropic response towards dwarfism. Depending on the type of mutation either truncated proteins can be produced or no protein at all when nonsense-mediated mRNA decay (NMD) occurs, and this can potentially give different outcomes of phenotypes and pleiotropic effects caused by the targeted genes (Tuladhar et al., 2019).
