Fine mapping of the ‘QTL-hotspot’ region reveals putative candidates controlling seed weight and root architecture

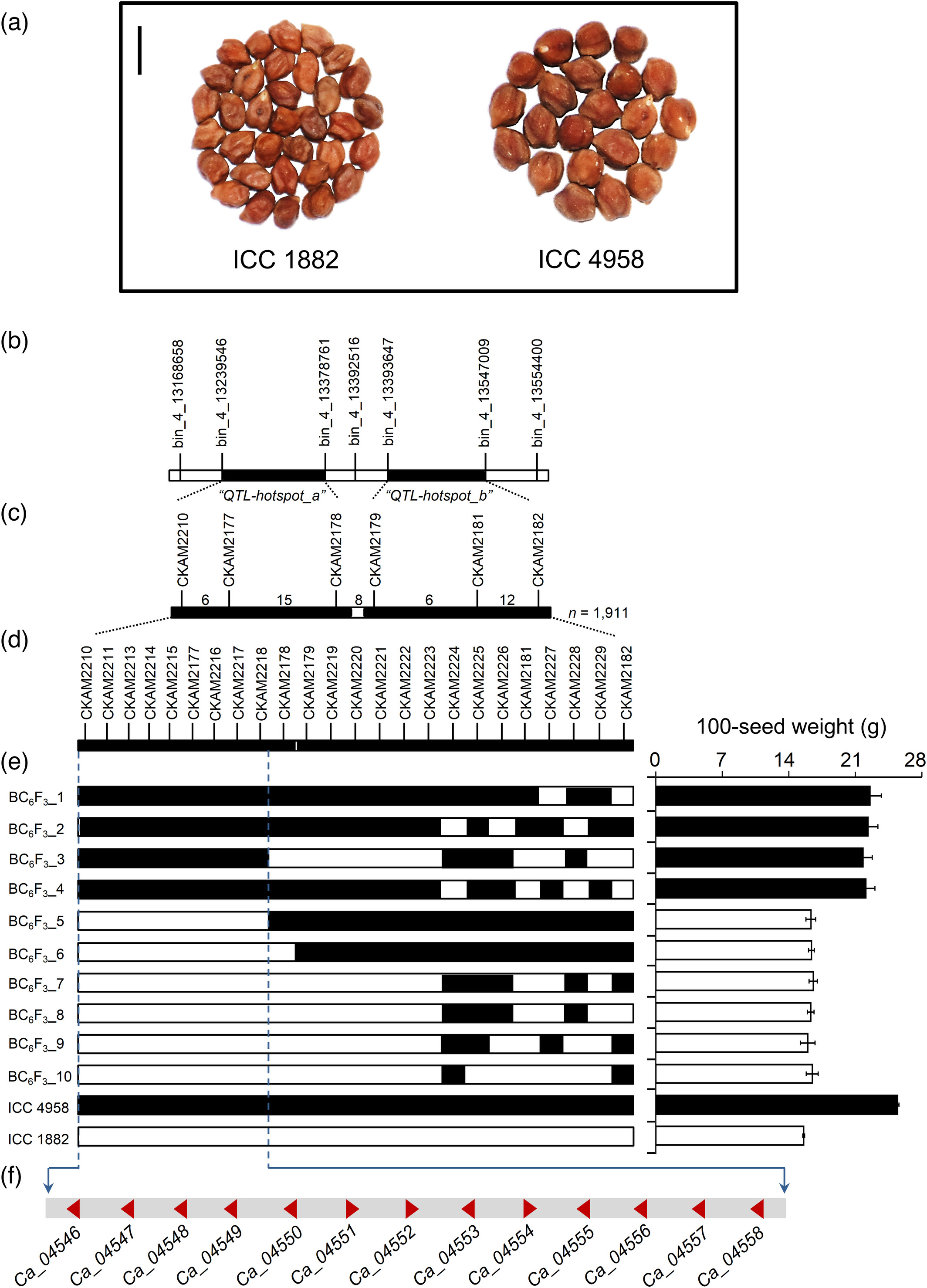

To identify genes controlling seed weight in chickpea, we developed a set of introgression lines using a drought adapted line, ICC 4958 (100-seed weight, 25.79 g ± 0.19 g), as a donor, and a chickpea landrace, ICC 1882 (100-seed weight 14.68 g ± 0.17 g), as a recipient. We obtained one introgression line (ICCX-110125-P18) in BC₅F₁ generation, with the highest genome recovery (98.04%) (Table S1), which harboured the ‘QTL-hotspot’ region on Ca4 from ICC 4958. For high-resolution mapping of the ‘QTL-hotspot’, we used 1911 BC₆F₂ plants derived from a cross between ICCX-110125-P18 and ICC 1882. Comprehensive analysis of the recombination events between the flanking Kompetitive Allele Specific PCR (KASP) markers, CKAM2210 and CKAM2182, revealed 22 types of genotype classes (Table S2 and Figure S1). A total of 284 plants obtained from 19 BC₆F_2:3 families were genotyped initially with six KASP markers, followed by 18 newly developed KASP markers to identify more recombinations within the target region (Figure S2). To clarify the genetic effects of the ‘QTL-hotspot’ on 100-seed weight, we analyzed BC₆F₃ plants homozygous for ICC 1882 (ICC 1882-homo) and ICC 4958 (ICC 4958-homo) alleles. The mean 100-seed weight of ICC 4958-homo (20.88 ± 0.77 g) was significantly larger than that of ICC 1882-homo (13.27 ± 0.26 g) at P < 0.001 (Figure S3). Therefore, it was confirmed that the ICC 4958 allele of ‘QTL-hotspot’ contributed to increased seed weight in chickpea.

Further, we conducted fine mapping of the ‘QTL-hotspot’ region. To map the 100-seed weight QTL as a single locus, we evaluated the homozygous lines under rainfed field conditions. A progeny test of homozygous segregates classified 50 BC₆F₄ plants into two groups that exhibited either high or low 100-seed weight. A total of 19 plants belonging to four families (BC₆F₃_1 to BC₆F₃_4) showed a high 100-seed weight (16.88–20.23 g); whereas, 31 plants belonging to the remaining six families (BC₆F₃_5 to BC₆F₃_10) displayed a low 100-seed weight (14.12–14.95 g) (Table S3). These groups resembled genotype classes that are homozygous for the ICC 4958 allele of ‘QTL-hotspot’ (ICC 1882 + Qh) and ICC 1882 allele of ‘QTL-hotspot’ (ICC 1882 ↔ Qh), respectively. Further, we investigated the effects of the ‘QTL-hotspot’ region on root growth and architecture of plants at 35 days after sowing (DAS). We observed a significant increase in root length density (by 57.0%), root dry weight (by 128.1%), root surface area (by 63.2%) and root volume (by 73.3%) of ICC 1882 + Qh plants compared with ICC 1882 plants (Figure S4a–f). This increase in root parameters was mainly attributed to major phenotypic differences in 0–30 cm depth interval (Figure S4g–i). Taken together, these results demonstrate that the ‘QTL-hotspot’ region controlling seed weight and root system architecture was narrowed down to ~113.04-kb interval between the markers CKAM 2210 and CKAM 2218 (Figure 1a–e). This region contained 13 putative genes, based on the annotation information of Cicer arietinum CDC Frontier genome (Varshney et al., 2013a) (Figure 1f and Table S4).

Analysis of the chickpea composite collection uncovers natural variation in genes underlying the ‘QTL-hotspot’ region

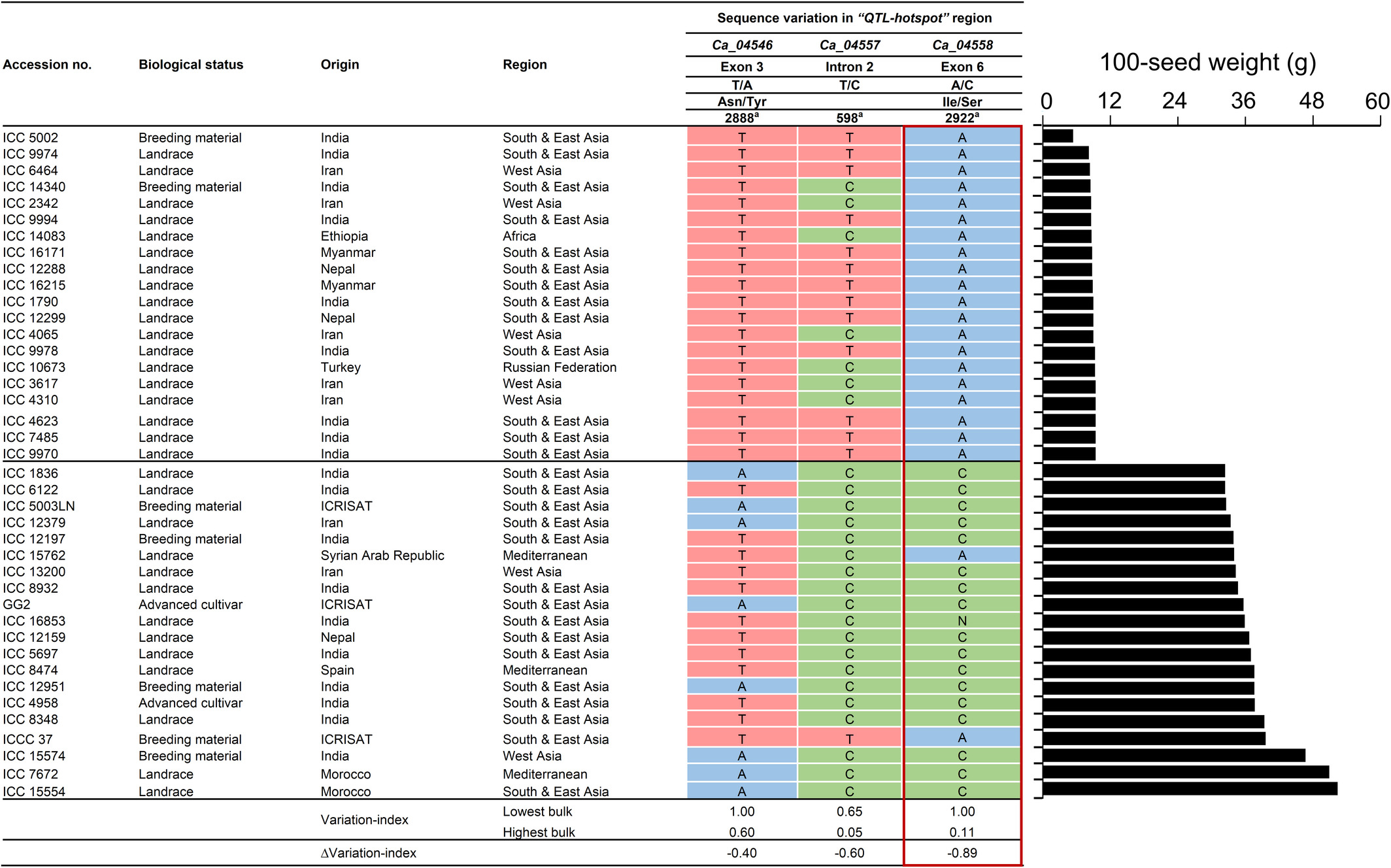

To further narrow the distance of the ‘QTL-hotspot’ region, we scrutinized 1712 desi accessions from the chickpea composite collection that showed large phenotypic variation for 100-seed weight (5.30–52.30 g). We selected 20 accessions with extreme phenotypic values and categorized them into ‘lowest’ and ‘highest’ bulks to enhance the chances of identifying allelic diversity whilst maintaining a limited number of accessions. A significant difference was observed between the phenotypic data of two extreme bulks (at P < 0.001). Of the 13 putative genes (Table S4), single-nucleotide variations were detected in the coding or non-coding regions of three genes, including a 1 bp non-synonymous substitution in Ca_04546 (T2888A), a point mutation in the intron of Ca_04557 (T598C) and a 1 bp non-synonymous substitution in Ca_04558 (A2922C) (Figure 2). The ΔVariation-index values ranged from −0.40 to −0.89, suggesting Ca_04558 with a ΔVariation-index value of −0.89 as the strongest candidate. Supporting this result, the diagnostic marker (CKAM2217) developed for the SNP (A2922C) in Ca_04558 gene differentiated the homozygous lines based on 100-seed weight (Table S3). Collectively, these results implied that a point mutation in the Ca_04558 gene may account for the differences in seed weight between ICC 4958 and ICC 1882, although contributions from the other two genes cannot be ignored.

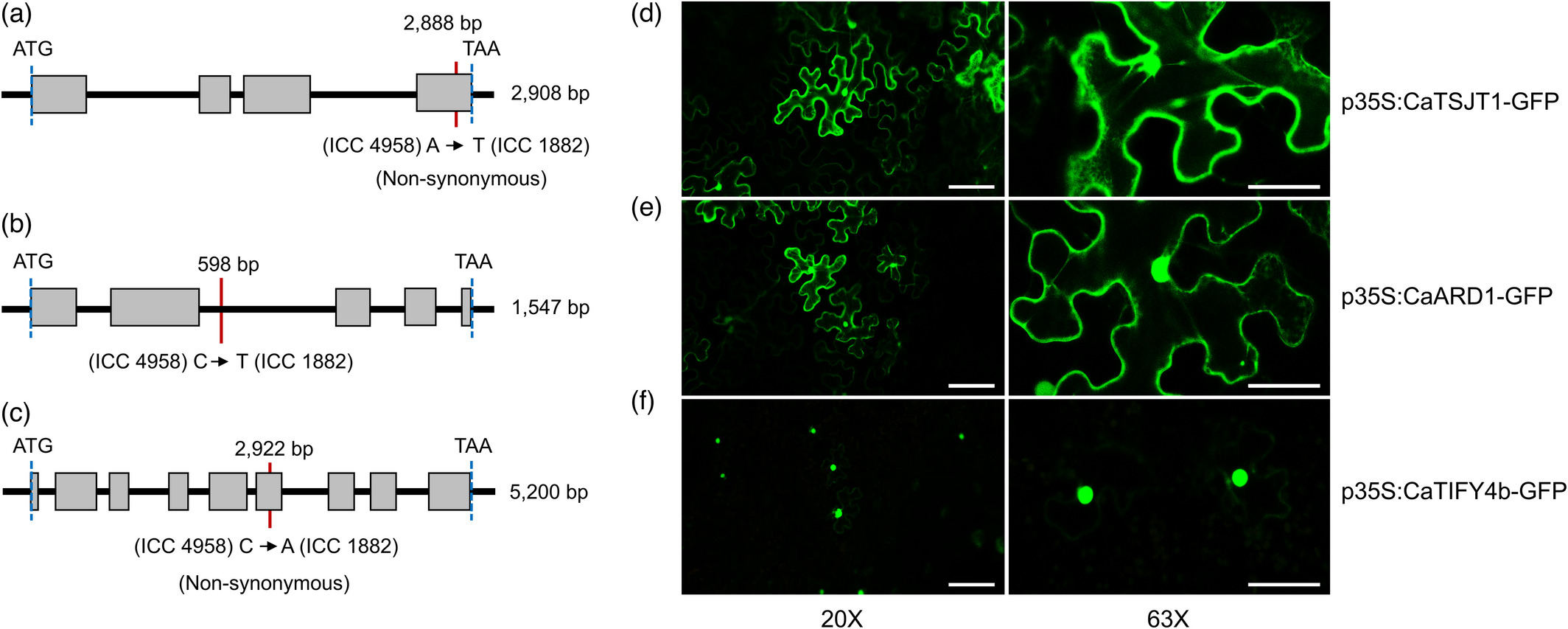

A gene ontology (GO) analysis predicted the three prioritized genes to be involved in asparagine biosynthesis, methionine metabolic process and leaf development (Table S4). The Ca_04546 gene (named CaTSJT1) displays a non-synonymous substitution within the fourth exon (Figure 3a) and CaTSJT1 protein shares 91.20% identity (http://www.ncbi.nlm.nih.gov/BLAST) with the stem-specific protein TSJT1 from M. truncatula. Based on database searches, we identified CaTSJT1 homologs from different legume species (Figure S5), although the function of this protein remains largely unknown. The Ca_04557 gene (named CaARD1) contains a point mutation in the second intron (Figure 3b). The CaARD1 protein is 90.37% identical to M. truncatula 1,2 dihydroxy-3-keto-5-methylthiopentene dioxygenase 1 (ARD1), a protein known to regulate ethylene and polyamine biosynthesis (Sauter et al., 2005). Finally, the third and most promising candidate Ca_04558 (named CaTIFY4b) contains a 1 bp non-synonymous substitution within exon 6 (Figure 3c) and is predicted to encode a 339-residue polypeptide (~36.97 kDa) containing a TIFY-like domain that characterize a family of transcription factors (Vanholme et al., 2007). Database searches identified CaTIFY4b homologous sequences from diverse legume species (Figure S6). A BLASTP analysis indicated that CaTIFY4b shares a high identity (82.93%) with BIG SEEDS1 (BS1) from alfalfa and M. truncatula (Ge et al., 2016). Analysis using the ‘PredictProtein’ database (Yachdav et al., 2014) revealed that the TIFY domain forms a helical structure and is deeply buried inside the protein core. Importantly, the 1 bp non-synonymous substitution (I149S) caused by the SNP mutation in CaTIFY4b led to alterations in the highly conserved TIFY motif (Figure S7).

Subcellular localization and transgenic expression suggest that CaTIFY4b acts in the nucleus to regulate root growth under water deficit

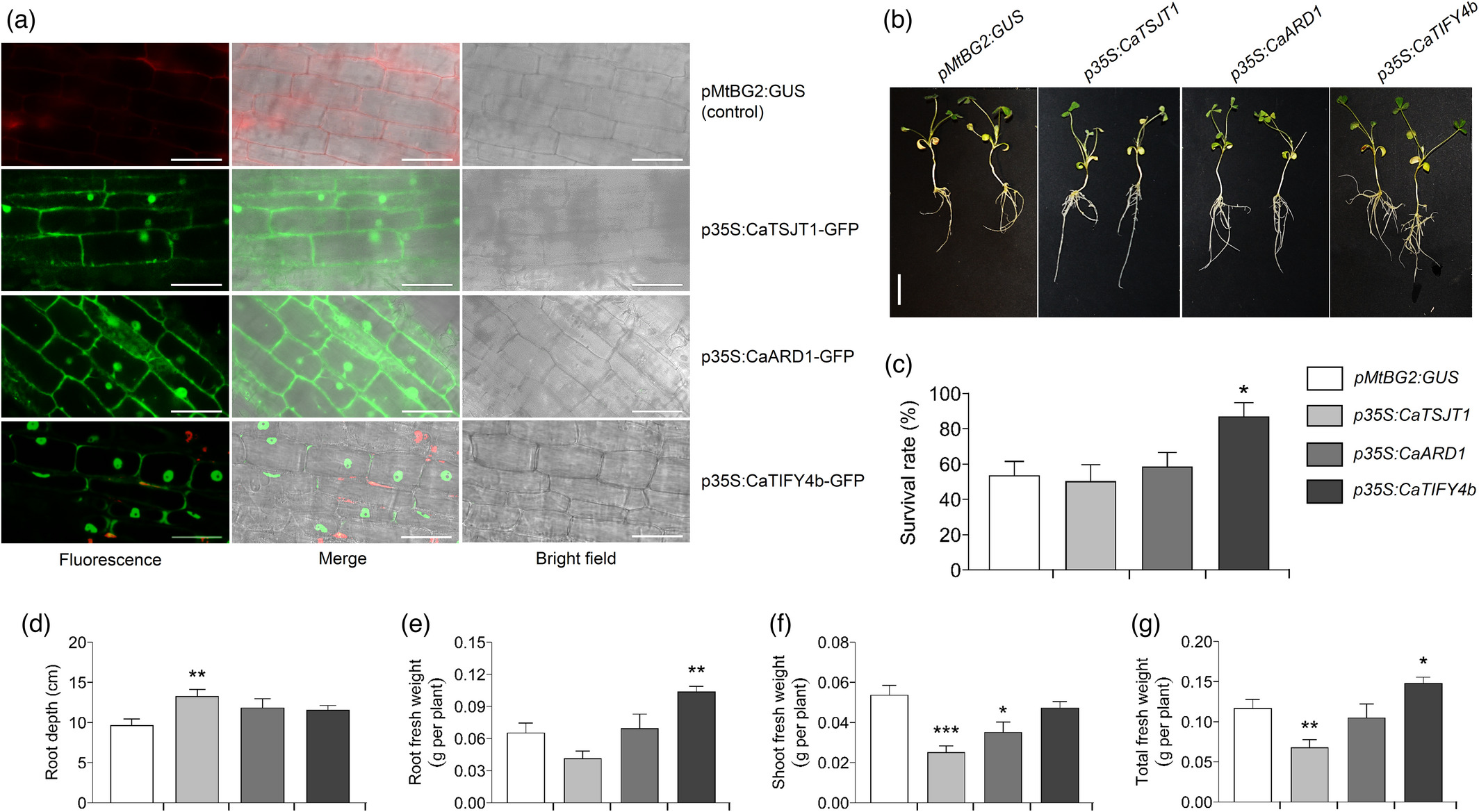

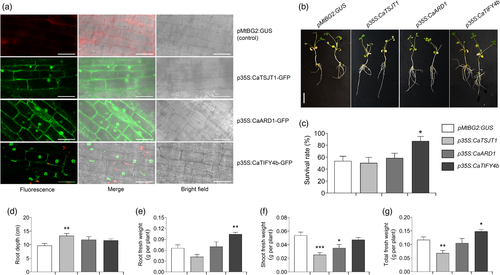

To determine the potential function of prioritized genes underlying the ‘QTL-hotspot’ region, we made Green Fluorescent Protein (GFP)-tagged constructs that were transiently expressed in Nicotiana benthamiana leaves using agroinfiltration. Analysis of protein sequences and the literature identified the C-terminal as the correct location for these fusions. Confocal imaging of transformed leaf epidermal cells revealed the subcellular localization of these proteins. Both CaTSJT1-GFP and CaARD1-GFP fusion proteins appeared to accumulate in the nucleus, endoplasmic reticulum, plasma membrane and, perhaps, the cytoplasm (Figure 3d,e). The expression of CaTIFY4b-GFP fusion protein was mostly restricted to the nucleus, consistent with a putative function as a transcription factor (Figure 3f). Importantly, the fluorescence signal suggested that protein fusions were successful and did not affect protein stability.

Next, we expressed the prioritized genes in M. truncatula (A17) using Agrobacterium rhizogenes-mediated hairy root transformation. M. truncatula provides a suitable heterologous model system to rapidly study the potential function of chickpea genes in the drought response (Nayak et al., 2010). Transgenic roots ectopically expressing CaTSJT1, CaARD1 and CaTIFY4b genes in the wild-type M. truncatula were generated and the localization of the fusion proteins was analysed as a control of successful transformation. A construct expressing GUS (β-glucuronidase) under the MtBG2 promoter (Gaudioso-Pedraza et al., 2018) was used as a negative control for transformation. The localization of these proteins in M. truncatula roots resembled that observed in tobacco leaves (Figure 3d–f). For instance, the CaTSJT1-GFP and CaARD1-GFP fusion proteins localized to the nucleus with a diffuse pattern in other cellular localizations (likely in the secretory pathway, plasma membrane and cytosol) (Figure 4a). The CaTIFY4b-GFP protein displayed a clear nuclear localization with some residual signal in the cell periphery (Figure 4a).

To phenotypically characterize protein function, we analysed the survival rate, root and shoot traits in several independent plants with transgenic roots that were grown on soil under well-watered (WW) and water stress (WS) conditions (Figure 4b). The transgenic plants with enhanced CaTIFY4b gene expression in the hairy roots exhibited a significantly increased survival rate relative to control (pMtBG2:GUS) plants under water deficit conditions (Figure 4c). Compared to pMtBG2:GUS plants, the p35S:CaTSJT1, p35S:CaARD1 and p35S:CaTIFY4b plants displayed higher root depth, although differences were only significant for p35S:CaTSJT1 under WS conditions (Figure 4b,d). Root mass increased significantly in p35S:CaTIFY4b plants under water deficit, whereas it remained unaffected in p35S:CaTSJT1 and p35S:CaARD1 plants (Figure 4e). Interestingly, a substantial reduction in shoot and total plant biomass under WS was observed for p35S:CaTSJT1 and p35S:CaARD1 plants, whereas, p35S:CaTIFY4b plants were able to maintain shoot mass and significantly increased total plant biomass (Figure 4f,g). No major phenotypic changes were detected in p35S:CaARD1 and p35S:CaTIFY4b plants compared to pMtBG2:GUS plants, under WW conditions (Figure S8a–d). The p35S:CaTSJT1 plants, on the other hand, showed a significant decrease in root mass, shoot mass and total plant biomass in WW experiments.

The results, so far, suggest that ectopic expression of CaTIFY4b is sufficient to improve root growth without negatively affecting shoot growth under water deficit. We further compared the root growth and architecture traits of p35S:CaTIFY4b and pMtBG2:GUS hairy root plants grown on Fahraeus Plant (FP) medium plates. Notably, in these conditions, p35S:CaTIFY4b plants had significantly higher root depth (116.1%), surface area (145.4%) and growth rate (87.2%) than those of their control-transformed counterparts (Figure S8e–g). Taken together, these results demonstrate that overexpression of CaTIFY4b in M. truncatula roots improves root growth and architecture affecting plant response to water deficit.

Allelic variation in the ‘QTL-hotspot’ region is associated with seed yield, water uptake patterns, TE and canopy development

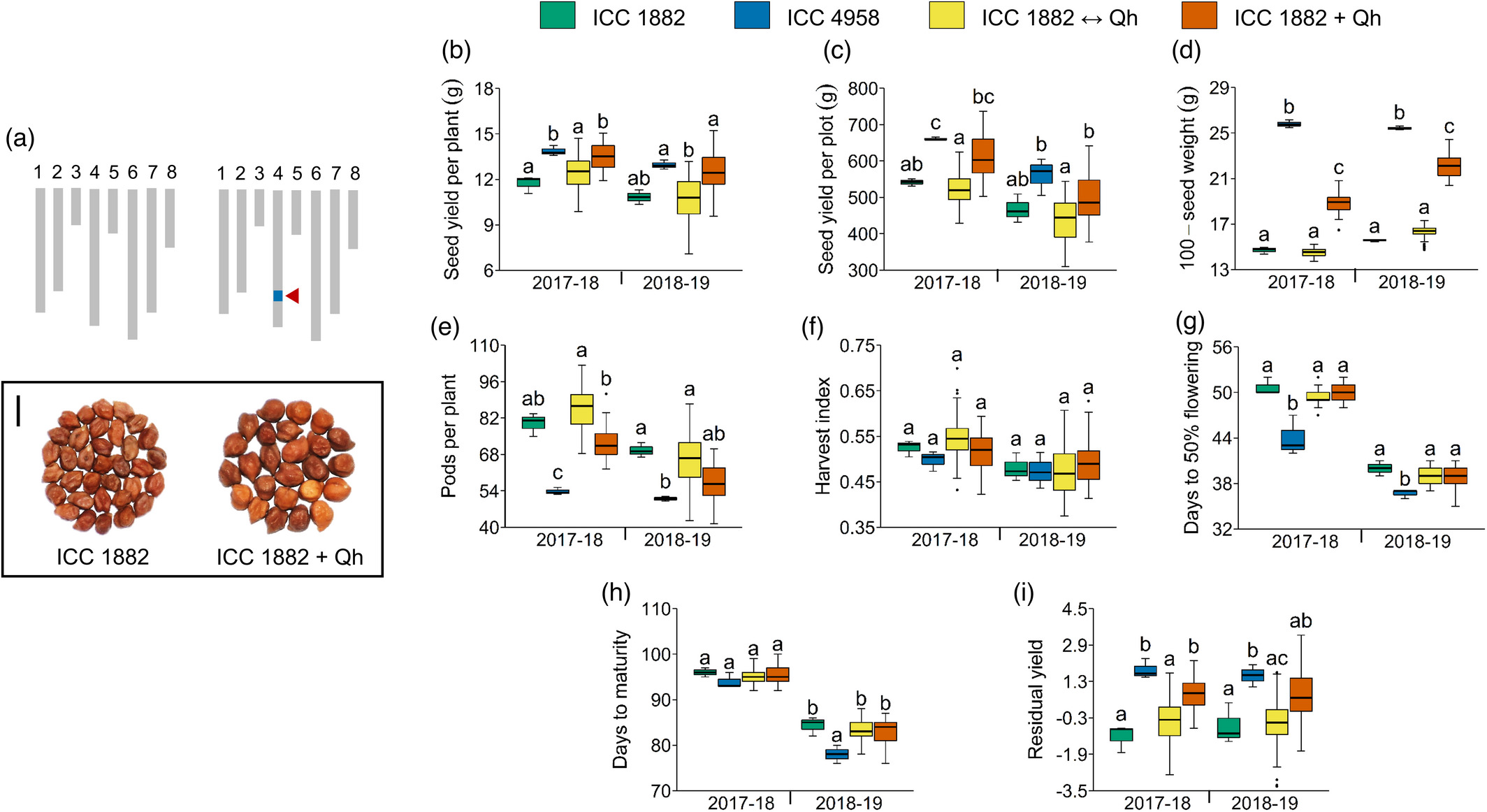

To investigate the physiological basis of drought adaptation regulated by the ‘QTL-hotspot’ region (with CaTIFY4b as a major contributor) in chickpea, we evaluated the homozygous recombinant lines at the field, rain-out shelter, glasshouse and LeasyScan platforms (Tables S5 and S6). Here, ICC 1882 + Qh plants possessed the ICC 4958 allele of the ‘QTL-hotspot’; whereas, ICC 1882 ↔ Qh plants contained the ICC 1882 allele of the ‘QTL-hotspot’ (Figure 5a and Table S3). Under rainfed field conditions, most of the yield, yield components and phenology traits displayed a significant variation in genotype (G) and genotype × environment (year) (G × E) interactions (Tables S7 and S8). We found that seed yield per plant of ICC 1882 + Qh plants increased by 15.0% (2017–18) and 15.2% (2018–19) compared to ICC 1882 plants, and this difference was significant for the 2017–18 experiment (Figure 5b,c). Although the 100-seed weight of ICC 1882 + Qh plants showed a major increase over ICC 1882 plants (Figure 5d); the number of pods per plant, harvest index, days to 50% flowering and days to maturity did not differ significantly in ICC 1882 + Qh than in ICC 1882 plants (Figure 5e–h). The residual yield, used as a proxy for drought adaptation, of ICC 1882 + Qh plants was higher than that of ICC 1882 plants (Figure 5i).

We evaluated the homozygous lines under rain-out shelter environments to identify the effect of ‘QTL-hotspot’ on water uptake patterns. Under WS conditions, the pre-anthesis water use of ICC 1882 + Qh plants was higher by 20.3% (2017–18 WS) and 13.3% (2018–19 WS) than that of ICC 1882 plants, and this difference was substantial for the 2017–18 experiment (Figure S9a). An increase in TE by 17.9% (2017–18 WS) and 5.2% (2018–19 WS) in ICC 1882 + Qh plants was observed compared to that of ICC 1882 plants, which was significant for the 2017–18 trial (Figure S9a). Under WW conditions, the pre-anthesis water use of ICC 1882 + Qh plants showed a considerable increase over ICC 1882 plants during 2017–18 WS, but no major differences were observed in post-anthesis water use, cumulative water use and TE (Figure S9b).

At the pod-filling stage, root depth and root dry weight displayed a significant genotype × treatment (G × T) interaction at P < 0.05 (Table S8), suggesting a strong water deficit influence on these traits. Under WS and WW conditions, root parameters did not display significant differences between ICC 1882 + Qh and ICC 1882 plants (Figure S10a,b), implying that the ‘QTL-hotspot’ mainly regulates root growth and architecture at the vegetative stage. Further, we evaluated the canopy development parameters at LeasyScan platform and rainfed field conditions. The 3D-leaf area of ICC 1882 + Qh plants was remarkably higher by 101.8% (2017–18) and 51.4% (2018–19) than that of ICC 1882 plants, whereas the projected leaf area was significantly greater by 119.1% (2017–18) and 51.7% (2018–19) in ICC 1882 + Qh plants compared to ICC 1882 plants (Figure S11a–c). The leaf area index (a measure of canopy growth), shoot digital biomass and specific leaf area of ICC 1882 + Qh plants were significantly higher than that of ICC 1882 plants (Figure S11d–f). Under field conditions, shoot biomass of ICC 1882 + Qh plants was higher by 17.3% (2017–18) and 12.2% (2018–19) than that of ICC 1882 plants (Figure S11g). The ICC 1882 + Qh plants displayed a substantial increase in plant height (by 9.0–9.7%) (Figure S11h) and plant vigour (by 63.8–67.8%), relative to ICC 1882 plants (Figure S11i). Moreover, the leaves of ICC 1882 + Qh plants responded more abruptly to an increase in leaf area than those of ICC 1882 plants (Figure S12).

The experimental trials in which a significant variation in drought-adaptive traits was observed between ICC 1882 + Qh and ICC 1882 plants were considered for establishing trait relationships. Under field conditions (2017–18), seed yield per plant improved with an increase in residual yield per plant, which was closely related to 100-seed weight (Figure S13). To identify the impact of water extraction patterns on yield and its components, we compared seed yield per plant from the field (2017–18) with traits from rain-out shelter lysimeters (2017–18 WS). Seed yield per plant was closely associated with pre-anthesis water use, whereas an increase in pod number was linked to post-anthesis water use (Figure S14a). The accumulation of shoot biomass favoured an increase in TE, which, in turn, was positively associated with 100-seed weight (Figure S14a). A significant negative correlation was observed between water extracted in the pre-anthesis and post-anthesis stage (Figure S15), suggesting that larger plants with more water extraction early in the crop cycle tended to have less water available in the soil profile during the pod-filling stage. Under WW conditions, an increase in cumulative water uptake favoured seed yield, whilst differences in 100-seed weight were predominantly related to pre-anthesis water use and TE (Figure S14b).

To identify the effects of canopy development on seed yield, we combined canopy development traits captured by the LeasyScan platform (2017–18) with seed yield data generated at rain-out shelter lysimeters (2017–18 WW). Seed yield was closely related to early vigour-related traits including plant height, digital biomass and 3D-leaf area (Figure S16a). An increase in water extracted during early growth stages under water deficit was tightly linked to plant height and early vigour-related traits (Figure S16b). Further, we compared the root traits evaluated at the vegetative stage with water uptake patterns from glasshouse lysimeters (2018–19 WS). Pre-anthesis water use was positively correlated with root length density, root dry weight and root surface area (Figure S17a). Notably, the root traits evaluated during the pod-filling stage were closely related to pre-anthesis water use (Figure S17b).

The above results suggest that the ICC 4958 allele of the ‘QTL-hotspot’ improves seed yield, pre-anthesis water use, TE and canopy growth. Since CaTIFY4b is a major contributor of the ‘QTL-hotspot’, we propose that ICC 1882 + Qh effects are caused by the presence of the CaTIFY4b-ICC 4958 allele in the ICC 1882 background. Our data indicate that the increase in seed yield, under a particular drought scenario, is likely facilitated by the CaTIFY4b-ICC 4958 allele and is a consequence of enhanced pre-anthesis water use linked to vigorous plant growth and higher TE.

Genome-wide transcriptome and gene expression analyses provide insights into the molecular mechanisms underlying seed weight and leaf size under water deficit

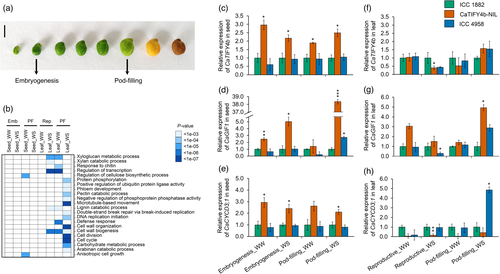

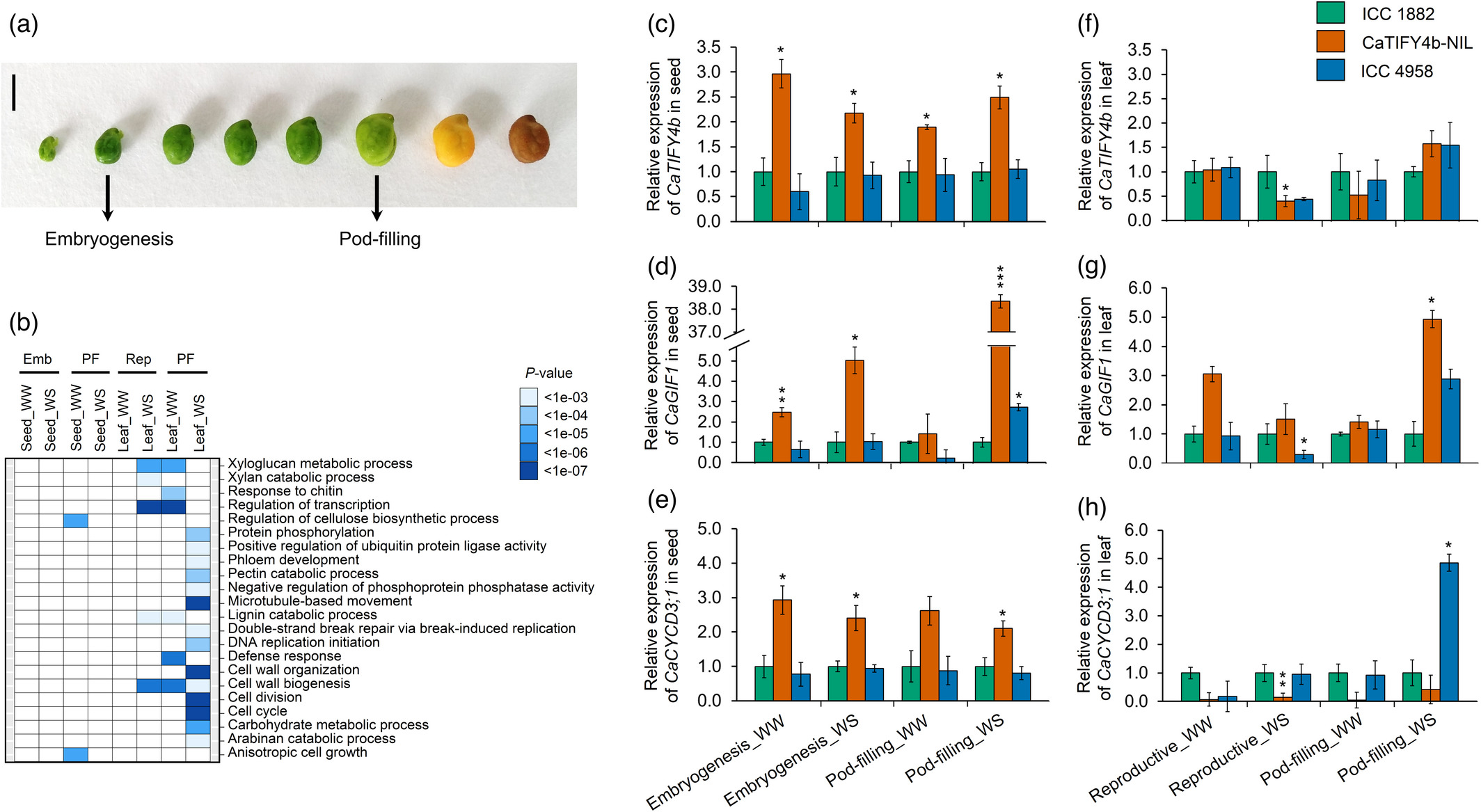

To better understand the mechanisms underlying the regulation of seed and leaf size, we compared the transcriptomes of ICC 4958 and ICC 1882 under WW and WS conditions, by RNA-sequencing (RNA-seq). Two stages of seed development emphasizing key events taking place within the seeds, for example, embryo development (embryogenesis) and storage reserve accumulation (pod-filling), were scrutinized (Figure 6a). Hierarchical clustering, global correlation and principal component analysis (PCA) revealed that the seed and leaf samples were separated from each other irrespective of the genotypes and water treatments (Figure S18). A total of 1074 differentially expressed genes (DEGs) were identified (adj. P < 0.05) at different stages of seed development, of which 62.0% (666 genes) were up-regulated and 38.0% (408 genes) were down-regulated in ICC 4958 relative to ICC 1882. In leaf samples, 4703 DEGs were detected (adj. P < 0.05) at different stages, of which 46.8% (2199 genes) were up-regulated and 53.2% (2504 genes) were down-regulated in ICC 4958 compared to ICC 1882.

The GO terms, regulation of cellulose biosynthetic process and anisotropic cell growth were highly enriched at the pod-filling stage of seed development under WW conditions (Figure 6b). Various cell proliferation-related terms, such as cell division, cell cycle and DNA replication initiation, and processes related to carbohydrate metabolism, pectin and arabinan catabolism, were substantially enriched in up-regulated genes in the leaf, particularly at the pod-filling stage under water deficit (Figure 6b). To determine the metabolic pathways regulating the differences in seed and leaf size, we analysed the DEGs based on the MapMan bins. In the seed, pathways that could influence energy requirements of the actively dividing cells (e.g., carbohydrate metabolism, lipid metabolism and secondary metabolism) were affected at the embryogenesis stage (Table S9). In the leaf, genes involved in cell cycle organization, chromatin organization and protein modification, amongst others, exhibited higher expression in ICC 4958 at the pod-filling stage under water deficit (Table S9).

Search results of the chickpea Gene Expression Atlas (Kudapa et al., 2018) revealed that CaTIFY4b is expressed in all major tissues, with the highest expression in the immature seed during the reproductive stage (Figure S19). We used the RNA-seq data to query the expression profile of CaTIFY4b downstream target genes. The CaTIFY4b homologs, BS1 and PEAPOD (PPD), are known to regulate seed and/or organ size in Medicago (Ge et al., 2016) and Arabidopsis (White, 2006), respectively. A large number of core cell cycle genes including the A-, B- and D-type cyclins (CYC) and genes governing cell proliferation activity such as GIF1 and GRF5 (GROWTH REGULATING FACTOR5) were differentially regulated in the mtbs1-1 plants (Ge et al., 2016). In chickpea seeds, the expression of GIF1 was found to be lower at the embryogenesis stage (WS) and higher at the pod-filling stage (WS) in ICC 4958 relative to ICC 1882 (Figure S20a). The CYCA2;1, CYCB1;1 and CYCD3;1 genes showed lower expression at the embryogenesis stage (WS) and higher expression at the pod-filling stage (WS) in ICC 4958 seed when compared to ICC 1882 (Figure S20a). Furthermore, the transcriptional activity of GIF1 and GRF5 showed a marked increase in ICC 4958 leaves at the pod-filling stage under water deficit. The expression of genes encoding some of the bonafide components of cell cycle machinery was lower in ICC 4958 at the reproductive stage and higher at the pod-filling stage under WS conditions (Figure S20b).

To confirm the expression pattern of CaTIFY4b and its target genes in developing seed and leaf samples, we performed quantitative RT-PCR (qRT-PCR) analysis of ICC 1882, ICC 4958 and a homozygous line (ICCX-130026-P17-P21-P6), referred to as CaTIFY4b-NIL, which contains the CaTIFY4b-ICC 4958 allele (Figure 6c–h and Figure S20c–f). The expression of CaTIFY4b was significantly up-regulated in CaTIFY4b-NIL seeds compared to ICC 1882 seeds at the embryogenesis and pod-filling stages (Figure 6c). Notably, the expression of CaGIF1 and CaCYCD3;1 genes was considerably up-regulated in the seeds of CaTIFY4b-NIL plants relative to ICC 1882 plants at the embryogenesis (WW and WS) and pod-filling (WS) stages (Figure 6d,e). By contrast, the expression levels of CaTIFY4b did not reveal major differences in the leaves of CaTIFY4b-NIL compared with those of ICC 1882, except for a significant decrease at the reproductive stage under water deficit (Figure 6f). The CaGIF1 gene expression showed a substantial increase in CaTIFY4b-NIL leaves compared to ICC 1882 leaves under water deficit, at the pod-filling stage (Figure 6g). Taken together, these results support a mechanism in which CaTIFY4b regulates the expression of GIF1 and related cell cycle genes under water deficit to modulate the growth of developing organs.

Plant material

A chickpea landrace, ICC 1882 and an advanced cultivar, ICC 4958, were used as low and high seed weight genotypes, respectively. ICC 4958 is a drought adapted line that carries the ‘QTL-hotspot’ region, and ICC 1882 is a drought susceptible landrace from India. To characterize the ‘QTL-hotspot’ region, we developed 50 BC₆F₄ homozygous recombinant lines segregating for the ‘QTL-hotspot’ by repeated backcrossing with ICC 1882 and marker-assisted selection to eliminate non-target DNA regions.

To identify natural variation within genes from the ‘QTL-hotspot’ region, a total of 1712 desi accessions from chickpea composite collection (Upadhyaya et al., 2006; Varshney et al., 2021d) were targeted. Based on the phenotyping data for 100-seed weight, we selected 20 accessions from each extremity containing the lowest and highest values. A total of 40 chickpea accessions were used to prioritize candidate genes from the delimited ‘QTL-hotspot’ region.

Development of homozygous recombinant lines for fine mapping of ‘QTL-hotspot’

We performed crossing between ICC 4958 and ICC 1882 and carried out repeated backcrossing with ICC 1882 genotype as the recipient parent to transfer the genomic region containing ‘QTL-hotspot’ into ICC 1882 genotype. We screened the resulting introgression lines with six simple-sequence repeat (SSR) markers flanking the ‘QTL-hotspot’ region. We obtained a near isogenic line homozygous for the ICC 4958 allele of the ‘QTL-hotspot’ (ICCX-110125-P18; BC₅F₁ generation) (Table S1). The ICCX-110125-P18 line was used as the donor for backcrossing with ICC 1882 plants to develop BC₆F₁ plants (n = 73), which were screened with two SSR markers (TAA170 and NCPGR21) flanking the ‘QTL-hotspot’ region. Further, selected BC₆F₁ plants were self-pollinated to generate 1911 BC₆F₂ plants for high-resolution mapping of the ‘QTL-hotspot’. We selected BC₆F₂ plants in which recombination occurred within the ‘QTL-hotspot’ region. These plants were self-pollinated and the progeny (BC₆F₄ and BC₆F₅) was utilized for fine mapping and characterization of the ‘QTL-hotspot’ region.

Development and utilization of KASP markers

In order to identify recombination events within the ‘QTL-hotspot’ region, selective SNP markers within ‘QTL-hotspot_a’ and ‘QTL-hotspot_b’ sub-regions were converted into KASP markers. Marker nomenclature was given as chickpea KASP assay markers (CKAMs). In the first instance, a set of six KASP markers (CKAM2210, CKAM2177, CKAM2178, CKAM2179, CKAM2181 and CKAM2182) were developed and used for screening 1911 BC₆F₂ plants (Table S2). Here, CKAM2210 and CKAM2178 were used as flanking markers for ‘QTL-hotspot_a’, whereas CKAM2179 and CKAM2182 were used as flanking markers for ‘QTL-hotspot_b’. Screening of 1911 BC₆F₂ plants with six KASP markers identified 42 heterozygous recombinants, of which 15 were identified for ‘QTL-hotspot_a’ whereas 11 recombinants were identified for ‘QTL-hotspot_b’. Moreover, 16 plants were found to possess recombination events within both sub-regions. The selected F₂ recombinants were self-pollinated to develop BC₆F₃ plants. To identify more recombination events, a next set of 18 KASP makers (CKAM2211, CKAM2213, CKAM2214, CKAM2215, CKAM2216, CKAM2217, CKAM2218, CKAM2219, CKAM2220, CKAM2221, CKAM2222, CKAM2223, CKAM2224, CKAM2225, CKAM2226, CKAM2227, CKAM2228 and CKAM2229) was developed between the flanking markers CKAM2210 and CKAM2182, to screen 284 BC₆F₃ plants (Table S2). This identified 50 homozygous recombinant BC₆F₃ lines grouped into 10 families (BC₆F₃_1 to BC₆F₃_10), where each family represented one BC₆F₂ individual from which the BC₆F₃ plants were developed.

Evaluation of variation index

Genomic sequences of 13 annotated genes from the delimited ‘QTL-hotspot’ region were extracted and used for the analysis. The presence of allelic variation between the germplasm lines belonging to extreme bulks was determined after aligning their sequence data to the reference genome assembly (CaGAv1.0) (Varshney et al., 2013a). The variation index value was used to prioritize candidate genes regulating the differences in 100-seed weight across two extreme bulks. Variation index, a measure of nucleotide diversity at a given genomic position, was counted based on the number of genotypes harbouring SNPs different from the reference sequence (ICC 4958). The genes with a variation index <0.3 in both the bulks were filtered out from the further analysis. If a variation index >0.3 was present in any one of the two bulks, the SNP was considered for further analysis irrespective of the variation index of the other bulk. ∆Variation index was calculated as the difference in the variation index values of the highest bulk and the lowest bulk. A positive ∆Variation index value specifies that the non-reference allele contributed to the trait, whereas a negative ∆Variation index value indicates that the reference allele contributed to the trait.

Sequence analysis and gene function prediction

DNA sequences were gathered and aligned using BioEdit software (http://www.mbio.ncsu.edu/bioedit/bioedit.html). Prediction of biological function and the conserved domains of CaTIFY4b protein were performed using InterPro (http://www.ebi.ac.uk/interpro/) and PROSITE (http://www.expasy.org/prosite/) databases.

Vector construction

Total RNA was extracted from the young leaves of ICC 4958, and the first strand cDNA was synthesized using the SuperScript® III First-Strand Synthesis System (Invitrogen; Thermo Fisher Scientific, Waltham, Massachusetts, USA). Molecular cloning of prioritized genes was performed using Gateway cloning technology (Curtis and Grossniklaus, 2003), following the manufacturer’s instructions. In brief, the coding sequence of CaTSJT1, CaARD4 and CaTIFY4b was amplified from the cDNA of ICC 4958 by polymerase chain reaction (PCR) using primers containing compatible adapters. The PCR product of CaTSJT1 and CaARD4 was cloned into Gateway donor vector pDONR 221, whereas that of CaTIFY4b was cloned into donor vector pDONR207, by Gateway BP reaction. Plasmids from confirmed positive pDONR clones were cloned into the destination vector (pB7FWG2) using Gateway LR reaction. The cloned plasmids were then transformed into E. coli strain DH5α to propagate the plasmid DNA. The colonies were screened using colony PCR and confirmed by sequencing. The pMtBG2:GUS construct, carrying DsRed as a marker for transformation driven by ubiquitin (UBIQ) promoter, was used as a control vector. The pMtBG2:GUS vector was constructed as described previously (Gaudioso-Pedraza et al., 2018).

Subcellular localization of genes

We cloned the target proteins in a C-terminal fusion with a GFP to generate expression vectors driven by the CaMV35S promoter and to investigate the subcellular localization. The p35S:CaTSJT1-GFP, p35S:CaARD1-GFP and p35S:CaTIFY4b-GFP constructs were developed and transformed into ElectroMAX A. tumefaciens strain LBA4404 (Invitrogen; Thermo Fisher Scientific, Waltham, Massachusetts, USA). These constructs were then introduced into the fully expanded and intact leaves of N. benthamiana by agroinfiltration. In brief, the leaves were infected with an inoculum of A. tumefaciens (OD_600nm 0.6–0.8) suspended in 10 mm MgCl₂ and 150 μm acetosyringone. After 48 h of incubation at 25 °C, the abaxial side of the transformed leaves was observed under a confocal laser scanning microscope for the presence of GFP and DsRed fluorescence.

M. truncatula transformation and selection of transgenic roots

Medicago truncatula (A17) wild-type seeds were used in this study. M. truncatula seeds were scarified using sandpaper to penetrate the seed coat gently. The seeds were surface sterilized for 2 min using diluted bleach water (5% sodium hypochlorite), washed and then incubated for 3 h in sterile water. Sterilized seeds were germinated on inverted Campbell agar plates for 3–4 days at 4 °C and overnight at 25 °C before being used for A. rhizogenes transformation. The A. rhizogenes strain AR1193 (Stougaard et al., 1987) was used for A. rhizogenes-mediated transformation of the p35S:CaTSJT1-GFP, p35S:CaARD1-GFP and p35S:CaTIFY4b-GFP constructs. Further, A. rhizogenes strain ARquA1 (Quandt, 1993) was used for A. rhizogenes-mediated transformation of pMtBG2:GUS construct. These strains were propagated on selective tryptone yeast media complemented with 6 mmol/L calcium chloride and selective antibiotics. The A. rhizogenes AR1193 strain containing binary vector with antibiotic resistance was grown in the presence of 100 µg/mL streptomycin and 100 µg/mL spectinomycin (binary vector resistance antibiotic), whereas the ARquA1 strain was grown in the presence of 100 µg/mL streptomycin and 25 µg/mL chloramphenicol.

Agrobacterium rhizogenes-mediated transformation of M. truncatula roots was performed as previously described (Gaudioso-Pedraza et al., 2018), with minor changes. In brief, germinated seedlings with a radicle length of approximately 8–10 mm were sectioned at 3 mm from the root tip and the cut end was inoculated by dipping in a suspension of A. rhizogenes (OD_600nm 0.6–0.8). The seedlings were then placed on FP agar plates (12 cm × 12 cm) supplemented with ammonium nitrate (NH₄NO₃; 0.25 mm), maintaining a density of 10 seedlings plate⁻¹. Plates were placed vertically in plastic boxes under controlled environments with 16 h light/8 h dark photoperiods at 20 °C for 3 weeks. M. truncatula hairy roots were selected using an Olympus BX61 fluorescence microscope for the expression of GFP and DsRed fluorescent proteins encoded in the T-DNA of the target gene and control transformation binary vectors, respectively. Individual GFP⁺ and DsRed⁺ composite plants were viewed under a confocal microscope for ectopic expression and were used for drought experiments.

Drought experiments with transgenic M. truncatula

Transformed M. truncatula plants were grown in plastic cups (23 cm diameter and 26 cm height) filled with a mixture of Terragreen:sand:perlite (3:1:1, w/w) as substrate, under controlled conditions (16-h day/8-h night; 20 °C/16 °C day/night temperature). Plants were watered with half strength Fahraeus nutrient solution containing 0.125 mm ammonium nitrate for the first week to improve plant performance during the initial growth stage. After about 7 days, the plants were randomly separated into two sets: WW and WS. The WW set of plants was daily supplied with water, whereas the WS set was subjected to progressive drought by withholding water for 8 days. All the plants were subsequently watered, and the survival rate of the transgenic plants was calculated 1 week after rehydration. Plants with green and viable leaves and stems were considered as survivors. After the drought treatment, the roots were gently washed with water and the plants were phenotyped for root depth, root fresh weight, shoot fresh weight and total fresh weight. The root depth of the seedlings was measured using ImageJ software (https://imagej.nih.gov/ij/).

Microscopy methods

Medicago truncatula roots were excised about 2 cm from the root tip and mounted in propidium iodide solution (1:100 dilution). Micrographs were taken at the root tip and the differentiation zone. Confocal imaging analysis was conducted using a Zeiss LSM700 inverted and LSM800 upright microscope using a 488 nm excitation laser for GFP or a 550 nm for propidium iodide and DsRed. Emission was received using the filters BP 505-530 for GFP and BP 600-630 filter for propidium iodide. The images captured resembled individual stacks of z-optical sections. Images were acquired, projected and processed using imaging software ZEN version 2.6 (Zeiss, Oberkochen, Germany).

Evaluation of agronomic traits under rainfed field conditions

The homozygous recombinant lines and parental lines (ICC 1882 and ICC 4958) were grown under rainfed field conditions at ICRISAT, India, in the post-rainy season of 2017–18 and 2018–19. The experiment was laid out in an alpha lattice design with three replications of each genotype. Each plot comprised a single 4 m row with a spacing of 60 cm between rows and 10 cm between plants within the same row. Sixty seeds were sown in each 4 m row and later maintained to 40 plants per row after seedling establishment. Optimal irrigation was provided immediately after sowing to ensure a uniform emergence of seedlings. The plants received no irrigation further and were subsequently grown under rainfed conditions. During the 2017–18 crop season, the average day/night temperature recorded was 30.7/13.2 °C with a relative humidity of 31.7/80.8%. The average day/night temperature and relative humidity during the 2018–19 crop season were 30.1/15.3 °C and 45.0/95.2%, respectively.

This experiment mainly focused on the evaluation of agronomic traits (Table S5). Five healthy plants were selected randomly from each row at physiological maturity to measure seed yield and its components. The scoring of plant vigour was performed at the vegetative stage visually on a scale of 1–5, where late vigour parent (ICC 1882) and early vigour parent (ICC 4958) were assigned a score of 2 and 5, respectively (Sivasakthi et al., 2018). Residual yield not explained by flowering and harvest index (HI) was calculated as the difference between the observed and predicted yields, as described previously (Tharanya et al., 2018). We defined harvest index as the ratio between seed yield per plant and shoot biomass per plant.

Phenotyping for water uptake traits at the rain-out shelter

A total of 21 genotypes, including 19 homozygous lines (two lines from each of the 10 families, except BC₆F₃_4) and two parental lines, were grown in a rain-out shelter at ICRISAT, India (http://gems.icrisat.org/lysimetric-facility/) in the post-rainy season of 2017–18 and 2018–19. A randomized block design with treatment as the main factor and genotype as the sub-factor consisting of five replications per block was used. The plants were grown in lysimeters, consisting of polyvinyl chloride (PVC) cylinders (120 cm height and 20 cm diameter), according to the method described previously (Zaman-Allah et al., 2011). In brief, the cylinders were filled with about 42 kg of vertisol, which was fertilized with di-ammonium phosphate and single super phosphate at the rate of 100 and 300 mg/kg soil, respectively. Four seeds per genotype were sown and two plants per cylinder were maintained at 15 DAS. All the plants were grown under normal conditions until the imposition of drought stress. One block was assigned to WW treatment and the other block to WS treatment. Prior to the imposition of WS treatment, all the cylinders were completely saturated with water and allowed to drain overnight. The next morning, the top layer of the soil was covered with a round plastic sheet, above which a 2 cm thick layer of polyethylene granules was laid. The WS treatment was imposed by withholding water from the vegetative stage (29 DAS in 2017–18 and 27 DAS in 2018–19) until harvest. The WW set of plants was irrigated weekly to retain the soil water levels above 80% of the field capacity. Plant water uptake on a weekly basis was calculated based on the losses in the weight of each cylinder. When the net transpiration ratio (NTR) of the WS plants fell below 0.10, that is, when the transpiration value of WS plants was <10% of that of WW plants, the WS set of plants was harvested. The WW set of plants was harvested at physiological maturity. After harvest, the plants were dried in the oven for 3 days at 70 °C and yield, yield components and biomass traits were recorded per cylinder basis. The pre-anthesis water use was the sum of the daily water use values from the imposition of WS treatment until flowering. Post-anthesis water use was the sum of the daily water use values from the end of flowering until maturity. Transpiration efficiency was estimated as the ratio of total shoot dry weight produced divided by total water extracted.

Evaluation of root system architecture and water uptake patterns under glasshouse environment

We quantified the root system architecture traits in chickpea plants at 35 DAS, to obtain maximum variation between the genotypes (Kashiwagi et al., 2006). A total of 20 homozygous lines (two lines from each of the 10 families) and two parental lines were grown in PVC cylinders (120 cm height and 16 cm diameter) during the post-rainy season of 2019–20. The experiment was conducted using a complete randomized block design, with five replications of each genotype. One plant per cylinder was maintained until harvest. At 35 DAS, plants were cut at the soil surface. The entire root system was sliced into sections of 30 cm to measure the root length, root length density, root surface area and root volume using the image analysis software (WinRhizo, Regent Instruments Inc., Montreal, Quebec, Canada), as described earlier (Zaman-Allah et al., 2011). We defined root length density as the total root length divided by the volume of the cylinder.

To evaluate root growth and architecture traits and understand the relationship between the capacity of the root to extract soil water and drought adaptation, we conducted experiments in the glasshouse facility at ICRISAT, India, in the post-rainy season of 2017–18 and 2018–19. Near-optimal conditions (day/night temperature 32/25 °C and relative humidity varying between 40% and 80% during the day) were maintained in the glasshouse during the experiment. The plants were grown in lysimeters, comprising PVC cylinders (120 cm height and 20 cm diameter) and the soil type, fertilizer application and protocol used for the imposition of drought stress were the same as described above for rain-out shelter lysimeters. A complete randomized block design, comprising treatments as the main factor (one block in 2017–18 and two blocks in 2018–19) and genotype as the sub-factor that was replicated three times within each block was used for the experiment. Two plants were maintained per cylinder after seedling establishment until harvest. The WS treatment was imposed by the termination of watering from 27 DAS (2017–18 and 2018–19). The WS set of plants was harvested when the NTR of stressed plants fell below 0.10, as described above, and the yield, yield components and shoot biomass traits were measured. Further, the soil from the cylinders was washed to obtain the entire root profile. Root phenotyping and data analysis were performed as described above.

High-throughput phenotyping of canopy development traits

An imaging platform (LeasyScan), based on a 3D imaging technique, was used to assess the canopy development traits during the vegetative stage of the crop (Vadez et al., 2015). Fifty homozygous recombinant lines and two parental lines were grown under fully irrigated conditions in two experiments conducted during December–January of 2017–18 and 2018–19, at ICRISAT, India (http://gems.icrisat.org/leasyscan/). The Phenospex plant eye scanners imaged a preset area of 65 × 40 cm regarded as a ‘sector’. A final count of eight plants per sector (~0.25 m² area) was maintained, equivalent to the sowing density of 32 plants/m², which is comparable to the sowing density of chickpea in the fields. The experimental design was a randomized block design. Di-ammonium phosphate was applied at a rate of 300 mg/kg of soil. The specific leaf area (one-sided area of the leaf) was estimated by dividing the 3D-leaf area with shoot dry weight, and specific leaf weight was calculated as the reciprocal of specific leaf area (1/specific leaf area). The canopy structure was calculated as described earlier (Tharanya et al., 2018). The growth rates for 3D-leaf area and projected leaf area were calculated during the exponential phase of the plant growth, as described previously (Sivasakthi et al., 2018). The average day/night temperature recorded during the crop growth was 31/5.2 °C with a relative humidity of 26/99%.

Statistical analysis of the phenotypes

Analysis of variance was computed to test the significance of genotype (G), environment (E) and genotype × environment (G × E) interactions using the statistical software GenStat v15.0 (VSN International, Hemel UK). The differences between genotype means were analysed with Tukey’s test (at 0.05 significance level) or two-sided t-test, using GenStat (v15.0). Dunnett’s test was performed using RBioplot package of R (R Project for Statistical Computing) (Zhang and Storey, 2016). The residual maximum likelihood method in GenStat (v15.0) was used to obtain an unbiased estimate of the variance components and the best linear unbiased prediction (BLUP) of different parameters within the treatment, considering genotypes as random effects and replications as fixed effects. The BLUP estimates were used for generating PCA biplots using FactoMineR package of R. Repeatability of the phenotype was based on broad-sense heritability (h²), which was estimated as h² = ${\sigma }_g^2$ / (${\sigma }_g^2+{\sigma }_e^2$), where ${\sigma }_g^2$ is the genetic variance, and ${\sigma }_e^2$ is the residual error (Tharanya et al., 2018).

RNA isolation and RNA sequencing

The parental lines (ICC 4958 and ICC 1882) and a homozygous line (ICCX-130026-P17-P21-P6) containing the CaTIFY4b-ICC 4958 allele, regarded as CaTIFY4b-NIL, were selected. The plants were grown in pots in a glasshouse under near-optimal conditions (day/night temperature 32/25 °C and relative humidity oscillating between 40%–80% during the day). Three biological replicates were maintained per genotype at each stage and water treatment for tissue collection. Plants were exposed to two water treatments: WW and WS, and WS treatment was imposed at 25 DAS. The WW set of plants was maintained at ~80% field capacity. The WS set of plants was subjected to a progressive drought stress by partially recompensing water loss from transpiration. The leaf samples were harvested at the reproductive stage. The immature seeds were collected about 10 days after the initiation of flowering, which represented the embryo development stage. At the pod-filling stage, when the NTR of WS plants dropped below 0.20, the seed and leaf samples were harvested. All the samples were flash frozen in liquid nitrogen and stored at −80 °C for RNA isolation.

Total RNA was extracted from the seed and leaf samples using the ‘NucleoSpin® RNA Plant’ kit (Macherey-Nagel, Dueren, Germany), following the manufacturer’s instructions. The qualitative and quantitative assessment of these RNA samples was conducted using the Qubit RNA assay kit (Thermo Fisher Scientific, Waltham, Massachusetts, USA) and BioAnalyzer 2100 (Agilent Technologies, Santa Clara, California, USA). The high-quality total RNA was used for cDNA library construction, and RNA-seq was performed using Illumina HiSeq 2500 platform at Centre of Excellence in Genomics & Systems Biology, ICRISAT (https://cegsb.icrisat.org/). A total of 16 samples representing seed and leaf tissues of ICC 4958 and ICC 1882 collected at two different stages under WW and WS conditions, in two replicates, were used for sequencing. The raw reads were filtered to remove adaptors, low-quality bases and reads using Trimmomatic v0.39 (Bolger et al., 2014). The filtered reads were mapped to the draft sequence of chickpea genome (CaGAv1.0) (Varshney et al., 2013a) using HISAT2 (v2.2.1) (Kim et al., 2019). The StringTie (v2.1.4) package (Pertea et al., 2015) was used to assemble mapped reads from each sample to produce reference-guided assemblies and subsequently a consensus transcriptome assembly. The DEGs were identified using DESeq2 package (Love et al., 2014). A particular gene was considered differentially expressed in a pairwise comparison between ICC 4958 and ICC 1882 samples if it exhibited log₂ fold change of ≥1 or ≤ –1 and corrected P-value ≤0.05.

Gene annotations, GO terms and pathway enrichment analysis

To determine their putative functions, the identified DEGs were subjected to Blastx similarity searches (E-value < 1e-05) against NCBI non-redundant protein databases. GO enrichment analysis for DEGs was performed using the R-based GOseq package (Young et al., 2010). Furthermore, the MapMan bin annotations for the genes were obtained using Mercator4 v2.0 (Schwacke et al., 2019). The GO terms and MapMan bins exhibiting a corrected P-value ≤0.05 were considered significantly enriched for a particular set of genes.

Candidate gene expression analysis

RNA was isolated from the seed and leaf samples of ICC 4958, ICC 1882 and CaTIFY4b-NIL, collected at the reproductive and pod-filling stages, under WW and WS conditions. The first-strand cDNA synthesis was performed using the SuperScript® III First-Strand Synthesis System (Invitrogen; Thermo Fisher Scientific, Waltham, Massachusetts, USA), following the manufacturer’s instructions. Quantitative real-time PCR (qRT-PCR) was performed on Applied Biosystems 7500 Real-Time PCR System using SYBR Green (Applied Biosystems, Waltham, Massachusetts, USA). Gene-specific primers used for qRT-PCR were designed using ‘Primer 3’ software (Rozen and Skaletsky, 2000), and the primer sequences are listed in Table S2. The glyceraldehyde 3-phosphate dehydrogenase (GAPDH) gene was used as an endogenous control. The data obtained from different cDNA samples were compared using the mean C_t values of three biological replicates, which were normalized to the mean C_t values of the endogenous control. The relative gene expression was measured using the $2^{-\mathrm{\Delta }\mathrm{\Delta }{C}_{\mathrm{t}}}$ method, and the significance value was calculated using Student’s t-test.
