Heritable temporal gene expression patterns correlate with metabolomic seed content in developing hexaploid oat seed

Validating the assembled oat transcriptome

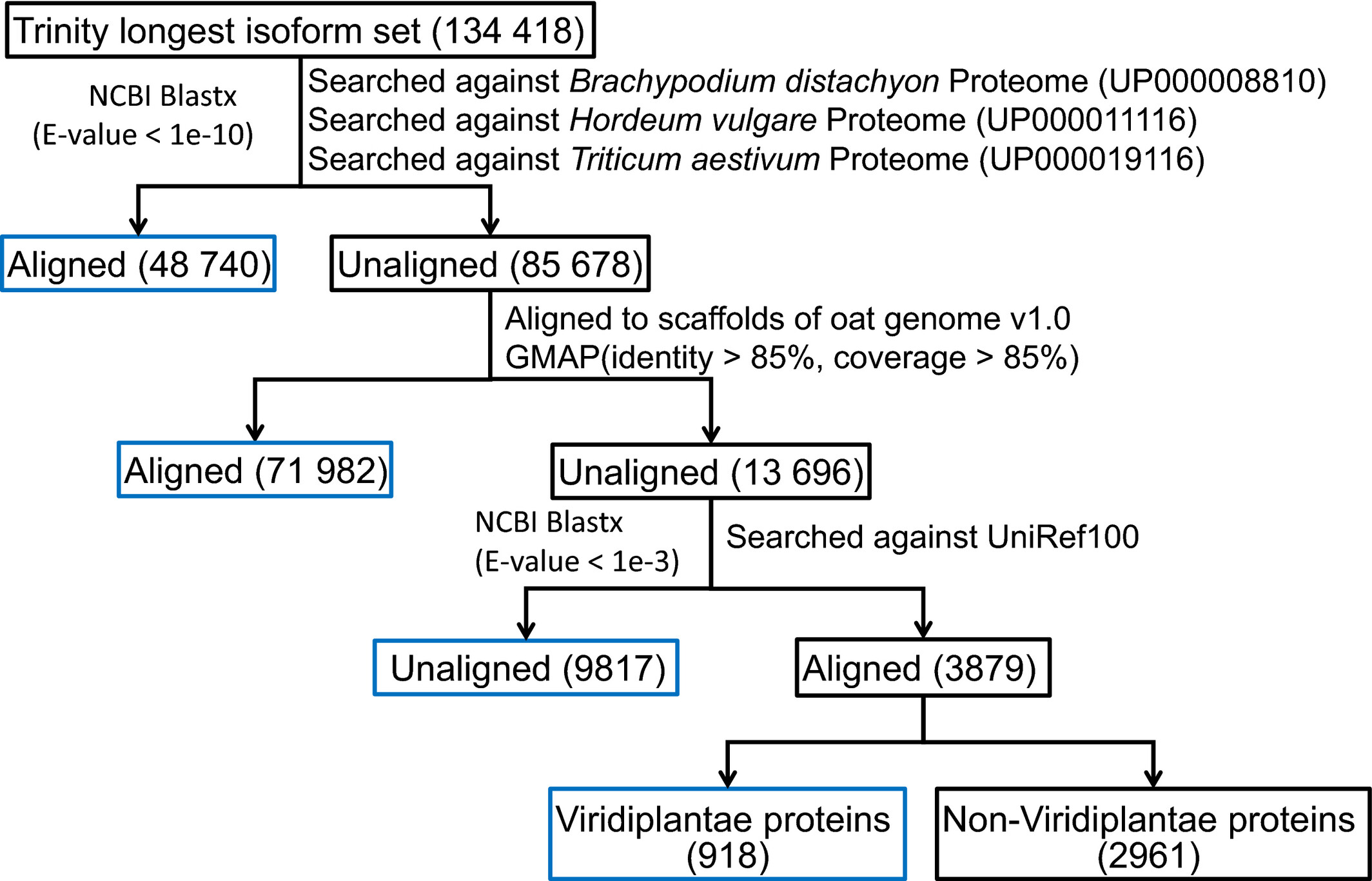

The set of longest isoforms from each Trinity ‘gene’ consisted of 134,418 transcripts (Figure 1). We aligned the Trinity longest isoform set against the Brachypodium distachyon (UP000008810), Hordeum vulgare (UP000011116) and Triticum aestivum (UP000019116) predicted proteomes (Uniprot 2019) using NCBI blastx (Camacho et al., 2009), retaining 48,740 (36.26%) transcripts with at least one hit with an E-value < 10^‒10. The remaining 85,678 transcripts were aligned to scaffolds of the hexaploid oat genome v1.0 (Avena sativa v1.0, http://avenagenome.org/) using GMAP (Wu and Watanabe, 2005); 71 982 (53.55%) transcripts aligned with >85% identity and >85% coverage and 13 696 (10.19%) not aligning. The unaligned transcripts were queried using NCBI blastx against UniRef100 at E-value < 10^‒3. 3879 transcripts were found to have at least one match, with 918 transcripts mapping to Viridiplantae (green plant) proteins and the remaining 2961 transcripts mapped to non-Viridiplantae proteins. The 2961 transcripts were excluded in the downstream analysis due to likely contamination. Therefore, our final representative transcriptome assembly (RTA) contained 131 457 transcripts (Appendix S1).

Of 56 877 (42.27%) and 27 278 (20.75%) transcripts of the RTA were longer than 500 and 1000 nucleotides (nt), respectively (Table 1, Figure S1). The N50, median and average transcript lengths were 1205, 433 and 757 nt, respectively. The RTA sums to a 99 539 633 nt assembly length.

We used the BUSCO (Waterhouse et al., 2018) database to validate representation of protein-coding sequences in the RTA. Using the BUSCO plants set (embryophyta_odb9), 1212 of the 1440 BUSCO genes were complete in the RTA with 1188 genes single copy and 24 duplicated (Table S1); 148 BUSCO genes were fragmented and 80 were missing (10.3% and 5.5% of the total, respectively).

Principal components analysis (PCA) of samples

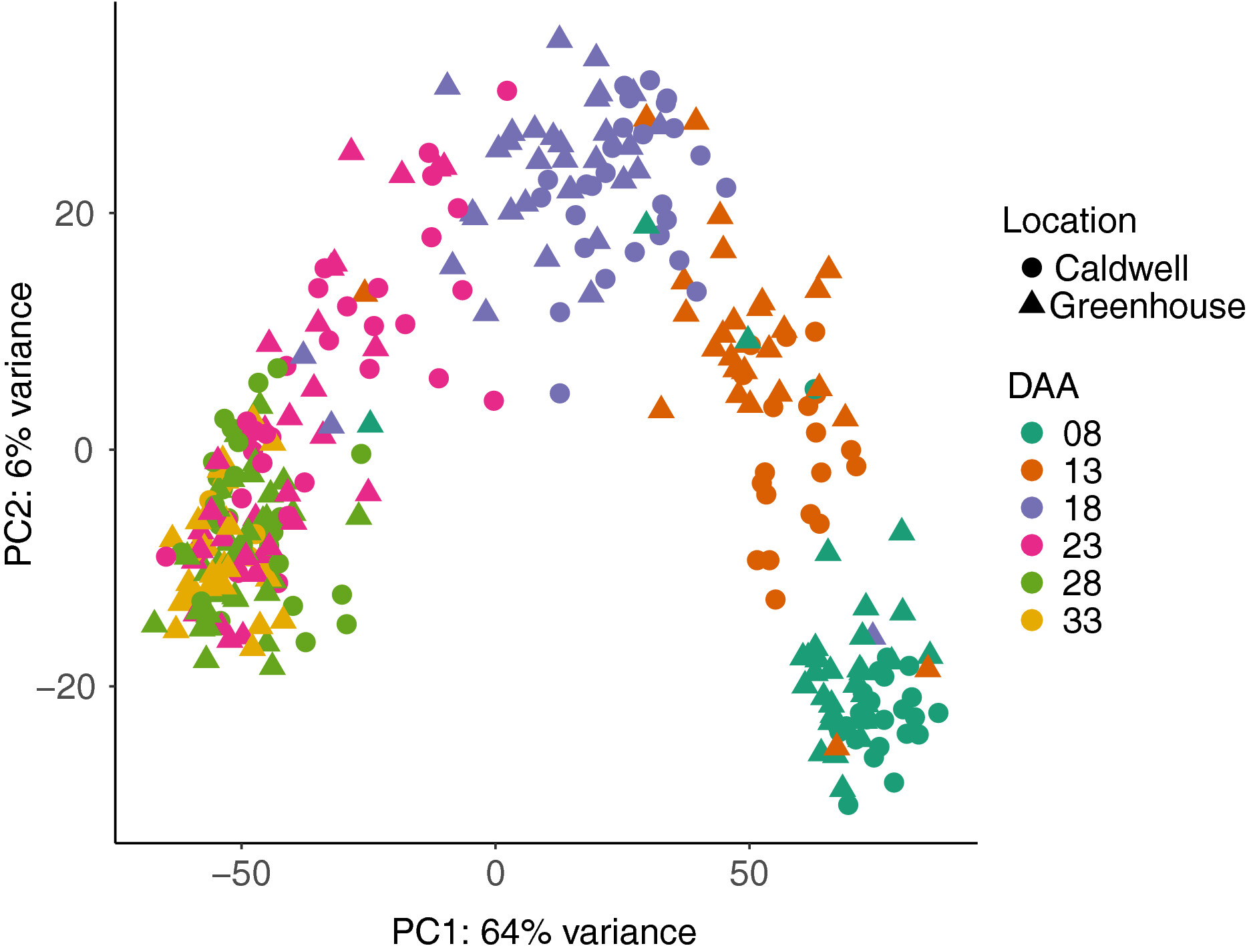

Developing seeds of 22 cultivars (Table S2) were collected at 8, 13, 18, 23, 28 and 33 days after anthesis (DAA) and expression abundances determined using 3′ mRNA QuantSeq (Moll et al., 2014). Of the 528 potential samples (22 lines x 6 time points × 2 sites × 2 replicates), we successfully sampled 419. From these 419 samples, 22 with <0.5 million mapped reads and 71 642 (53.30%) transcripts with less than two mapped reads in at least ten samples were removed. After this filtering, 397 samples (59 815 transcripts) were retained (Appendix S2). We performed PCA based on 500 transcripts with the highest variance. The second principal component separated the 397 samples into two distinct clusters with 71 and 326 samples (Figure S2). We could not identify the cause of this clustering. The PCA of the 326 samples showed the first principal component, explaining 64% of the variance, was driven by sampling time (Figure 2). Within the 326 samples, the average Pearson correlation coefficients of biological replicates were 0.874, 0.884 and 0.875 from greenhouse samples, field samples and among samples across the sites (Figure S3), respectively.

Pairwise correlation of transcript expression and number of differentially expressed transcripts (DETs) between adjacent time points

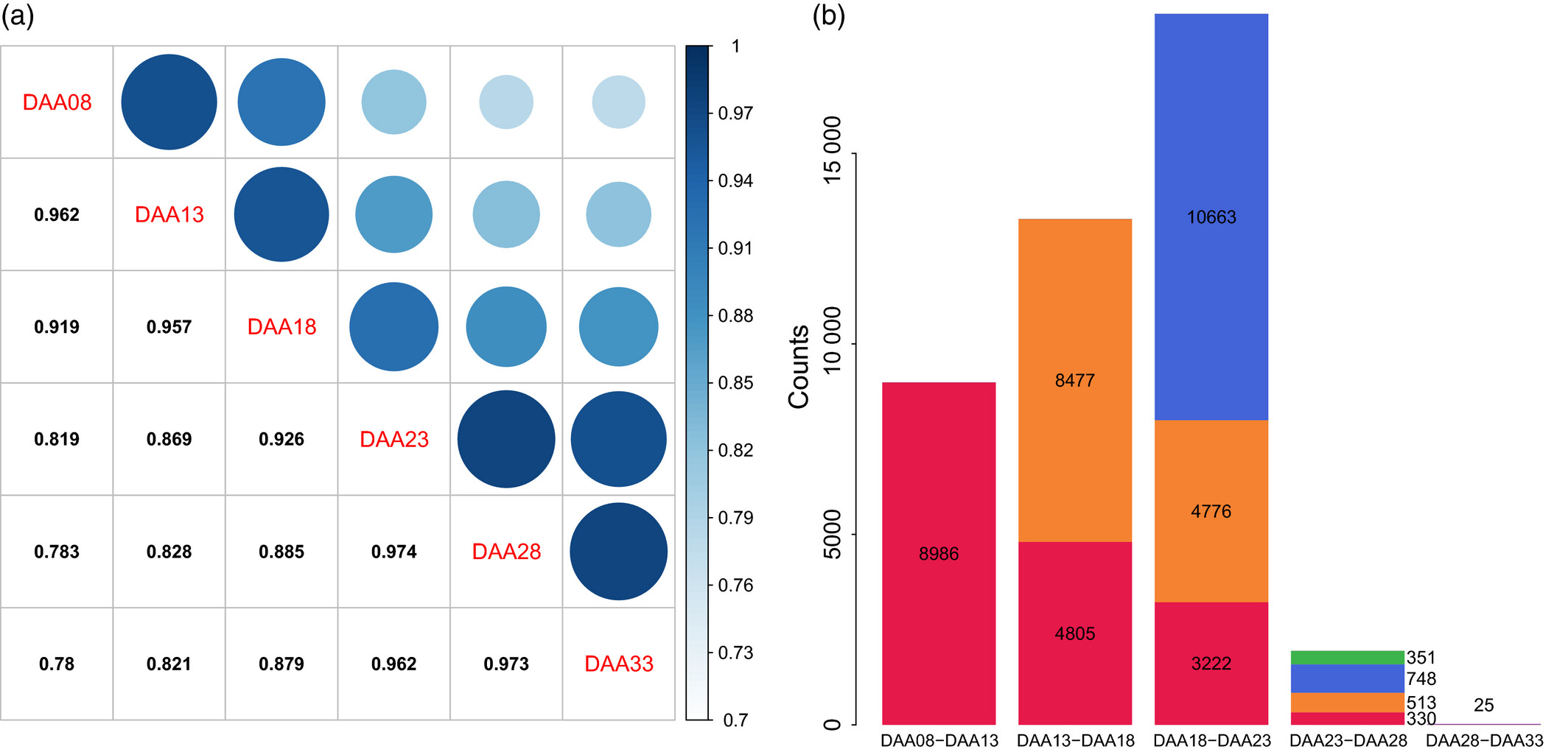

Using the 326 samples, we performed pairwise correlation analysis and differential gene expression analysis between time points (Appendix S3). This analysis showed high correlation between adjacent time points, with decreasing correlation as time increased (Figure 3a). For example, the transcriptome expression of 8DAA had correlation coefficients of 0.959, 0.917, 0.817, 0.781 and 0.777 at 13DAA, 18DAA, 23DAA, 28DAA and 33DAA, respectively. This analysis also splits the six time points into two groups. Transcriptome expression at 8DAA, 13DAA and 18DAA showed higher correlation with each other than with later time points. Likewise, expression at 23DAA, 28DAA and 33DAA showed higher correlation than with earlier time points. The lowest correlation between adjacent time points happened between 18DAA and 23DAA.

Differentially expressed transcripts analysis between adjacent time points showed that the greatest number of DETs occurred between 18 and 23 DAA and lowest number of DETs occurred between 28 and 33 DAA (Figure 3b). The maximum DETs occurred between early and middle stages of development, with many fewer DETs observed at later stages. We observed 8986 DETs between 8 and 13DAA, of which 4805 were also differentially expressed between 13 and 18DAA, while 8477 distinct transcripts were differentially expressed between 13 and 18DAA.

Gene category (GO) over-representation analysis for DETs between adjacent time points

For DETs identified in each time interval, GO enrichment analysis (Appendix S4) was performed with all transcripts having at least one GO term as background set (Young et al., 2010). The time interval of 13-18DAA had the highest number of over-represented GO categories at a false-discovery rate (FDR) adjusted P-value of 0.01 across all three domains of biological process, cellular compartments and molecular function (Figure S4), followed by 8-13DAA and 18-23DAA. Few GO categories were over-represented at 23-28DAA and 28-33DAA.

Generally, different GO categories were enriched for different time intervals, indicating the changing landscape of underlying processes. The common over-represented GO categories found between time intervals 8-13DAA and 13-18DAA were mainly related to peptide biosynthesis, amide biosynthesis and translation (Figure S4a). The common over-represented GO terms between time intervals of 13-18DAA and 18-23DAA related mainly to photosynthesis (Figure S4a, c). Oxidation–reduction (GO:0055114) was over-represented in all time intervals except 28-33DAA (Figure S4a), which is the very end of the sampled seed development stage. In contrast, nutrient reservoir activity (GO:0045735) was over-represented only in 28-33DAA (Figure S4c).

Global temporal co-expression (TCoE) patterns

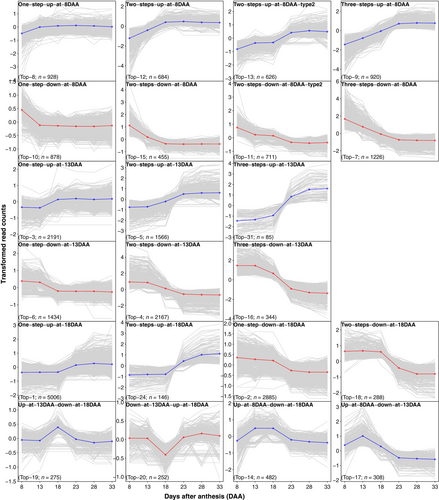

We used 25 971 total DETs between five pairs of adjacent time points to explore global TCoE patterns. Transcripts were clustered according to differential expression patterns. In theory, there are 3⁵ = 243 possible expression patterns considering that there are three states (up-regulated, down-regulated and no change) in each of the five time intervals. We observed only 80 expression patterns (Figure S5) with a very skewed frequency such that the top 20 patterns contain 91% of the transcripts (Figure 4). A permutation test including 1000 permutations to simulate the null hypothesis that expression change in one time period is independent of that in other time periods showed a minimum number of 91 expression patterns compared with the observed 80 patterns and a maximum of 84% of transcripts in the top 20 patterns compared with the observed 91% of transcripts. Relative to the permutation test, we observed far more transcripts whose expression changed in only one direction (either only going up or only going down over time) than would be expected: about 79.7% of observed DETs change in only one direction compared with a null hypothesis expectation of 50.0%. Among transcripts whose expression did reverse directions, we observed fewer transcripts going first down then up (41.8%) than expected (45.7%). Both deviations were beyond the maxima from 1000 permutations of the null hypothesis. Changes of state that included 13DAA or 18DAA were associated with the 6 largest (15 249, 58.72% DETs associated) patterns, where one-step-up-at-18DAA (n = 5006) and one-step-down-at-18DAA (n = 2885) were the largest. Interestingly, we found transcript numbers in symmetrical expression patterns to be similar. For example, the expression pattern of one-step-up-at-8DAA (Top-8) is symmetrical to one-step-down-at-8DAA (Top-10), and they contain a comparable number of transcripts (928 and 878, respectively). We also found that the number of transcripts in an expression pattern was predicted by the number of differential expression events in the pattern (e.g. ‘one-step-up-at-8DAA (Top-8)’, ‘up-at-13DAA-down-at-18DAA (Top-19)’ and ‘three-steps-up-at-8DAA (Top-9)’ have one, two and three differential expression events, respectively, Figure S6). Thus, the number of transcripts in an up-regulated pattern was well explained by the number of transcripts in its symmetrical down-regulated pattern and by its number of differential expression events.

Gene ontology analysis for identified TCoE sets

For the groups of genes identified by temporal clustering, 8 of the 22 patterns exhibited significant GO enrichment (Figure S7). The one-step-down-at-8DAA (Top-10) pattern exhibited GO enrichment for tRNA aminoacylation (protein translation), amino acid activation and tRNA aminoacylation. Two-steps-down-at-8DAA (Top-15) was associated with cellular localization and intracellular protein transport processes. GO terms enriched for the three-steps-down-at-8DAA (Top-7) included nucleosome assembly and protein–DNA complex assembly-related processes. GO terms enriched for the one-step-up-at-13DAA (Top-3) included a group of complex processes related to peptide biosynthesis, translation, rRNA and ncRNA processing/metabolic and nucleic acid metabolic processes. GO terms enriched for the two-steps-up-at-13DAA (Top-5) included a group of processing/metabolic procedures related to rRNA, ncRNA, mRNA and tRNA. GO terms enriched for the two-steps-down-at-13DAA (Top-4) included a group of processes related to photosynthesis. GO terms enriched for the one-step-up-at-18DAA (Top-1) included a group of processes related to regulation of biological process, gene expression, cellular process and metabolic process. GO terms enriched for the up-at-step-8DAA-down-at-13DAA (Top-17) related to regulation of photosynthesis.

Heritability estimation of the 22 TCoE sets

As we had both temporal and genetic breadth in our design, we estimated the heritability of our transcriptome, a novelty compared to previous studies (Li et al., 2014, 2018; Wan et al., 2008; Yi et al., 2019; Zhang et al., 2016). Within a TCoE set, we asked two questions: (i) which transcripts are strongly correlated with each other across genotypes such that they are similarly affected by genetic background? and (ii) is sufficient variation in transcript expression explained by genotype so that it potentially can be manipulated by plant breeders to change oat seed composition?

With these aims, we created subclusters (varying in number from 4 to 13) within each TCoE set based on the adjusted gene expression matrix of the full set of 397 samples with more than half million mapped reads (see Methods for details). We termed such subclusters genetic co-expression (GCoE) sets. Within each GCoE set, we calculated the PC1 score for each of the 22 oat lines and estimated the additive genetic variance of that score. We applied the same procedure to 50 permuted data sets. Heritabilities estimated from GCoE sets of the 22 TCoE sets (real data) were much higher than those estimated from permuted data sets (Figure 5). A majority of TCoE sets had highly heritable GCoE sets. Fifteen TCoE sets had GCoE sets with median heritablity exceeding 0.75; two had median heritabilities of GCoE sets between 0.5 and 0.75; three had median heritabilities of GCoE sets between 0.25 and 0.50. Two TCoE sets had GCoE sets with median heritability <0.25.

To test whether the distribution of GCoE set sizes of the 22 TCoE sets differed from that expected under the null distribution, we performed permutation analyses. We calculated Mahalanobis distance of cluster sizes from 1000 permutations to generate a Mahalanobis distance distribution of each permutation from the mean. We then calculated the Mahalanobis distance of the cluster size vector of the non-permuted expression matrix to the mean of permutation-based Mahalanobis distances and tested it using a standard chi-squared test, since the squared Mahalanobis distance follows a chi-squared distribution (Brereton, 2015; Wicklin 2012). None of the 22 TCoE sets deviated from the null distribution constructed from permuted data sets at significant level of 0.05 after Bonferroni correction (Table S3).

Correlation between transcript expression patterns and metabolites

To examine whether the transcript expression patterns associated with metabolite abundance, we applied a simple linear regression to detect the relationship between 634 metabolites (each with heritability >0.4) of mature seeds and PC1 scores of GCoE sets. The 634 metabolites included 9 fatty acids, 199 and 426 metabolite features obtained from targeted GC-MS, non-targeted GC-496 MS and non-targeted LC-MS analyses, respectively. For almost all the GCoE sets, we found the p-values from real data were much lower than that obtained from permutations (Figure S8).

Temporal transcript expression pattern of Avns and lipid biosynthetic genes

Two of the compositional features that distinguish oats from other cereals are high lipid levels and the multifunctional Avns. We identified transcripts with sequence similarity to biosynthetic genes for both pathways (Table S4). All of our candidates showed long alignment length and high percentage of identity to their reference sequences, and each had a high number of mapped reads across all samples except FAD3, which was excluded in expression pattern analysis.

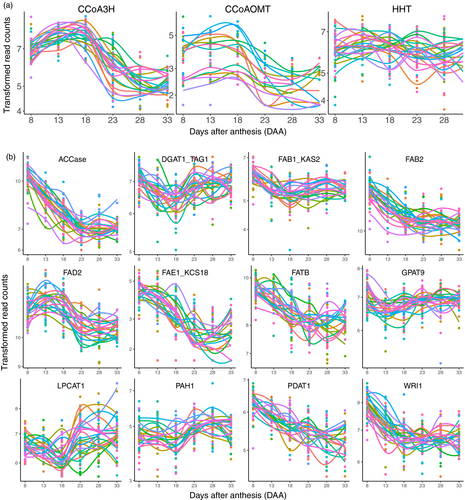

CCoA3H, CCoAOMT and HHT are three key genes for Avns biosynthesis (Collins, 2011). The CCoA3H gene was up-regulated from 8DAA (Figure 6a), reaching a peak either at 13DAA or 18DAA depending on genotype and then declining, and reaching a plateau at 23DAA or 28DAA. The CCoAOMT gene showed a similar expression pattern to that of the CCoA3H, but with more variation between genotypes. Expression of the HHT gene moved up and down within a relatively small range across all time points, but did not show a clear expression pattern common across all genotypes.

Key genes involved in fatty acid biosynthesis showed several different expression patterns (Figure 6b). Expressions of ACCase, FAB2, FAE1/KCS18, FATB, PDAT1 and WRI1 started to decline from 8DAA and reached a plateau either at 23DAA or 18DAA (WRI1). Expressions of DGAT1/TAG1, FAB1/KAS2, LPCAT1 and PAH1 started to decline at 8DAA, reached a valley at 18DAA and rose to a plateau at 23DAA. Expression of the FAD2 gene started to rise at 8DAA, reached a peak at 13DAA and declined after 13DAA until reaching a final plateau at 23DAA. The GPAT9 gene showed different expression patterns between genotypes, but most genotypes started to decline at 8DAA, then rose after 13DAA and reached a final plateau at 23DAA.

Transcriptome assembly validation and quality evaluation

A common issue for de novo transcriptome assembly is that while there are many transcripts in the initial assembly, there is no optimal approach to filter them. A number of studies have used the longest isoform (Gutierrez-Gonzalez, Tu, et al., 2013; Hirsch et al., 2014). In this study, we started with the longest isoform set (n = 134 418) and found 90.5% of it could be aligned to oat relatives (n = 48 740), oat genome scaffolds (n = 71 982) or Viridiplantae proteins (n = 918, Figure 1). However, 9817 (7.3%) transcripts could not be aligned to any of these. Hypotheses to explain non-alignment are that they were too small to align to a protein in UniRef100 (Figure S9), were non-coding RNA and were sequence unique to oat or Ogle-C-specific transcripts missing in the oat genome v1.0. There was no good reason to filter them out, so we included them in our RTA for the downstream analyses.

Various methods have been proposed to assess the quality of transcriptome assemblies. BUSCO has been considered the gold standard to evaluate completeness of genome assembly for transcriptome assembly (Simão et al., 2015). The BUSCO plant set (embryophyta_odb9) evaluates assembly content by searching the assemblies for 1440 conserved single-copy orthologs found in at least 20 of 31 plant species (Waterhouse et al., 2018). Of those, 1212 (84.2%) BUSCO plant genes were found to be complete in our RTA, which indicates a high level of overall coverage for our transcriptome assembly. Our data set is a substantial improvement over the first oat seed transcriptome assembly (Gutierrez-Gonzalez, Tu, et al., 2013), which only included 412 (28.7%) complete BUSCO plant genes (Table S1). Based on the expression profiles of 12 HiSeq samples of cv. Ogle-C whose developing seeds were collected at 7, 14, 21 and 28 DAA with three biological replications each, we were able to assign all 12 samples into four clusters corresponding to the four sampling times (Figure S10), and the average correlation among biological replicates was 0.97 (Figure S11). Finally, we evaluated the quality of our transcriptome assembly by searching the RTA for Avns and lipid biosynthetic genes homologous to other oat cultivars or other species. All three genes of CCoA3H, CCoAOMT and HHT involved in Avns biosynthetic pathways were found to have high similarity to their reference sequences from Arabidopsis, Brachypodium distachyon or other oat cultivars (Table S4). Twelve key genes involved in fatty acid biosynthesis were found to have high-quality homologs in the RTA, with the alignment length ranging from 825 bp to 7598 bp and the per cent identity ranging from 72.8% to 88.7%. For the ACCase gene, the B. distachyon reference sequence was 8783 bp, and the homologous transcript found in the RTA was 7812 bp with alignment length of 7598 bp and per cent identity for the alignment region of 88.7%. In summary, we created a high-quality and comprehensive transcriptome assembly, which is reliable for downstream analysis.

Important biological processes underlie different oat seed development stages

In Arabidopsis seed development, major accumulation of storage proteins occurs between 5 and 13 days after flowering (Ruuska, 2002). In maize, Li et al. (2014) found that DGE in early seed development (0–10 DAA) related to storage protein preparation. In wheat grain development, Wan et al. (2008) identified storage protein transcripts most abundant at around 14 DAA. In our study, for the early stage of oat grain development (8–13 DAA and 13–18 DAA), the dominant biological process ontologies enriched included peptide biosynthesis, amide biosynthesis, organonitrogen compound biosynthesis and translation, which are all relevant to protein synthesis. This suggests that oat seed storage proteins also accumulate at early grain development stages between 8 and 18 DAA.

Li et al. (2014) observed rRNA- and ncRNA-related biological process ontologies enriched in early developing kernels of maize (0–10 DAA). We found rRNA- and ncRNA-related biological process ontologies enriched between 13 and 18 DAA, which indicates that rRNA and ncRNA processing procedures might also be important between 13 and 18 DAA in oat.

Expression of photosynthetic genes peaked at 11 days after flowering in Arabidopsis developing seeds (Ruuska, 2002). Photosynthesis is the dominant biological process ontology identified at 14 DAA in wheat grain development (Rangan et al., 2017). Expression of 20 of 29 (68.97%) photosynthesis-related genes peaked at 8 DAA in developing barley grains (Bian et al., 2019). Here, photosynthesis-related GO terms were enriched in time intervals of 13–18 DAA and 18–23 DAA, which suggests immature oat seeds at early and middle development stages contain functional chloroplasts capable of photosynthesis during grain filling.

A GO category of nutrient reservoir activity was found enriched between 28 and 33 DAA, which suggested the importance of nutrient accumulation and storage at the late seed development stage. This GO term was also found to be enriched at storage phase of barley seed development (Bian et al., 2019).

Canalization and genetic differentiation of transcription

Given the 58 120 transcripts measured in the 3′ QuantSeq assay, we find it remarkable that only 494 showed a time by genotype interaction at an FDR of 0.1. While it is unclear how to formulate a null hypothesis against which to test this number, the fact that it is <1% of the transcripts suggests that temporal dynamics of expression are tightly controlled and canalized across genotypes. The seed is the sole vehicle for the survival of an annual from one year to the next. It stands to reason, therefore, that its composition, as affected by the temporal sequence of gene expression and therefore enzymatic activity, is important to fitness. A characteristic the analysis revealed about seed gene expression is that it is unimodal: about 92% of transcripts showing differential expression had only one peak of expression over the development of the seed. In other words, only 8% of transcripts showed first a significant drop followed by a significant rise in expression which would lead to expression peaks in distinct early and late periods of seed development. Only one of the top 22 clusters showed this pattern (Top-20 with 252 transcripts), and no gene ontology terms were enriched in this cluster.

While the temporal expression patterns appeared conscribed, our data also offered the possibility of exploring genetic variability in expression. To explore genetic variation, we further clustered transcripts in each TCoE set according to their co-expression across oat lines, allowing us to test the heritability of such genetic co-expression sets. We observed that for 17 of the 22 TCoE sets, median heritabilities of GCoE sets were above 0.50. Particularly, for 6 of the 22 temporal co-expression sets, heritabilities of GCoE sets were close to 1. The high heritabilities of GCoE sets arise for the following reasons: (i) within a GCoE set, profiles of transcripts are highly correlated and with almost the same shapes across genotypes, so the majority of variation in expression profiles is expected to be explained by variation of genotypes; (ii) PC1 was used to characterize a GCoE set, which reduced noise from individual transcript expression profiles (Krafft et al., 2011).

We further found heritabilities of GCoE sets estimated from our real data set were much higher than those estimated from permuted data sets (Figure 5). Moreover, after Bonferroni correction, none of the 22 temporal co-expression sets had a cluster size distribution significantly different from that of a null distribution obtained by permution (Table S3). Completing the causal chain from genotypes to transcribed genes to metabolomic phenotypes, we showed that for the overwhelming majority of GCoE (106 GCoE identified across 22 TCoE, Figure S8), transcript levels correlated with metabolite levels. Given the relatively small number of oat lines we worked with, statistical power to identify specific transcript to metabolite correlations was too low to overcome the multiple testing burden. Nevertheless, these correlations suggest the groups of genes we observed at temporally co-regulated clusters are biologically meaningful and represent useful groups of traits that breeders will able to select upon to manipulate oat seed composition to more desirable endpoints.

Temporal transcript expression patterns of Avns and lipid biosynthetic genes

Avns are produced in both vegetative tissues and grain (Matsukawa et al., 2000; Peterson and Dimberg, 2008; Wise, 2017). Enzymes involved in the biosynthetic pathway of the avenanthramides include CCoA3H, CCoAOMT and HHT (Collins, 2011; Yang et al., 2004). HHT is the final enzyme in the biosynthetic pathway. Little research has been conducted on gene expression of the three enzymes in oat. Activity of the final biosynthetic enzyme, HHT, has been found in dry seeds (Bryngelsson et al., 2003; Matsukawa et al., 2000). Temporal dynamics of HHT activity were investigated in spikelets containing developing grain using nine field-grown cultivars (Peterson and Dimberg, 2008). Most cultivars showed a trend of increasing activity during maturation; however, the HHT activity peaked at different times and had high variation at final harvest among cultivars (Peterson and Dimberg, 2008). Similarly, in our study, we did not observe a clear common gene expression pattern across all 22 genotypes for the HHT gene, although both CCoA3H and CCoAOMT showed a similar expression pattern over maturation across most of cultivars. This might be attributed to the complex role the HHT enzyme plays in biosynthesis of Avns, as it is involved in three different pathways and catalyses the biosynthesis of several different Avns (Collins, 2011).

In wheat and barley grains, oil accounts for 2%–3% of seed dry weight (Barthole et al., 2012). In contrast, oat grains are relatively rich in oil, which can vary from 3% to 11% of grain weight in different cultivars (Banaś et al., 2007; Liu, 2011), with breeding lines containing up to 18.1% (Frey and Holland, 1999). In most cereal grains, oil is mostly stored in the form of triacylglycerols (TAGs, esters of fatty acids and glycerol) within the embryo. However, the majority of oat lipids (86%–90%) are found in the endosperm, and up to 84% of the lipids are deposited during the first half of seed development, when seeds are still immature with a milky endosperm (Banaś et al., 2007). Little research has been done on temporal expression of genes related to oil storage in cereals. In the barley embryo, most lipids were deposited between 12 and 22 DAA, and the temporal expression profile of the oleosin 2 transcript constantly increased between 8 and 22 DAA and declined thereafter (Neuberger et al. (2008). However, we observed most lipid synthesis genes had high expression level at 8 DAA and then were down-regulated, maintaining a low expression level after 23 DAA. This is distinct from barley lipid synthesis gene expression, but consistent with findings of Banaś et al. (2007) that most oat lipids were deposited at early and middle stages of seed development.

Sample collection, RNA extraction, cDNA construction, Illumina sequencing of oat cultivar Ogle-C and transcriptome de novo assembly

The oat (A. sativa L.) genotype used for de novo transcriptome assembly was Ogle-C, derived from a single plant reselection of the cultivar ‘Ogle’ (Fox et al., 2001). Developing dehulled seeds, collected at 7, 14, 21 and 28DAA (Gutierrez-Gonzalez, Wise, et al., 2013), were the source of RNA. Two sets of libraries were constructed. First, libraries were constructed from RNA of all three biological replications from the four developmental stages (12 libraries, Appendix S5) and sequenced in paired-end mode with 100 cycles on the Illumina HiSeq 2000 machine as described previously (Gutierrez-Gonzalez et al., 2013). Second, longer reads were generated from a library constructed from a pool of RNA from the 4 developmental stages as described previously (Gutierrez-Gonzalez and Garvin, 2017) and sequenced on the Illumina MiSeq® platform using v3 chemistry generating 300 nt paired-end sequences (Appendix S6). Trimmomatic version 0.36 (Bolger et al., 2014) was used to remove the first 12 nt, Illumina Truseq adaptor remnants and bases with an average quality within 4-bp sliding windows below a base quality value threshold of 20. A read was removed from the data set if it was shorter than 81 nt for HiSeq-generated sequenced and 181nt for MiSeq sequences, respectively. Trimmed paired-end reads were assembled using Trinity v2.8.4 (Grabherr et al., 2013) with default parameters.

Validation of the de novo transcriptome assembly

We started with the longest isoform set from each Trinity ‘gene’ (Figure 1). The longest isoform set was then aligned against the Brachypodium distachyon (UP000008810), Hordeum vulgare (UP000011116) and Triticum aestivum (UP000019116) predicted proteomes using NCBI blastx 2.7.1 (Camacho et al., 2009) with an E-value cut-off of <10^‒10. Trinity transcripts without any blast hits were aligned to the oat genome v1.0 (Avena sativa v1.0, http://avenagenome.org/, consisting of 63 455 scaffolds lacking annotation) using GMAP version 2018-07-04 (Wu and Watanabe, 2005) with parameter settings of >85% coverage and >85% identity and all other parameters at default values. The unaligned Trinity transcript sets were searched against the UniRef100 database (Release: 2018_10, 07-Nov-2018) using NCBI blastx 2.7.1 with an E-value cut-off of <10^‒3. For the transcripts that did not align to the draft oat genome, we extracted the best hit for each query sequence from the UniRef100 alignments and used taxonomic information to identify potential contaminant sequences. To assess the completeness of the oat transcriptome we evaluated the RTA using the BUSCO toolkit (Waterhouse et al., 2018) using the Plantae lineage-specific single-copy orthologs (embryophyta odb 9) consisting of 1440 single-copy orthologs.

Experimental design, sample collection, 3′ RNAseq library construction, sequencing and metabolites chemical analysis of 22 oat lines

In 2016, we planted in the field and greenhouse 24 lines (Table S2) selected by clustering an oat diversity panel of 500 lines into 24 groups based on genotype and choosing the centroid of each cluster. This method of selection caused the lines to have low relatedness to each other, resulting in a genomic relationship matrix close to being diagonal (Figure S12).

In both trials, a randomized complete block design (RCBD) with two replicates was used (Table S5). Individual spikelets were tagged at anthesis, and 10 spikelets were collected at 8, 13, 18, 23, 28 and 33 DAA. Primary florets were quickly dehulled on dry ice, then placed in liquid nitrogen and transferred to −80C freezer for storage. Two of the 24 lines without developing seeds collected at both sites were excluded. Of the 22 lines × 6 time points × 2 sites × 2 replicates = 528 possible samples, 419 samples with sufficient seed were randomly assigned to five 96-well plates for RNA extraction and 3’ RNAseq library construction using the same procedure as described by Kremling et al. (2018) at the Cornell University Sequencing facility. Pooled libraries were sequenced using Illumina NextSeq500 and HiSeq2000 with a 150 nt single-end run, v2 chemistry (Appendix S7).

After harvest, mature seeds were dehulled and analysed with gas chromatography–mass spectrometry (GC-MS) and liquid chromatography–mass spectrometry (LC-MS) at the Proteomics and Metabolomics Facility at Colorado State University following Carlson et al. (2019).

Quality trimming 3′ RNAseq reads, transcript quantification and DGE analysis

BBMap version 37.50 (BBMap—Bushnell B.—sourceforge.net/projects/bbmap/) was used to remove adapter contamination, polyA sequences and low-quality sequences following a standard protocol described by Lexogen, Inc (QuantSeq User Guide) with slightly modified parameter settings of trimq = 20, maq = 20 and minlen = 50 to retain reads with a minimum per base sequence quality score of 20 and minimum length of 50 nucleotides. After read quality control, expressed abundances were determined using Salmon version 0.12.0 (Patro et al., 2017) and the RTA with default parameters. Samples with <0.5 million mapped reads and transcripts with less than two counts in at least ten samples were filtered out, leaving 59 815 transcripts for analysis. The filtered read count matrix was normalized by sequencing depth with a sample-specific size factor implemented in DESseq2 version 1.22.2 (Love et al., 2014). A PCA of samples was performed based on variance-stabilized expression estimates using the vst function in DESeq2 package. The sample PCA plot showed two distinct clusters. We performed differential transcript expression analysis based on the major cluster of 326 samples (58 120 transcripts left after filtering those with less than two counts in at least ten samples) using the DESseq2 package. First, we performed a likelihood-ratio test by comparing a full model (~genotype + time + genotype:time) against a reduced model (~genotype + time) to filter out transcripts showing a significant genotype-by-time interaction at FDR level of 0.1. This filter removed 424 transcripts, leaving 57 694 for subsequent analyses.

We performed a DGE analysis to identify transcripts differentially expressed between time points by controlling for the effect of different genotypes at FDR level of 0.05 using the standard method implemented in DESeq2 package. In order to understand how transcriptome expression correlated between time points, we averaged DESeq2 normalized read counts across samples within each time point for each transcript separately and then applied a pairwise Spearman's correlation analysis between time points. To identify global transcript expression patterns across time points common in all 22 oat lines, we constructed gene expression pattern sets consisting of DETs between any two adjacent time points. Based on the differential gene expression analysis results between any two adjacent time points, we partitioned all DETs in a single time interval into three categories including up-regulated, down-regulated and not differentially expressed, which were coded as ‘u’, ‘d’ and ‘0’, respectively. In this way, the expression pattern of each DET was coded as a string of five characters for the five time intervals. Finally, transcripts were classified into different temporal expression patterns based on their expression pattern codes.

Heritability estimation of identified TCoE sets and simple linear regression between metabolites and GCoE sets

Variance components and heritability estimates of GCoE sets were based on the DESeq2 variance-stabilized expression matrix with 397 samples and 59,815 transcripts after adjustment. We used the surrogate variable analysis (Leek et al., 2012) to get an estimate of latent factors, and then, the first latent factor was used to adjust for unwanted variation using the removeBatchEffect function implemented in R package limma (Ritchie et al., 2015). For each transcript separately, the least square means (lsmean) of expression values of the 22 lines were estimated by the linear model ~Line + Location + Location/Replication + Time, generating an lsmean expression matrix. For each TCoE set, hierarchical clustering was used to partition transcripts into 4 to 20 subclusters based on the Euclidean distance of the lsmean expression matrix. The optimized number of subclusters of each TCoE set was determined by selecting the number of clusters that made heritabilities of all subclusters relatively high and with low variation. Using a TCoE set-dependent and optimized number of subclusters is better than a uniform arbitrary number of subclusters applied to all TCoE sets because it allows different TCoE sets to have different genetic background partitions. For each GCoE set, PCA was applied to the lsmean expression matrix defined by the transcripts in that set, and scores of the first PC were extracted for the 22 oat lines. We fit nested models and performed a likelihood-ratio test: a full model, PC1score ~μ + Zu + e and a reduced model, PC1score ~μ + e. In the full model, the random term u estimated the oat line additive effect with u ~ N(0, K $$), where K was the genomic relationship matrix among the 22 oat lines (Figure S12) and $$ was the estimated additive genetic variance. For both models, the residual was distributed as e ~ N(0, I $$), with I being an identity matrix. The heritability was estimated as $$.

To test rigorously whether the observed distribution of cluster sizes deviated from its expectation under the null distribution, we used permutation testing. For a given TCoE set, expression of all genes was permuted relative to each other. The permuted matrix was then clustered to form eight clusters and the clusters ordered by size, but always dropping the smallest cluster. Permutation and clustering were repeated 1000 times. The mean and covariance matrix among permuted cluster sizes were used to calculate the Mahalanobis distance of the non-permuted cluster size vector from the mean, and a corresponding p-value was calculated based on a chi-squared distribution with 7 degrees of freedom (Brereton, 2015; Wicklin 2012). This procedure was repeated for each of the 22 TCoE sets.

Of 10 fatty acids, 282 and 529 metabolite features were obtained from targeted GC-MS, non-targeted GC-MS and non-targeted LC-MS analyses of mature seeds harvested from the two sites. A standard linear mixed model (~Line + Location + Location/Replication + Location: Line) of the RCBD design was fitted for each metabolite using R package lme4 (Bates et al., 2015), with all terms treated as random. The heritability was estimated as $$. The metabolites with heritability >0.4 were used as response variable in a simple linear regression with PC1 scores of each GCoE set as predictor. To compare the p-value obtained from real data against random sampling, for each metabolite and transcript abundance regression, we performed 100 permutations of PC1 scores of each GCoE set. Finally, p-values from permutation and non-permutation analyses were plotted.

Transcriptome annotation and GO analysis

Functional annotation of the RTA was done following a standard workflow implemented in Trinotate v3.1.1 (Bryant et al., 2017), which provided a comprehensive annotation including GO annotation assigned to each gene. To understand the biological functions behind the DETs between adjacent time points and those transcripts clustered to different temporal expression patterns, GO category over-representation analysis was performed using all transcripts of the RTA having at least one GO term as a background set with the R package of goseq v1.34.1 (Young et al., 2010). Over-represented GO categories that were significant at FDR adjusted p-values of 0.01 were further plotted using the R package ComplexHeatmap 1.20.0 (Gu et al., 2016).
