2.1 Pain, nociception and sedation

Effective management of pain in children is necessary to reduce distress and minimize acute physiological instability. However, due to its subjective and multidimensional nature, pain may be inconsistently assessed and inadequately treated. Regular standardized pain assessment is necessary for titration of analgesia to individual needs and assessment of treatment response.

Nociception, in contrast to pain, is not a subjective feeling but the physiological response to nociceptive stimuli and by itself is very difficult to measure in the clinical environment. Monitoring nociception may allow a reduction in stress response beyond simply controlling hemodynamics and may identify patients with a higher likelihood of severe pain.

Sedation can be described as a continuum of levels of consciousness, ranging from conscious to deep sedation, and finally to general anesthesia.¹⁰ Effective sedation requires identifying appropriate goals (e.g., managing anxiety, modifying behavior/movement that hampers care, and minimizing physical discomfort), titration according to patient need, regular monitoring and techniques appropriate for the clinical context and practice setting (e.g., brief procedure or prolonged intervention; ward or intensive care; mechanical or spontaneous ventilation).¹⁰

2.2 Pain measurement tools

Pain measurement tools are available for children across a broad age range and should be matched to the age and development of the child.¹¹ Over 65 pediatric pain scales are published, examples of which are listed in Table 1. Many of these tools have been validated for use in specific populations, for example, premature infants.

Self-report is considered the “gold standard” for pain assessment but is not feasible for all ages or practice settings. Observer-based behavioral measurement tools can be used in younger and preverbal children and specific measures are available for children with cognitive impairment. A wide variety of pain assessment tools have been used in PKPD modeling, including N-PASS,¹² COMFORT^{13, 14} and faces scales.¹⁵ Commonly used sedation scales include the Ramsey Sedation Score (RSS) and the Richmond Agitation Sedation Scale (RASS) (Table 1). The RSS is frequently used in PKPD modeling studies for sedative drugs.¹⁶

Ideally, all researchers would use the same pain scales, selected from a limited number of externally and widely used scales. Data from different trials could then be compared with each other and pooled for meta-analysis. The Pediatric Initiative on Methods, Measurement, and Pain Assessment in Clinical Trials (PedIMMPACT) statement, published in 2008, aimed to address these issues by recommending six core outcome domains for acute pediatric pain trials and the use of specific pain scales in children of different ages and clinical scenarios.¹⁷ However, a large number of pain scales continue to be used in pediatric pain studies.¹⁸

Several innovations in pain assessment are ongoing, for example, the development of the standardization of patient-reported outcomes through the patient-reported outcomes Measurement Information System (PROMIS)¹⁹ with work underway to validate the PROMIS measures in children in a variety of painful conditions. Ongoing technological innovations, such as the use of electronic daily diaries in pediatric pain trials for real-time measurement of pain and will profoundly affect research and clinical practice.¹

2.3 Nociception monitors

The most frequently used response to “surgical stress” is an increase in sympathetic activity or the corresponding decrease in parasympathetic tone. Changes in cardiac autonomic control (i.e., increased heart rate), increased peripheral vasoconstriction, pupillary dilatation and an increase in galvanic skin conductance offer a relatively easy access to the evaluation to such sympathetic response. In addition to these “simple” reactions, stress may also influence salivary cortisol levels, heart rate variability, electroencephalographic (EEG) and electromyographic (EMG) patterns, and the threshold of peripheral reflexes. The most commercially available monitors are based on the detection of one, two, or multi-parameters,²⁰ examples of which are given in Table 2. Although these nociception monitors appear to reflect intraoperative stimuli better than traditionally used parameters such as blood pressure or heart rate, to date, none have shown a convincing and clinically relevant benefit to support their routine use. There are also challenges in using these monitors in the very young. A neonate will display behavioral responses to distress when awake but hemodynamic parameters and motor reflexes under anesthesia are poor indicators of anesthetic depth.²¹

Nociceptive cortical activity can also be studied using techniques such as near-infrared spectroscopy (NIRS) and functional magnetic resonance imaging. These techniques provide an indirect measure of neuronal activation inferred from changes in cerebral blood flow in response to a stimulus.

Tools measuring pain intensity have been used in PKPD modeling to describe the change in drug response over time. Clinically required procedures such as blood tests, which have an expected intensity, frequency, and duration of stimulus, are often used to ensure a precise estimation of PKPD parameters and improve the robustness of the model.²²

2.4 Cerebral function monitors

Cerebral function monitors offer a more objective method of monitoring sedation, particularly in the ICU setting. The processed EEG is useful in monitoring sedation in children, however, specific interpretation of these signals is required in neonates and infants. Maturation of the neonatal brain, in particular neuronal myelination, results in age-dependent changes in the EEG frequency bands and their relative amplitude (power). Common indices include spectral edge frequency (SEF), density spectral array, burst suppression ratio, Patient State Index and Narcotrend Index.²¹ However, depth of anesthesia monitoring is of little value in neonates and infants where the target concentration is seldom known and EEG monitoring is inadequate.²³

Quantitative EEG is the most commonly used biomarker for anesthetic drug activity in both preclinical and clinical PKPD modeling.^{4, 24-27} Because such mechanism-based PKPD models characterize processes on the causal path between drug administration and effect, they have important advantages in terms of translation and prediction. The cortical EEG signals reflect voltage fluctuations within neurons in the brain and can be analyzed using different indices such as Bispectral index (BIS) and entropy, depending on the algorithm used. BIS provides a score between 0 and 100, inversely correlated with the level of sedation and results from an amalgamation of time, frequency and spectral analysis.²⁸ Entropy evaluates the depth of hypnosis through analysis of the EEG signal's irregularity. Wave patterns become more regular as anesthesia deepens, and are processed into two indicators: state entropy (SE): 0–91 and response entropy (RE): 0–100, with different characteristics in frequency bandwidths and temporal window length.²⁸ BIS is the most common tool used as a PD endpoint to evaluate the efficacy of sedatives.^{4, 26, 27} However, it is important to note that EEG dynamics change throughout childhood due to the expression of cortical and subcortical network developmental processes. All infants lack the frontal alpha predominance and coherence seen under sevoflurane anesthesia in adults, and theta and alpha oscillations appear at around 4 months of age.²⁹ Therefore, EEG monitoring-based algorithms relying on the frequency components of the EEG need to be adjusted to account for age-related changes in the EEG, specifically in infants.

NIRS, NIRS combined with EEG, and MRI can also be used to measure brain activity evoked by noxious stimulation, modulation by analgesia, and effects of sedation/anesthesia.^30-32 The identification of robust and developmentally-sensitive pain indicators should continue to be a priority, so that better tools are available for use in both clinical practice and research.¹ These specialized techniques may provide additional outcomes for future PKPD studies.

2.5 Pharmacodynamic endpoints

PD endpoints measure a drug's activity in the body using biomarkers and/or clinical outcomes to quantify efficacy and safety. Various measures of drug response are used routinely in clinical practice to guide therapy, however PD endpoints are often parameterized (e.g., turned into a score) in order to compare treatments, particularly in the research setting.³³ Examples of validated age-appropriate PD-related scoring systems include the COMFORT-B score used to measure sedation in pediatric critical care. However, there is no single preferred validated scoring system able to reliably detect the varying degrees of anesthesia in pediatric patients. Depth of anesthesia is a theoretical construct without an accepted standard for clinical measurement, which is a limitation in many PD modeling studies.²⁸

The relationship between drug exposure and PD endpoint has been inadequately studied in children. Developmental (ontogenetic) changes can affect how a drug is handled by the body³³ and this variability in drug exposure affects both the desired pharmacological response and the risk of adverse effects. Although there is increasing knowledge of PK in neonates and children, there is a paucity of information related to PD in children and addressing this pediatric PD knowledge gap must be the focus of future research.

2.6 Pharmacological treatment

The evidence-base for the pharmacological management of acute pain in children is increasing but there are still relatively few controlled trials in neonates. Many sedatives and analgesics are prescribed with limited evaluation in children.

Acetaminophen is a frequently used analgesic, either alone for mild pain or as part of combination therapy for more severe pain. Data for safe and effective dosing is now available.^34-36 Nonsteroidal anti-inflammatory drugs also provide benefit alone or as part of multimodal analgesia if there are no contra-indications to use.^{34, 35}

Opioids remain the first-line treatment for children with moderate to severe postoperative pain.³⁷ Titrated bolus dosing can be used for procedural pain in intensive care but the long-term risk–benefit of opioids for sedation in mechanically ventilated neonates is debated.³⁸ In children, PKPD models have described the optimal doses of intraoperative remifentanil and fentanyl,^{5, 39} postoperative oxycodone⁷ and morphine.^{8, 13} However, there is a clear need for additional PKPD data to inform opioid use in children of different ages and clinical settings. Pharmacogenetic differences may also influence efficacy or safety of opioids. For example, ultrarapid metabolism of codeine and tramadol by the enzyme CYP2D6 has been associated with respiratory depression and death, and led to recommendations to avoid these drugs in children under 12 years and older children at increased risk (e.g., following tonsillectomy, obstructive sleep apnea, obesity).³⁷

Benzodiazepines, such as midazolam have previously been the sedative agent of choice. In addition to sedation and anxiolysis, anterograde amnesia with midazolam may provide benefit, particularly on PICU.⁴⁰ However midazolam may also be associated with paradoxical agitation, tolerance, dependence, and withdrawal, and associations with impaired neurodevelopmental outcome have reduced its use for prolonged sedation on NICU.^{40, 41} The use of alpha-2-adrenergic receptor agonists such as clonidine and dexmedetomidine has increased, due to the lower incidence of adverse effects (particularly respiratory depression and withdrawal), agitation and delirium and potential reduction in stress response.

Propofol and combinations of opioid/propofol or ketamine/propofol(ketofol) can be used for deeper sedation,⁴² but careful titration and adequate monitoring is essential to ensure safety. Eleveld et al. have validated a PKPD model to predict propofol concentrations and BIS for a broad population range.^{4, 43}

2.7 Modeling approaches

Due to age-dependent differences in PK (e.g., clearance, metabolism, distribution) and PD (physiological and behavioral response, susceptibility to side effects), using linear weight-based extrapolation of doses from adults does not usually provide equivalent analgesia or sedation in children of all ages. Modeling approaches for analgesics and sedatives have increased to identify the adequate dose regimen for different age groups, improve pharmaceutical study design, and optimize drug administration protocols.

A PKPD approach can be used to develop mathematical models that describe and predict the PK and PD of analgesic and sedative agents, and link PK to PD. However, PKPD relationships have not been fully explored for all agents. The PKPD models generate parameter estimates such as maximum analgesic effect, the concentration of half-maximum effect and the effect-site equilibration rate constant. They also describe the between-subject variability of these parameters which allows dose adaptation for special populations by identification of subgroups (e.g., responders vs. nonresponders).²² As sedatives are often used in combination with analgesics, it is important to test the influence of these co-medications by including them in the PKPD efficacy models.^{24, 39}

2.8 Pharmacokinetic models

The population approach used in PKPD modeling uses a statistical method called mixed effects to fit the models (find optimal values of model parameter estimates). Mixed effects, or multilevel modeling, allows repeated measures within individuals to be grouped by allowing model parameters to vary between individuals, and is the generally accepted optimal way to analyze population PKPD data.⁴⁴ Fitting a model allows the estimation of PK parameters such as volume of distribution and clearance from observed data (such as plasma concentration) given dosing-specific variables (i.e., dose, time) and patient-specific covariates (e.g., body weight). The most popular method for analyzing population PK data is nonlinear mixed-effects (NLME) modeling. With the NLME approach, the model is fitted to data from all individuals simultaneously to estimate both population average PK parameters and variability. There are two different sources of variability: between-subject variability (BSV) which is the variance of parameters between subjects, and the unexplained variability called residual unexplained variability (RUV) that may arise from measurement noise or model misspecification. In order to avoid bias, mixed effect modeling includes the correlation of data points within individuals and the variability of parameters between individuals. This population model fitting generates PK population parameters (including their between-subject variability) and the variance of variability unexplained by the model.⁴⁴ PKPD data are mostly analyzed using the compartmental approach, which uses hypothetical compartments connected to each other to represent the human body⁴⁵ (see Figure 3). The central compartment consists of the plasma and tissues, and following an intravenous bolus, the drug distribution is practically instantaneous. For drugs administered via extravascular routes (such as buccal midazolam or intranasal dexmedetomidine), absorption to the central compartment is usually described by a first-order kinetics. The peripheral compartments consist of tissues where the drug distribution is slower compared to the central compartment. However, for most of the models, these compartments have no real anatomical meaning, they are treated as systems with lumped organs or tissues, for example, for simplicity the whole human body may be seen as a single compartment during PK modeling.

2.9 Pharmacodynamic models

There is no standard method to develop a PKPD model. Either PK and PD can be estimated simultaneously (“simultaneous” method), or the PK model is built first, then the PD is estimated with the PK parameters fixed if the model is unstable (“sequential” method).⁵⁴ The simultaneous method is considered the “gold standard”; however, in numerous cases the model is not stable enough to estimate the parameters using this method, so the sequential method is preferred.⁵⁴

There are different ways to model the PD variables depending on whether the variables are continuous or categorical. For continuous PD variables such as visual analogue pain scales or EEG index signal (BIS and SE), linear, log linear and E_max models have been used.²⁴ Often a delay between observed concentration and effect occurs, in which case effect compartment models and indirect response models are suitable.⁵⁵ For categorical PD variables, the data are analyzed with logistic regression. A model of cumulative probabilities can be used to describe ordinal categorical data such as the COMFORT scale. However, Peeters et al¹⁴ in their PKPD study of propofol in children modeled the COMFORT score as a continuous variable with an E_max value corresponding to the maximum score of the scale.

Most of the PKPD models evaluate the relationship between efficacy and drug concentration. However, some models also evaluate the relationship between concentration and safety parameters such as blood pressure and heart rate.⁵⁶ Unlike PK models, PD scaling for pediatric patients, including allometric scaling and maturation over age, is not universally applied. However, developmental PD differences should be considered for inclusion in the model when feasible, especially in infants and neonates. For example, BIS and entropy monitors are less linearly correlated in infants and there is an age dependent effect on the pharmacodynamic relationship.^{57, 58} Sciusco et al. applied a mixed effects model population approach with concurrent BIS and entropy monitoring comparing model fit characteristics of the concentration-response relationship at different ages in pediatric surgery.²⁸ They could not exclude the possibility of a maturational effect of the pharmacological model itself (i.e., nonsigmoidal relationship) so used the measure of absolute conditional individual weighted residuals (CIWRES), a metric of model goodness-of-fit which should be independent of covariate effects because it is based on individual model predicted values. With rich data they were able to explain that the observed trend was due to differences in PD endpoint, that is, the data produced by the EEG monitors.²⁸

Few PKPD models have included the influence of age on parameters using either allometry scaling or linear relationship.^{24, 27} Some models have also included other covariates (e.g., infusion rate,²⁴ weight⁵⁹ and mechanical ventilation¹³) in order to obtain a better estimation of the parameters. In certain situations the inclusion of the metabolite concentration also improves the model fit and therefore should be taken into account in the PKPD model building⁵⁹ For instance, the model published by Garrido et al⁵⁹ showed that using the concentration of the tramadol metabolite was more relevant when describing the relationship between the drug and some efficacy endpoints.

2.9.1 Models for continuous pharmacodynamic variables

Continuous variables are numeric variables that can take on any score or value within a measurement scale. There are two main types of continuous variables, interval and ratio. Interval variables have numerical values which can be ordered and the distance between each score is equal and static (e.g., temperature). If this variable has a clear 0 point which indicates that there is none of that variable and the ratio of the scores make sense, this variable is called ratio (e.g., weight, age, distance). For instance, if respondents were being surveyed about their pain levels on a numerical rating scale of 0–10, a respondent with a pain level of 10 is assumed to have twice the pain experienced as a respondent who selected a pain level of 5.

Direct models

First, it is important to define the PD model which describes the response data. The direct models are the most commonly used PD models in the literature due to their simplistic but also mechanistic nature.⁵⁵ In these models, a change in blood drug concentration causes an effect which can be observed instantaneously. These models can be linear and log linear which suppose a proportional relationship between concentration or log-transformed concentration and effect as described by the following equations⁵⁵:

$$\begin{array}{c}E=m·C_p+E_0\\ E=m·\log \left(C_p\right)+E_0\end{array}$$()

where $E$ is the effect, $C_p$ is drug plasma concentration, $E_0$ is the baseline effect, and $m$ is the slope.

The linear model may provide a good description of concentration-effect for small concentration ranges. However, the log linear model is more appropriate for concentrations that produce effects between 20% and 80% of the maximum effect (E_max). These models have some disadvantages since they are not able to predict a saturated E_max for high concentrations. This issue is removed in the E_max model. The limited resources of biological systems (e.g., receptor protein) are taken into account in this model by the notion of maximum effect represented by the plateau in Figure 1.⁶⁰ When the effect is between 20% and 80%, the relationship between concentration and effect is log linear. The slope of this log linear function can be controlled by adding an exponent to the E_max model; this model is called sigmoidal E_max model:

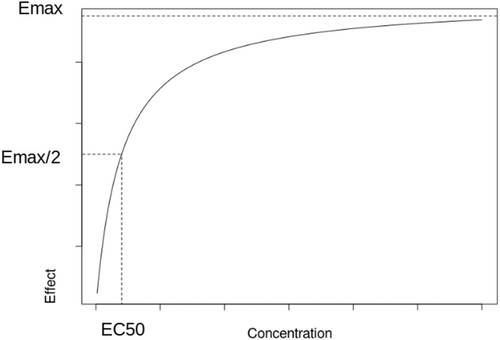

$$E=E_0+\frac{E_{\max }·C_p^n}{\mathrm{E}{\mathrm{C}}_{50}^n·C_p^n}$$()

where $E$ is the observed effect, $E_{\max }$ the maximum effect, $\mathrm{E}{\mathrm{C}}_{50}$ is the drug concentration for 50% E_max effect observed, $E_0$ the baseline effect, $C_p$ the drug concentration, and n the slope exponent.

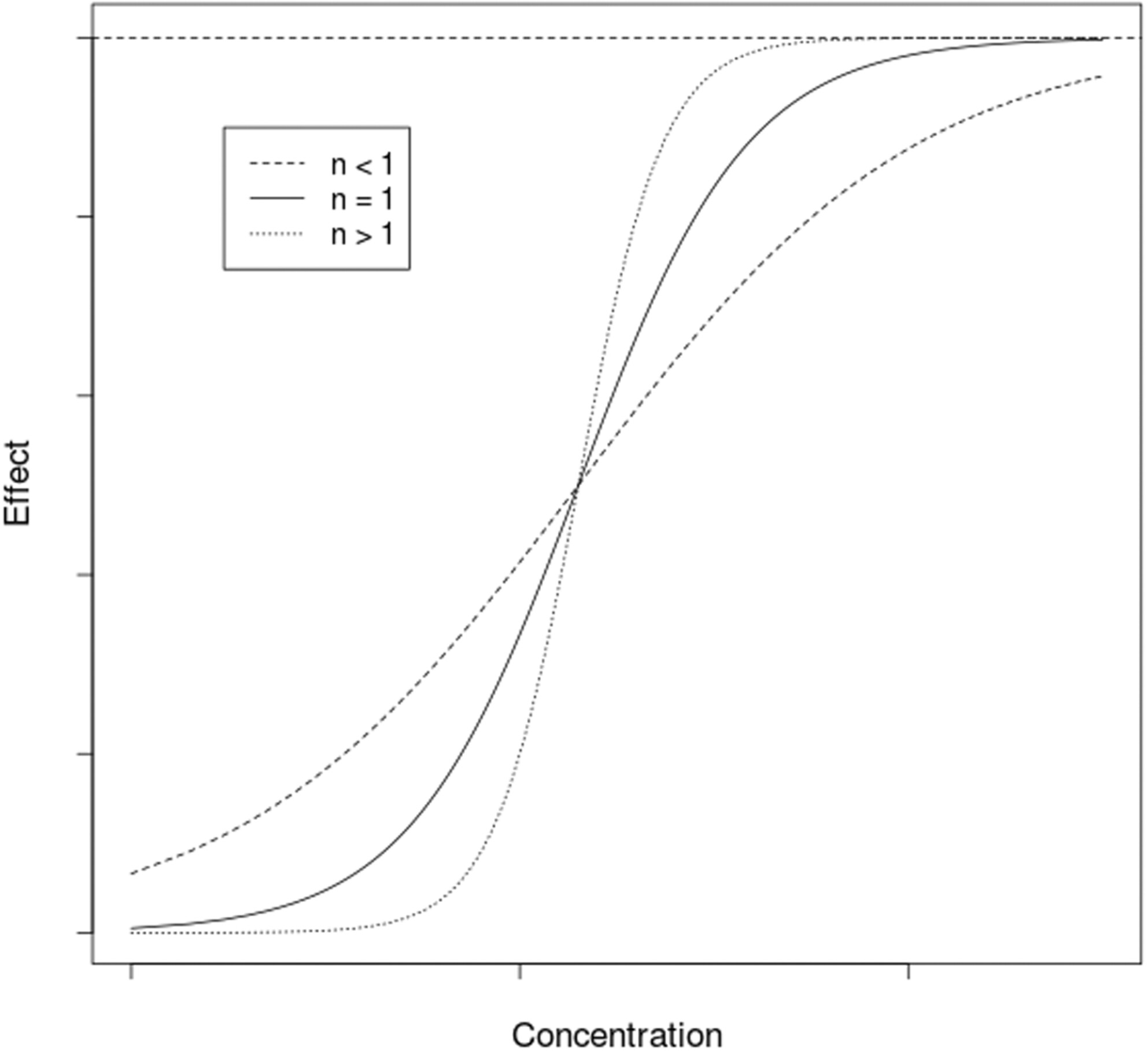

When n > 1, the hyperbolic function becomes sigmoidal hyperbolic. However, in PKPD this n parameter has no real physiological meaning. For n < 1, E_max/2 is reached quickly then the evolution to E_max is slow whereas for n > 1, $E_{\max }$ is reached more rapidly with lower concentration (Figure 2).

It is common to observe a time delay between a dose given and the observed effect. In this case the PK and PD do not belong to the same compartment. The relationship between effect and concentration is represented by a hysteresis, which is the typical curve observed in indirect response models. Hysteresis describes the time delay between plasma concentration and effect and can be caused by different physiological mechanisms such as sensitization or formation of active metabolites.⁶¹

Effect compartment models

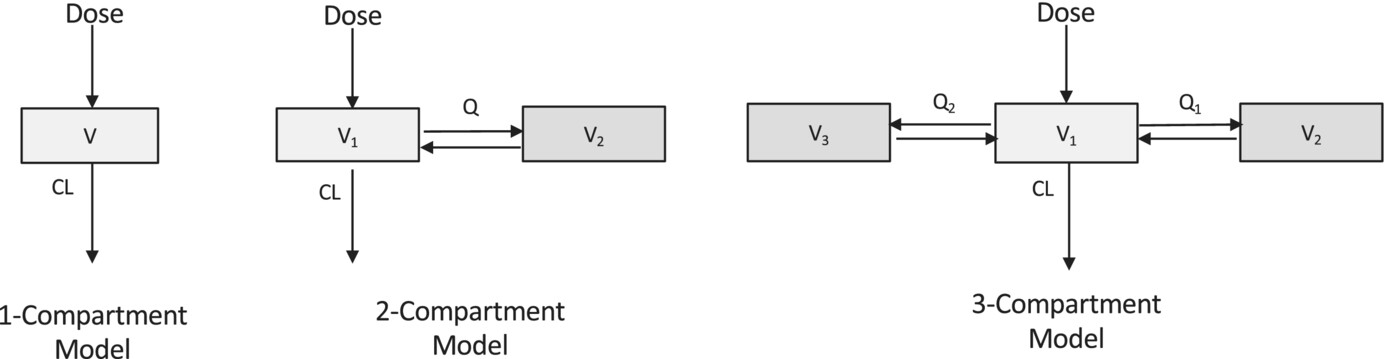

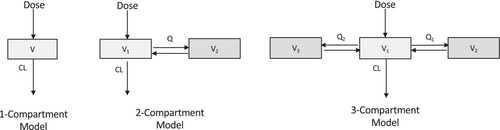

In the case of hysteresis, the PKPD model most often used is the biophase model, also called the effect compartment model. The concept is to integrate a hypothetical effect compartment to the PK compartment models as described in Figure 3. It is assumed that the amount of drug in the effect compartment is negligible and therefore the mass balance in the system is not affected. By adding the hypothetical effect compartment, the drug concentration in the effect compartment is then linked with observed PD effect.

$K_{\mathrm{e}0}$ is the effect-site elimination rate constant and determines the time delay between observed plasma drug concentration and the PD effect. The K_e0 can also be parameterized as a half-time K_e0 (ln (2)/K_e0), which is directly correlated with the time of equilibration between the central compartment and the effect site. In an extreme case where $K_{\mathrm{e}0}$ is estimated as a very large value, this would suggest a fast equilibrium between plasma and effect compartments and therefore the effect compartment can be removed without a delay in effect. In case of a delay in effect, the effect compartment can then be regarded as a direct model making it possible to use direct PD models such as an $E_{\max }$ sigmoid model to describe the effect.

The biophase model is the most commonly used PKPD model for analgesics and sedatives.^{4, 5, 26, 27} For instance, several studies used an effect compartment to link concentration of propofol and sedation measured by BIS. Since the BIS value inversely correlates with the level of hypnosis, the relationship between the effect-site concentration of propofol and BIS can be evaluated using an inhibitory sigmoid E_max model.^{4, 25, 26, 61} In certain situations, it is possible to include more than one PD effect compartment. For example, Blussé van Oud-Alblas et al²⁶ used an inhibitory sigmoid E_max model with two effect compartments to describe the relationship between propofol concentration and sedative effect.

Indirect response models

The indirect response corresponds to the PD response caused by the drug which alters the production ($K_{\text{in}}$) or dissipation ($K_{\text{out}}$) process of endogenous factors. Although this model is frequently used in PKPD modeling for adult and pediatric populations, it assumes the measurement and inclusion of a biomarker, which is rarely used to assess pain and sedation. Hence, there is no indirect model published to date describing the effect of analgesics and sedatives in children.
